Problem 8-107

Problem 8-107.

barid
Télécharger la présentation

Problem 8-107

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

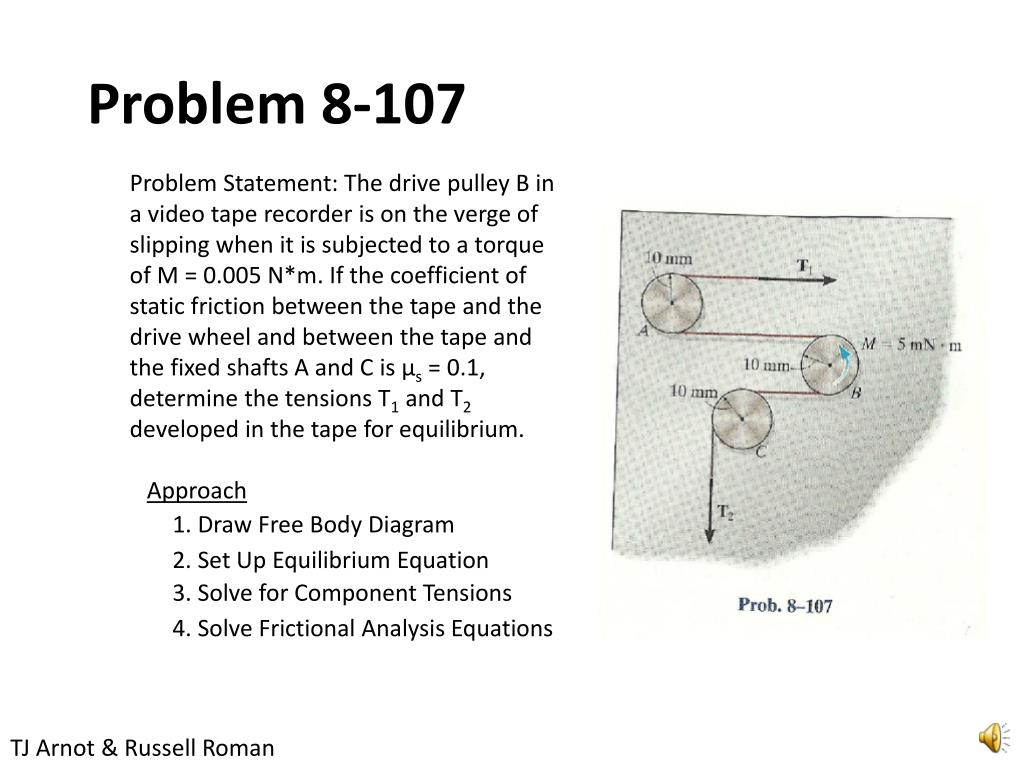

  1. Problem 8-107 Problem Statement: The drive pulley B in a video tape recorder is on the verge of slipping when it is subjected to a torque of M = 0.005 N*m. If the coefficient of static friction between the tape and the drive wheel and between the tape and the fixed shafts A and C is μs = 0.1, determine the tensions T1 andT2 developed in the tape for equilibrium. Approach 1. Draw Free Body Diagram 2. Set Up Equilibrium Equation 3. Solve for Component Tensions 4. Solve Frictional Analysis Equations TJ Arnot & Russell Roman

  2. Free Body Diagram A T1 .01 m T3 M = .005 N*m .01 m B T4 .01 m C T2

  3. Equilibrium Equation Equilibrium equation for pulley B. T3 M = .005 N*m .01 m Solve. B T4

  4. Frictional Analysis A T3 opposes the direction of motion. T1 .01 m T3

  5. Frictional Analysis T2 opposes the direction of motion. T4 .01 m C T2

  6. Answer
