Lec: Isotopes and Ions

Lec: Isotopes and Ions. An Isotope is an element that has the same number of protons but a different number of neutrons. Example: C 12 ,C 13 , and C 14 all have 6 protons but 6, 7, and 8 neutrons. The combination of the # of protons and neutrons equals the isotope #. Isotope #.

barth
Télécharger la présentation

Lec: Isotopes and Ions

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Lec: Isotopes and Ions

  2. An Isotope is an element that has the same number of protons but a different number of neutrons.

  3. Example: C12,C13, and C14all have 6 protons but 6, 7, and 8 neutrons. The combination of the # of protons and neutrons equals the isotope #. Isotope #

  4. The nuclei of C12,C13, and C14 C14 C13 C12 Protons= Neutrons= C12 = 6 protons 6 neutrons C13 = 6 protons 7 neutrons C14 = 6 protons 8 neutrons

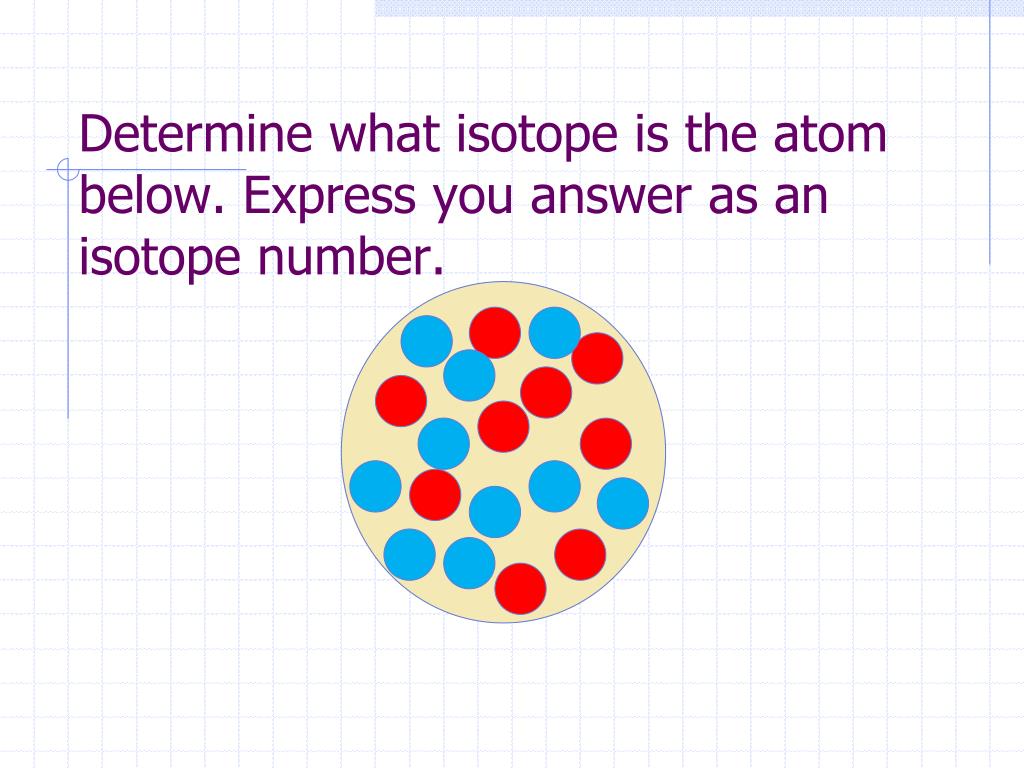

  5. Determine what isotope is the atom below. Express you answer as an isotope number.

  6. F19 9 Protons and 10 neutrons

  7. Ion: An atom that has an electrical charge due to the increase (gain) or decrease (loss) of electrons.

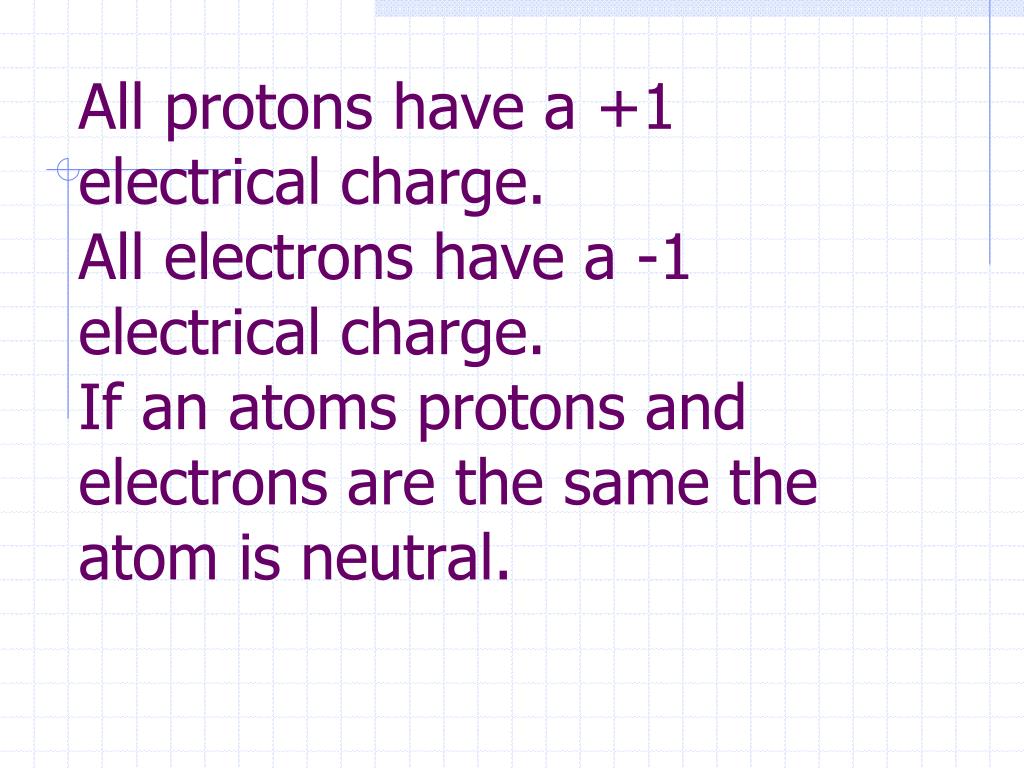

  8. All protons have a +1 electrical charge.All electrons have a -1 electrical charge.If an atoms protons and electrons are the same the atom is neutral.

  9. An ion with a negative (-) electrical charge is an anion. • Examples of anions are expressed like this: • F- or C-2 • Fluorine (F) has gained an electron thus changing F to a (-1) electrical charge. Carbon (C) has gained two electrons thus changing the electrical charge to -2.

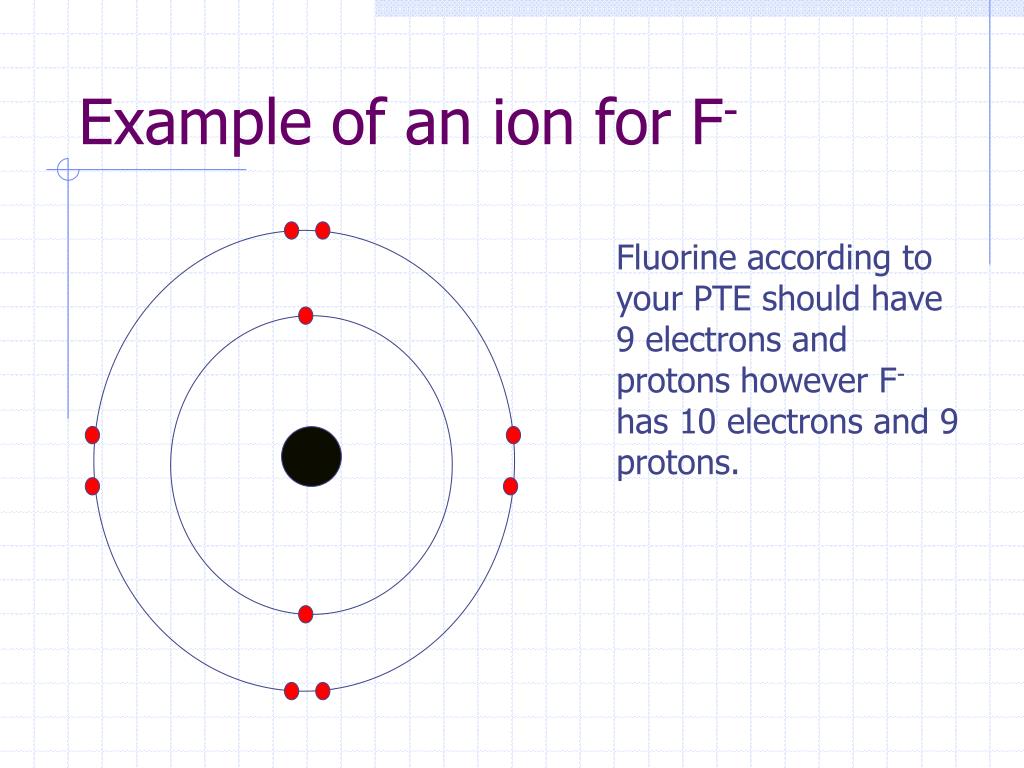

  10. Example of an ion for F- Fluorine according to your PTE should have 9 electrons and protons however F- has 10 electrons and 9 protons.

  11. An ion with a positive (+) electrical charge is a cation. Examples of cations are expressed like this: Li+ or C+2 Lithium (Li) has lost an electron thus changing Li to a (+1) electrical charge. Carbon (C) has lost two electrons thus changing the electrical charge to +2.

  12. Example of cation for Li+ Lithium according to your PTE should have 3 electrons and protons however Li+ has 2 electrons and 3 protons.
