Evolutionary Divergence in Bt2 and Zea mays 2 Genes After Duplication

Differential evolution rates of Bt2 and Zea mays 2 genes post duplication, illustrated in a phylogenetic tree. Branch lengths indicate amino acid substitutions per site, estimated with AAML. Expression tissues and amino acid substitution numbers are highlighted.

barton
Télécharger la présentation

Evolutionary Divergence in Bt2 and Zea mays 2 Genes After Duplication

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

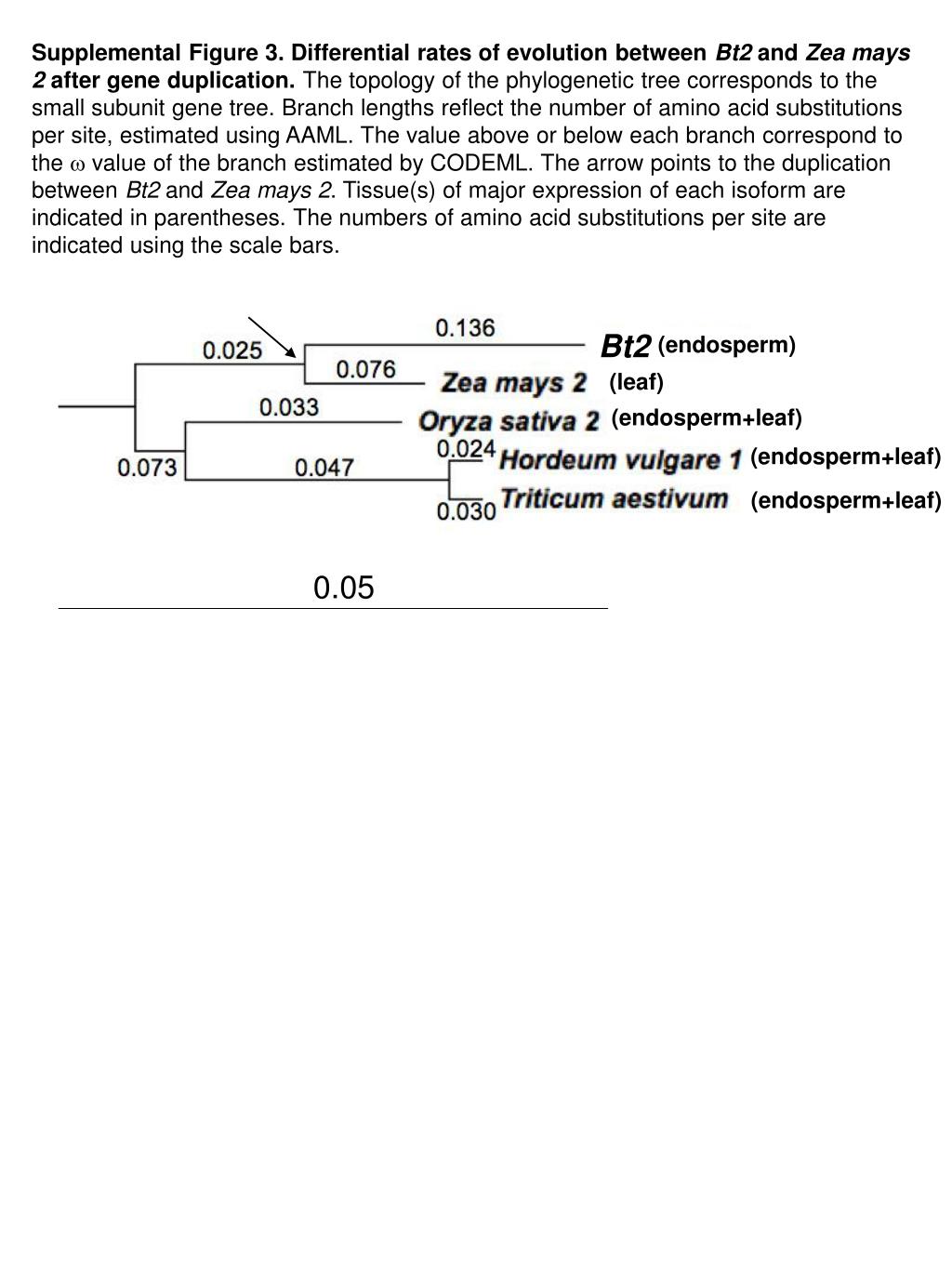

  1. Supplemental Figure 3. Differential rates of evolution between Bt2 and Zea mays 2 after gene duplication. The topology of the phylogenetic tree corresponds to the small subunit gene tree. Branch lengths reflect the number of amino acid substitutions per site, estimated using AAML. The value above or below each branch correspond to the  value of the branch estimated by CODEML. The arrow points to the duplication between Bt2 and Zea mays 2. Tissue(s) of major expression of each isoform are indicated in parentheses. The numbers of amino acid substitutions per site are indicated using the scale bars. Bt2 (endosperm) (leaf) (endosperm+leaf) (endosperm+leaf) (endosperm+leaf) 0.05
