  1. Model Connection Protocol extensions for Mixed Signal SiP Version 0.1 T. Kukal 22nd Sep, 2010

  2. Agenda • Mixed Signal SiP IR-drop flow • Extensions required for Mixed Signal SiP

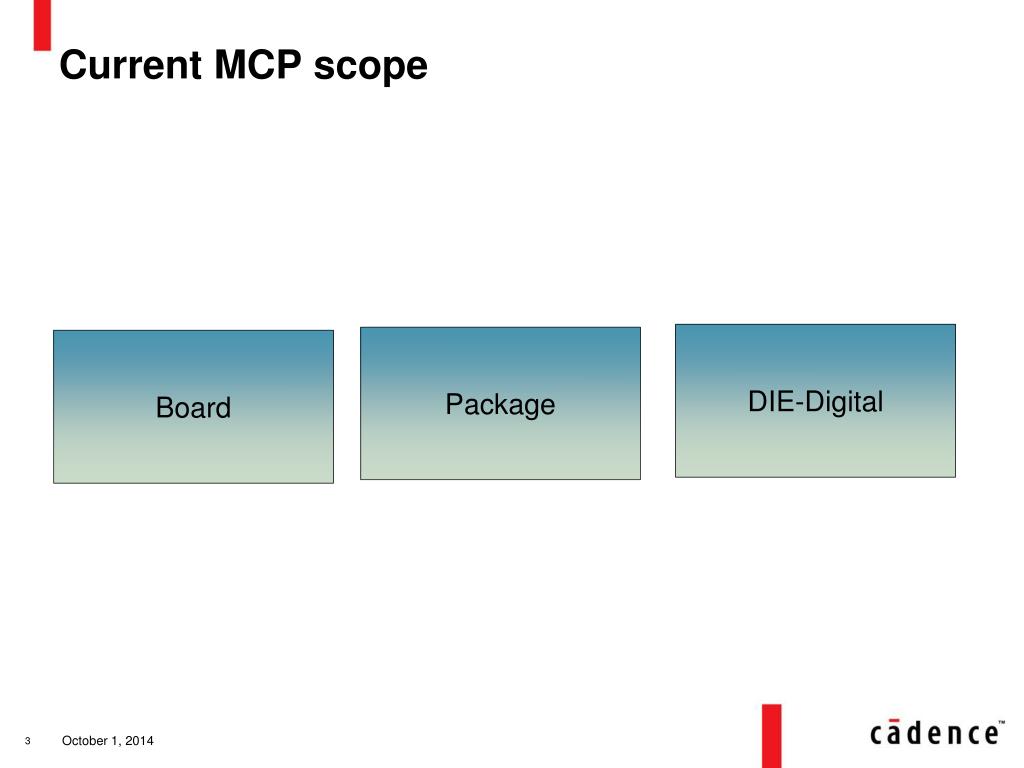

  3. Current MCP scope DIE-Digital Package Board October 1, 2014 3

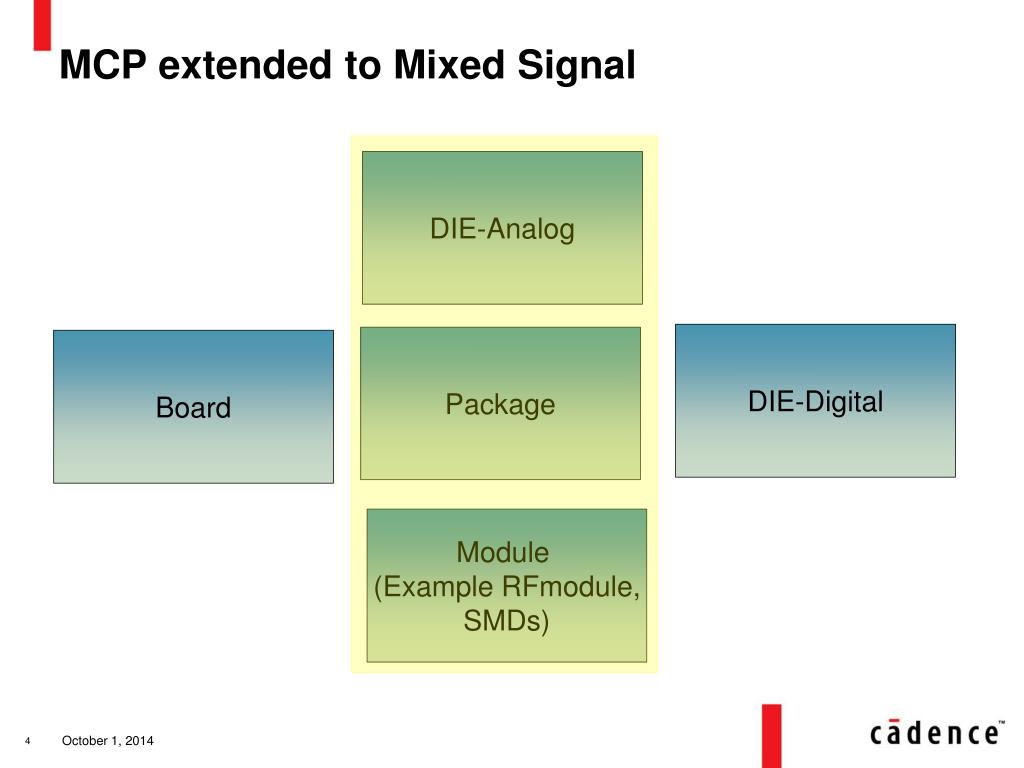

  4. MCP extended to Mixed Signal DIE-Analog DIE-Digital Package Board Module (Example RFmodule, SMDs) October 1, 2014 4

  5. Mixed Signal IR-drop Task Flow Schematic driven Analog SiP & Circuit Design Schematic Capture Analog IR-drop (schematic simulation driven Pre- & Post-Layout Simulation Passive Structures MCP Logical SiP Layout Analog IC Layout Power-RAIL extract Power-Net Extract SiP IC Digital IR-drop Digital IC layout HDL MCP Physical Power-Net Extract

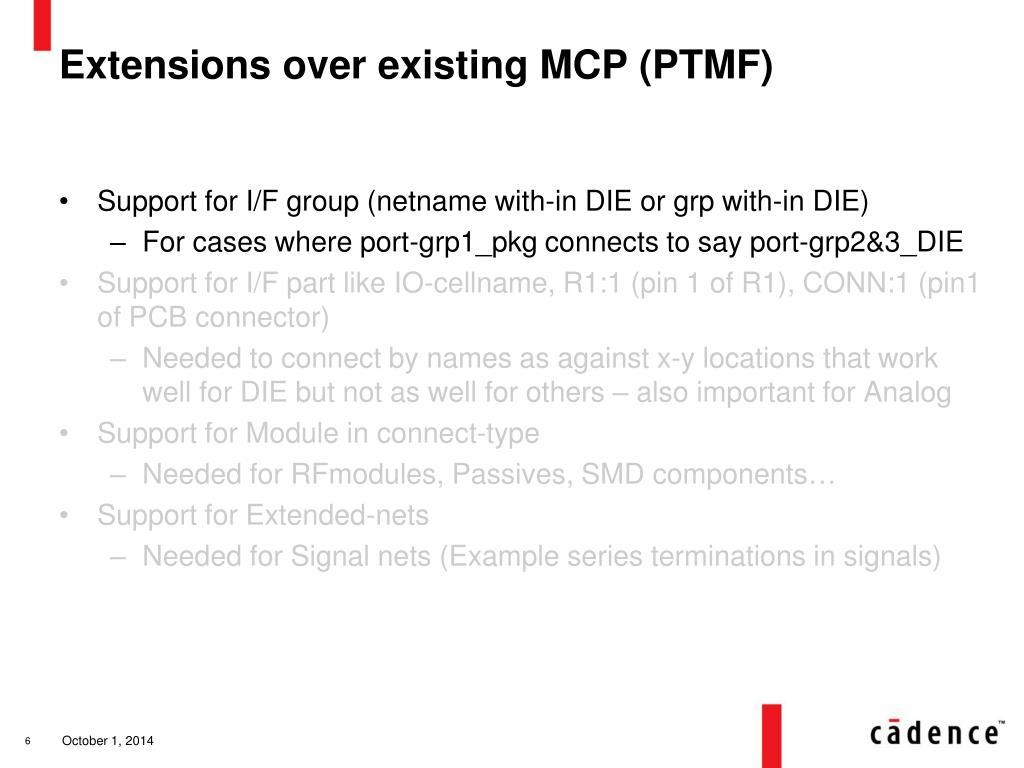

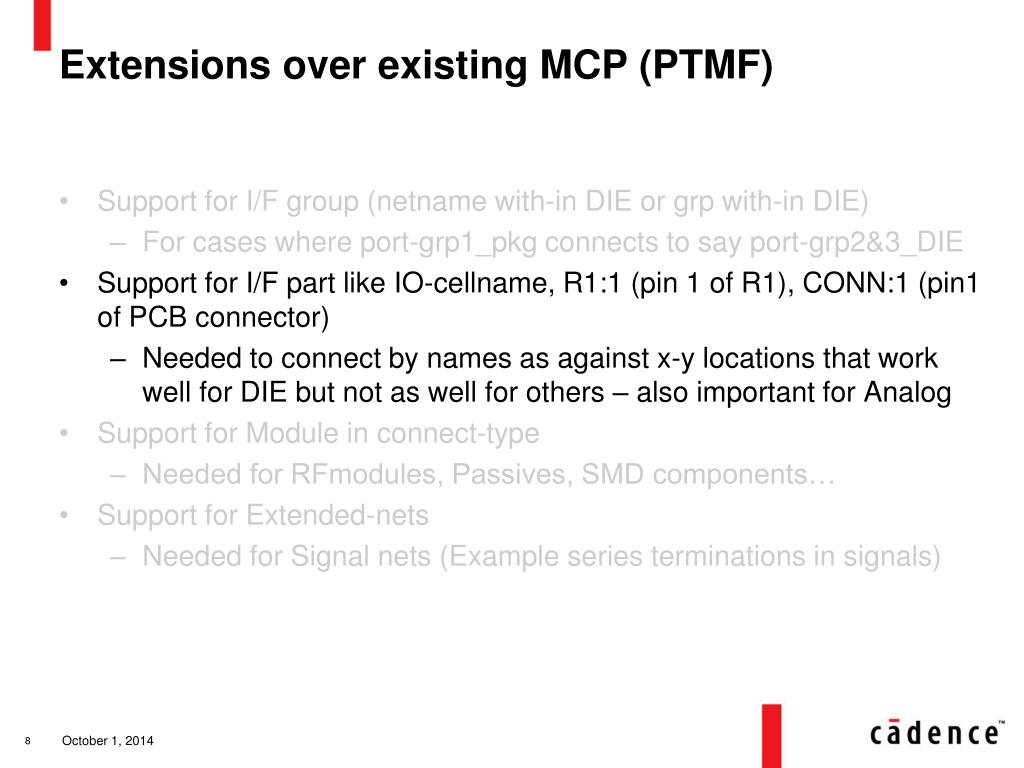

  6. Extensions over existing MCP (PTMF) • Support for I/F group (netname with-in DIE or grp with-in DIE) • For cases where port-grp1_pkg connects to say port-grp2&3_DIE • Support for I/F part like IO-cellname, R1:1 (pin 1 of R1), CONN:1 (pin1 of PCB connector) • Needed to connect by names as against x-y locations that work well for DIE but not as well for others – also important for Analog • Support for Module in connect-type • Needed for RFmodules, Passives, SMD components… • Support for Extended-nets • Needed for Signal nets (Example series terminations in signals)

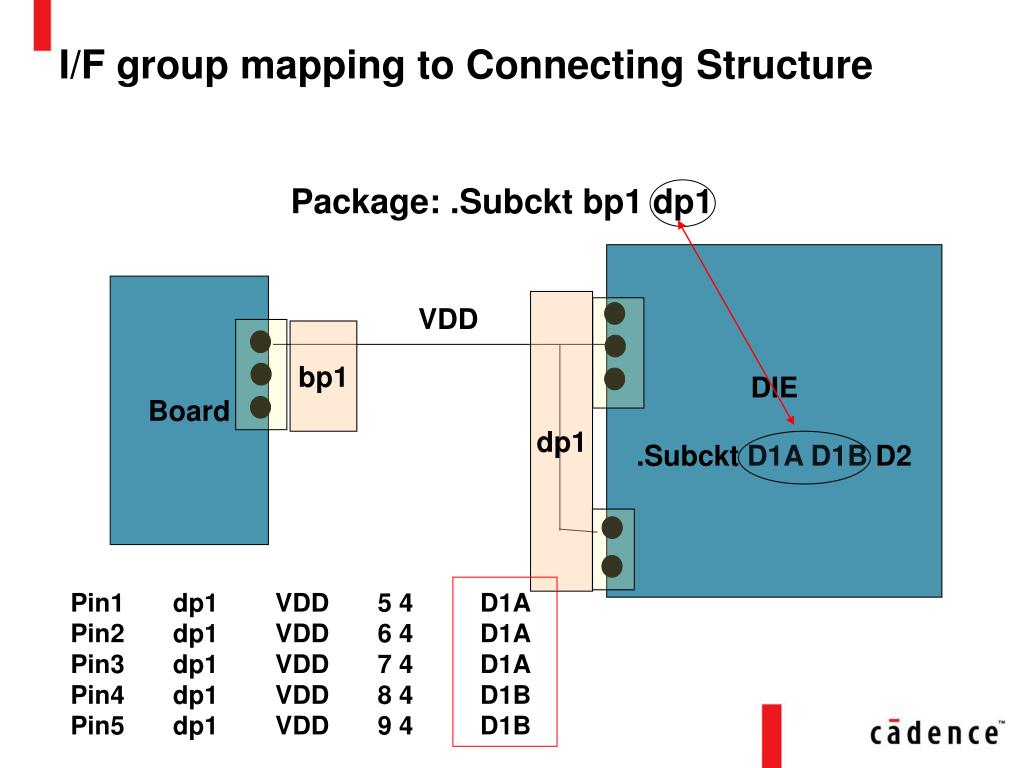

  7. I/F group mapping to Connecting Structure Package: .Subckt bp1 dp1 DIE .Subckt D1A D1B D2 Board dp1 VDD bp1 Pin1 dp1 VDD 5 4 D1A Pin2 dp1 VDD 6 4 D1A Pin3 dp1 VDD 7 4 D1A Pin4 dp1 VDD 8 4 D1B Pin5 dp1 VDD 9 4 D1B

  8. Extensions over existing MCP (PTMF) • Support for I/F group (netname with-in DIE or grp with-in DIE) • For cases where port-grp1_pkg connects to say port-grp2&3_DIE • Support for I/F part like IO-cellname, R1:1 (pin 1 of R1), CONN:1 (pin1 of PCB connector) • Needed to connect by names as against x-y locations that work well for DIE but not as well for others – also important for Analog • Support for Module in connect-type • Needed for RFmodules, Passives, SMD components… • Support for Extended-nets • Needed for Signal nets (Example series terminations in signals) October 1, 2014 8

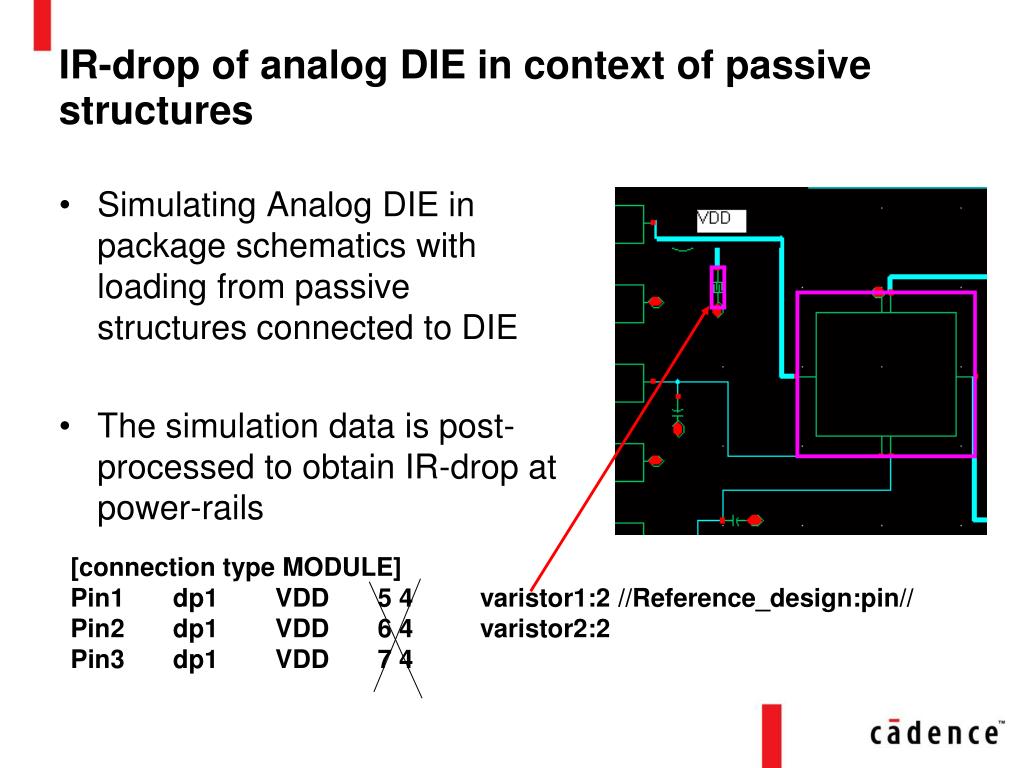

  9. IR-drop of analog DIE in context of passive structures • Simulating Analog DIE in package schematics with loading from passive structures connected to DIE • The simulation data is post-processed to obtain IR-drop at power-rails [connection type MODULE] Pin1 dp1 VDD 5 4 varistor1:2 //Reference_design:pin// Pin2 dp1 VDD 6 4 varistor2:2 Pin3 dp1 VDD 7 4

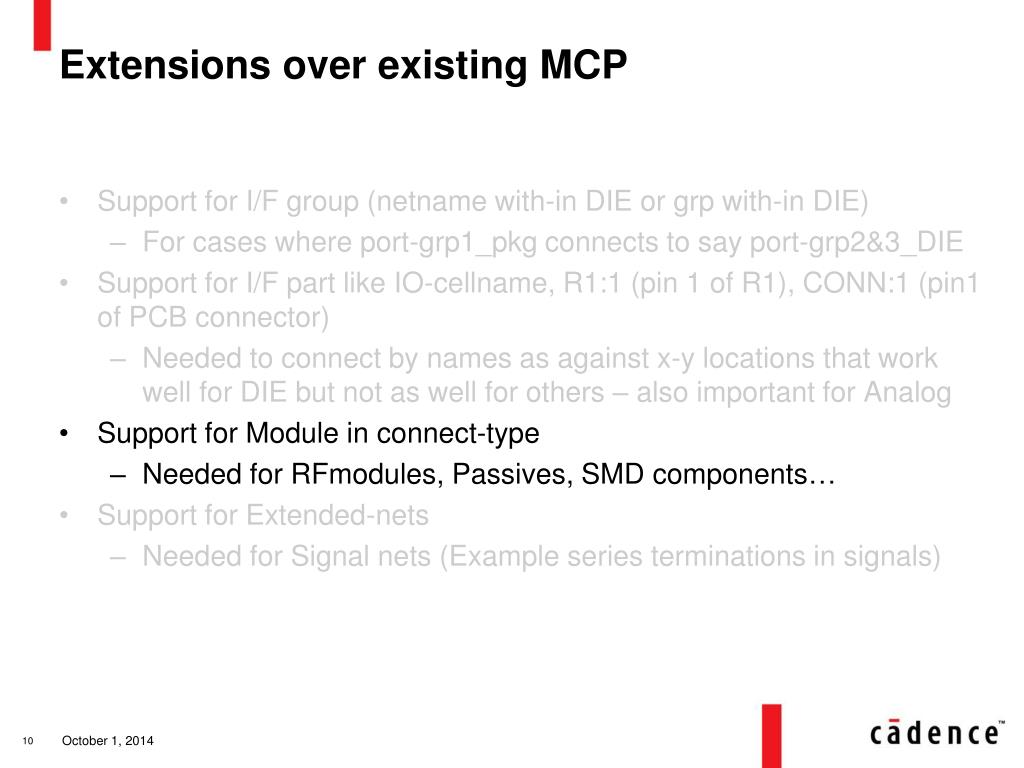

  10. Extensions over existing MCP • Support for I/F group (netname with-in DIE or grp with-in DIE) • For cases where port-grp1_pkg connects to say port-grp2&3_DIE • Support for I/F part like IO-cellname, R1:1 (pin 1 of R1), CONN:1 (pin1 of PCB connector) • Needed to connect by names as against x-y locations that work well for DIE but not as well for others – also important for Analog • Support for Module in connect-type • Needed for RFmodules, Passives, SMD components… • Support for Extended-nets • Needed for Signal nets (Example series terminations in signals) October 1, 2014 10

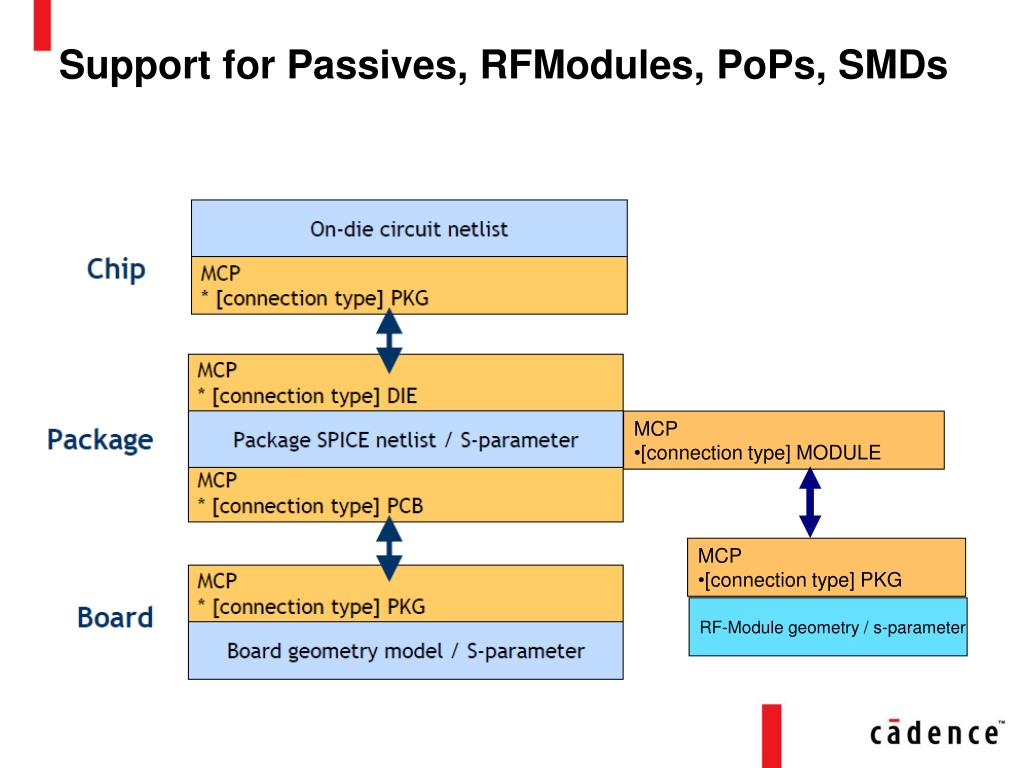

  11. Support for Passives, RFModules, PoPs, SMDs • MCP • [connection type] MODULE • MCP • [connection type] PKG RF-Module geometry / s-parameter

  12. Extensions over existing MCP • Support for I/F group (netname with-in DIE or grp with-in DIE) • For cases where port-grp1_pkg connects to say port-grp2&3_DIE • Support for I/F part like IO-cellname, R1:1 (pin 1 of R1), CONN:1 (pin1 of PCB connector) • Needed to connect by names as against x-y locations that work well for DIE but not as well for others – also important for Analog • Support for Module in connect-type • Needed for RFmodules, Passives, SMD components… • Support for Extended-nets • Needed for Signal nets (Example series terminations in signals) October 1, 2014 12

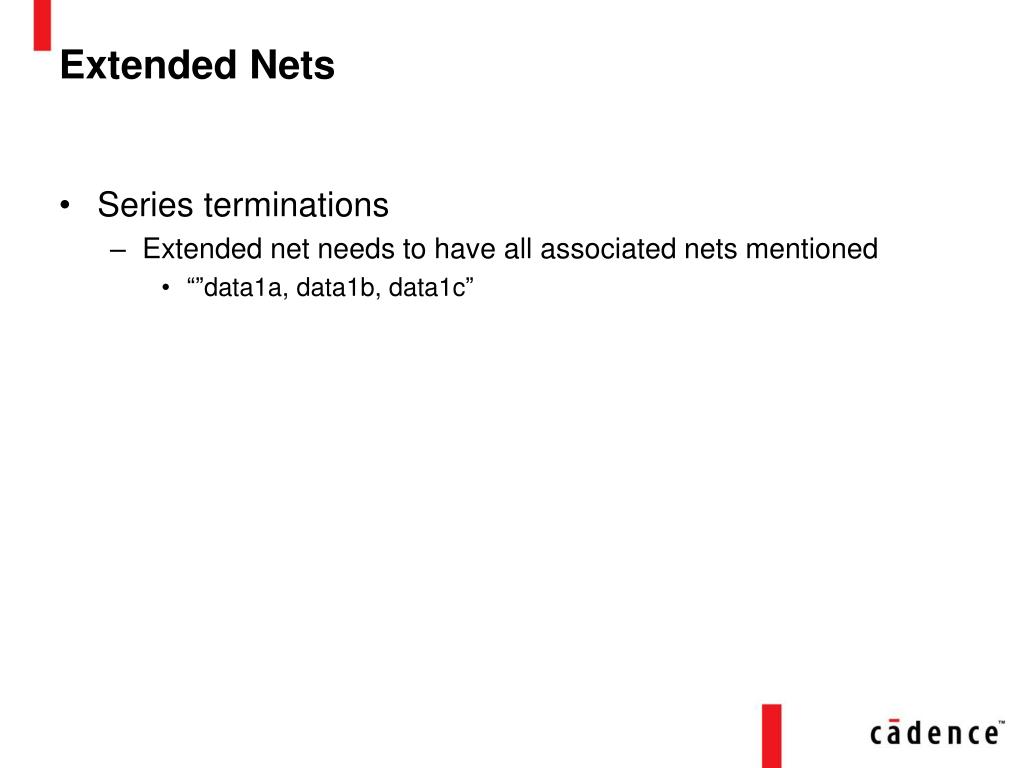

  13. Extended Nets • Series terminations • Extended net needs to have all associated nets mentioned • “”data1a, data1b, data1c”

  14. Summary: MCP format updated in context of Mixed Signal contents Module I/F part-ref (if-module) I/F grp Extended-Net
