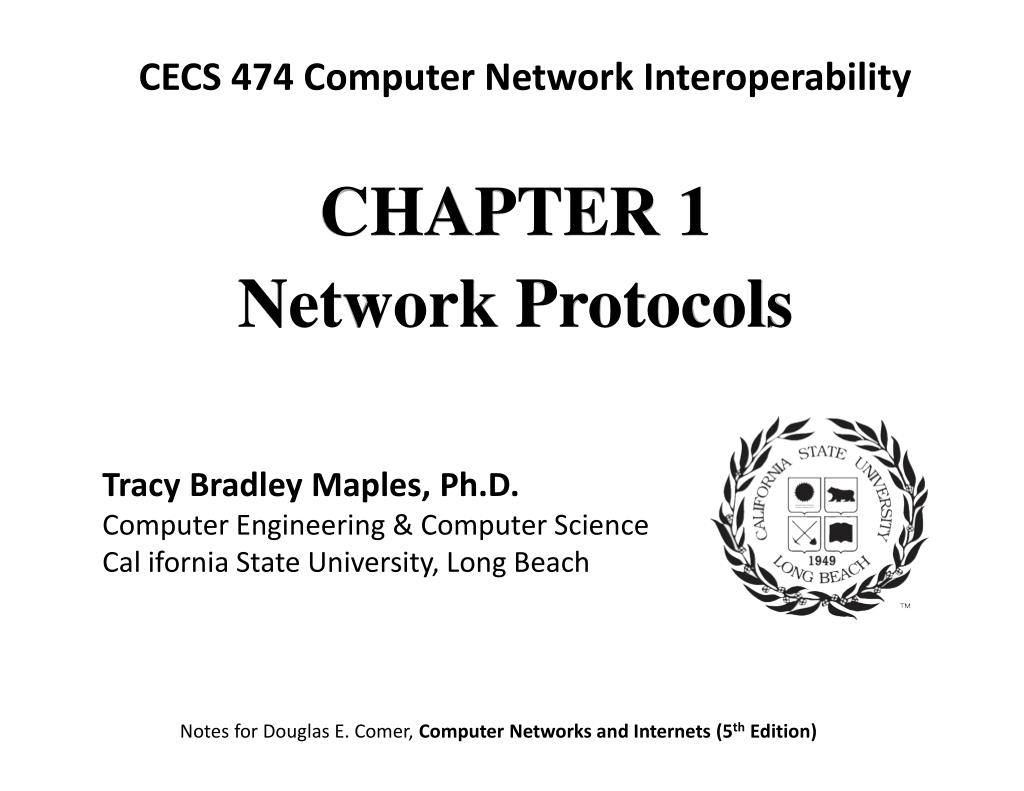

CECS 474 Computer Network Interoperability. CHAPTE R 1 Network Protocols. Tracy Bradley Maples, Ph.D. Computer Engineering & Computer Science Cal ifornia State University, Long Beach. Notes for Douglas E. Comer, Computer Networks and Internets (5 th Edition) .

beate
Télécharger la présentation

CHAPTE R 1 Network Protocols

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. CECS 474 Computer Network Interoperability CHAPTER1 Network Protocols Tracy Bradley Maples, Ph.D. Computer Engineering & Computer Science Cal ifornia State University, Long Beach Notes for Douglas E. Comer, Computer Networks and Internets (5th Edition)

  2. Protocol Suites and Layering Models • Defn:Protocolsareagreements abouthowcommunicationshouldtake place. • Theyspecify: • Formatofmessages • Meaning ofmessages • Rules for exchangingmessages • Procedures forhandling problems • Network hardwarefunctions ata verylowlevel. • Hardware related problemscan occurthatneedto be addressed byprotocols: • Bits can becorrupted ordestroyed • Entirepackets can belost • Packets can beduplicated • Packets can be delivered outoforder

  3. Protocols canalso be usedto distinguishamong: • Multiple computerson anetwork • Multiple applicationson a computer • Multiple copiesofa single application on a computer • Sets of Protocols • Setsof protocols are designedtoworktogether. • Each protocol solvesa smallpartofthe communicationsproblem • Setsofprotocols are knownas: • --ProtocolSuites • --Protocol families • Theyaredesignedinlayers.

  4. Protocol Design • Protocols are dividedintolayers • Eachlayerisdevotedto one sub-problem Example:TheISO(InternationalStandardsOrganization)OSI (OpenSystemInterconnection)7-layerReferenceModel • The OSI7-Layer Model • The7-LayerModel: • Wasdefinedfairlyearlyinthedevelopmentofnetworks • Isnowsomewhatdated • Doesnotincludetheinternetlayer

  5. The OSI7-Layers • Layer 1:Physical • Theunderlying hardware • Layer 2:DataLink(media access) • Hardware framedefinitions • Layer 3:Network • Packet forwarding • Layer 4:Transport • Reliability • Layer 5:Session • Loginand passwords • Layer 6:Presentation • Data representation • Layer 7:Application • Individual applicationprograms

  6. The Layering Model • Protocol softwarefollowsthelayeringmodel, with: • One softwaremoduleperlayer • Modulesthat worktogether • Incoming oroutgoing datapassingfrom onemoduletoanother The entire set of protocol layers (or modules)is known as a stack.

  7. Layers andPacket Headers • Eachlayer: • Prependsa headertothe outgoing packet • Removesa header from theincoming packet • Thisprocessisknownasdata encapsulation.

  8. Layering Principle SoftwareimplementinglayerN at the destinationreceives exactlythemessagesentbysoftware implementinglayerN atthesource. --Comer

  9. TCP/IP Layering NotwithstandingthepushbyresearcherstoadopttheOSImodel,itbecameclearthatTCP/IP wastechnically more flexible and superior. TCP/IP is the primary protocol stack used today. Note:ThisTCP/IPlayeringis anactualimplementation ofprotocols,unliketheISO model.

  10. TCP/IP Layers • Layer 1:Physical • Basic networkhardware • SimilartoOSILayer 1 • Layer 2:NetworkInterface • MAC frameformat • MAC addressing • Interfacebetweencomputer andthenetwork(i.e.,theNIC) • SimilartoOSILayer 2 • Layer 3: Internet • Formatofpackets • Mechanismsforforwarding packets • NotintheOSIModel • Layer 4:Transport • Specifies howto providereliabletransferfromoneapplication on onecomputertoanapplication onanother • SimilartoOSILayer 4 • Layer 5:Application • Everythingelse (i.e.,how one application usesthe Internet) • SimilartoOSILayer 6 and7
