Respiration

Respiration. What is “ respiration ”? NOT “breathing”! This is the action of your lungs inhaling and exhaling air; “ ventilation .” Respiration = the process of breaking down glucose to use for ENERGY If glucose were gasoline, then respiration would be the engine running in your car.

beate
Télécharger la présentation

Respiration

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

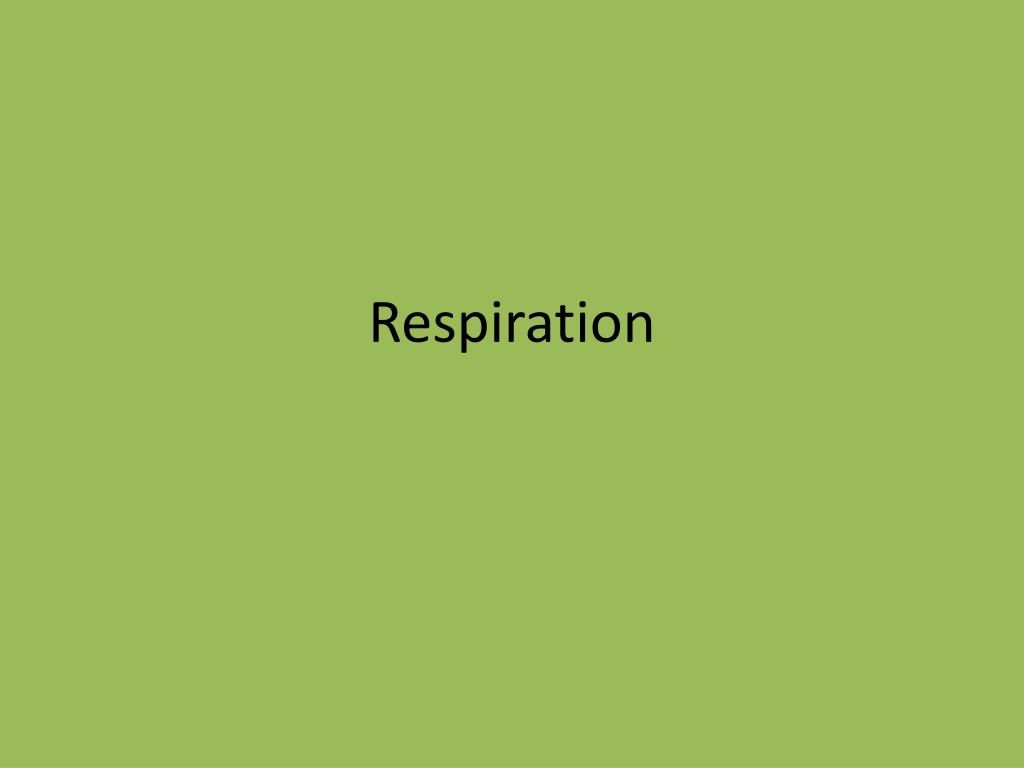

  1. Respiration

  2. What is “respiration”? • NOT “breathing”! • This is the action of your lungs inhaling and exhaling air; “ventilation.” • Respiration = the process of breaking down glucose to use for ENERGY • If glucose were gasoline, then respiration would be the engine running in your car. • (you can’t go anywhere if the engine’s not running!)

  3. Aerobic Respiration Anaerobic Respiration Using O2 to break down glucose “with air” ~ “with oxygen” NOT using O2 “without air”

  4. Aerobic Respiration • Using O2 to break down Glucose to release Energy for cells. • Glucose + Oxygen  Carbon Dioxide + Water + Energy • C6H12O6 + 6O2  6CO2 + 6H20 + Energy

  5. But where did the Glucose come from? • You ate it! • Food breaks down into glucose molecules in the stomach (Digestion). • These glucose molecules enter your blood in the small intestine (Absorption). • Blood carries the glucose molecules to individual cells (Circulation).

  6. But where did the Oxygen come from? • You inhaled it (breathing). • In your lungs, your blood takes in O2 and lets out CO2. • This is called Gas Exchange. • (you’re exchanging one gas for another) • You need LOTS of surface area to exchange gasses quickly enough. • Lungs have about 70 square meters of S.A. • (about the size of a tennis court!)

  7. How do you get so much Surface Area in the Lungs? • Alveoli: very tiny sacs about 0.25 mm across • Alveoli are where Gas Exchange occurs • Gas can only exchange through a small distance • Blood capillary is right next to alveolus • Gas moves through capillary wall and alveolus wall • Distance of 0.001 mm

  8. Alveolar Gas Exchange

  9. Alveolar Gas Exchange

  10. Alveolar Gas Exchange

  11. Alveolar Gas Exchange

  12. Pathway of Inhaled Air • Mouth/nose • Trachea • R + L Bronchi • Bronchioles • Alveoli

  13. Pathway of Oxygen • Alveoli • Pulmonary (Lung) Capillaries • Pulmonary Vein • The blood in this Vein is Oxygenated (!!) • It is moving AWAY from the Lungs, but TOWARD the Heart. • Heart  Aorta  Arteries  Arterioles  Capillaries  Body Cells • Respiration (conversion to Energy) happens in the Cell • Now the Cell has plenty of Energy!

  14. Pathway of Oxygen

  15. Pathway of Oxygen

  16. Pathway of Oxygen

  17. Question Time! • Where does the blood in Pulmonary Vein come from? (Hint: it is Oxygenated) • The Lungs • Where is it going? • The Heart • Where does the blood in the Pulmonary Artery come from? (Hint: it is Deoxygenated) • The Heart • Where is it going? • The Lung

  18. Oxygen Content of Air

  19. How do we Breathe? • Ventilation: • Moving fresh air into lungs • Moving “used” air out of lungs • Ventilation happens because of changes in pressure that our body creates by contracting and relaxing muscles: • Diaphragm • Intercostals (“between ribs”) • Pleural membranes keep everything airtight.

  20. Pleural Cavity and Breathing Muscles

  21. Lungs & Diaphragm

  22. Inhalation • Diaphragm contracts • It moves DOWN because of its unique shape • Intercostal muscles contract • Making the ribs move UP • Volume increases inside pleural cavity. • Pressure decreases; creates a vacuum! • Air from outside flows into the Lungs.

  23. Diaphragm

  24. Inspiration

  25. Inspiration

  26. Exhalation • Diaphragm relaxes • Now it moves back UP • Intercostals also relax • Ribs can move back DOWN • Volume DECREASES • Pressure INCREASES – like a full balloon! • Air moves back out of the Lungs.

  27. Inspiration / Expiration

  28. Air Pressure in Model Lung

  29. How do Other Animals Breathe? • Diffusion: • Small animals with no ventilation structure • Gills: • Fish • Lungs: • Mammals • Birds • Herpetiles (Reptiles + Amphibians) • Skin: • Amphibians • Tracheae: • Insects

  30. Diffusion • O2 and CO2 diffuse in and out of the organism without a specialized organ • Small size • Large surface area

  31. Gills • Structures on fish that allow gas exchange with water. • Fish “pump” water over and through gills.

  32. Gills in Respiration

  33. Gills in Respiration

  34. Lungs • Allow gas exchange with air. • Bird lungs are structured to allow maximum gas exchange • Air moves through the lungs, not in-and-out like in mammals

  35. Bird Respiratory System

  36. Bird Respiration

  37. Lungs + Skin

  38. Tracheae • Network of branching tubes in insects. • Gas exchange occurs directly between tracheae and respiring cells. • No blood involved! • Insects breathe in and out through spiracles.

  39. Insect Anatomy

  40. Insect Tracheae

  41. Respiration WITHOUT Oxygen • “Anaerobic Respiration” • Many organisms respire anaerobically. • Even humans! (sometimes) • But Aerobic Respiration is more efficient • It yields about 19 times as much energy from one glucose molecule as Anaer. Resp.

  42. Anaerobic Respiration in Yeast • Yeast is a single-celled fungus. • Breaks down Glucose into Ethanol and CO2 • Can be used to make alcoholic drinks and bread • Ethanol = alcohol • CO2 bubbles = bread rises

  43. Yeast: Anaerobic Respiration

  44. Anaerobic Respiration in Humans • Only when our muscles run out of O2 • During strenuous exercise • We break down glucose into lactic acid to release useable energy. • Lactic acid is toxic! • So, we can’t do this very long.

  45. How do your Lungs stay Clean? • The air we inhale contains dust and bacteria. • Lung passages are lined with goblet cells and cilia, which keep unwanted particles from getting to the alveoli.

  46. Goblet Cells + Cilia • Goblet cells secrete mucus that traps dust and bacteria. • Cilia are tiny hairs that sweep the mucus up toward the back of your throat. • Then you swallow the mucus, along with everything else! • Bacteria die in your stomach’s acid and enzymes.

  47. Goblet Cells and Cilia

  48. Cigarette Smoke: Tar • Damages DNA in lung cells • This can result in lung cancer • Lung cells divide uncontrollably into a mass called a tumor. • If Tar (or other harmful chemicals) get into the blood, they can be carried to other parts of the body and cause other types of cancer.

  49. Cigarette Smoke: Tar • Tar can paralyze or destroy Cilia • Now they can’t sweep mucus out of the bronchial tubes! • Tar makes Goblet Cells excrete more mucus • Mucus slides down into lungs, creating a breeding ground for bacteria • Excessive coughing damages lining of tubes • Bronchitis: inflammation of bronchi • Damage to alveolar walls hinders gas exchange • Emphysema: difficulty getting enough O2
