  1. Gas Laws

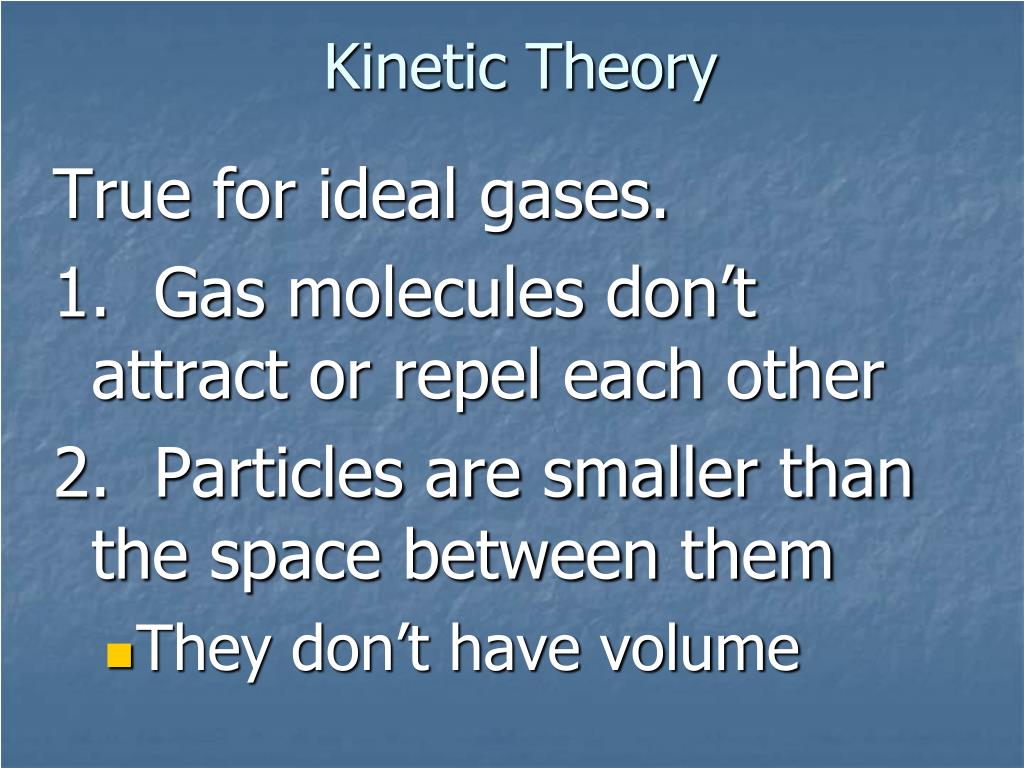

  2. Kinetic Theory True for ideal gases. 1. Gas molecules don’t attract or repel each other 2. Particles are smaller than the space between them • They don’t have volume

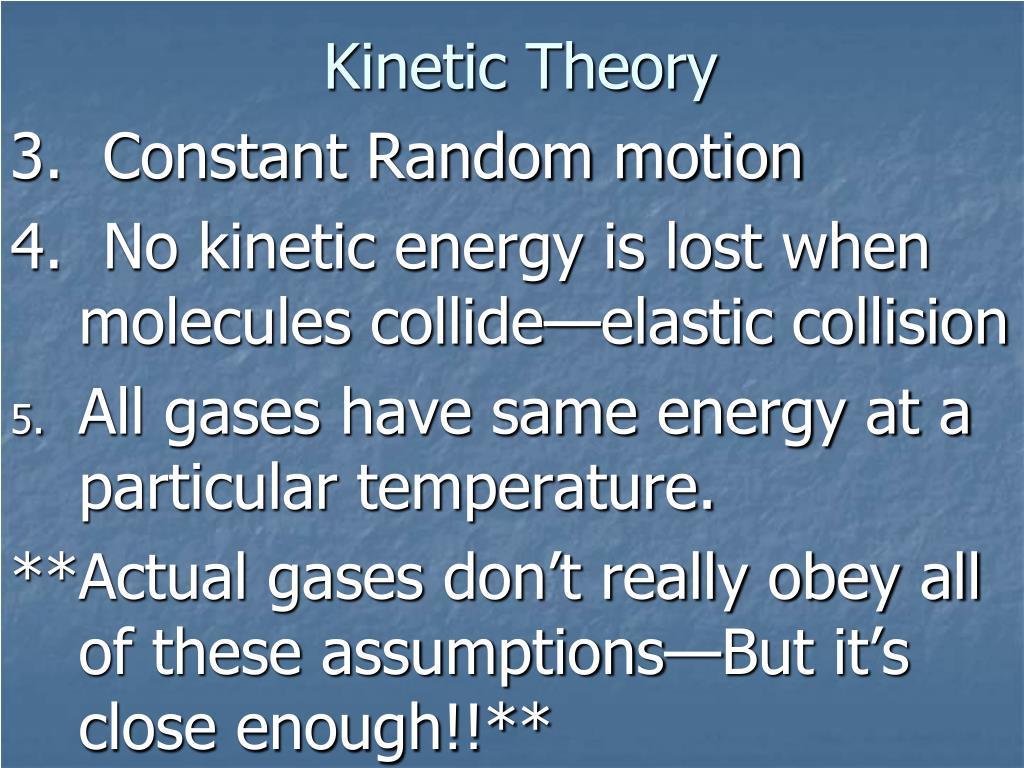

  3. Kinetic Theory 3. Constant Random motion 4. No kinetic energy is lost when molecules collide—elastic collision • All gases have same energy at a particular temperature. **Actual gases don’t really obey all of these assumptions—But it’s close enough!!**

  4. B. Real Gases • Particles in a REAL gas… • have their own volume • attract each other • Gas behavior is most ideal… • at low pressures • at high temperatures • in nonpolar atoms/molecules

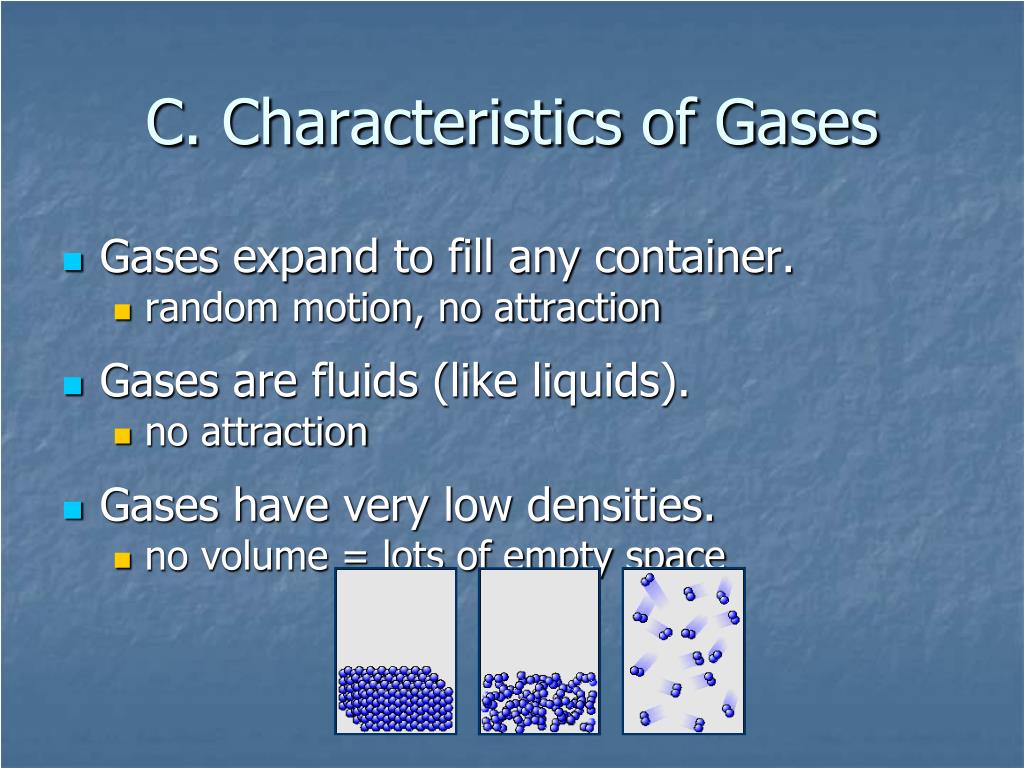

  5. C. Characteristics of Gases • Gases expand to fill any container. • random motion, no attraction • Gases are fluids (like liquids). • no attraction • Gases have very low densities. • no volume = lots of empty space

  6. C. Characteristics of Gases • Gases can be compressed. • no volume = lots of empty space • Gases undergo diffusion & effusion. • random motion

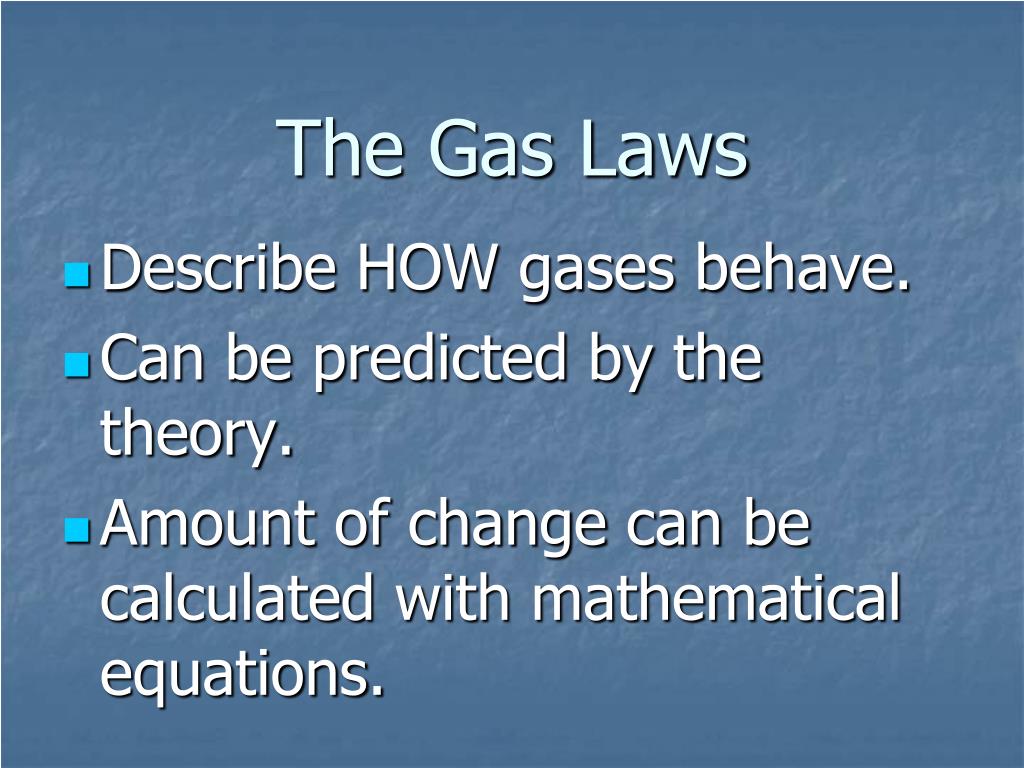

  7. The Gas Laws • Describe HOW gases behave. • Can be predicted by the theory. • Amount of change can be calculated with mathematical equations.

  8. E. Pressure Which shoes create the most pressure?

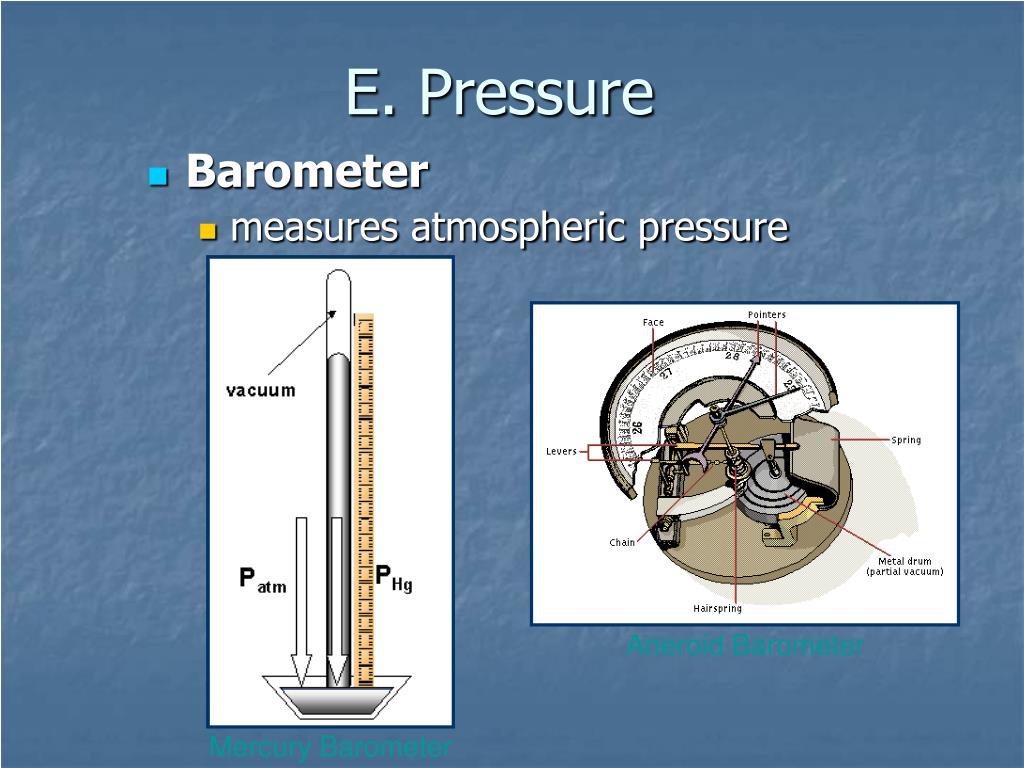

  9. Aneroid Barometer Mercury Barometer E. Pressure • Barometer • measures atmospheric pressure

  10. U-tube Manometer Bourdon-tube gauge E. Pressure • Manometer • measures contained gas pressure

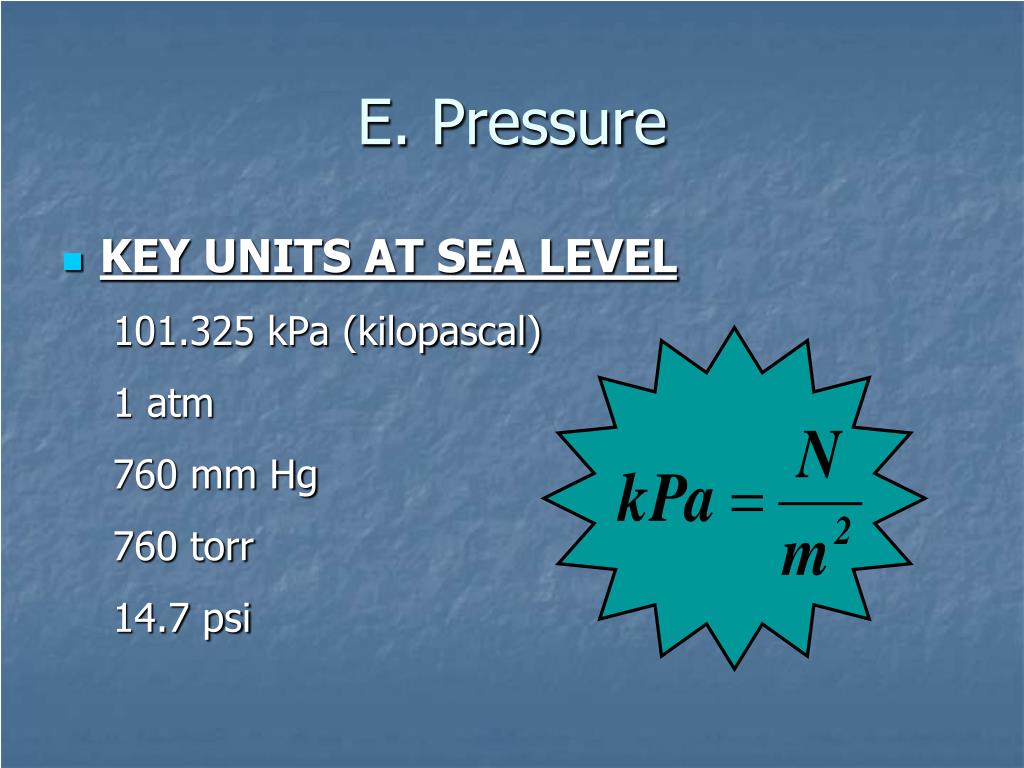

  11. E. Pressure • KEY UNITS AT SEA LEVEL 101.325 kPa (kilopascal) 1 atm 760 mm Hg 760 torr 14.7 psi

  12. Standard Temperature & Pressure 0°C273 K 1 atm101.325 kPa -OR- F. STP STP

  13. The effect of adding gas. • Doubling the the number of gas particles doubles the pressure. (of the same volume at the same temperature).

  14. Pressure and the number of molecules are directly related • More molecules means more collisions. • Fewer molecules means fewer collisions. • Gases naturally move from areas of high pressure to low pressure because there is empty space to move in.

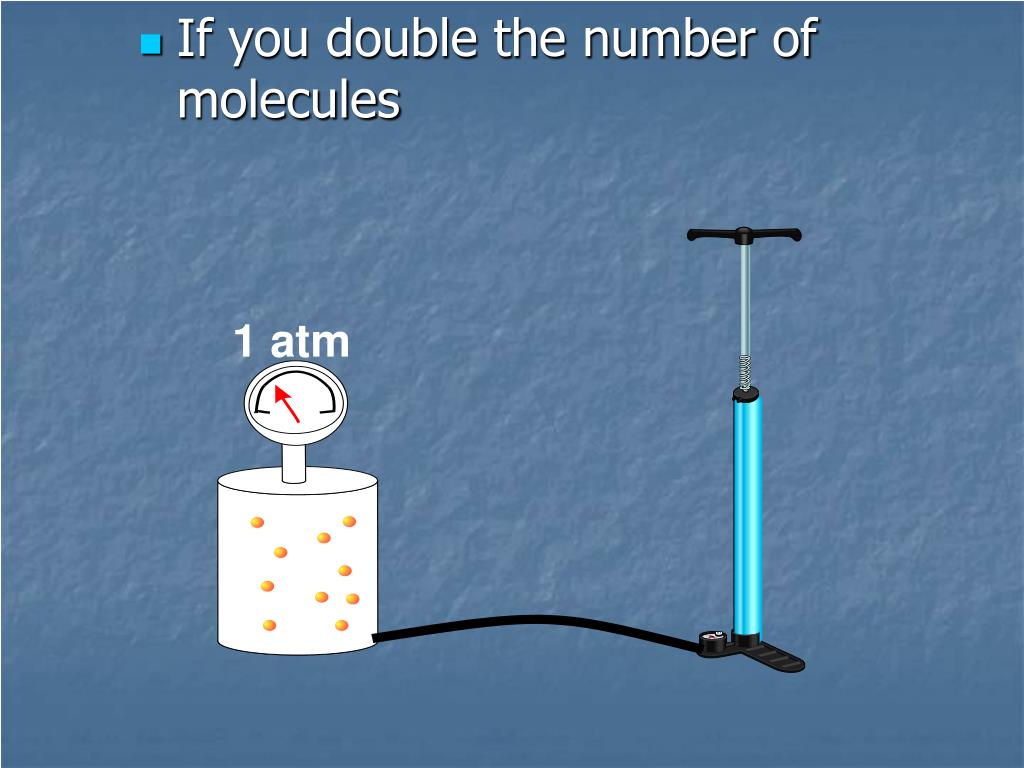

  15. If you double the number of molecules 1 atm

  16. If you double the number of molecules • When we blow up a balloon we are adding gas molecules. • You double the pressure. 2 atm

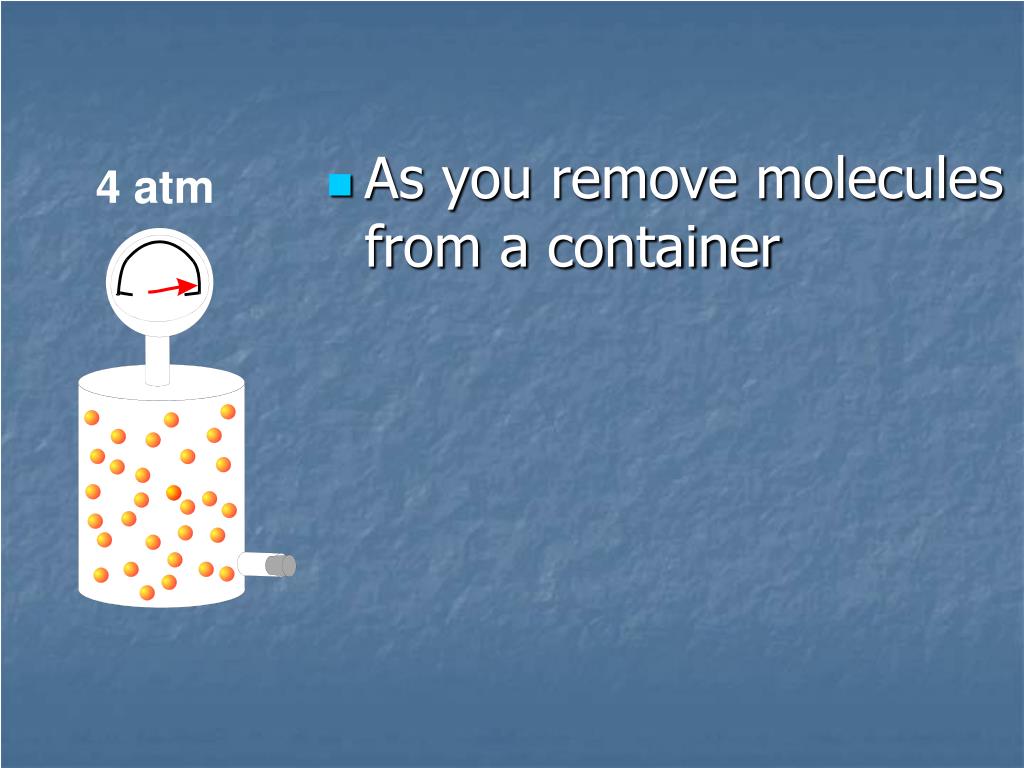

  17. 4 atm • As you remove molecules from a container

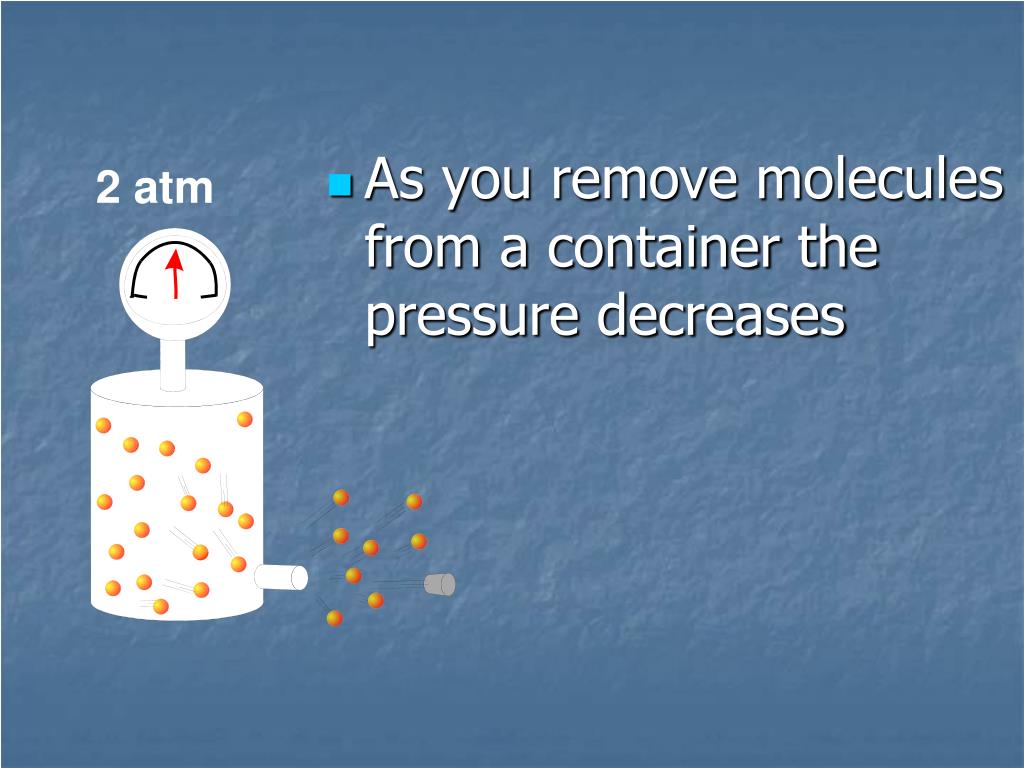

  18. 2 atm • As you remove molecules from a container the pressure decreases

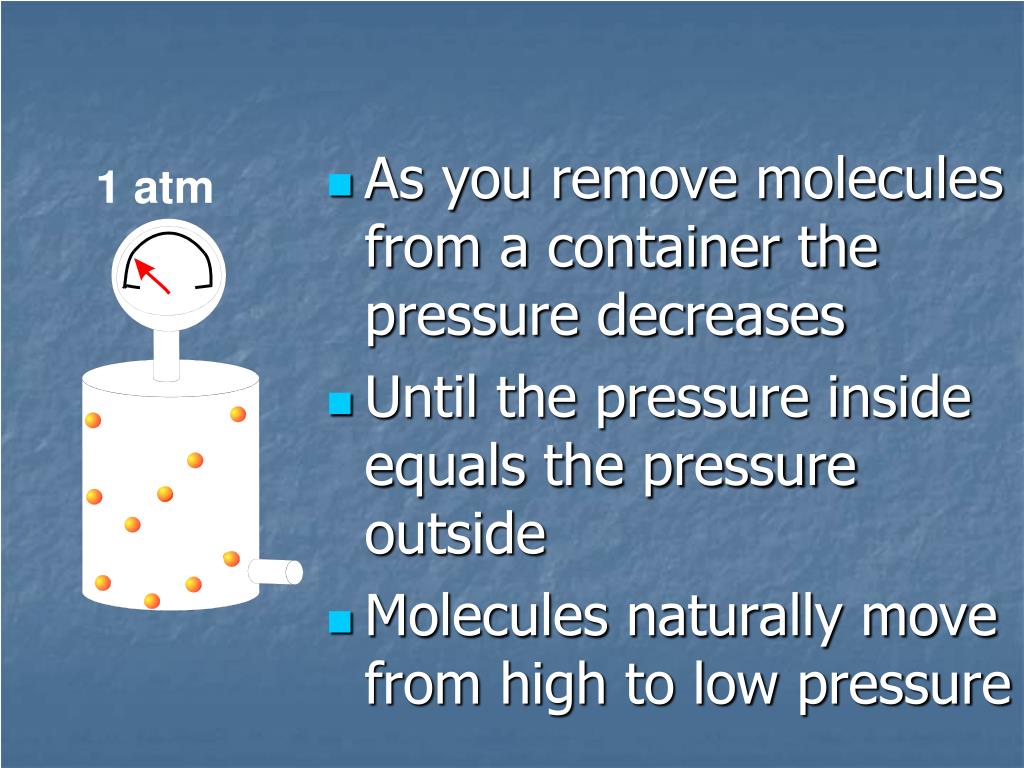

  19. 1 atm • As you remove molecules from a container the pressure decreases • Until the pressure inside equals the pressure outside • Molecules naturally move from high to low pressure

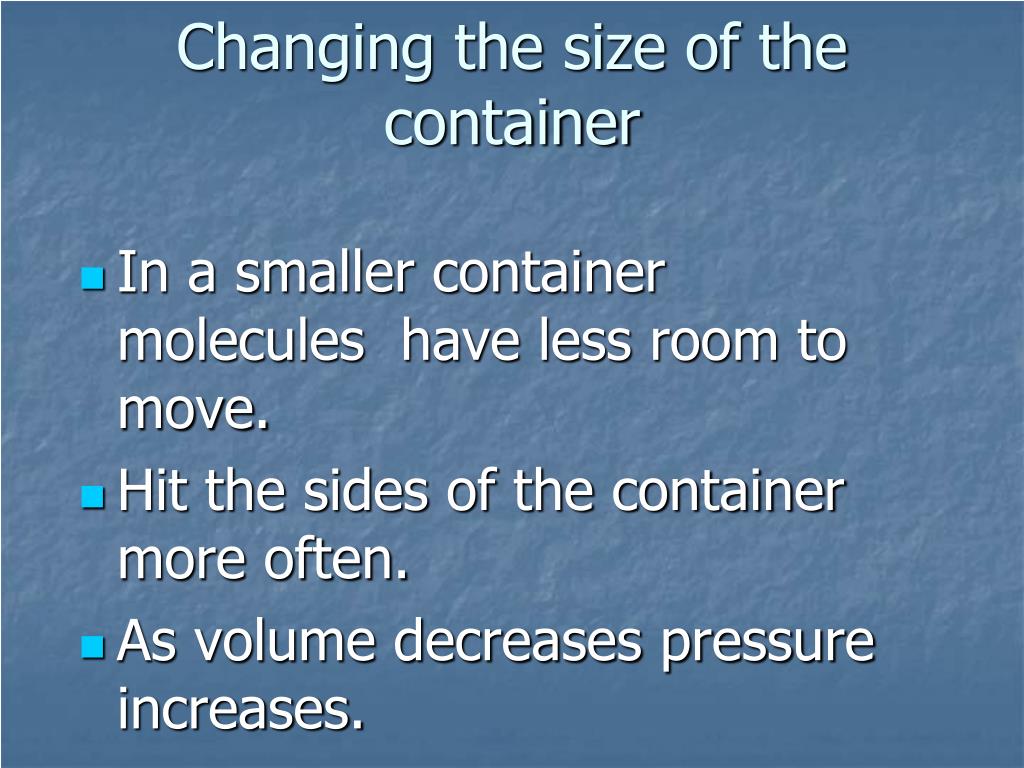

  20. Changing the size of the container • In a smaller container molecules have less room to move. • Hit the sides of the container more often. • As volume decreases pressure increases.

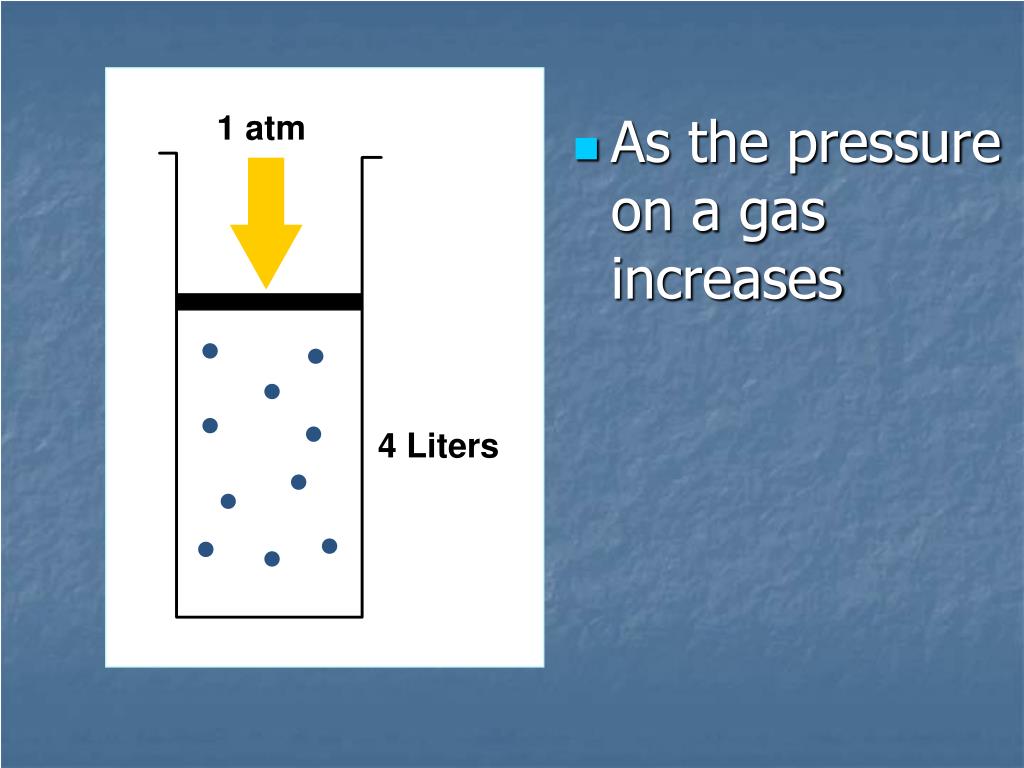

  21. 1 atm • As the pressure on a gas increases 4 Liters

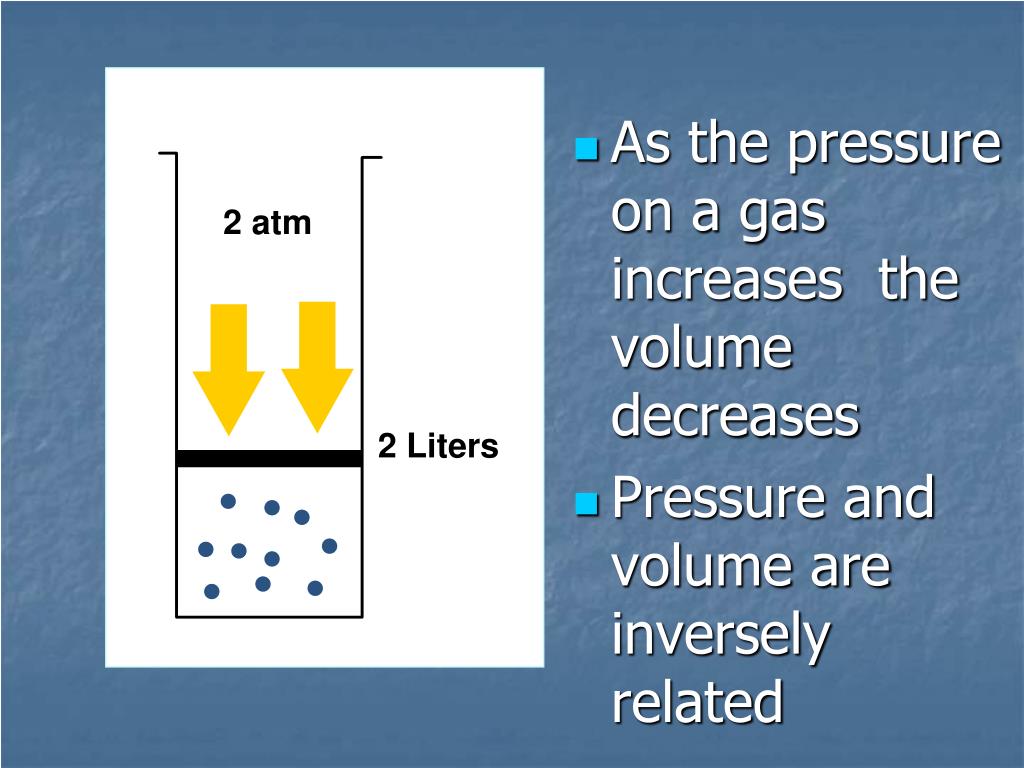

  22. 2 atm • As the pressure on a gas increases the volume decreases • Pressure and volume are inversely related 2 Liters

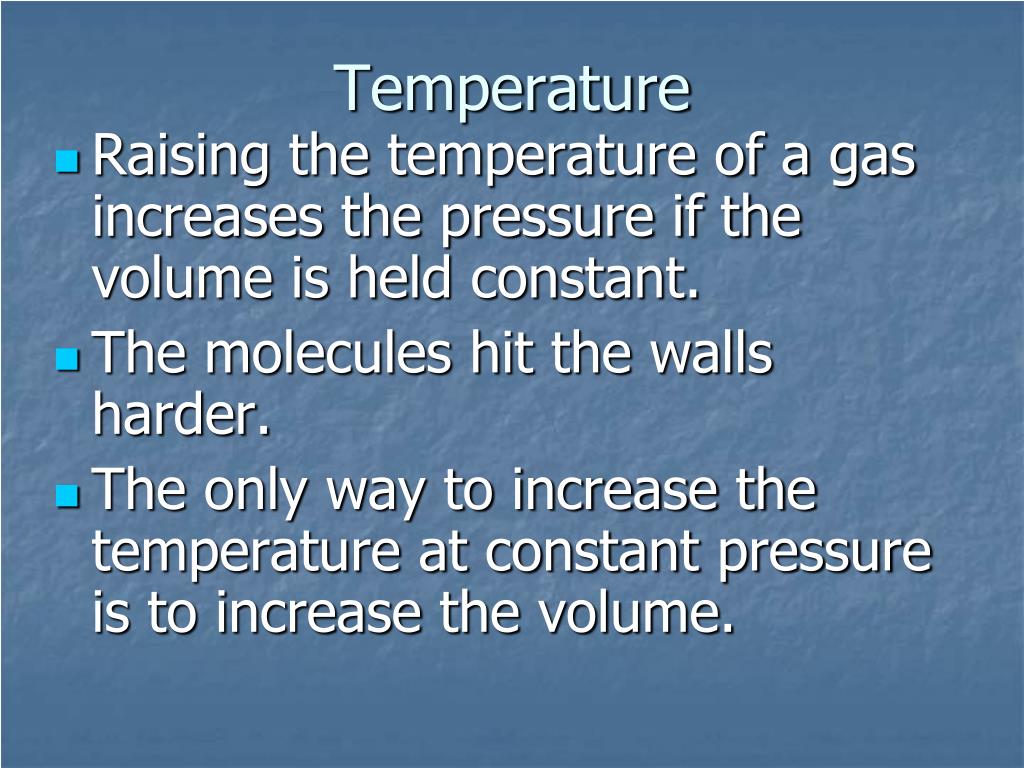

  23. Temperature • Raising the temperature of a gas increases the pressure if the volume is held constant. • The molecules hit the walls harder. • The only way to increase the temperature at constant pressure is to increase the volume.

  24. 300 K • If you start with 1 liter of gas at 1 atm pressure and 300 K • and heat it to 600 K one of 2 things happens

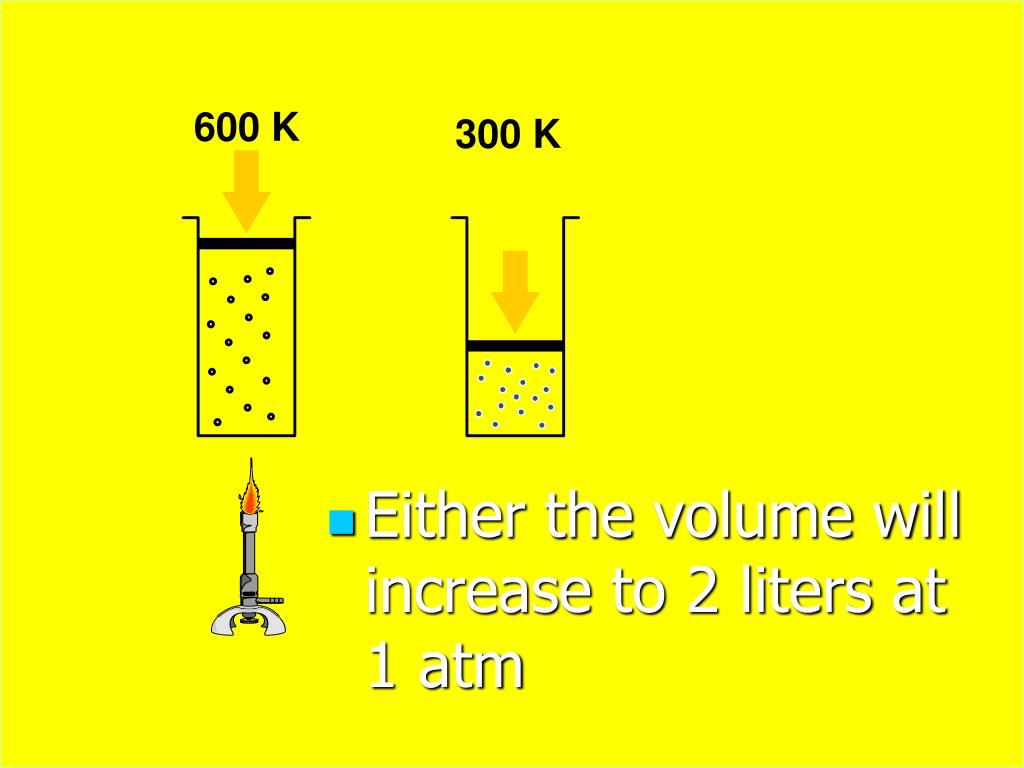

  25. 600 K 300 K • Either the volume will increase to 2 liters at 1 atm

  26. 600 K 300 K • Or the pressure will increase to 2 atm. • Or someplace in between

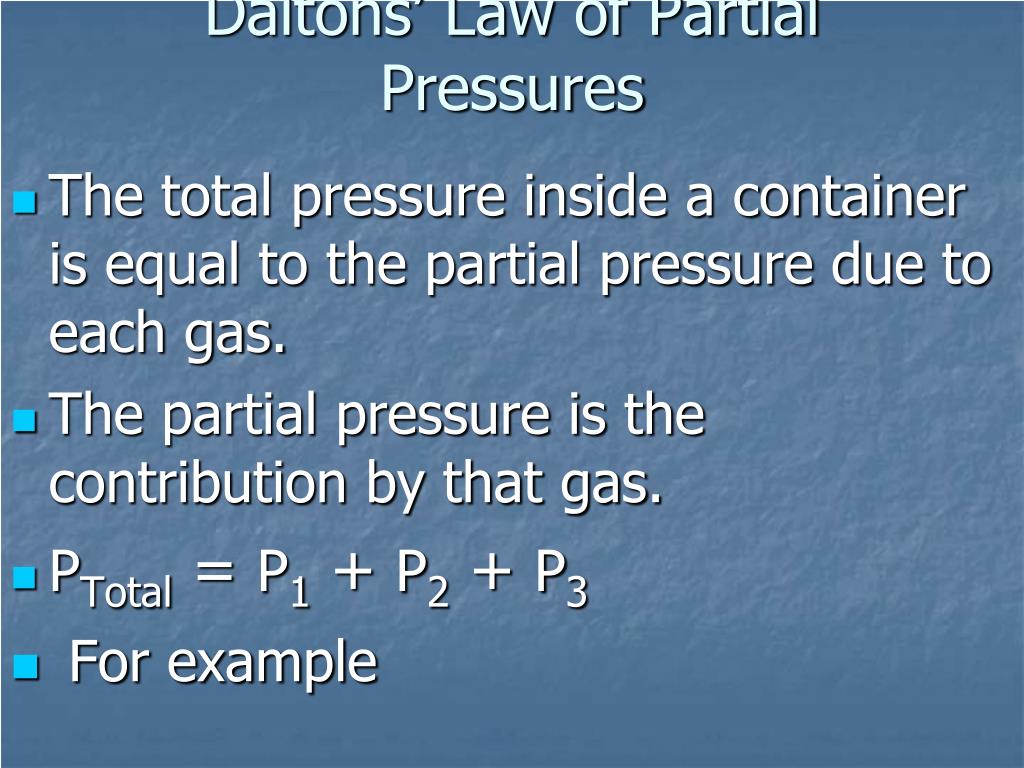

  27. Daltons’ Law of Partial Pressures • The total pressure inside a container is equal to the partial pressure due to each gas. • The partial pressure is the contribution by that gas. • PTotal = P1 + P2 + P3 • For example

  28. We can find out the pressure in the fourth container. • By adding up the pressure in the first 3. 6 atm 1 atm 2 atm 3 atm

  29. Examples • What is the total pressure in a balloon filled with air if the pressure of the oxygen is 170 mm Hg and the pressure of nitrogen is 620 mm Hg? • In a second balloon the total pressure is 1.3 atm. What is the pressure of oxygen if the pressure of nitrogen is 720 mm Hg?

  30. Boyle’s Law • At a constant temperature pressure and volume are inversely related. • As one goes up the other goes down • P1 x V1=P2 x V2

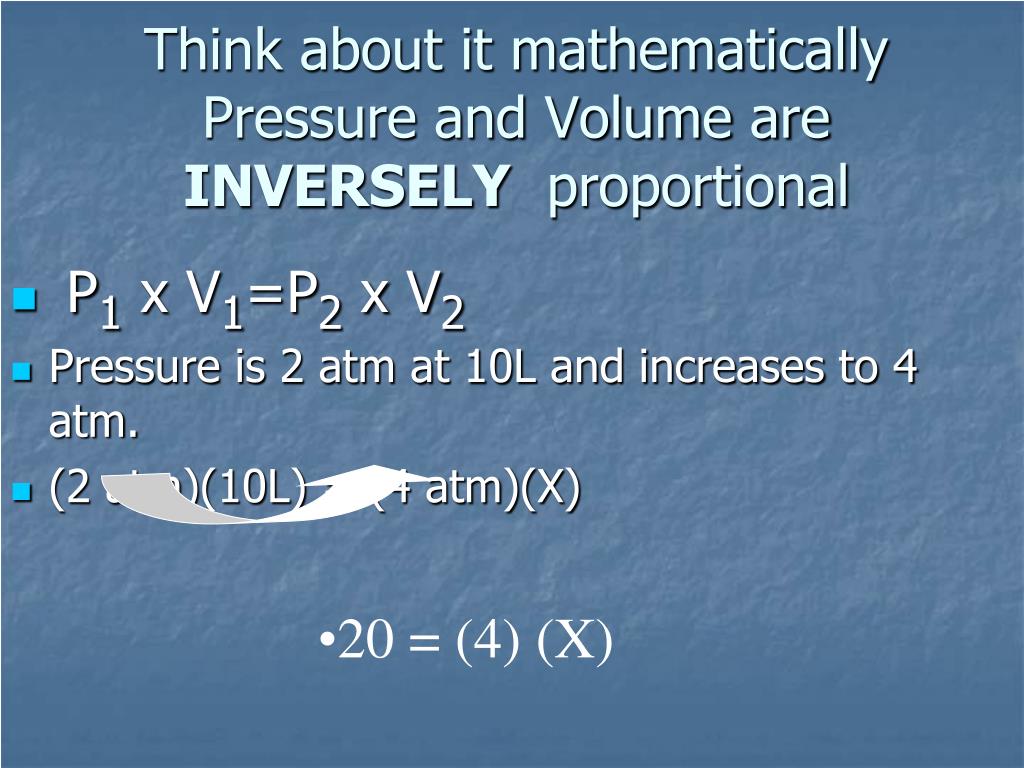

  31. Think about it mathematicallyPressure and Volume are INVERSELY proportional • P1 x V1=P2 x V2 • Pressure is 2 atm at 10L and increases to 4 atm. • (2 atm)(10L) = (4 atm)(X) • 20 = (4) (X)

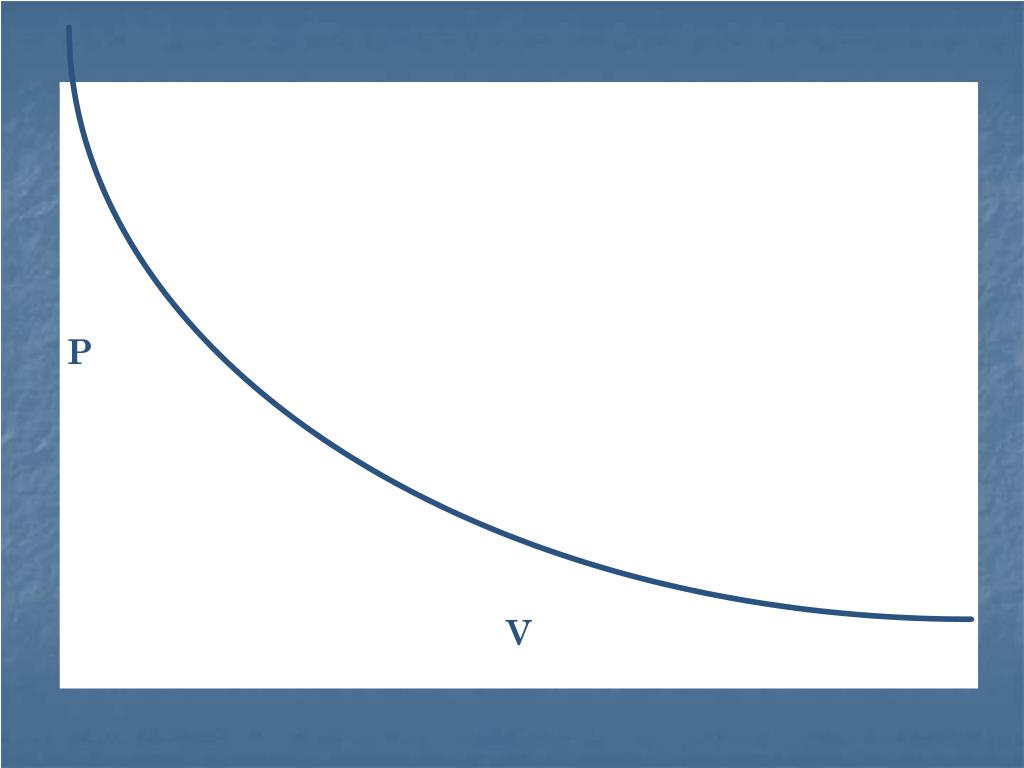

  32. P V

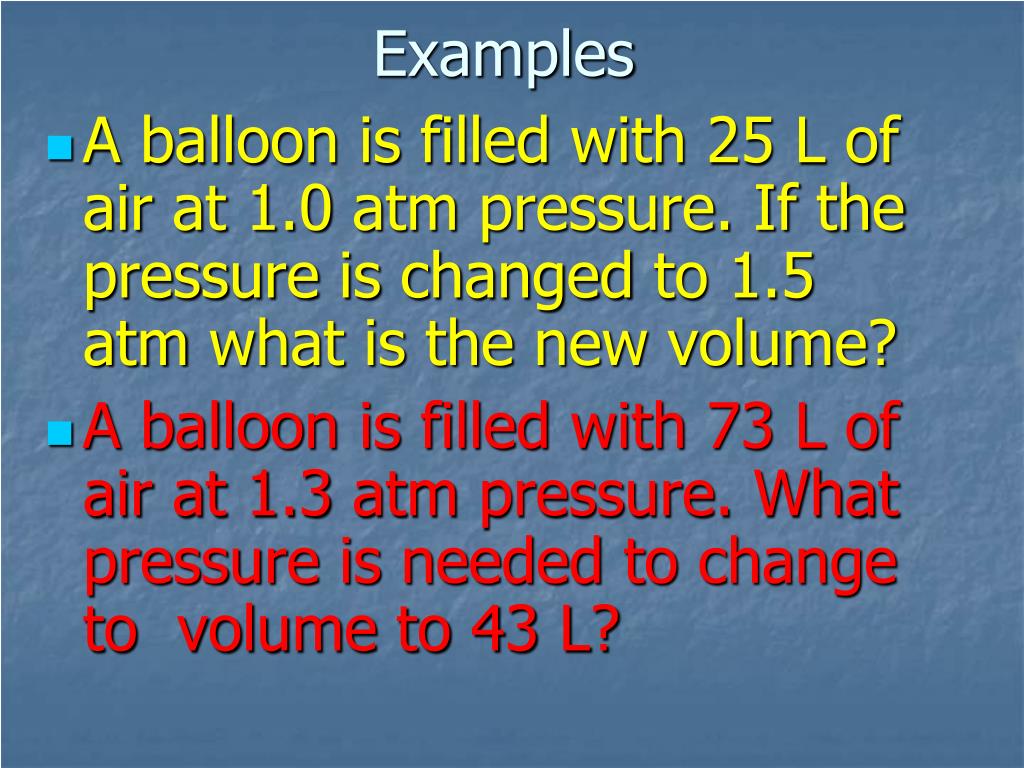

  33. Examples • A balloon is filled with 25 L of air at 1.0 atm pressure. If the pressure is changed to 1.5 atm what is the new volume? • A balloon is filled with 73 L of air at 1.3 atm pressure. What pressure is needed to change to volume to 43 L?

  34. Charles’ Law • The volume of a gas is directly proportional to the Kelvin temperature if the pressure is held constant. • V1 = V2 T1 T2

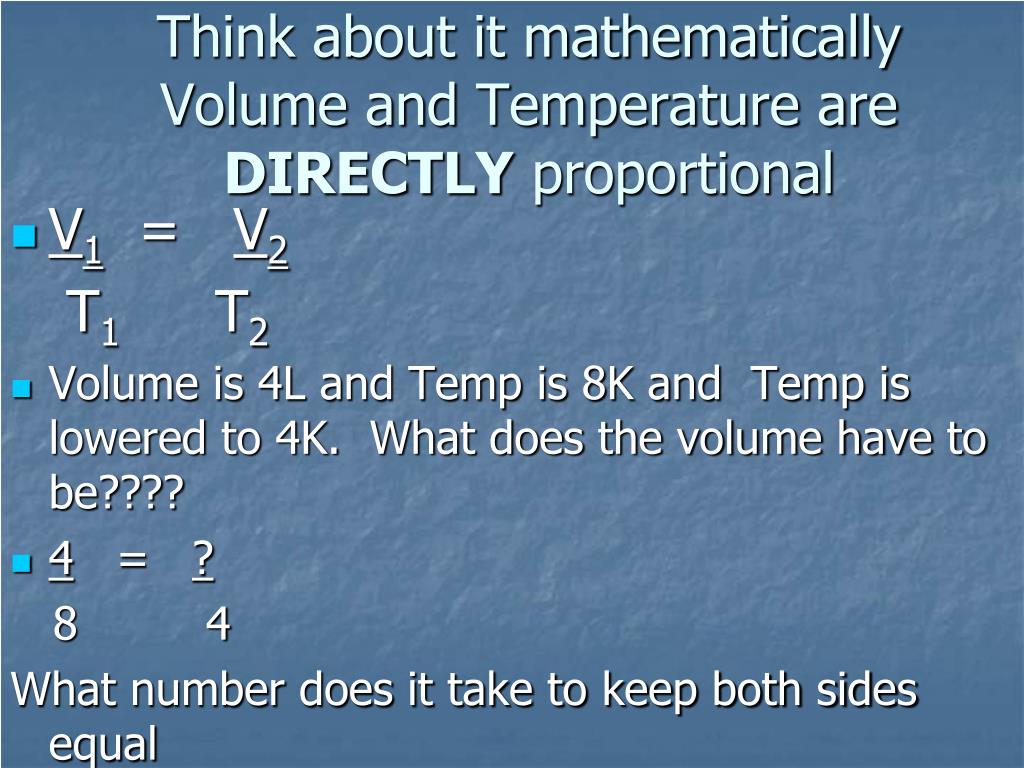

  35. Think about it mathematically Volume and Temperature are DIRECTLY proportional • V1 = V2 T1 T2 • Volume is 4L and Temp is 8K and Temp is lowered to 4K. What does the volume have to be???? • 4 = ? 8 4 What number does it take to keep both sides equal

  36. V T

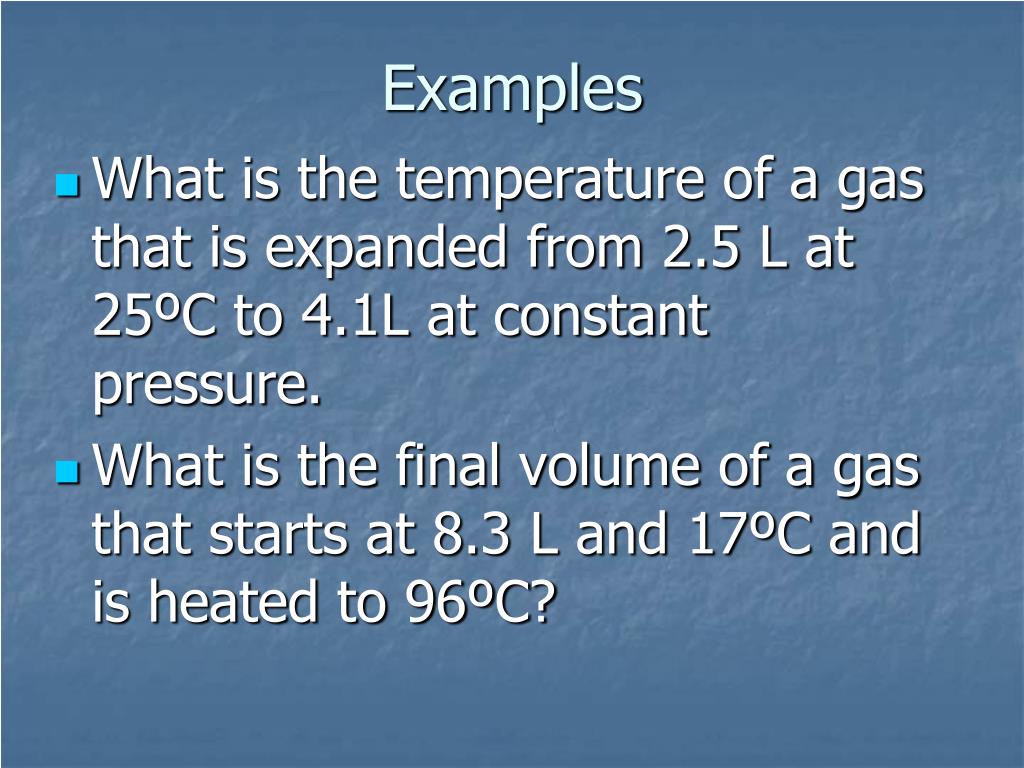

  37. Examples • What is the temperature of a gas that is expanded from 2.5 L at 25ºC to 4.1L at constant pressure. • What is the final volume of a gas that starts at 8.3 L and 17ºC and is heated to 96ºC?

  38. Gay Lussac’s Law • The temperature and the pressure of a gas are directly related at constant volume. • P1 = P2 T1 T2

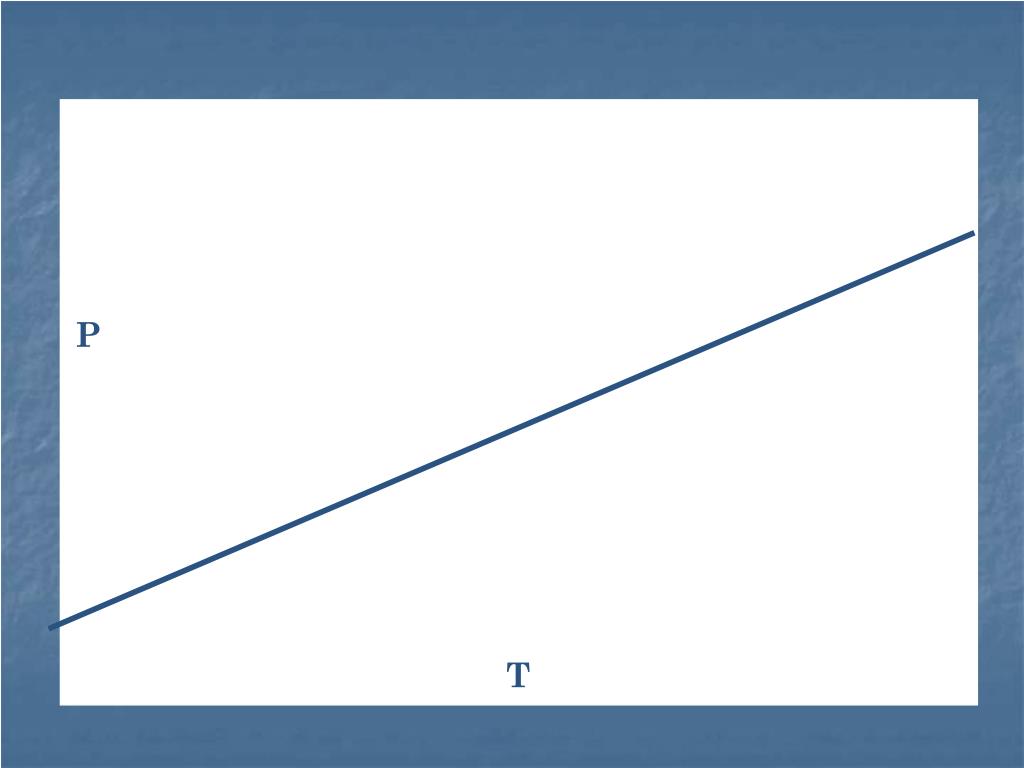

  39. P T

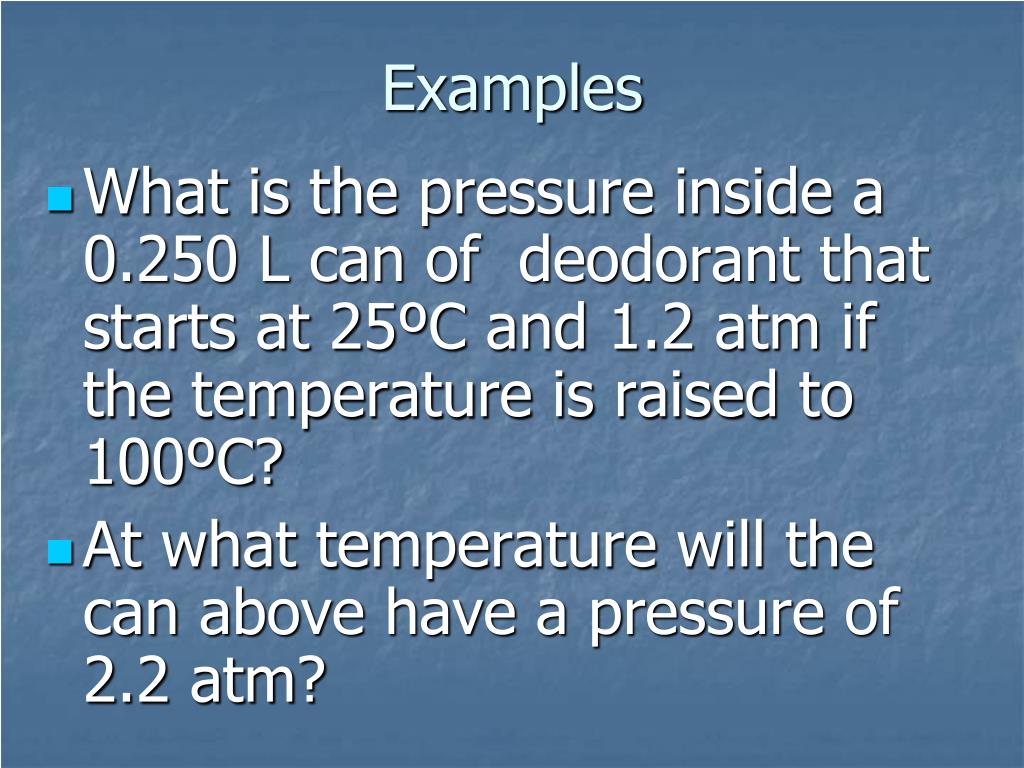

  40. Examples • What is the pressure inside a 0.250 L can of deodorant that starts at 25ºC and 1.2 atm if the temperature is raised to 100ºC? • At what temperature will the can above have a pressure of 2.2 atm?

  41. Putting the pieces together • The Combined Gas Law Deals with the situation where only the number of molecules stays constant. • P1 x V1 = P2 x V2 T1 T2 • Lets us figure out one thing when two of the others change.

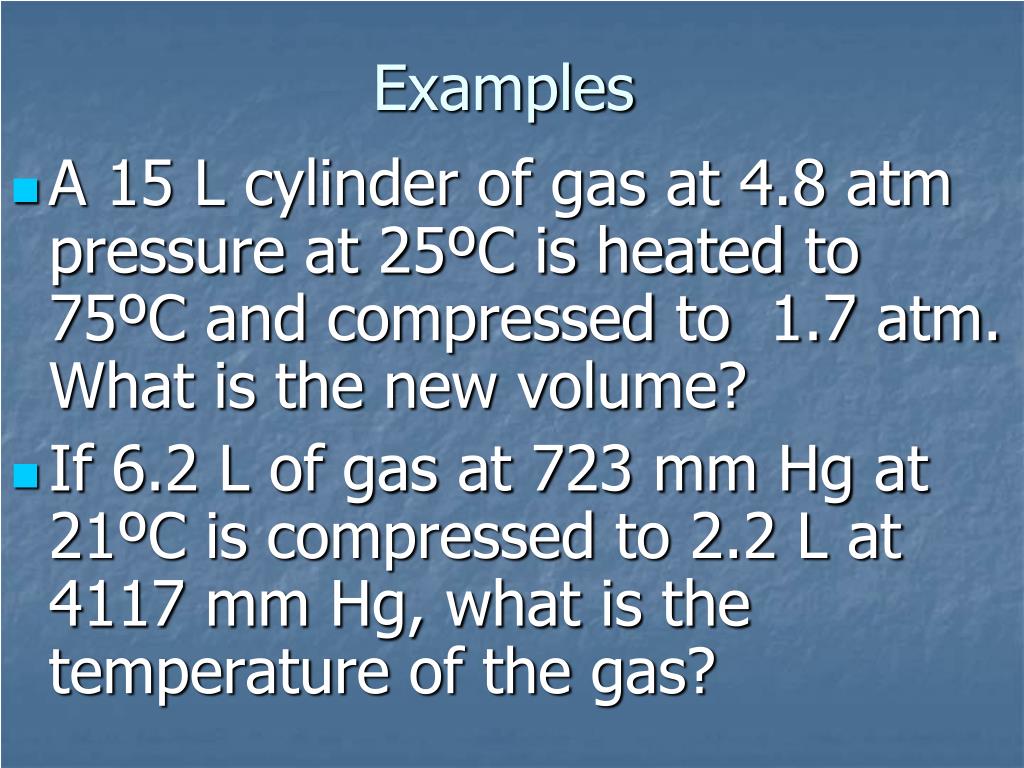

  42. Examples • A 15 L cylinder of gas at 4.8 atm pressure at 25ºC is heated to 75ºC and compressed to 1.7 atm. What is the new volume? • If 6.2 L of gas at 723 mm Hg at 21ºC is compressed to 2.2 L at 4117 mm Hg, what is the temperature of the gas?

  43. The combined gas law contains all the other gas laws! • If the temperature remains constant. P1 V1 P2 x V2 x = T1 T2 Boyle’s Law

  44. The combined gas law contains all the other gas laws! • If the pressure remains constant. P1 V1 P2 x V2 x = T1 T2 Charles’ Law

  45. The combined gas law contains all the other gas laws! • If the volume remains constant. P1 V1 P2 x V2 x = T1 T2 Gay-Lussac Law

  46. The Fourth Part • Avagadro’s Hypothesis • Volume is proportional to number of molecules (or moles) at constant T and P. • V is proportional to moles. • Gets put into the combined gas Law

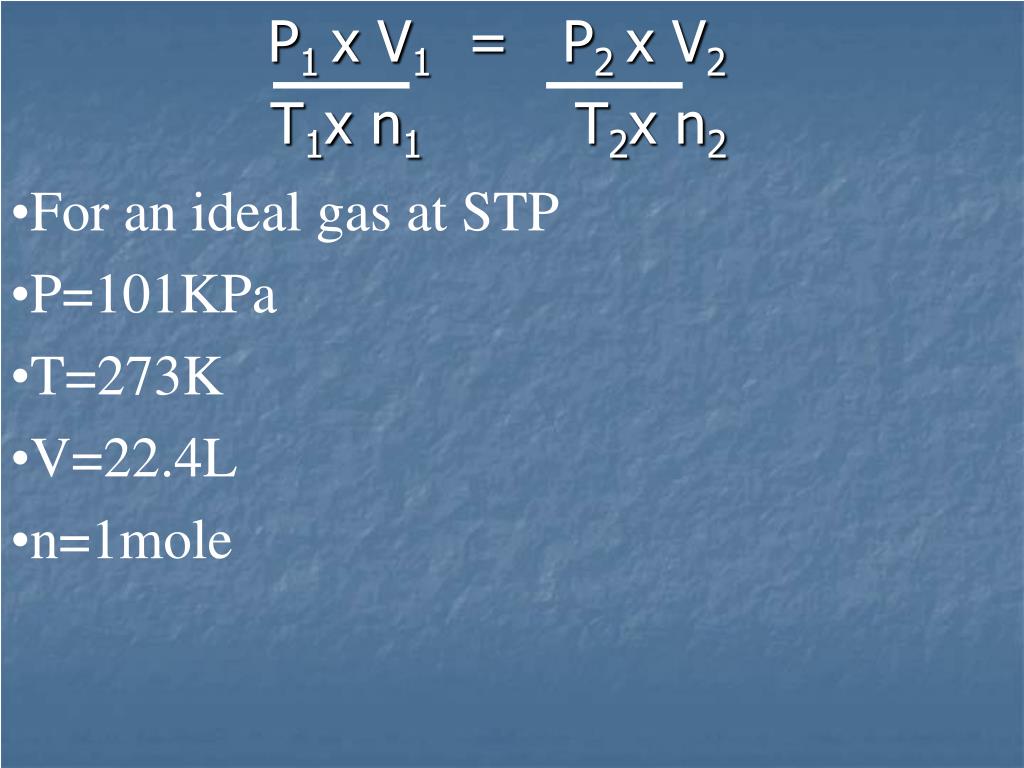

  47. For an ideal gas at STP • P=101KPa • T=273K • V=22.4L • n=1mole P1 x V1 = P2 x V2 T1x n1 T2x n2

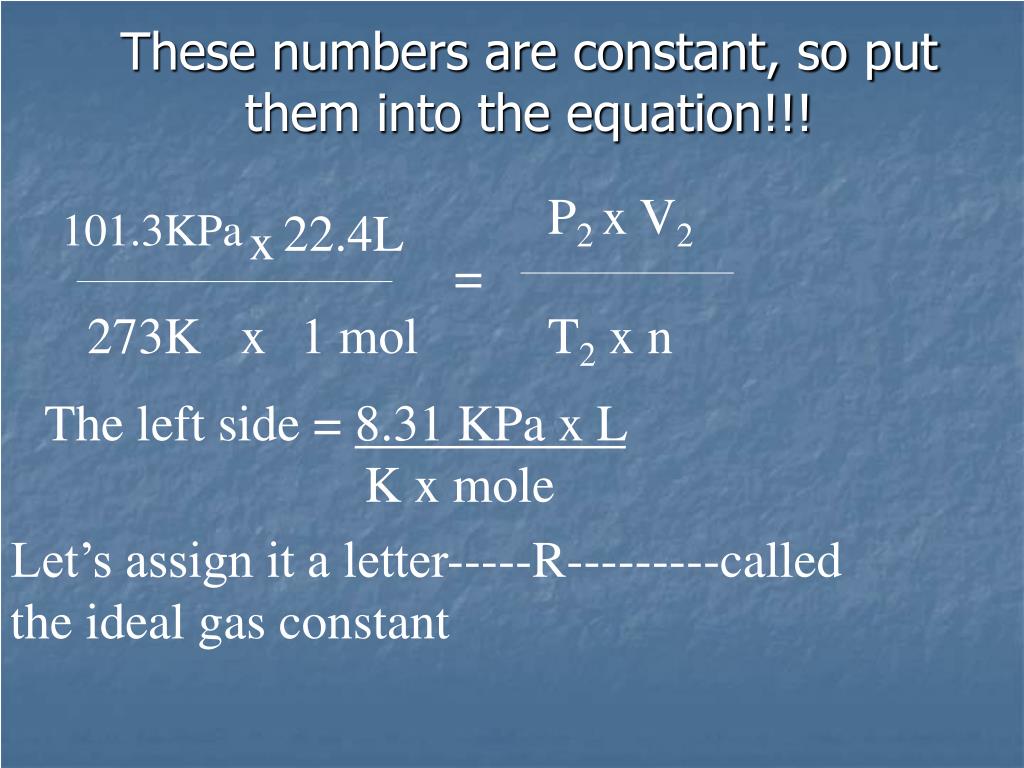

  48. These numbers are constant, so put them into the equation!!! P2 x V2 101.3KPa 22.4L x = 273K x 1 mol T2 x n The left side = 8.31 KPa x L K x mole Let’s assign it a letter-----R---------called the ideal gas constant

  49. What if we use a different number for standard pressure? • Instead of 101.3KPa use 1atm… 1 atm x 22.4L P2 x V2 = 1 mole 273K n2xT2 x So R = .0821 atm x L mole x K

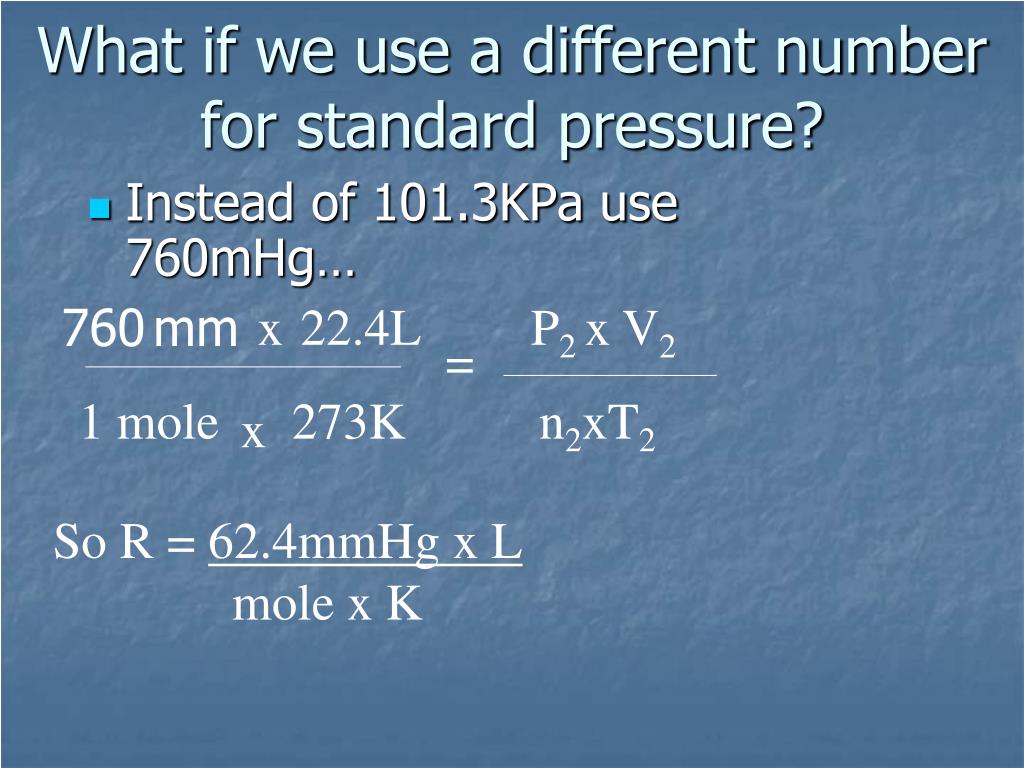

  50. What if we use a different number for standard pressure? • Instead of 101.3KPa use 760mHg… 760mm x 22.4L P2 x V2 = 1 mole 273K n2xT2 x So R = 62.4mmHg x L mole x K
