  1. Improved Algorithms for Reaction Mapping John Crabtree, Dinesh Mehta, Thomas McKinnon, Anthony Dean Colorado School of Mines

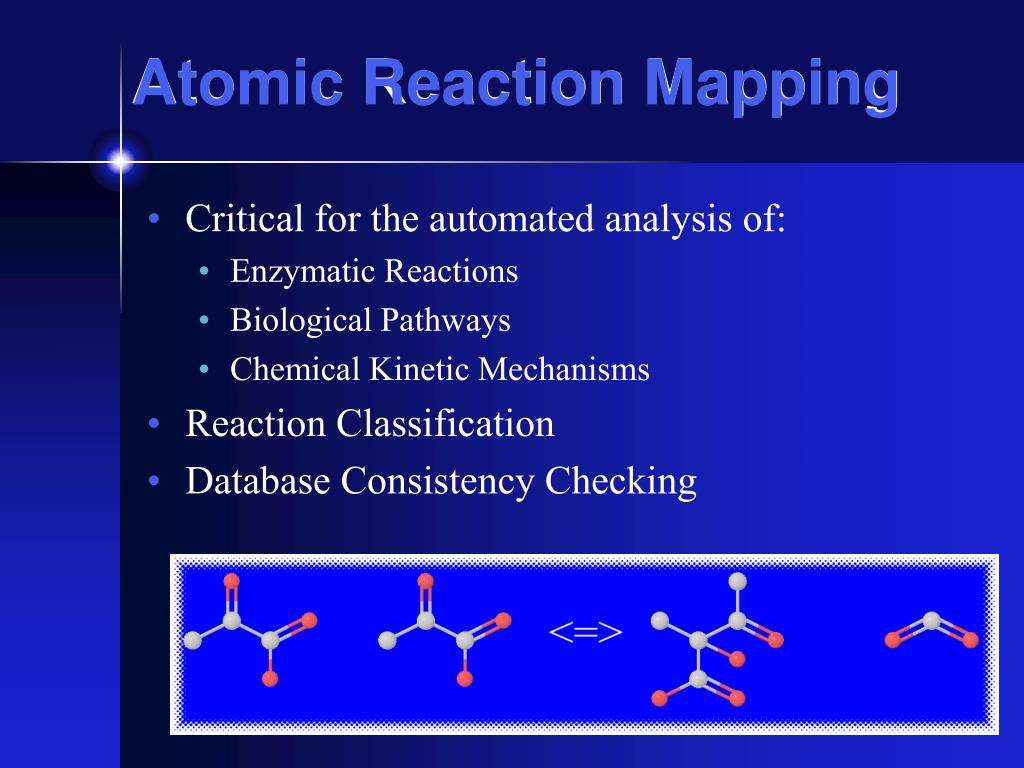

  2. Atomic Reaction Mapping • Critical for the automated analysis of: • Enzymatic Reactions • Biological Pathways • Chemical Kinetic Mechanisms • Reaction Classification • Database Consistency Checking

  3. Problem Formulation • R1 + … + Rn <=> P1 + … + Pm • Reaction mapping • Let v = vertex in reactant graph • Let w = vertex in product graph • Mapping: w1 = f(v1), w2 = f(v2) • Cost c(v1, v2) = 0 same bond state between w1, w2 • Cost c(v1, v2) = 1 different state between w1, w2 • Number of bonds formed/broken • Given a valid chemical reaction, obtain a mapping of minimum cost.

  4. Cut Successive Largest • Complexity is O(n2) x (complexity of naming) • Guaranteed to be efficient • Can add chemical rules

  5. Fewest Bonds First • CHCO + CHCO <=> CO + CO + CHCH • 11 bonds • 00000000001 00000000010 etc • Search all bit patterns in order of min cost • Theorem: Given a valid chemical equation, FBF will produce a mathematically optimal mapping.

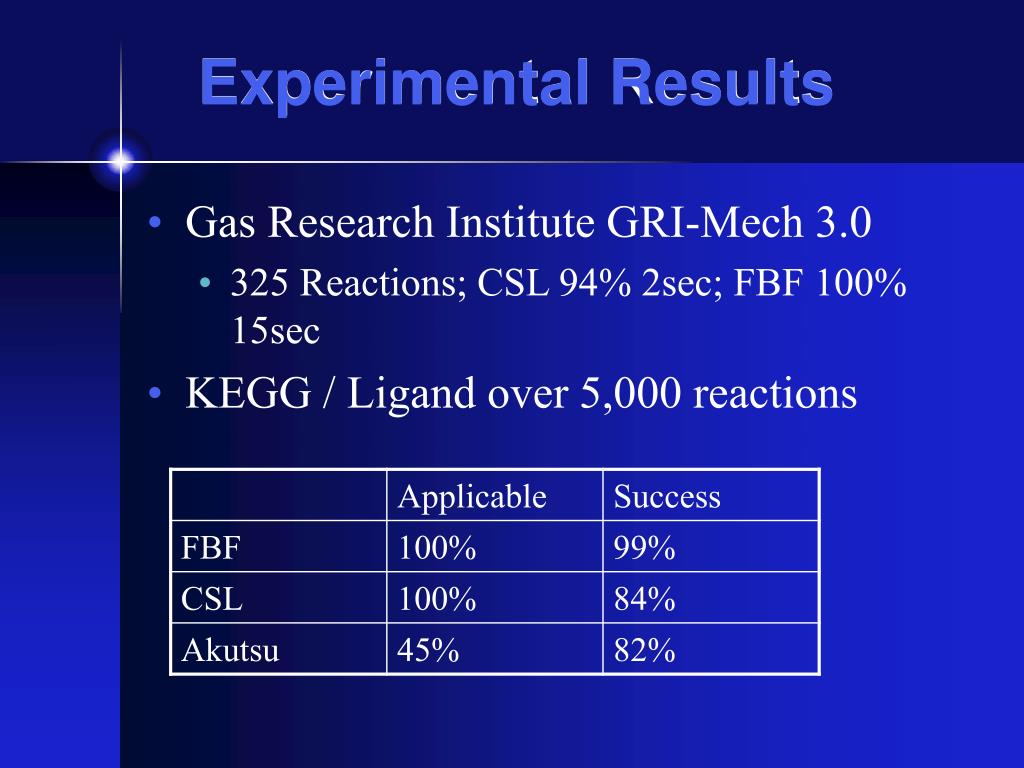

  6. Experimental Results • Gas Research Institute GRI-Mech 3.0 • 325 Reactions; CSL 94% 2sec; FBF 100% 15sec • KEGG / Ligand over 5,000 reactions
