Improved Approximation Algorithms for the Spanning Star Forest Problem

platt avatar
platt
19 diapositives · 343 Views · Sep 12, 2014

This paper presents a new approximation algorithm with a factor of 0.71 for the unweighted Star Forest problem, enhancing the previous 0.6 approximation. We explore the Star Forest, defined as a forest of disjoint stars, aiming to maximize leaves in an undirected graph. Our method introduces a novel rounding scheme for dominating sets, achieving better results than traditional greedy approaches. Additionally, we offer a 0.64 approximation for the node-weighted version and discuss hardness results for various problem versions, demonstrating significant relevance in applications including genomics and phylogenetics.

Improved Approximation Algorithms for the Spanning Star Forest Problem - slide 1
01 / 19Improved Approximation Algorithms for the Spanning Star Forest Problem
1 / 17

Télécharger la présentation

Improved Approximation Algorithms for the Spanning Star Forest Problem
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. Improved Approximation Algorithms for the Spanning Star Forest Problem Prasad Raghavendra Ning Chen C. ThachNguyen AtriRudraGyanit Singh University of Washington Roee Engelberg Technion University TexPoint fonts used in EMF. Read the TexPoint manual before you delete this box.: AA

  2. Star Forest A Star is a tree of diameter 2. A Star Forest is a forest consisting of only Stars (a bunch of vertex disjoint stars ) Center Leaves

  3. Unweighted Star Forest Problem Input : Undirected graph G Find a Star Forest with the maximum number of edges 3 7 2 1 6 5 Equivalently, Maximize the number of leaves. 4 Number of Edges = 4 Number of Edges = 5

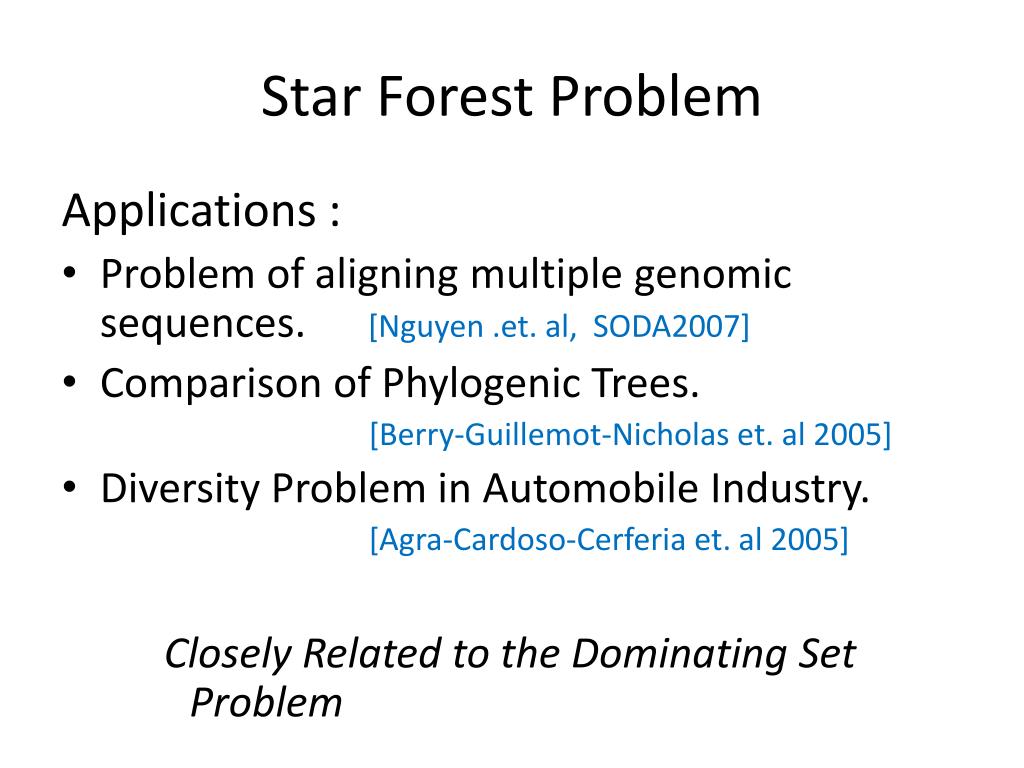

  4. Star Forest Problem Applications : • Problem of aligning multiple genomic sequences. [Nguyen .et. al, SODA2007] • Comparison of Phylogenic Trees. [Berry-Guillemot-Nicholas et. al 2005] • Diversity Problem in Automobile Industry. [Agra-Cardoso-Cerferia et. al 2005] Closely Related to the Dominating Set Problem

  5. Dominating Set A set of vertices S, such that “Every vertex not in S isadjacent to a vertex in set S” 3 7 2 1 6 5 4

  6. Relation to Dominating Set 3 L = Set of Leaves L = Set of NOT Leaves Every vertex in L is adjacent toa vertex in L. L is a Dominating Set 7 1 6 5 4 Maximum Star Forest = n – (Minimum Dominating Set)

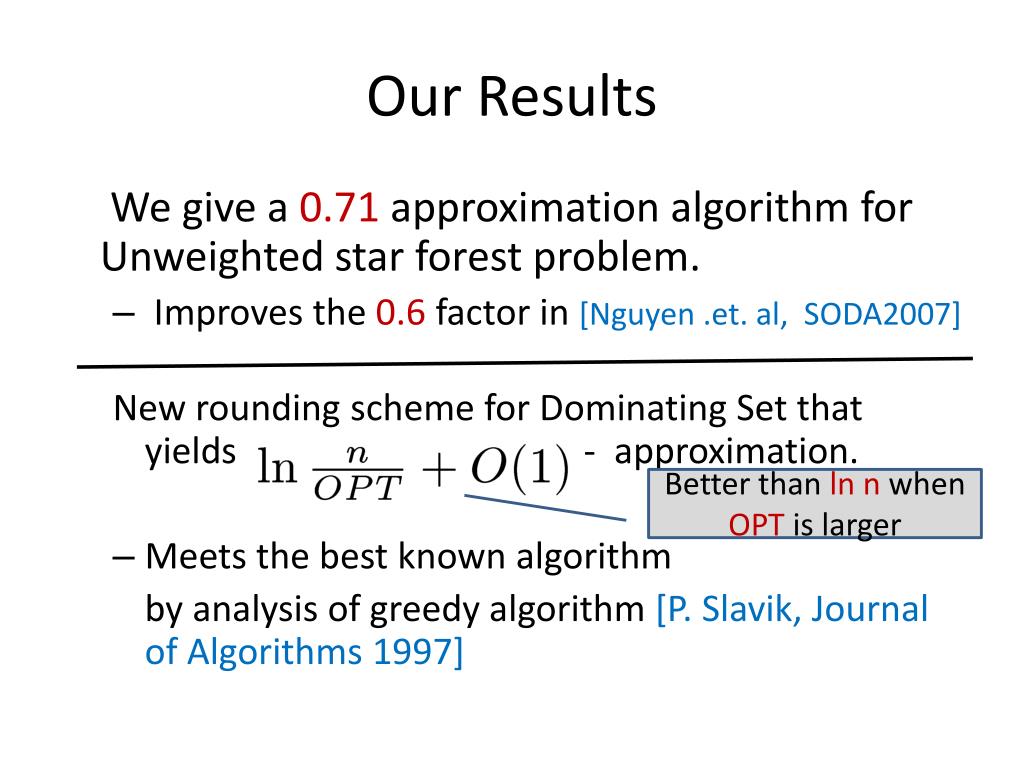

  7. Our Results We give a 0.71 approximation algorithm for Unweighted star forest problem. • Improves the 0.6 factor in [Nguyen .et. al, SODA2007] New rounding scheme for Dominating Set that yields - approximation. • Meets the best known algorithm by analysis of greedy algorithm [P. Slavik, Journal of Algorithms 1997] Better than ln n when OPT is larger

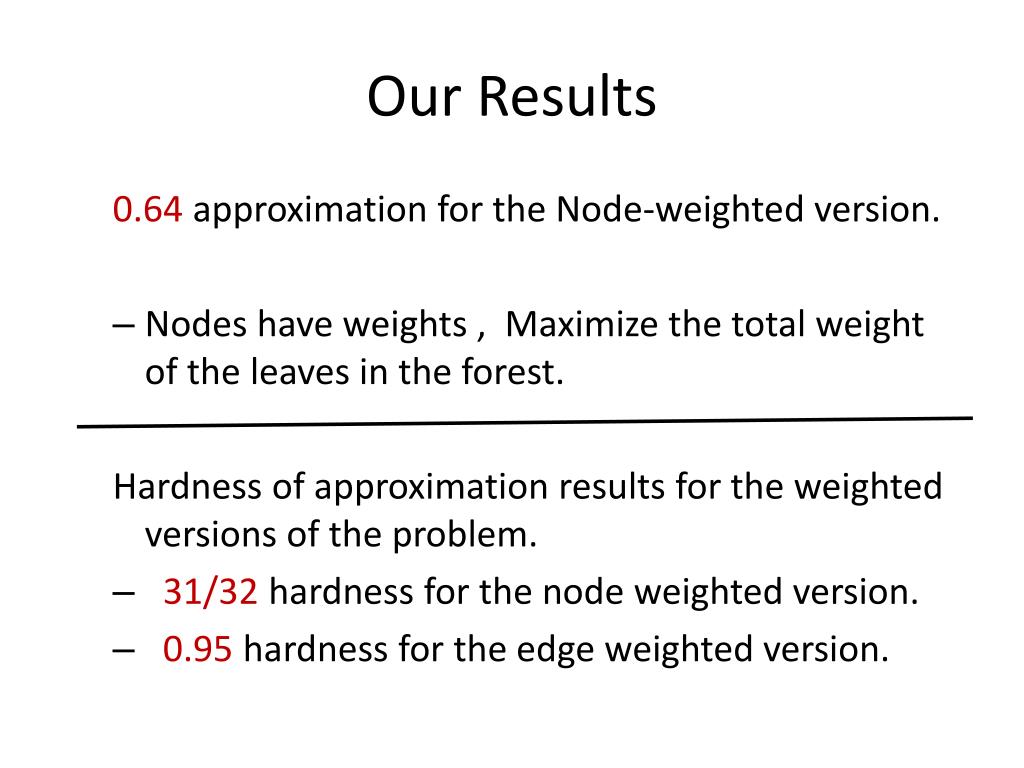

  8. Our Results 0.64 approximation for the Node-weighted version. • Nodes have weights , Maximize the total weight of the leaves in the forest. Hardness of approximation results for the weighted versions of the problem. • 31/32 hardness for the node weighted version. • 0.95 hardness for the edge weighted version.

  9. Dominating Set - A Linear Program Variables : (x1, x2 ,… xn) xi = 1 if vertex i is in dominating set = 0 otherwise Constraints : For every vertex, at least one vertex in its neighbourhood belongs to the dominating set 2 Example : 1 3 4 x1 + x2 + x3 +x4 ≥ 1

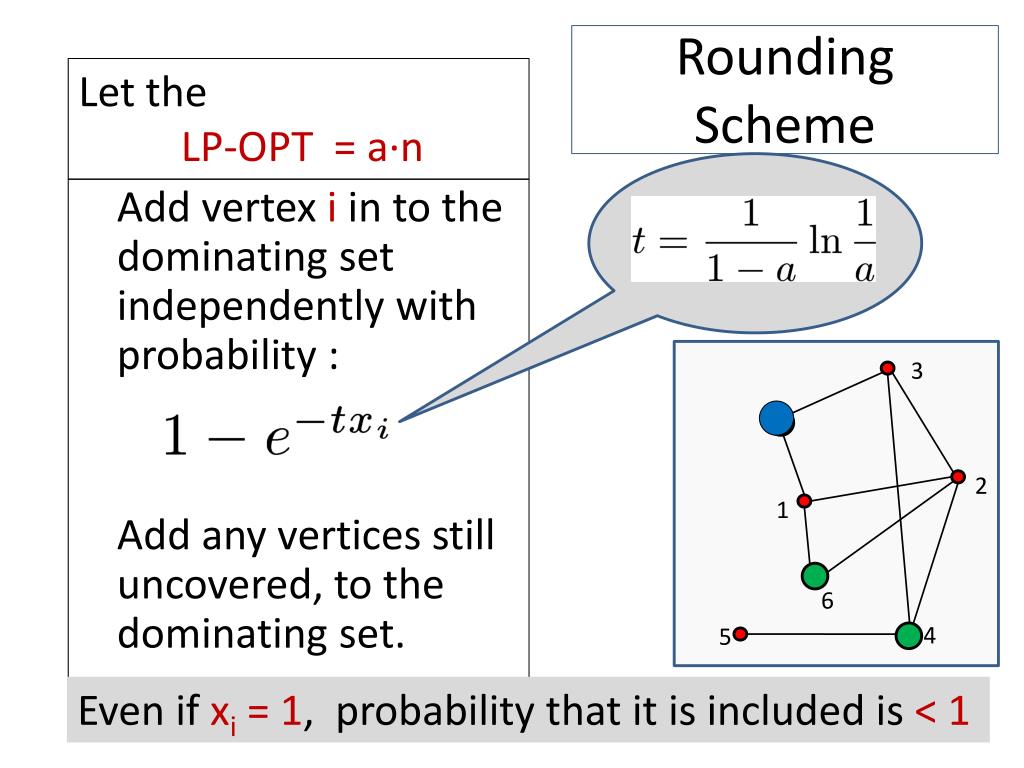

  10. Rounding Scheme Let the LP-OPT = a∙n Add vertex i in to the dominating set independently with probability : Add any vertices still uncovered, to the dominating set. 3 7 2 1 6 4 5 Even if xi = 1, probability that it is included is < 1

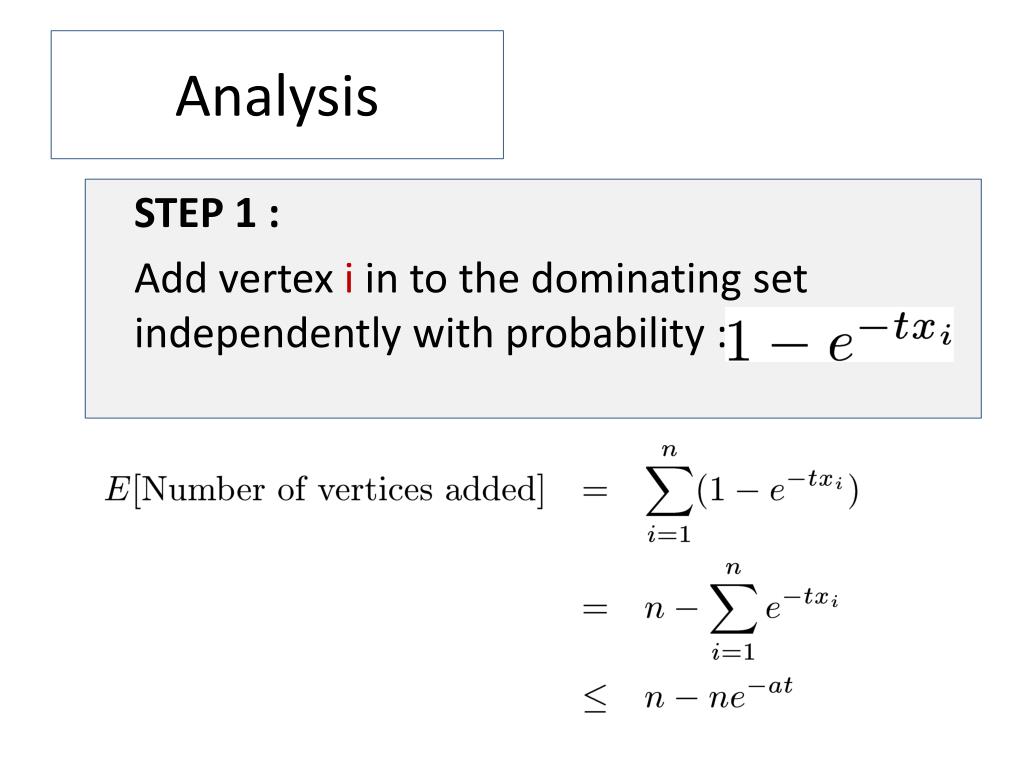

  11. Analysis STEP 1 : Add vertex i in to the dominating set independently with probability :

  12. Analysis STEP 2: Add any vertices still uncovered, to the dominating set. LP Constraint E[Number of Vertices added in STEP 2]≤ne-t

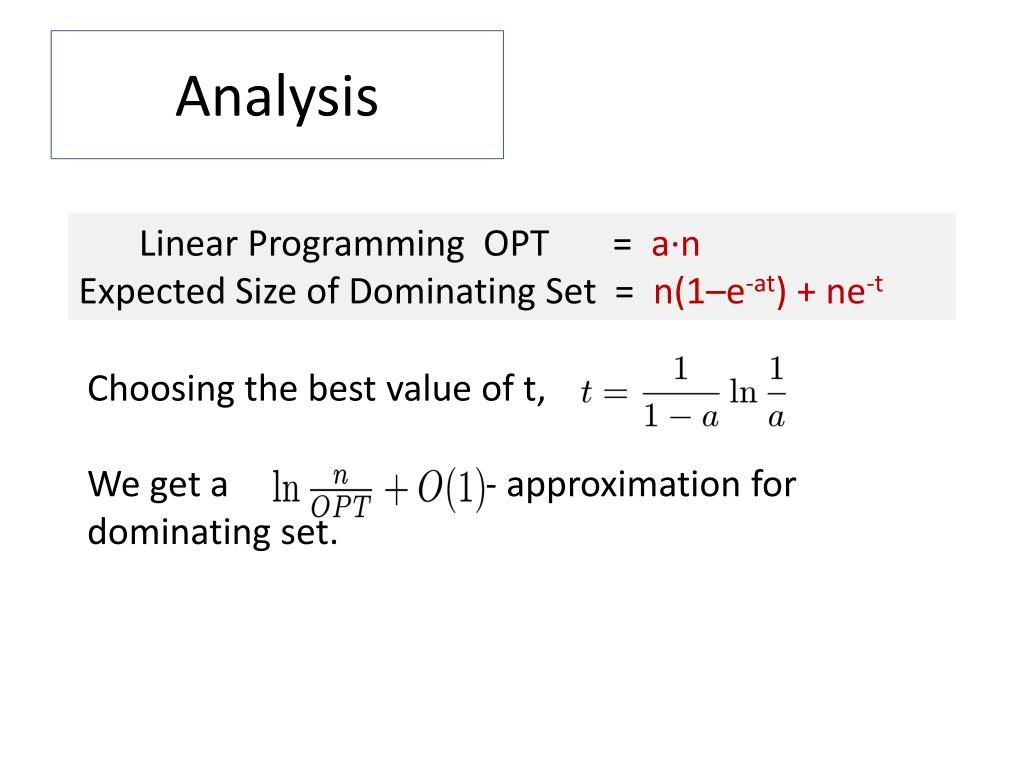

  13. Analysis Linear Programming OPT = a∙n Expected Size of Dominating Set = n(1–e-at) + ne-t Choosing the best value of t, We get a - approximation for dominating set.

  14. Not Enough Factor = LP OPT = a∙n Gives good approximation for Star Forest if OPT is closer to n If OPT is smaller, then gives poorer approximation. However if OPT is smaller, then there are simple algorithms that give good approximation.

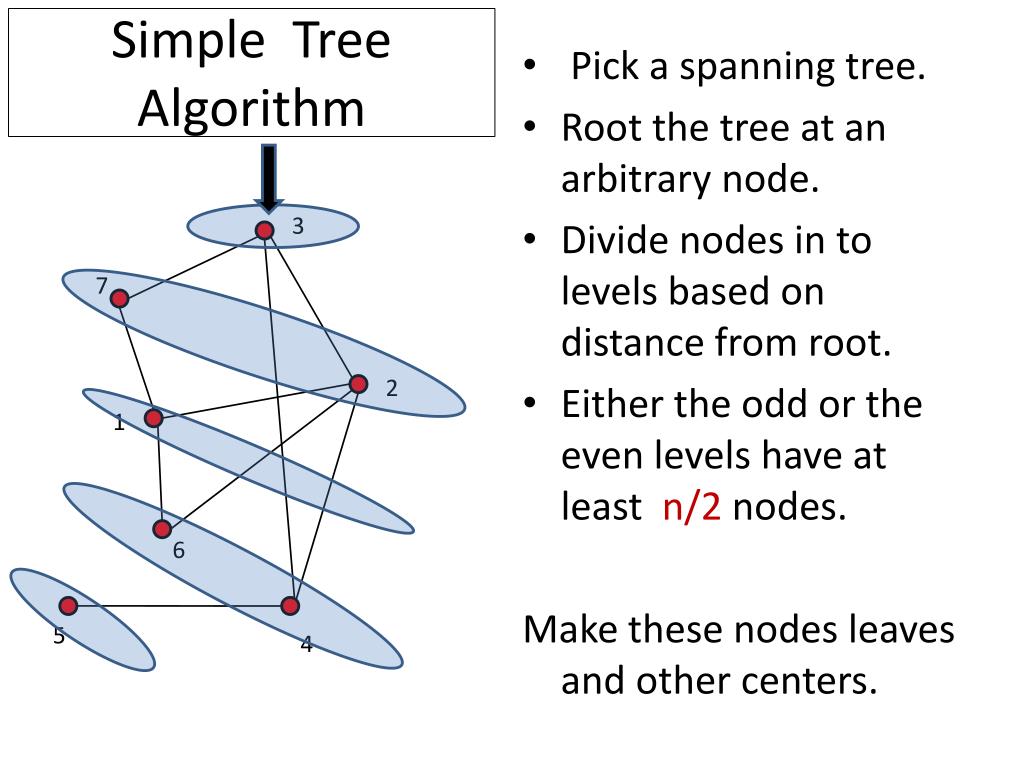

  15. Simple Tree Algorithm • Pick a spanning tree. • Root the tree at an arbitrary node. • Divide nodes in to levels based on distance from root. • Either the odd or the even levels have at least n/2 nodes. Make these nodes leaves and other centers. 3 7 2 1 6 5 4

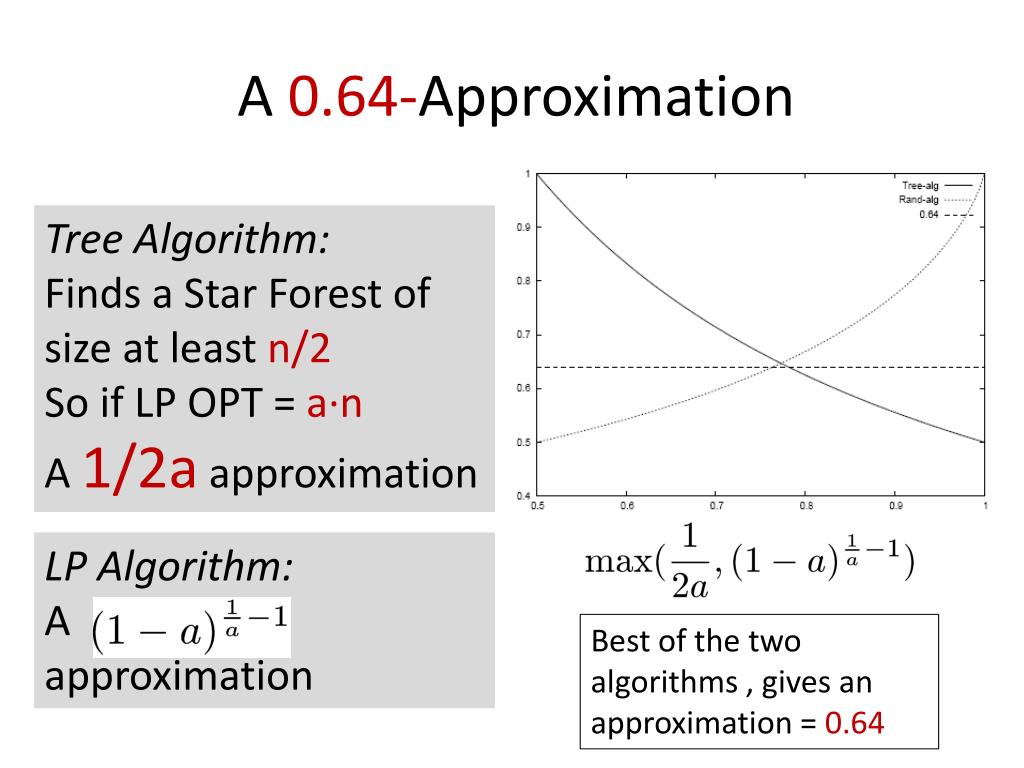

  16. A 0.64-Approximation Tree Algorithm: Finds a Star Forest of size at least n/2 So if LP OPT = a∙n A 1/2a approximation LP Algorithm: A approximation Best of the two algorithms , gives an approximation = 0.64

  17. Getting to 0.7 We design a Combinatorial Algorithm for Unweighted Star Forest that gives -approximation. Using this along with LP algorithm gives :

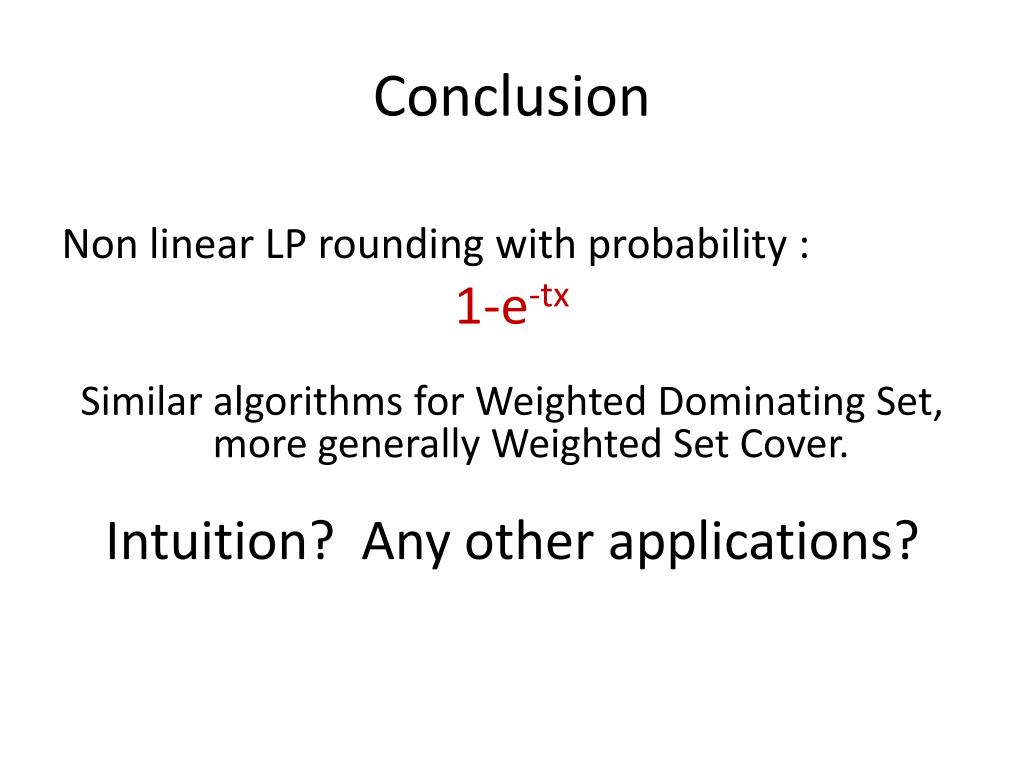

  18. Conclusion Non linear LP rounding with probability : 1-e-tx Similar algorithms for Weighted Dominating Set, more generally Weighted Set Cover. Intuition? Any other applications?

  19. Thank You
