  1. 2N PRI Gateways 2N SIM Star

  2. 2N StarGate PRI and VoIP GSM Gateway

  3. What it does? GSM gateway is device connecting GSM network with PBX via PRI ISDN or VoIP interface

  4. Features • From 2 to 32 GSM channels • Up to 256 SIM cards • Over 500,000 minutes/month

  5. Features • Least cost routing • Optional VoIP support • Optional 3G support

  6. Features • Hot swappable GSM boards • Not PC based – high stability

  7. Routing Gateway Efficient Routing Non-economical solution

  8. Key Benefits • Ability to reach traditional fixed-operator customers with a relevant offer • No needof PRI cable to connect a customer • Exceptional traffic volume increase

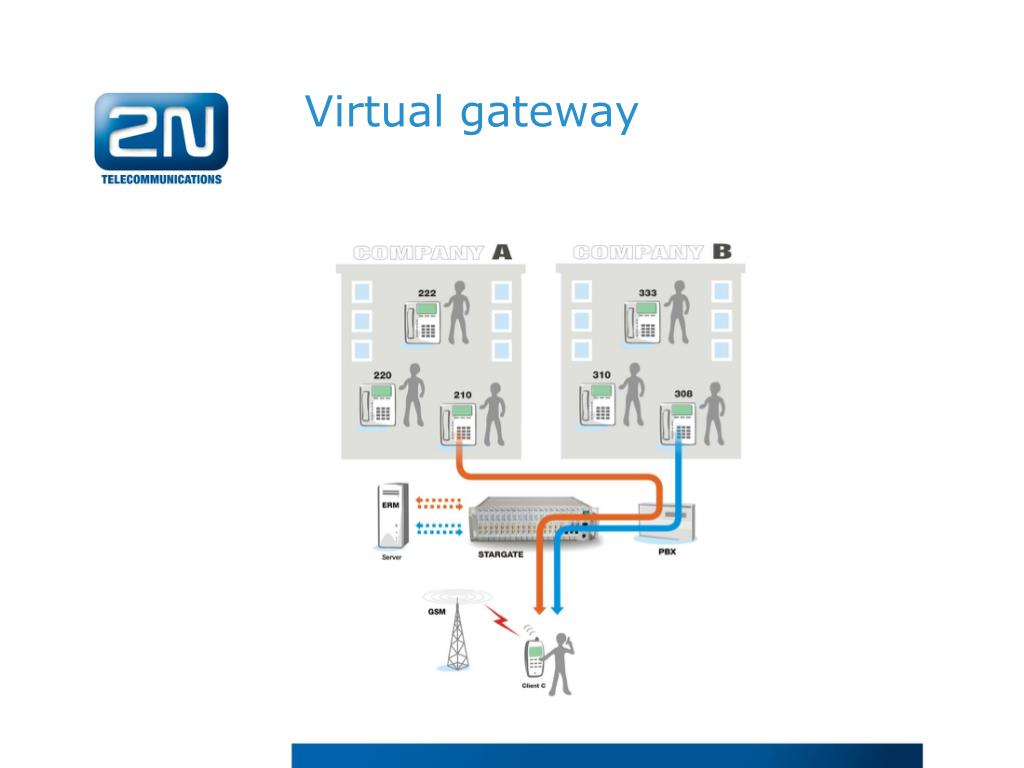

  9. Virtual gateway

  10. Key Benefits • Share gateway by up to 8 companies

  11. 2N SIM Star Virtual SIM application

  12. What is SIM Star? System that enables communication between the GSM/3G module and the remote SIM card

  13. What is SIM Star? Before Now

  14. What does it do? • Central management of SIM cards • Dynamical and fixed assignment of SIM cards among gateways

  15. Why do people need it? • Safe storage of SIM cards • Save of time and human sources • Bussines growth

  16. Features • Easily scalable • Up to 10.000 SIM cards • Easy to configure

  17. Parts of SIM Star • SIM Star server • SIM box • SIM board • SIM client board • Virtual SIM GSM board

  18. Parts of SIM Star SIM Star server • 2U rack PC based on Fedora Core Linux • Main logic for switching SIM cards between connected gateways • Configurable via remote client

  19. Parts of SIM Star SIM board • Storage for 32 SIM cards • Must be placed in SIM box

  20. Parts of SIM Star SIM box • 3U rack chassis • Up to 18 Sim Boards • Communication with the rest of SIM Star via TCP/IP

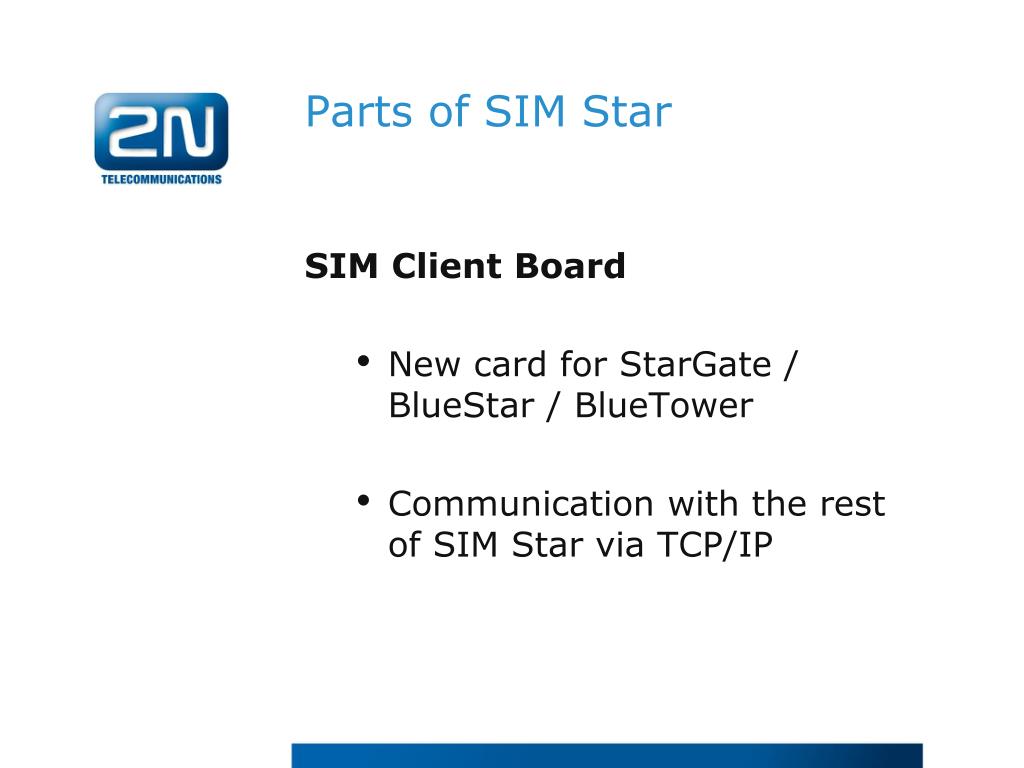

  21. Parts of SIM Star SIM Client Board • New card for StarGate / BlueStar / BlueTower • Communication with the rest of SIM Star via TCP/IP

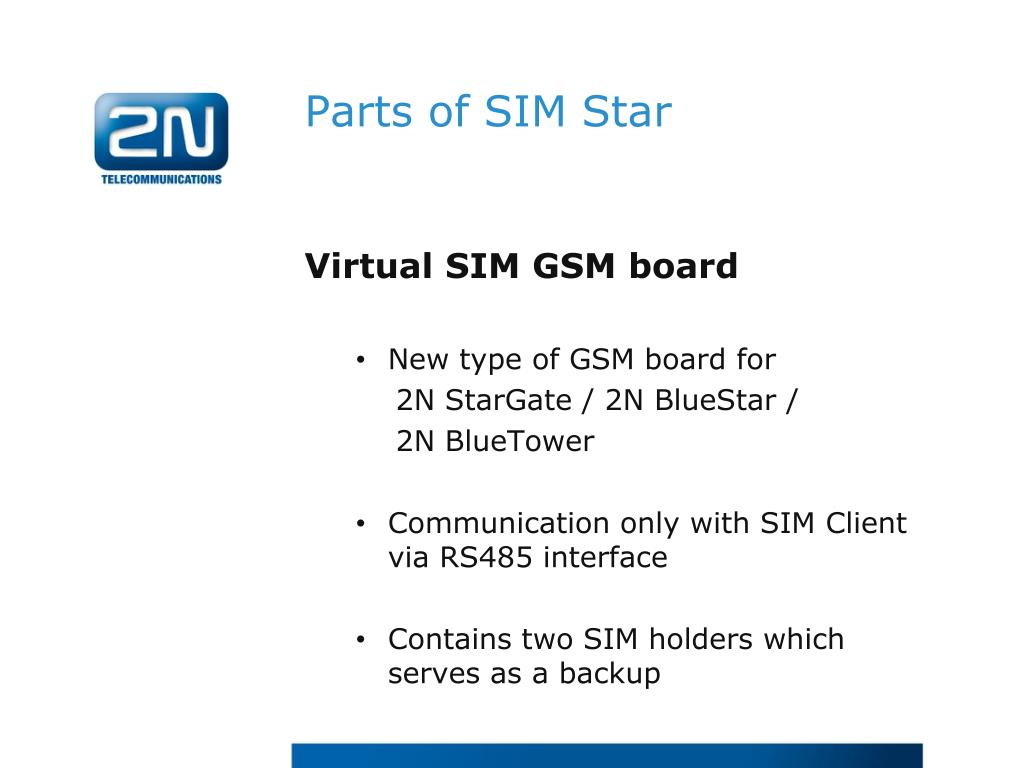

  22. Parts of SIM Star Virtual SIM GSM board • New type of GSM board for 2N StarGate / 2N BlueStar / 2N BlueTower • Communication only with SIMClient via RS485 interface • Contains two SIM holders which serves as a backup

  23. How it works? TCP/IP Configuration Sim Boards SimStarServer SimConfigurator TCP/IP Configuration TCP/IP Configuration SIM stream (TCP/IP) VSIM board VSIM board StarGate SimClient AUX CPU RS485
