  1. KNOM2001 / Taejeon IP Managementin New Millennium 25,May, 2001 Transport Systems Group,Fujitsu Ltd. Masayoshi Ejiri ejiri@jp.fujitsu.com

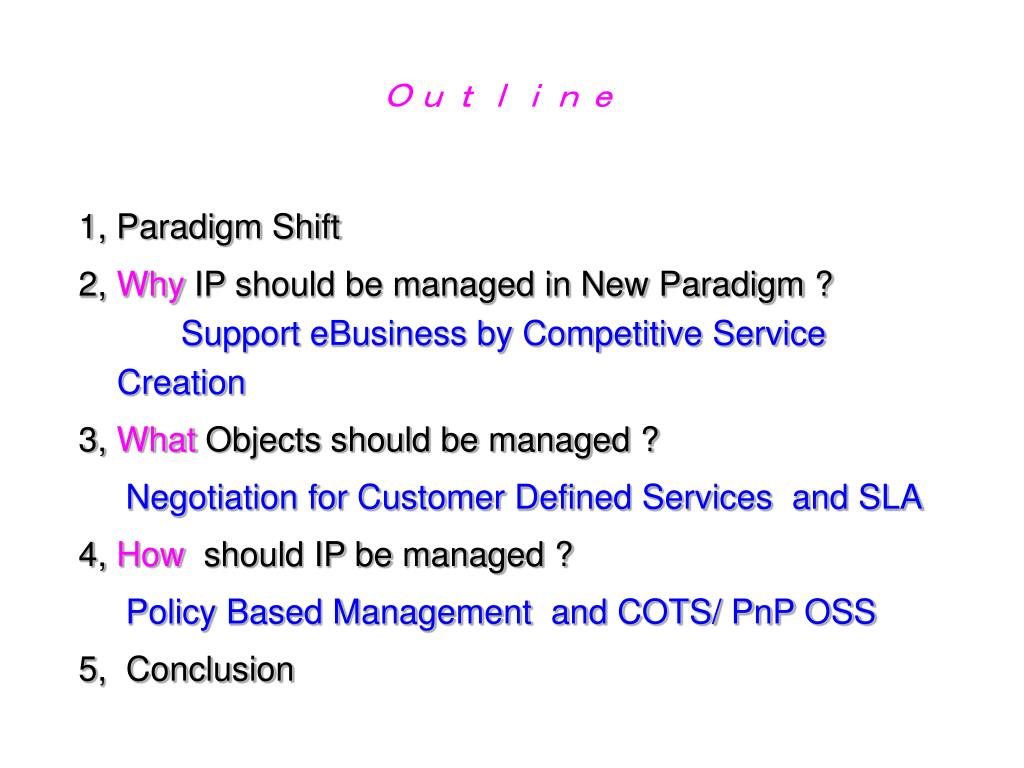

  2. Outline 1, Paradigm Shift 2, Why IP should be managed in New Paradigm ? Support eBusiness by Competitive Service Creation 3, What Objects should be managed ? Negotiation for Customer Defined Services and SLA 4, How should IP be managed ? Policy Based Management and COTS/ PnP OSS 5, Conclusion

  3. Explosion of Data Traffic Data Traffic Voice 2000 ~ 2003 Year

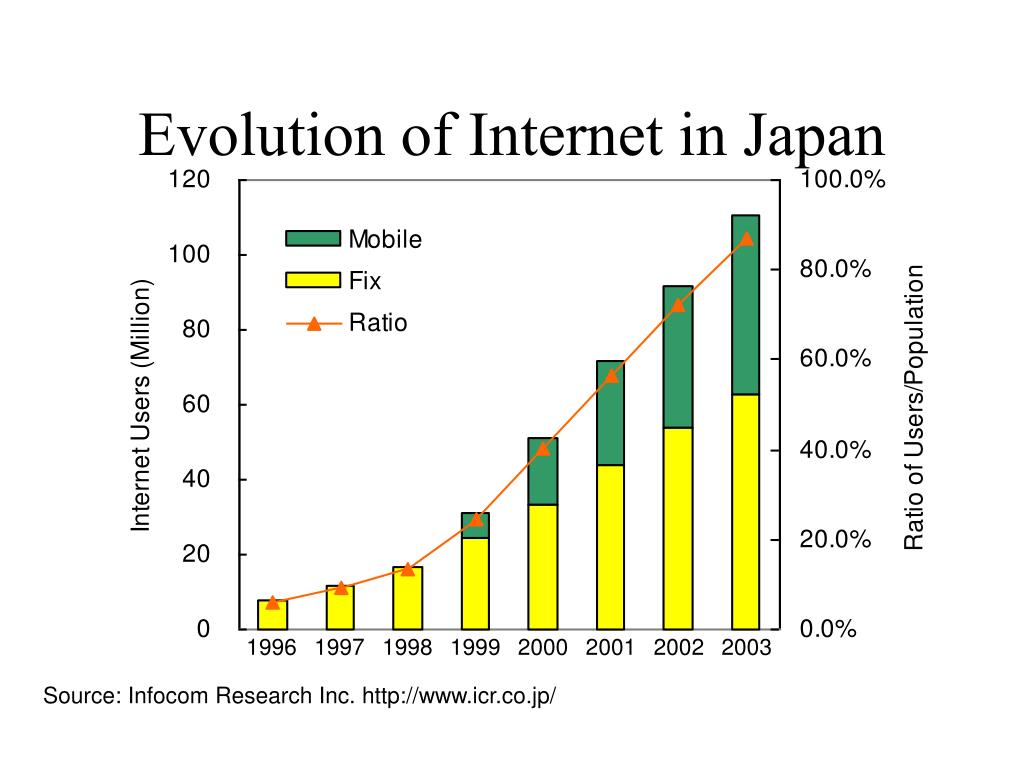

  4. Evolution of Internet in Japan 1997 1998 1999 2000 1996 2001 2002 2003 Source: Infocom Research Inc. http://www.icr.co.jp/

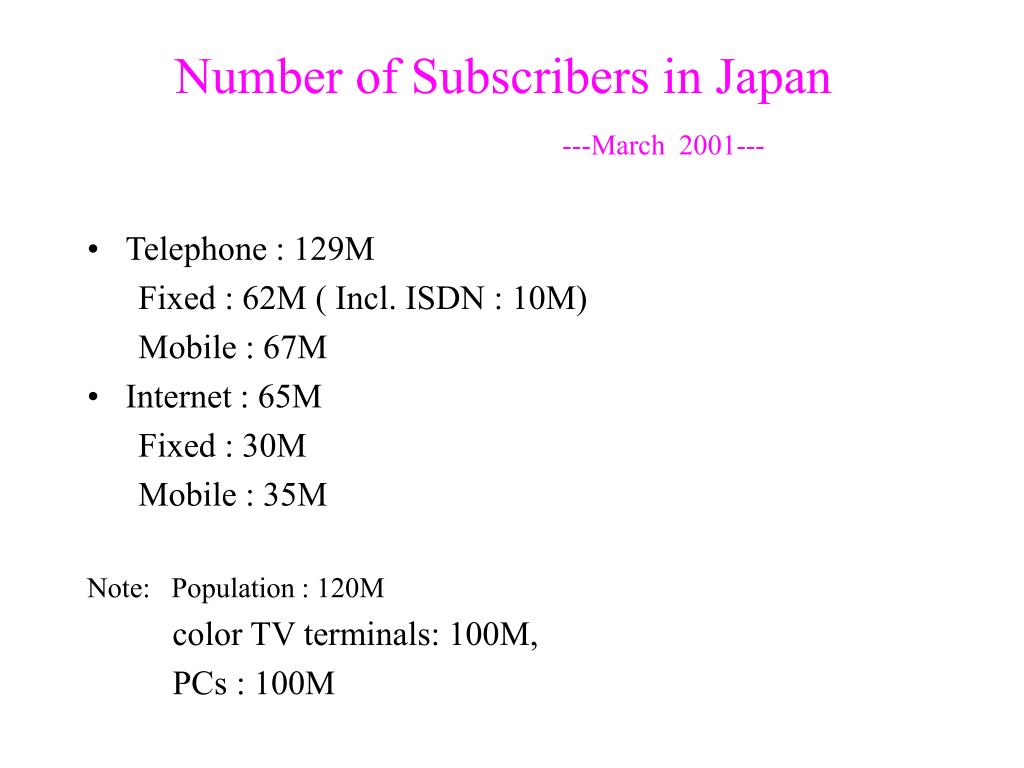

  5. Number of Subscribers in Japan---March 2001--- • Telephone : 129M Fixed : 62M ( Incl. ISDN : 10M) Mobile : 67M • Internet : 65M Fixed : 30M Mobile : 35M Note: Population : 120M color TV terminals: 100M, PCs : 100M

  6. Paradigm Shift Business eBusiness • Simple • Network/Services • Regulated Market • Dominant Carrier • Telecom Technology • Human Year • Multi, Heterogeneous • Network/ Services • Open Market • Multi/ Virtual SP • Information Technology • Dog Year

  7. e-Business Model EndUsers CSP ASP Logistics Contents Customers IP Services / Networks IPManagement IPResource ISP, BSP

  8. IP Services--for Speed, Simple and Smile eBusiness-- Customers’ DemandProviders’ Solution • Speedy / Easy Subscription On Line, Real Time Provisioning • Non Stop Services  Reliable & Scalable Networks / Systems • Quick Response  High Throughput Mechanism • Secure Services  Security Level Agreement • Price Performance  Negotiation

  9. Target of IP Management Competitive Service Creation with • Low Price • Managed Quality for Customer Retention and Profit

  10. Cost / Price Down Strategy Resource Business Process Customer Self Operation by Process Integration/ Automation 100% Resource Usage (24/7/365) by Dynamic Service Negotiation with Pricing Strategy COTS/ PnP Products OSS

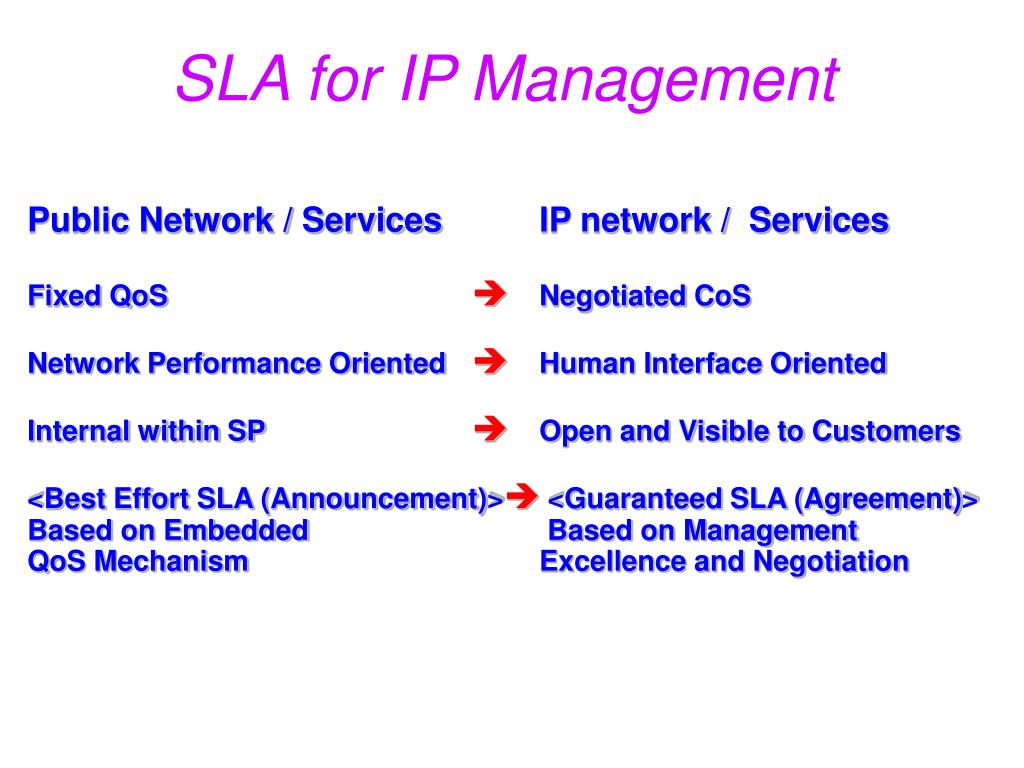

  11. SLA for IP Management Public Network / Services IP network / Services Fixed QoS  Negotiated CoS Network Performance Oriented  Human Interface Oriented Internal within SP  Open and Visible to Customers <Best Effort SLA (Announcement)> <Guaranteed SLA (Agreement)> Based on Embedded Based on Management QoS Mechanism Excellence and Negotiation

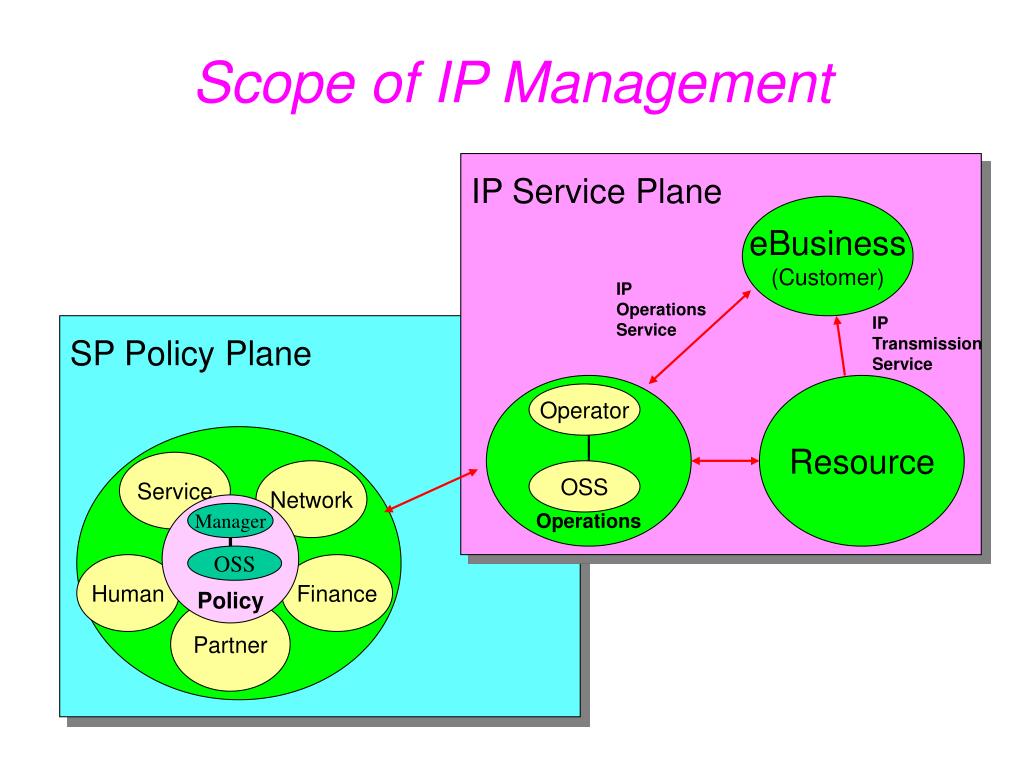

  12. Scope of IP Management IP Service Plane eBusiness (Customer) IP Operations Service IP Transmission Service SP Policy Plane Operations Resource Operator Service Network OSS Policy Manager OSS Human Finance Partner

  13. TMN to e-Business Management Solution BM • Negotiation • Policy  BM NM SM SM Visibility NM RM • Network • Services • Contents • Human • Finance • …... NM EM EM TMN eMS TelecommunicationsManagementNetwork e-BusinessManagementSolution

  14. Functional Service Architecture STB PC PDA Telephone Mobile CPN Client Layer Service Application Layer POTS VOD Conference xSP IN Service Control Layer QoS control access/call control connection control configuration control session control Trail Layer SONET SDH FDDI WLL xDSL PON FWA WDM Medium Layer Optical COX pair Radio

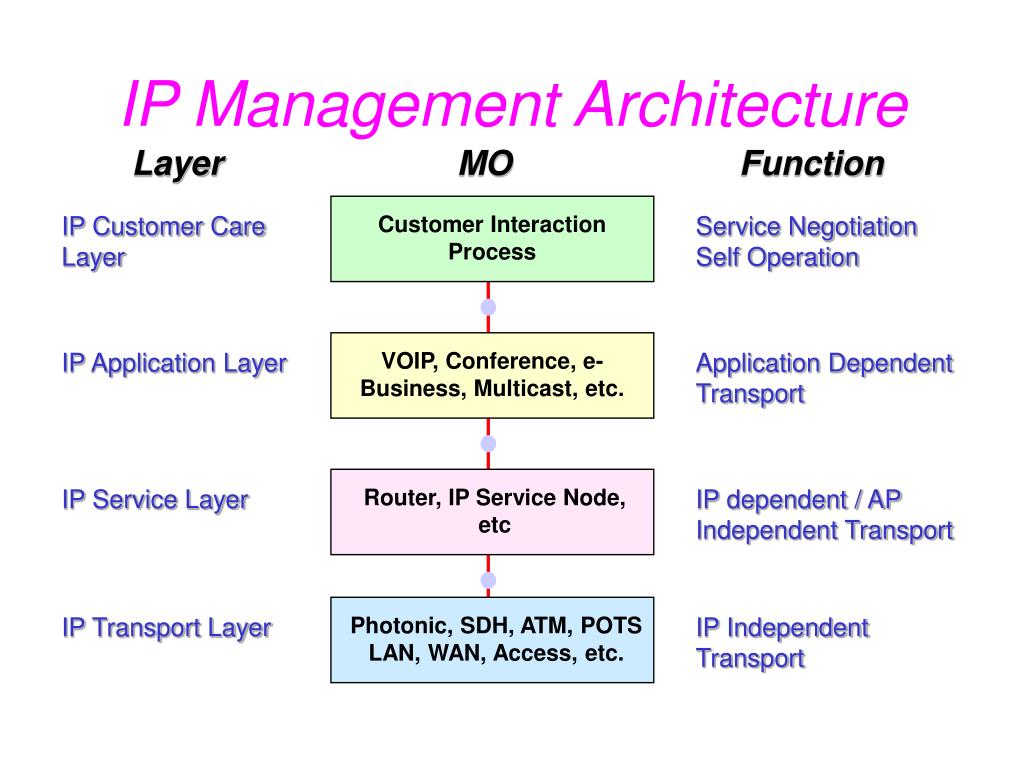

  15. IP Management Architecture Layer MO Function IP Customer Care Layer Customer Interaction Process Service NegotiationSelf Operation IP Application Layer VOIP, Conference, e-Business, Multicast, etc. Application Dependent Transport IP Service Layer Router, IP Service Node, etc IP dependent / AP Independent Transport IP Transport Layer Photonic, SDH, ATM, POTS LAN, WAN, Access, etc. IP Independent Transport

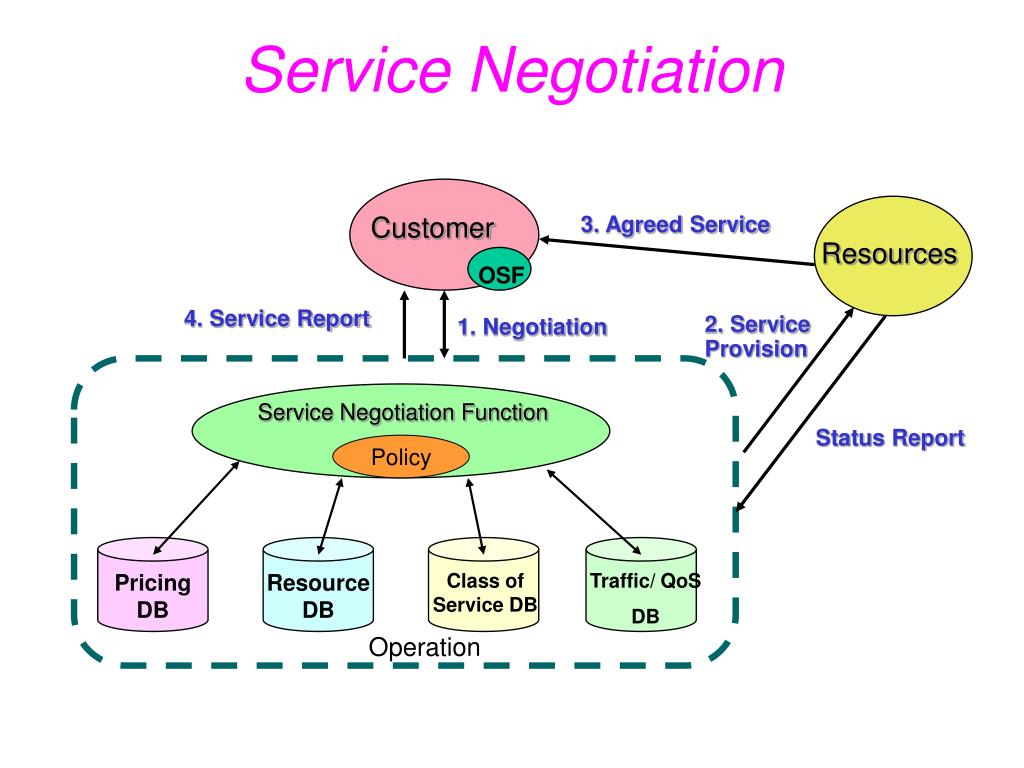

  16. Customer OSF Resources Pricing DB Resource DB Service Negotiation 3. Agreed Service 4. Service Report 1. Negotiation 2. Service Provision Service Negotiation Function Status Report Policy Class of Service DB Traffic/ QoS DB Operation

  17. Negotiation? Timing Features ・ Static (long term) ・ Pre Assigned ・ On Demand ・ Price ・ Qos / Cos ・ Bandwidth ・ Delivery Time ・ Security etc.

  18. Policy Repository Policy Management -for Flexible and Dynamic Service Creation- Customers Operators Interactive Negotiation Policy Descriptor Resource Management Policy Editor Policy Management Policy Executor Policy Decision Function OSS OSS

  19. IT Capable Terminal Negotiation Agent (e.g Java applet) Negotiation Agent (e.g Java applet) JVM Web Browser etc. Operation Window (e.g XML) Service/ Resource Status Operation Window (e.g XML) Catalogue Negotiation Inquiry Negotiation Agent Operation Window Service Provider Customer

  20. IP Management Systems Development IP Management Systems ・Business Process ・Functional Architecture ・ Information Model ・Software Architecture ・Platform ・ COTS/ PnP • Customer Demand • Industry Consensus • Strategy/ Policy

  21. For Faster, Cheaper and Better OSS Consensus of Business Process and OSS ・COTS:Commercial Off the Shelf Software ・Proof of Interoperability Plug and Play Software Packages and Globally Acceptable Management Systems

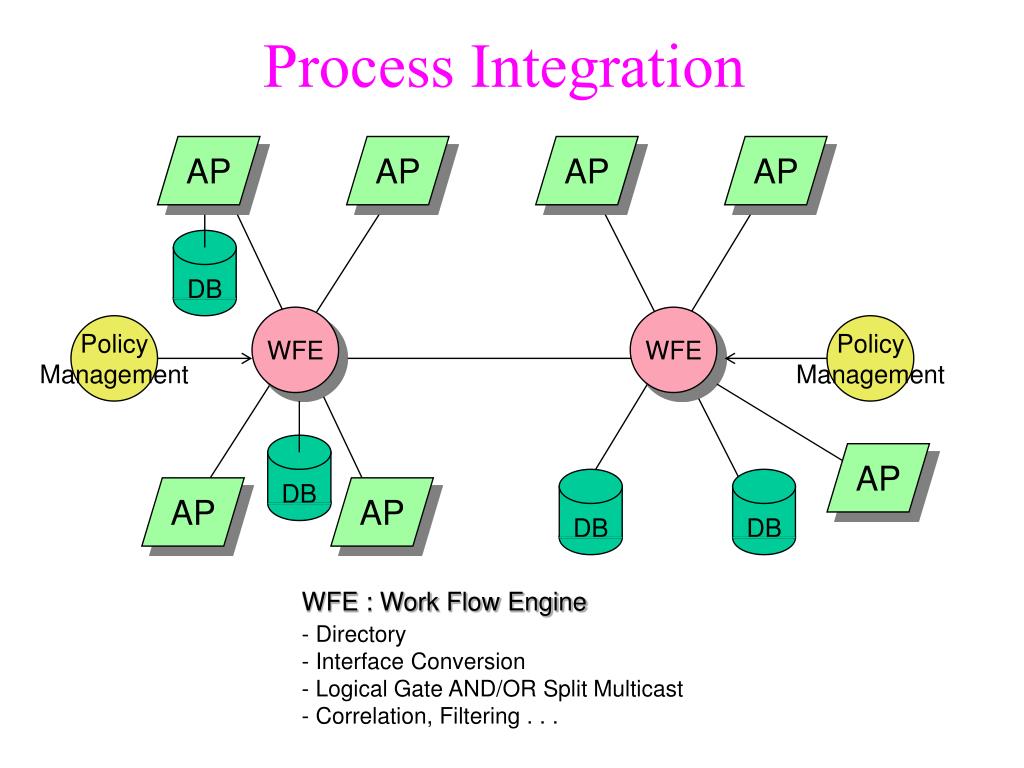

  22. Process Integration AP AP AP AP DB WFE WFE Policy Management Policy Management AP DB AP AP DB DB WFE : Work Flow Engine - Directory - Interface Conversion - Logical Gate AND/OR Split Multicast - Correlation, Filtering . . .

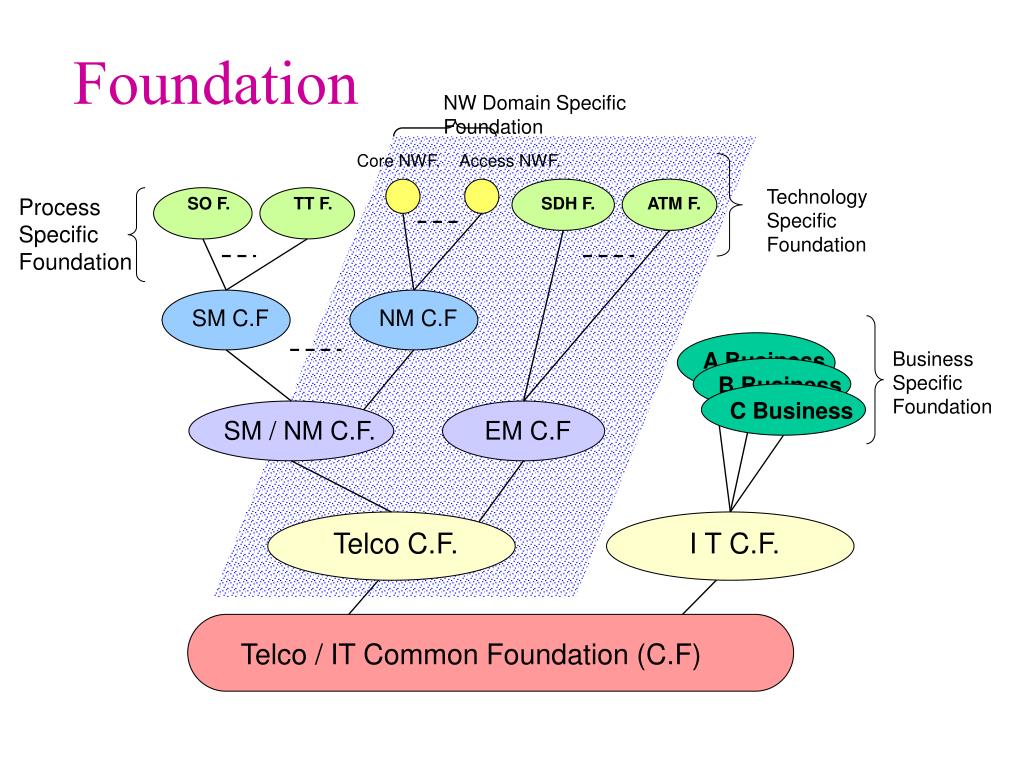

  23. SO F. TT F. SDH F. ATM F. SM C.F NM C.F EM C.F C Business A Business B Business SM / NM C.F. Telco C.F. I T C.F. Telco / IT Common Foundation (C.F) Foundation NW Domain Specific Foundation Core NWF. Access NWF. Technology Specific Foundation Process Specific Foundation Business Specific Foundation

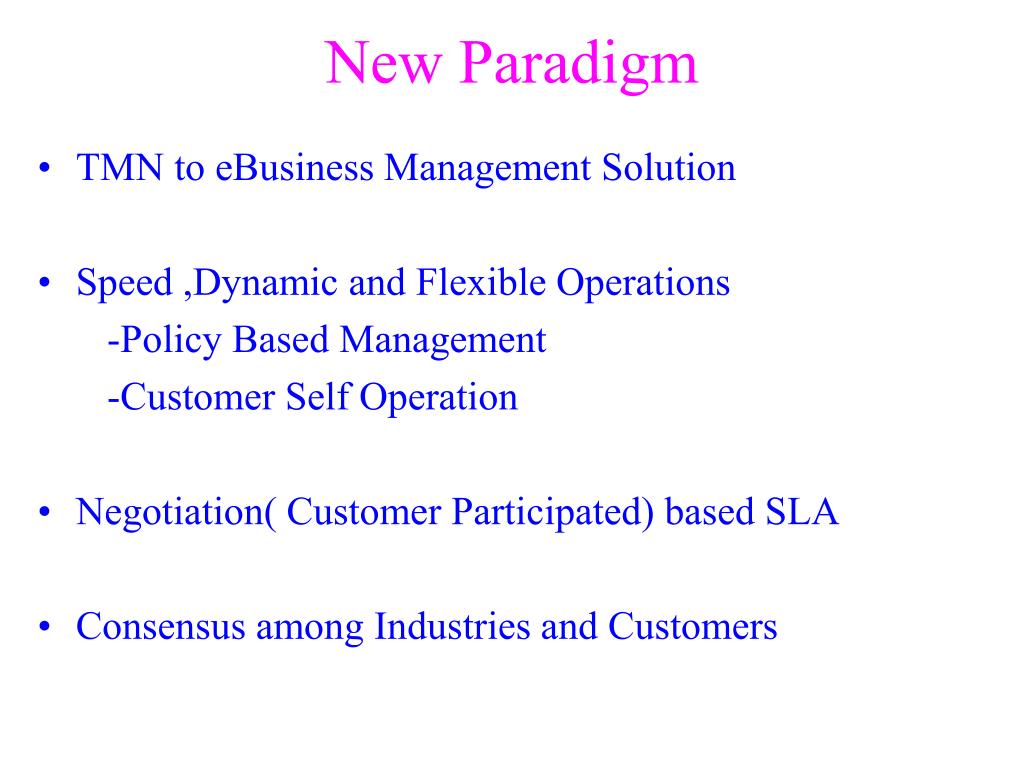

  24. New Paradigm • TMN to eBusiness Management Solution • Speed ,Dynamic and Flexible Operations -Policy Based Management -Customer Self Operation • Negotiation( Customer Participated) based SLA • Consensus among Industries and Customers
