HIGH PERFORMANCE COMPUTING : MODELS, METHODS, & MEANS INTRODUCTION TO LIBRARIES 1

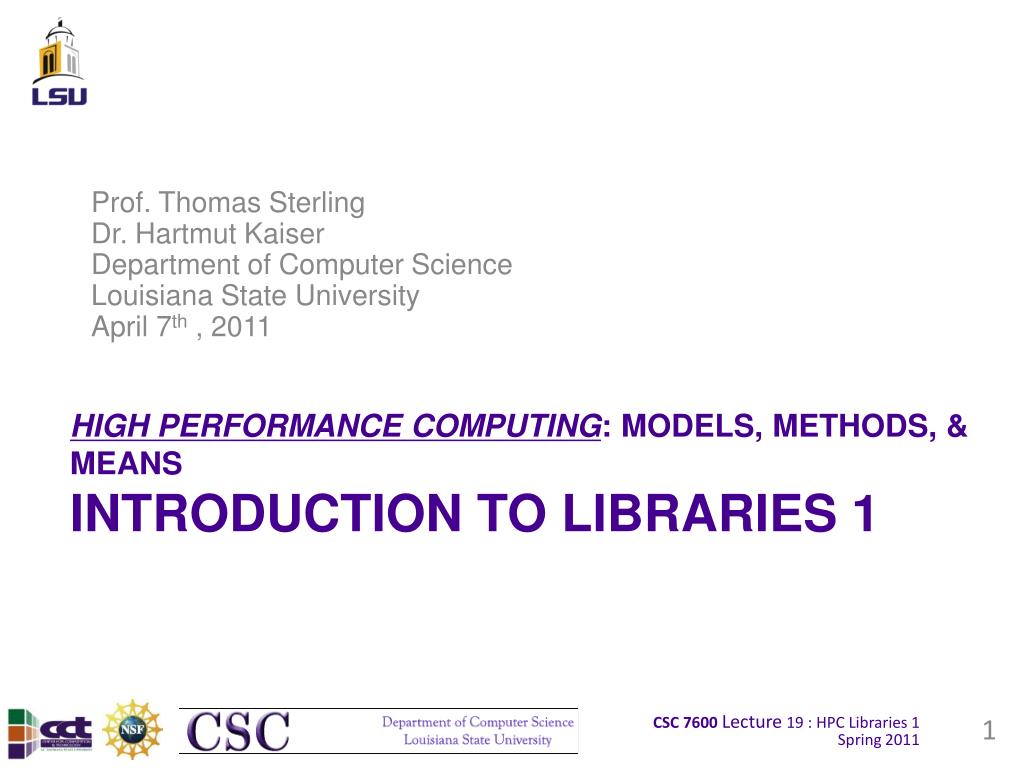

1. Prof. Thomas Sterling Dr. Hartmut Kaiser Department of Computer Science Louisiana State University April 7th , 2011 HIGH PERFORMANCE COMPUTING: MODELS, METHODS, & MEANSINTRODUCTION TO LIBRARIES 1 1

2. Outline • Why libraries • What is a library • How to use a library • Standard library support • Linear Algebra Library : BLAS • Summary - Materials for Test 2

3. Puzzle of the Day What's the expected output for the following program and why? Hint: What's the effect of the continue statement in a do-while loop? enum { false = 0, true = 1 }; int main() { int i = 1; do { printf("%d\n",i); if(++i < 15) continue; } while (false); return 0; } References: [3] 3

4. Outline • Why libraries • What is a library • How to use a library • Standard library support • Application domains • Linear Algebra Library: BLAS • Summary - Materials for Test 4

5. Why libraries? • How can we dare to assume to be able to write correct code? • Reuse, reuse, reuse! • Allows to concentrate on the science • Leverage knowledge and skills of others • Offload part of your work to library maintainers • But: used libraries should be • High quality • Flexible and generic • Combinable • Preferrably have access to source code • Use the right tool for the right job • Having a new and shiny hammer doesn‘t mean everything is a nail 5

6. Outline • Why libraries • What is a library • How to use a library • Standard library support • Application domains • Linear Algebra Library: BLAS • Summary - Materials for Test 6

7. What is a library? • Short history of software libraries • Different perspectives • Classification of libraries 7

8. Short history of software libraries Bouchons Loom (1725) Basile Bouchon, Jean Falcon, Jacques Vaucanson, Joseph Marie Jacquard (1801): An automated loom that transformed the 18th century textile industry and became the inspiration for future calculating and tabulating machines. The binary principle embodied in the punched-card operation of the loom was inspiration for the data processing machines to come. Picture of Jacquard loom (1830) References: [1] 8

9. Short history of software libraries Charles Babbage’s Analytical Machine (1830) Every set of cards made for any formula will at any future time recalculate that formula with whatever constants may be required. Thus the Analytical Engine will possess a library of its own. Every set of cards once made will at any future time reproduce the calculations for which it was first arranged. — Passages from the Life of a Philosopher, Charles Babbage (1864) References: [1] 9

10. Short history of software libraries Harvard Mark I: Grace Murray Hopper and Howard Aiken (1944) Some sequences that were used again and again were permanently wired into the Mark I’s circuits... Since the Mark I was not a stored-program computer, Hopper had no choice for other sequences than to code the same pattern in successive pieces of tape. It did not take long for her to realize that if a way could be found to reuse the pieces of tape already coded for another problem, a lot of effort would be saved. The Mark I did not allow that to be easily done, but the idea had taken root and later modifications did permit multiple tape loops to be mounted. References: [1] 10

11. Short history of software libraries Alan Turing and the ACE (1946) Subroutine, call stack, jump and return: When we wish to start on a subsidiary operation [subroutine] we need only make a note of where we left off the major operation [return address] and then apply the first instruction of the subsidiary. When the subsidiary is over we look up the note and continue with the major operation. Each subsidiary operation can end with instructions for this recovery of the note. How is the burying and disinterring [push and pop] of the note to be done? There are of course many ways. One is to keep a list of these notes in one or more standard size delay lines (1024), with the most recent last [a stack]... the burying being done through a standard instruction table BURY, and the disinterring by the table UNBURY. — Proposals for the development in the Mathematics Division of an Automatic Computing Engine (ACE), Alan M. Turing (1946) References: [1] 11

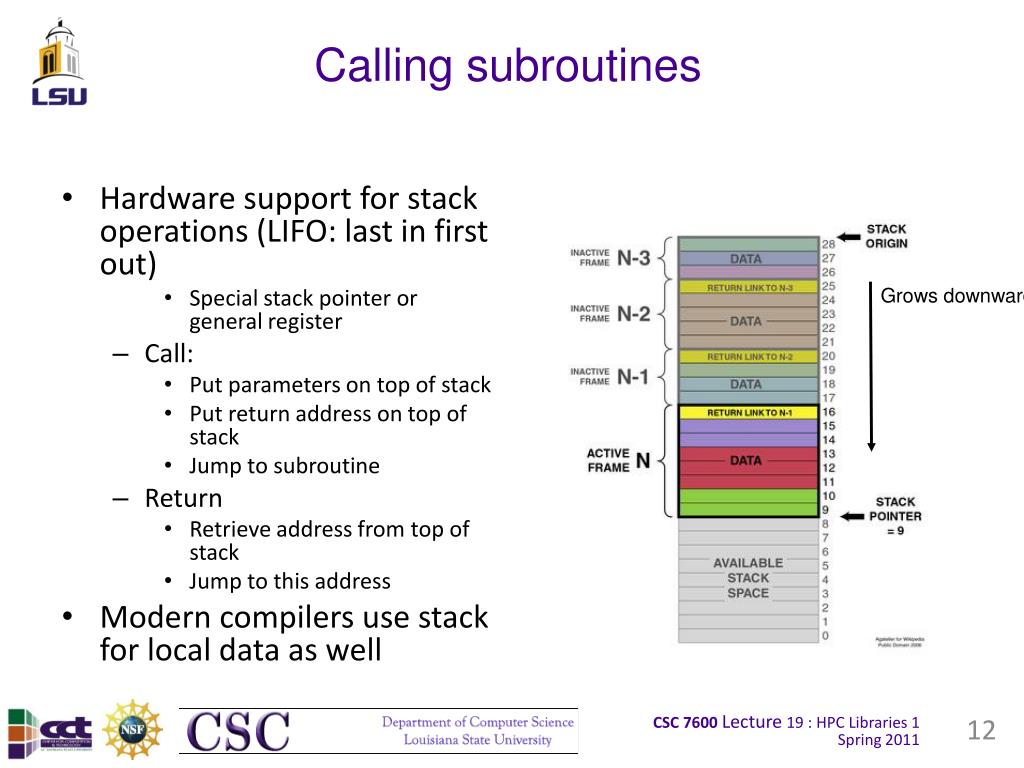

12. Calling subroutines • Hardware support for stack operations (LIFO: last in first out) • Special stack pointer or general register • Call: • Put parameters on top of stack • Put return address on top of stack • Jump to subroutine • Return • Retrieve address from top of stack • Jump to this address • Modern compilers use stack for local data as well Grows downwards 12

13. Calling conventions FORTRAN C • Parameters put on stack from left to right by reference • Called code is responsible for cleaning parameters from stack (unwinding) • Local data on stack is handled by called code • Caller and callee must agree on number of arguments • Names are not changed(sometimes all capital) • Modern compilers have various options • Parameters put on stack from right to left by value • Calling code is responsible for cleaning parameters from stack (unwinding) • Local data on stack is handled by called code • Subroutines may have variable parameter count (printf) • Prepended ‘_‘ for names(sometimes appended) 13

14. Short history of software libraries EDSAC - Electronic Delay Storage Automatic Calculator(1951) “The library of tapes on which subroutines are punched is contained in the steel cabinet shown on the left. The operator is punching a program tape on a keyboard perforator. She can copy mechanically tapes taken from the library on to the tape she is preparing by placing them in the tape reader shown in the center of the photograph.” References: [1] 14

15. Short history of software libraries • Key ideas of the EDSAC library (David Wheeler, Maurice Wilkes) • Library of subroutines • Reuse of reliable components to shorten development time and reduce defects • Linking, relocatable objects • Multiple versions of a subroutine, each with a clearly indicated tradeoff of time, space, accuracy • Unit testing • Open subroutines (inline/intrinsic functions), nonstandard semantics (‘interpretive subroutines’) • Pure vs. impure functions • Debugging interpreter • Passing functions as parameters (e.g., to integration subroutines) References: [1] 15

16. What is a library? • No clear answer, could be many things: • A library is a reuse repository • “A library is a bunch of code I don’t have to write.” • A library is a knowledge base • A library is a knowledge base about a problem domain. • A library is a language extension • Different languages have differently sharp borders between language and libraries • “In effect, designing a class library is like designing part of a programming language, and should be approached with commensurate respect.” • A library is a notation References: [1] 16

17. What is a library? • A library is an expert-in-a-box • Allows to concentrate on the science without having to worry about implementation details • A library is an abstraction • APIs hide the details; we can use libraries knowing what they do but don’t need to know how they do it. • A library is a de-facto standard • Widely used, open source, well tested • Full standards: C99 Standard library, C++ Standard template library • A library is a defect management strategy • “ The only error free code I ever write is the code I do not have to write“ References: [1] 17

18. What is a library? • A library is a tool for software compression • Especially in the context of shared libraries • A library is a stable platform • Implementation can change without breaking code relying on it • A library is a vehicle for technology adoption • A certain technology (way of doing things) may be encapsulated behind a API, simplifying it‘s adoption • New technologies may be encapsulated behind old APIs • A library is a communication medium • Allows to communicate on higher levels using conepts References: [1] 18

19. Libraries (by locality) 19

20. Libraries (by domain) 20

21. Application domains • General parallelization, load balancing • MPI, Charm++ • Mesh manipulation and management • METIS, ParMETIS, Jostle • Graph manipulation • (Parallel) Boost.Graph library, MTGL • Vector/Signal/Image processing • VSIPL, PSSL • Linear algebra • BLAS, ATLAS, LAPACK, LINPACK, Slatec, pim • Ordinary and partial Differential Equations • PETSc 21

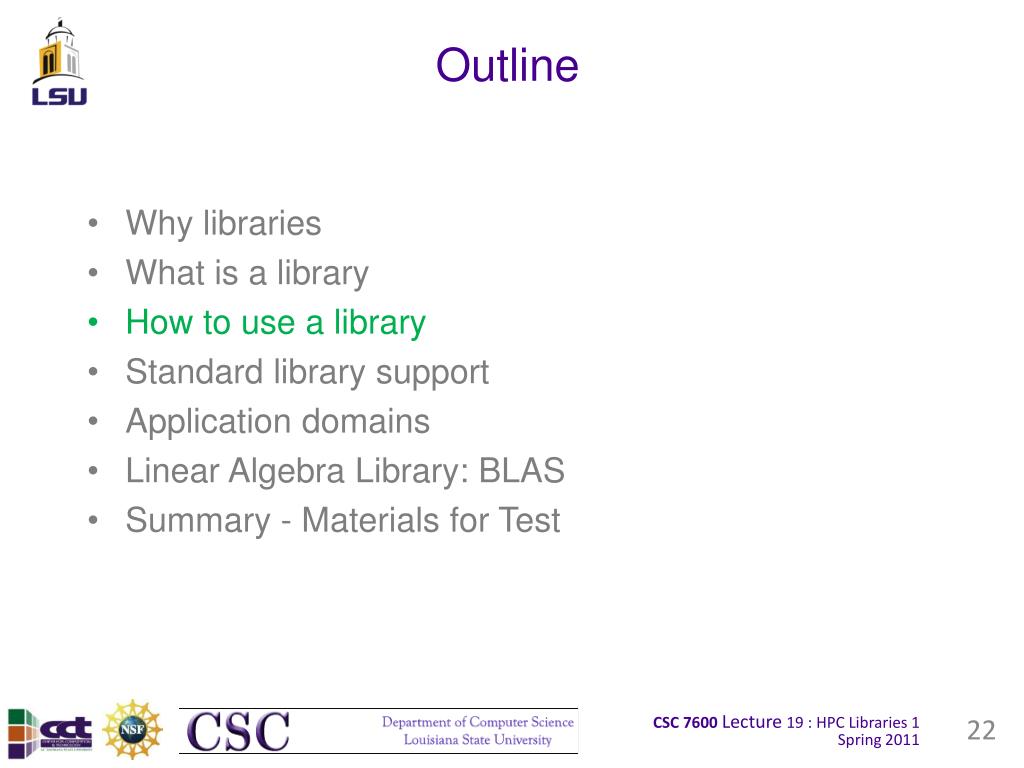

22. Outline • Why libraries • What is a library • How to use a library • Standard library support • Application domains • Linear Algebra Library: BLAS • Summary - Materials for Test 22

23. How to use a library? • Compile single source file • Compile multiple source files • Create a library • Compile multiple source files written using different languages • Combining different languages 23

24. Compile single source file 24

25. Compile single source file 25

26. Compile multiple source files 26

27. Create a library • Static library (.a) • Created using ar (archiver) • Just collection of object modules and a table of entry points • Used by linker to add referred code to created executable • Dynamic library (.so) • Created by ld (linker) • Executable binary code with resolved externals • Used by linker to add reference to created executable 27

28. Create a library • Static library (.a) • No additional runtime dependencies • Beneficial in simple scenario‘s • If used in more than one module code will be duplicated • Dynamic library (.so) • Code loaded only once • Beneficial in complex binary applications • Additional runtime dependency • Difficult version control 28

29. Compile multiple source files • Interface of subroutines must be known • Different languages have different means of interface specification for modules, subroutines and functions • main.c int main() { return say_hello(“Hello“); } • say_hello.c int say_hello(char const* msg) { return puts(msg); } 29

30. Compile multiple source files • say_hello.h int say_hello(char const* msg); • main.c #include “say_hello.h“ int main() { return say_hello(“Hello“); } • say_hello.c #include <stdio.h> #include “say_hello.h“ int say_hello(char const* msg) { return puts(msg); } 30

31. Multi language programming • Need to account for • Different calling conventions • C, FORTRAN calling conventions • Parameter passing (by value/by reference) • Parameter types (strings) • Naming conventions • FORTRAN: all uppercase, C: case is significant • Data types • Memory layout (row major, column major, strings) • Most of this is done by providing a correct interface description to the FORTRAN and/or C compilers • All of this is highly compiler specific, but GNU compiler suite (gcc, f77 etc.) are well suited 31

32. Why C++ • Multiparadigm language • Object orientation, functional programming, template meta-programming • Better maintainability of programs • More frequent code re-use • More efficient software development in groups • Higher adaptability of software to new demands • Huge amount of libraries, from simple data structures and algorithms to modules in highly specialized domains • But you don’t pay for what you don’t use • C++ is available and supported by vendors on almost all Supercomputers like Cray, NEC SX, Hitachi SR8000 … • With a few minor exceptions C++ is a better C: this allows a smooth migration from C to C++ • C is a full subset of C++ 32

33. C/C++ • Since C and C++ are ‚siblings‘ interfacing is easy: extern ”C” {…} • Adjusts naming and calling conventions • C data types are generally compatible with C++ • C++ data types (classes) are not generally compatible with C except POD (plain old data) types 33

34. Calling C from C++ • say_hello.h int say_hello(char const* msg); main.cpp extern “C“ { #include “say_hello.h“ } int main() { return say_hello(“Hello“); } • say_hello.c #include <stdio.h> #include “say_hello.h“ int say_hello(char const* msg) { return puts(msg); } 34

35. Calling C++ from C say_hello.hpp #ifdef __cplusplus extern “C“ intsay_hello(charconst* msg); #else int say_hello(char const* msg); #endif main.c #include “say_hello.hpp“ int main() { return say_hello(“Hello“); } • say_hello.cpp #include <stdio.h> #include “say_hello.hpp“ int say_hello(char const* msg) { return puts(msg); } 35

36. Calling C++ from C say_hello.hpp #ifdef __cplusplus extern “C“ #endif int say_hello(char const* msg); main.c #include “say_hello.hpp“ int main() { return say_hello(“Hello“); } • say_hello.cpp #include <stdio.h> #include “say_hello.hpp“ int say_hello(char const* msg) { return puts(msg); } 36

37. FORTRAN/C • Data types: 37

38. Multi language programming • Interface of subroutines must be declared in a language specific way • Tooling support available • SWIG: http://www.swig.org • FLIB2C: http://www.mycplus.com/utilitiesdetail.asp?iPro=7 • More information: http://arnholm.org/software/cppf77/cppf77.htm main.f INTERFACETOSUBROUTINESAY_HELLO [C.ALIAS: '_say_hello'] (msg) CHARACTER(*) msg END PROGRAM MAIN CALL SAY_HELLO(“Hello“) END say_hello.c int say_hello( char const* msg, int len) { return printf(“%*d”, len, msg); } 38

39. Outline • Why libraries • What is a library • How to use a library • Standard library support • Application domains • Linear Algebra Library: BLAS • Summary - Materials for Test 39

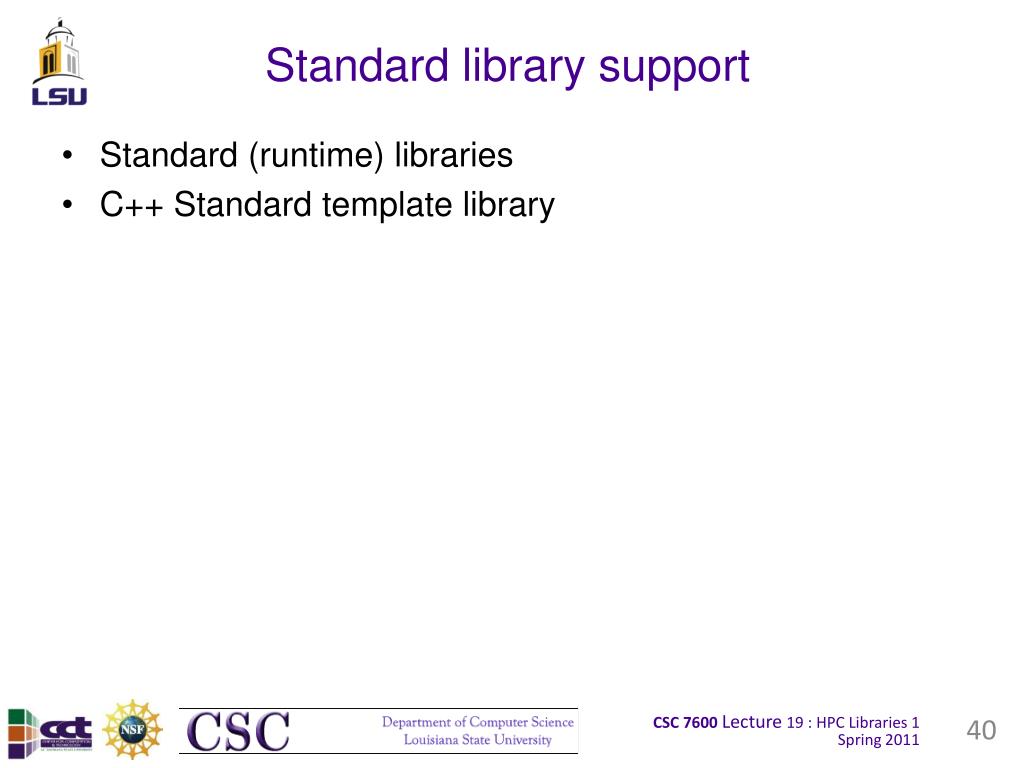

40. Standard library support • Standard (runtime) libraries • C++ Standard template library 40

41. Standard (runtime) libraries • Libraries needed by almost any application • Provide often used functions (data types, algorithms, I/O, support routines) • No need to explicitly specify library • Compiler and linker usually ‚know’ what runtime libraries to use • Different languages have different level and amount of standard library support (system level and support) • F77: very small standards library, F90: more available • Filesystem, math, auxiliary • C99: large standards library aimed at portability over wide amount of platforms • Operating system, filesystem, math, string handling, basic data types (complex, integer types) • C++: everything in C99 plus Standards Template Library • Adds data structures, algorithms 41

42. C++ Standard (Template) Library • C++0x: library ~700 pages description in Standard • Language support (exception handling, memory allocation, etc.) • Diagnostics (assertions, system errors, etc.) • General utilities (tuples, metaprogramming, type traits) • Strings (string classes, numeric conversions) • Localization (locales) • STL (Standard template Library) • Containers: sequence, associative , unordered associative containers • (vector, list, set, map, deque etc.) • Iterators • (forward, bidirectional, random_access etc.) • Algorithms: non-modifying, modifying, sorting algorithms • (foreach, transform, copy, sort, uniq etc.) • Numerics: complex numbers, random number generators, etc. • Input/output: streams, file I/O • Regex • Atomic operations • Thread support: threads, mutual exclusion, futures 42

43. C++ Standard Template Library • Algorithms and data structures are generic and orthogonal • Each algorithm usable with any data structure • Algorithms usable with your data structures • Your algorithms can use standard data structures • Iterators connect the two • General pointer concept, i.e. used by algorithms to refer to the data items • Allow to abstract the algorithms from the data structures 43

44. Simple example • Copy a vector of integer’s into a list std::vector<int> v; // v = 1, 2, 3, 4; std::list<int> l; std::copy(v.begin(), v.end(), std::back_inserter(l)); • Or v.v.: std::copy(l.begin(), l.end(), std::back_inserter(v)); • How is it implemented template <typename InIter, typename OutIter> void copy(InIter f, InIter l, OutIter o) { for (/**/; f != l; ++f, ++o) *o = *f; } 44

45. Genericity leads to Concepts • No strict interface anymore (as known from Fortran or C) • Rather components required to expose concepts, i.e. satisfy set of requirements • In the copy example: • First two parameters must be at least input iterators • implement operator++(), operator*() • Last parameter must be at least an output iterator • Implement operator++(), operator*() • Advantage: • Generic, simple, uniform, optimized • Drawback: • Long compiler error messages if something is wrong 45

46. Iterator categories (concepts) Read one item at a time, in forward direction only Write one item at a time, in forward direction only Input Output Read and write one item at a time, in forward direction only forward Write one item at a time, either in forward or backward direction bi-directional Write one item at a time, either in forward or backward direction can jump any distance Random access 46

47. Iterator behavior • Common operations ++i: Advance one element and return reference to i i++: Advance one element and return the previous value of i • Input iterator operations *i: Return a read-only reference to the element at i‘s current position i == j: Return true if i and j positioned at the same element (i != j: at different elements) • Output iterator operations *i: Return a write-only reference to the element at i‘s current position i = j: set i‘s position to the same as j‘s • Bidirectional iterator operations --i: Retreat one element and returns i‘s new value i--: Retreat one element and returns i‘s previous value • Random access iterator operations i + n: Return an iterator positioned n elements ahead i‘s current position i – n: Return an iterator positioned n elements behind i‘s current position i[n]: return a reference to the n‘th element from i‘s current position • A plain C pointer is a random access iterator 47

48. Containers and iterators • Every container • Has typedefs for this (no need to remember above): • iterator, const_iterator, reverse_iterator, const_reverse_iterator • Exposes functions returning iterators: • begin(), end() (non-const and const variants) 48

49. What‘s that all about? • Orthogonality: std::vector<int> v; // v = 3, 1, 4, 2; std::sort(v.begin(), v.end()); std::list<int> l; // l = 3, 1, 4, 2; std::sort(v.begin(), v.end()); • Any algorithm is usable with any container • Still optimal code, because STL contains optimal implementation for each iterator type • Optimal code with your data structures as well 49

50. Outline • Why libraries • What is a library • How to use a library • Standard library support • Application Domains • Linear Algebra Library: BLAS • Summary - Materials for Test 50
