  1. A proposal for standardizing the working environment for a LCG/EGEE job David Bouvet - Grid Computing team - CCIN2P3 HEPIX Karlsruhe 13/05/2005

  2. Motivation • Problem raised some months ago by Jeff Templon: • D0 jobs encountered problems at Lyon due to different use of environment variables to address scratch/temp disk space • Standard is defined for: • Environment Variables « IEEE Std 1003.1, 2004 POSIX Part 1: Base definitions, Amendment 8 » http://www.opengroup.org/onlinepubs/009695399/basedefs/xbd_chap08.html • among which: HOME, PATH, PWD, SHELL, TMPDIR, USER • Batch Environment Services « IEEE Std 1003.1, 2004 POSIX Part 2: Shell and Utilities, Amendment 1 » http://www.opengroup.org/onlinepubs/009695399/utilities/xcu_chap03.html • PBS_ENVIRONMENT, PBS_JOBID, PBS_JOBNAME, PBS_QUEUE • PBS_O_HOME, PBS_O_HOST, PBS_O_LOGNAME, PBS_O_PATH, PBS_O_QUEUE, PBS_O_SHELL, PBS_O_WORKDIR  these variables are not directly used by the jobs • There is no standard definition of environment variables for grid batch jobs  Proposal for LCG/EGEE sites of a common definition of minimal set of environment variables for grid batch jobs David Bouvet – HEPIX Karlsruhe 13/05/20052

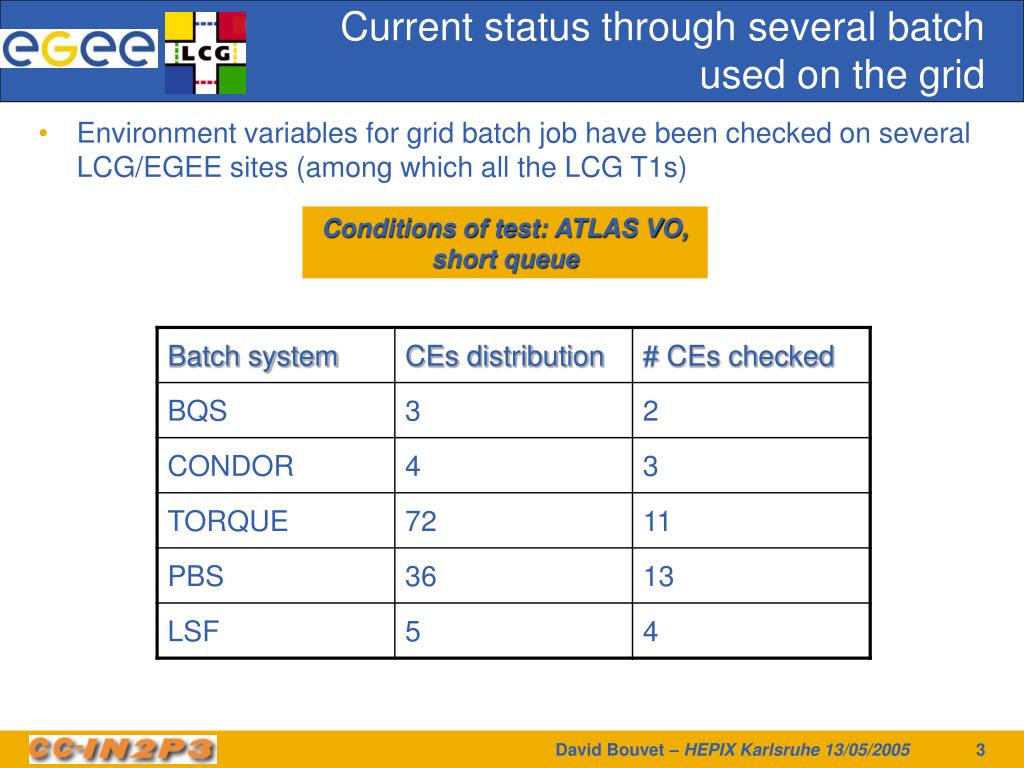

  3. Current status through several batch used on the grid • Environment variables for grid batch job have been checked on several LCG/EGEE sites (among which all the LCG T1s) Conditions of test: ATLAS VO, short queue David Bouvet – HEPIX Karlsruhe 13/05/20053

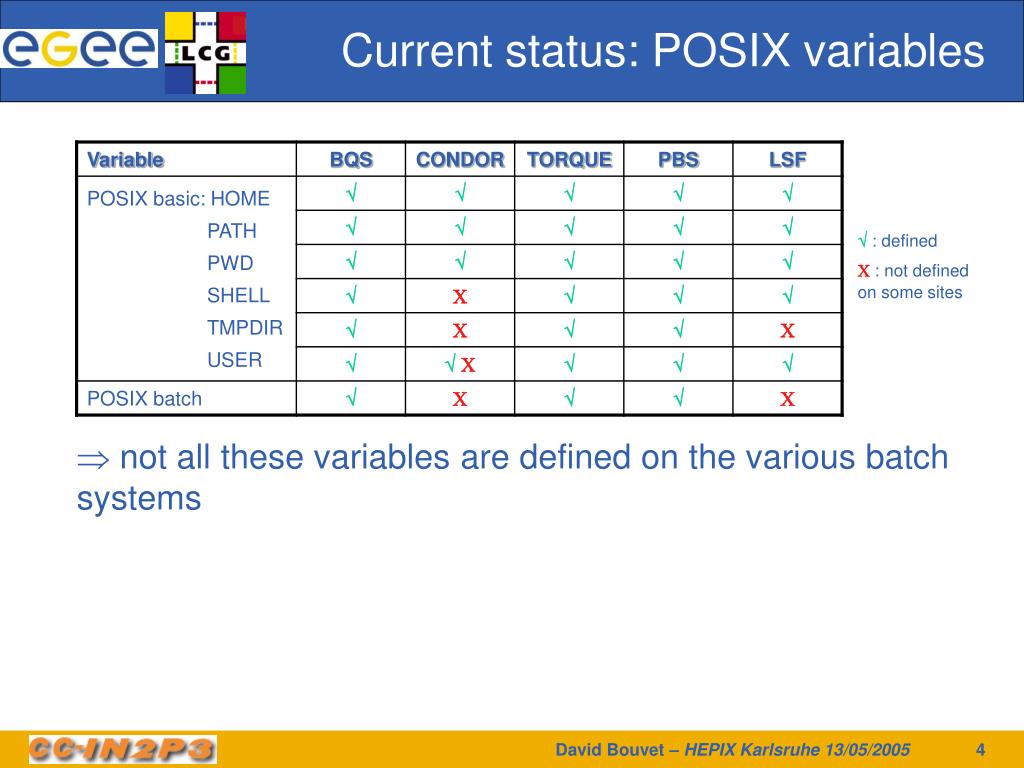

  4. Current status: POSIX variables  : defined: not defined on some sites  not all these variables are defined on the various batch systems David Bouvet – HEPIX Karlsruhe 13/05/20054

  5. Current status (cont.)  : defined : not defined on some sites  even for Globus, not all the sites define the same set of environment variables. David Bouvet – HEPIX Karlsruhe 13/05/20055

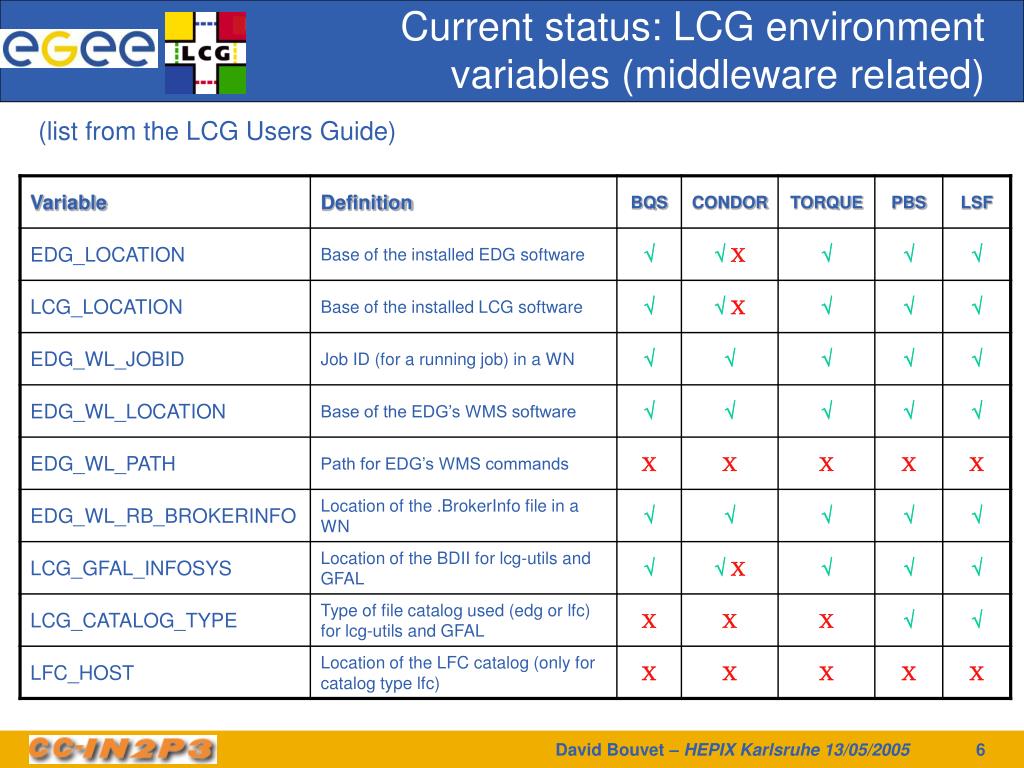

  6. Current status: LCG environment variables (middleware related) (list from the LCG Users Guide) David Bouvet – HEPIX Karlsruhe 13/05/20056

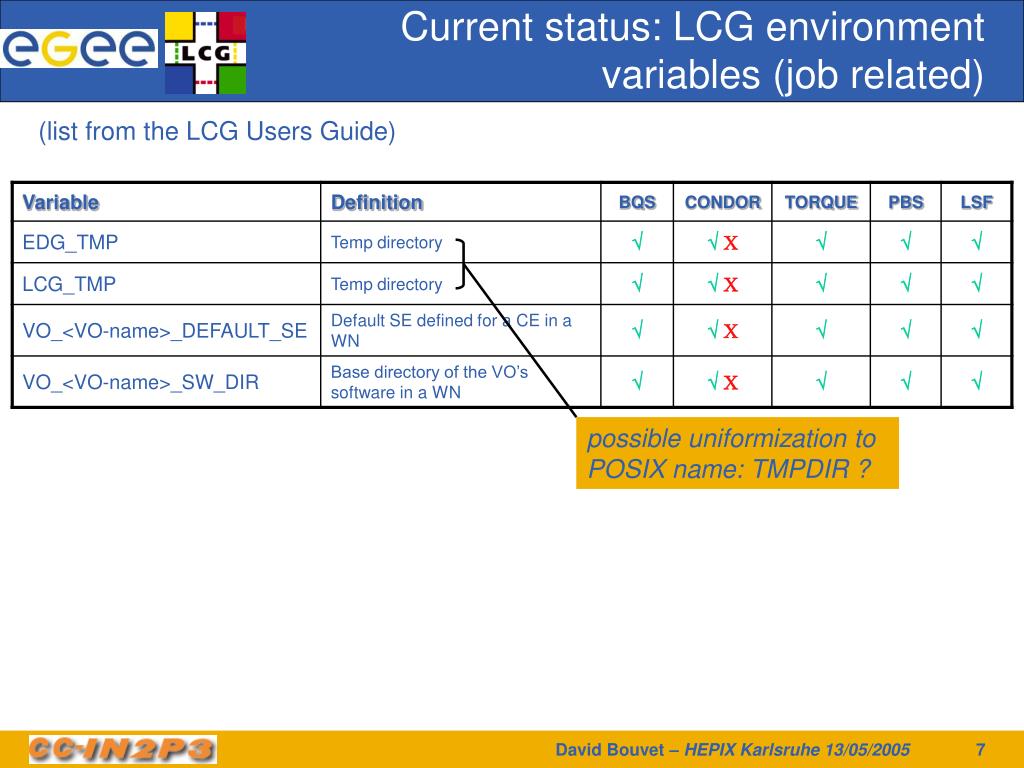

  7. possible uniformization to POSIX name: TMPDIR ? Current status: LCG environment variables (job related) (list from the LCG Users Guide) David Bouvet – HEPIX Karlsruhe 13/05/20057

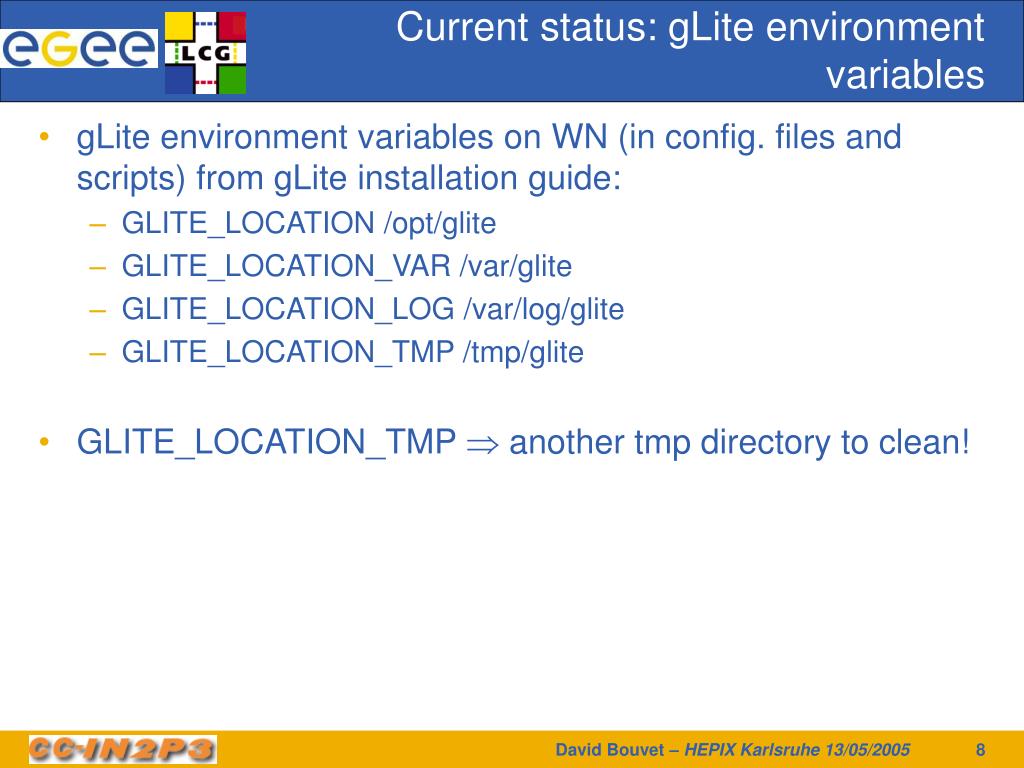

  8. Current status: gLite environment variables • gLite environment variables on WN (in config. files and scripts) from gLite installation guide: • GLITE_LOCATION /opt/glite • GLITE_LOCATION_VAR /var/glite • GLITE_LOCATION_LOG /var/log/glite • GLITE_LOCATION_TMP /tmp/glite • GLITE_LOCATION_TMP  another tmp directory to clean! David Bouvet – HEPIX Karlsruhe 13/05/20058

  9. Proposal for standardization David Bouvet – HEPIX Karlsruhe 13/05/20059

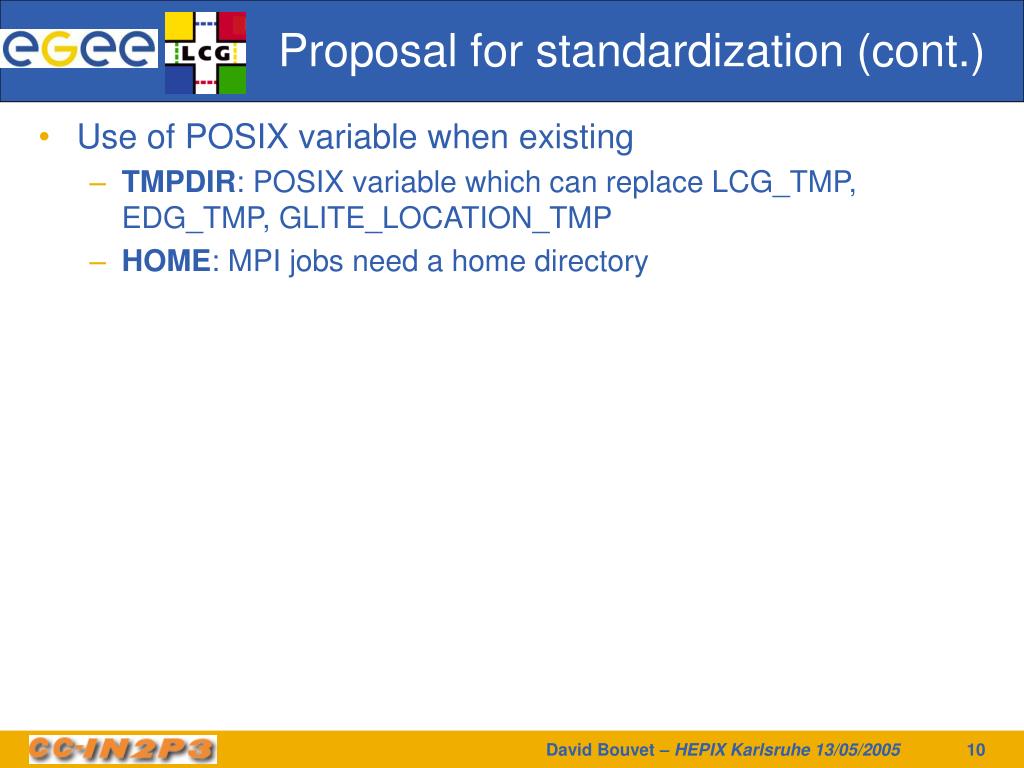

  10. Proposal for standardization (cont.) • Use of POSIX variable when existing • TMPDIR: POSIX variable which can replace LCG_TMP, EDG_TMP, GLITE_LOCATION_TMP • HOME: MPI jobs need a home directory David Bouvet – HEPIX Karlsruhe 13/05/200510

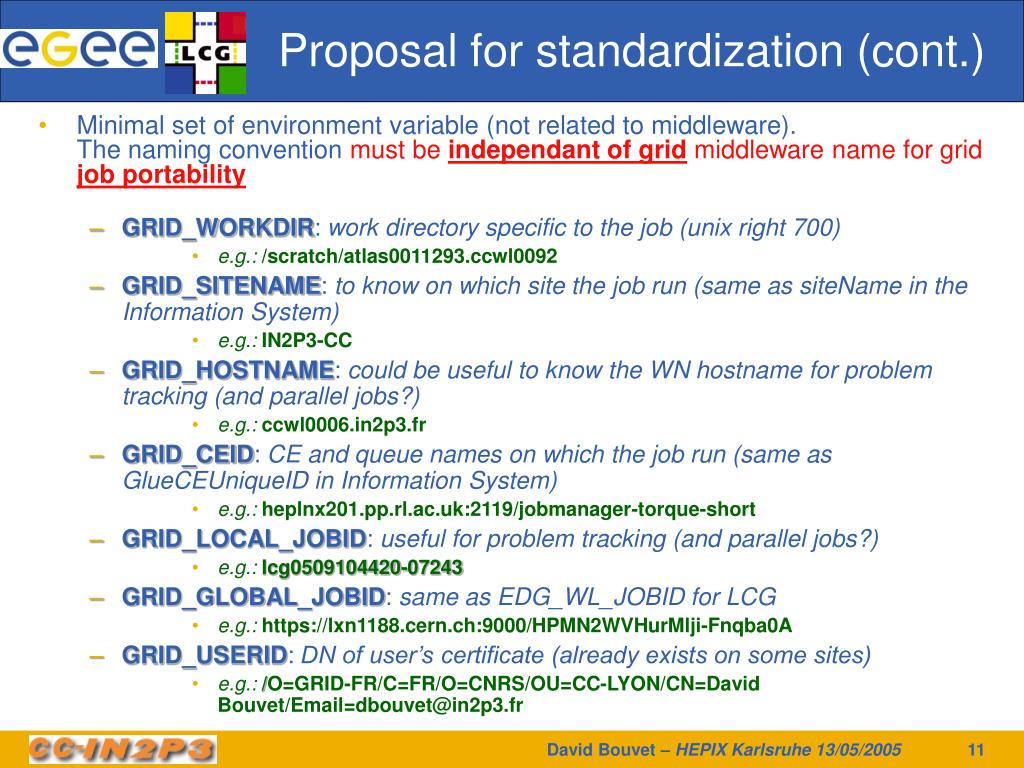

  11. Proposal for standardization (cont.) • Minimal set of environment variable (not related to middleware).The naming convention must be independant of grid middleware name for grid job portability • GRID_WORKDIR: work directory specific to the job (unix right 700) • e.g.:/scratch/atlas0011293.ccwl0092 • GRID_SITENAME: to know on which site the job run (same as siteName in the Information System) • e.g.:IN2P3-CC • GRID_HOSTNAME: could be useful to know the WN hostname for problem tracking (and parallel jobs?) • e.g.:ccwl0006.in2p3.fr • GRID_CEID: CE and queue names on which the job run (same as GlueCEUniqueID in Information System) • e.g.:heplnx201.pp.rl.ac.uk:2119/jobmanager-torque-short • GRID_LOCAL_JOBID: useful for problem tracking (and parallel jobs?) • e.g.: lcg0509104420-07243 • GRID_GLOBAL_JOBID: same as EDG_WL_JOBID for LCG • e.g.:https://lxn1188.cern.ch:9000/HPMN2WVHurMlji-Fnqba0A • GRID_USERID: DN of user’s certificate (already exists on some sites) • e.g.: /O=GRID-FR/C=FR/O=CNRS/OU=CC-LYON/CN=David Bouvet/Email=dbouvet@in2p3.fr David Bouvet – HEPIX Karlsruhe 13/05/200511

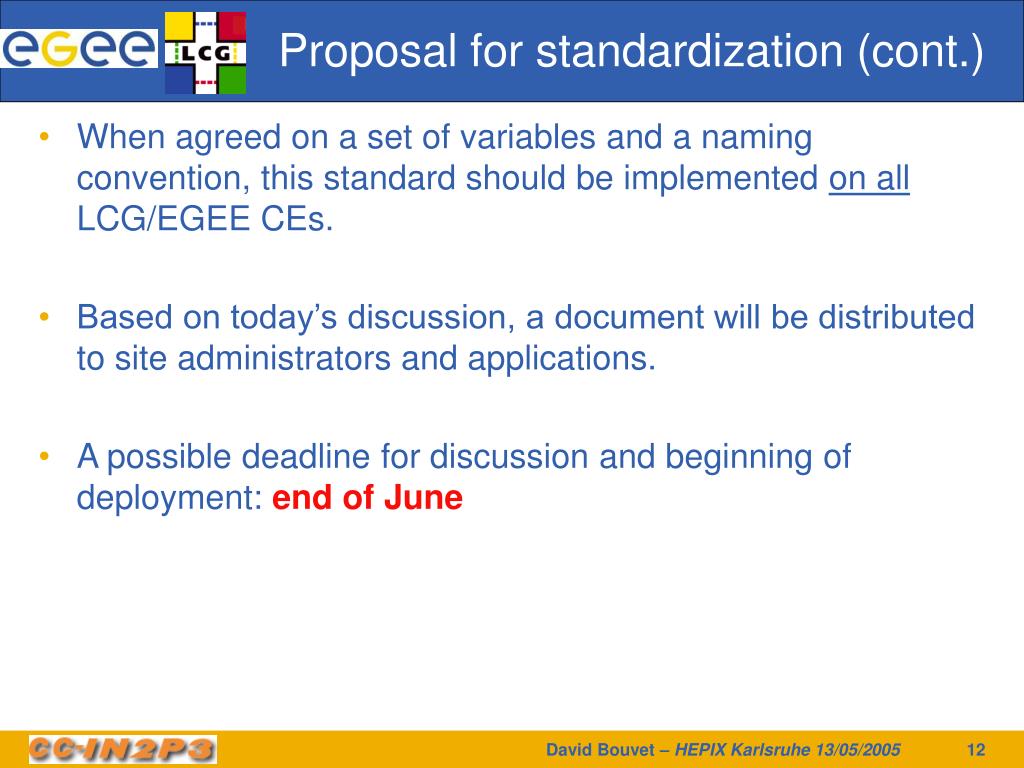

  12. Proposal for standardization (cont.) • When agreed on a set of variables and a naming convention, this standard should be implemented on all LCG/EGEE CEs. • Based on today’s discussion, a document will be distributed to site administrators and applications. • A possible deadline for discussion and beginning of deployment: end of June David Bouvet – HEPIX Karlsruhe 13/05/200512

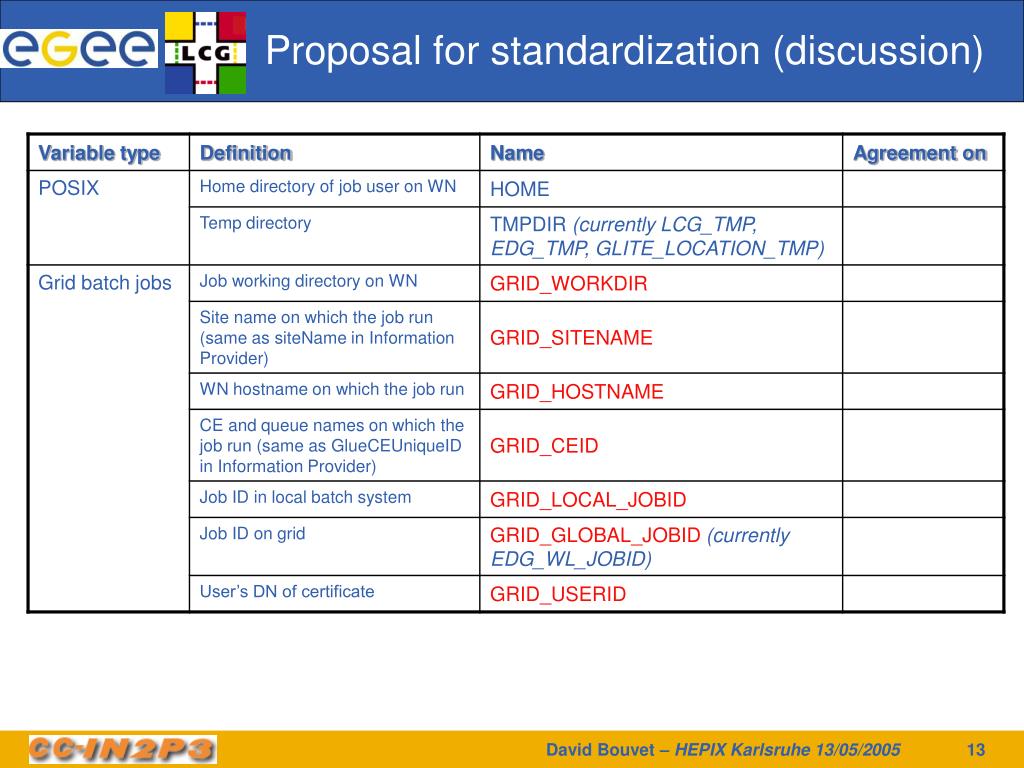

  13. Proposal for standardization (discussion) David Bouvet – HEPIX Karlsruhe 13/05/200513
