  1. Silly Patent Electric Shock to Stop Snoring Electronic Snore Depressor US 3,480,010 Miguel Chan UC Berkeley Engineering Patent Engineering IEOR 190G March 2009

  2. The Patent • Filed May 12, 1967. • Patented November 25, 1969. • Patent Number: 3, 480,010 • Inventor Robert B. Crossley • 10 Claims

  3. Abstract • An anti-snore device consisting of a neck band to be worn by a sleeper. • Neck band contains: • Microphone • Transistor amplifier • High voltage-producing transformer • Supply battery • Relay and spaced electrodes

  4. How does it work? • The main purpose is to condition the sleeper against snoring. • The electrodes are in contact with the sleeper’s skin. • The microphone detects the frequency and the device produces a high voltage across the electrodes, shocking the sleeper.

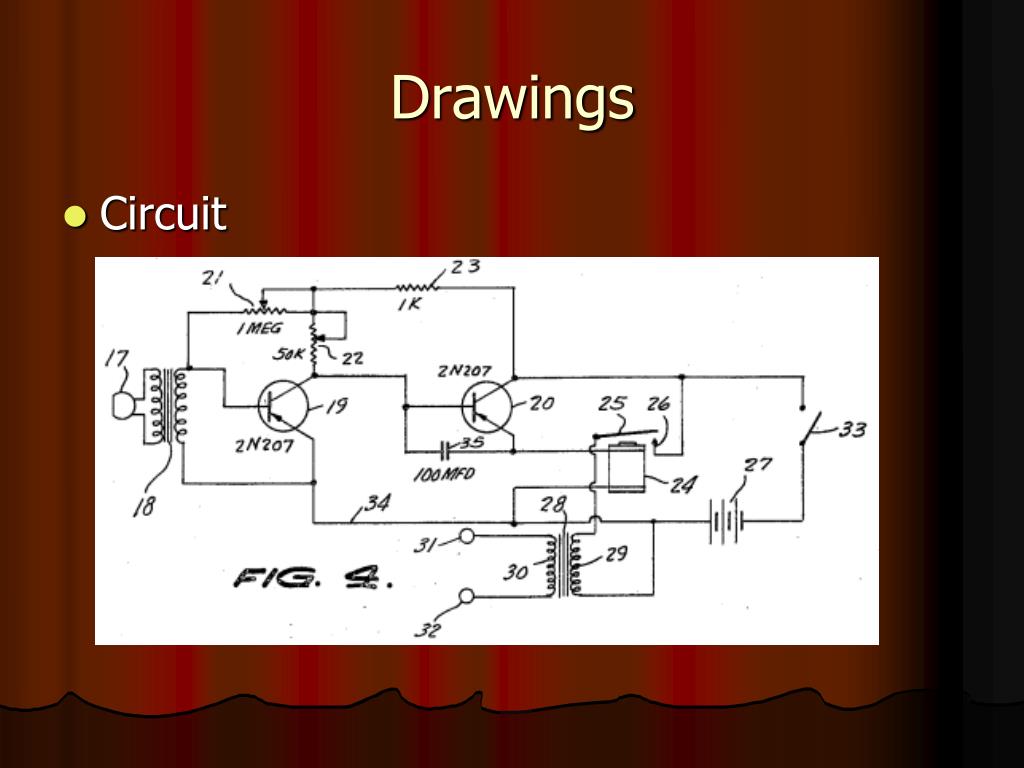

  5. Drawings • Circuit

  6. Drawings • Neckband

  7. Device in action!
