  1. Objectives • To learn how dimensional analysis can be used to solve problems • To learn the three temperature scales • To learn to convert from one temperature scale to another • To practice using problem solving techniques • To define density and its units

  2. A. Tools for Problem Solving • I am driving in Canada. I have a journey of 120 km and I need to estimate how many liters of gas to buy. I know my car fuel mileage is 24 miles per gallon. (1 mile is 1.6 km, 1 gallon is 3.79 liters) • Be systematic • Ask yourself these questions • What do we know to start with? • Where do we want to go? • How do we get there? • Does it make sense?

  3. A. Tools for Problem Solving • Converting Units of Measurement • We can convert from one system of units to another by a method called dimensional analysis using conversion factors. • Unit1 conversion factor = Unit2

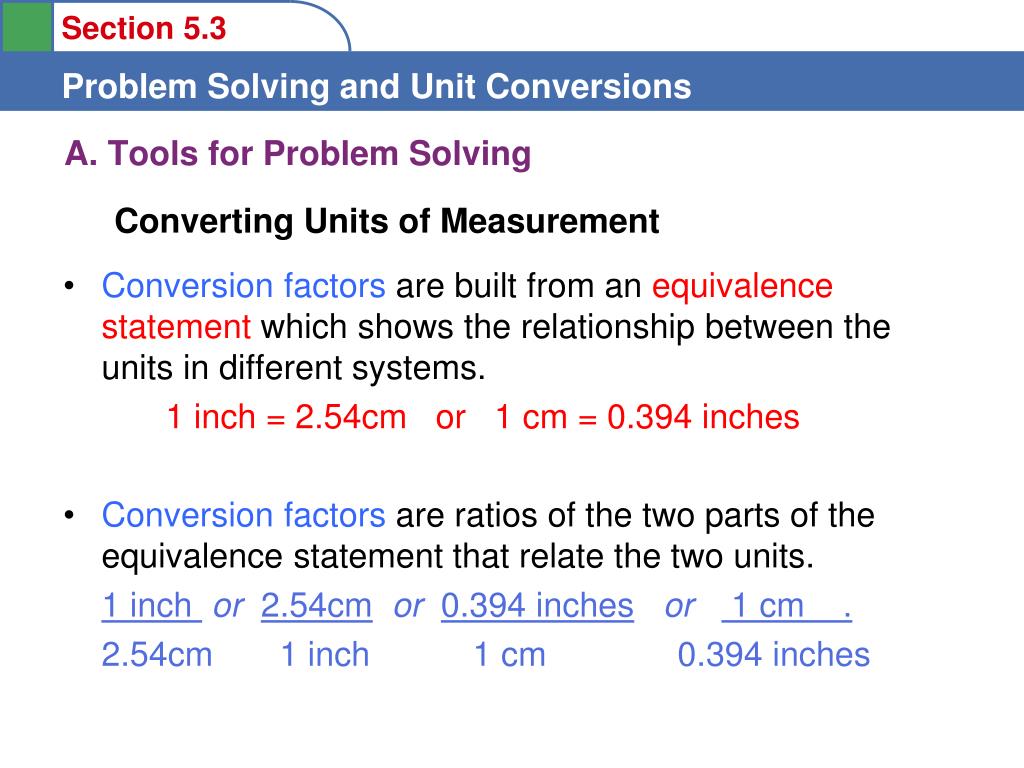

  4. A. Tools for Problem Solving • Converting Units of Measurement • Conversion factors are built from an equivalence statement which shows the relationship between the units in different systems. 1 inch = 2.54cm or 1 cm = 0.394 inches • Conversion factors are ratios of the two parts of the equivalence statement that relate the two units. 1 inch or2.54cmor0.394 inchesor 1 cm . 2.54cm 1 inch 1 cm 0.394 inches

  5. A. Tools for Problem Solving • Converting Units of Measure 2.85 cm = ? in.2.85 cm conversion factor = ? in. Equivalence statement 2.54 cm = 1 in.Possible conversion factors Does this answer make sense?

  6. A. Tools for Problem Solving • Tools for Converting from One Unit to Another Step 1 Find an equivalence statement that relates the 2 units.Step 2 Choose the conversion factor by looking at the direction of the required change (cancel the unwanted units).Step 3 Multiply the original quantity by the conversion factor. Step 4 Make sure you have the correct number of significant figures. Go back and solve the Driving Problem in Canada

  7. 32 Degrees?

  8. ..or 32 Degrees?

  9. . . . . . . . . . . . . . . . . . . 32 Degrees? . .

  10. B. Temperature Conversions • There are three commonly used temperature scales, Fahrenheit, Celsius and Kelvin.

  11. B. Temperature Conversions • Note that • The temperature unit is the same size. • The zero points are different. • To convert from Celsius to Kelvin we need to adjust for the difference in zero points. • Converting Between the Kelvin and Celsius Scales

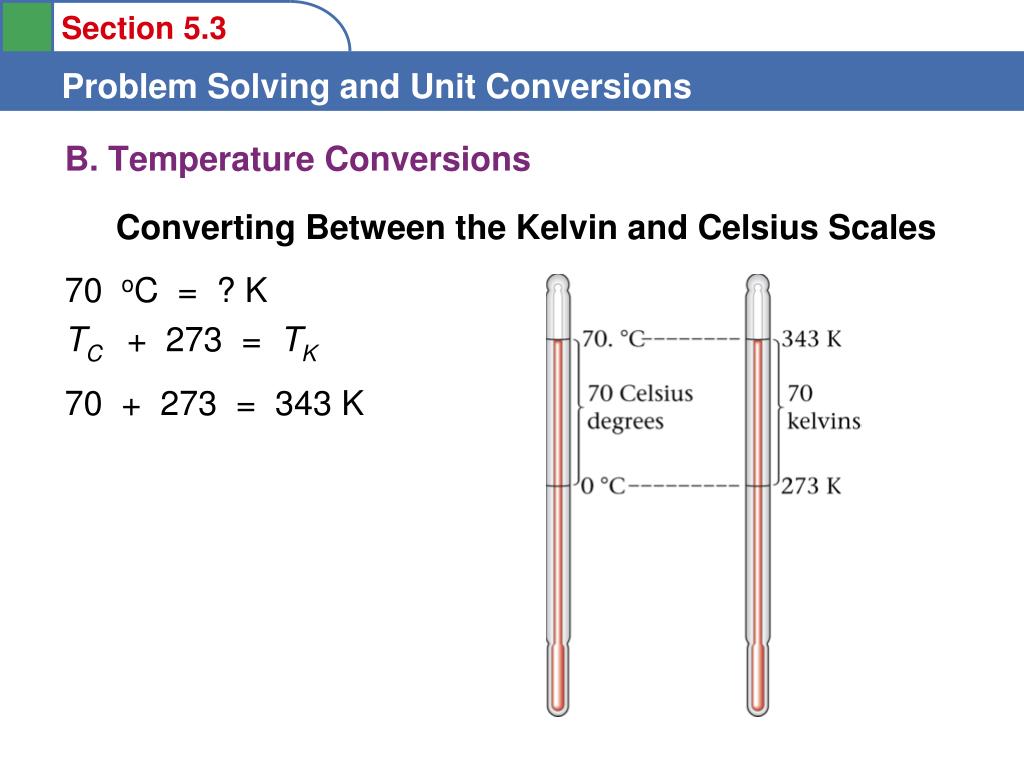

  12. B. Temperature Conversions 70 oC = ? K TC + 273 = TK • Converting Between the Kelvin and Celsius Scales 70 + 273 = 343 K

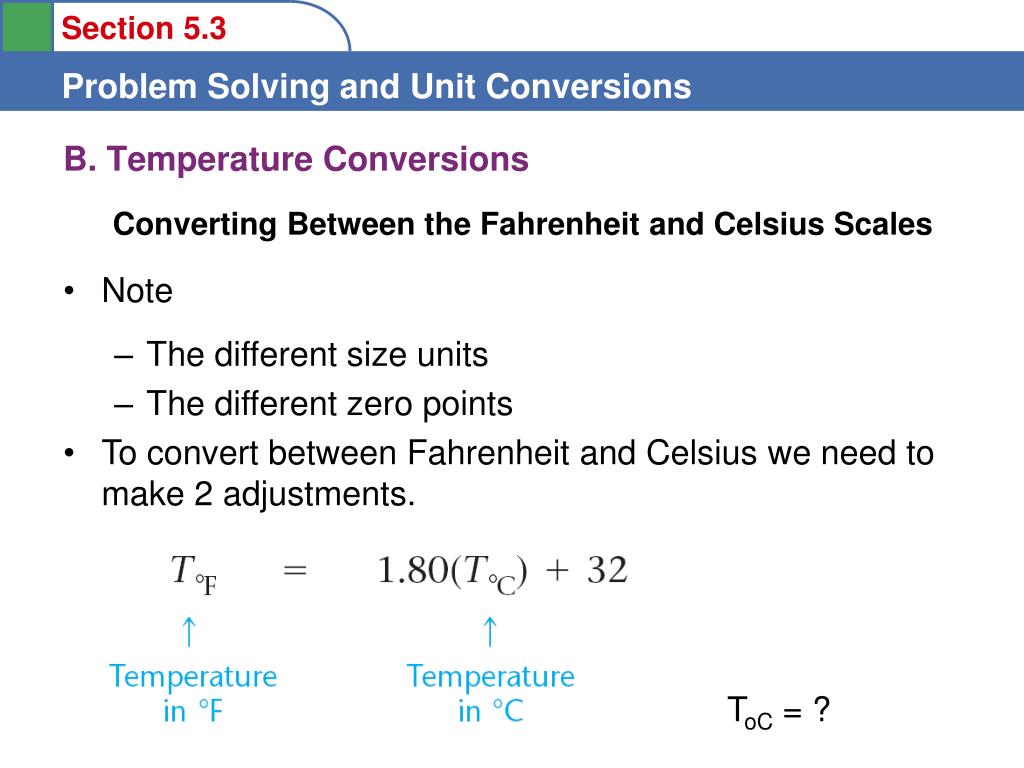

  13. B. Temperature Conversions • Note • Converting Between the Fahrenheit and Celsius Scales • The different size units • The different zero points • To convert between Fahrenheit and Celsius we need to make 2 adjustments. ToC = ?

  14. Convert These Temperatures 200oC to K -52oC to K 345K to oC 11K to oC 212oF to oC 32oF to oC 525oF to oC 25oC to oF -20oC to oF 200oF to K

  15. At what temperature would a Celsius and a Fahrenheit thermometer read the same? ToF=ToC

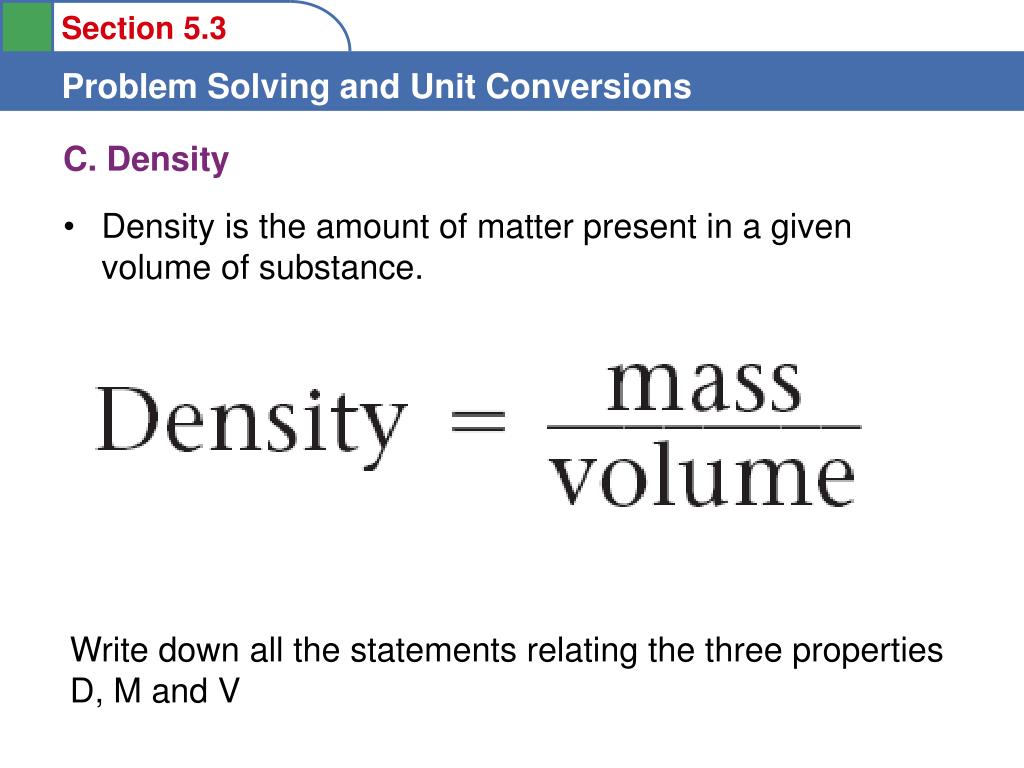

  16. C. Density • Density is the amount of matter present in a given volume of substance. Write down all the statements relating the three properties D, M and V

  17. How to Remember the Density Relationships Q. Where do you get your permit? A. At the DMV m v D

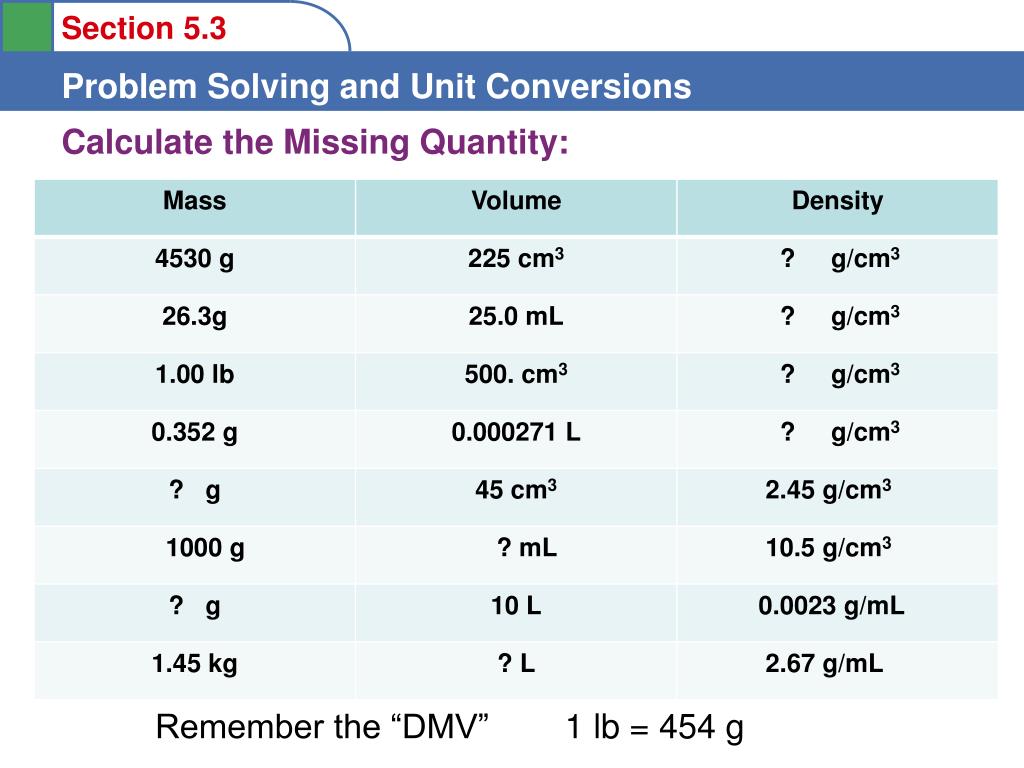

  18. Calculate the Missing Quantity: Remember the “DMV” 1 lb = 454 g

  19. C. Density H2 = 0.084 kg/m3 Is the hydrogen number correct?

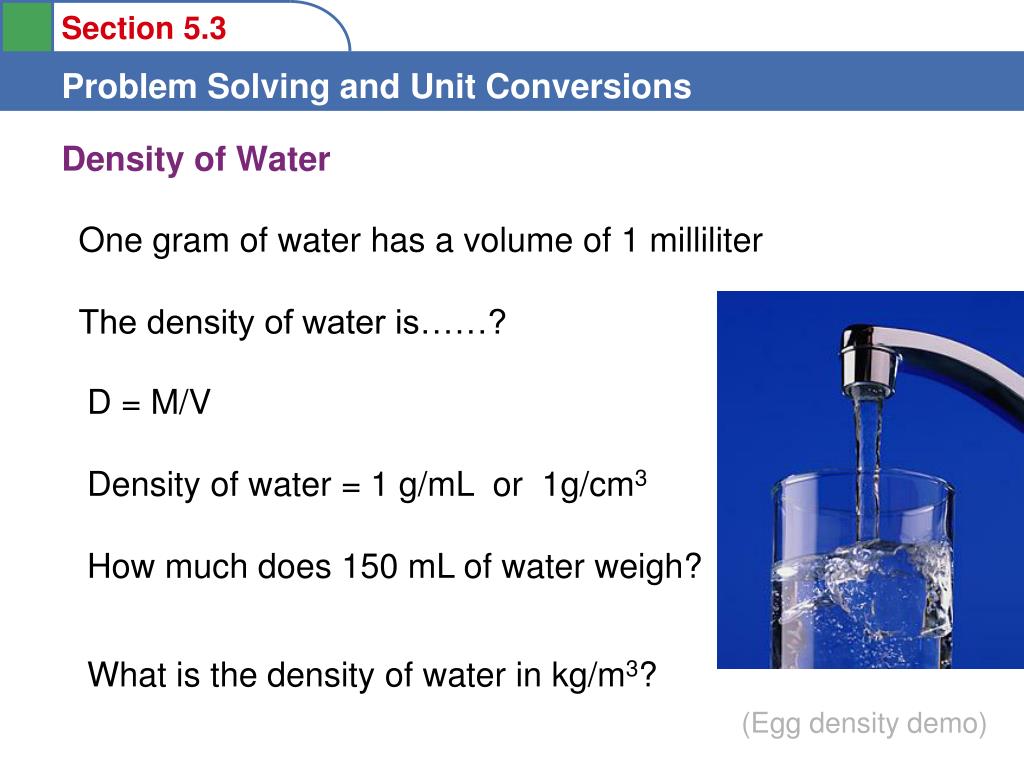

  20. Density of Water One gram of water has a volume of 1 milliliter The density of water is……? D = M/V Density of water = 1 g/mL or 1g/cm3 How much does 150 mL of water weigh? What is the density of water in kg/m3? (Egg density demo)
