draft-cui-netext-pmipv6-shpmipv6-00

Seamless Handover for Multiple-Access Mobile Node in PMIPv6. draft-cui-netext-pmipv6-shpmipv6-00. Yong cui, Xin Xu , WD. Wang , XM. Li, YZ. Huo , W. Luo. Atlanta, NetExt WG, 2012-11-5. Motivation. RFC 5949 has proposed two modes of fast handover scheme, but both of them have a limit

berg
Télécharger la présentation

draft-cui-netext-pmipv6-shpmipv6-00

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Seamless Handover for Multiple-Access Mobile Node in PMIPv6 draft-cui-netext-pmipv6-shpmipv6-00 Yong cui, XinXu, WD. Wang, XM. Li, YZ. Huo, W. Luo Atlanta, NetExt WG, 2012-11-5

  2. Motivation • RFC 5949 has proposed two modes of fast handover scheme, but both of them have a limit • Just use one interface to handle all packets, even when the interface is under handover • The size of packet buffer may be the bottleneck, and the storage-and-forward model may bring a transmission delay • It’s possible to use the multi-access features of the MN to solve the problem.

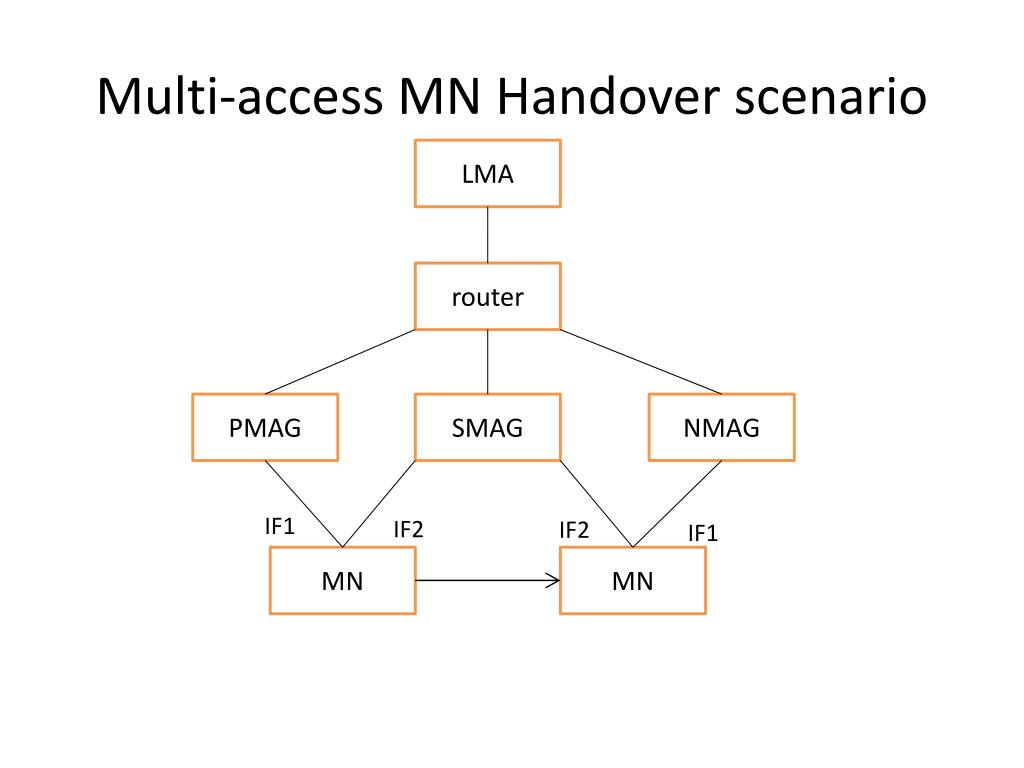

  3. Multi-access MN Handover scenario LMA router PMAG SMAG NMAG IF1 IF2 IF2 IF1 MN MN

  4. Solutions • Basic Idea • Use the available interface of the MN to handle the packet that transport on the interface under handover • Solutions • Build a bi-directional tunnel between MAGs that the MN is attaching to • When PMAG finds that the interface is under handover, it forwards packet to the SMAG • When LMAfinds that the interface has leaved from PMAG afterward , it change its encapsulating destination to the SMAG

  5. Handover signaling New interface registration MAGs intereact Handovering: MAG forward packets Handovering: LMA forward packets

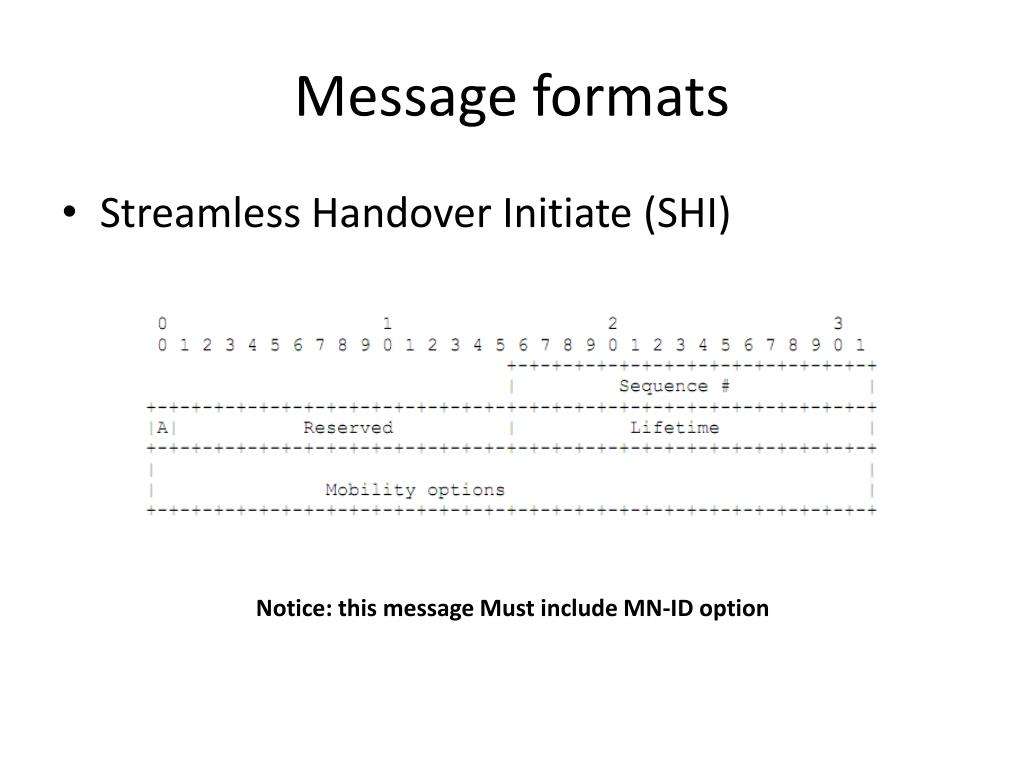

  6. Message formats • Streamless Handover Initiate (SHI) Notice: this message Must include MN-ID option

  7. Message formats • Streamless Handover Acknowledge (SHAck)

  8. Next step • Any questions/comments?
