  1. Multicast service delivery in PMIPv6 domainsdraft-contreras-multimob-msd-00 L.M. Contreras, C.J. Bernardos, I. Soto Universidad Carlos III de Madrid (UC3M) Hiroshima, MULTIMOB WG, 2009-11-12 draft-contreras-multimob-msd-00

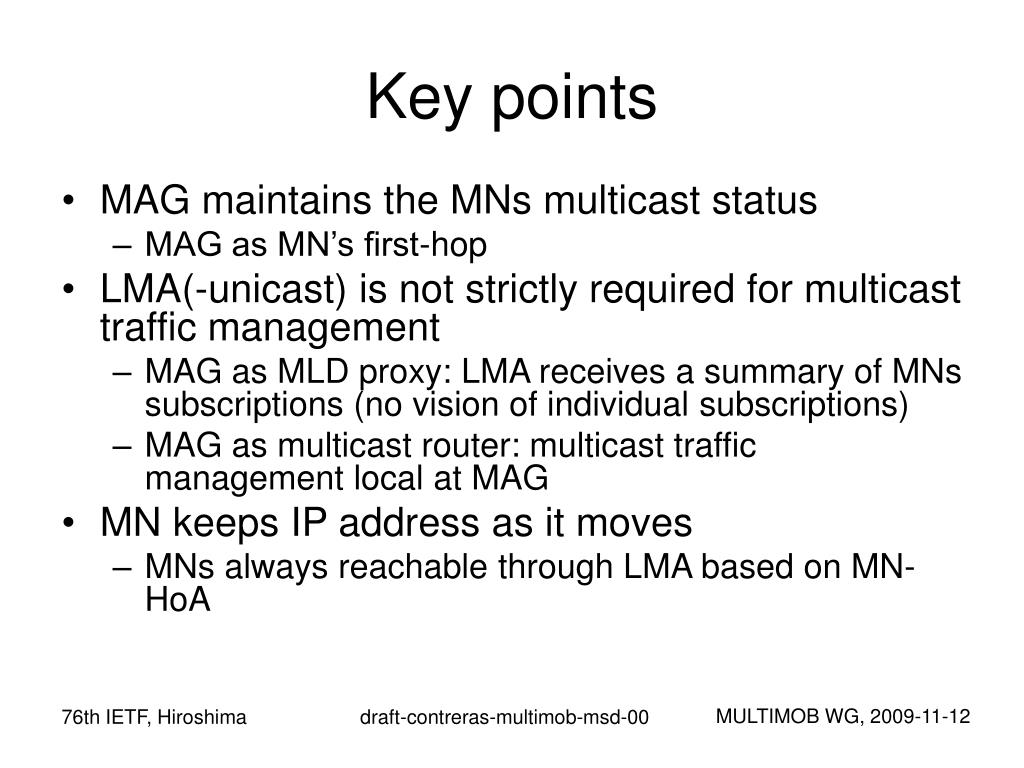

  2. Key points • MAG maintains the MNs multicast status • MAG as MN’s first-hop • LMA(-unicast) is not strictly required for multicast traffic management • MAG as MLD proxy: LMA receives a summary of MNs subscriptions (no vision of individual subscriptions) • MAG as multicast router: multicast traffic management local at MAG • MN keeps IP address as it moves • MNs always reachable through LMA based on MN-HoA draft-contreras-multimob-msd-00

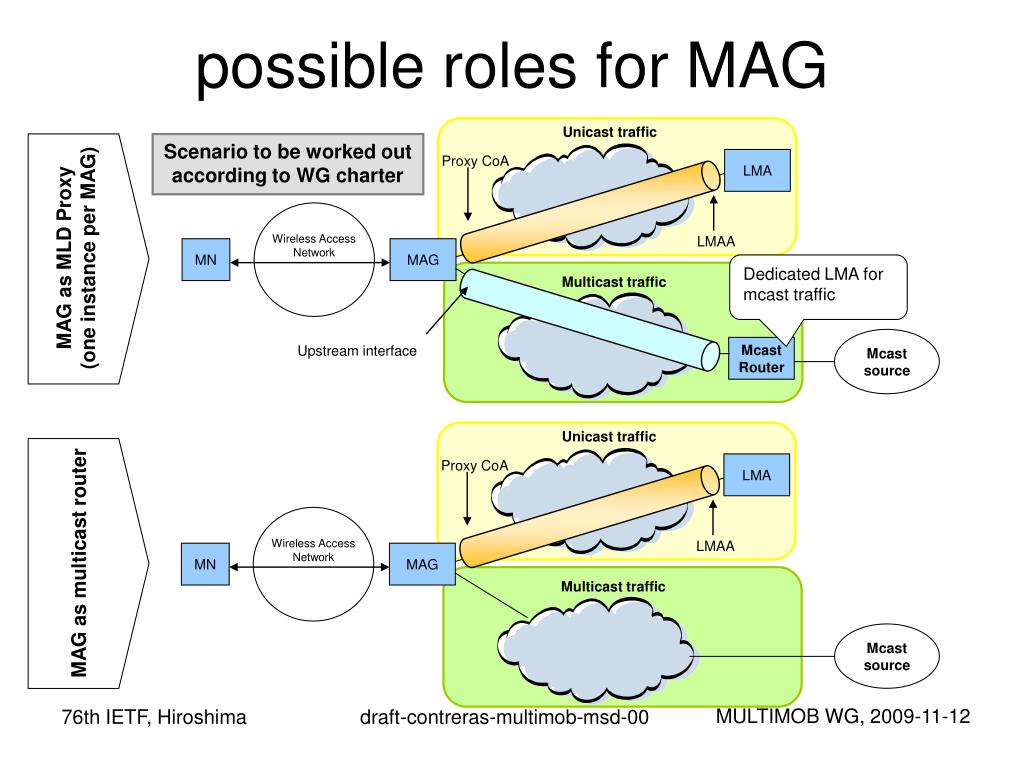

  3. possible roles for MAG Unicast traffic Scenario to be worked out according to WG charter MAG as MLD Proxy (one instance per MAG) Proxy CoA LMA Wireless Access Network LMAA MN MAG Dedicated LMA for mcast traffic Multicast traffic Mcast source Upstream interface Mcast Router Unicast traffic MAG as multicast router Proxy CoA LMA Wireless Access Network LMAA MN MAG Multicast traffic Mcast source draft-contreras-multimob-msd-00

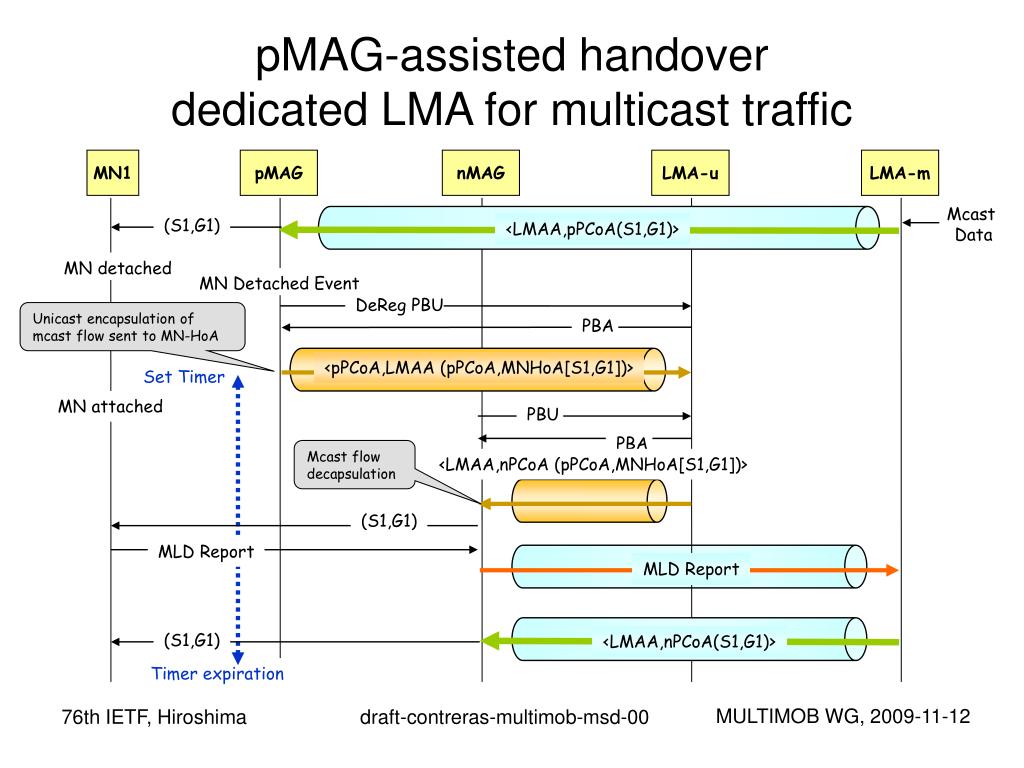

  4. pMAG-assisted handoverdedicated LMA for multicast traffic MN1 pMAG nMAG LMA-u LMA-m Mcast Data (S1,G1) <LMAA,pPCoA(S1,G1)> MN detached MN Detached Event DeReg PBU Unicast encapsulation of mcast flow sent to MN-HoA PBA <pPCoA,LMAA (pPCoA,MNHoA[S1,G1])> Set Timer MN attached PBU PBA Mcast flow decapsulation <LMAA,nPCoA (pPCoA,MNHoA[S1,G1])> (S1,G1) MLD Report MLD Report (S1,G1) <LMAA,nPCoA(S1,G1)> Timer expiration draft-contreras-multimob-msd-00

  5. pMAG-assisted handoversame LMA for unicast and multicast traffic MN1 pMAG nMAG LMA Mcast source (S1,G1) <LMAA,pPCoA(S1,G1)> Mcast Data MN detached MN Detached Event DeReg PBU Unicast encapsulation of mcast flow sent to MN-HoA PBA <pPCoA,LMAA (pPCoA,MNHoA[S1,G1])> Set Timer MN attached PBU PBA Mcast flow decapsulation <LMAA,nPCoA (pPCoA,MNHoA[S1,G1])> (S1,G1) MLD Report MLD Report (S1,G1) Timer expiration <LMAA,nPCoA(S1,G1)> draft-contreras-multimob-msd-00
