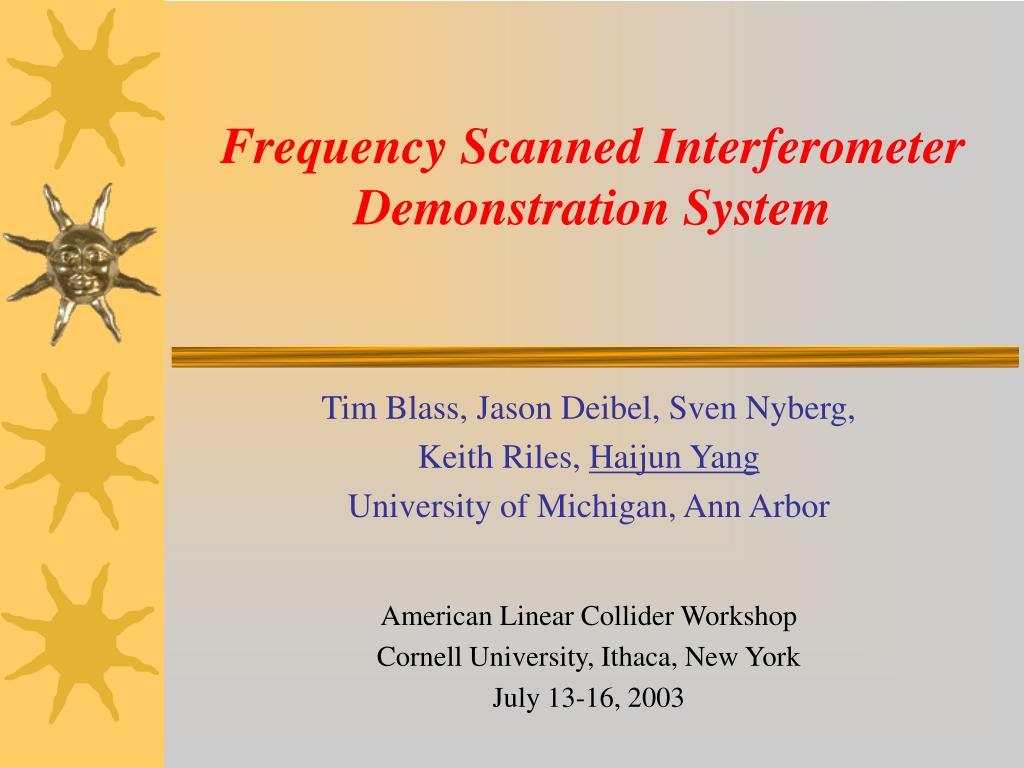

  1. Frequency Scanned Interferometer Demonstration System Tim Blass, Jason Deibel, Sven Nyberg, Keith Riles, Haijun Yang University of Michigan, Ann Arbor American Linear Collider Workshop Cornell University, Ithaca, New York July 13-16, 2003

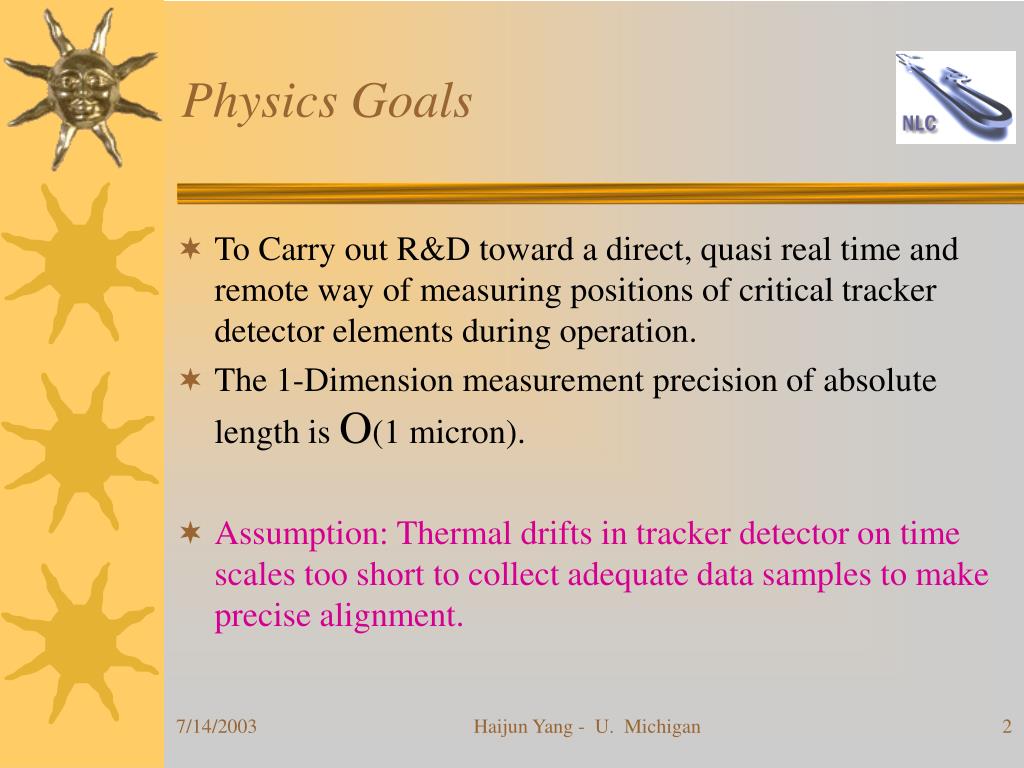

  2. Physics Goals • To Carry out R&D toward a direct, quasi real time and remote way of measuring positions of critical tracker detector elements during operation. • The 1-Dimension measurement precision of absolute length is O(1 micron). • Assumption: Thermal drifts in tracker detector on time scales too short to collect adequate data samples to make precise alignment. Haijun Yang - U. Michigan

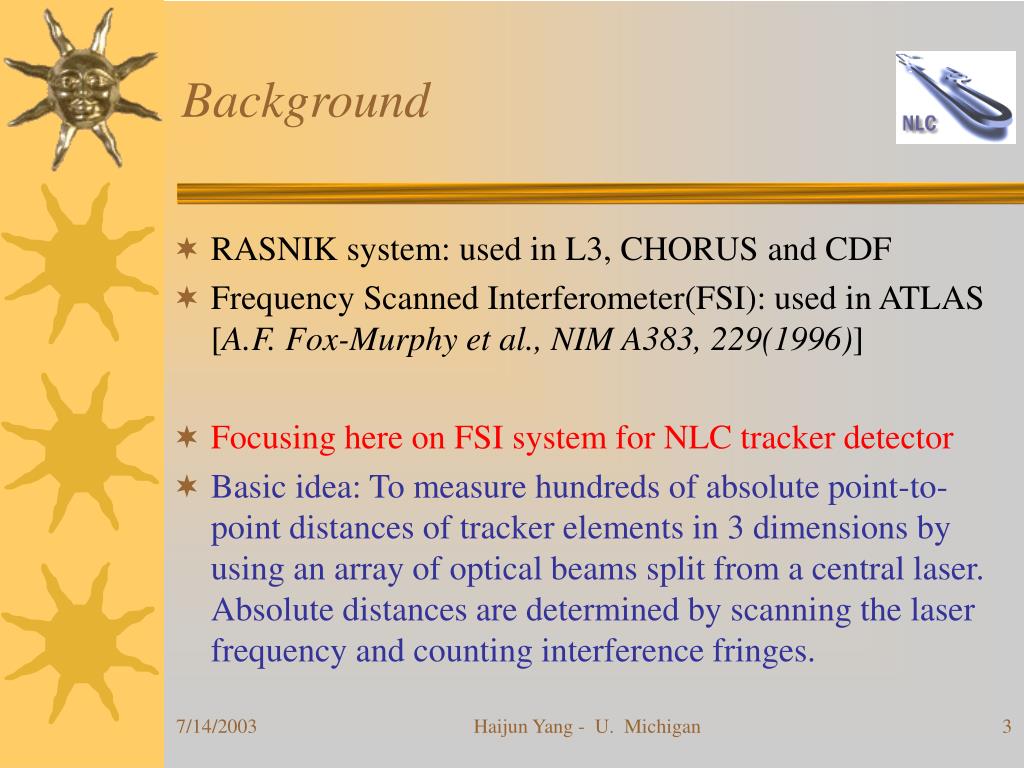

  3. Background • RASNIK system: used in L3, CHORUS and CDF • Frequency Scanned Interferometer(FSI): used in ATLAS [A.F. Fox-Murphy et al., NIM A383, 229(1996)] • Focusing here on FSI system for NLC tracker detector • Basic idea: To measure hundreds of absolute point-to-point distances of tracker elements in 3 dimensions by using an array of optical beams split from a central laser. Absolute distances are determined by scanning the laser frequency and counting interference fringes. Haijun Yang - U. Michigan

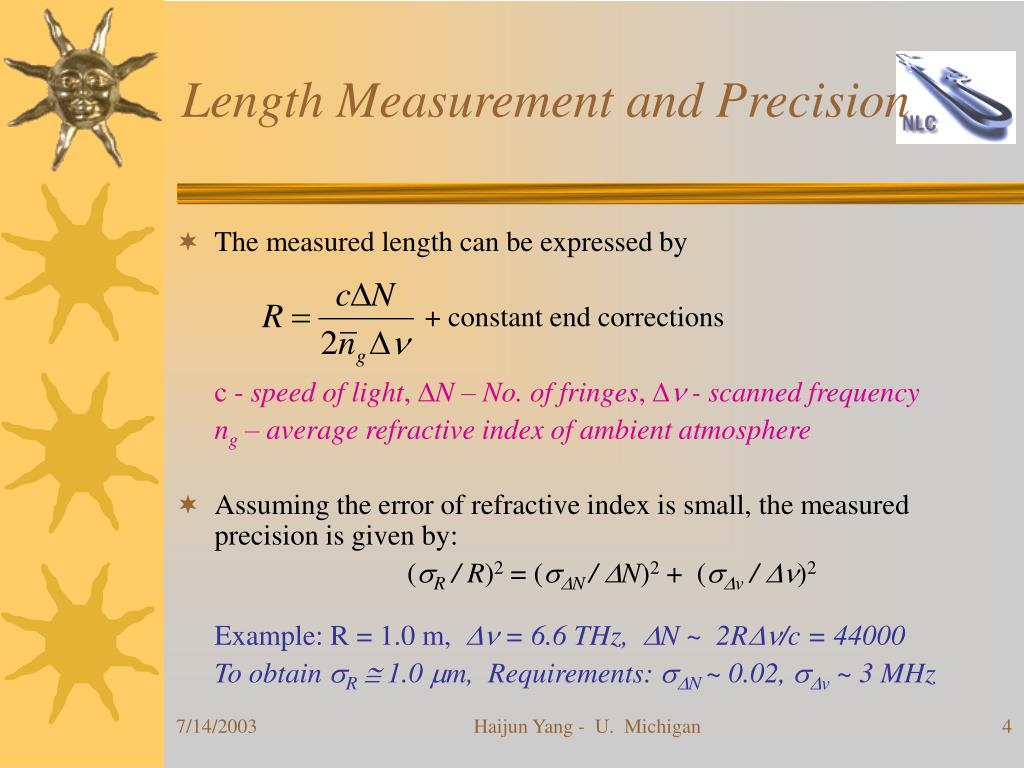

  4. Length Measurement and Precision • The measured length can be expressed by + constant end corrections c - speed of light, N – No. of fringes,  - scanned frequency ng – average refractive index of ambient atmosphere • Assuming the error of refractive index is small, the measured precision is given by: (R / R)2 = (N / N)2 + (v / )2 Example: R = 1.0 m,  = 6.6 THz, N ~ 2R/c= 44000 To obtain R 1.0 m, Requirements: N ~ 0.02, v ~ 3 MHz Haijun Yang - U. Michigan

  5. FSI Demonstration System • Tunable Laser: New Focus Velocity 6308, 3-4 mW, 668-679 nm. • Isolator: Leysop FOI 5/57 with polarisers to eliminate the optical feedback. • Retroreflector: Edmund, D=2”, angle tolerance: 3 arc seconds. • Photodiodes: 3 Thorlabs PDA55, DC-10MHz, Amplified Si Detector, 5 Gain Settings. • Fabry-Perot Interferometer: Thorlabs SA200, high finesse(>200) spectrum analyzer to determine the relative frequency precisely, Free Spectra Range (FSR) is 1.5 GHz, with peak FWHM of 7.5 MHz. • PCI Card: NI-PCI-6110, 5 MS/s/ch, 12-bit simultaneous sampling DAQ. • PCI-GPIB Card: NI-488.2, served as remote controller of laser. • Computers: 1 for DAQ and laser control, 3 for analysis. Waiting for delivery Haijun Yang - U. Michigan

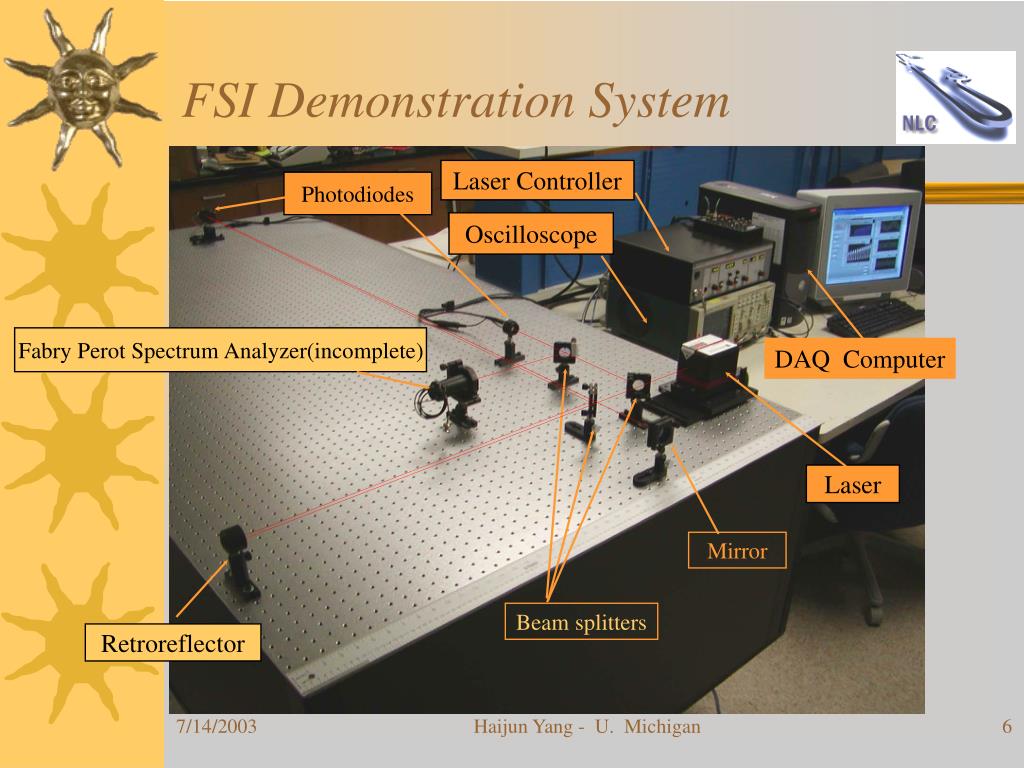

  6. FSI Demonstration System Laser Controller Photodiodes Oscilloscope Fabry Perot Spectrum Analyzer(incomplete) DAQ Computer Laser Mirror Beam splitters Retroreflector Haijun Yang - U. Michigan

  7. FSI Laser & DAQ Control Panels • Laser Control Panel set: start and stop wavelength, forward and backward scanning rate, power constant mode etc. • DAQ Control Panel set: device No., input signal channels No., sampling rate, total samples collected etc. show: laser power, scanned frequency, raw fringes, extracted fringes after filters, fringes No., extracted vibration etc. • Tentative Operation(preliminary results) • Low Scanning Rate(<0.1nm/s): good for measuring vibrations. • Medium Scanning Rate(0.5 – 1 nm/s): good for length measurement. • High Scanning Rate(>1 nm/s): fringe instability increased. Haijun Yang - U. Michigan

  8. Scanning Rate is 0.05 nm/s Laser power Vibration detected ~ 25 Hz Raw fringes w/o power correction Haijun Yang - U. Michigan

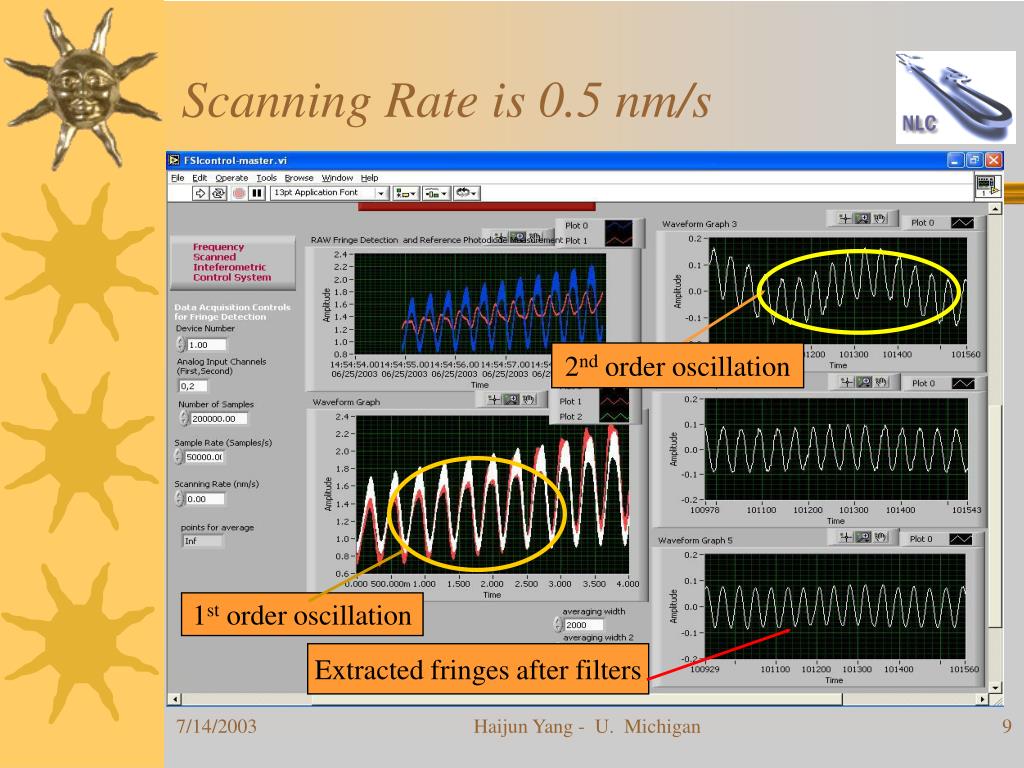

  9. Scanning Rate is 0.5 nm/s 2nd order oscillation 1st order oscillation Extracted fringes after filters Haijun Yang - U. Michigan

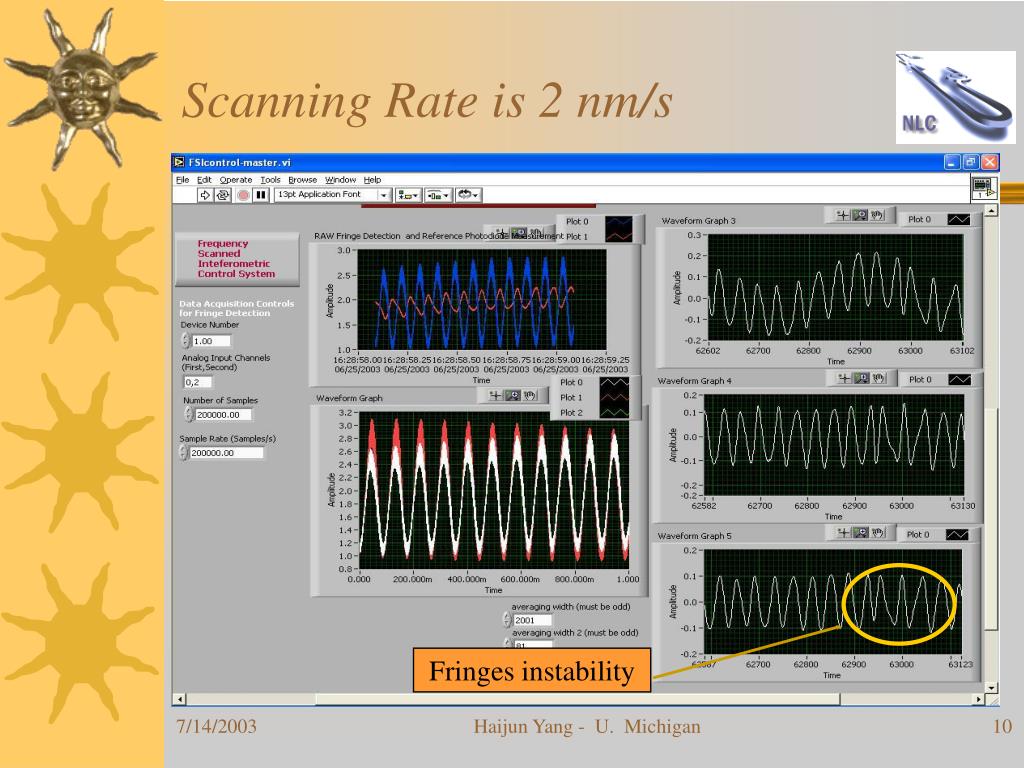

  10. Scanning Rate is 2 nm/s Fringes instability Haijun Yang - U. Michigan

  11. Phase Shift Technique • Fringe phase at time t:(t) = 2[OPDtrue + 2xvib(t)]/(t), xvib(t) = avib cos(2fvibt + vib) • Fringes number are, N = OPDmeasured /c N = [(t)(t0)]/2 = OPDtrue/c + [2xvib(t)/(t)- 2xvib(t0)/(t0)] • Measured OPD can be written as, OPDmeasured = OPDtrue + c/  [2xvib(t)/(t)- 2xvib(t0)/(t0)] if tslot=t-t0 fixed, 2nd term can be written as, Ashift sin(2fvibt+ ) • If we fix the measurement window tslot and shift the window to measure many OPDs, then the vibration effect will show up. True OPD, vibration frequency can be derived by fitting the measured OPDs. MC simulation result is shown in the plot. Haijun Yang - U. Michigan

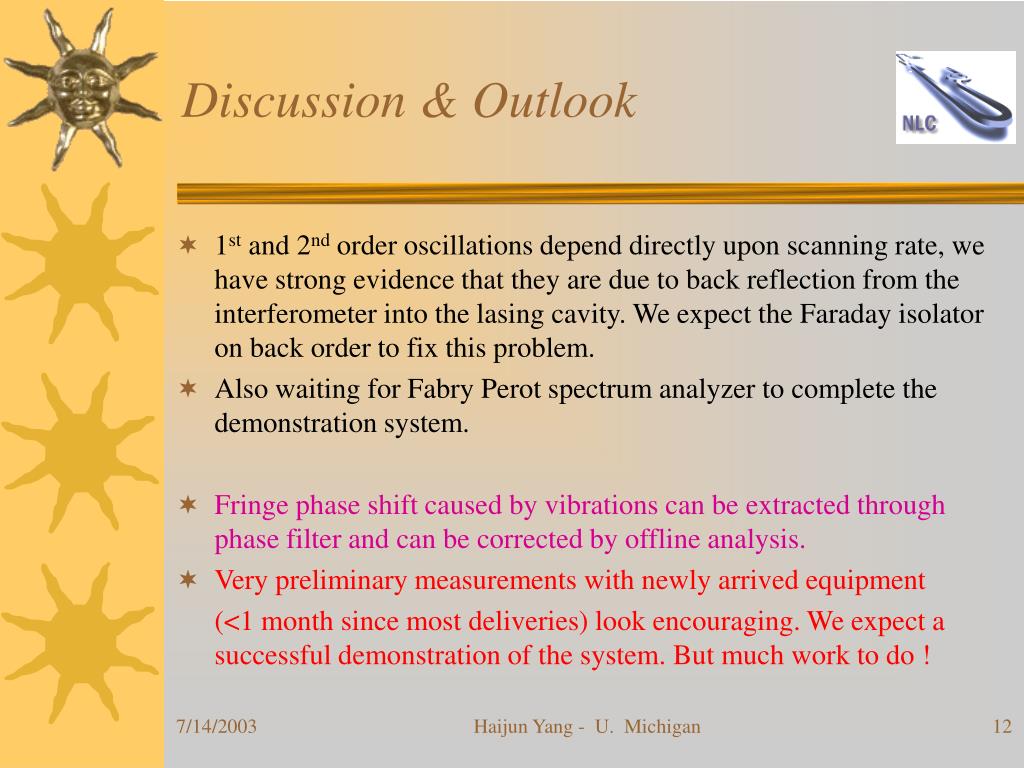

  12. Discussion & Outlook • 1st and 2nd order oscillations depend directly upon scanning rate, we have strong evidence that they are due to back reflection from the interferometer into the lasing cavity. We expect the Faraday isolator on back order to fix this problem. • Also waiting for Fabry Perot spectrum analyzer to complete the demonstration system. • Fringe phase shift caused by vibrations can be extracted through phase filter and can be corrected by offline analysis. • Very preliminary measurements with newly arrived equipment (<1 month since most deliveries) look encouraging. We expect a successful demonstration of the system. But much work to do ! Haijun Yang - U. Michigan
