  1. ECC X.509 Certificate Format Discussion Peter de Rooij Certicom Corp. pderooij@certicom.com (650) 312-7995

  2. Goal • Enable and standardize the use of elliptic curve keys within the X.509 framework 2

  3. Objectives • Specify how ECC keys and their usage are indicated within X.509 certificates • Simple • Flexible • Generic 3

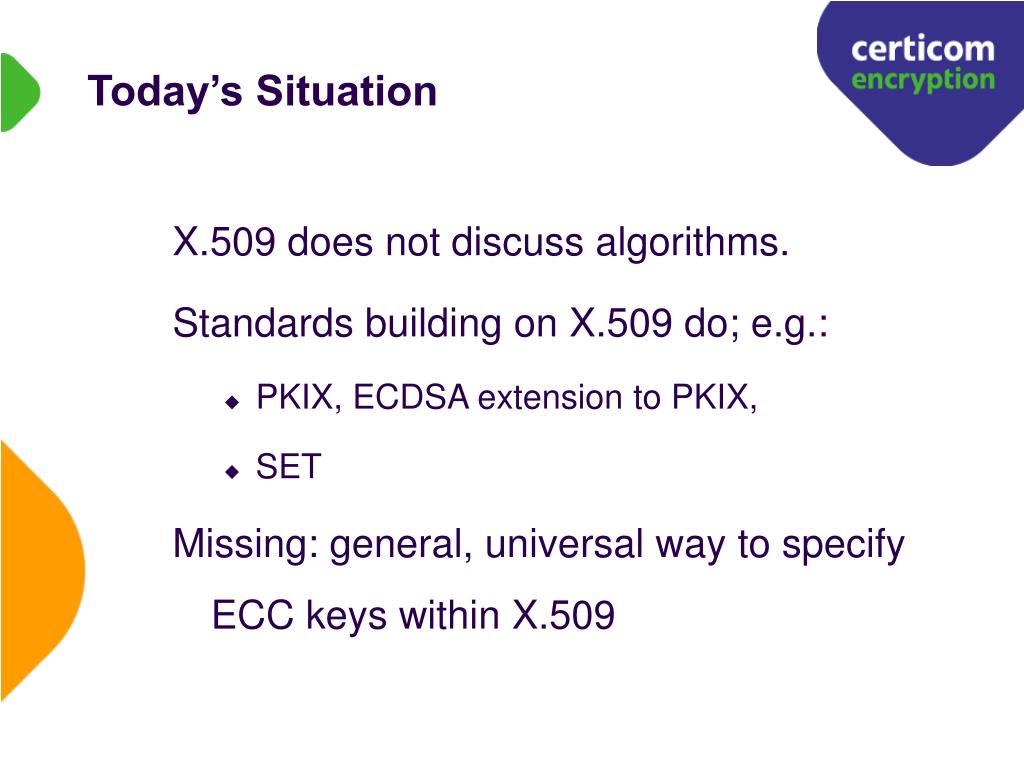

  4. Today’s Situation • X.509 does not discuss algorithms. • Standards building on X.509 do; e.g.: • PKIX, ECDSA extension to PKIX, • SET • Missing: general, universal way to specify ECC keys within X.509 4

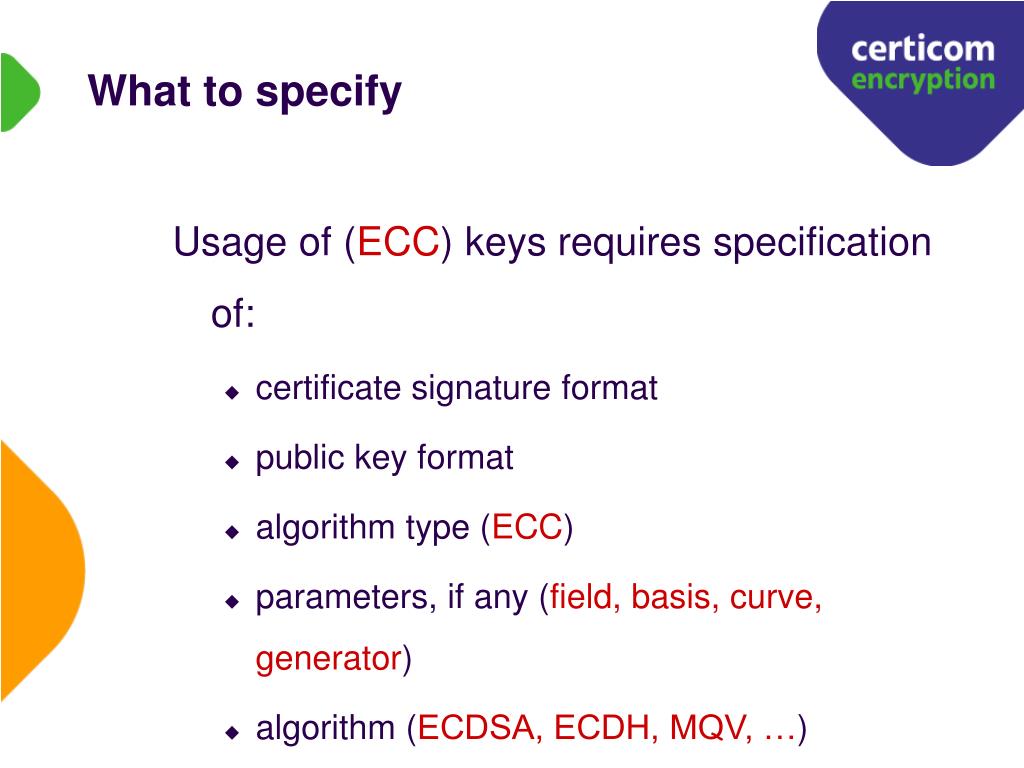

  5. What to specify • Usage of (ECC) keys requires specification of: • certificate signature format • public key format • algorithm type (ECC) • parameters, if any (field, basis, curve, generator) • algorithm (ECDSA, ECDH, MQV, …) • key usage (sign, cert sign, encrypt, …)

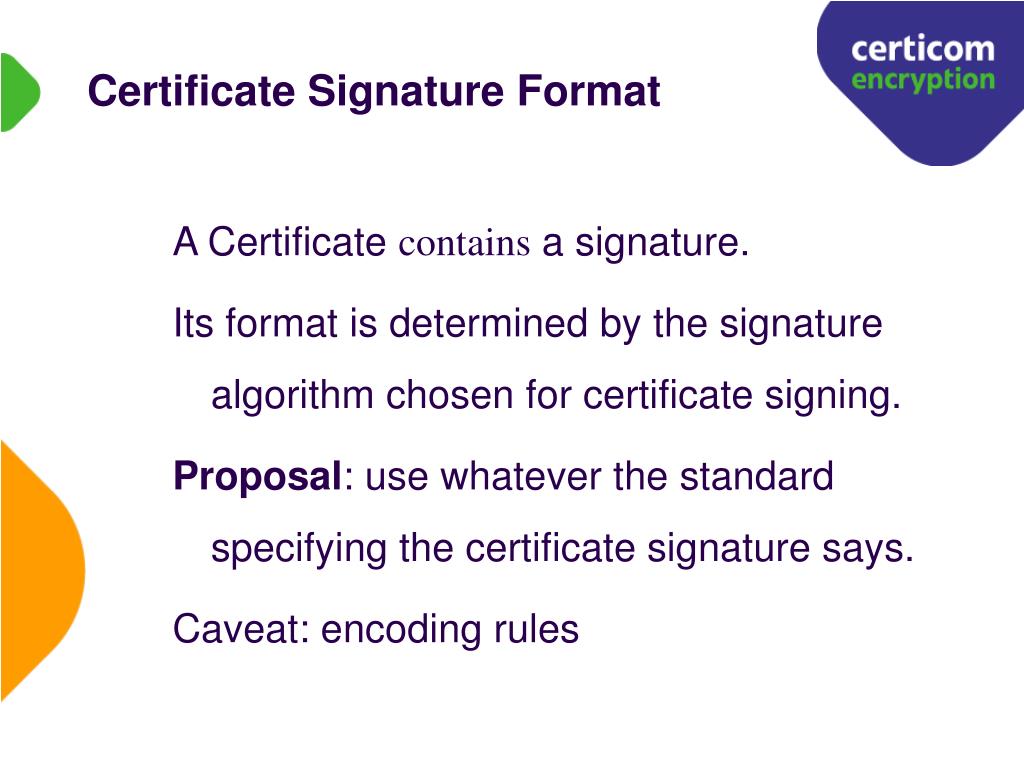

  6. Certificate Signature Format • A Certificate contains a signature. • Its format is determined by the signature algorithm chosen for certificate signing. • Proposal: use whatever the standard specifying the certificate signature says. • Caveat: encoding rules

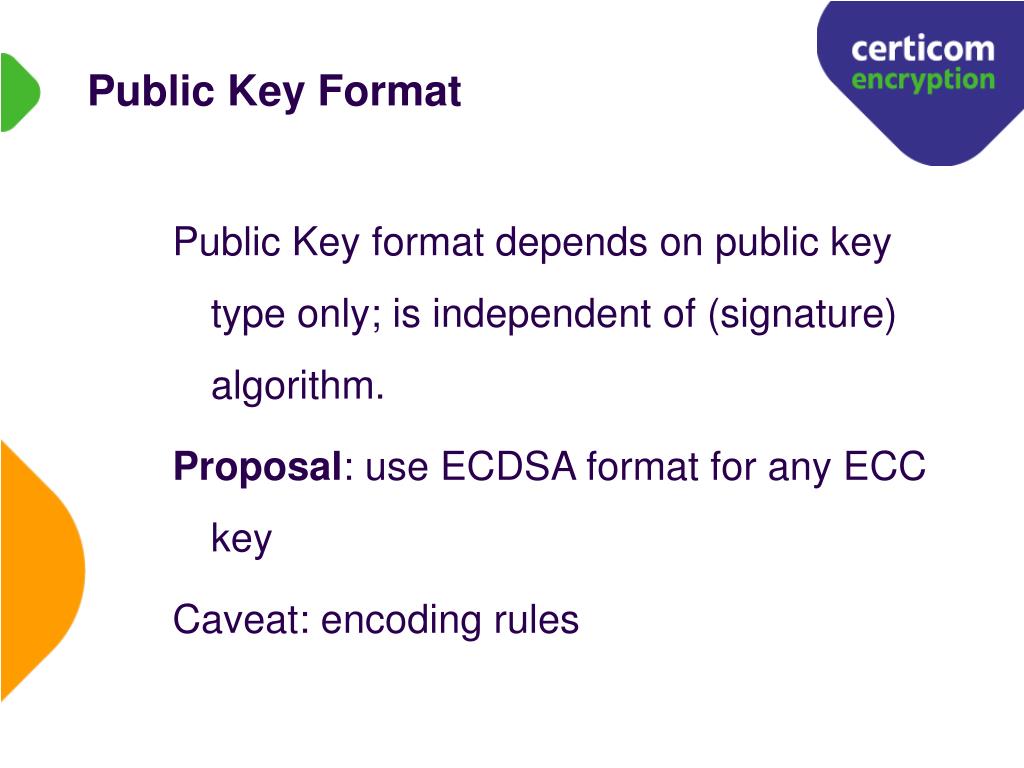

  7. Public Key Format • Public Key format depends on public key type only; is independent of (signature) algorithm. • Proposal: use ECDSA format for any ECC key • Caveat: encoding rules

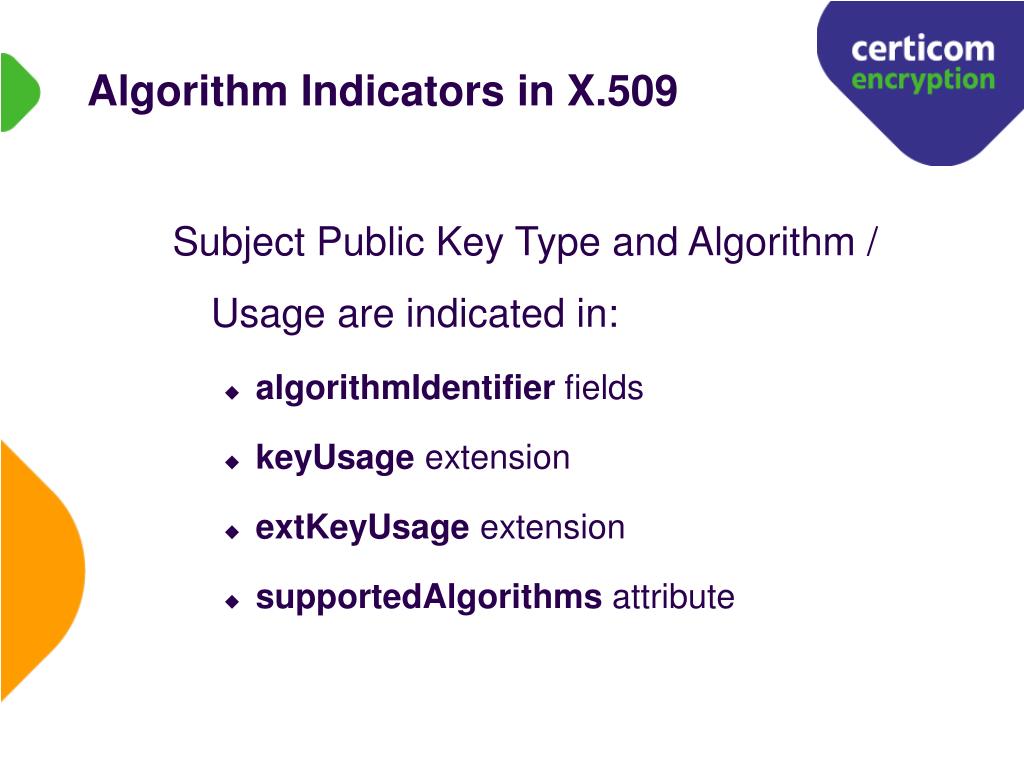

  8. Algorithm Indicators in X.509 • Subject Public Key Type and Algorithm / Usage are indicated in: • algorithmIdentifier fields • keyUsage extension • extKeyUsage extension • supportedAlgorithms attribute

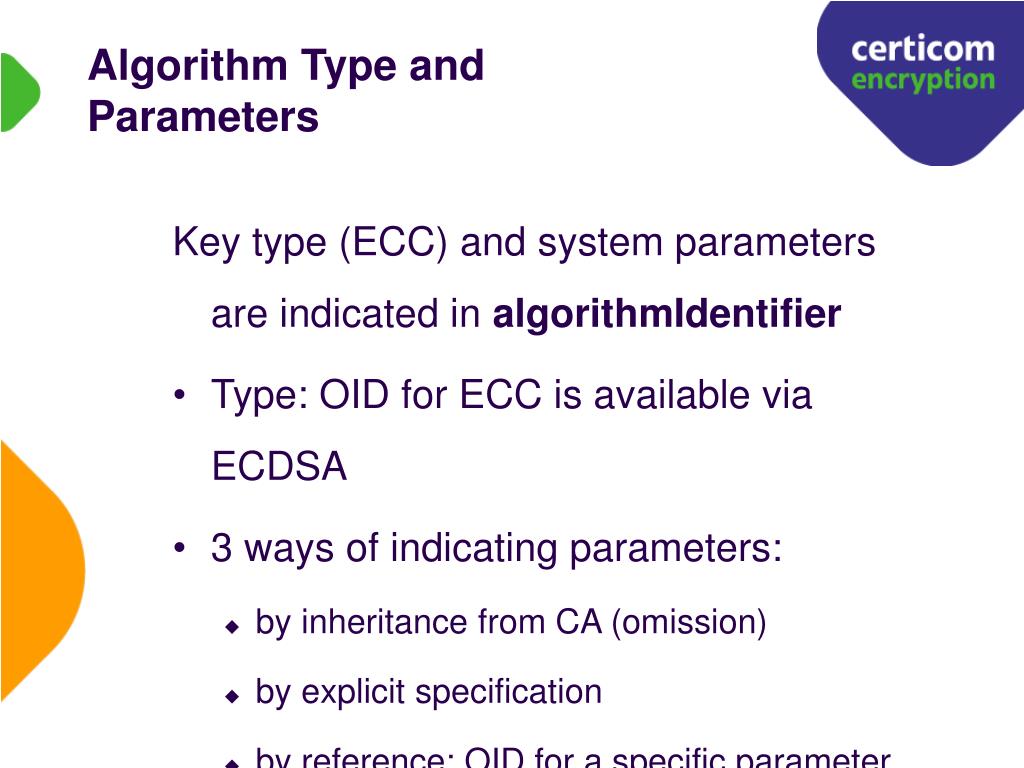

  9. Algorithm Type and Parameters • Key type (ECC) and system parameters are indicated in algorithmIdentifier • Type: OID for ECC is available via ECDSA • 3 ways of indicating parameters: • by inheritance from CA (omission) • by explicit specification • by reference: OID for a specific parameter set 6

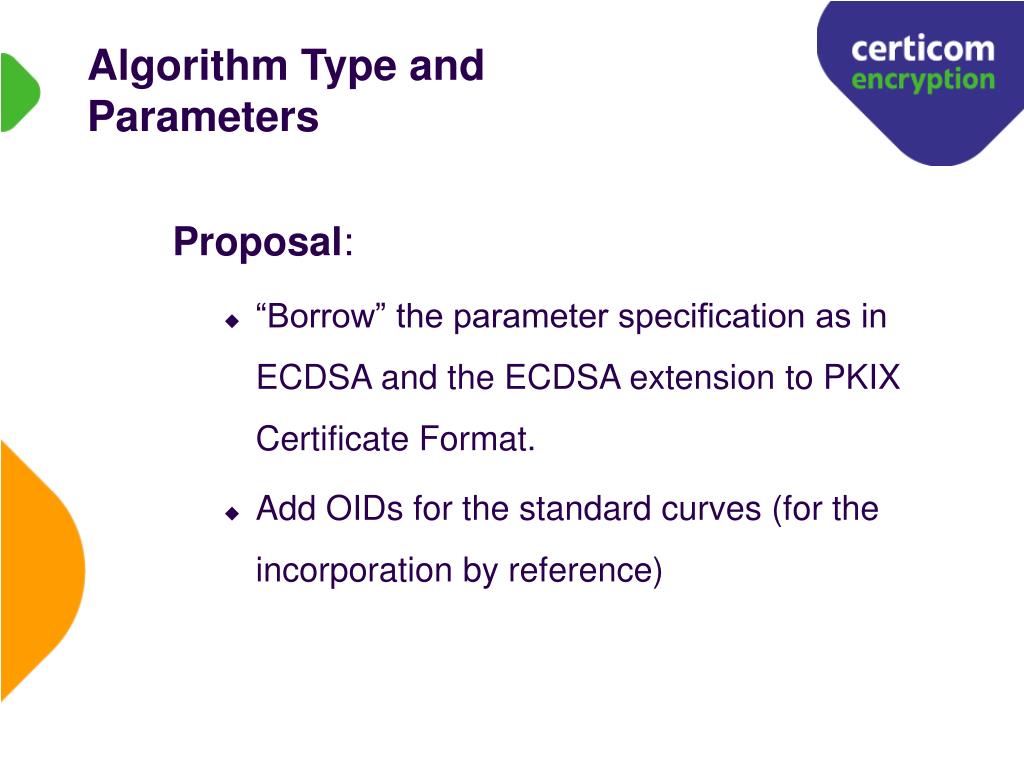

  10. Algorithm Type and Parameters • Proposal: • “Borrow” the parameter specification as in ECDSA and the ECDSA extension to PKIX Certificate Format. • Add OIDs for the standard curves (for the incorporation by reference)

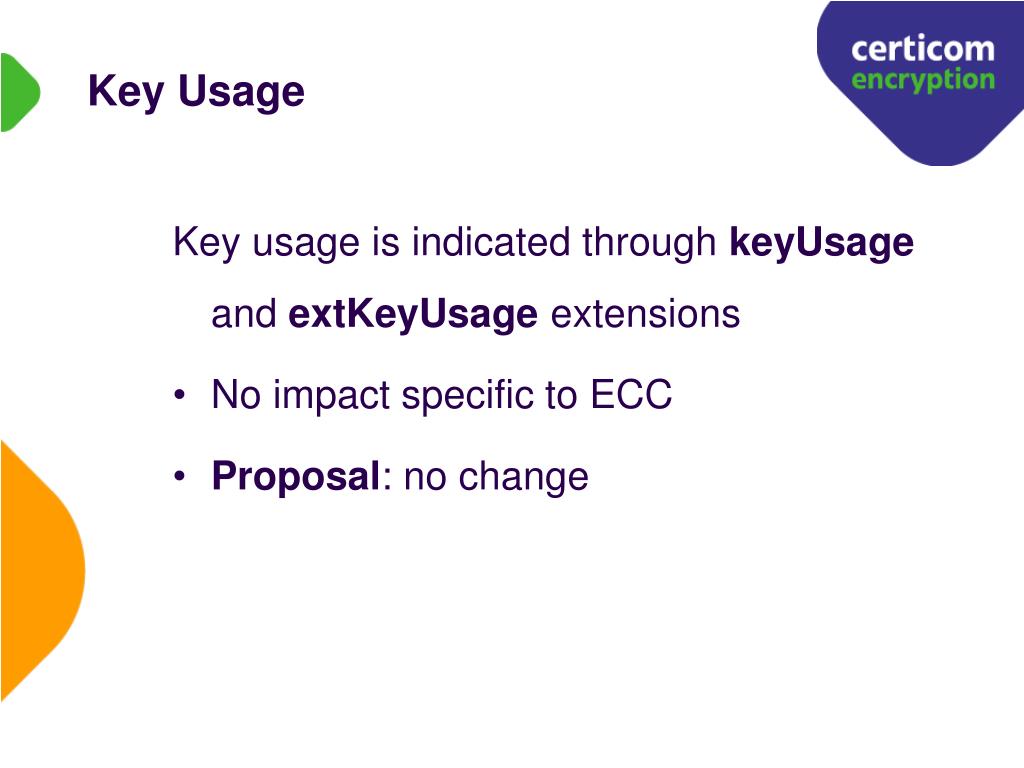

  11. Key Usage • Key usage is indicated through keyUsage and extKeyUsage extensions • No impact specific to ECC • Proposal: no change

  12. Supported Algorithms • Usage: No impact specific to ECC • Required: list of all ECC algorithms (OIDs) supported by the “SECG profile”

  13. Proposals • Key format • As in ECDSA • Signature format • As in signature standard 7

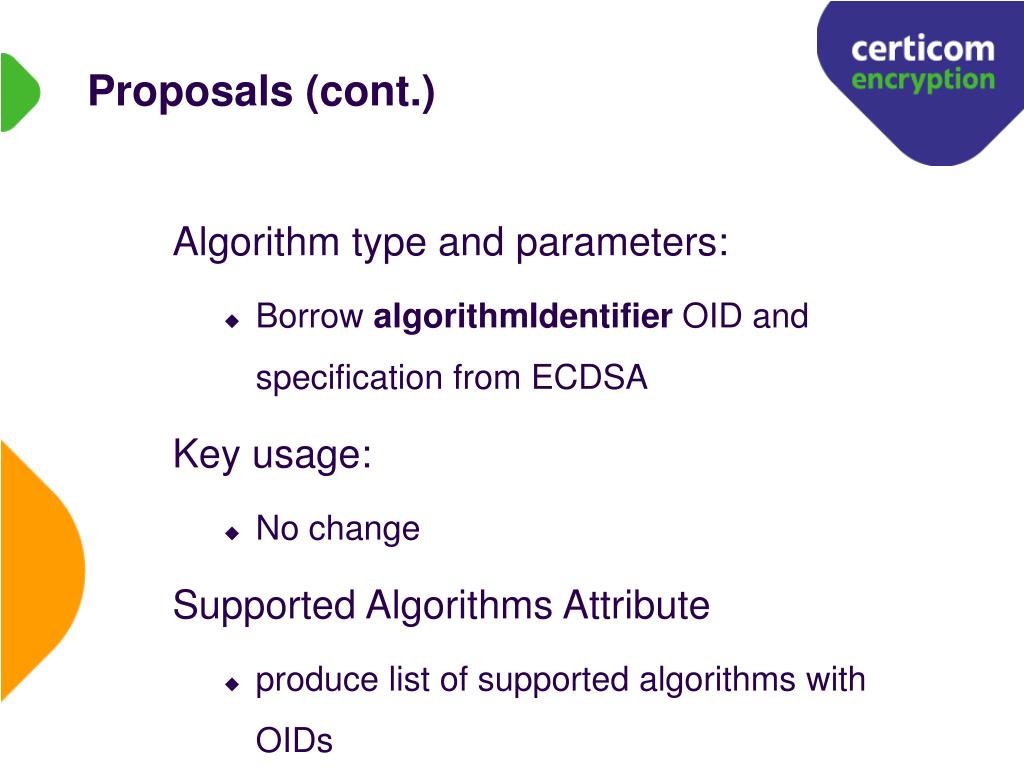

  14. Proposals (cont.) • Algorithm type and parameters: • Borrow algorithmIdentifier OID and specification from ECDSA • Key usage: • No change • Supported Algorithms Attribute • produce list of supported algorithms with OIDs

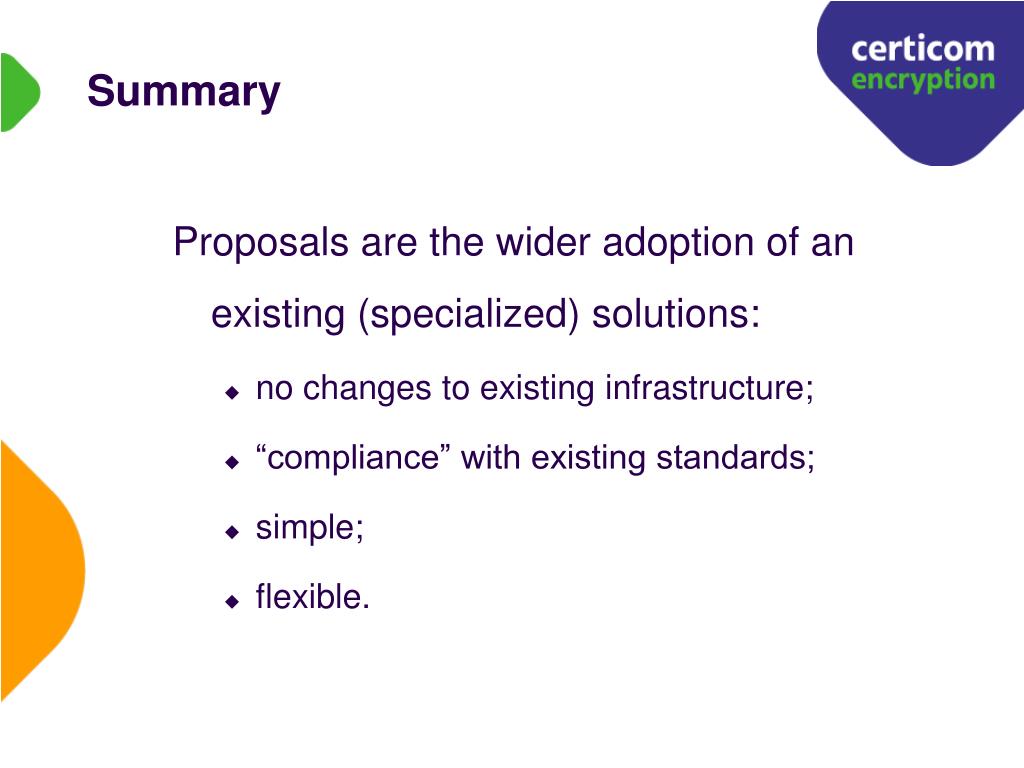

  15. Summary • Proposals are the wider adoption of an existing (specialized) solutions: • no changes to existing infrastructure; • “compliance” with existing standards; • simple; • flexible.

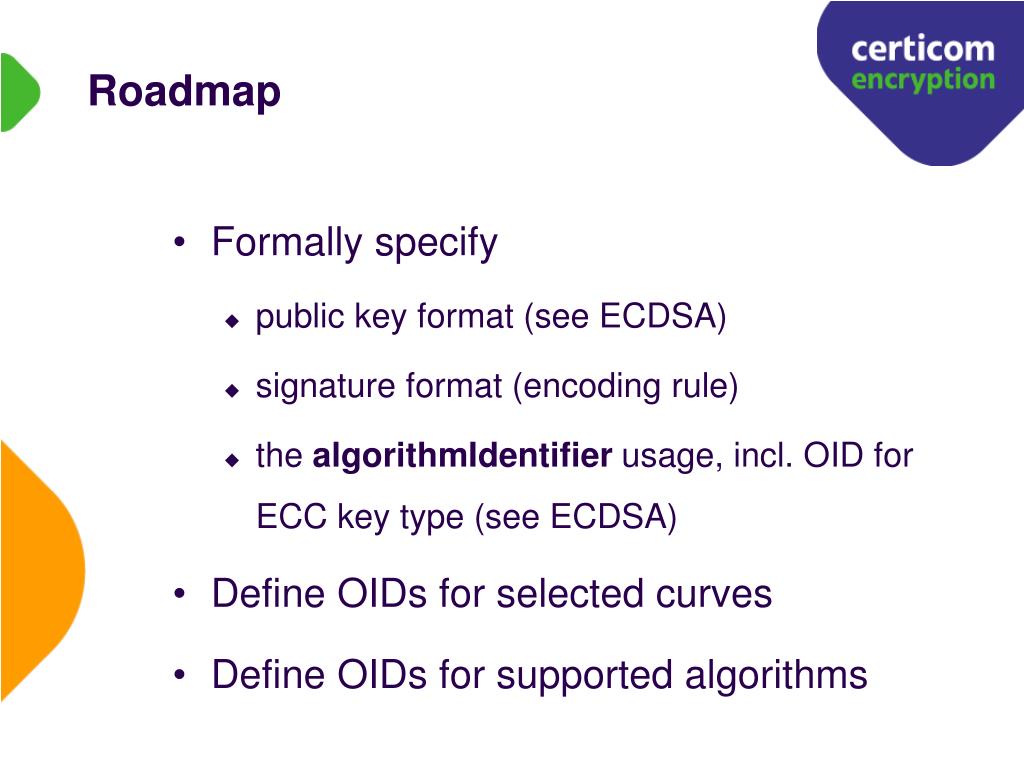

  16. Roadmap • Formally specify • public key format (see ECDSA) • signature format (encoding rule) • the algorithmIdentifier usage, incl. OID for ECC key type (see ECDSA) • Define OIDs for selected curves • Define OIDs for supported algorithms

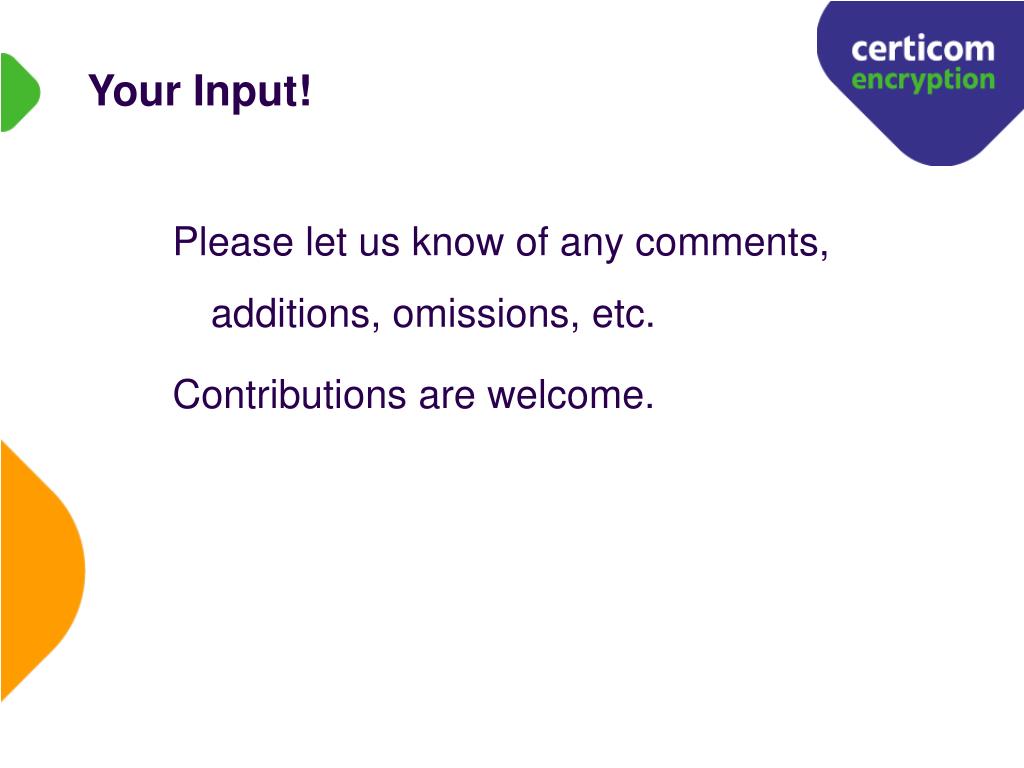

  17. Your Input! • Please let us know of any comments, additions, omissions, etc. • Contributions are welcome.
