Presentation Transcript

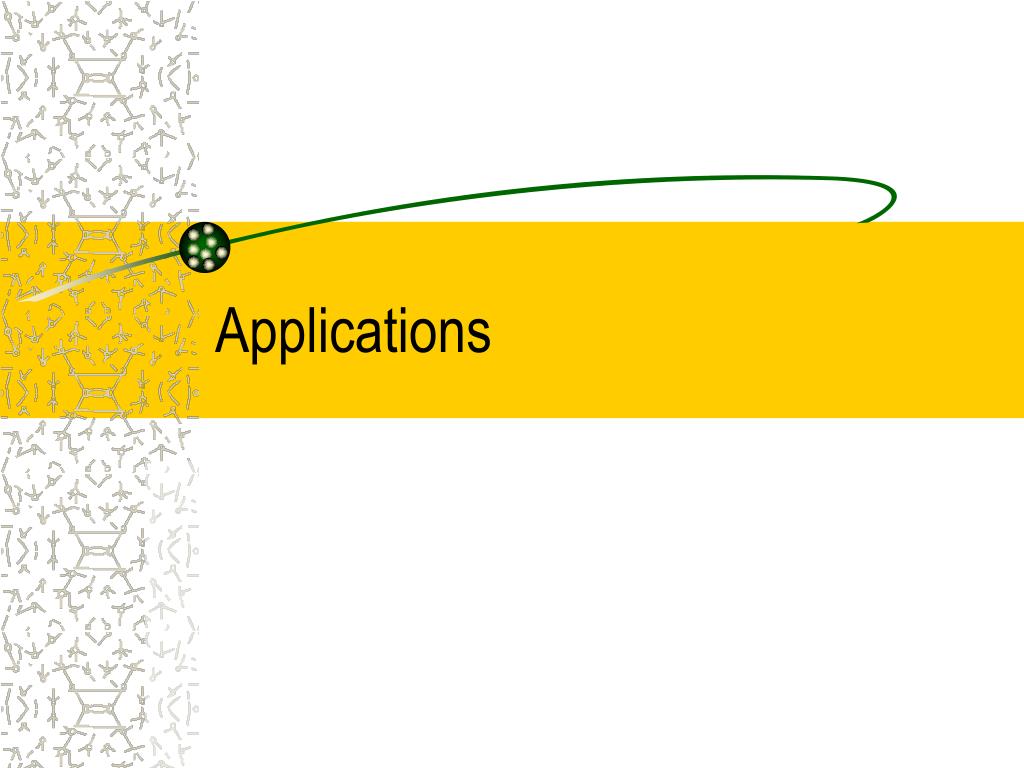

  1. Applications

  2. Host Names (DNS)

  3. Overview • Names versus Addresses • names are variable length, mnemonic, easy for humans to remember • addresses are fixed length, tied to routing, and easy for computers to process • Name Space • defines set of possible names • flat versus hierarchical • consists of a set of name to value bindings

  4. Address Assignment • Network Information Center (NIC) used to maintain all name to address bindings • Limited scalability • Distributed name servers now used • ICANN now assigns names

  5. Domain Hierarchy • Example hierarchy • Example name: cheltenham.cs.arizona.edu

  6. Name Servers • Partition hierarchy into zones • Each zone implemented by two or more name servers

  7. Resource Records • Each name server maintains a collection of resource records • <Name, Value, Type, Class, TTL> • Name/Value: not necessarily host names to IP addresses • Type • NS: the Value field gives the domain name for a host running a name server that knows how to resolve names within the specified domain. • CNAME: the Value field gives the canonical name for a particular host; it is used to define aliases. • MX: the Value field gives the domain name for a host running a mail server that accepts messages for the specified domain. • Class: allow other entities to define types • TTL: how long the resource record is valid

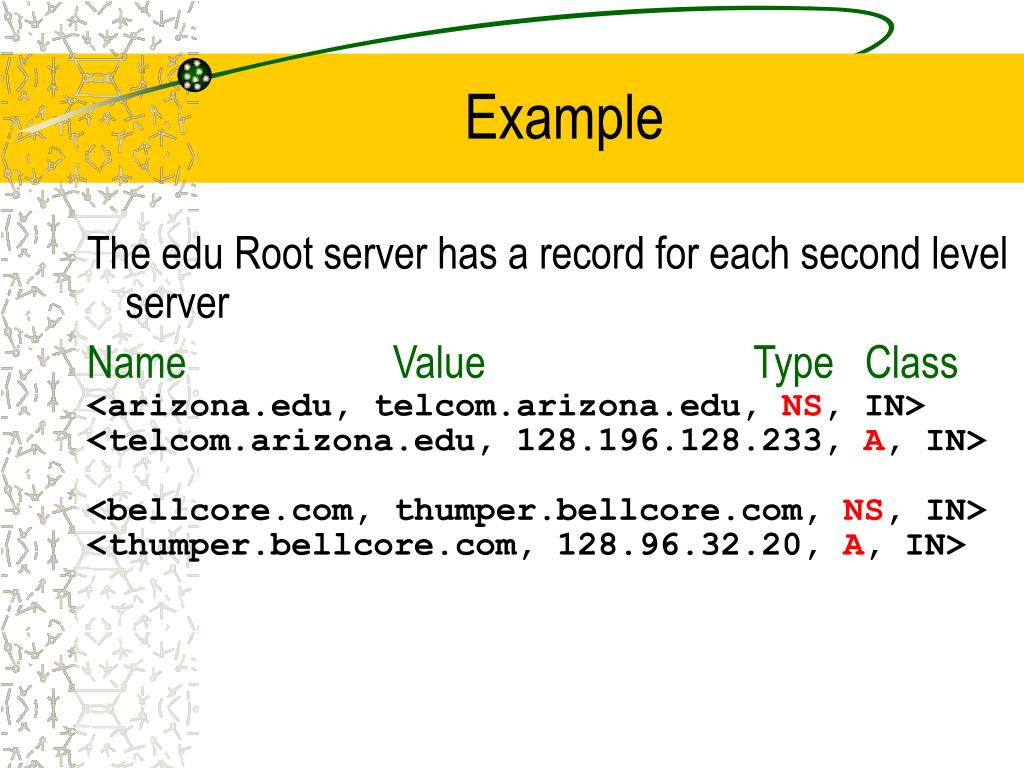

  8. Example The edu Root server has a record for each second level server Name Value Type Class <arizona.edu, telcom.arizona.edu, NS, IN> <telcom.arizona.edu, 128.196.128.233, A, IN> <bellcore.com, thumper.bellcore.com, NS, IN> <thumper.bellcore.com, 128.96.32.20, A, IN>

  9. Arizona server: <cs.arizona.edu, optima.cs.arizona.edu, NS, IN> <optima.cs.arizona.edu, 192.12.69.5, A, IN> Third level name server <ece.arizona.edu, helios.ece.arizona.edu, NS, IN> <helios.ece.arizona.edu, 128.196.28.166, A, IN> Third level name server <jupiter.physics.arizona.edu, 128.196.4.1, A, IN> <saturn.physics.arizona.edu, 128.196.4.2, A, IN> <mars.physics.arizona.edu, 128.196.4.3, A, IN> <venus.physics.arizona.edu, 128.196.4.4, A, IN> Final address records

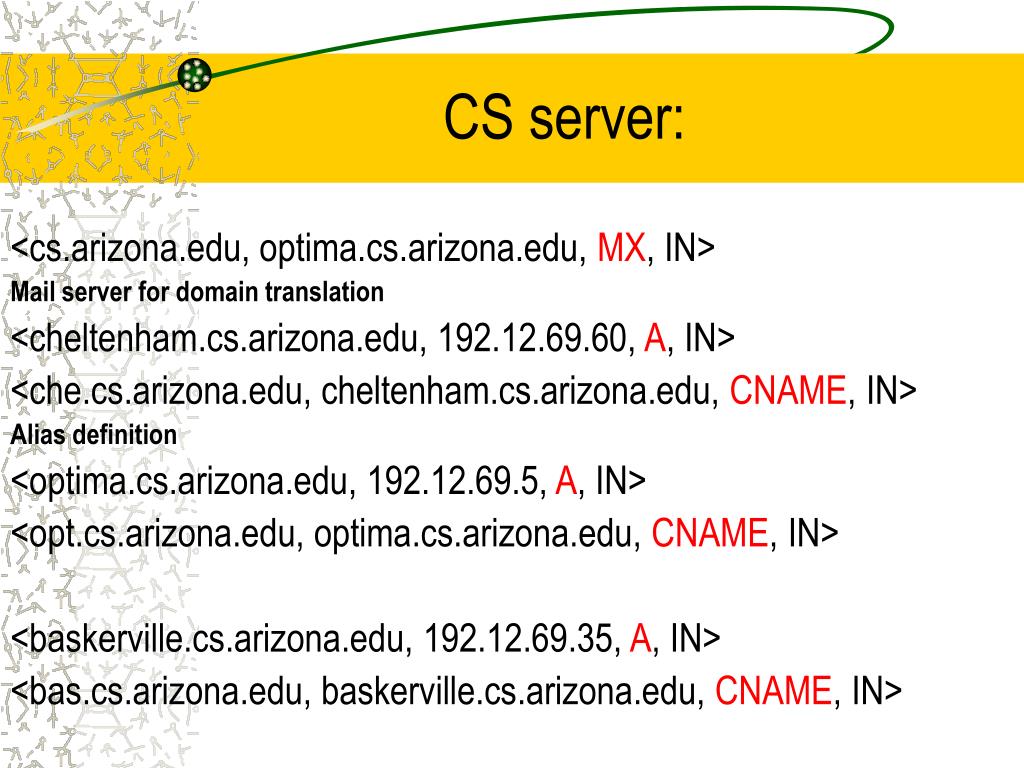

  10. CS server: <cs.arizona.edu, optima.cs.arizona.edu, MX, IN> Mail server for domain translation <cheltenham.cs.arizona.edu, 192.12.69.60, A, IN> <che.cs.arizona.edu, cheltenham.cs.arizona.edu, CNAME, IN> Alias definition <optima.cs.arizona.edu, 192.12.69.5, A, IN> <opt.cs.arizona.edu, optima.cs.arizona.edu, CNAME, IN> <baskerville.cs.arizona.edu, 192.12.69.35, A, IN> <bas.cs.arizona.edu, baskerville.cs.arizona.edu, CNAME, IN>

  11. Name Resolution

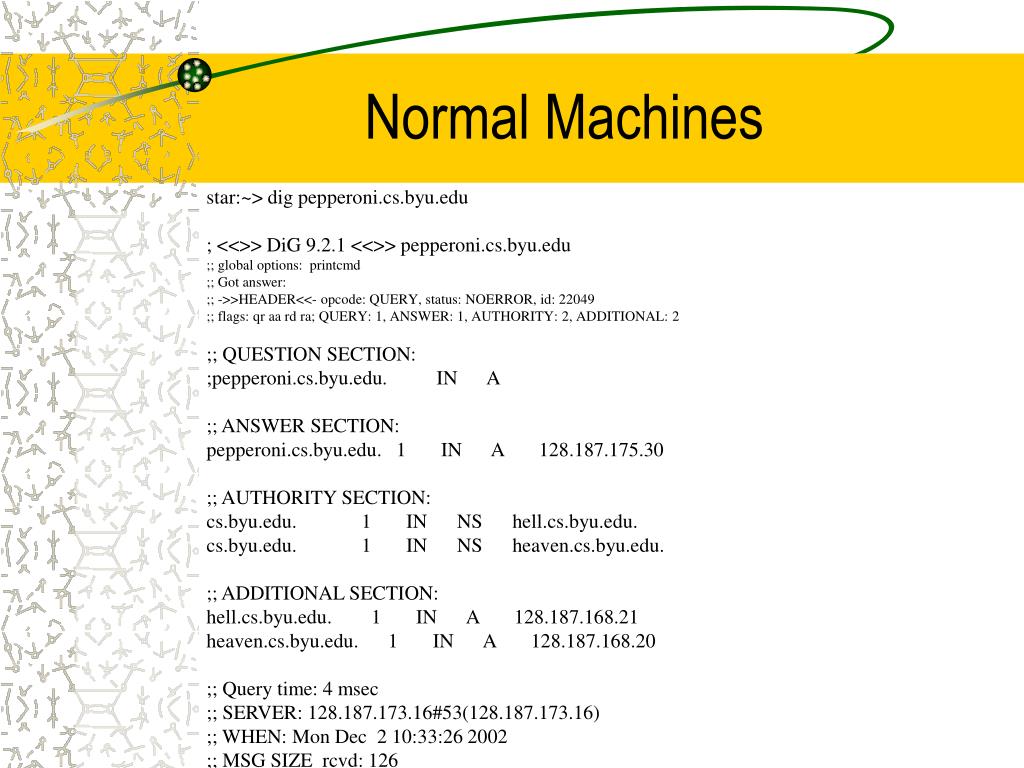

  12. Normal Machines star:~> dig pepperoni.cs.byu.edu ; <<>> DiG 9.2.1 <<>> pepperoni.cs.byu.edu ;; global options: printcmd ;; Got answer: ;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 22049 ;; flags: qr aa rd ra; QUERY: 1, ANSWER: 1, AUTHORITY: 2, ADDITIONAL: 2 ;; QUESTION SECTION: ;pepperoni.cs.byu.edu. IN A ;; ANSWER SECTION: pepperoni.cs.byu.edu. 1 IN A 128.187.175.30 ;; AUTHORITY SECTION: cs.byu.edu. 1 IN NS hell.cs.byu.edu. cs.byu.edu. 1 IN NS heaven.cs.byu.edu. ;; ADDITIONAL SECTION: hell.cs.byu.edu. 1 IN A 128.187.168.21 heaven.cs.byu.edu. 1 IN A 128.187.168.20 ;; Query time: 4 msec ;; SERVER: 128.187.173.16#53(128.187.173.16) ;; WHEN: Mon Dec 2 10:33:26 2002 ;; MSG SIZE rcvd: 126

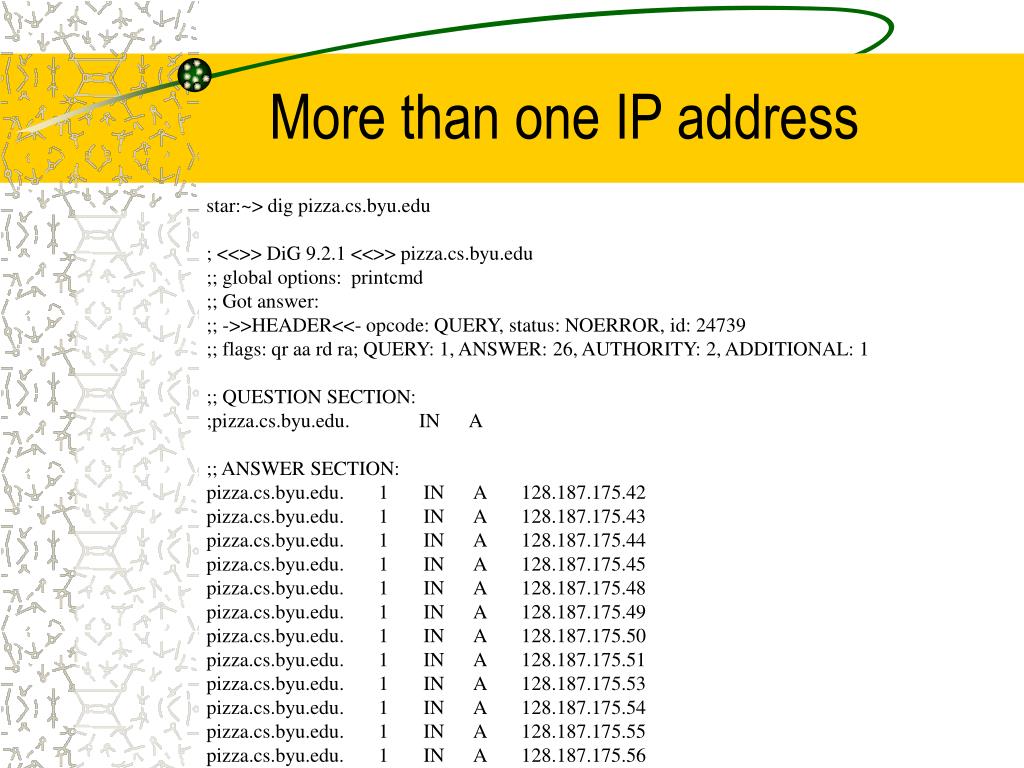

  13. More than one IP address star:~> dig pizza.cs.byu.edu ; <<>> DiG 9.2.1 <<>> pizza.cs.byu.edu ;; global options: printcmd ;; Got answer: ;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 24739 ;; flags: qr aa rd ra; QUERY: 1, ANSWER: 26, AUTHORITY: 2, ADDITIONAL: 1 ;; QUESTION SECTION: ;pizza.cs.byu.edu. IN A ;; ANSWER SECTION: pizza.cs.byu.edu. 1 IN A 128.187.175.42 pizza.cs.byu.edu. 1 IN A 128.187.175.43 pizza.cs.byu.edu. 1 IN A 128.187.175.44 pizza.cs.byu.edu. 1 IN A 128.187.175.45 pizza.cs.byu.edu. 1 IN A 128.187.175.48 pizza.cs.byu.edu. 1 IN A 128.187.175.49 pizza.cs.byu.edu. 1 IN A 128.187.175.50 pizza.cs.byu.edu. 1 IN A 128.187.175.51 pizza.cs.byu.edu. 1 IN A 128.187.175.53 pizza.cs.byu.edu. 1 IN A 128.187.175.54 pizza.cs.byu.edu. 1 IN A 128.187.175.55 pizza.cs.byu.edu. 1 IN A 128.187.175.56 pizza.cs.byu.edu. 1 IN A 128.187.175.57 pizza.cs.byu.edu. 1 IN A 128.187.175.58 pizza.cs.byu.edu. 1 IN A 128.187.175.60 pizza.cs.byu.edu. 1 IN A 128.187.175.61 pizza.cs.byu.edu. 1 IN A 128.187.175.30 pizza.cs.byu.edu. 1 IN A 128.187.175.31 pizza.cs.byu.edu. 1 IN A 128.187.175.32

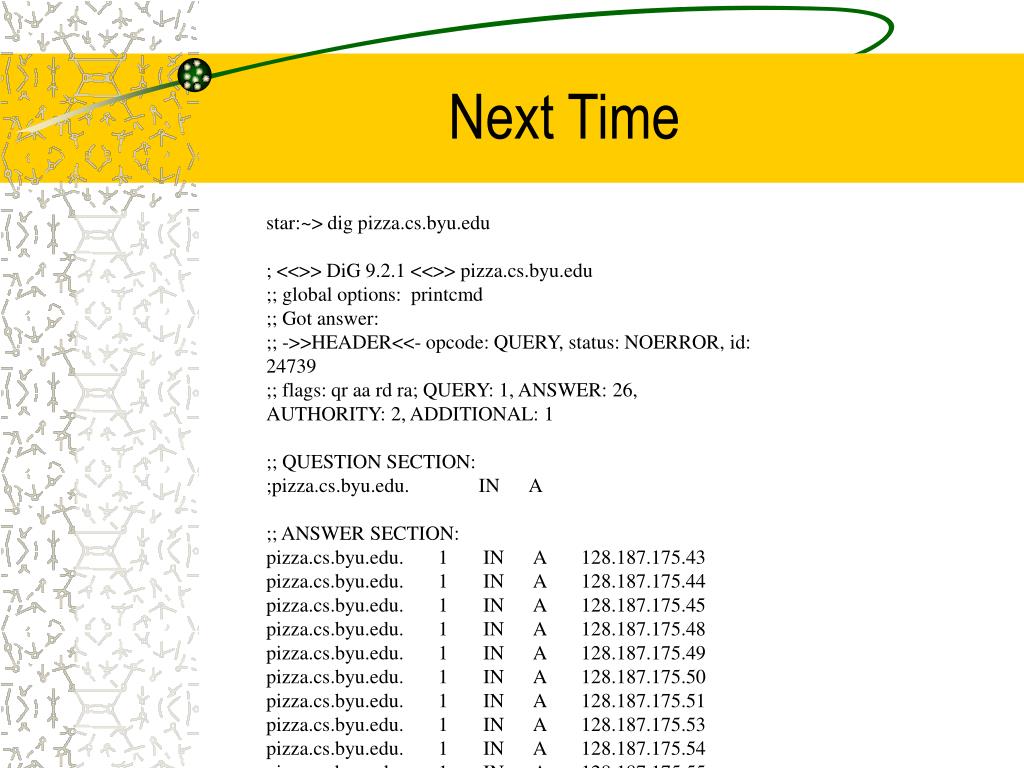

  14. Next Time star:~> dig pizza.cs.byu.edu ; <<>> DiG 9.2.1 <<>> pizza.cs.byu.edu ;; global options: printcmd ;; Got answer: ;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 24739 ;; flags: qr aa rd ra; QUERY: 1, ANSWER: 26, AUTHORITY: 2, ADDITIONAL: 1 ;; QUESTION SECTION: ;pizza.cs.byu.edu. IN A ;; ANSWER SECTION: pizza.cs.byu.edu. 1 IN A 128.187.175.43 pizza.cs.byu.edu. 1 IN A 128.187.175.44 pizza.cs.byu.edu. 1 IN A 128.187.175.45 pizza.cs.byu.edu. 1 IN A 128.187.175.48 pizza.cs.byu.edu. 1 IN A 128.187.175.49 pizza.cs.byu.edu. 1 IN A 128.187.175.50 pizza.cs.byu.edu. 1 IN A 128.187.175.51 pizza.cs.byu.edu. 1 IN A 128.187.175.53 pizza.cs.byu.edu. 1 IN A 128.187.175.54 pizza.cs.byu.edu. 1 IN A 128.187.175.55 pizza.cs.byu.edu. 1 IN A 128.187.175.56

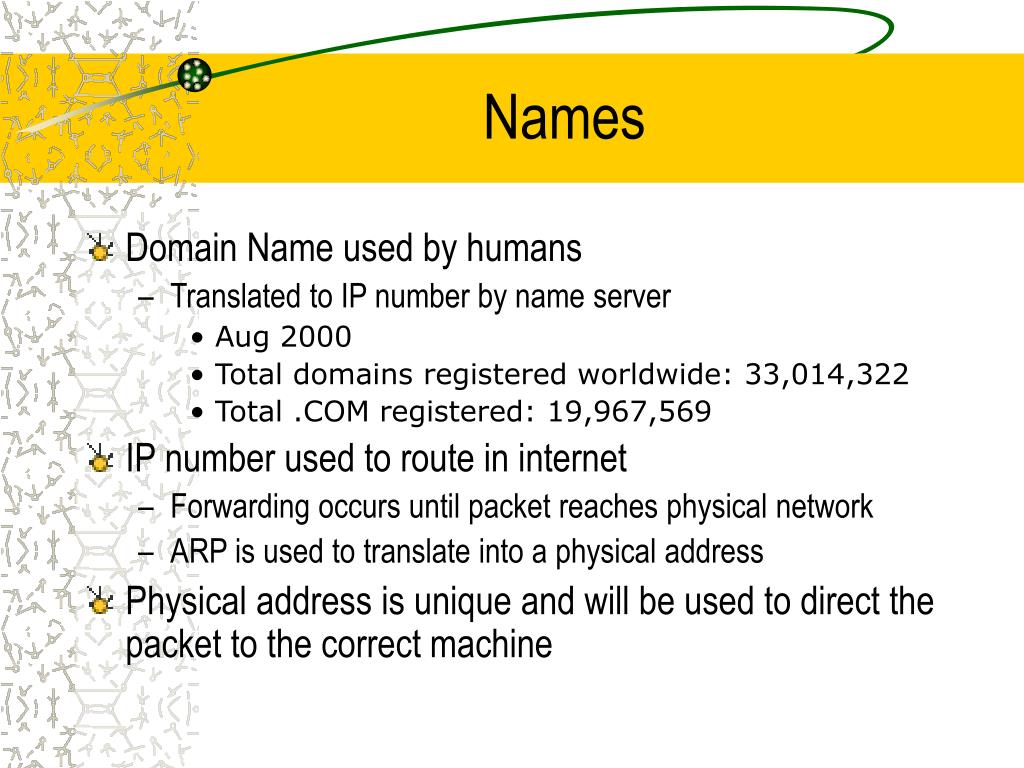

  15. Names • Domain Name used by humans • Translated to IP number by name server • Aug 2000 • Total domains registered worldwide: 33,014,322 • Total .COM registered: 19,967,569 • IP number used to route in internet • Forwarding occurs until packet reaches physical network • ARP is used to translate into a physical address • Physical address is unique and will be used to direct the packet to the correct machine

  16. ‘Top Level’ Domains “Generic” Top Level Domains • .com commercial • .org organization • .net network ~ 240 ISO Top Level Domains • .af Afghanistan • .ca Canada • .dk Denmark • .fr France • .uk United Kingdom • .us USA • .zw Zimbabwe • “US-only” Top Level Domains • .gov government • .edu education • .mil military “Restricted” Top Level Domain .int treaty organizations

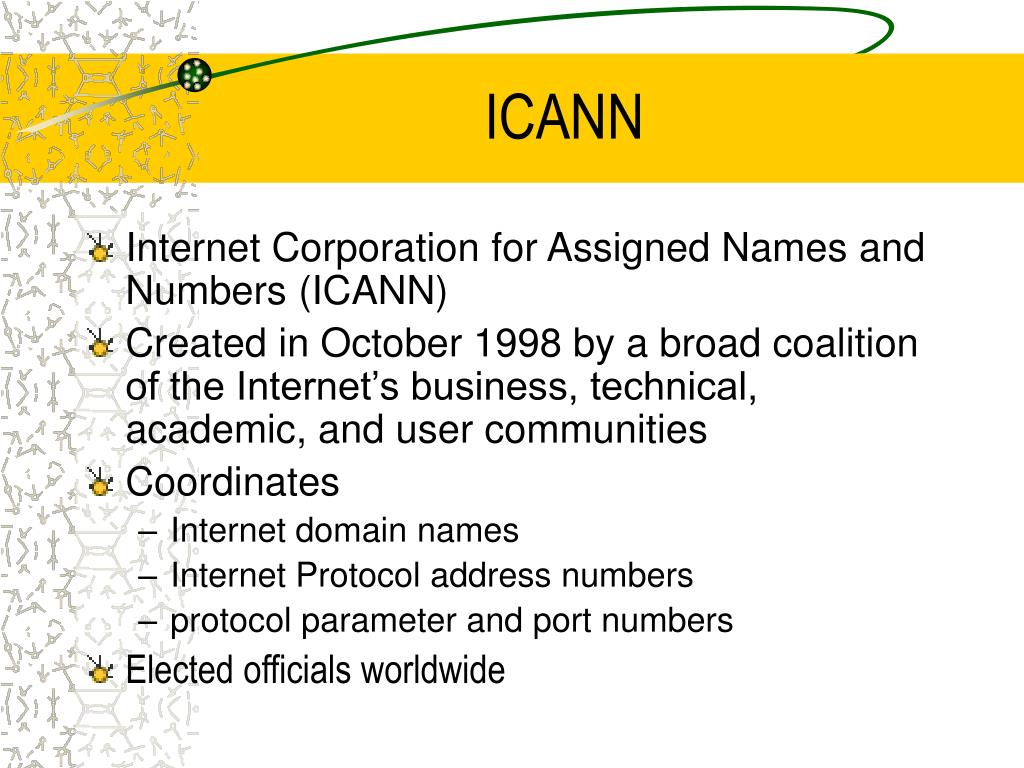

  17. ICANN • Internet Corporation for Assigned Names and Numbers (ICANN) • Created in October 1998 by a broad coalition of the Internet’s business, technical, academic, and user communities • Coordinates • Internet domain names • Internet Protocol address numbers • protocol parameter and port numbers • Elected officials worldwide

  18. New top level names • .aero – Societe Internationale de Telecommunications Aeronautiques SC, (SITA) • .biz – JVTeam, LLC • .coop – National Cooperative Business Association, (NCBA) • .info – Afilias, LLC • .museum – Museum Domain Management Association, (MDMA) • .name – Global Name Registry, LTD • .pro – RegistryPro, LTD

  19. Web Server Load Balancing • User Selection • DNS Round Robin

  20. The real solution? • Resolve name to an IP address that is closest in network distance to the client? • Cache content within the network? • Probe the network to determine best location for download? • What about international characters? Name registration?

  21. Gnutella • Something Like Napster • No central server, just a protocol and client • Based on peer-to-peer connections • Every machine is a server and a client • You find other people in your “Horizon” through reflectors or IRC • It masks your IP address to keep people from tracing the source of content

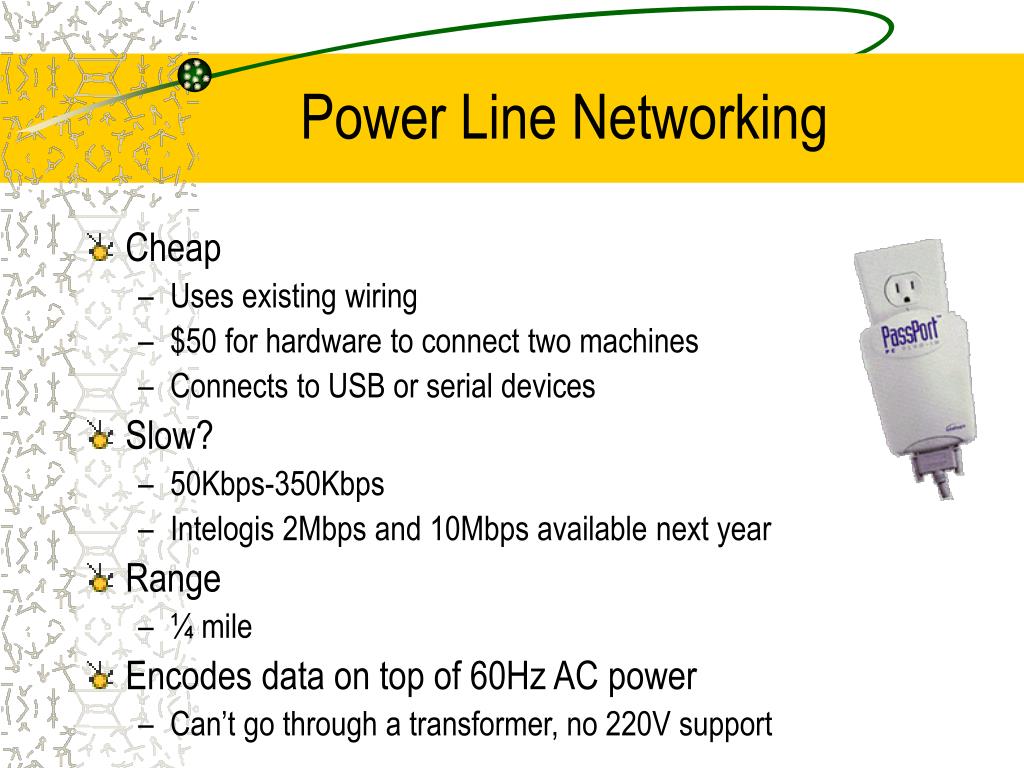

  22. Power Line Networking • Cheap • Uses existing wiring • $50 for hardware to connect two machines • Connects to USB or serial devices • Slow? • 50Kbps-350Kbps • Intelogis 2Mbps and 10Mbps available next year • Range • ¼ mile • Encodes data on top of 60Hz AC power • Can’t go through a transformer, no 220V support

  23. Powerline Exchange (PLX) protocol • deterministic time slots • "Datagram Sensing Multiple Access" with a "Centralized Token-Passing" scheme, or DSMA/CTP • Quality of Service Provided

  24. TCP Vegas • Value of throughput with no congestion is compared to current throughput • If current difference is smaller, increase window size linearly • If current difference is larger, decrease window size linearly • The change in the Slow Start Mechanism consists of doubling the window every other RTT, rather than every RTT and of using a boundary in the difference between throughputs to exit the Slow Start phase, rather than a window size value.

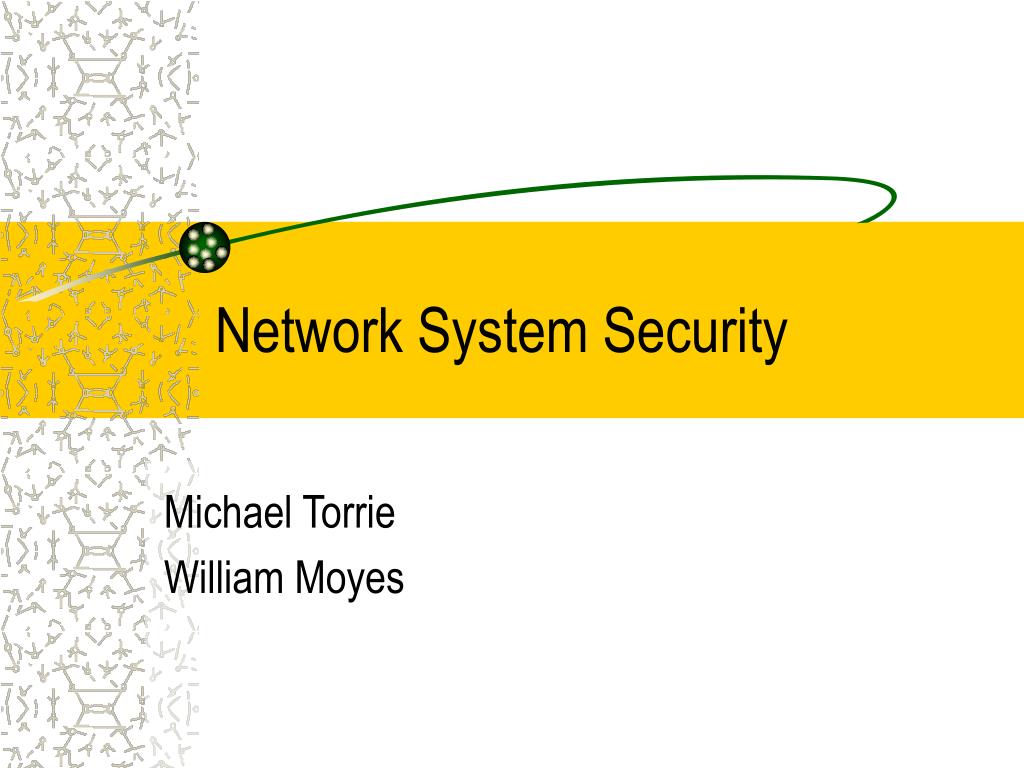

  25. Network System Security Michael Torrie William Moyes

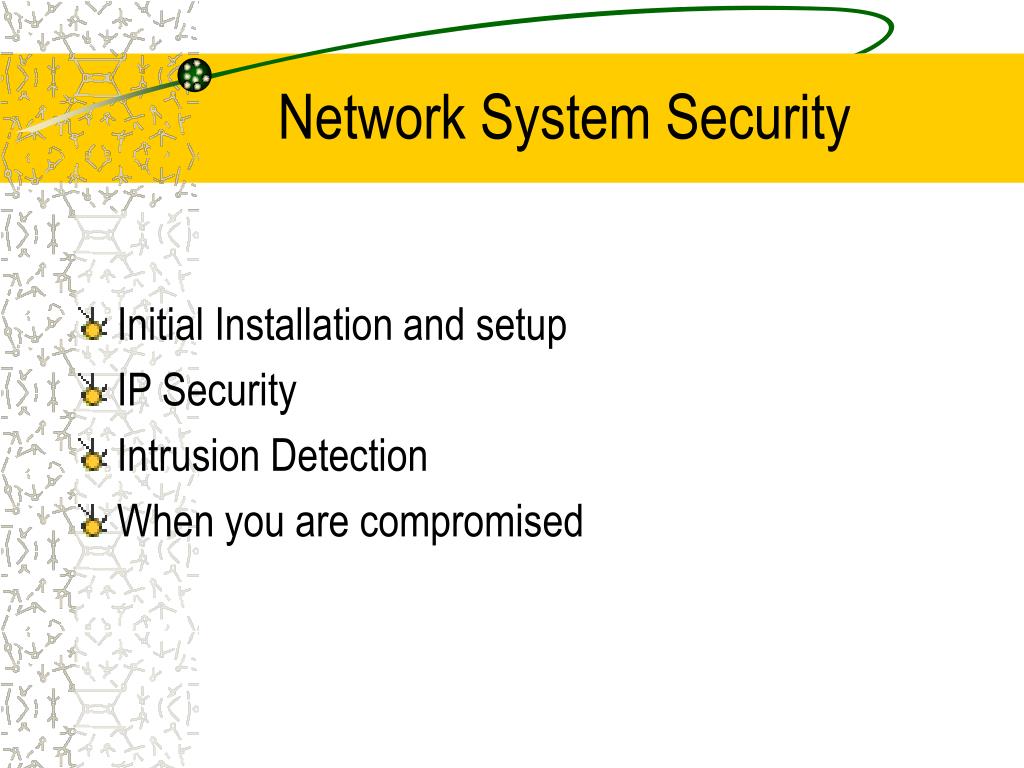

  26. Network System Security • Initial Installation and setup • IP Security • Intrusion Detection • When you are compromised

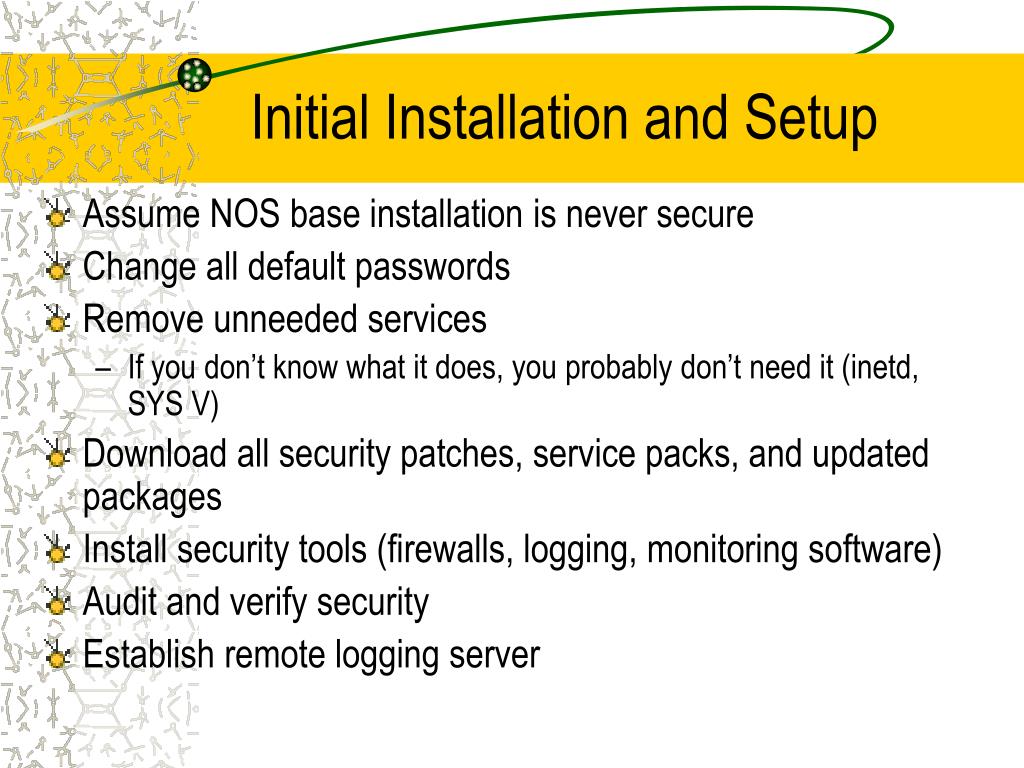

  27. Initial Installation and Setup • Assume NOS base installation is never secure • Change all default passwords • Remove unneeded services • If you don’t know what it does, you probably don’t need it (inetd, SYS V) • Download all security patches, service packs, and updated packages • Install security tools (firewalls, logging, monitoring software) • Audit and verify security • Establish remote logging server

  28. Firewalls – First Line of Defence • Does not guarantee security • Necessary band-aid solution • Effectiveness depends on application security • Deny all incoming traffic with exceptions for exported services (web, ssh, etc) • Common tools include ipchains, ZoneAlarm • Many DSL and cable routers have fire-walling capabilities built in. • If you are on broadband (ie resnet), you need a firewall. (Especially unix-based OS’s)

  29. Intrusion Detection Software • Network traffic analyzers • Portscanner detectors • File integrity checkers • Portscanners, such as nmap • Network analyzer Software • SAINT, SATAN • Anti-sniff • netstat –ap, pidport

  30. Intrusion Detection • Traffic patterns (high-bandwidth utilization) • Failed login attempts (ssh, ftp, telnet, etc) • Invalid URL requests (web server) • Watch the log files (/var/log) • Look for suspicious strings, errors, truncations • Portscanner detector logs • Behavior changes (performance, commands crashing, hidden or unknown processes) • Hidden files and directories (especially in /dev and /var) • ‘. ’ ‘.. ’ and other weird and invalid file names • Setuid executables (with root ownership)

  31. Continuing Education • Follow security web sites and current issues • http://www.securityfocus.com • User/admin education • Password strength • Ban Microsoft Outlook (never run anything attached to e-mail – turn off scripting always!!!) • Be familiar with your system (processes, setuid files, ports, services) • Social Engineering

  32. I’ve Been Hacked • Have a plan before hand • Remove from network immediately • Reinstall operating system (maybe on a new drive) • Nothing can be trusted on compromised system • Restore settings from backup • Do post-mortem analysis on compromised hard drive from clean system • Identify source of attack if possible • Seek professional assistance, and contact law-enforcement agencies if deemed necessary

  33. Application Security • CGI vulnerability • Buffer over-runs • Format string attacks • DoS • Input validity issues • chroot
