  1. SNIA CIM Prototype Project Mike Dutch, Hitachi Data Systems John Tyrrell, IBM Corporation Sept 3, 1999

  2. SNIA CIM Prototype

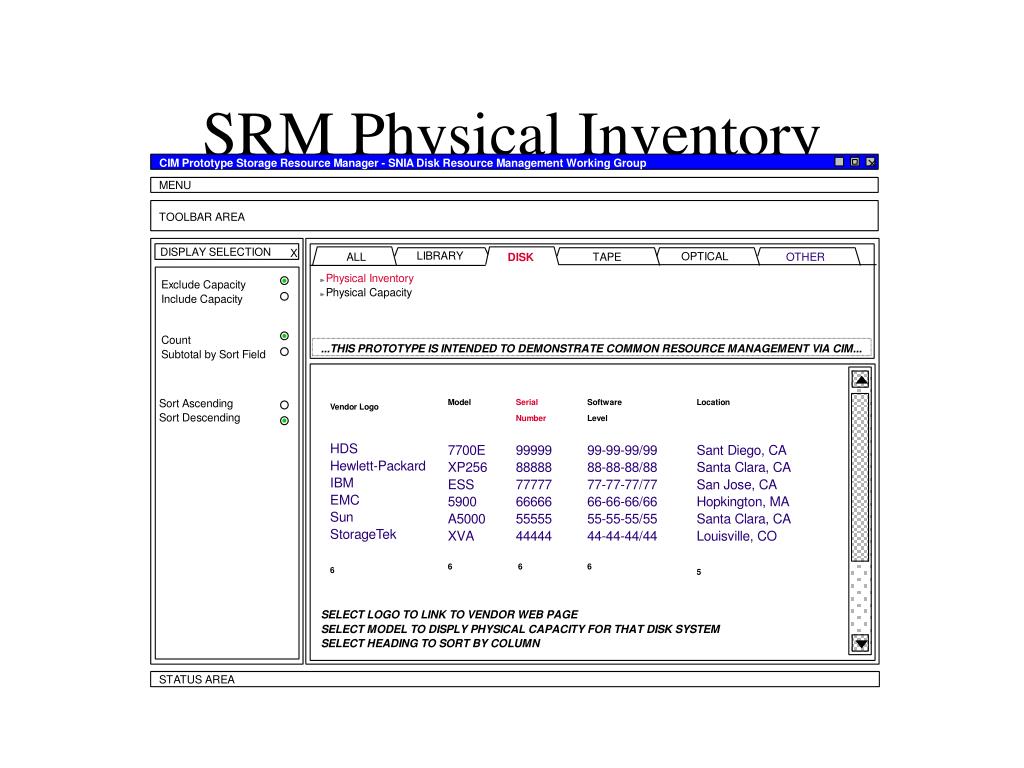

  3. SRM Physical Inventory

  4. SRM Physical Capacity Installed

  5. SRM Physical Capacity Growth

  6. WBEM Storage Directory Java/Jiro Web Browser WBEM Server Storage Facility Provider Asset Query Engine XML/HTTP CIMOM HTTPS / (XML/DTD?) SRM Host Host Arrival Announcer Storage Asset Calculator Merge multiple AQE output into 1 page XML / XSL (DTD?) 2 sec poll Prototype Add/Delete Function Perl CGI Prototype Directory Client GUI (Applet) SNIA Web pages SNIA.org Web Browser (IE5)

  7. Prototype Structure

  8. Project Contacts

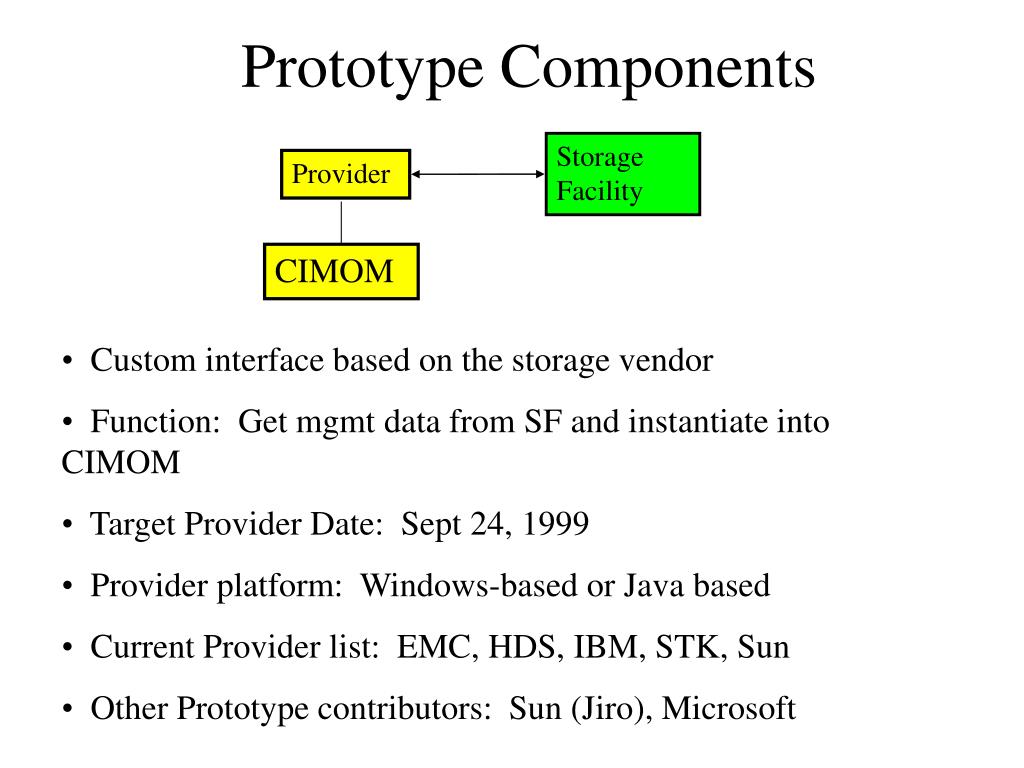

  9. Prototype Components Storage Facility Provider CIMOM • Custom interface based on the storage vendor • Function: Get mgmt data from SF and instantiate into CIMOM • Target Provider Date: Sept 24, 1999 • Provider platform: Windows-based or Java based • Current Provider list: EMC, HDS, IBM, STK, Sun • Other Prototype contributors: Sun (Jiro), Microsoft

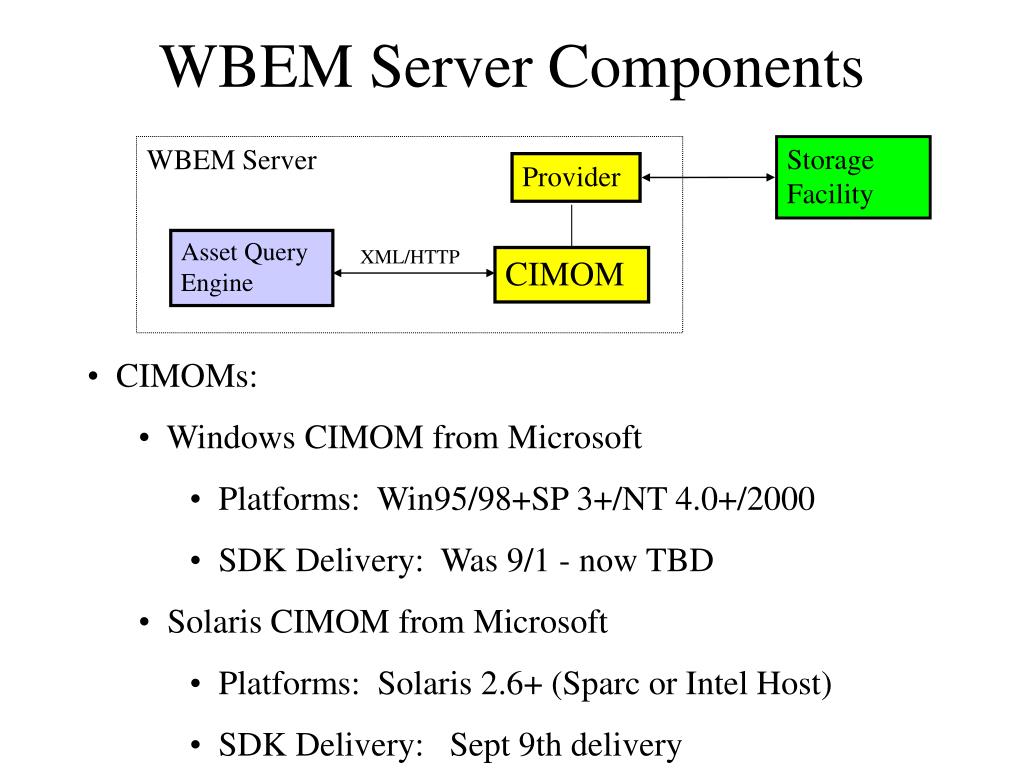

  10. WBEM Server Components WBEM Server Storage Facility Provider Asset Query Engine XML/HTTP CIMOM • CIMOMs: • Windows CIMOM from Microsoft • Platforms: Win95/98+SP 3+/NT 4.0+/2000 • SDK Delivery: Was 9/1 - now TBD • Solaris CIMOM from Microsoft • Platforms: Solaris 2.6+ (Sparc or Intel Host) • SDK Delivery: Sept 9th delivery

  11. WBEM Server Components WBEM Server Storage Facility Provider Asset Query Engine XML/HTTP CIMOM • Asset Query Engine (AQE): • Sun will send to all Providers • Target date: Sept 20, 1999 • WBEM Server Platform: • Solaris 2.6+ (Sparc/Intel host) or • Win 2000/NT 4.0+/95 or 98 with service packs • AQE is a Jiro ™ component - requires JDK 1.2

  12. SRM Server Components HTTPS / (XML/DTD?) SRM Host XML / XSL (DTD?) Host Arrival Announcer Storage Asset Calculator 2 sec poll • SRM Server Components • Jiro ™ based - requires JDK 1.2 • Sun target delivery date: Sept 20, 1999 • Storage Asset Calculator (SAC): • Interface to CIMOM - HTTPS/XML • Interface to XML/XSL? (TBD with Sun/Microsoft)

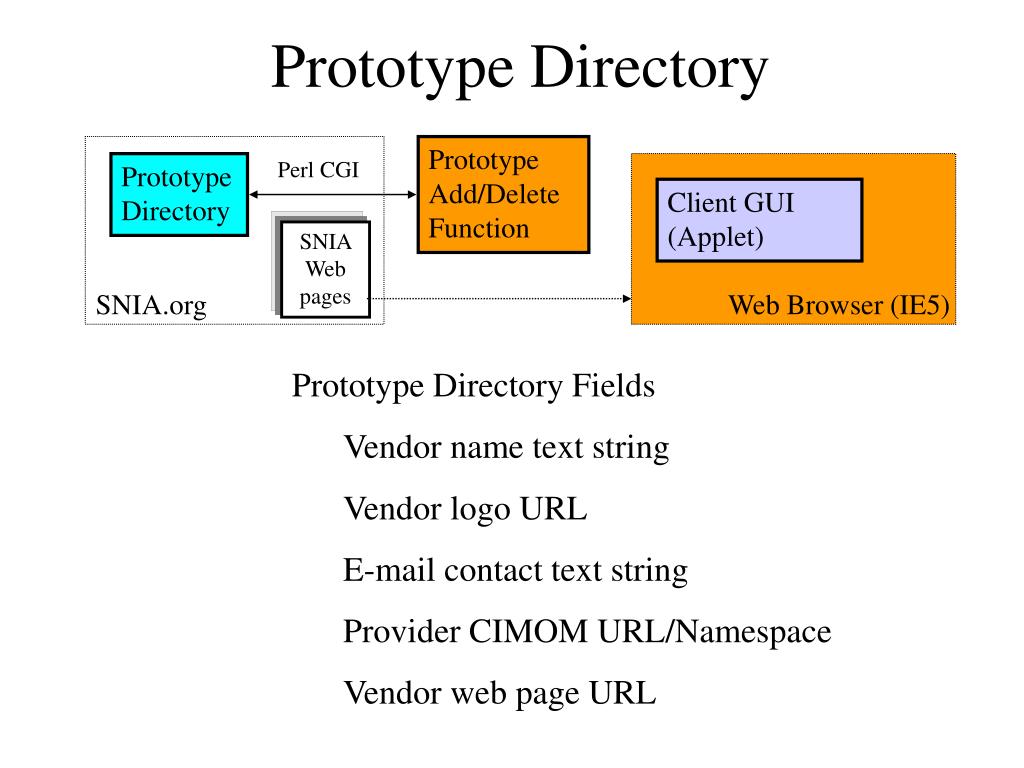

  13. Prototype Directory Prototype Add/Delete Function Perl CGI Prototype Directory Client GUI (Applet) SNIA Web pages SNIA.org Web Browser (IE5) • Prototype Directory Fields • Vendor name text string • Vendor logo URL • E-mail contact text string • Provider CIMOM URL/Namespace • Vendor web page URL

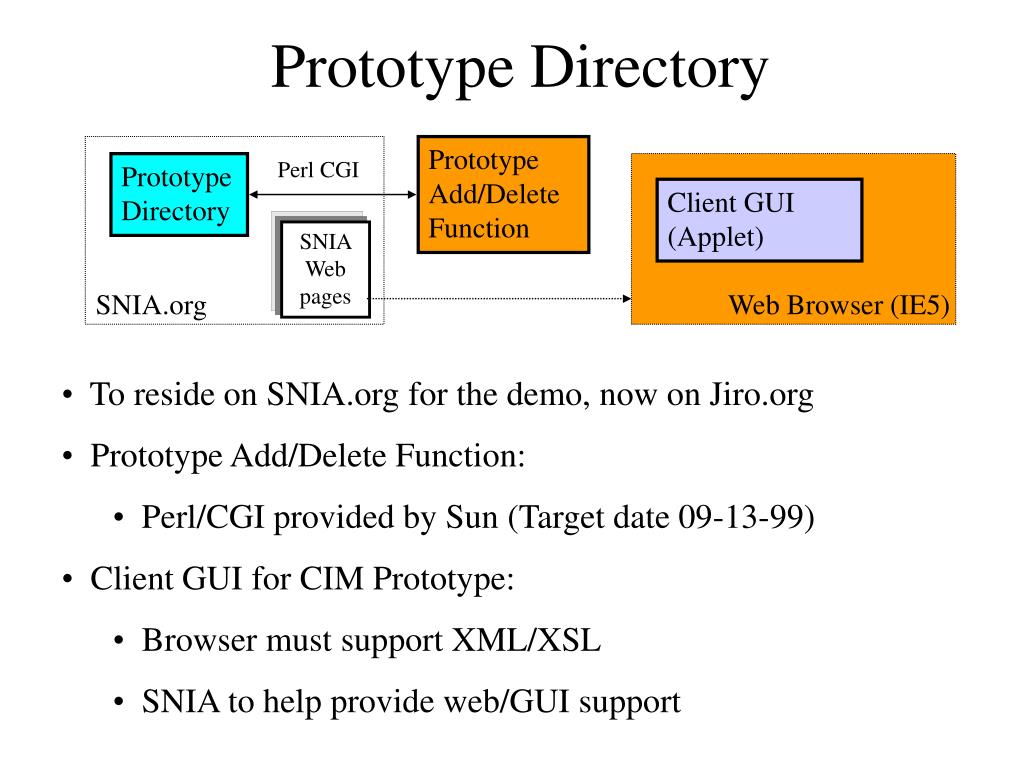

  14. Prototype Directory Prototype Add/Delete Function Perl CGI Prototype Directory Client GUI (Applet) SNIA Web pages SNIA.org Web Browser (IE5) • To reside on SNIA.org for the demo, now on Jiro.org • Prototype Add/Delete Function: • Perl/CGI provided by Sun (Target date 09-13-99) • Client GUI for CIM Prototype: • Browser must support XML/XSL • SNIA to help provide web/GUI support

  15. CIM Prototype Demo • Two laptops (John Tyrrell/Mike Dutch) • John’s laptop: • SRM Components (HAA and SAC) - Optional • JDK 1.2 (Optional) • Browser to support XML/XSL • Mike’s laptop: • Browser to support XML/XSL • Two telephone lines for internet connect to SNIA.org • Two laptop projectors (for combined presentation/demo)

  16. CIM Prototype Status • CIM Providers: • EMC - testing Sun WBEM - to complete by 9-13-99 • HDS: • Waiting for fix on Microsoft WBEM • Sent static MOFs for Sun SRM Component testing • STK: Development team mtg in Boulder 9/7 week • Sun - completed dynamic provider - ready for system test • IBM - Reassignment of prototype developer

  17. CIM Prototype Issues • Microsoft: • No style sheet (XSL) developer provided yet • No XML CIMOM - waiting for NDA decision • Responsible person: Patrick Thompson • IBM: • Need to get new programmer jump-started • All Provider vendors contacted - all willing to help • Doug Shue will visit some of them week of 9/7 • Sun • Sun/CIMOM doesn’t work with composite keys • EMC to test the fix in week of 9/7
