COMBINATIONAL LOGIC CIRCUITS

betha avatar
betha
13 diapositives · 448 Views · Aug 14, 2014

x1. Z. x2. C.L. xn. COMBINATIONAL LOGIC CIRCUITS. Z = F ( x1, x2, ……., Xn ) F is a Binary Logic (BOOLEAN ) Function Knowing F Allows Straight Forward Direct Implementation of the C.L. Circuit. OBJECTIVES Learn Binary Logic and BOOLEAN Algebra

#combinational logic circuits #combinational logic circuits ppt #powerpoint #presentation
COMBINATIONAL LOGIC CIRCUITS - slide 1
01 / 13COMBINATIONAL LOGIC CIRCUITS
1 / 17

Télécharger la présentation

COMBINATIONAL LOGIC CIRCUITS
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

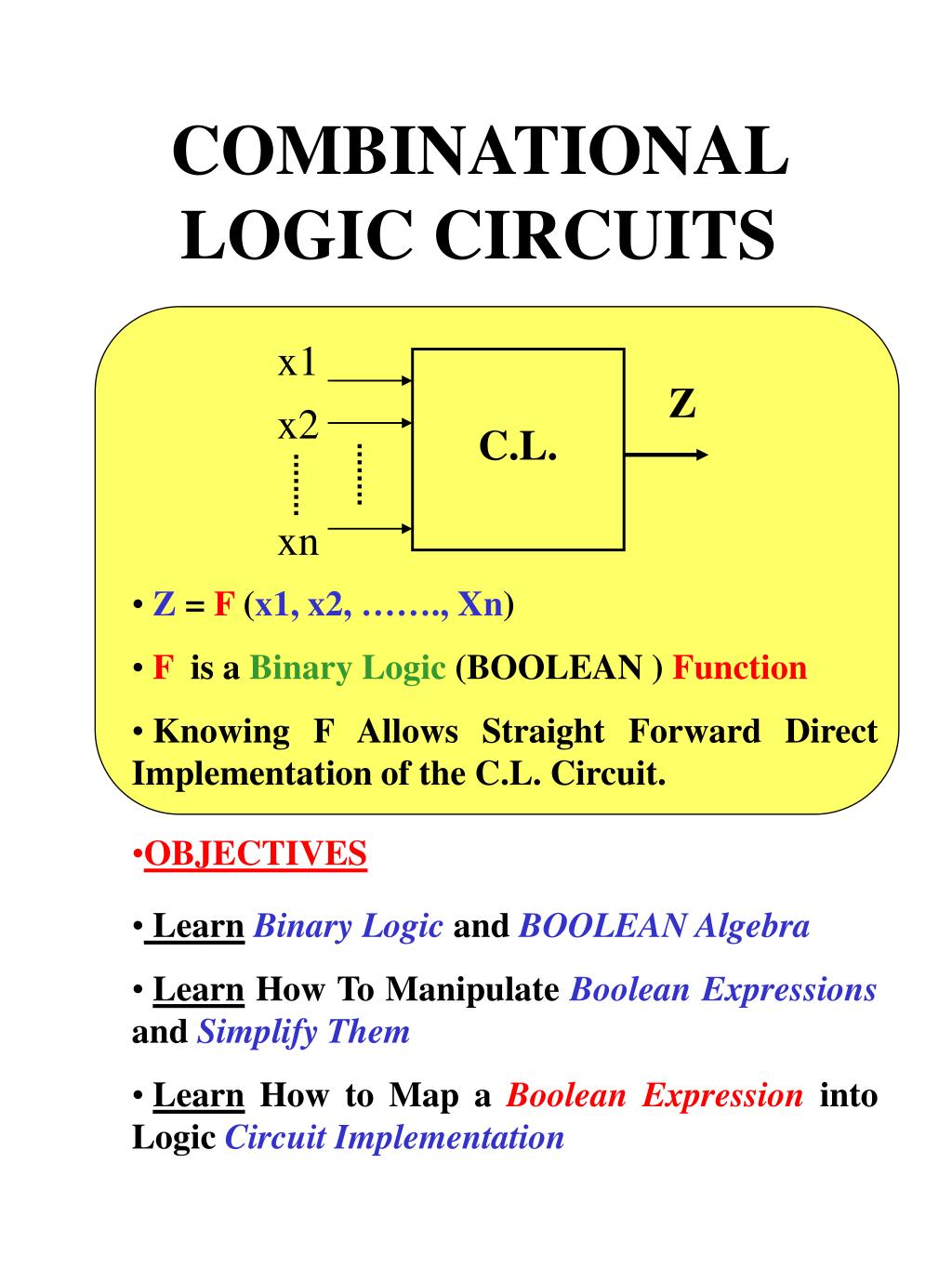

  1. x1 Z x2 C.L. xn COMBINATIONAL LOGIC CIRCUITS • Z = F (x1, x2, ……., Xn) • F is a Binary Logic (BOOLEAN ) Function • Knowing F Allows Straight Forward Direct Implementation of the C.L. Circuit. • OBJECTIVES • LearnBinary Logic and BOOLEAN Algebra • Learn How To Manipulate Boolean Expressions and Simplify Them • Learn How to Map a Boolean Expression into Logic Circuit Implementation

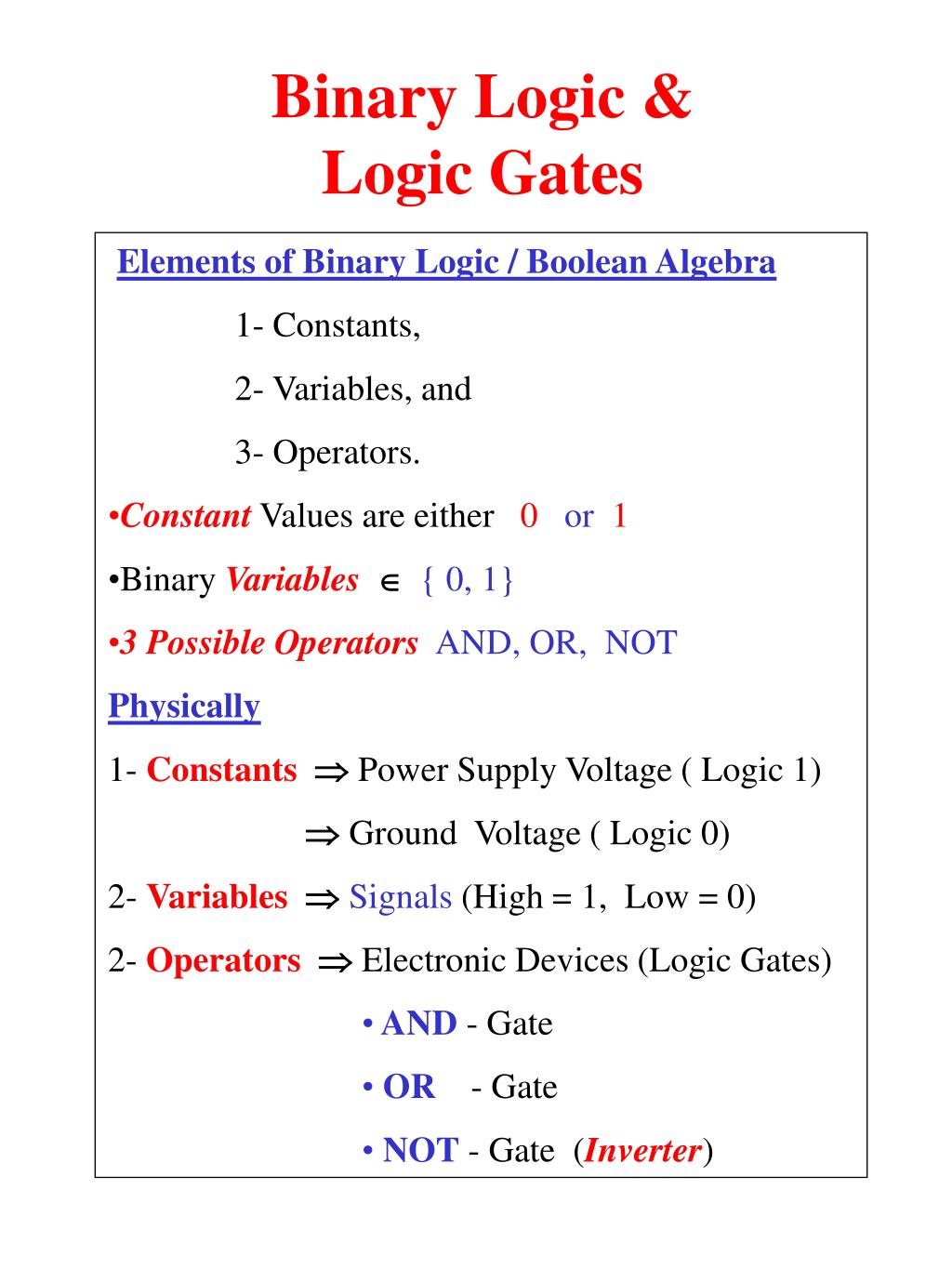

  2. Binary Logic & Logic Gates • Elements of Binary Logic / Boolean Algebra • 1- Constants, • 2- Variables, and • 3- Operators. • Constant Values are either0 or 1 • Binary Variables{ 0, 1} • 3 Possible Operators AND, OR, NOT • Physically • 1- Constants Power Supply Voltage ( Logic 1) •  Ground Voltage ( Logic 0) • 2- VariablesSignals (High = 1, Low = 0) • 2- Operators Electronic Devices (Logic Gates) • AND - Gate • OR - Gate • NOT - Gate (Inverter)

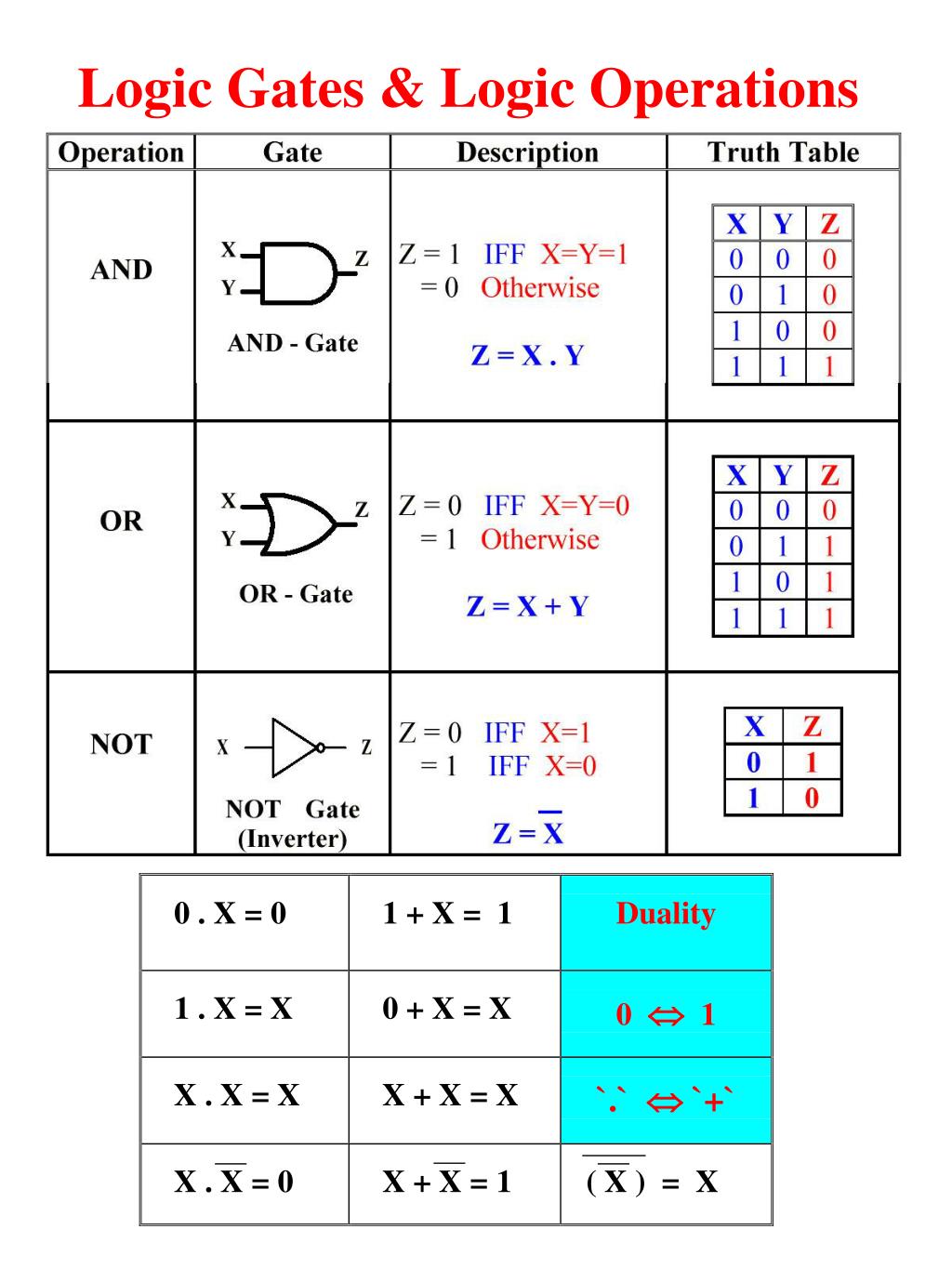

  3. Logic Gates & Logic Operations

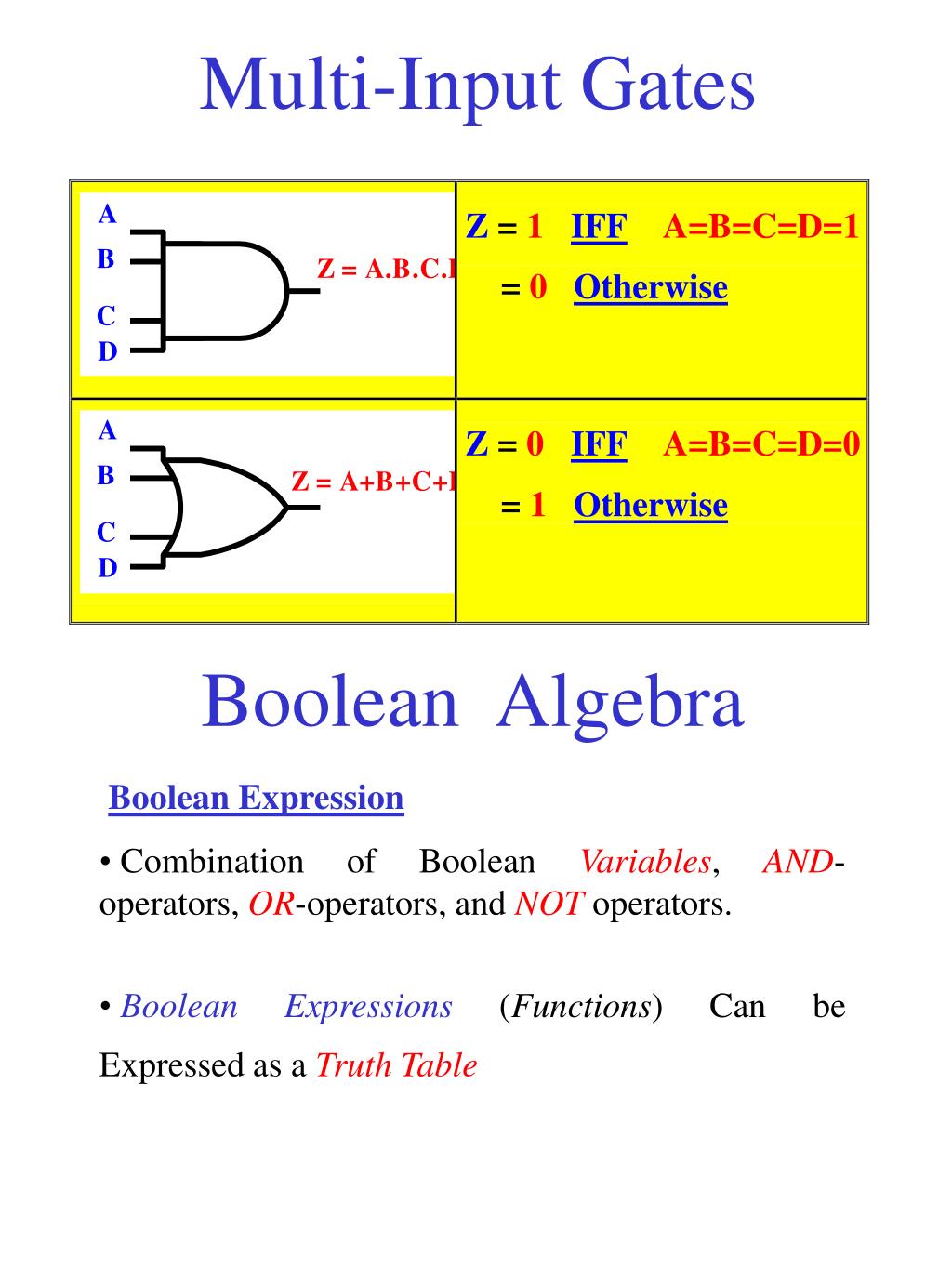

  4. Multi-Input Gates Boolean Algebra • Boolean Expression • Combination of Boolean Variables, AND-operators, OR-operators, and NOT operators. • Boolean Expressions (Functions) Can be Expressed as a Truth Table

  5. Boolean Algebra • ExampleF = X + Y . Z

  6. Properties of Boolean Algebra Operator Precedence • 1- Parentheses • 2- Not operator (Complement) • 3- AND operator, • 4- OR operator

  7. Algebraic Manipulation ExampleX + XY = X Proof:X + XY = X. (1 + Y) = X.1 = X ExampleX + X`Y = X + Y Proof:(1)X + X`Y = (X+ X`) (X + Y) = 1.(X + Y) = X + Y (2)X + X`Y = X.1 + X`Y = X.(1+Y) + X`Y = X +XY + X`Y (XY +X`Y) + X = X + Y Example ``Consensus Theory`` XY + X`Z + YZ = XY + X`Z Proof:XY + X`Z + YZ = XY + X`Z + YZ(X +X`)= XY(1 + Z) +X`Z(1 + Y) = XY + X`Z

  8. Canonical & Standard Forms For 3- Variables X, Y, and Z Define the Following: (A) MinTerms • m0 =X`Y`Z` = 1 IFF XYZ = 000 • m1 =X`Y`Z = 1 IFF XYZ = 001 • m2 =X`Y Z` = 1 IFF XYZ = 010 • ………………………………………. • m7 =X Y Z = 1 IFF XYZ = 111 (A) MaxTerms • M0 = X + Y + Z = 0 IFF XYZ = 000 • M1 = X + Y + Z` = 0 IFF XYZ = 001 • M2 = X + Y` + Z = 0 IFF XYZ = 010 • ………………………………………. • M7 =X`+ Y`+ Z` = 0 IFF XYZ = 111 Mi = mi (DeMorgan / Truth Table) 2n minterms 2n MaxTerms

  9. ORing F = m2+ m4 + m5 +m7 = (2, 4, 5, 7) = Sum of minterms F = m0+ m1 + m3 +m6 = (0, 1, 3, 6) Expressing Functions as a Sum of Minterms or a Product of MaxTerms Example: Consider the Function F Given By its Truth Table Complementary MinTerms

  10. Expressing Functions as a Sum of Minterms or a Product of MaxTerms F = m2+ m4 + m5 +m7 = (2, 4, 5, 7) = Sum of minterms F = m0+ m1 + m3 +m6 = (0, 1, 3, 6) F = (F) = m0.m1.m3.m6 = M0.M1.M3.M6 = (0, 1, 3, 6) = Product of Maxterm F = M2.M4.M5.M7 = (2, 4, 5, 7) ANDing

  11. F = (2, 4, 5, 7) = (0, 1, 3, 6) F = (0, 1, 3, 6) = (2, 4, 5, 7) Expressing Functions as a Sum of Minterms or a Product of MaxTerms Standard Forms:Sum of Products (SOP) andProduct of Sums (POS) Example Implement SOP F = XZ + Y`Z + X`YZ` Two-Level Implementation Level-1: AND-Gates ; Level-2: One OR-Gate

  12. Expressing Functions as a Sum of Minterms or a Product of MaxTerms Example Implement POS F = (X+Z )(Y`+Z)(X`+Y+Z`) Two-Level Implementation Level-1: OR-Gates ; Level-2: One AND-Gate

  13. Example Implement POS F = (X+Z) . (Y`+Z) . (X`+Y+Z`) Two-Level Implementation Level-1: OR-Gates ; Level-2: One AND-Gate
