  1. Data Archive & Distribution 鹿野　良平 Ryouhei Kano (NAOJ) & Hinode Team Hinode Workshop in China

  2. Contents • Flow of Hinode Data: From Hinode to Users • Hinode Data • Level of Hinode Data • Contents of Hinode FIT Files • Common keywords of Hinode FITS Files • “DARTS” Data Archives and Transfer System in ISAS • For Analysis • QL (quick look) movies • Software environment for Hinode • When you publish your analysis based on Hinode data. Hinode Workshop in China

  3. References • Matsuzaki et al.“Data Archive of the Hinode Mission”2007, Solar Physics, 243, pp. 87-92 • “MODA Plan V1.0 draft”http://xrt.cfa.harvard.edu/MODA/ Hinode Workshop in China

  4. Flow of Hinode Data: From Hinode to Users Hinode Workshop in China

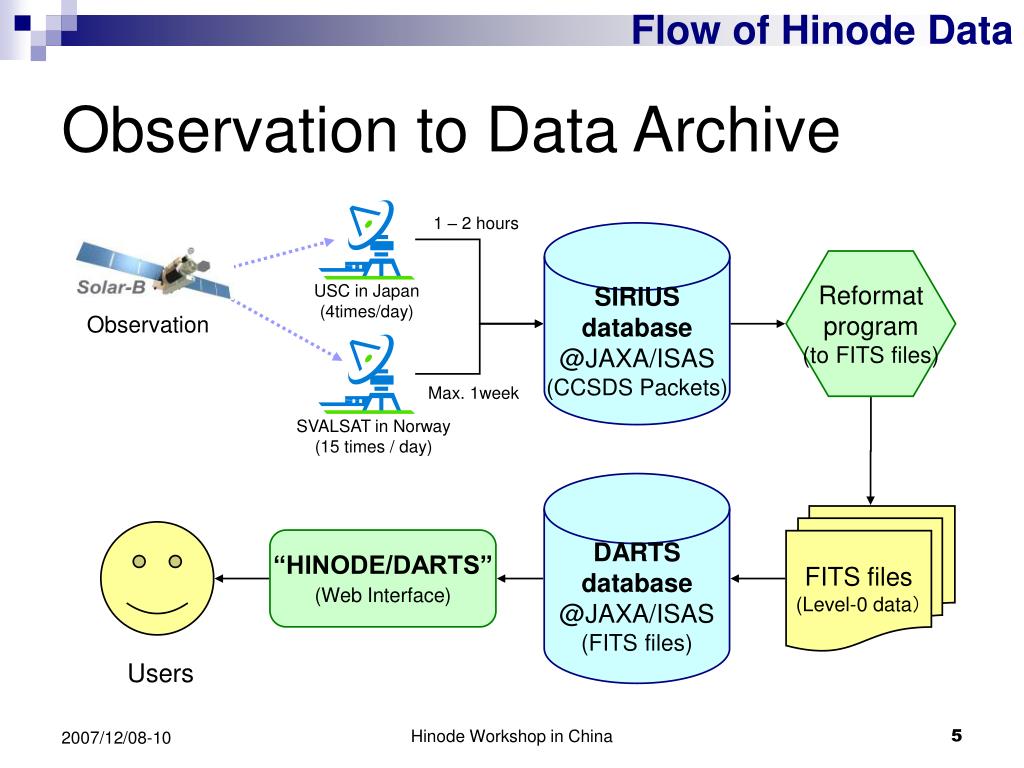

  5. Flow of Hinode Data Observation to Data Archive 1 – 2 hours SIRIUS database @JAXA/ISAS (CCSDS Packets) Reformat program (to FITS files) USC in Japan (4times/day) Observation Max. 1week SVALSAT in Norway (15 times / day) DARTS database @JAXA/ISAS (FITS files) FITS files (Level-0 data） “HINODE/DARTS” (Web Interface) Users Hinode Workshop in China

  6. Flow of Hinode Data raw data transfer thr. Internet) （ NASA/GSFC SDAC (US east） JAXA/ISAS DB Master （raw data） Lockheed - Stanford ( US West) raw data + B-map NAOJ SOLAR - B Science Center ( Asia) ( calibrated data + B-map) ESA / Norway MSSL ( ( Europa) UK) Mirroring of Hinode Data in the World Hinode Workshop in China

  7. Hinode Data Hinode Workshop in China

  8. Hinode Data Levels of Hinode Data Hinode data are classified to 3 levels. • Level-0 data • Raw data which are just output from each instruments. • Distributed by DARTS. • Level-1 data • Calibrated data regarding intensities and image alignments. • Not distributed by any institutes. We (each users) make them from Level-0 data with SSW by ourselves. • Level-2 data • Physical quantities derived from Level-1 data. • Some of Level-2 data will be distributed by DARTS. • SP magnetograms calculated by NAOJ and HAO. • EIS data (maps of line intensity, Doppler velocity, and non-thermal width) calculated by MSSL. Hinode Workshop in China

  9. Hinode Data Header Header Header V U Q I I Q U V SOT & XRT FITS files. • Standard FITS format. Hinode Workshop in China

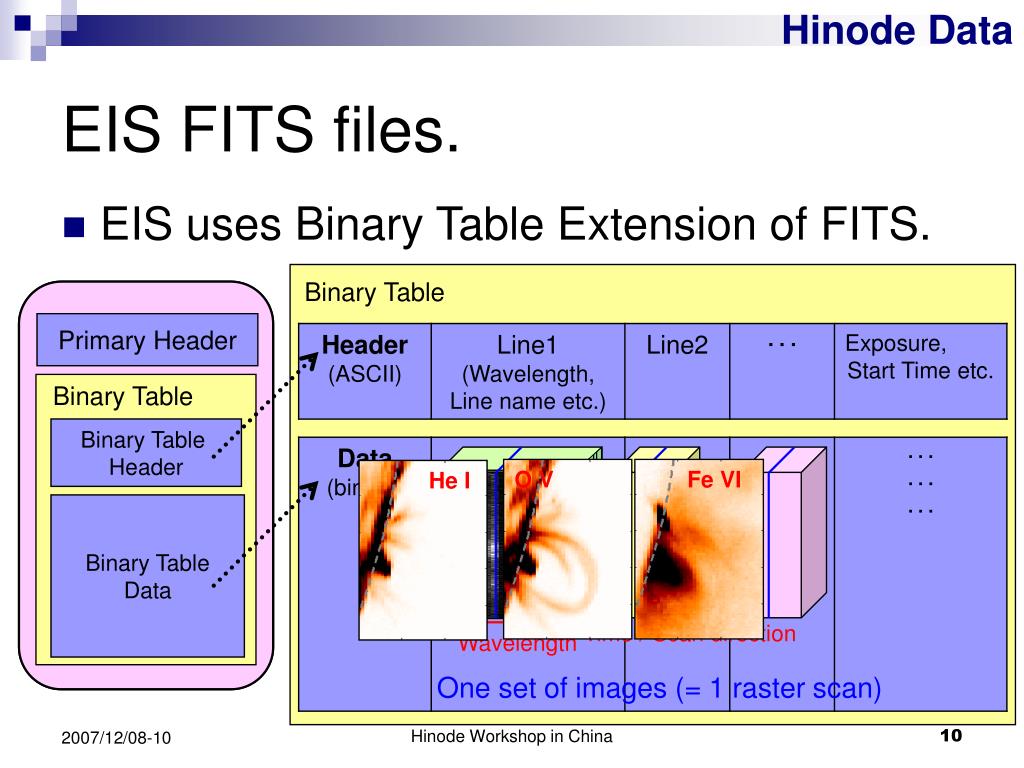

  10. Hinode Data Primary Header Header Binary Table O V Binary Table He I Fe VI Binary Table Header Binary Table Data EIS FITS files. • EIS uses Binary Table Extension of FITS. Binary Table Slit directon Time / Scan direction Wavelength One set of images (= 1 raster scan) Hinode Workshop in China

  11. Hinode Data Common keywords of Hinode FITS Files Hinode Workshop in China

  12. “DARTS” Data Archives and Transfer System in ISAS Hinode Workshop in China

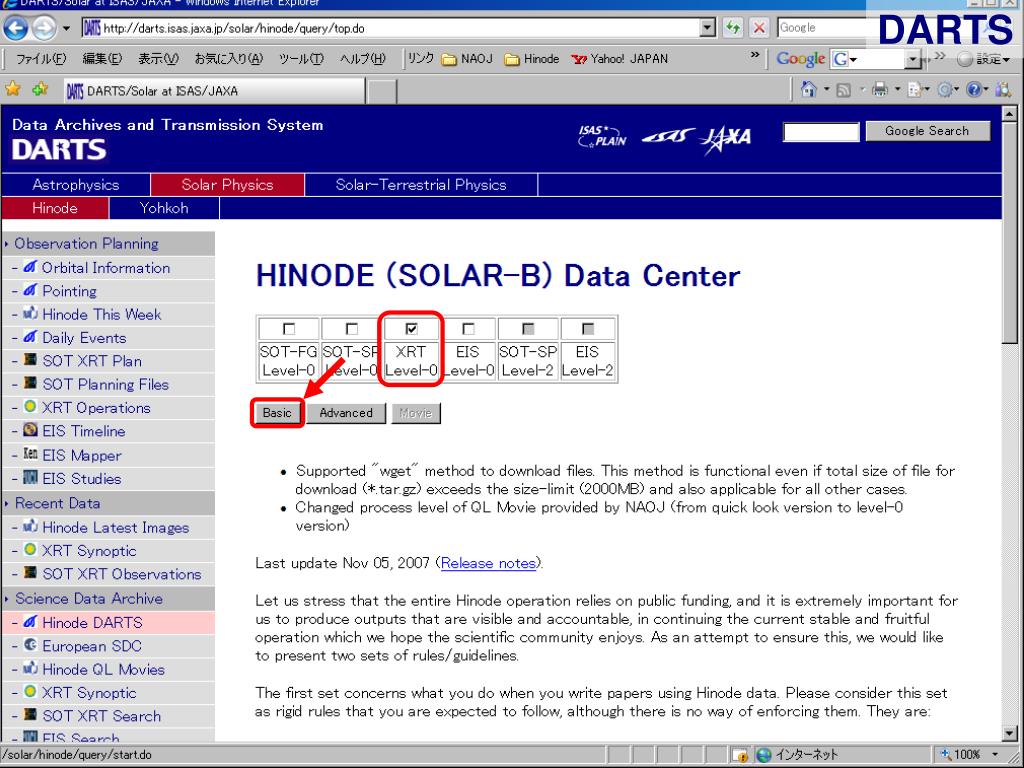

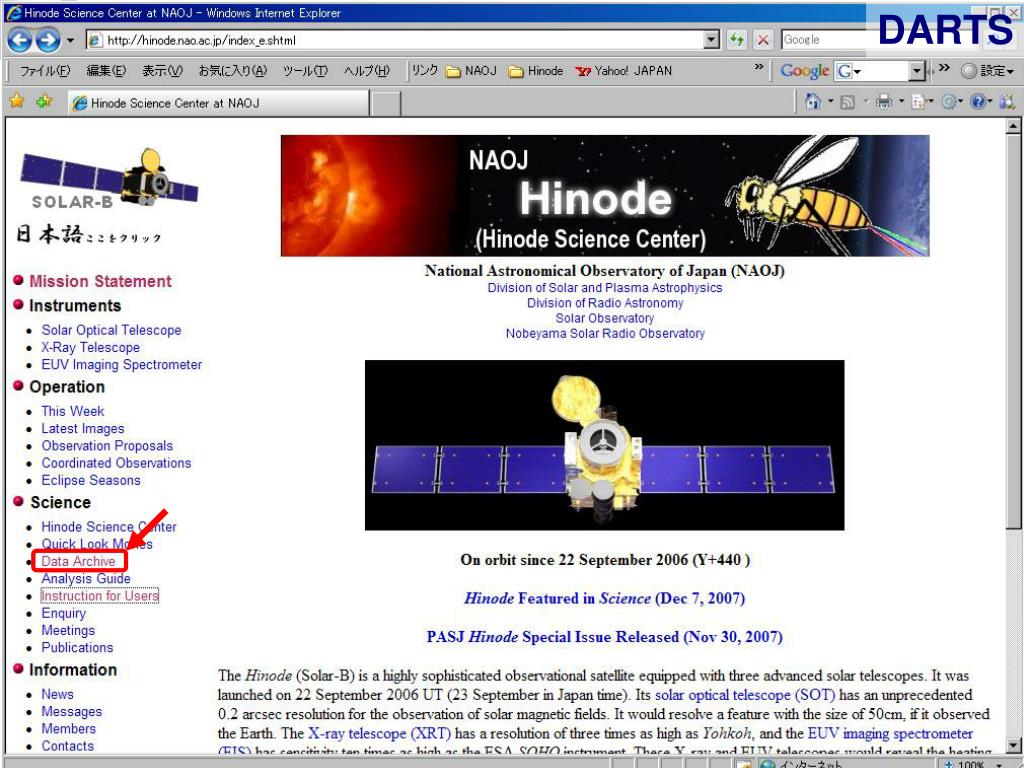

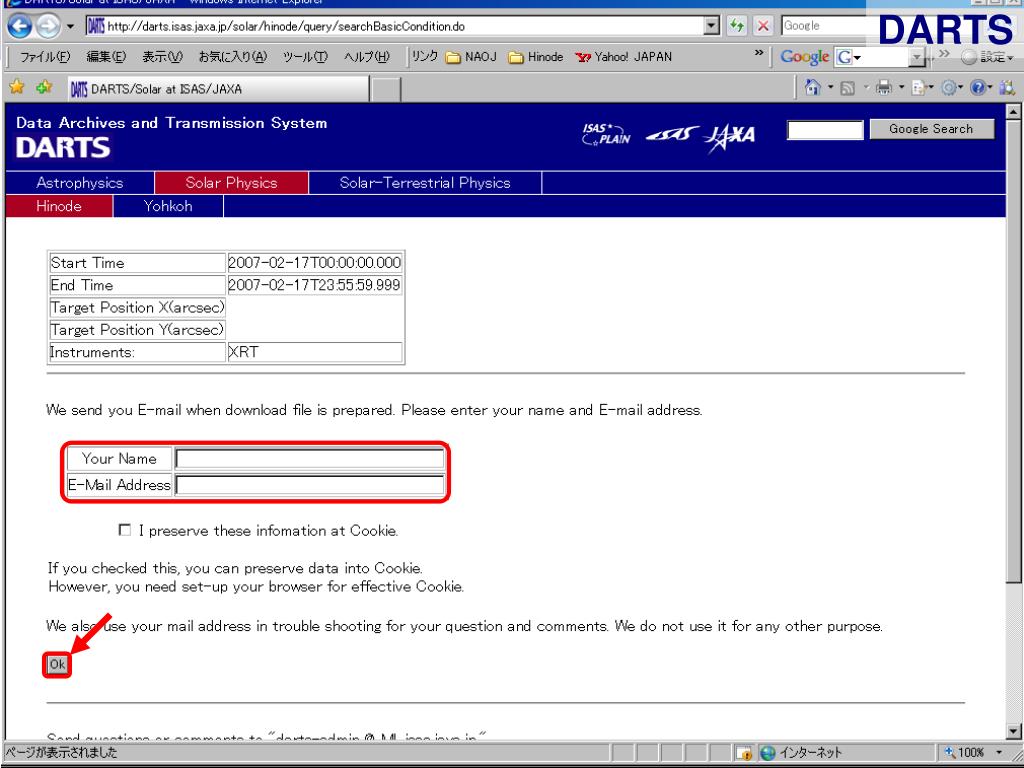

  13. DARTS Hinode Workshop in China

  14. DARTS Hinode Workshop in China

  15. DARTS Hinode Workshop in China

  16. DARTS Hinode Workshop in China

  17. DARTS Hinode Workshop in China

  18. DARTS Hinode Workshop in China

  19. DARTS Hinode Workshop in China

  20. DARTS Hinode Workshop in China

  21. DARTS Hinode Workshop in China

  22. DARTS Hinode Workshop in China

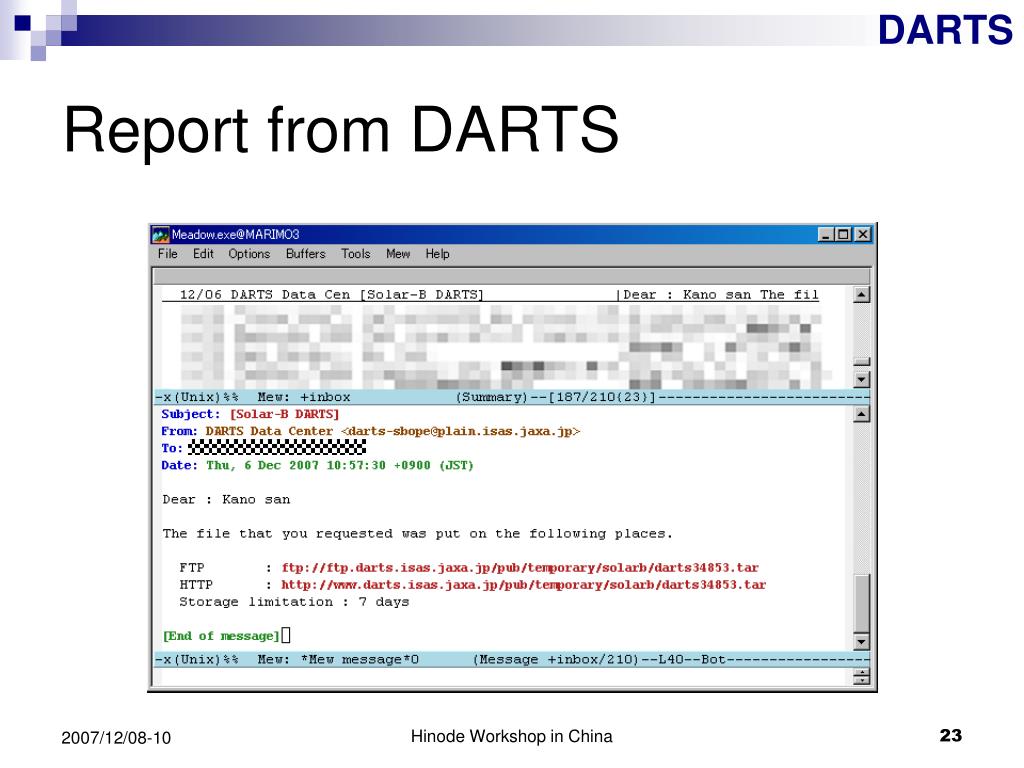

  23. DARTS Report from DARTS Hinode Workshop in China

  24. DARTS Contents of Downloaded Data XRT20070217_061018.1.fits Time Date Hinode Workshop in China

  25. For Analysis Hinode Workshop in China

  26. For Analysis Hinode QL Movies http://hinode.nao.ac.jp/QLmovies/index_s.shtml Hinode Workshop in China

  27. For Analysis Hinode Workshop in China

  28. For Analysis Software environment for Hinode • IDL : Interactive Data Language • SSW : SolarSoftWare • SSWDB: Database for SolarSoftware http://www.lmsal.com/solarsoft/ Hinode Workshop in China

  29. For Analysis SSW & SSWDB http://www.lmsal.com/solarsoft/ Hinode Workshop in China

  30. Hinode Workshop in China

  31. Instruction for Hinode data users Hinode data already have been opened to all solar physicists in the world at the end of May, 2007. Hinode team would like to request the following things. Please seethe following site for detail.http://solar-b.nao.ac.jp/hsc_e/instruction_e.shtml • When you use Hinode data, • Tell relevant instrument PI(s) what you are working on. • We have set up a website so that you can tell us about your project through the site rather than contacting PI(s) directly. • When you write papers using Hinode data, • When you write a paper, please inculde the standard acknowledgment sentences to Hinode. • Please also refer to the relevant instrumentation papers. • When your paper is accepted, or when you make a presentation at a conference or hold a press conference on your result, please let us know by sending email to publ_hinode (at) solar-b.nao.ac.jp. Hinode Workshop in China

  32. Hinode On-going Studies http://solar-b.nao.ac.jp/hsc_e/OnGoing_top.shtml Hinode Workshop in China

  33. Standard Acknowledgment Sentences • Acknowledgement to Hinode • Hinode is a Japanese mission developed and launched by ISAS/JAXA, with NAOJ as domestic partner and NASA and STFC (UK) as international partners. It is operated by these agencies in co-operation with ESA and NSC (Norway). • Hinode is a Japanese mission developed and launched by ISAS/JAXA, collaborating with NAOJ as a domestic partner, NASA and STFC (UK) as international partners. Scientific operation of the Hinode mission is conducted by the Hinode science team organized at ISAS/JAXA. This team mainly consists of scientists from institutes in the partner countries. Support for the post-launch operation is provided by JAXA and NAOJ (Japan), STFC (U.K.), NASA, ESA, and NSC (Norway). • Acknowledgement to Hinode Science Center (HSC) (if you used) • This work was (partly) carried out at the NAOJ Hinode Science Center, which is supported by the Grant-in-Aid for Creative Scientific Research "The Basic Study of Space Weather Prediction" from MEXT, Japan (Head Investigator: K. Shibata), generous donations from Sun Microsystems, and NAOJ internal funding. Hinode Workshop in China

  34. Hinode Instrument Papers • Mission overview • Kosugi et al. 2007, Solar Physics, 243, pp. 3-17 • SOT • Tsuneta et al. 2007, Solar Physics, submitted. • Suematsu et al. 2007, Solar Physics, submitted. • Ichimoto et al. 2007, Solar Physics, submitted. • Shimizu et al. 2007, Solar Physics, in press. • Tarbell et al. 2007, Solar Physics, in preparation. • XRT • Golub et al. 2007, Solar Physics, 243, pp. 63-86 • Kano et al. 2007, Solar Physics, in press. • EIS • Culhane et al. 2007, Solar Physics, 243, pp. 19-61 • Data archive • Matsuzaki et al. 2007, Solar Physics, 243, pp. 87-92 Hinode Workshop in China
