  1. Fault Tolerant Design and Analysisfor Access Points in Public WLAN 公眾無線區域網路擷取點容錯技術之設計與分析

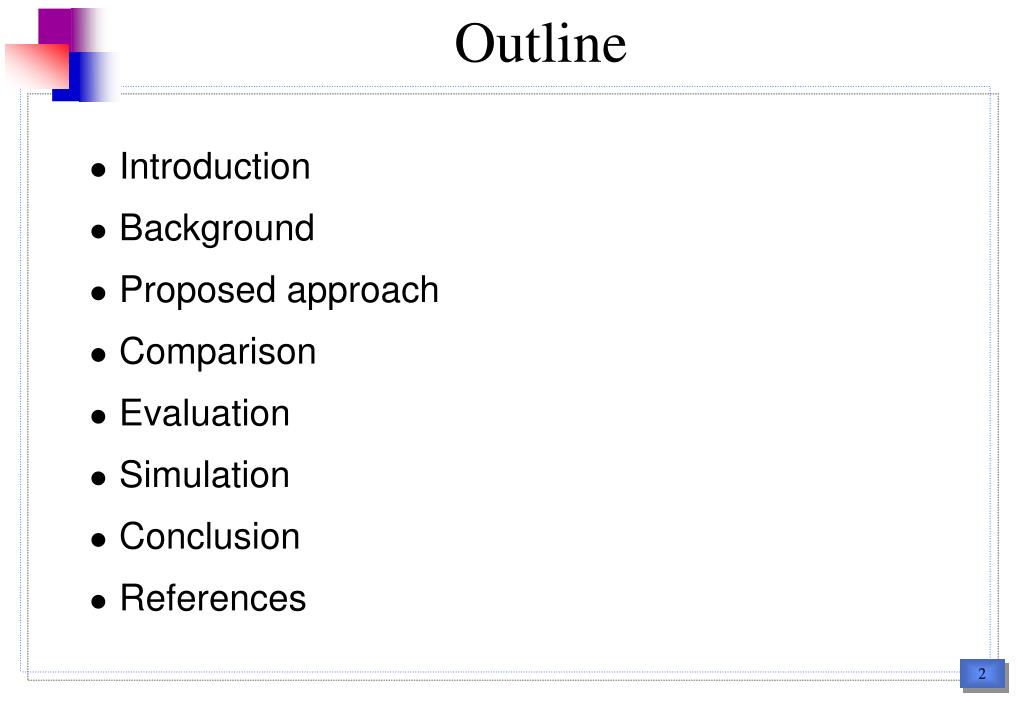

  2. Outline • Introduction • Background • Proposed approach • Comparison • Evaluation • Simulation • Conclusion • References

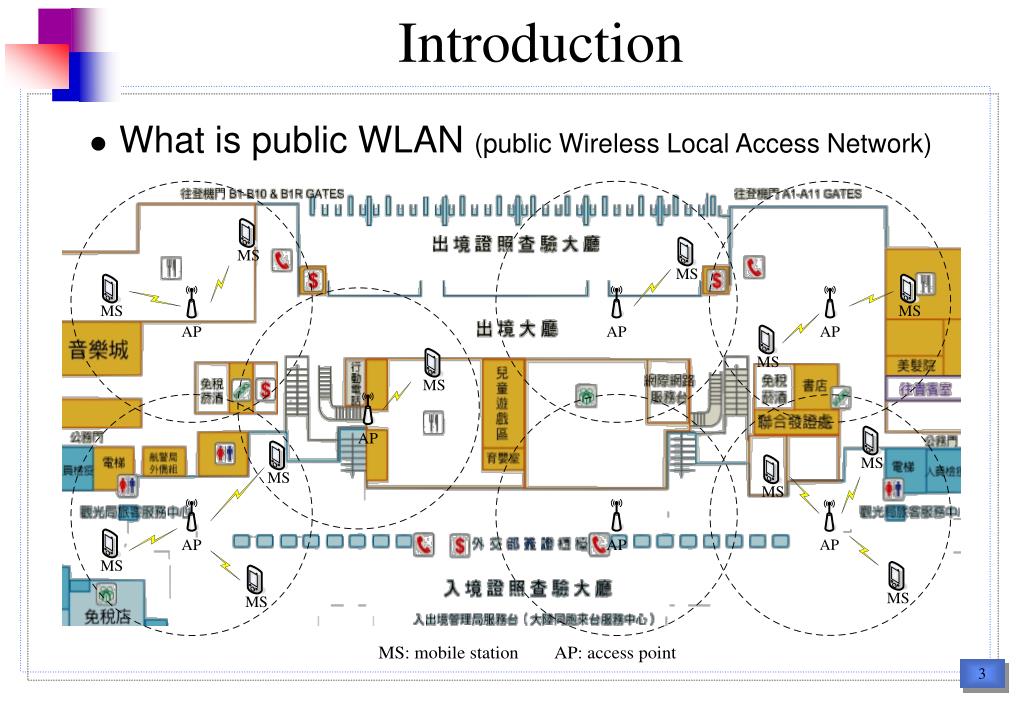

  3. Introduction • What is public WLAN (public Wireless Local Access Network)

  4. Introduction • Motivation

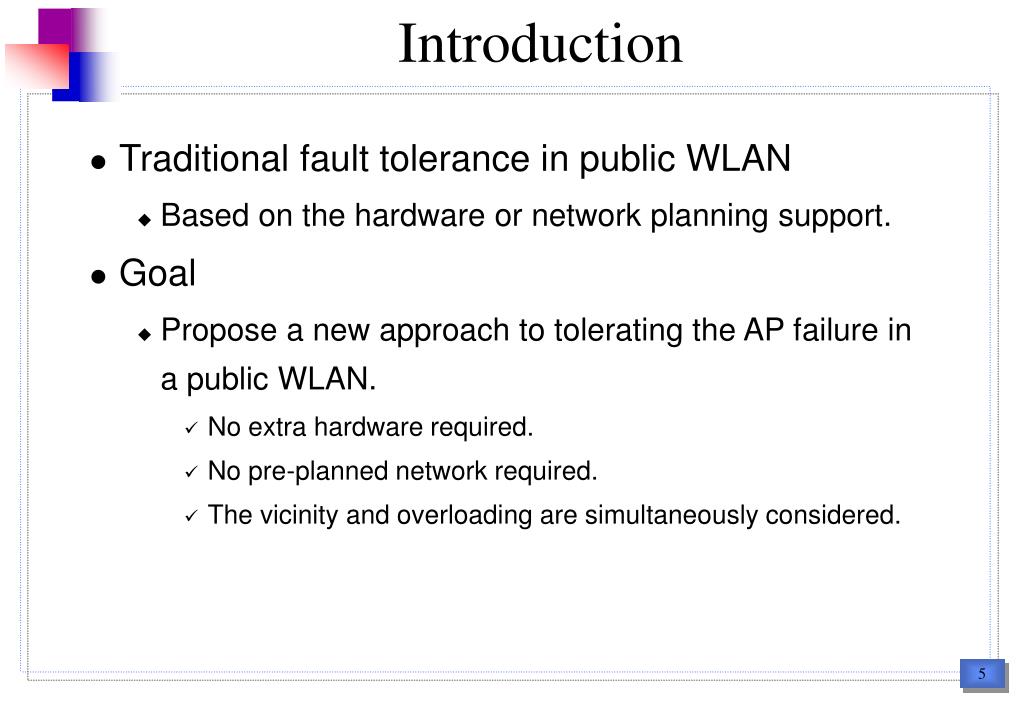

  5. Introduction • Traditional fault tolerance in public WLAN • Based on the hardware or network planning support. • Goal • Propose a new approach to tolerating the AP failure in a public WLAN. • No extra hardware required. • No pre-planned network required. • The vicinity and overloading are simultaneously considered.

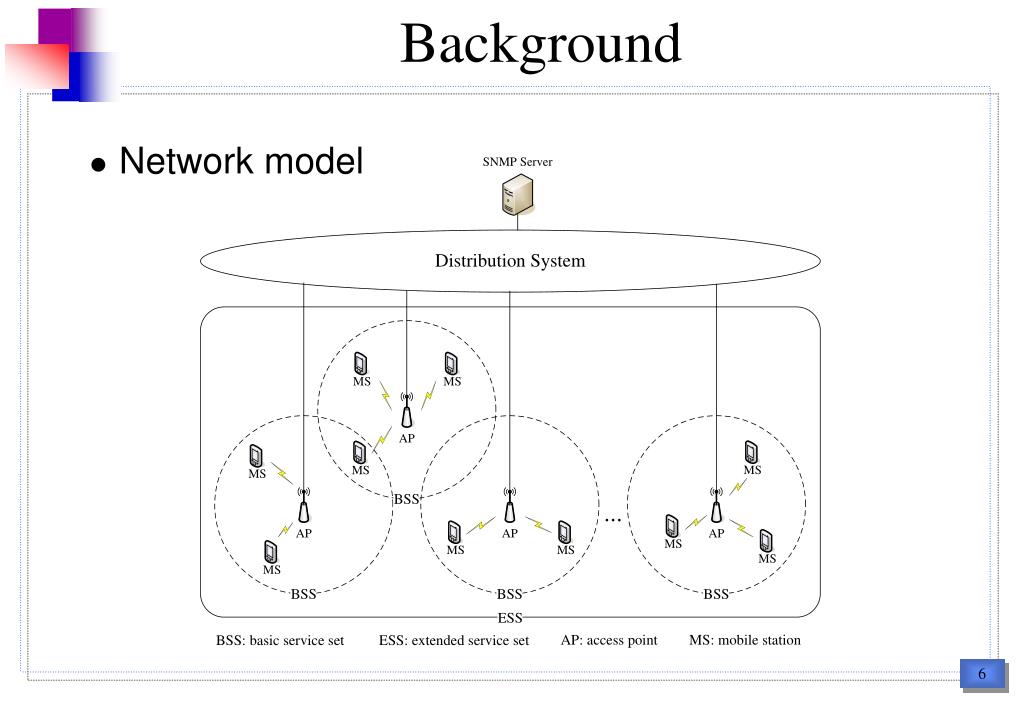

  6. Background • Network model

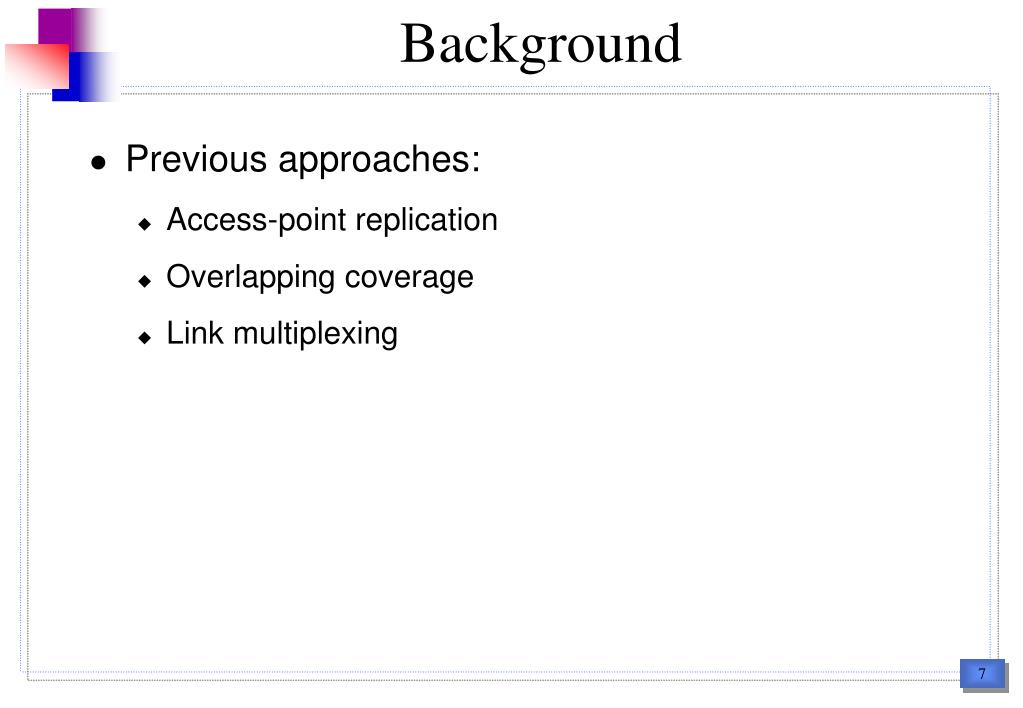

  7. Background • Previous approaches: • Access-point replication • Overlapping coverage • Link multiplexing

  8. Background • Previous approaches: • Access-point replication [DSN’03] • Overlapping coverage • Link multiplexing Hardware cost Hardware compatibility Fault-tolerant capability

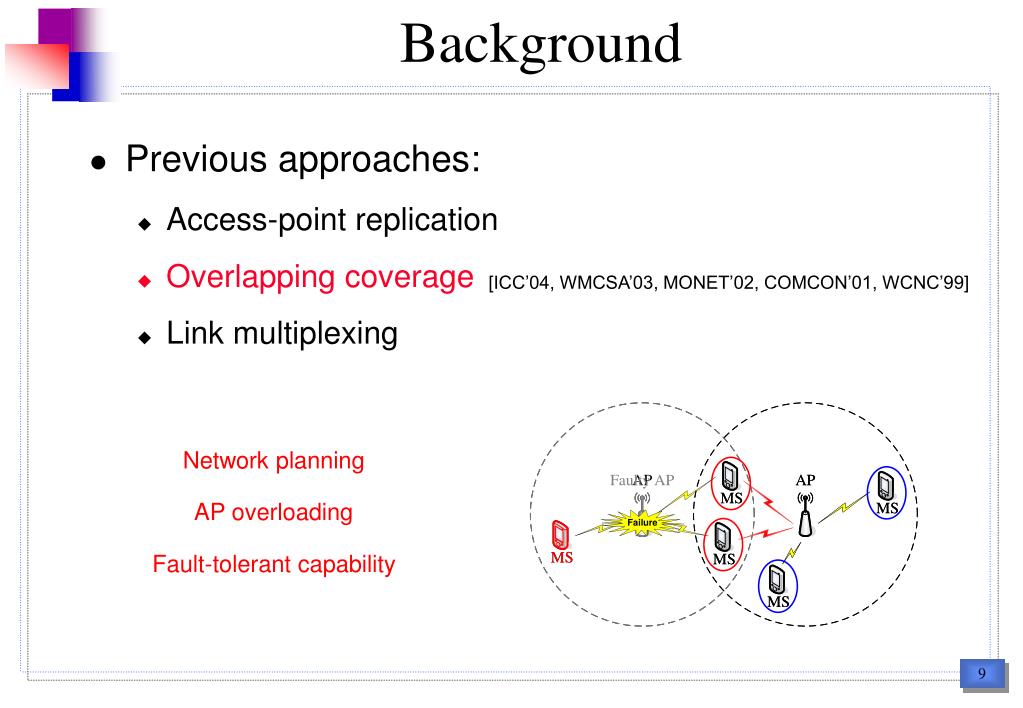

  9. Background • Previous approaches: • Access-point replication • Overlapping coverage [ICC’04, WMCSA’03, MONET’02, COMCON’01, WCNC’99] • Link multiplexing Network planning AP overloading Fault-tolerant capability

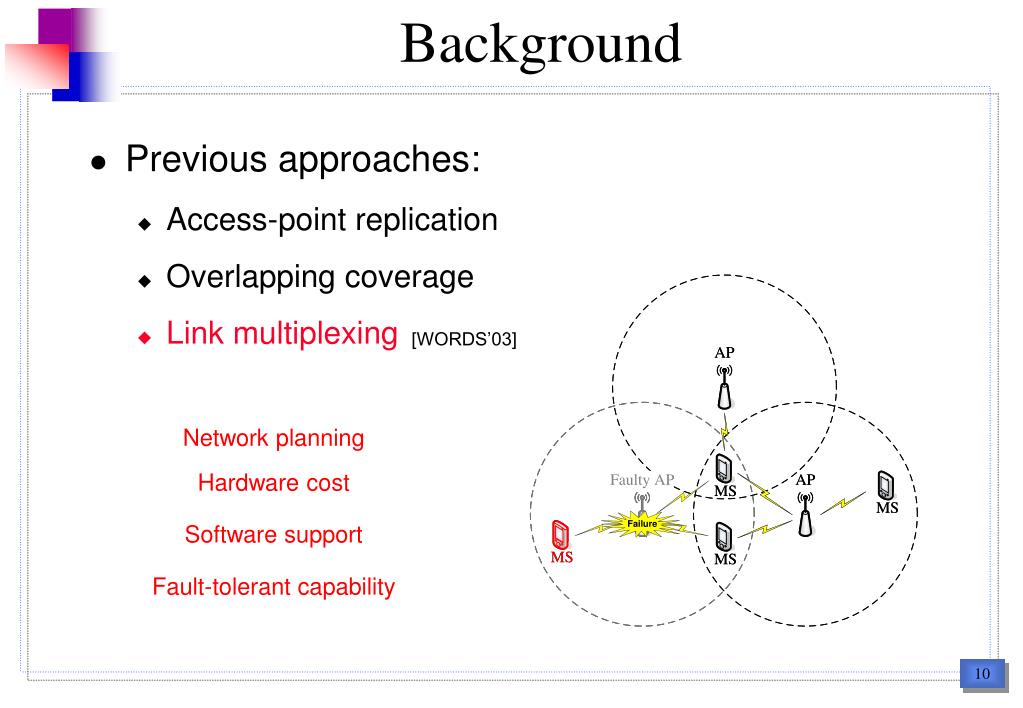

  10. Background • Previous approaches: • Access-point replication • Overlapping coverage • Link multiplexing [WORDS’03] Network planning Hardware cost Software support Fault-tolerant capability

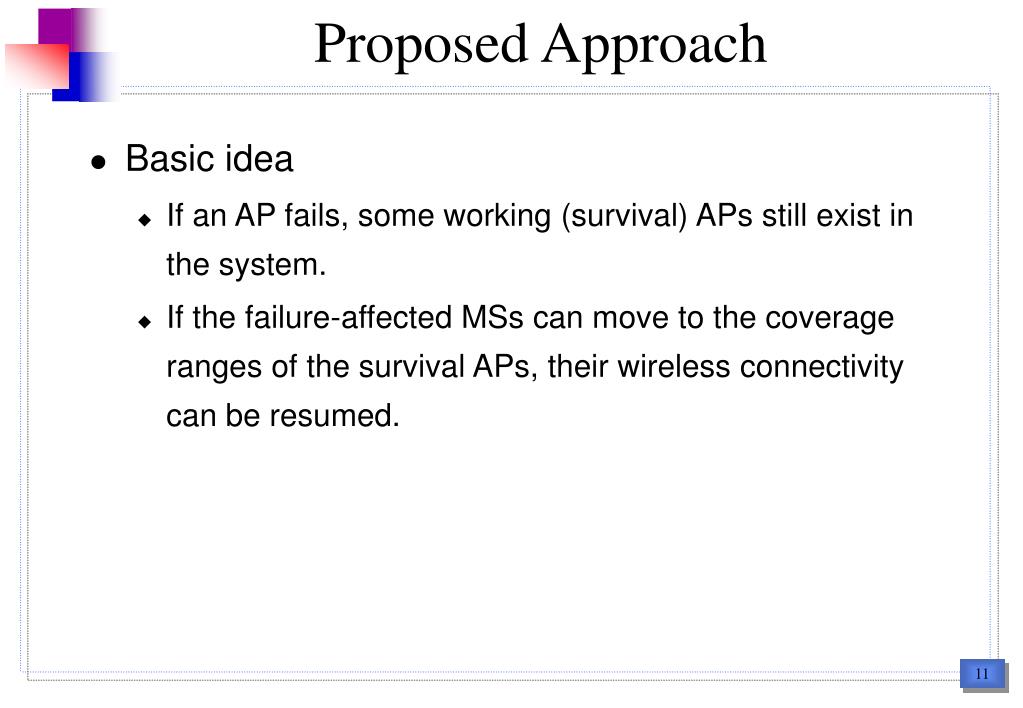

  11. Proposed Approach • Basic idea • If an AP fails, some working (survival) APs still exist in the system. • If the failure-affected MSs can move to the coverage ranges of the survival APs, their wireless connectivity can be resumed.

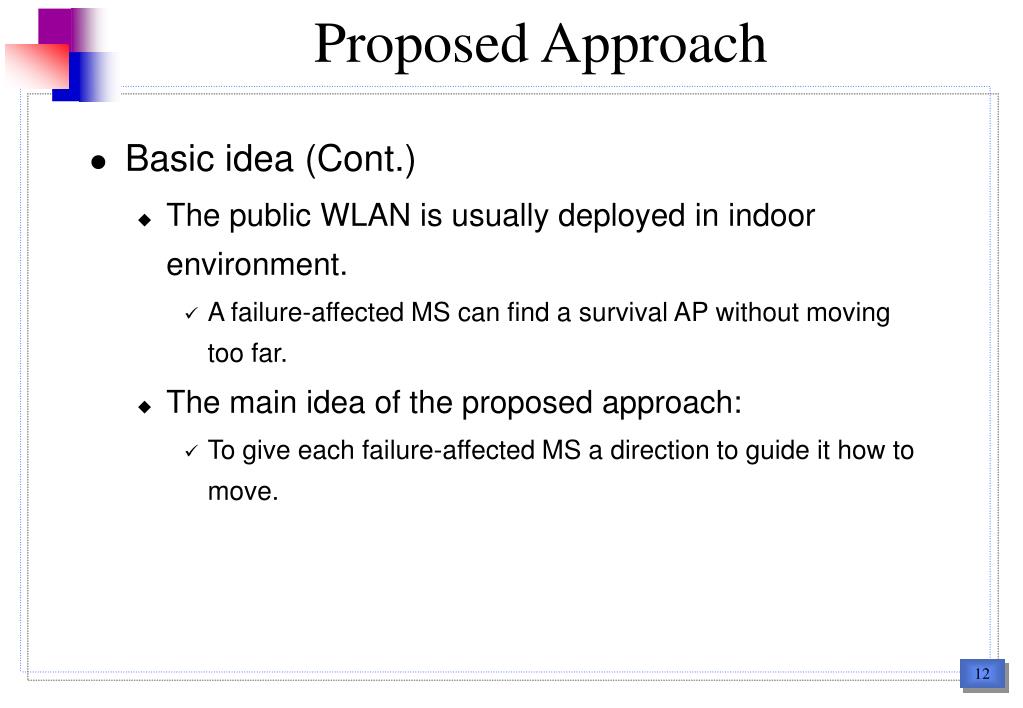

  12. Proposed Approach • Basic idea (Cont.) • The public WLAN is usually deployed in indoor environment. • A failure-affected MS can find a survival AP without moving too far. • The main idea of the proposed approach: • To give each failure-affected MS a direction to guide it how to move.

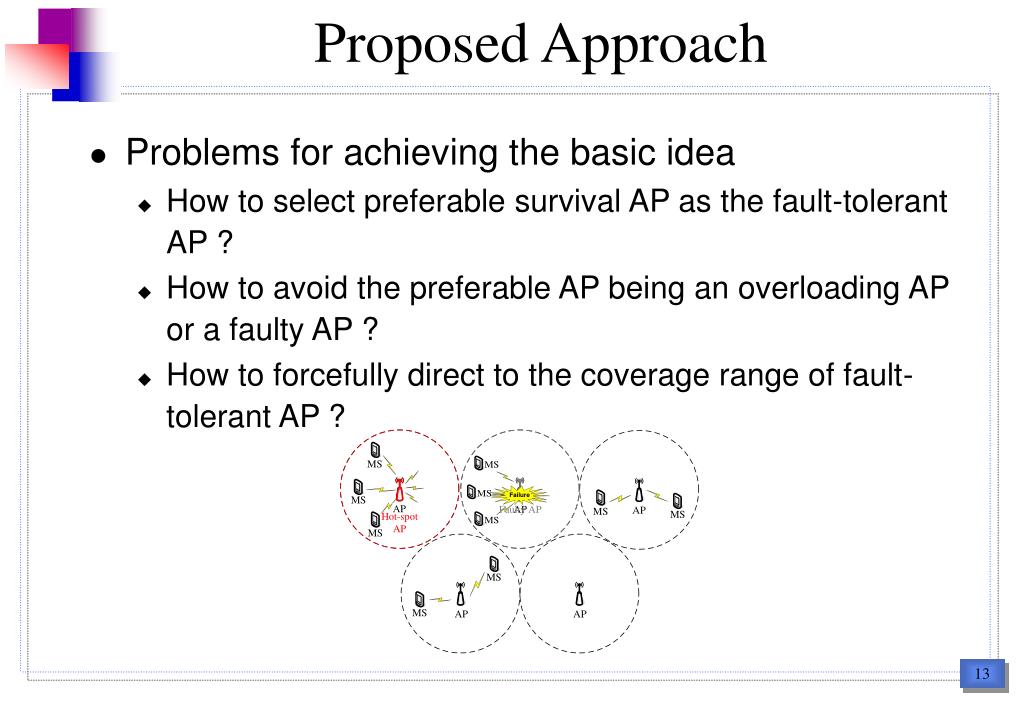

  13. Proposed Approach • Problems for achieving the basic idea • How to select preferable survival AP as the fault-tolerant AP ? • How to avoid the preferable AP being an overloading AP or a faulty AP ? • How to forcefully direct to the coverage range of fault-tolerant AP ?

  14. Proposed Approach • First problem • To make each failure-affected MS quickly resume the wireless connectivity with the least cost.

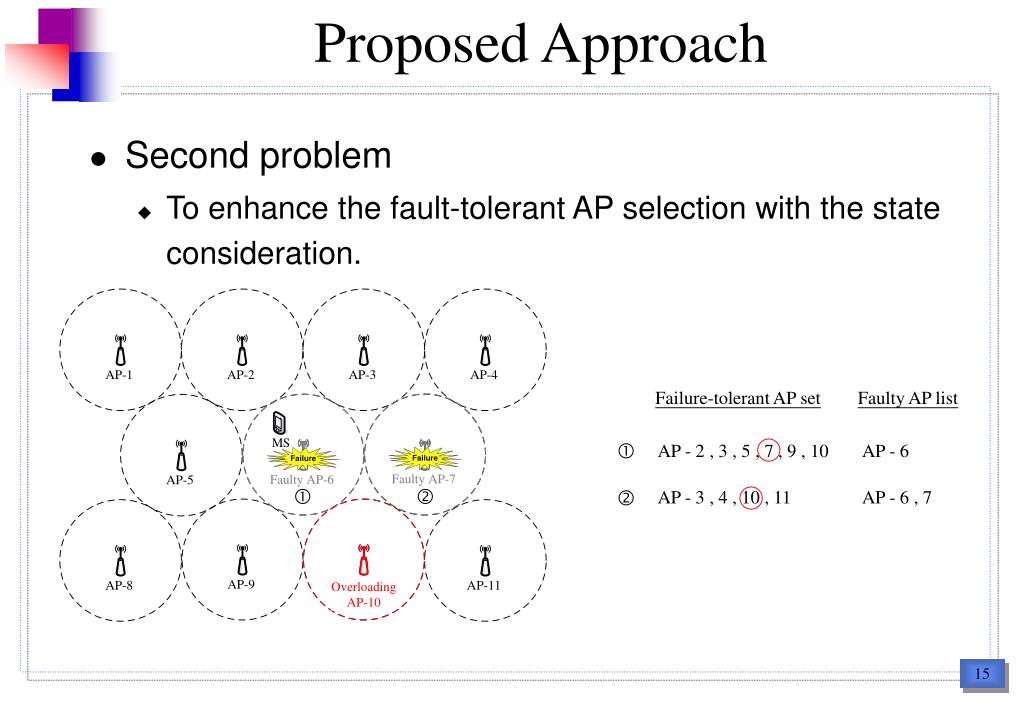

  15. Proposed Approach Failure-tolerant AP set Faulty AP list AP - 2 , 3 , 5 , 7 , 9 , 10 AP - 6  AP - 3 , 4 , 10 , 11 AP - 6 , 7    • Second problem • To enhance the fault-tolerant AP selection with the state consideration.

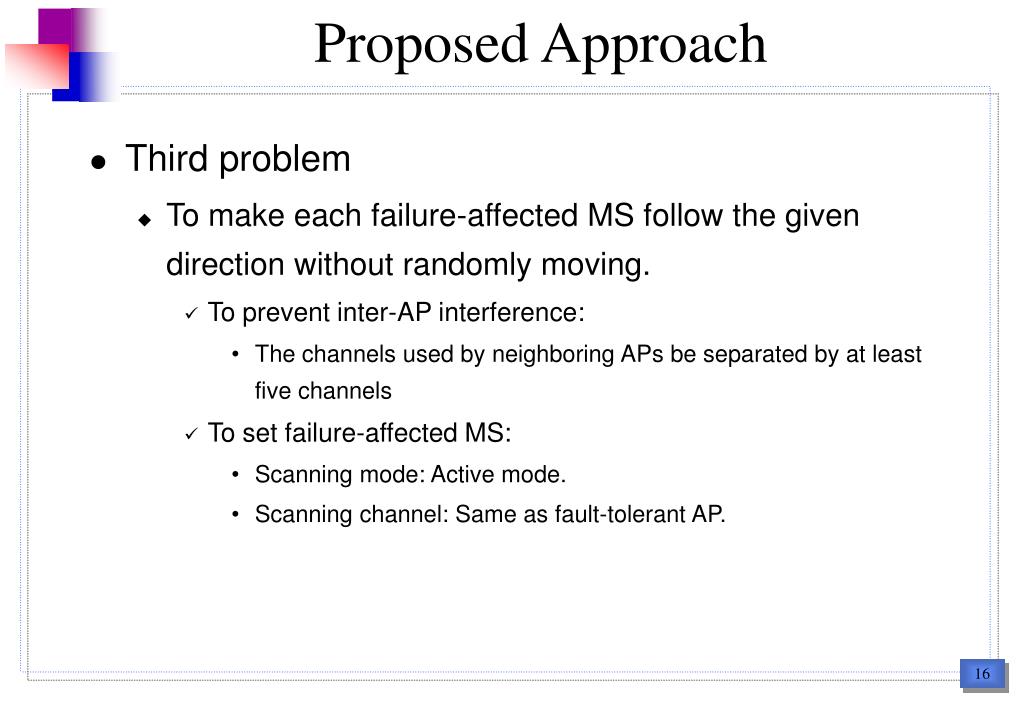

  16. Proposed Approach • Third problem • To make each failure-affected MS follow the given direction without randomly moving. • To prevent inter-AP interference: • The channels used by neighboring APs be separated by at least five channels • To set failure-affected MS: • Scanning mode: Active mode. • Scanning channel: Same as fault-tolerant AP.

  17. Proposed Approach • System architecture • Data Structures: • SNMP Server: AP deployment map and AP location table with loading information • AP: Overloading record • MS: AP deployment map and AP location table • Procedures: • SNMP Server: The loading inquiry routine and the fault-tolerant AP recommendation procedure • AP: The loading control procedure • MS: The fault-tolerant procedure and the map direction procedure

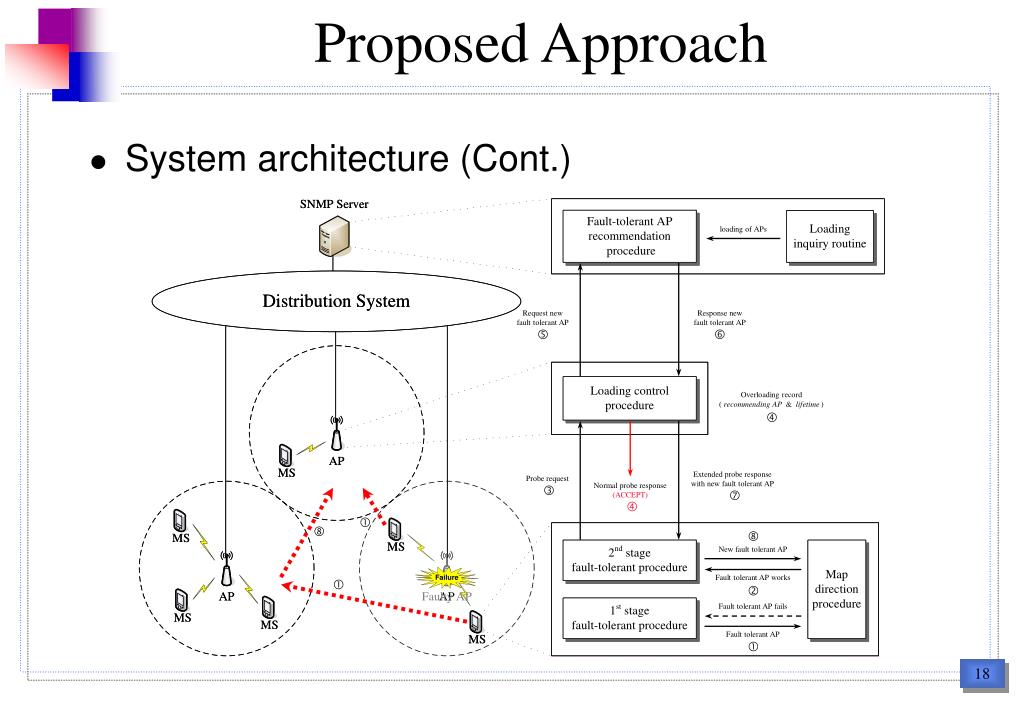

  18. Proposed Approach loading of APs Request new fault tolerant AP Response new fault tolerant AP   Overloading record ( recommending AP & lifetime )  Extended probe response with new fault tolerant AP Probe request Normal probe response (ACCEPT)       New fault tolerant AP Fault tolerant AP works   Fault tolerant AP fails Fault tolerant AP  • System architecture (Cont.)

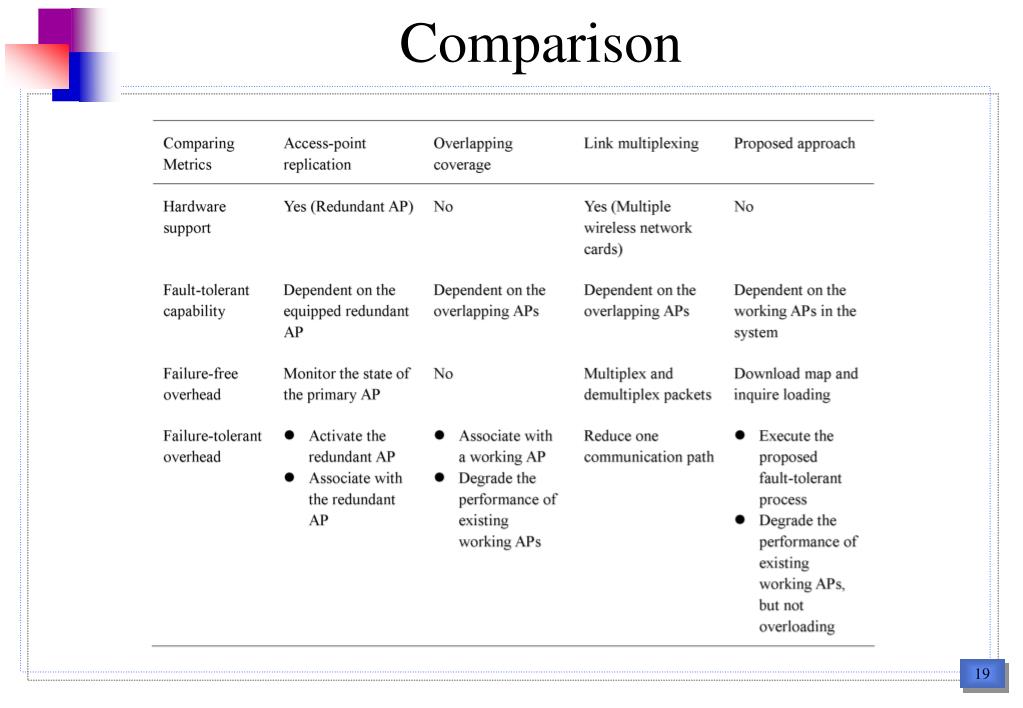

  19. Comparison

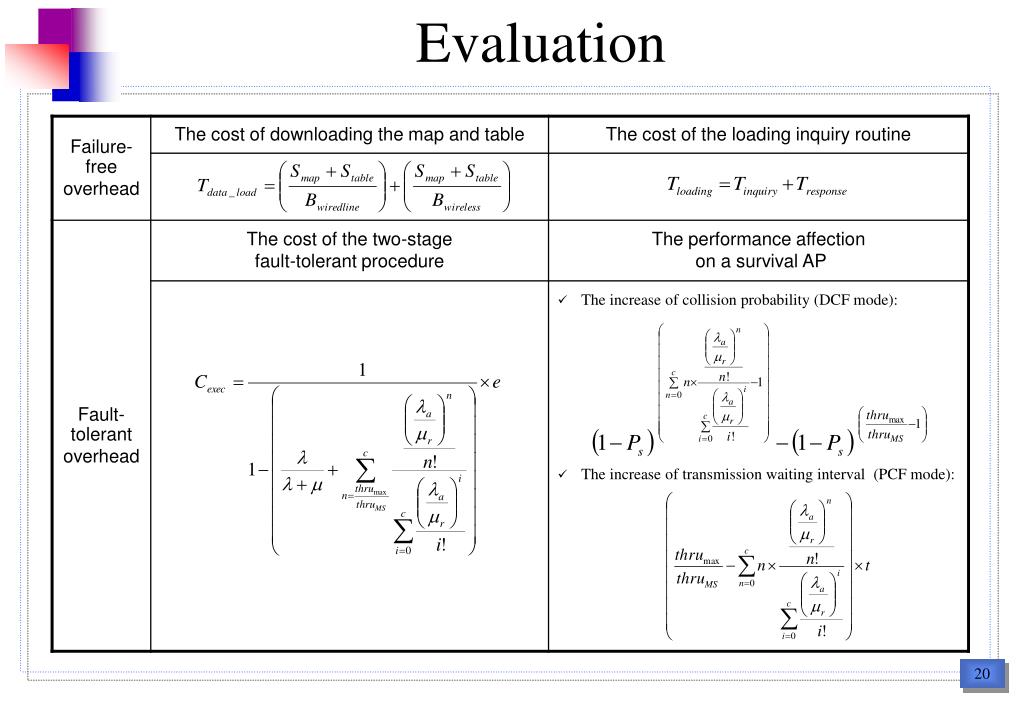

  20. Evaluation • The increase of collision probability (DCF mode): • The increase of transmission waiting interval (PCF mode):

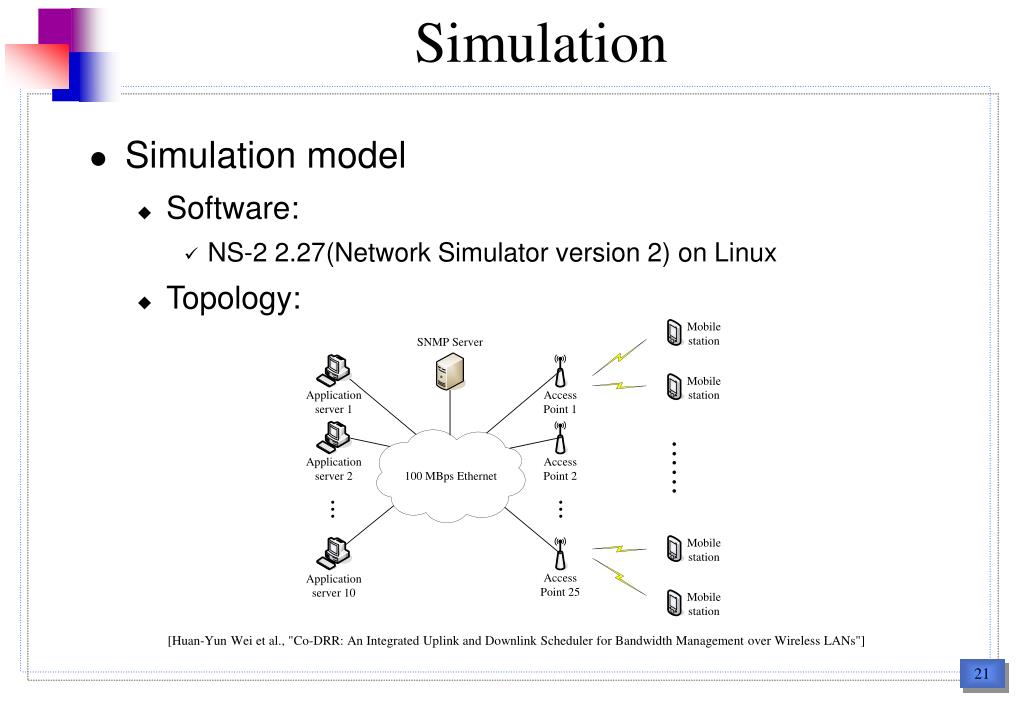

  21. Simulation • Simulation model • Software: • NS-2 2.27(Network Simulator version 2) on Linux • Topology: [Huan-Yun Wei et al., "Co-DRR: An Integrated Uplink and Downlink Scheduler for Bandwidth Management over Wireless LANs"]

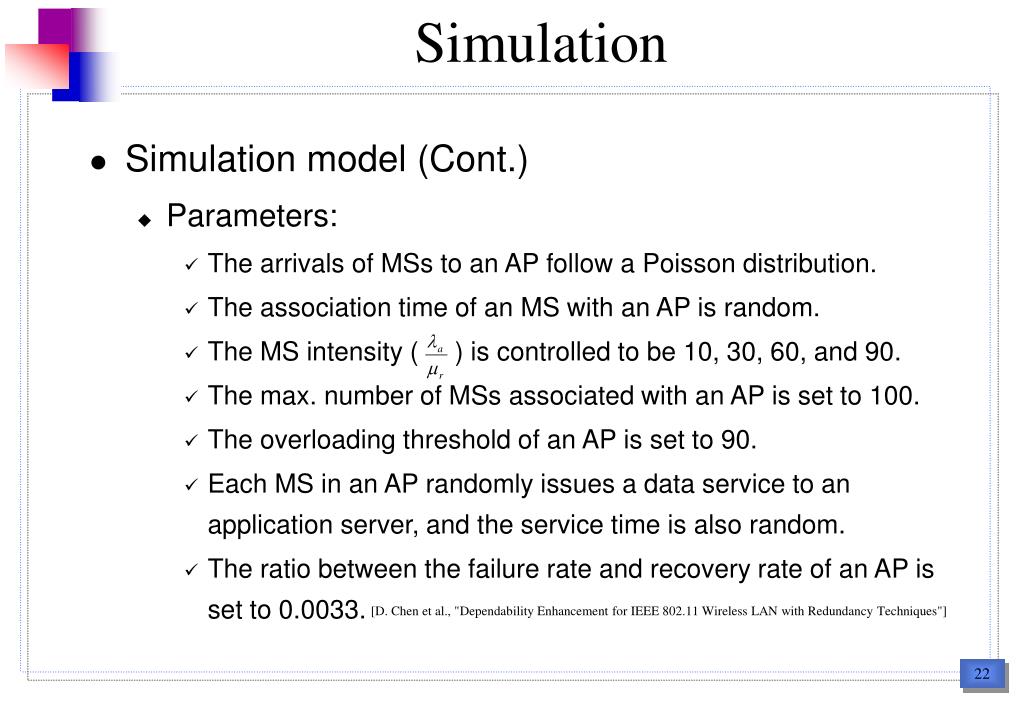

  22. Simulation • Simulation model (Cont.) • Parameters: • The arrivals of MSs to an AP follow a Poisson distribution. • The association time of an MS with an AP is random. • The MS intensity ( ) is controlled to be 10, 30, 60, and 90. • The max. number of MSs associated with an AP is set to 100. • The overloading threshold of an AP is set to 90. • Each MS in an AP randomly issues a data service to an application server, and the service time is also random. • The ratio between the failure rate and recovery rate of an AP is set to 0.0033. [D. Chen et al., "Dependability Enhancement for IEEE 802.11 Wireless LAN with Redundancy Techniques"]

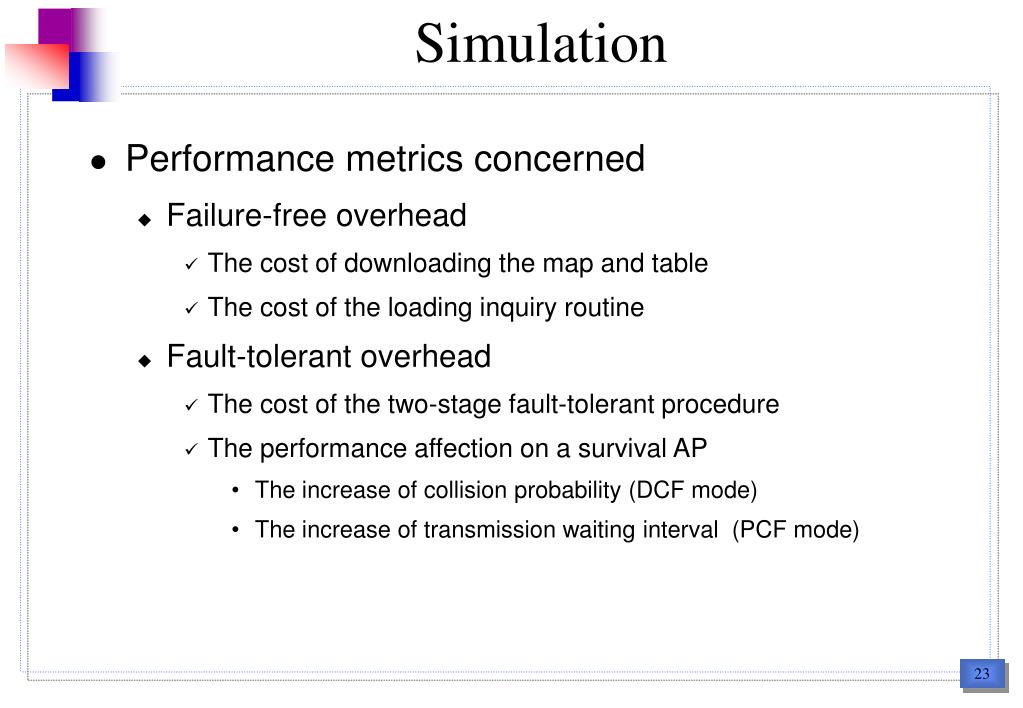

  23. Simulation • Performance metrics concerned • Failure-free overhead • The cost of downloading the map and table • The cost of the loading inquiry routine • Fault-tolerant overhead • The cost of the two-stage fault-tolerant procedure • The performance affection on a survival AP • The increase of collision probability (DCF mode) • The increase of transmission waiting interval (PCF mode)

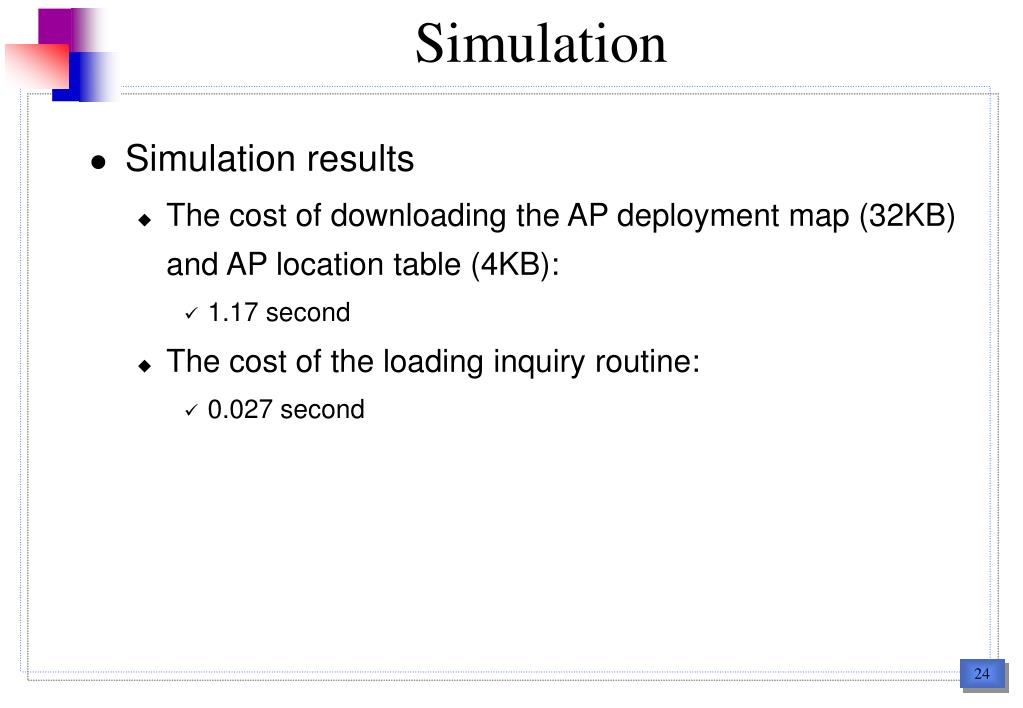

  24. Simulation • Simulation results • The cost of downloading the AP deployment map (32KB) and AP location table (4KB): • 1.17 second • The cost of the loading inquiry routine: • 0.027 second

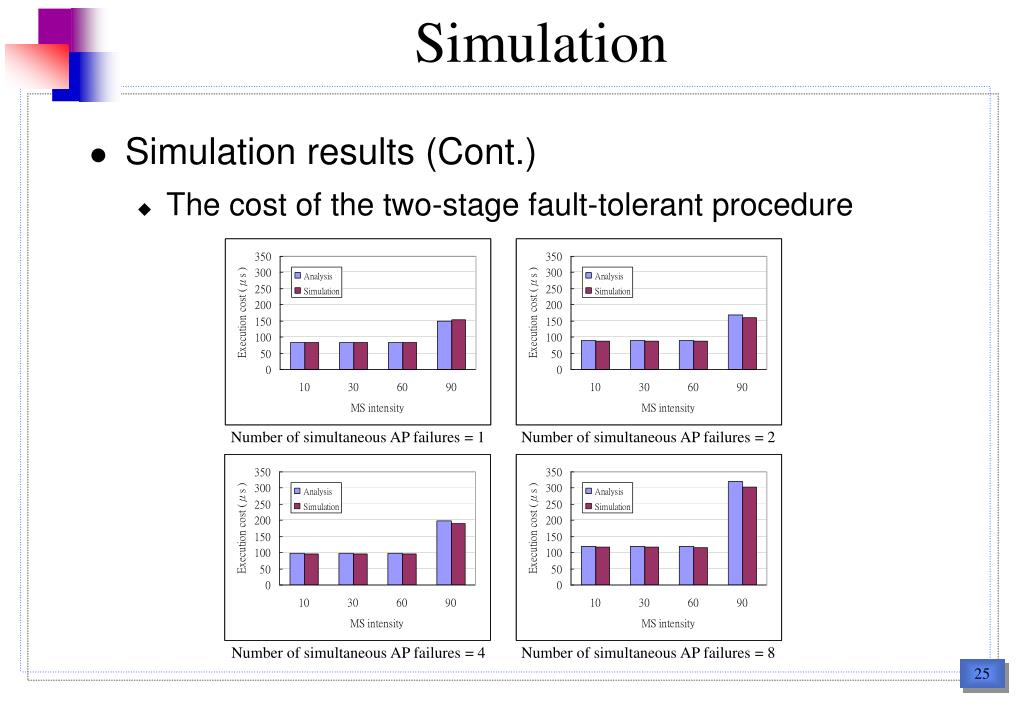

  25. Simulation • Simulation results (Cont.) • The cost of the two-stage fault-tolerant procedure Number of simultaneous AP failures = 1 Number of simultaneous AP failures = 2 Number of simultaneous AP failures = 4 Number of simultaneous AP failures = 8

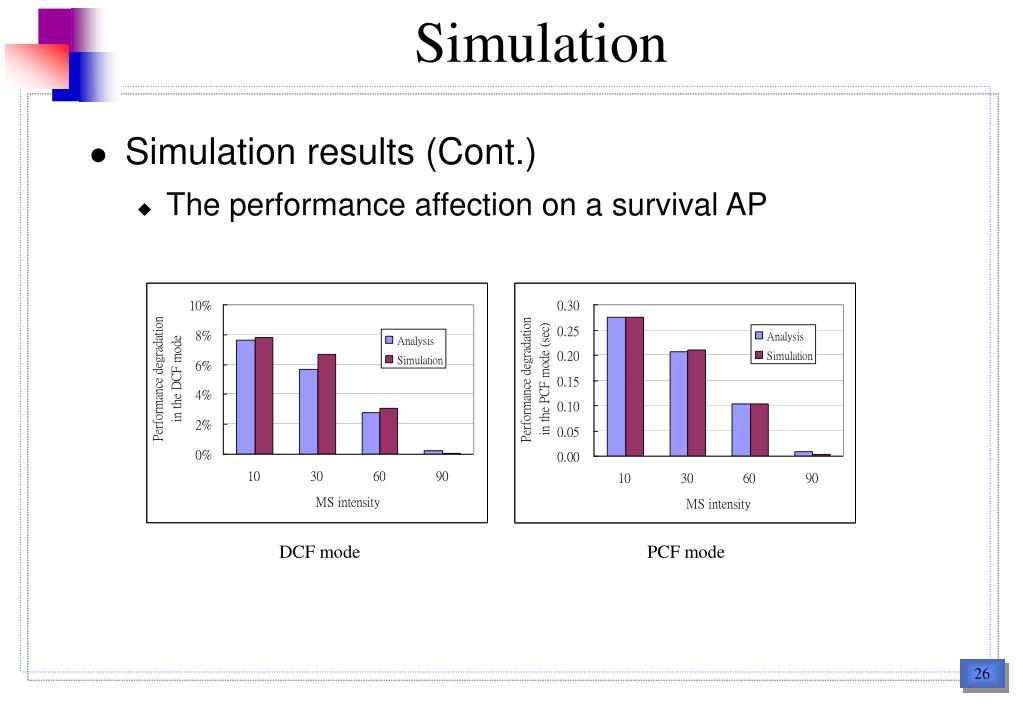

  26. Simulation • Simulation results (Cont.) • The performance affection on a survival AP DCF mode PCF mode

  27. Conclusion • An efficient approach to tolerating AP failures in a public WLAN • Not requiring the hardware support. • Avoiding overloading situation. • Having the best fault-tolerant capability. • Numerical analysis and simulation experiments results • The failure-free and fault-tolerant overheads of the proposed approach are small.

  28. References [1] Hector Velayos, Victor Aleo, Gunnar Karlsson, Load Balancing in Overlapping Wireless LAN Cells, ICC 2004 - IEEE International Conference on Communications (2004) 3833-3836. [2] Colubris Networks Inc., Data Sheet for Colubris Networks Management System (CNMS), 2004. [3] D. Chen, C. Kintala, S. Garg, K. S. Trivedi, Dependability Enhancement for IEEE 802.11 Wireless LAN with Redundancy Techniques, Proceedings of the International Conference on Dependable Systems and Networks (2003) 521-528. [4] Gandhi R., Tolerance to Access-Point Failures in Dependable Wireless Local-Area Networks, The Ninth IEEE International Workshop on Object-Oriented Real-Time Dependable Systems (2003) 136-143. [5] Proxim Corp., User's Guide for ORiNOCO AP-2500, June 2003. [6] Carlos Oliveira, Jaime Bae Kim, Tatsuya Suda, Long-Range Dependence in IEEE 802.11b Wireless LAN Traffic: An Empirical Study, Computer Communications, 2003. CCW 2003. Proceedings. 2003 IEEE 18th Annual Workshop on (2003) 17-23. [7] F. K. Al-Bin-Ali, P. Boddupalli, N. Davies, An Inter-Access Point Handoff Mechanism for Wireless Network Management: The Sabino System, In Proceedings of The 2003 International Conference on Wireless Networks (2003) 225-230.

  29. References [8] Huan-Yun Wei, Ching-Chuang Chiang, Ying-Dar Lin, Co-DRR: An Integrated Uplink and Downlink Scheduler for Bandwidth Management over Wireless LANs, IEEE Symposium on Computers and Communications (2003) 1415-1420. [9] A. Malloy, U. Varshney, A. P. Snow, Supporting Mobile Commerce Applications Using Dependable Wireless Networks, Mobile Networks and Applications (2002) 225-234. [10] Anand Balachandran, Geoffrey M. Voelker, Paramvir Bahl, P. Venkat Rangan, Characterizing User Behavior and Network Performance in a Public Wireless LAN, In Proceedings of the ACM Sigmetrics Conference on Measurement and Modeling of Computer Systems (2002) 195-205. [11] Anand Balachandran, Paramvir Bahl, Geoffrey M. Voelker, Hot-Spot Congestion Relief in Public-Area Wireless Networks, Mobile Computing Systems and Applications, 2002. Proceedings Fourth IEEE Workshop on (2002) 70-80. [12] Gast, Matthew S., 802.11 Wireless Networks: The Definitive Guide, O'Reilly & Associates, April 2002. [13] Cisco Systems Inc., Data Sheet for Cisco Aironet 350 Series Access Points, June 2001. [14] I. Papanikos, M. Logothetis, A Study on Dynamic Load Balance for IEEE 802.11b Wireless LAN, In Proceedings of the 8th International Conference on Advances in Communication & Control, COMCON 8, Rethymna,Crete/Greece (2001).

  30. References [15] D. Tipper, S. Ramaswamy, T. Dahlberg, PCS Network Survivability, In Proceedings of IEEE Wireless Communications and Networking Conference (1999) 1028-1032. [16] Shiann-Tsong Sheu, Chih-Chiang Wu, Dynamic Load Balance Algorithm (DLBA) for IEEE 802.11 Wireless LAN, Tamkang Journal of Science and Engineering (1999) 45-52. [17] IEEE Std 802.11b-1999, Part 11: Wireless LAN Medium Access Control (MAC) and Physical Layer (PHY) Specifications: Higher-Speed Physical Layer Extension in the 2.4 GHz Band, IEEE, September 1999. [18] J. Case, M. Fedor, M. Schoffstall, J. Davin, A Simple Network Management Protocol (SNMP), Technical Report IETF RFC 1157, May 1990. [19] D. Gross, C. M. Harris, Fundamentals of Queuing Theory, John Wiley & Sons, 1985. [20] NS-2 Network Simulator, Available: http://www.isi.edu/nsnam/
