Work and Power

beverly-bishop avatar
6 diapositives · 220 Views · Nov 20, 2014

Work and Power. Work is done when a force is exerted on an object and the object moves a distance x. Work = force ·distance W = F · d units: N·m = Joule Work is a scalar quantity. For work to be done, Force exerted must be in same linear plane as distance. Work.

Work and Power - slide 1
01 / 6Work and Power
1 / 17

Télécharger la présentation

Work and Power
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

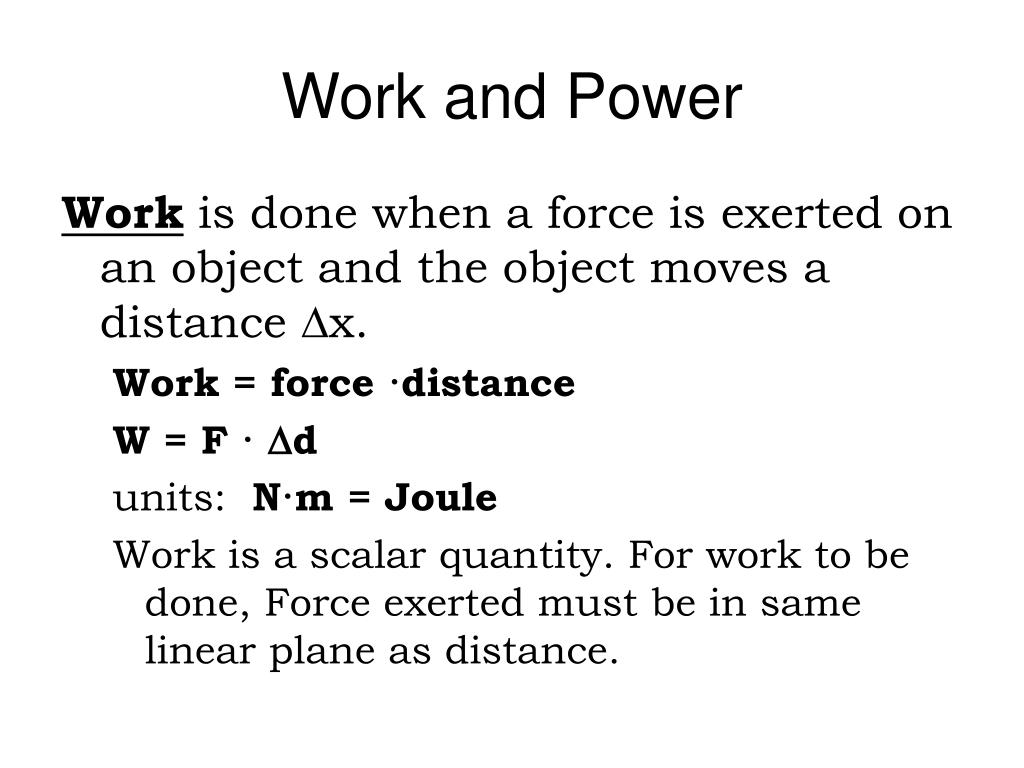

  1. Work and Power Work is done when a force is exerted on an object and the object moves a distance x. Work = force ·distance W = F · d units: N·m = Joule Work is a scalar quantity. For work to be done, Force exerted must be in same linear plane as distance.

  2. Work When you hold something, are you exerting a force on the object? When you hold something, are you doing work? If you set the object on a table, does the table exert a force on the object? Does the table do any work? Yes. No. Yes. No. When you hold something, then, you are not doing work either.

  3. Work

  4. Work Work is only done by a force on an object if the force causes the object to move in the direction of the force.

  5. Work When a force is applied at an angle, use the component of the force in the direction of motion. W =F cosq(Dx)

  6. Work Example 5A p.169
