SUSY Searches with One Photon at CMS

FSP-CMS Meeting 1-2 October 2012 DESY Zeuthen. SUSY Searches with One Photon at CMS. Valentina Sola ( Universität Hamburg ). GMSB and GGM Photon S earches at CMS Results and Limits. GMSB and GGM.  Gauge-Mediated SUSY Breaking (GMSB)

bevis
Télécharger la présentation

SUSY Searches with One Photon at CMS

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. FSP-CMS Meeting 1-2 October 2012 DESY Zeuthen SUSY Searches with One Photon at CMS Valentina Sola (UniversitätHamburg) • GMSB and GGM • PhotonSearches at CMS • Results and Limits

  2. GMSB and GGM  Gauge-Mediated SUSY Breaking (GMSB) [ G. Giudice and R. Rattazzi, arXiv:hep-ph/9801271 ] = SUSY couples to normal matter through gauge interactions = Gravitino: LSP  General Gauge Mediation (GGM) [ P. Meade, N. Seiberg, D. Shih, arXiv:0801.3278 ] = neutralino NLSP a mixture of Bino, Wino and Higgsino = photon/Z+Gravitino or W+Gravitino final states -> one (or two) photon(s) + MET = focus on strong production: many jets LHC Physics Discussion - 10/9/2012

  3. GGM Phenomenology @ the LHC Neutralino NLSP mixture of Bino, Wino and Higgsino Bino-like NLSP:  Wino-like (co-)NLSP: Bino-Higgsino-like NLSP: R-parity is conserved -> 2 LSPs per event ★ MET is defining signature [ J. Ruderman, D. Shih, arXiv:1103.6083 ] LHC Physics Discussion - 10/9/2012

  4. GGM with One Photon at CMS • Final states with at least one photon • γ+Jets+MET • It includes the case of • Bino-Higgsino-like NSLP • γ + h + MET Results presented in ICHEP 2012 ∫Ldt = 4.04 fb-1 2012 Data @ √s = 8 TeV [ CMS Collaboration, PAS-12-018; AN-2012-154 ] LHC Physics Discussion - 10/9/2012

  5. Trigger Efficiency Analysis trigger: HLT_Photon70_CaloIdXL_PFHT400 Baseline triggers: HLT_Photon50_CaloIdVL (prescale = 900) HLT_Photon75_CaloIdVL (prescale = 150) HLT_PFHT350 (prescale = 1000) Trigger is fully efficient within an uncertainty of 4% LHC Physics Discussion - 10/9/2012

  6. Event Selection Photons ≥ 1 ET > 80 GeV Eiso(∆R<0.3) < 6 GeV |η| < 1.442 Jets ≥ 2 pT > 30 GeV |η| < 2.6 HT > 450 GeV MET > 100 GeV Jets = particle flow jets, anti-kT (R=0.5), photon rejected HT = scalar sum of pT of all jets with pT>40 GeV and |η|<3, no photon rejection LHC Physics Discussion - 10/9/2012

  7. Standard Model Backgrounds LHC Physics Discussion - 10/9/2012

  8. QCD Background Mis-measurement of MET in QCD processes -> direct di-photon, photon+jets, and multijet production with jets mimicking photons ✓ looser γ isolation requirements (γjet) orthogonal to signal selection ✓pT spectra reweighted in low MET region (MET<100 GeV) ✓ systematic uncertainty of 10% assigned LHC Physics Discussion - 10/9/2012

  9. Standard Model Backgrounds LHC Physics Discussion - 10/9/2012

  10. EWK Background • Events with true MET and an electron misidentified as a photon • -> compare Z→ee events to Z→eγ to obtain e→γ fake rate • Ratio of signal used to estimate fake rate fe→γ • pT > 80 GeV: fe→γ = 0.011 ± 0.002 (stat) ± 0.001 (syst) • Inclusive electron spectrum scaled by fe→γ to obtain EWK bkg LHC Physics Discussion - 10/9/2012

  11. Standard Model Backgrounds LHC Physics Discussion - 10/9/2012

  12. Standard Model Backgrounds MadGraph 50% uncertainty on the Xsec LHC Physics Discussion - 10/9/2012

  13. Single Photon MET Spectrum No excess observed over SM expectations Six bins in MET > 100 GeV used to set limits [100, 120, 160, 200, 270, 350, ∞) LHC Physics Discussion - 10/9/2012

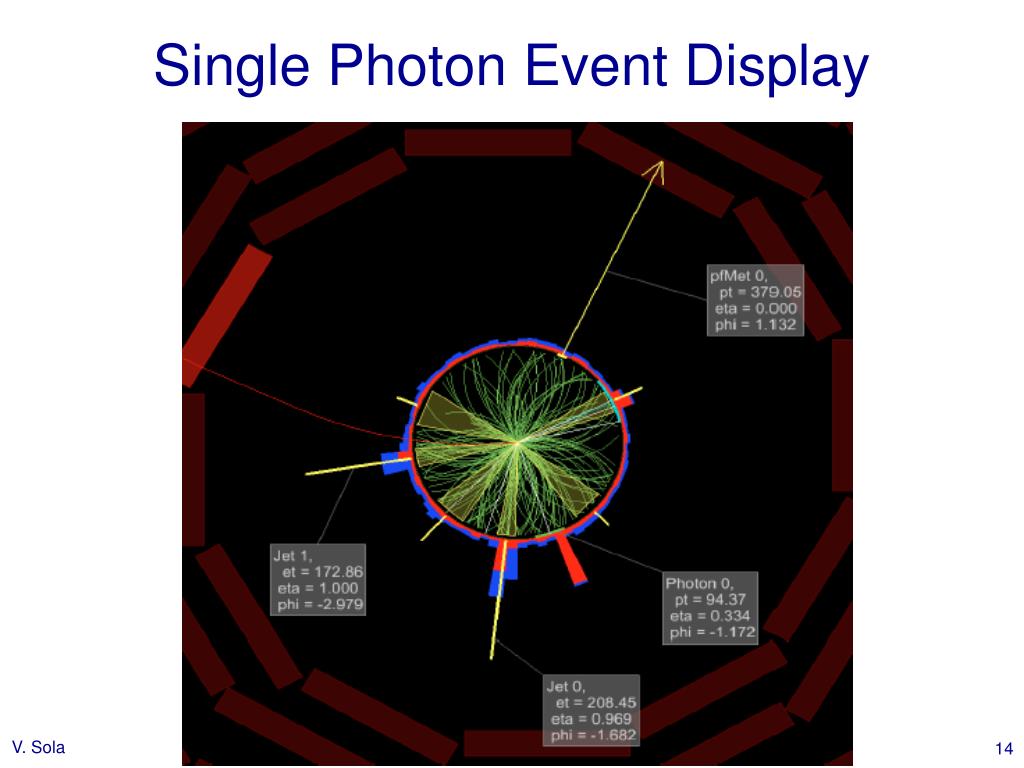

  14. Single Photon Event Display LHC Physics Discussion - 10/9/2012

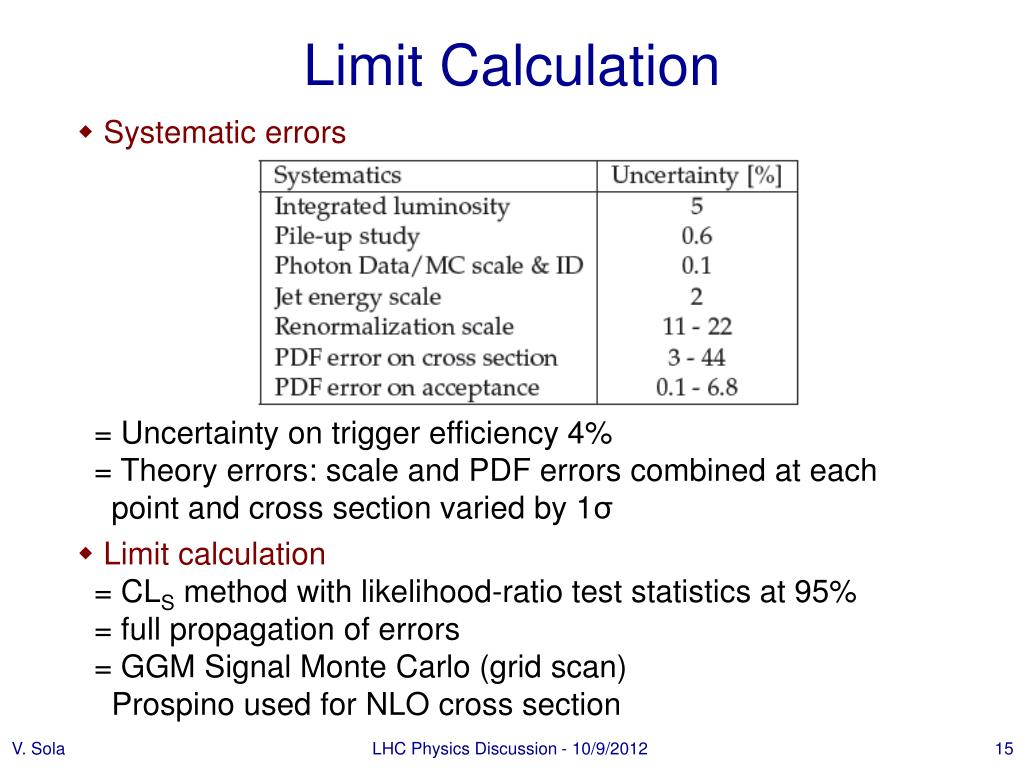

  15. Limit Calculation  Systematic errors = Uncertainty on trigger efficiency 4% = Theory errors: scale and PDF errors combined at each point and cross section varied by 1σ  Limit calculation = CLS method with likelihood-ratio test statistics at 95% = full propagation of errors = GGM Signal Monte Carlo (grid scan) Prospino used for NLO cross section LHC Physics Discussion - 10/9/2012

  16. Interpretation: Bino-like NLSP Bino-like GGM scan mχ0 = 375 GeV, msquark,gluino = 400-2000 GeV (step 80 GeV) sleptons and all gauginos except NLSP @ 3.5 TeV γ + ≥2 jets + MET γ + ≥2 jets + MET LHC Physics Discussion - 10/9/2012

  17. Interpretation: Wino-like NLSP Wino-like GGM scan mχ0 = 375 GeV, msquark,gluino = 400-2000 GeV (step 80 GeV) sleptons and all gauginos except NLSP @ 3.5 TeV γ + ≥2 jets + MET γ + ≥2 jets + MET LHC Physics Discussion - 10/9/2012

  18. Updated MET Spectrum Json: 27Aug ∫Ldt = 9.4 fb-1 CMSSW: 532patch1 LHC Physics Discussion - 10/9/2012

  19. Summary and Outlook  CMS analysis designed to cover a broad range of final state SUSY GMSB scenarios = Preliminary results with 4 fb-1 of 8 TeV data collected in 2012 = data-driven background estimate for QCD/EWK sources = no excesses seen over SM predictions  Exclusion limits set in bino- and wino-like neutralino NLSP = Bino like: msquark < 1.2 TeV, mgluino < 1.1 TeV excluded = Wino like: msquark < 900 GeV, mgluino < 800 GeV excluded  Results with full 2012 statistics foreseen in Moriond2013 = increased statistics = optimised analysis = b-tagging and angle variable investigation will be included LHC Physics Discussion - 10/9/2012
