Jinko Solar Tiger N-Type 60TR Module 355-375W

Jinko Solar Module panels offer home and business owners reliable solar power paired with great aesthetics and options to match their personal preferences. Do the Jinko Solar Residential Modules pair their pleasing looks with the quality guarantee of Jinko Solar and our industry-leading Limited Manufacturers Warranty.

beyondsolar
Télécharger la présentation

Jinko Solar Tiger N-Type 60TR Module 355-375W

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

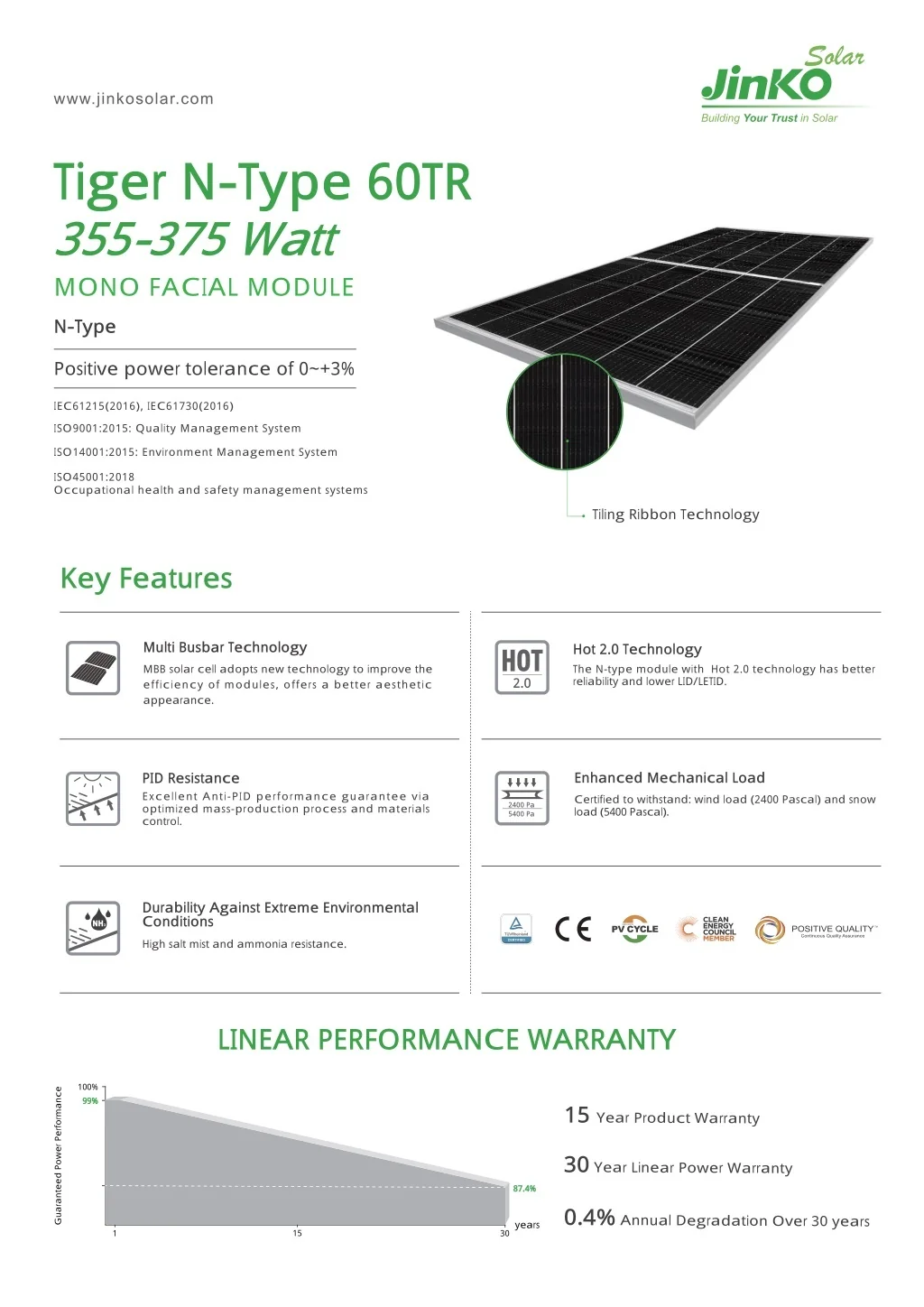

  1. www.jinkosolar.com Tiger N-Type 60TR 355-375 Watt MONO FAC IAL MODULE N-Type Positive power tolerance of 0~+3% IEC 61215(2016), IEC 61730(2016) ISO9001:2015: Qua lity Ma na g ement System ISO14001:2015: Environment Ma na g ement System ISO45001:2018 Oc c upa tiona l hea lth a nd sa fety ma na g ement systems Tiling Ribbon Technology Key Features Multi Busbar Technology Hot 2.0 Technology The N-type module with Hot 2.0 tec hnology has better reliability and lower LID/LETID. HOT MBB solar cell adopts new technology to improve the e ffic ie nc y of module s, offe rs a be tte r a e sthe tic appearance. 2.0 Enhanced Mechanical Load PID Resistance Exc e lle nt A nti-PID pe rforma nc e g ua ra nte e via optimized ma ss-produc tion proc ess a nd ma teria ls control. C ertified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal). 2400 Pa 5400 Pa Durability Against Extreme Environmental Conditions High salt mist and ammonia resistance. LINEAR PERFORMANCE WARRANTY 100% Guaranteed Power Performance 99% 99% 15 Year Product Warranty 30Year Linear Power Warranty 87.4% 87.4% 0.4%Annual Degradation Over 30 years years 15 30 1

  2. Engineering Drawings Electrical Performance & Temperature Dependence 987mm H Current-Voltage & Power-Voltage Curves (365W) Temperature Dependence of Isc,Voc,Pmax 180 160 12 420 Normalized Isc, Voc, Pmax (%) 140 10 350 120 1692mm 1360mm 860mm 8 280 Isc C urrent (A) Power (W) 100 6 210 Voc 80 4 140 Pmax 60 70 2 40 0 0 0 5 10 15 20 25 30 35 40 45 20 A A -50 -25 0 25 50 75 100 1029mm Voltage (V) C ell Temperature (℃） Front Side Back Length: ±2mm 9.0 4.5 Mechanical Characteristics Width: ±2mm 30 14 C ell Type N type Mono-crystalline Height: ±1mm Row Pitch: ±2mm No. of cells 120 (6×20) 30 Dimensions 1692×1029×30mm (66.61×40.51×1.18 inch) A-A Weight 19.0 kg (41.89 lbs) Packaging Configuration 3.2mm,Anti-Reflection C oating, High Transmission, Low Iron, Tempered Glass Front Glass ( Two pallets = One stack ) Frame J unction Box Anodized Aluminium Alloy 35pcs/pallets, 70pcs/stack, 910pcs/ 40'HQ C ontainer IP68 Rated TUV 1×4.0mm 2 Output C ables (+): 290mm , (-): 145mm or C ustomized Length SPECIFICATIONS JKM355N-6TL3 JKM355N-6TL3-V JKM360N-6TL3 JKM360N-6TL3-V JKM365N-6TL3 JKM365N-6TL3-V JKM370N-6TL3 JKM370N-6TL3-V JKM375N-6TL3 JKM375N-6TL3-V Module Type STC NOCT STC NOCT STC NOCT STC NOCT STC NOCT Maximum Power (Pmax) 355Wp 265Wp 360Wp 268Wp 365Wp 272Wp 370Wp 276Wp 375Wp 280Wp Maximum Power Voltage (Vmp) 34.19V 31.58V 34.49V 31.88V 34.63V 34.04V 31.40V 34.34V 31.72V 32.03V Maximum Power C urrent (Imp) 10.43A 8.43A 10.53A 8.50A 10.73A 8.65A 10.83A 8.73A 10.63A 8.58A Open-circuit Voltage (Voc) 41.01V 38.71V 41.16V 38.85V 41.31V 38.99V 41.46V 39.13V 41.60V 39.26V Short-circuit C urrent (Isc) 11.13A 8.99A 11.23A 9.07A 11.33A 9.15A 11.43A 9.23A 11.53A 9.31A Module Efficiency STC (%) 20.39% 20.68% 20.96% 21.25% 21.54% Operating Temperature(℃) -40℃~+85℃ Maximum System Voltage 1000/1500VDC (IEC) Maximum Series Fuse Rating 20A Power Tolerance 0~+3% -0.34%/℃ Temperature C oefficients of Pmax -0.28%/℃ Temperature C oefficients of Voc 0.048%/℃ Temperature C oefficients of Isc 45±2℃ Nominal Operating C ell Temperature (NOC T) *STC : Irradiance 1000W/m2 C ell Temperature 25°C AM=1.5 NOC T: Irradiance 800W/m2 Ambient Temperature 20°C AM=1.5 Wind Speed 1m/s ©2020 J inko Solar C o., Ltd. All rights reserved. Specifications included in this datasheet are subject to change without notice. J K M355-375N-6TL3-(V)-F1-EN (IEC 2016)
