PHOTOSYNTHESIS

PHOTOSYNTHESIS. An anabolic process in which carbohydrates are synthesized from CO 2 and H 2 O by green plants using radiant energy of the Sun, oxygen being a byproduct. 6CO 2 +12H 2 O → C 6 H 12 O 6 +6O 2 +6H 2 O Autotrophs, Heterotrophs Raw materials Products

bijan
Télécharger la présentation

PHOTOSYNTHESIS

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

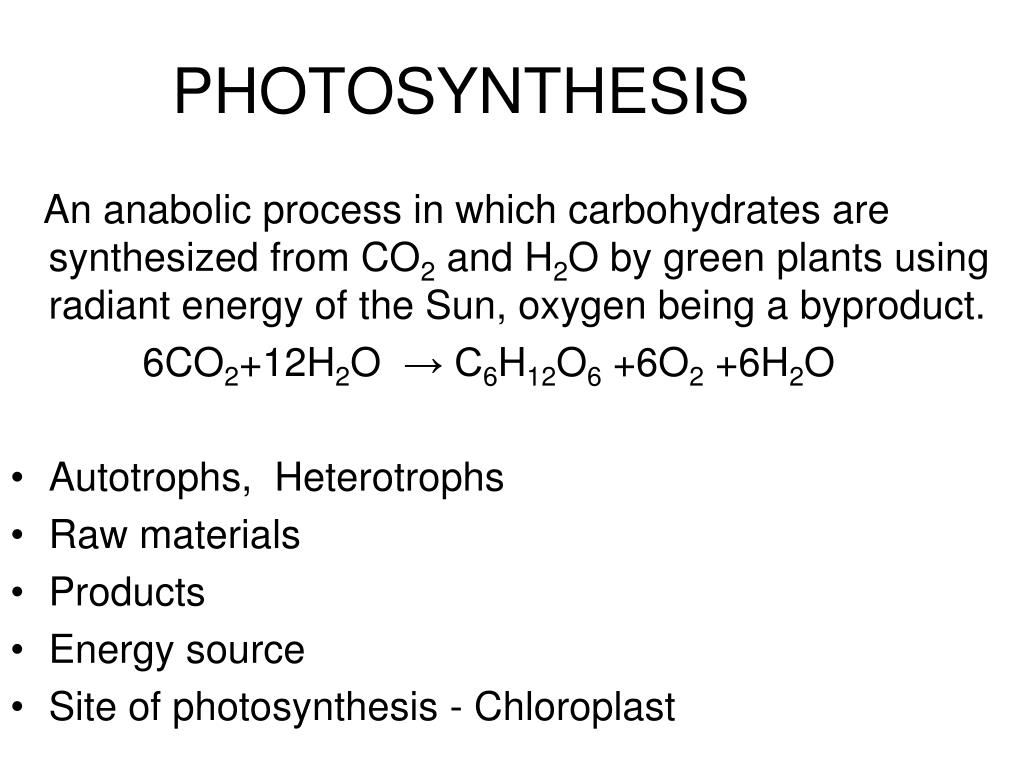

  1. PHOTOSYNTHESIS An anabolic process in which carbohydrates are synthesized from CO2 and H2O by green plants using radiant energy of the Sun, oxygen being a byproduct. 6CO2+12H2O → C6H12O6 +6O2 +6H2O • Autotrophs, Heterotrophs • Raw materials • Products • Energy source • Site of photosynthesis - Chloroplast

  2. Each mesophyll cell has 20 – 100 chloroplasts. 3 – 10 micro meter in length, 1 – 5 micro meter diameter. Each chloroplast – 40 – 60 grana Each granum – 50 or more thylakoids.

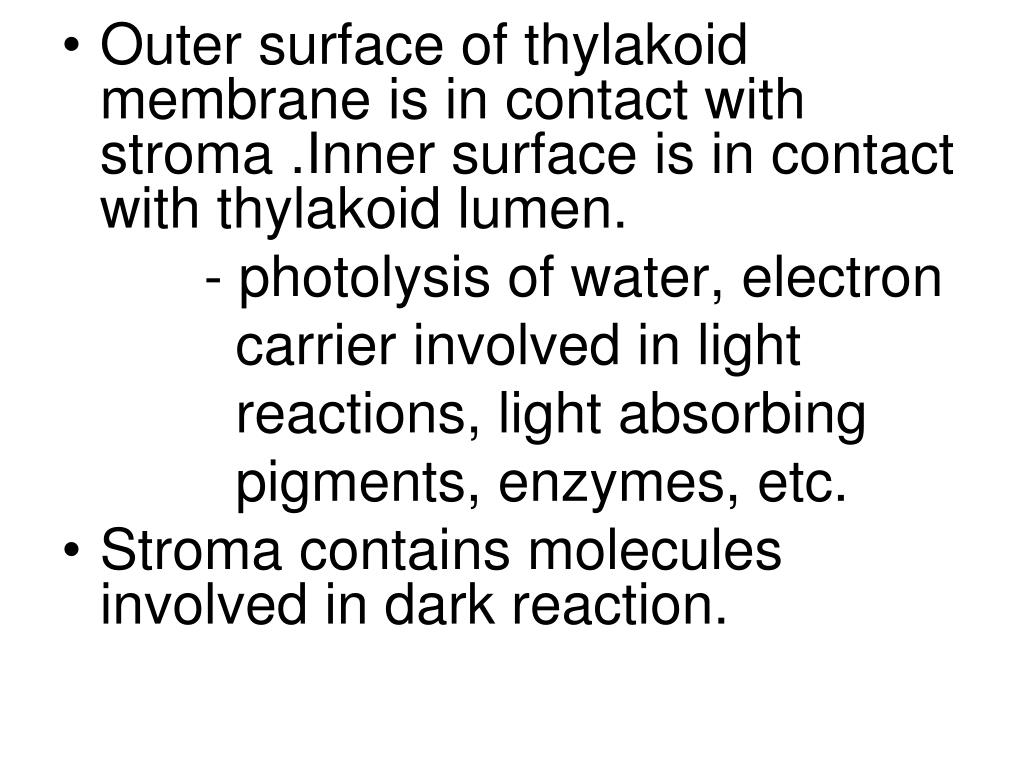

  3. Outer surface of thylakoid membrane is in contact with stroma .Inner surface is in contact with thylakoid lumen. - photolysis of water, electron carrier involved in light reactions, light absorbing pigments, enzymes, etc. • Stroma contains molecules involved in dark reaction.

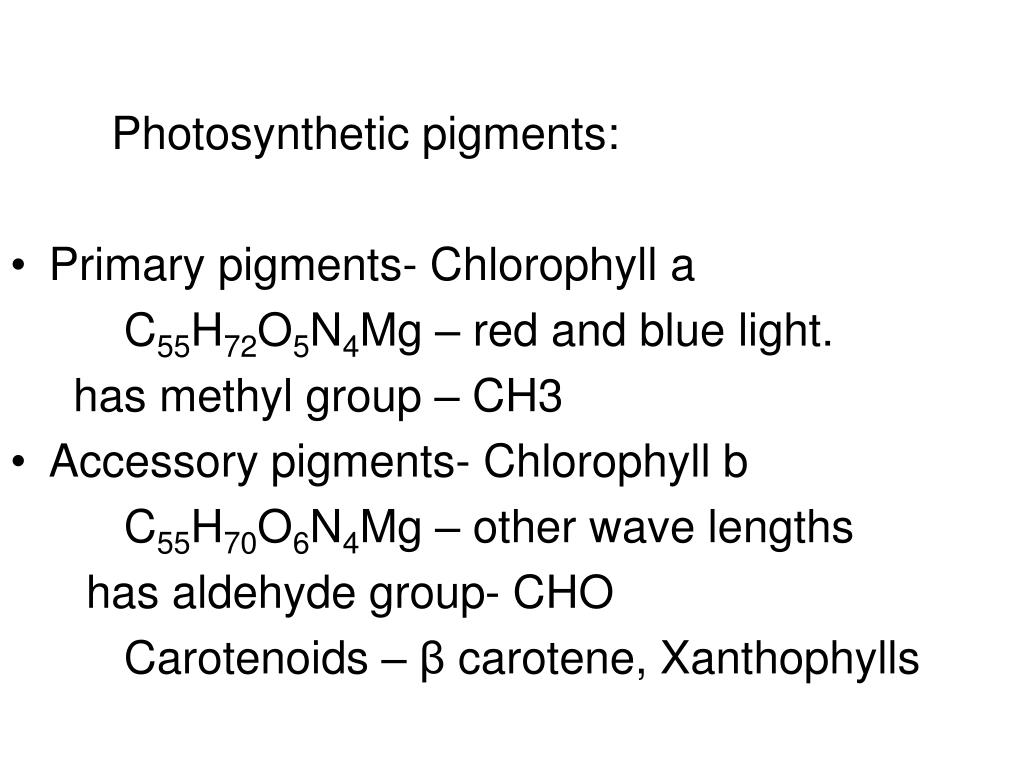

  4. Photosynthetic pigments: • Primary pigments- Chlorophyll a C55H72O5N4Mg – red and blue light. has methyl group – CH3 • Accessory pigments- Chlorophyll b C55H70O6N4Mg – other wave lengths has aldehyde group- CHO Carotenoids – β carotene, Xanthophylls

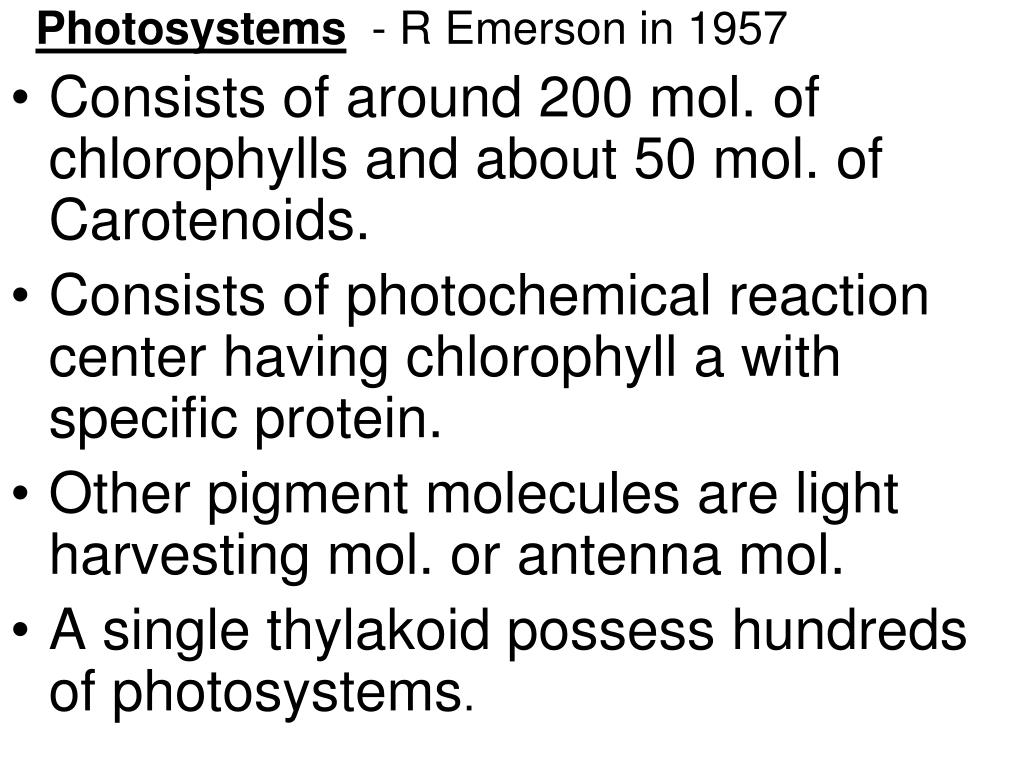

  5. Photosystems - R Emerson in 1957 • Consists of around 200 mol. of chlorophylls and about 50 mol. of Carotenoids. • Consists of photochemical reaction center having chlorophyll a with specific protein. • Other pigment molecules are light harvesting mol. or antenna mol. • A single thylakoid possess hundreds of photosystems.

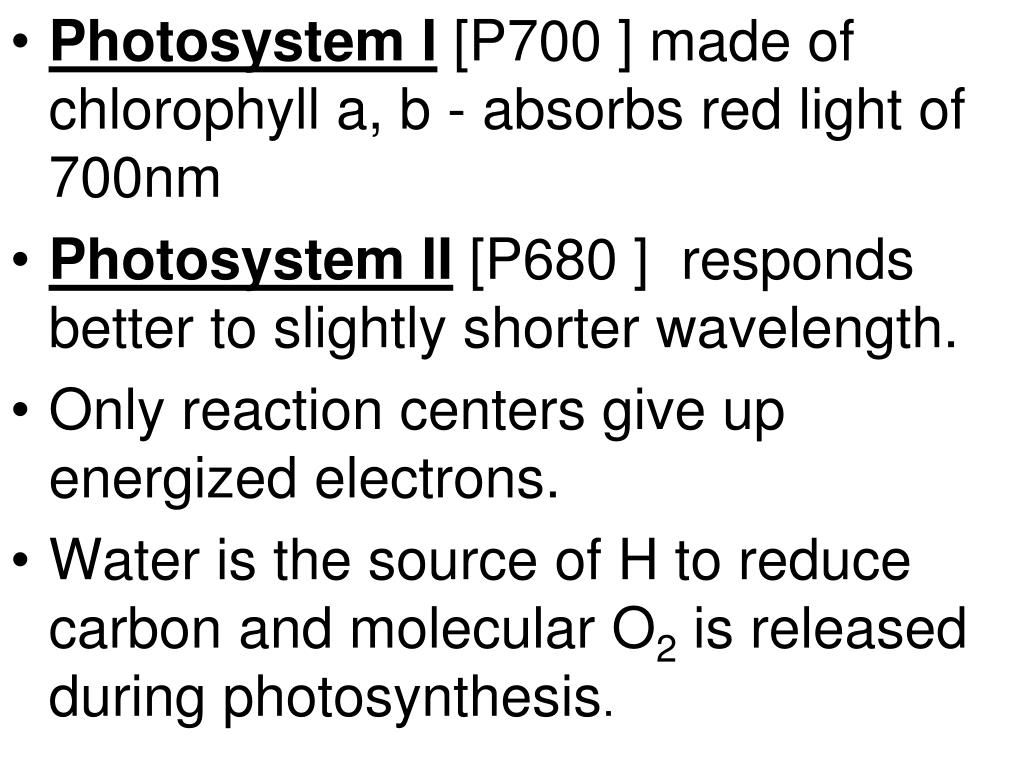

  6. Photosystem I [P700 ] made of chlorophyll a, b - absorbs red light of 700nm • Photosystem II [P680 ] responds better to slightly shorter wavelength. • Only reaction centers give up energized electrons. • Water is the source of H to reduce carbon and molecular O2 is released during photosynthesis.

  7. LIGHT DEPENDENT REACTIONS • Photo excitation of chlorophyll chlo. → chlo+ (oxidized) + e- • Photolysis or Photo oxidation of water 2H2O → 4H+ + 4e- + O2 ↑ • Photophosphorylation and Electron transport.

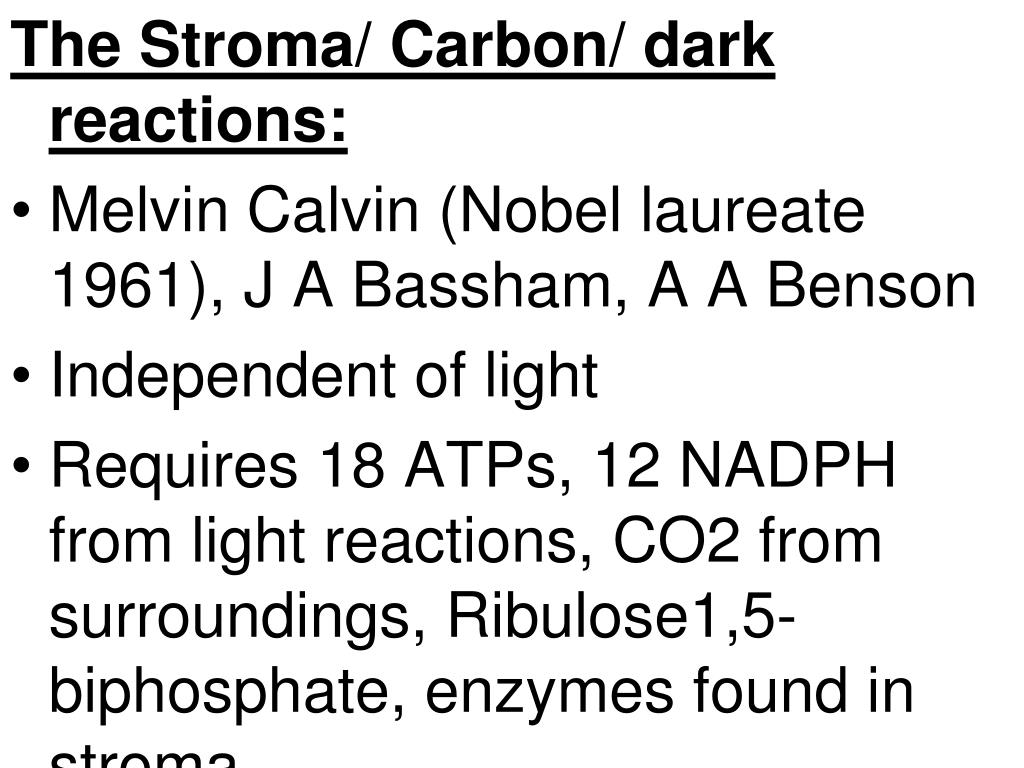

  8. The Stroma/ Carbon/ dark reactions: • Melvin Calvin (Nobel laureate 1961), J A Bassham, A A Benson • Independent of light • Requires 18 ATPs, 12 NADPH from light reactions, CO2 from surroundings, Ribulose1,5-biphosphate, enzymes found in stroma.

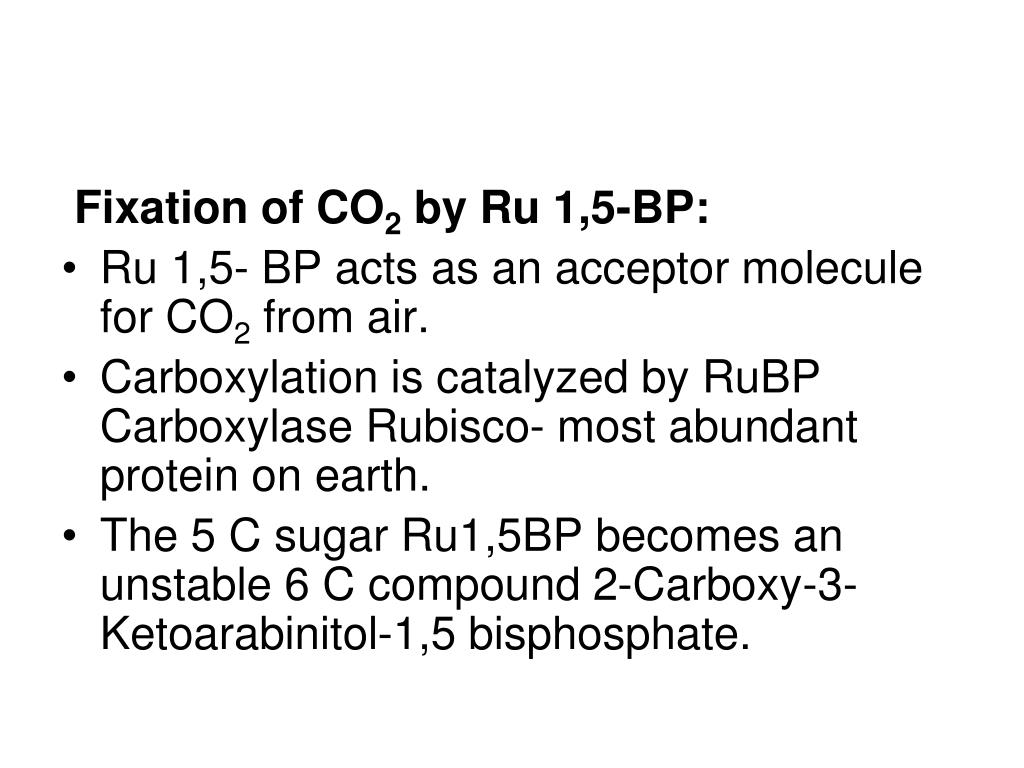

  9. Fixation of CO2 by Ru 1,5-BP: • Ru 1,5- BP acts as an acceptor molecule for CO2 from air. • Carboxylation is catalyzed by RuBP Carboxylase Rubisco- most abundant protein on earth. • The 5 C sugar Ru1,5BP becomes an unstable 6 C compound 2-Carboxy-3-Ketoarabinitol-1,5 bisphosphate.

  10. Splitting • Unstable 6 C compound hydrolyzed into 2 molecules of 3-phosphoglycerate-first stable product of dark rxn, hence called C3 cycle and the plants, C3 plants.

  11. Second Phosphorylation : • 3PGA receives a phosphate group from ATP and becomes 1,3- Bisphosphoglycerate. Reduction : • 1,3- Bisphosphoglycerate accepts Hydrogen from NADPH and gets reduced into energy rich 3C sugar Glyceraldehyde-3- Phosphate or Phosphoglyceraldehyde (PGAL). * Reduction of 6CO2 forms12 PGAL in the stroma.

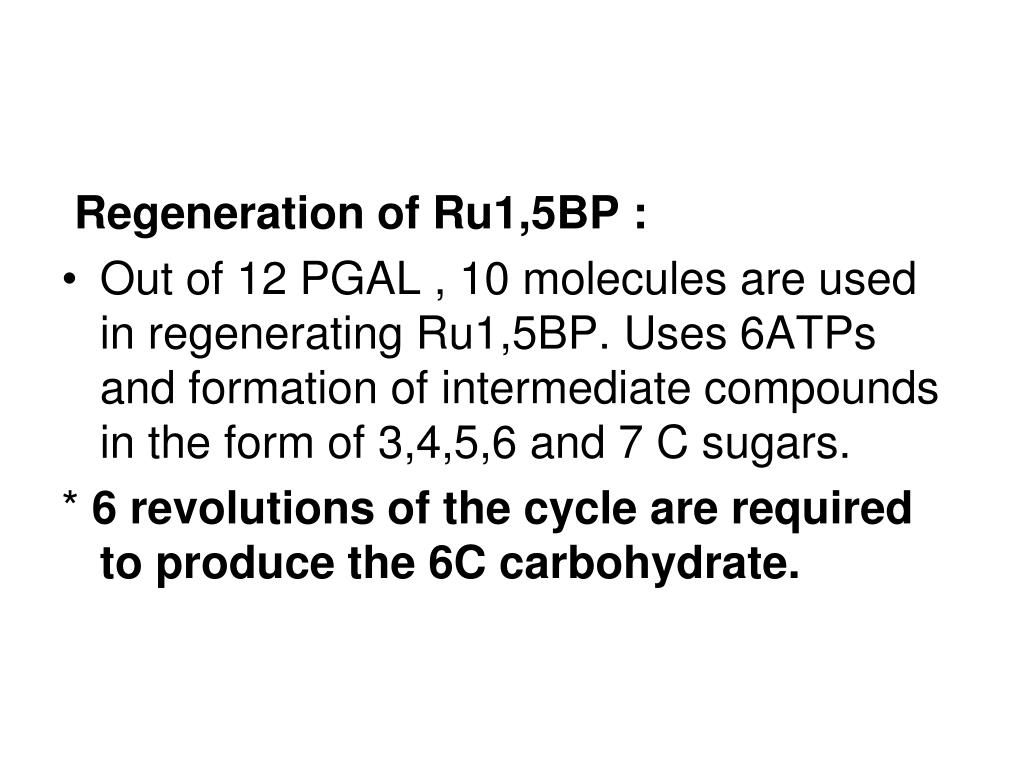

  12. Regeneration of Ru1,5BP : • Out of 12 PGAL , 10 molecules are used in regenerating Ru1,5BP. Uses 6ATPs and formation of intermediate compounds in the form of 3,4,5,6 and 7 C sugars. * 6 revolutions of the cycle are required to produce the 6C carbohydrate.

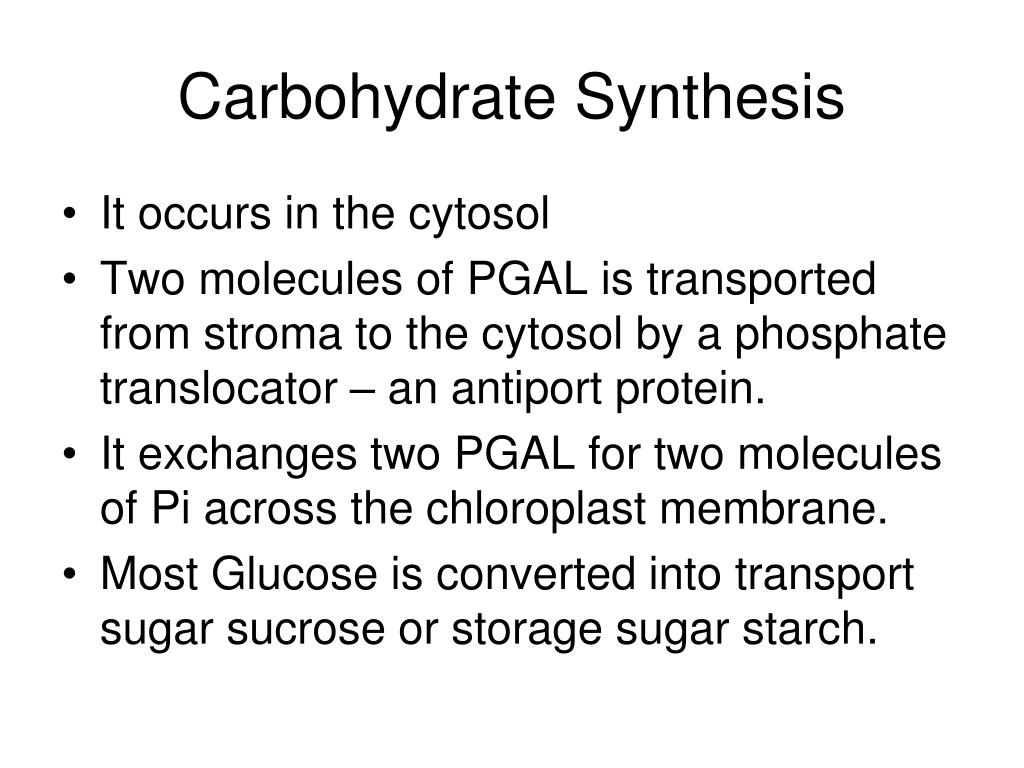

  13. Carbohydrate Synthesis • It occurs in the cytosol • Two molecules of PGAL is transported from stroma to the cytosol by a phosphate translocator – an antiport protein. • It exchanges two PGAL for two molecules of Pi across the chloroplast membrane. • Most Glucose is converted into transport sugar sucrose or storage sugar starch.

  14. C4 Photosynthesis ( Hatch – Slack Pathway) • MD Hatch and CR Slack – 1966, Mainly in monocots with the first product 4C molecule oxaloacetate. • C4 plants exhibit a unique leaf anatomy called Kranz (= ahalo), where there are two rings of cells around a vascular bundle, the inner bundle sheath cells and outer mesophyll cells. • The bundle sheath cells have rudimentary chloroplasts and mesophyll cells well developed chloroplasts – dimorphic.

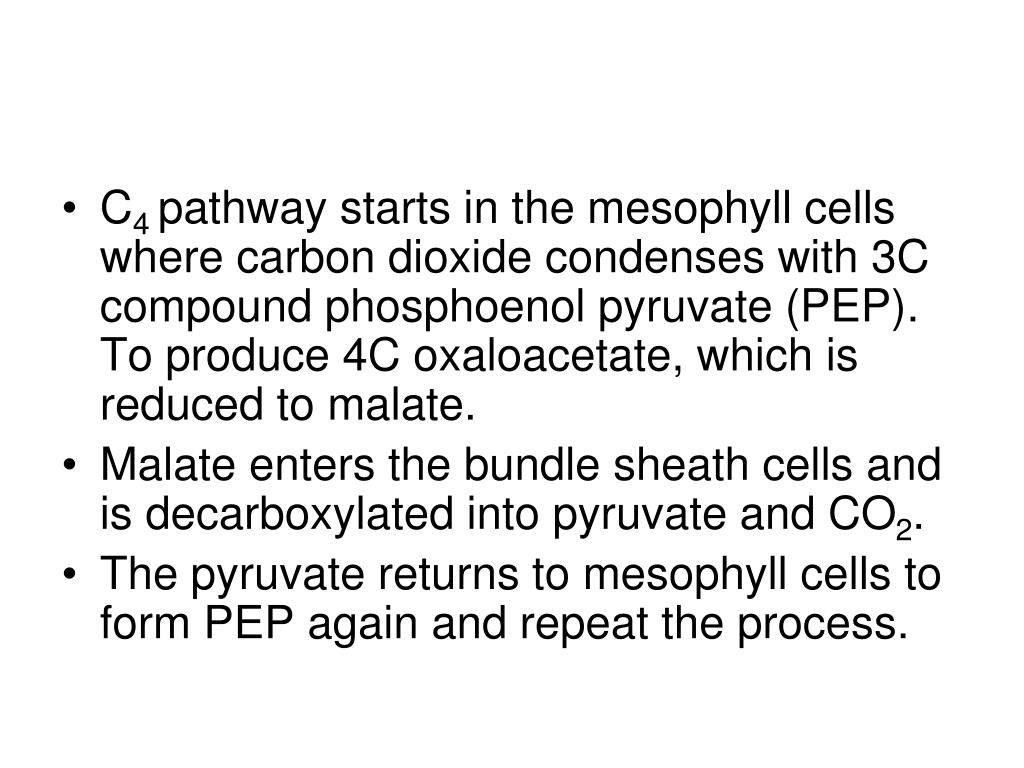

  15. C4 pathway starts in the mesophyll cells where carbon dioxide condenses with 3C compound phosphoenol pyruvate (PEP). To produce 4C oxaloacetate, which is reduced to malate. • Malate enters the bundle sheath cells and is decarboxylated into pyruvate and CO2. • The pyruvate returns to mesophyll cells to form PEP again and repeat the process.

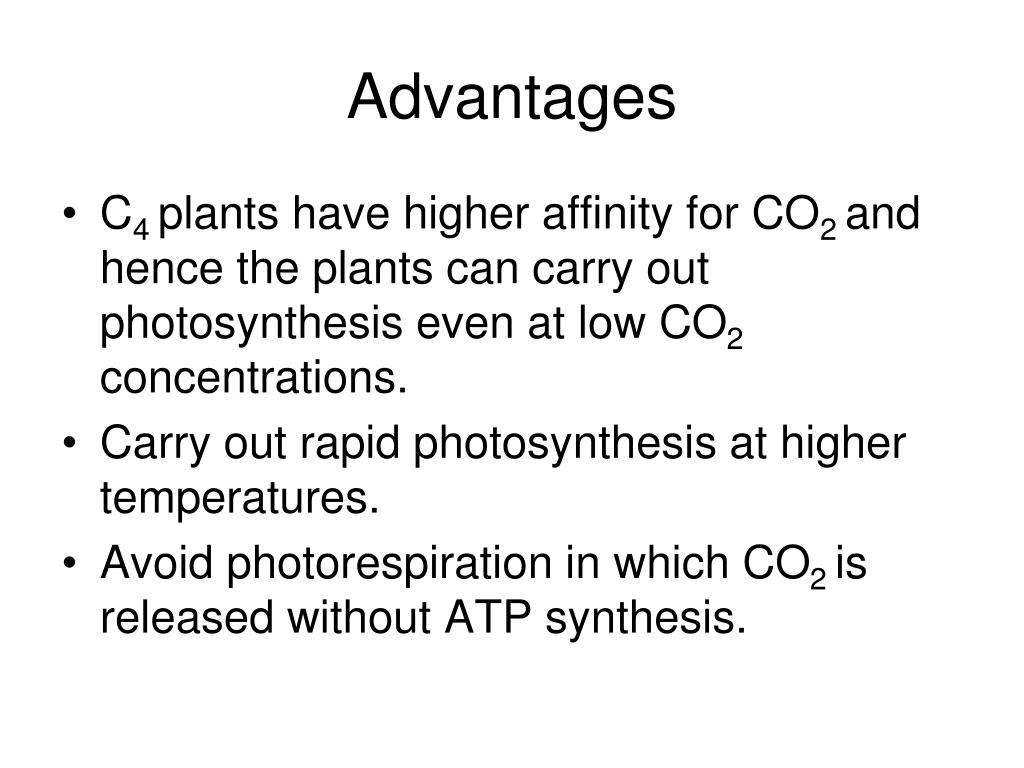

  16. Advantages • C4 plants have higher affinity for CO2 and hence the plants can carry out photosynthesis even at low CO2 concentrations. • Carry out rapid photosynthesis at higher temperatures. • Avoid photorespiration in which CO2 is released without ATP synthesis.

  17. Crassulacean Acid Metabolism (CAM) • Adaptation seen in succulents • First discovered in the family Crassulaceae. • In these plants the stomata is scotactive – closed during day and open at night. • Water loss is prevented and photorespiration cannot occur. • In the night when stomata opens at cooler temperatures CO2 is fixed by C4 pathway.
