  1. The Enhanced Classroom Development Process: Standards and Practices Andrew Faunce, Dartmouth College Michael Ney, Gettysburg College

  2. The Enhanced Classroom Development Process: Standards and Practices Part I Design Theory Andrew Faunce

  3. Large Screen Presentation Human Factors Design Principles Design Deliverables

  4. Human Factors Visual Perception Aural Perception Body Size and Movement

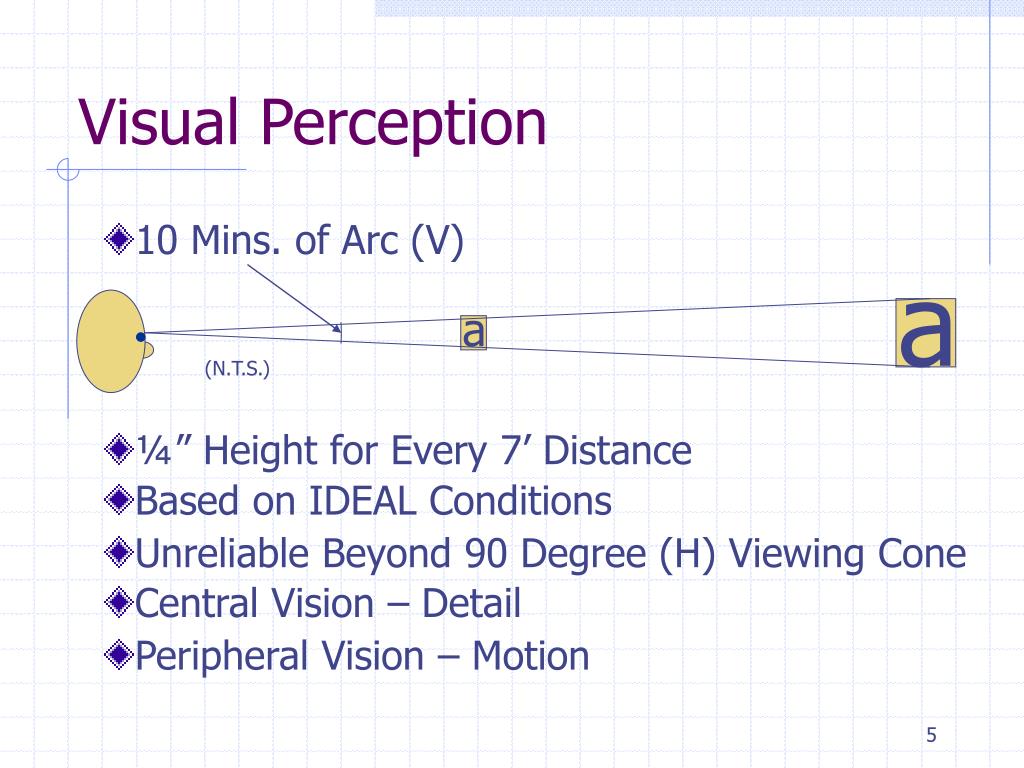

  5. 10 Mins. of Arc (V) ¼” Height for Every 7’ Distance a (N.T.S.) a Visual Perception Based on IDEAL Conditions Unreliable Beyond 90 Degree (H) Viewing Cone Central Vision – Detail Peripheral Vision – Motion

  6. ? Aural Perception Directional Cues Level Differences Perceived at 2dB

  7. Body Size • Head Height – 4’0” • Eye Height – 3’6” • Ear Height – 3’6”

  8. HORIZONTAL VERTICAL 30 35 60 45 60 (N.T.S.) Body Movement EASY/MAX Head/Eye Movement

  9. Design Principles • Viewing Distances • Image Size • Angles of View • Line of Sight • Sound System Requirements • Speaker Performance and Placement

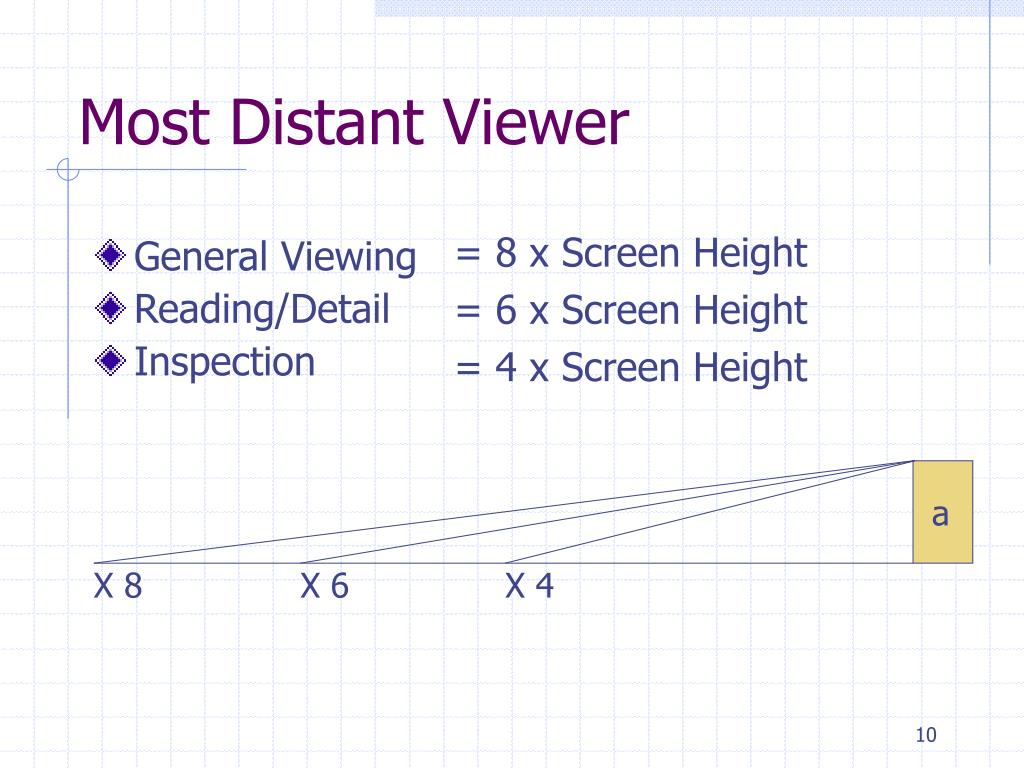

  10. a X 8 X 6 X 4 Most Distant Viewer • General Viewing • Reading/Detail • Inspection = 8 x Screen Height = 6 x Screen Height = 4 x Screen Height

  11. /4 /6 /8 Screen Height Calculation • General Viewing = MDV / 8 • Reading/Detail = MDV / 6 • Inspection = MDV / 4

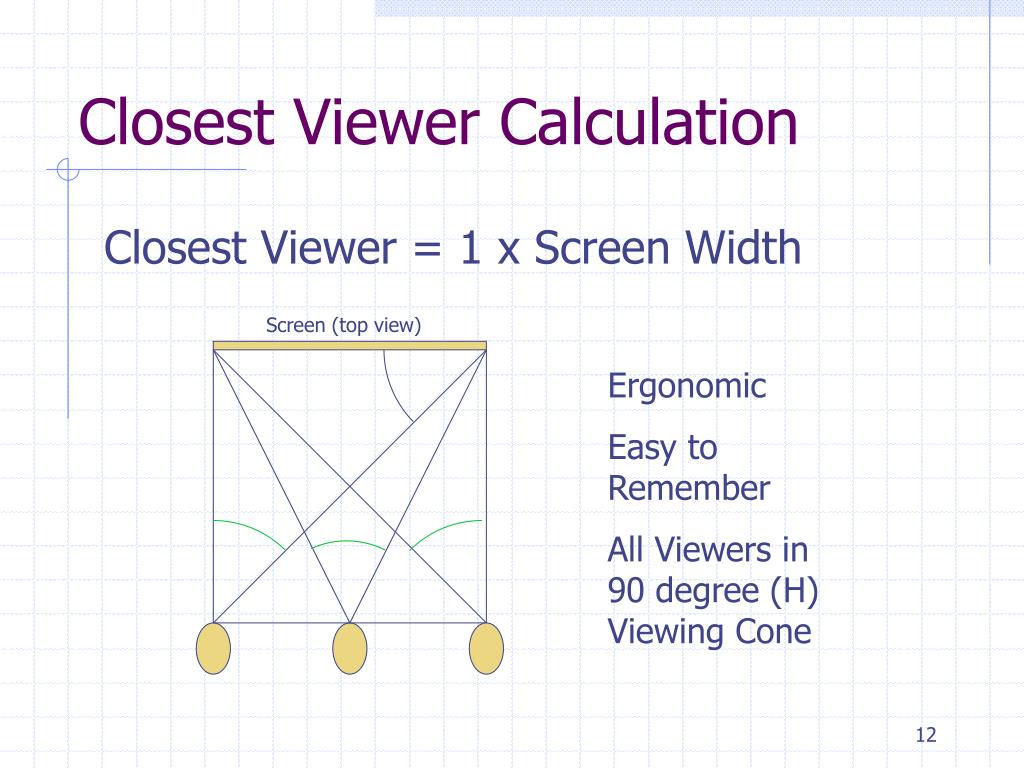

  12. Screen (top view) Closest Viewer Calculation Closest Viewer = 1 x Screen Width Ergonomic Easy to Remember All Viewers in 90 degree (H) Viewing Cone

  13. Angle of View - Horizontal Solving for ALL Possible 90 Degree Viewing Cones Most Reliable Best for Inspection Most Costly

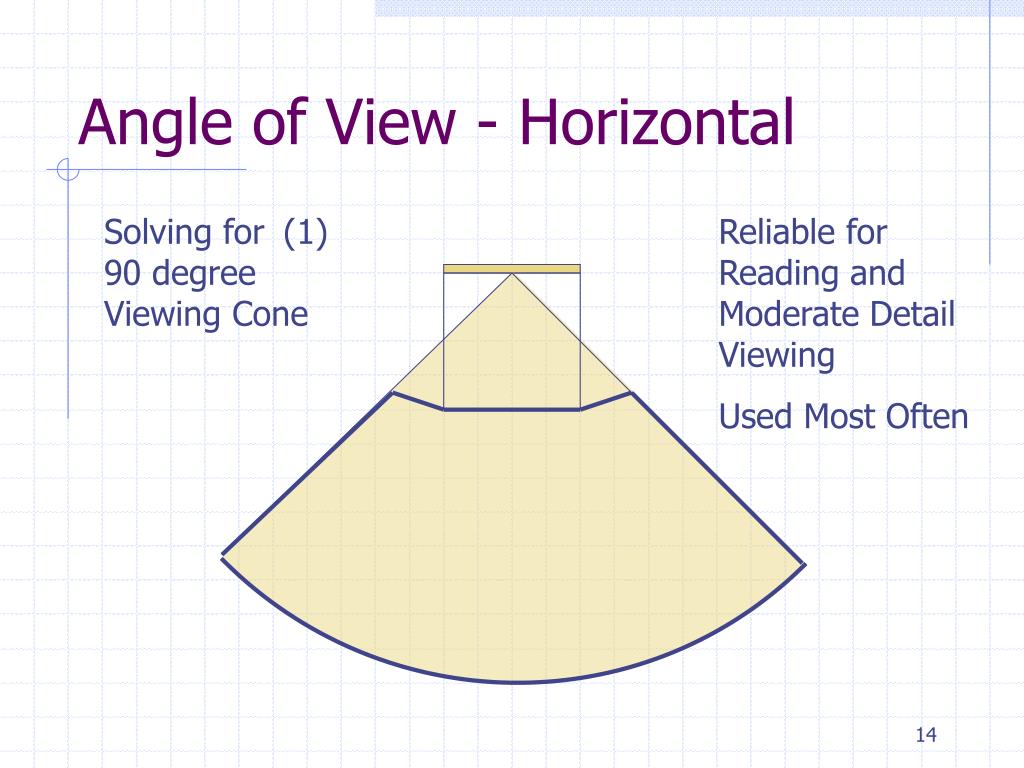

  14. Angle of View - Horizontal Solving for 90 degree Viewing Cone (1) Reliable for Reading and Moderate Detail Viewing Used Most Often

  15. Angle of View - Horizontal Solving for the UNION of all 90 degree Viewing Cones Acceptable for General Viewing (VIDEO) Less Costly

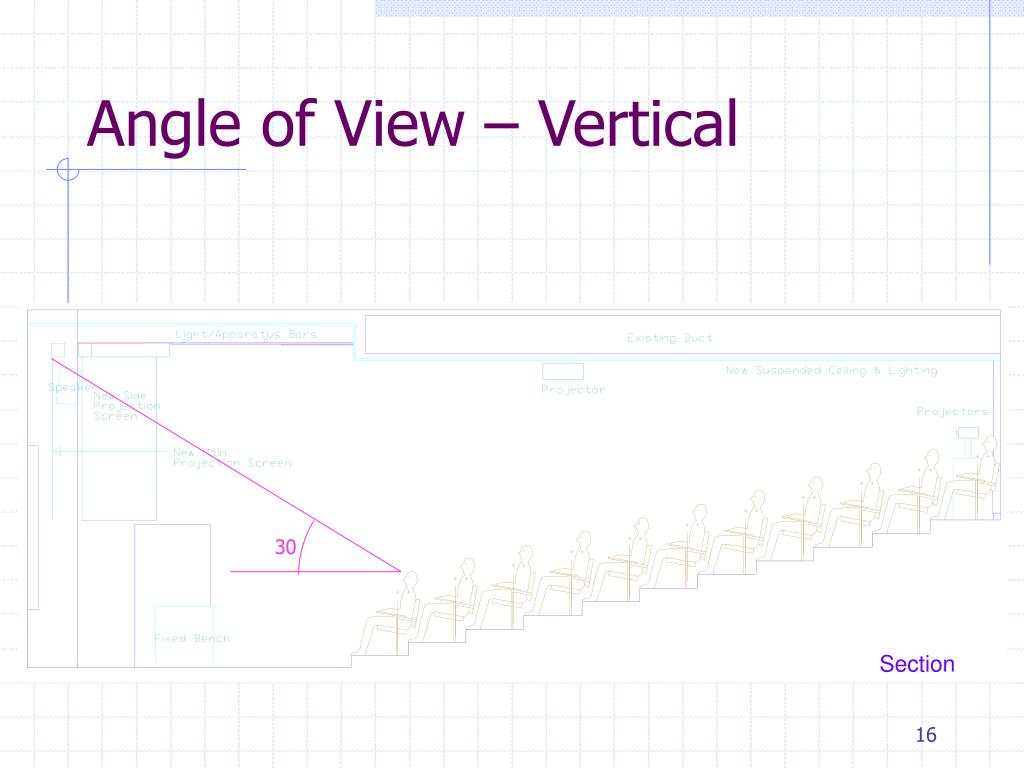

  16. Angle of View – Vertical 30

  17. Sight Lines

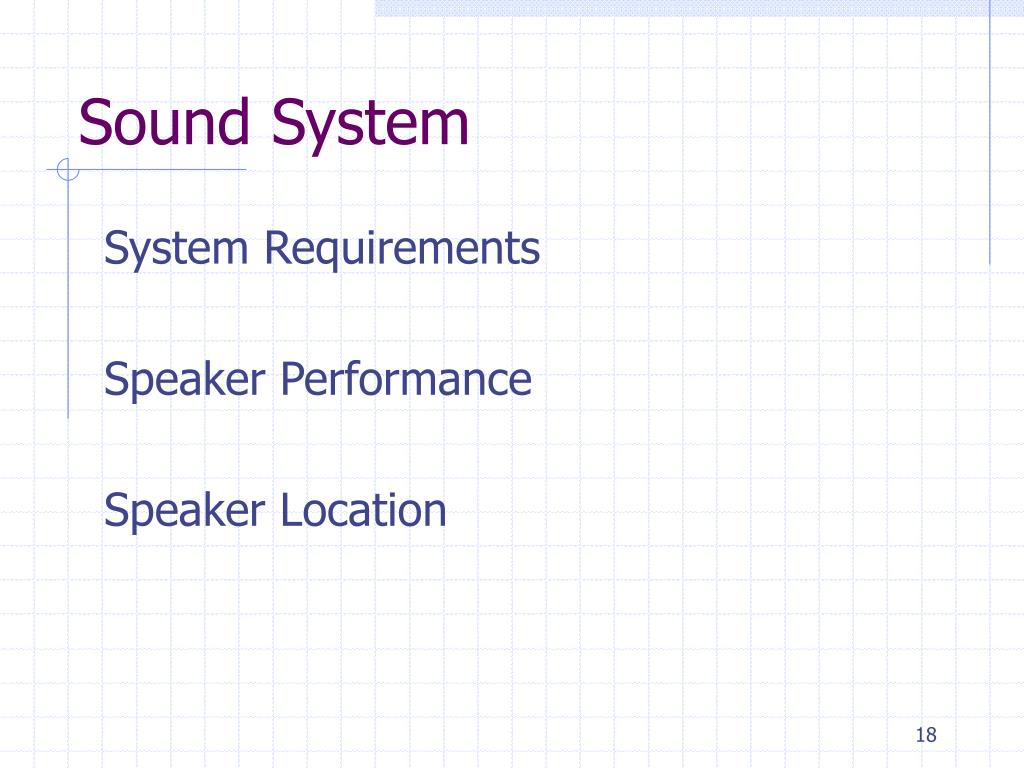

  18. Sound System System Requirements Speaker Performance Speaker Location

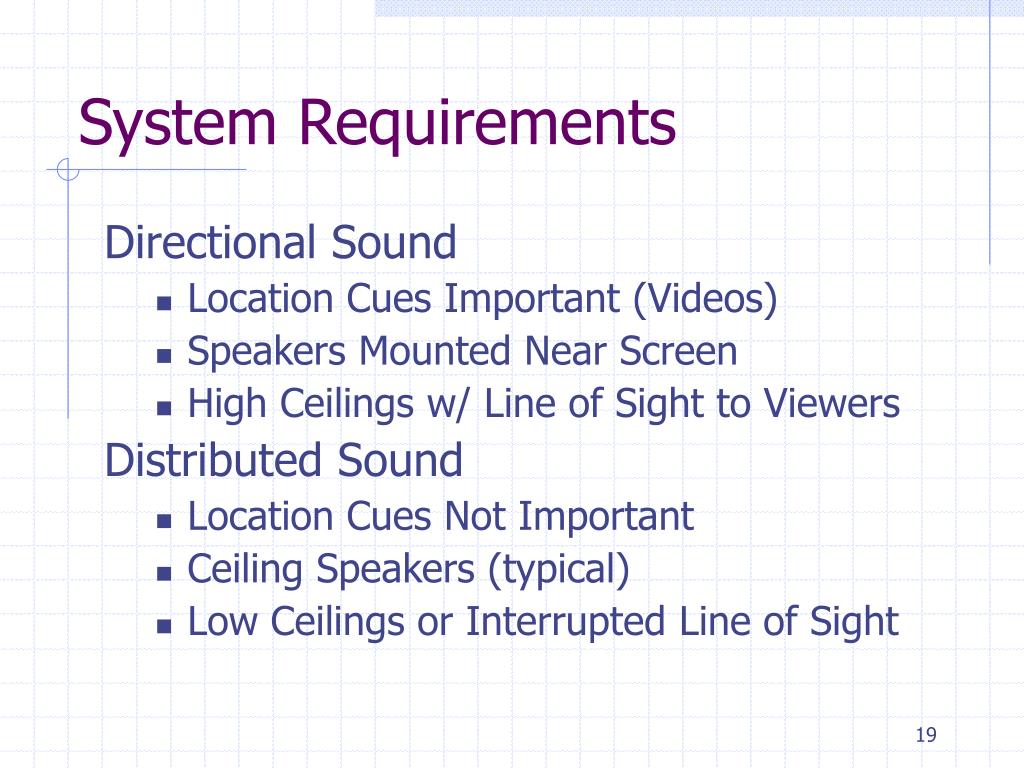

  19. System Requirements Directional Sound • Location Cues Important (Videos) • Speakers Mounted Near Screen • High Ceilings w/ Line of Sight to Viewers Distributed Sound • Location Cues Not Important • Ceiling Speakers (typical) • Low Ceilings or Interrupted Line of Sight

  20. Directional Sound

  21. R = ceiling ht – 3’6” S = 1.4 x R 90 -3dB -3dB S R Distributed Sound

  22. Distributed Sound • More Ceiling Height = Wider Coverage • Zone Speakers Front to Back to Compensate Zone 3 Zone 2 Zone 1

  23. Design Deliverables Programming: • “Program Statement” Design: • “Design Package” • “Not for Construction” Docs Construction: • “Build Package” • “Construction” Docs

  24. Program Statement Text Description of Requirements • Room Functions • Seat Count/Arrangement • Logistics of Use • System Performance Provide Examples and as Much Detail as Possible

  25. AV Design/Build Package • Equipment List • AV Block or Flow Diagram • Control Block / Touch Screen Layouts • Architectural - Plan, Elevations, Section, RCP • Details – racks, plates, mounts, casework • Riser – conduits, j-boxes, cable • Services Provided “By Others”

  26. Plan • Screens • Viewing Cones (H) • Seating • Furnishings • Equipment

  27. Reflected Ceiling Plan (RCP) • Screens • Speaker Locations • Speaker Coverage • Projector Mounts • Lighting Fixtures • HVAC Vents • Sprinkler Heads

  28. Front, Side, Back Screens Whiteboard/Lighting Equipment Furnishings Controls/Plates Elevations

  29. Vertical Angle of View Line of Sight Speaker Coverage Projector Light Paths Section

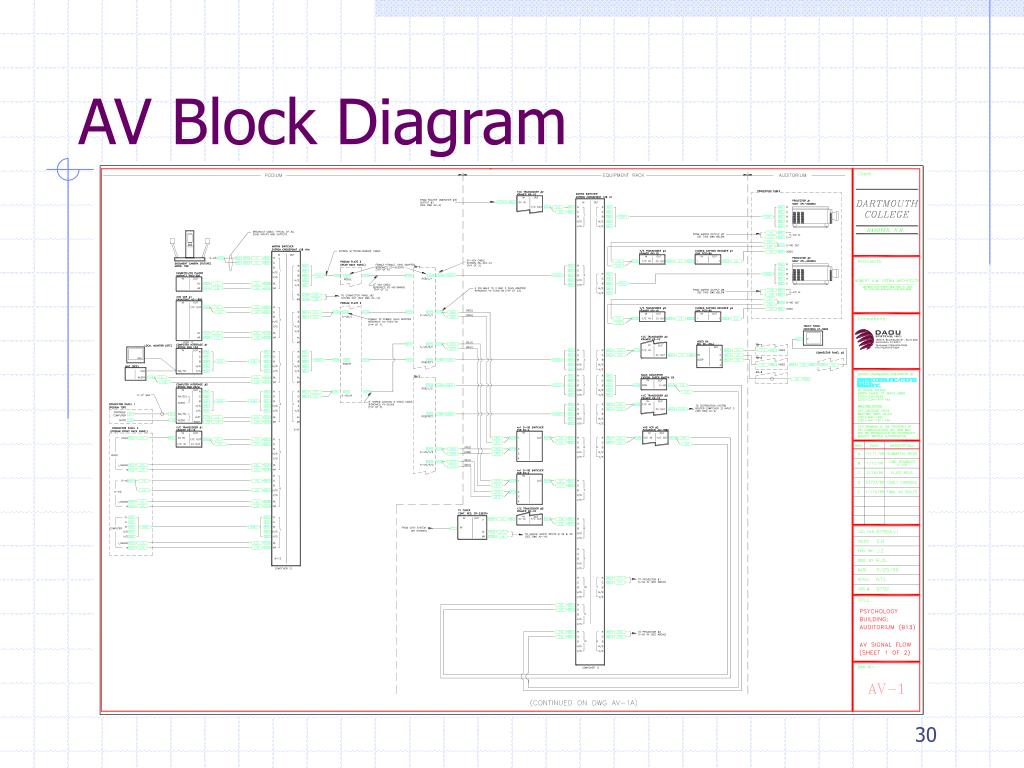

  30. AV Block Diagram

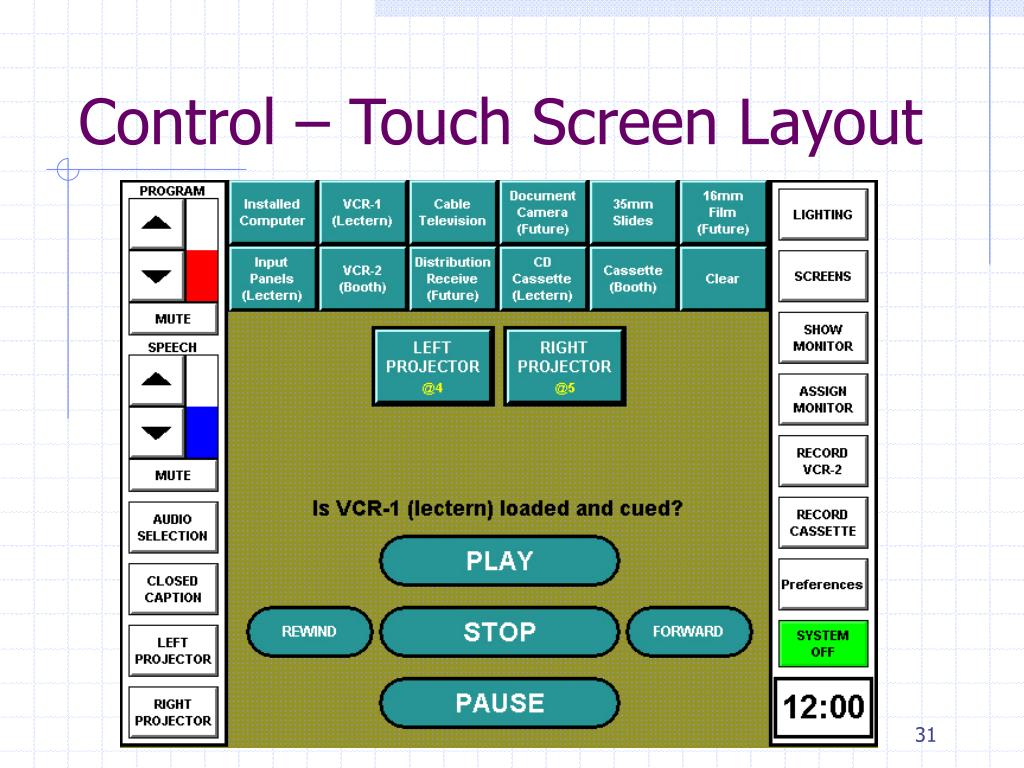

  31. Control – Touch Screen Layout

  32. Rack Detail

  33. Plate Detail

  34. Casework Detail

  35. References • International Communications Industries Association (ICIA) www.icia.org • Angles of View – DA-LITE Screen Company www.da-lite.com • Time-Saver Standards for Interior Design and Space Planning, De Chiara

  36. Contact Info Andrew Faunce Instructional Services/Computing Services - Dartmouth College 6195 North Fairbanks - Hanover, NH 03755 andrew.g.faunce@dartmouth.edu http://www.dartmouth.edu/~insvcs/ 603.646.3614 voice 603.646.1343 fax
