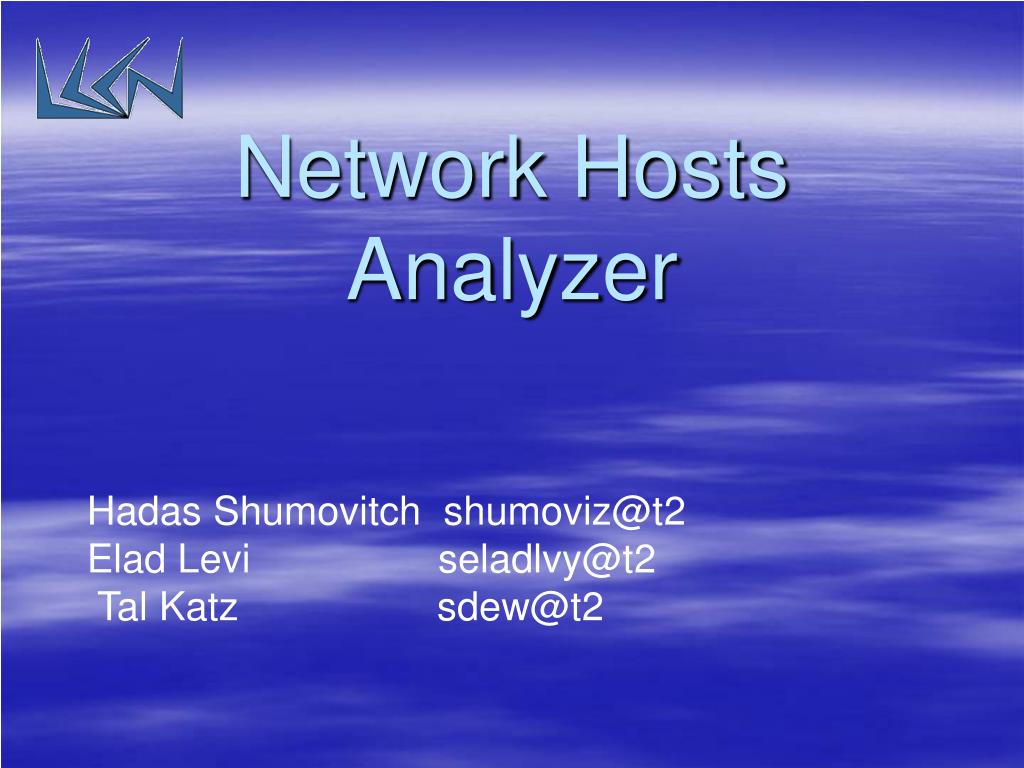

Network Hosts Analyzer. Hadas Shumovitch shumoviz@t2 Elad Levi seladlvy@t2 Tal Katz sdew@t2. Presentation Layout. Background Program outline Cache refresh algorithm User Interface Points for Extension. Background.

binh
Télécharger la présentation

Network Hosts Analyzer

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Network HostsAnalyzer Hadas Shumovitch shumoviz@t2 Elad Levi seladlvy@t2 Tal Katz sdew@t2

  2. Presentation Layout • Background • Program outline • Cache refresh algorithm • User Interface • Points for Extension

  3. Background • The Computer Science faculty has hundreds of computers and users. • There is a need for a program to monitor and supervise all of the computers. • There are programs available, but they are very expensive.

  4. Background - continued • Our goal is to design a scalable, configurable monitoring system which answers the faculty needs and is easy to use.

  5. Program outline • The program handles two threads. • One thread is responsible for interaction with the user, while the other is responsible for updating the system’s cache.

  6. Program outline • In order to reduce the amount of communication through the faculty network, and reduce the program response time, we’ll maintain a cache. • The cache keeps the information about the faculty computers and floors switches. • The updating frequency of the cache is defined by the user. • Information requests from the user are answered by retrieving the information from the cache, except for “who is logged in right now”.

  7. Cache refresh algorithm • Cache updating frequency can be changed by the user to any whole number of minutes. The program is loaded with a default updating frequency of one hour. • In addition, it is possible to perform immediate cache refresh.

  8. for (every floor) { get floor’s router ARP table; for (every switch in the floor) { get switch's data; for (every MAC address connected to the switch) { convert MAC -> IP address; get end station local data; // UDP connection update the relevant entry in the cache; } } } Cache refresh algorithm

  9. Example • Router Switch End Stations • Floor 7: • Floor 3:

  10. Algorithms – Additional communication modules A telnet API: • The routers and switches in the faculty run Command Line Interface (CLI), through which we get their inner information. • In order to connect to the routers and switches we have implemented a Telnet API. • The implementation is especially suitable for the kind of routers and switches in the faculty.

  11. Algorithms – Additional communication modules End Station Agent: • Every end station in the faculty, including Laptops, should run an agent. • When the agent starts to run, it reads from a configuration file the computer’s data. • The agent will listen for data requests on a pre defined port which is known by the analyzer main system.

  12. Algorithms – Additional communication modules End Station Agent - continued: • The agent is single threaded. • We have implemented two versions of the agent. One for Unix, and one for Windows 2000 and up.

  13. User Interface No GUI mode:

  14. GUI mode Main Menu:

  15. User Interface Switches Menu:

  16. User Interface Ports Menu:

  17. User Interface End Stations Menu:

  18. User Interface End Station:

  19. Points for Extension • Working from two different computers. • End station agent informing on inner problems.
