  1. Remote Access Network Management Kelly Given Allison Traina

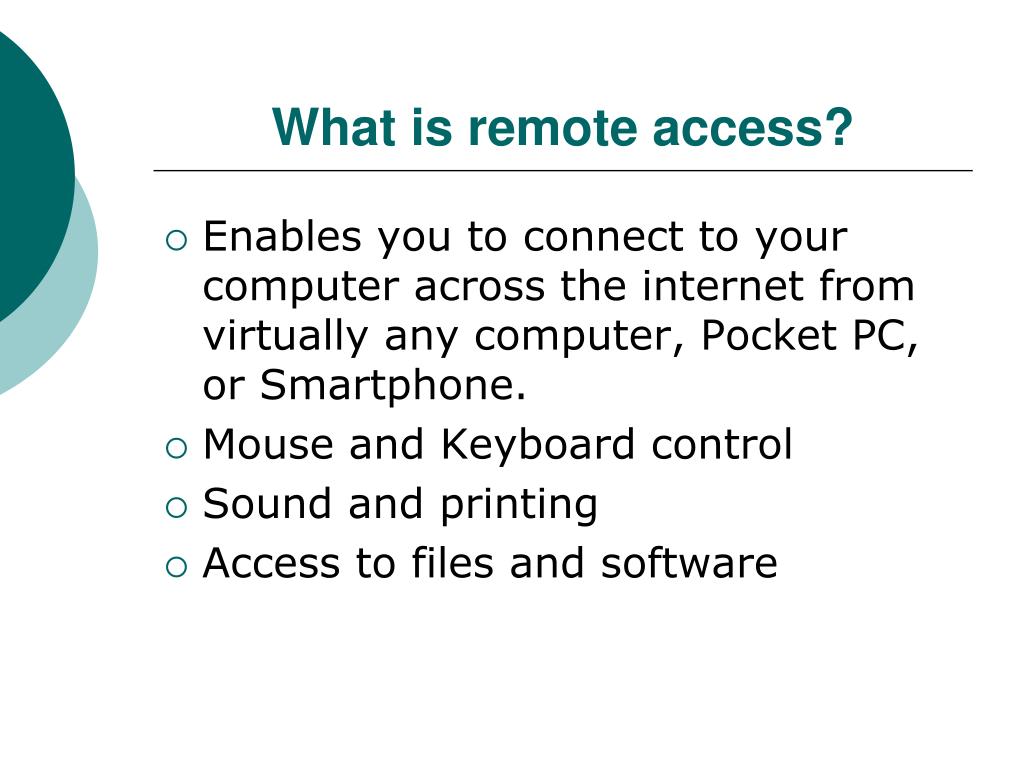

  2. What is remote access? • Enables you to connect to your computer across the internet from virtually any computer, Pocket PC, or Smartphone. • Mouse and Keyboard control • Sound and printing • Access to files and software

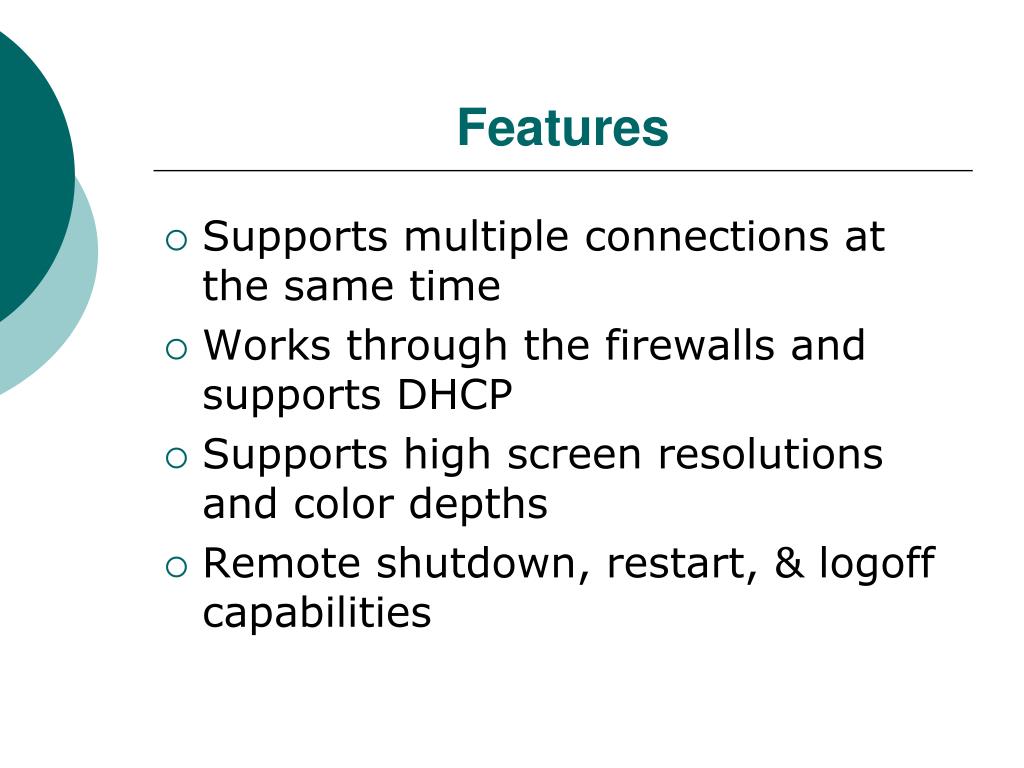

  3. Features • Supports multiple connections at the same time • Works through the firewalls and supports DHCP • Supports high screen resolutions and color depths • Remote shutdown, restart, & logoff capabilities

  4. Terminal Services • Popular method for gaining remote access to Local Area Networks • Multiple remote computers can connect to terminal server on the LAN • Sends only keystrokes and mouse clicks • Receives screen updates from the host

  5. Web Portals • Secure, Web-based interface for an application • Only need Internet Connection, Web browser software, and proper credentials to log on to the application

  6. Virtual Private Networks • VPNs are wide area networks logically defined over public transmission systems. • Access to authorized users only • Convenient and relatively inexpensive WAN • Interoperability and security are important considerations when designing a VPN

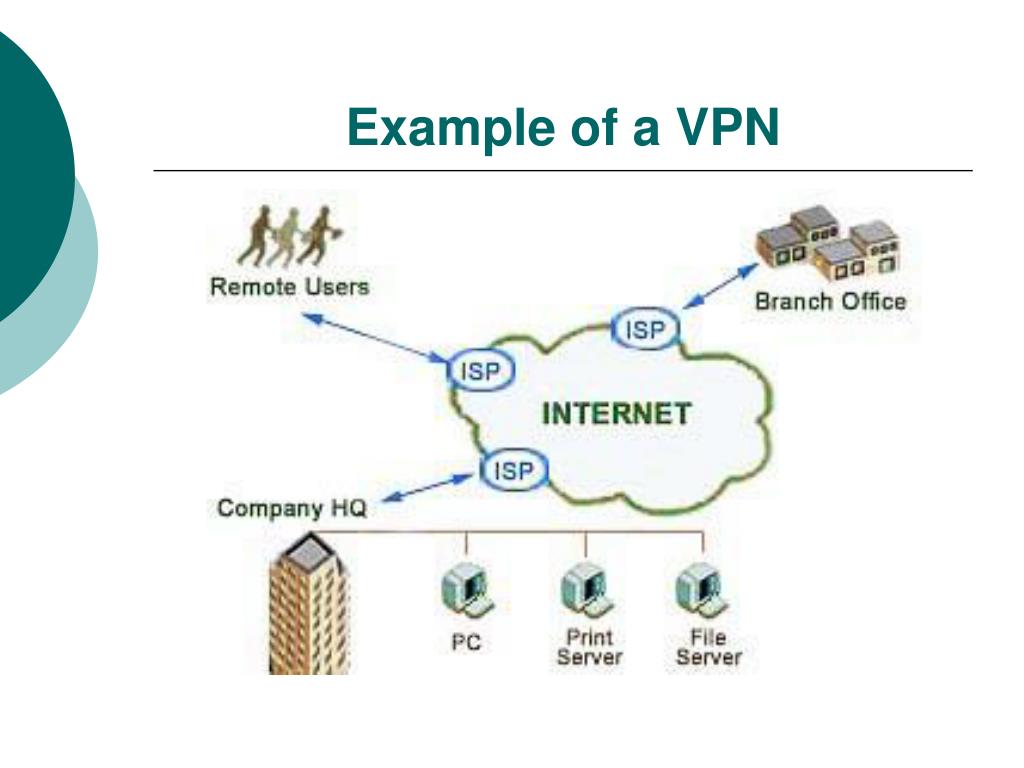

  7. Example of a VPN

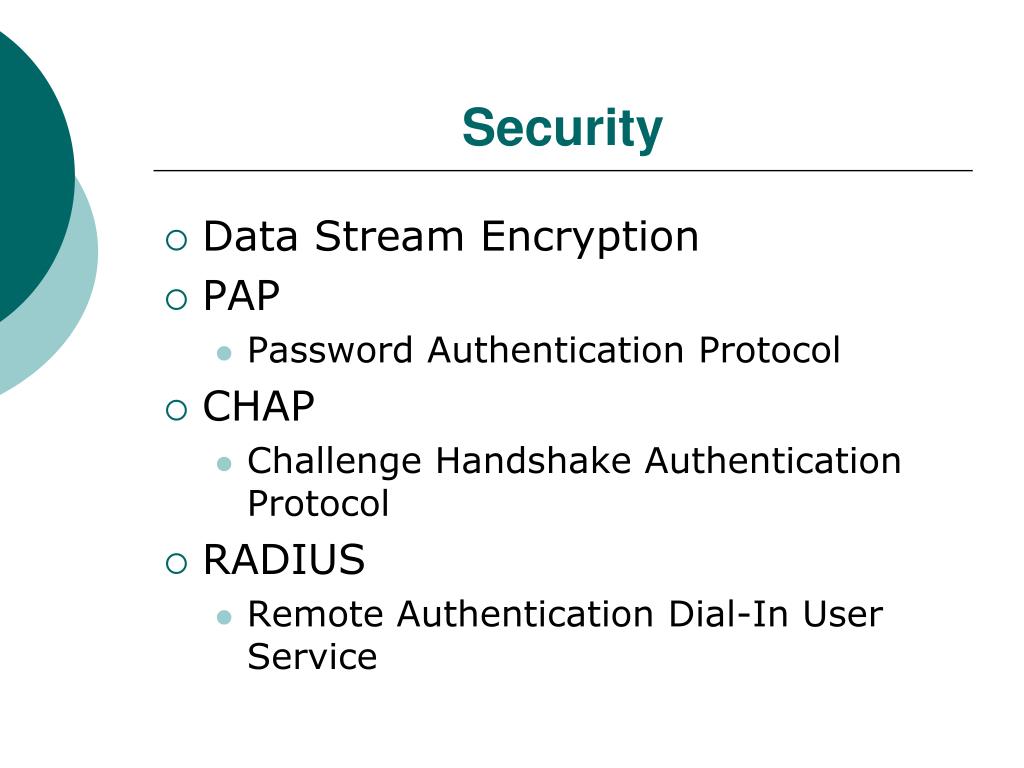

  8. Security • Data Stream Encryption • PAP • Password Authentication Protocol • CHAP • Challenge Handshake Authentication Protocol • RADIUS • Remote Authentication Dial-In User Service

  9. Data Stream Encryption • 128-bit AES Encryption • Ensures data is fully encrypted from end-to-end, including: • Screen Images • File Transfers • Keyboard and Mouse Input • Chat Text • Encryption key is unique for each connection

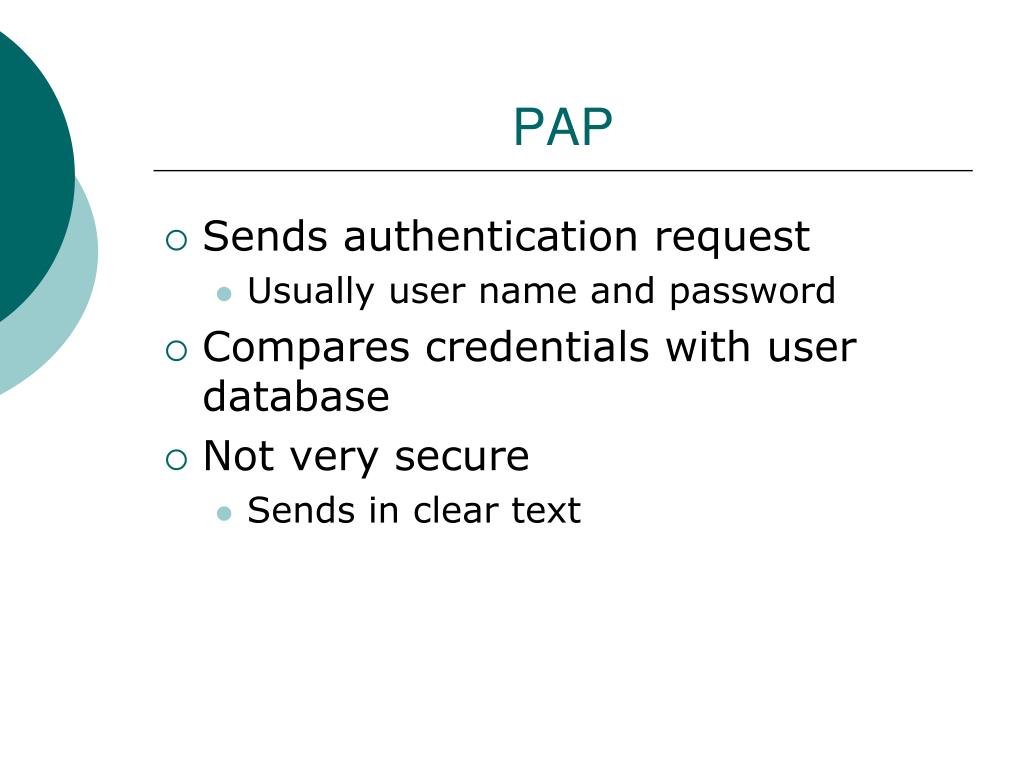

  10. PAP • Sends authentication request • Usually user name and password • Compares credentials with user database • Not very secure • Sends in clear text

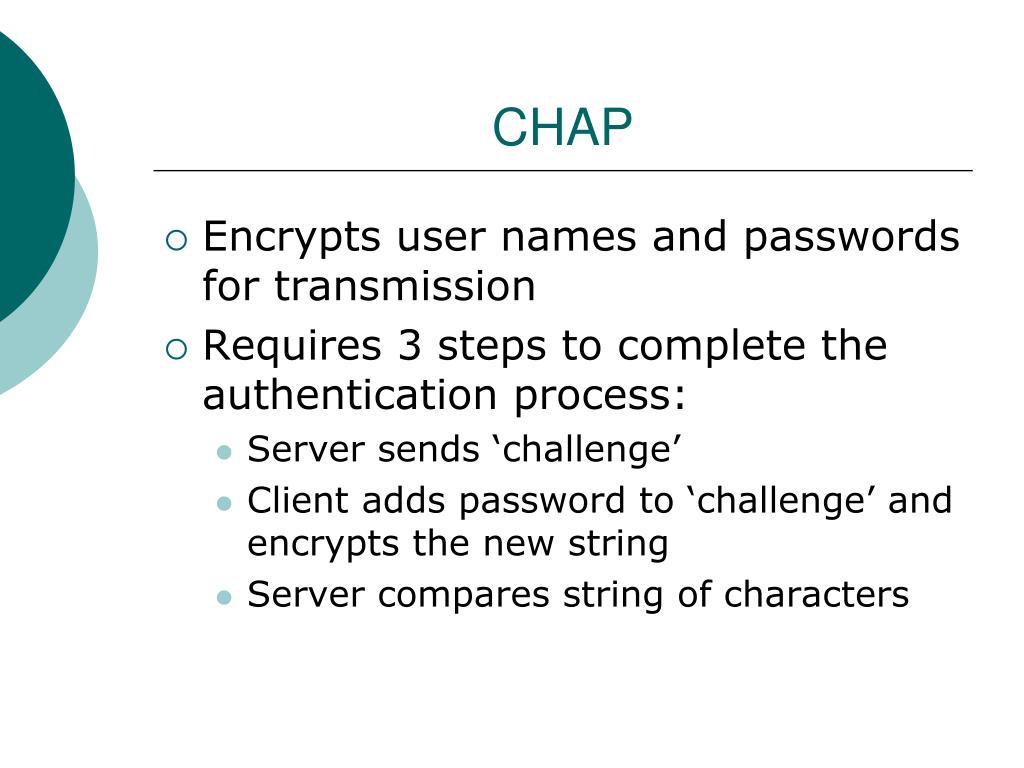

  11. CHAP • Encrypts user names and passwords for transmission • Requires 3 steps to complete the authentication process: • Server sends ‘challenge’ • Client adds password to ‘challenge’ and encrypts the new string • Server compares string of characters

  12. CHAPAdvantages and Disadvantages • Advantages • Password is never transmitted: • Alone • As clear text • Disadvantages • Encrypted string of characters could be captured and decrypted • User name and password could be obtained

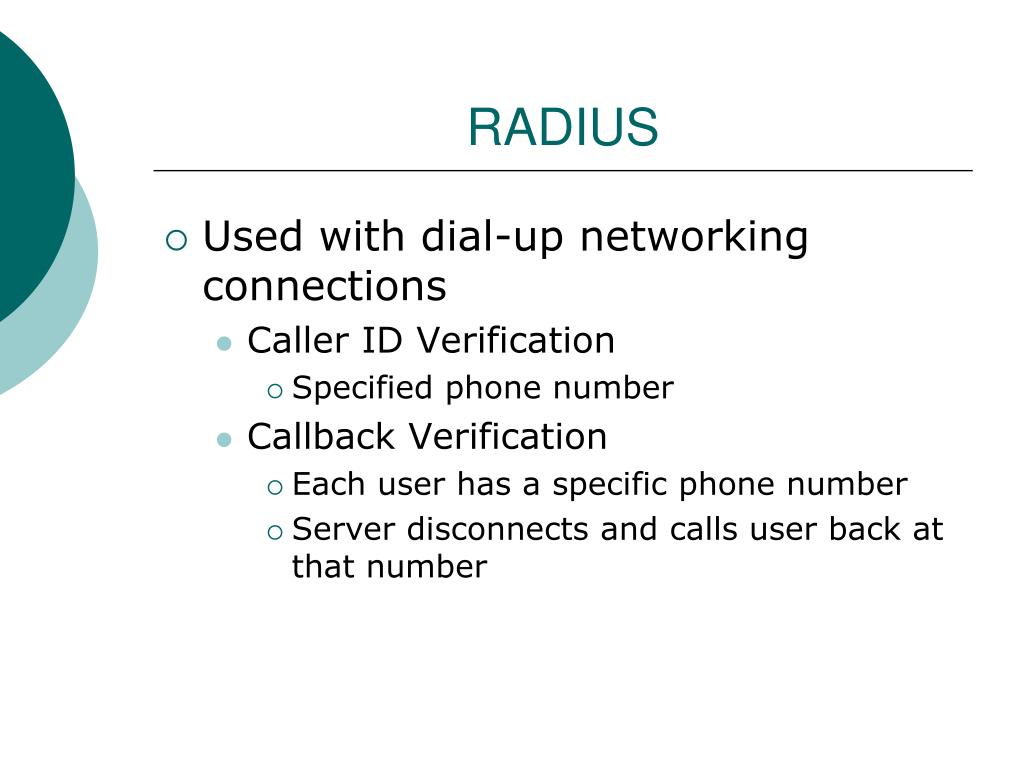

  13. RADIUS • Used with dial-up networking connections • Caller ID Verification • Specified phone number • Callback Verification • Each user has a specific phone number • Server disconnects and calls user back at that number

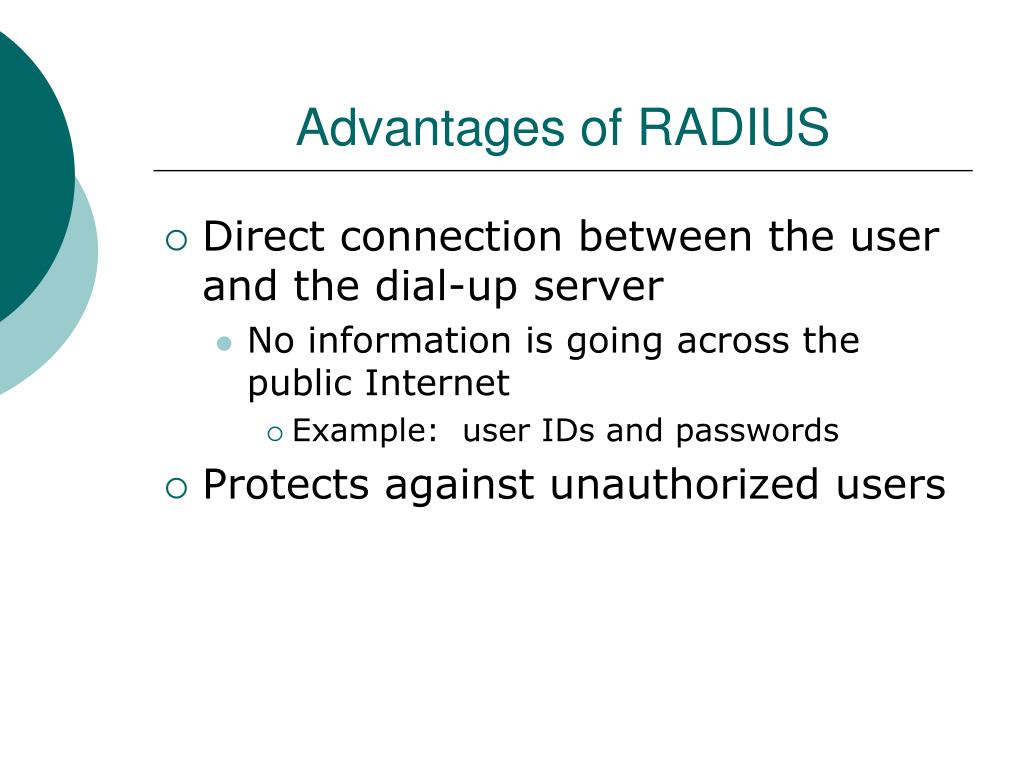

  14. Advantages of RADIUS • Direct connection between the user and the dial-up server • No information is going across the public Internet • Example: user IDs and passwords • Protects against unauthorized users

  15. Demonstration • www.gotomypc.com

  16. GoToMyPC Security Features • Blank out host computer screen while connected • Lock host keyboard and mouse • Lock host computer upon disconnection • Inactivity automatic logoff • Prominent notification when computer is being accessed

  17. Software Downloads • Remote Desktop- Microsoft • pcAnywhere- Symantec • www.gotomypc.com – Free Trial • remotePC- Free Trial • www.download.com – reviews and free downloads

  18. Web Site • http://kagiven.googlepages.com/home
