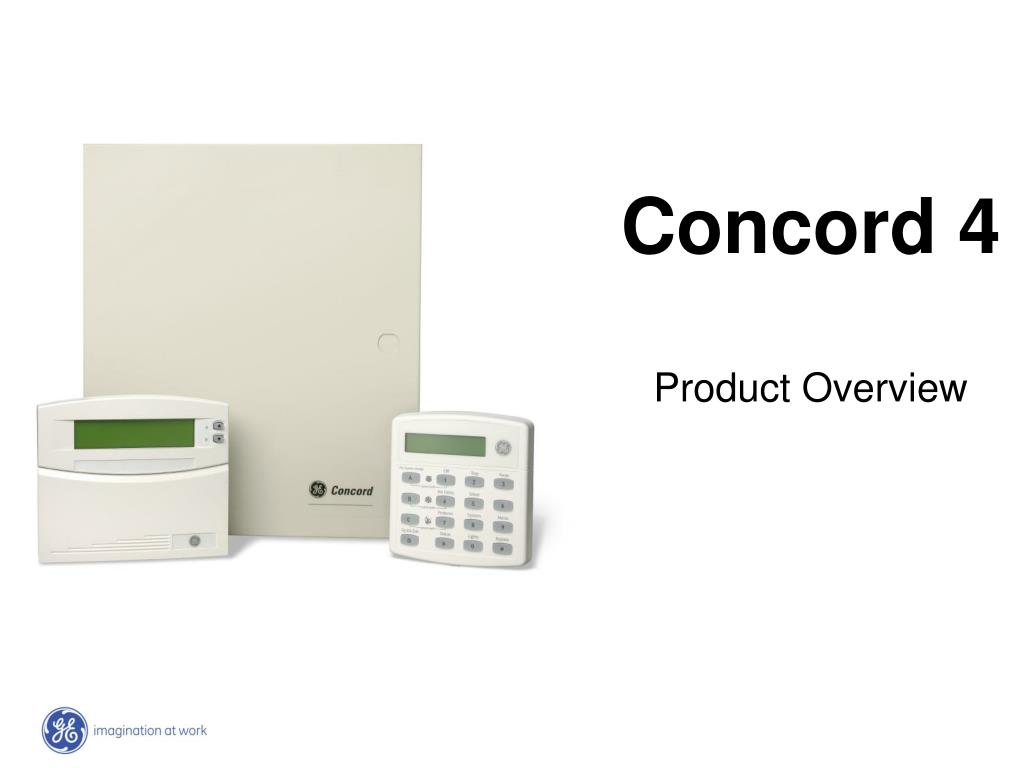

  1. Concord 4Product Overview

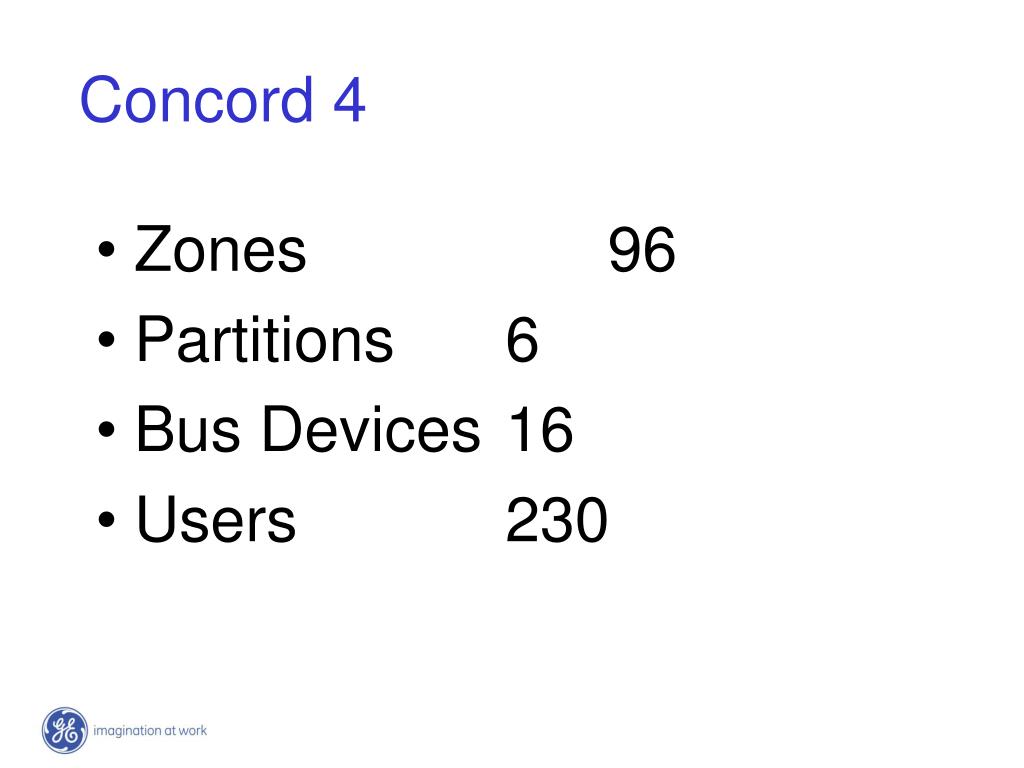

  2. Concord 4 • Zones 96 • Partitions 6 • Bus Devices 16 • Users 230

  3. Concord 4

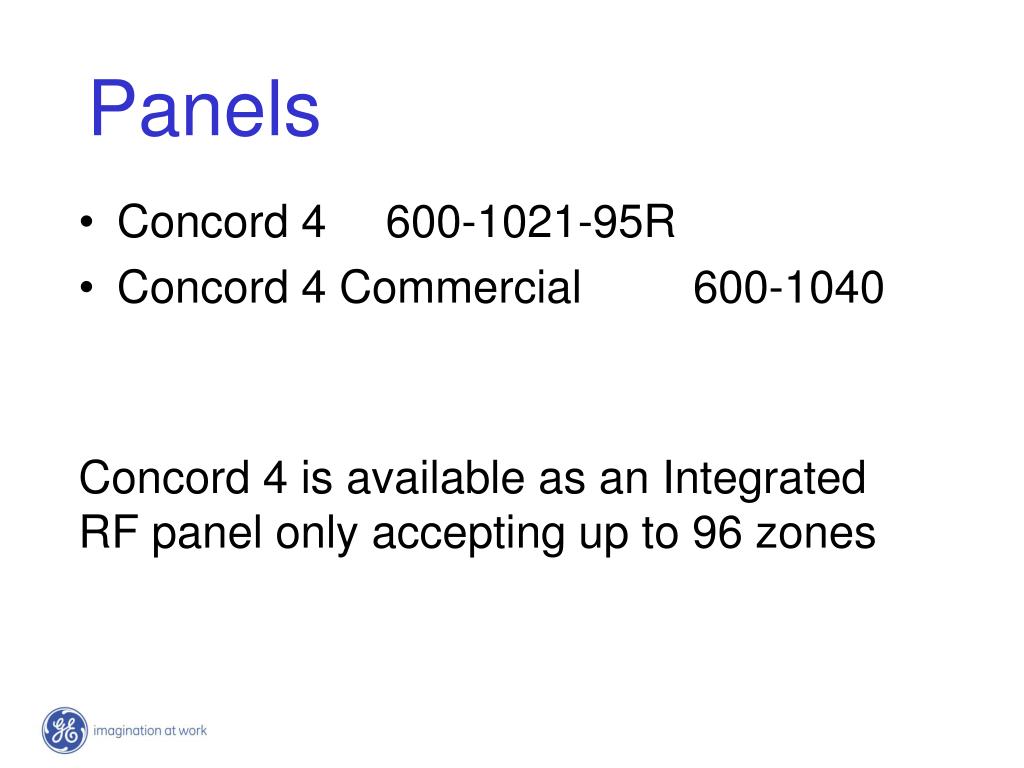

  4. Panels • Concord 4 600-1021-95R • Concord 4 Commercial 600-1040 Concord 4 is available as an Integrated RF panel only accepting up to 96 zones

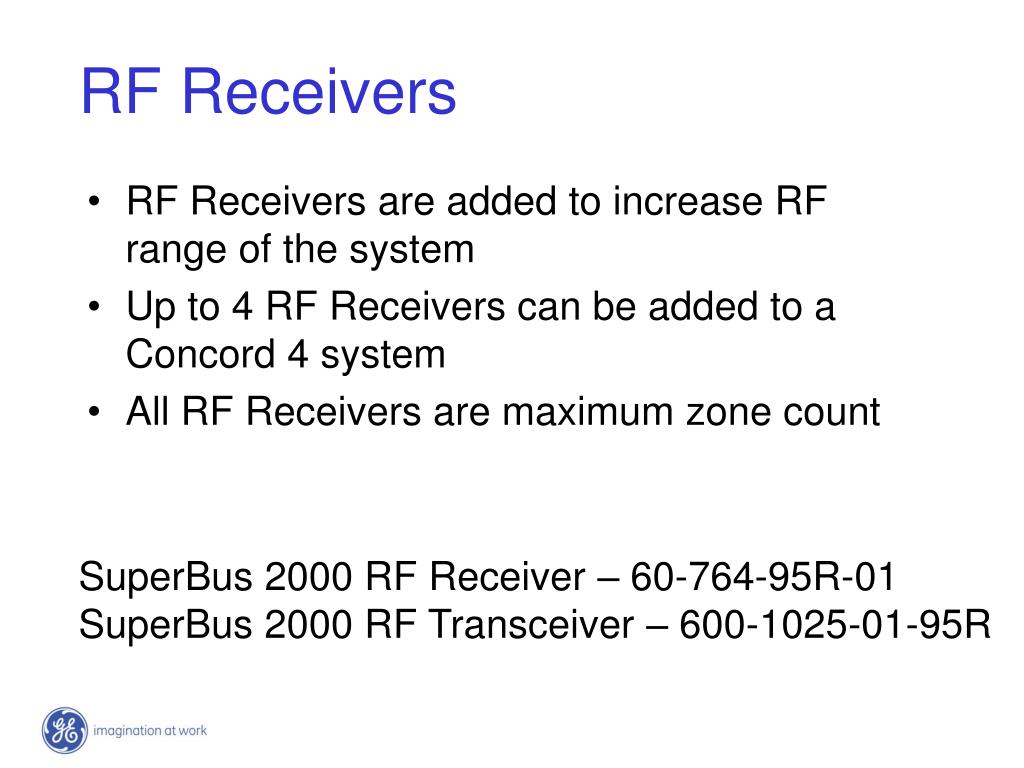

  5. RF Receivers • RF Receivers are added to increase RF range of the system • Up to 4 RF Receivers can be added to a Concord 4 system • All RF Receivers are maximum zone count SuperBus 2000 RF Receiver – 60-764-95R-01 SuperBus 2000 RF Transceiver – 600-1025-01-95R

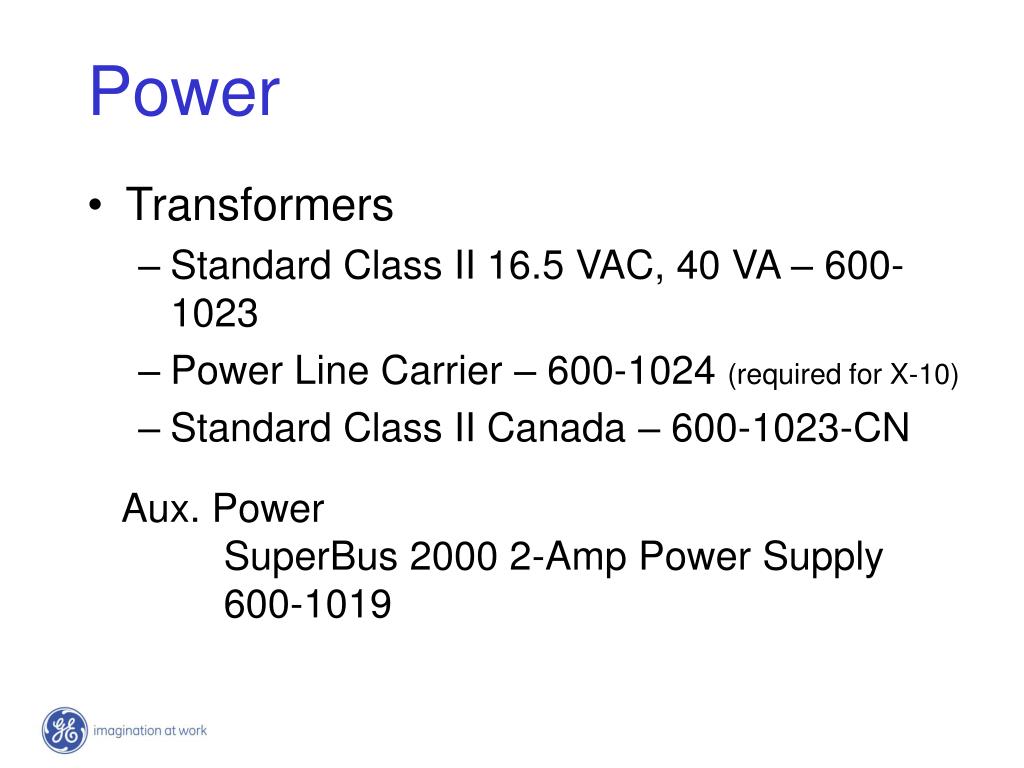

  6. Power • Transformers • Standard Class II 16.5 VAC, 40 VA – 600-1023 • Power Line Carrier – 600-1024 (required for X-10) • Standard Class II Canada – 600-1023-CN Aux. Power SuperBus 2000 2-Amp Power Supply 600-1019

  7. SuperBus 2000 Modules (16 total) • RF Receiver - 60-764-01-95R • RF Transceiver - 600-1025-01-95R • Voice Only Module - 60-836 • Phone Interface/Voice Module - 60-777-01 • 8Z Input Module - 60-774 • 4-Relay Output Module - 60-770 • Cellular Backup Module - 60-850 • Energy Saver Module - 60-620-01 • Automation Module - 60-783-02 • Wireless Gateway - 60-861 • 2 Amp Power Supply - 600-1019 • Interrogator 2000 AVM (not a Bus device)

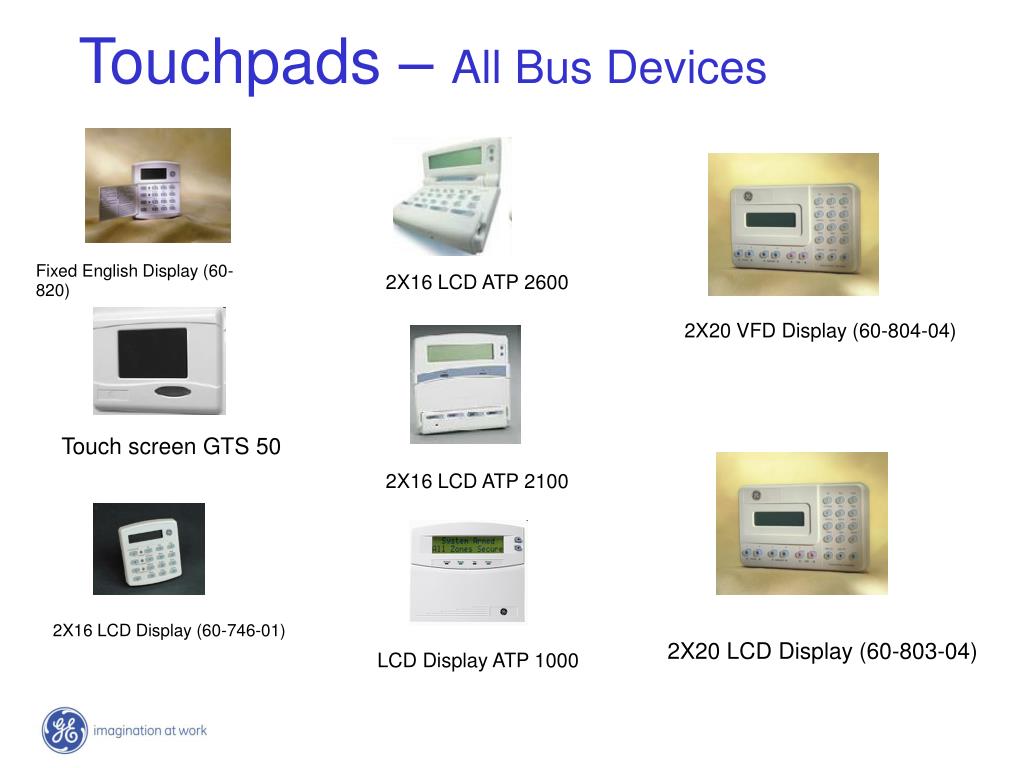

  8. Touchpads – All Bus Devices Fixed English Display (60-820) 2X16 LCD ATP 2600 2X20 VFD Display (60-804-04) Touch screen GTS 50 2X16 LCD ATP 2100 2X16 LCD Display (60-746-01) 2X20 LCD Display (60-803-04) LCD Display ATP 1000

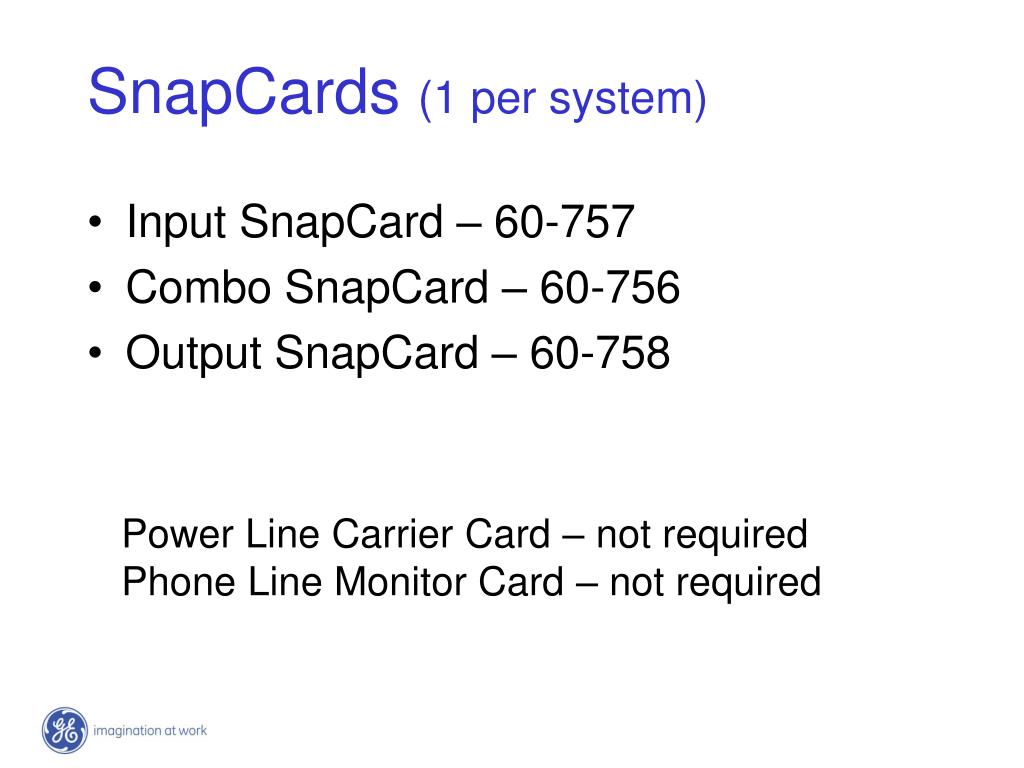

  9. SnapCards (1 per system) • Input SnapCard – 60-757 • Combo SnapCard – 60-756 • Output SnapCard – 60-758 Power Line Carrier Card – not required Phone Line Monitor Card – not required

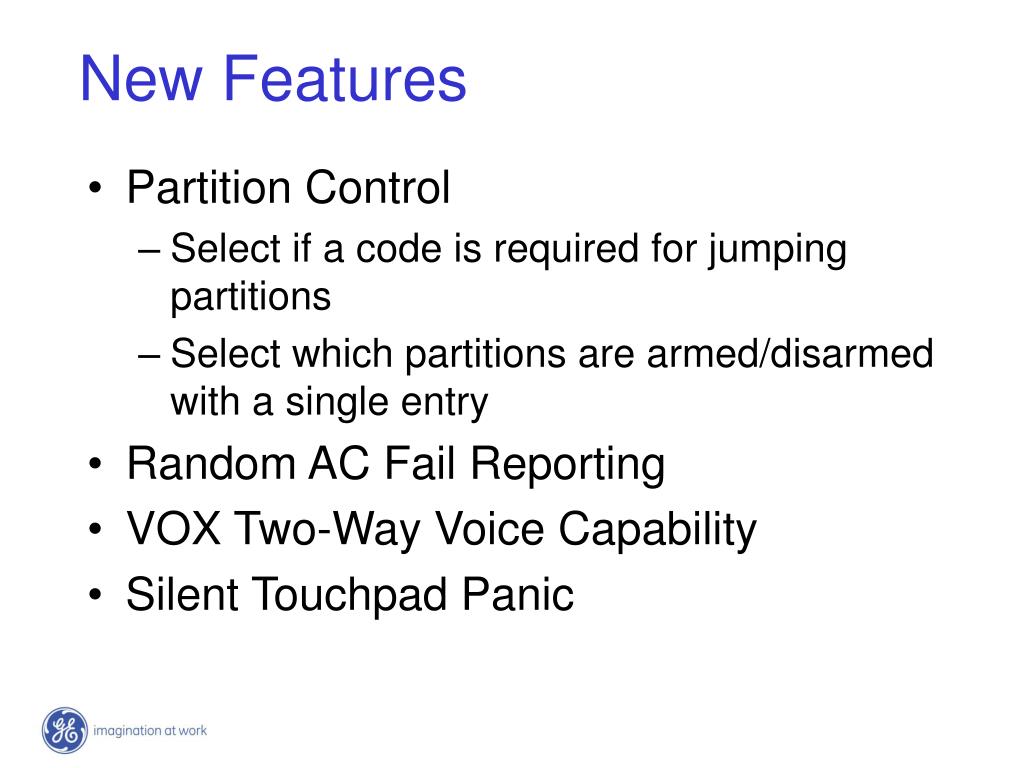

  10. New Features • Partition Control • Select if a code is required for jumping partitions • Select which partitions are armed/disarmed with a single entry • Random AC Fail Reporting • VOX Two-Way Voice Capability • Silent Touchpad Panic

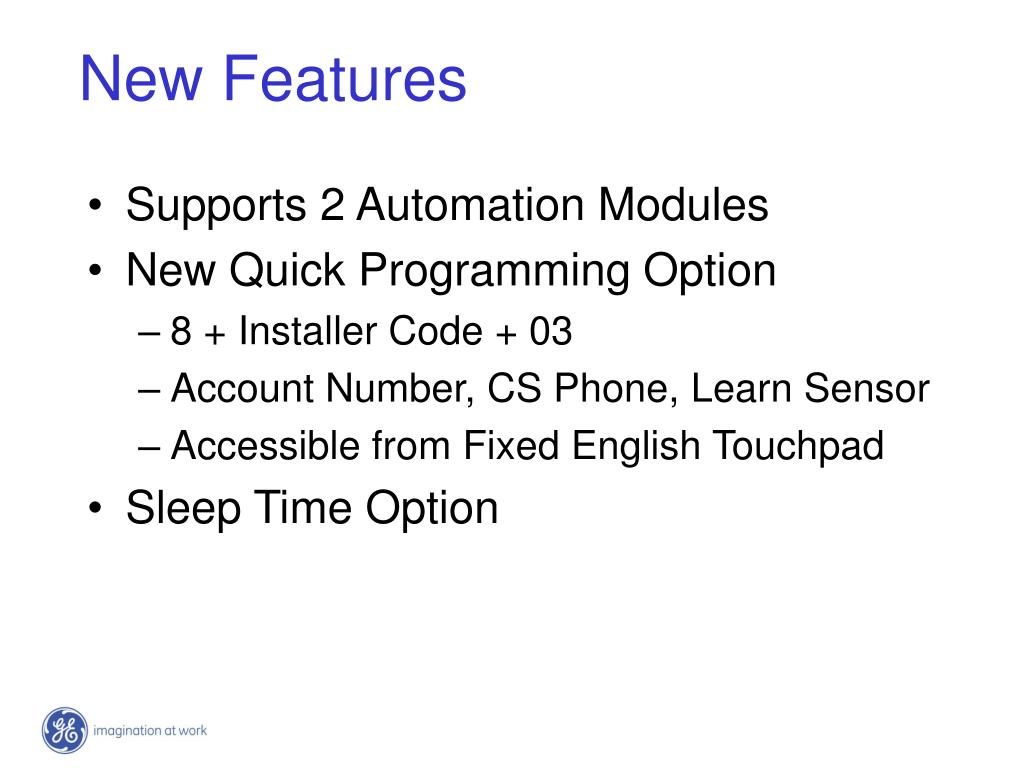

  11. New Features • Supports 2 Automation Modules • New Quick Programming Option • 8 + Installer Code + 03 • Account Number, CS Phone, Learn Sensor • Accessible from Fixed English Touchpad • Sleep Time Option

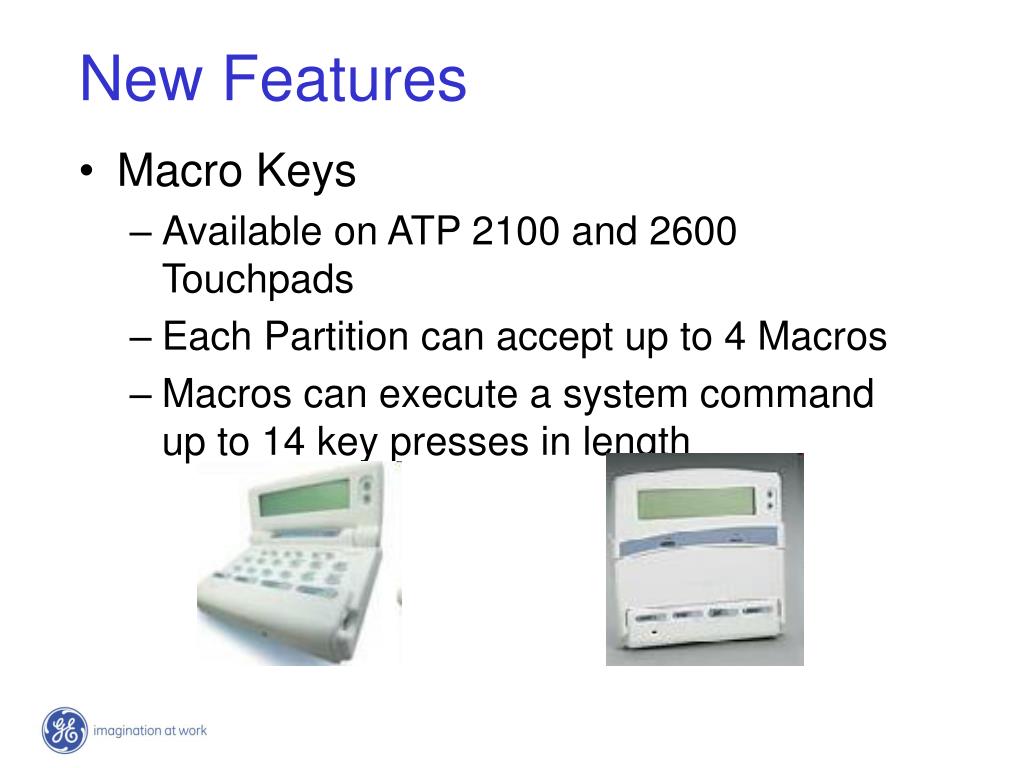

  12. New Features • Macro Keys • Available on ATP 2100 and 2600 Touchpads • Each Partition can accept up to 4 Macros • Macros can execute a system command up to 14 key presses in length
