Stoichiometry

DESCRIPTION

Stoichiometry. Chap. 12. What is stoichiometry?. Study of quantitative relationships between amounts of reactants and products. What is stoichiometry?. Stoichiometry is based on Lavoisier’s Law. Mass is conserved during a chemical reaction. What is stoichiometry?.

1 / 59

Télécharger la présentation

Stoichiometry

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Stoichiometry Chap. 12

  2. What is stoichiometry? Study of quantitative relationships between amounts of reactants and products

  3. What is stoichiometry? • Stoichiometry is based on Lavoisier’s Law Mass is conserved during a chemical reaction.

  4. What is stoichiometry? • Stoichiometry is based on Lavoisier’s Law • Uses a balanced equation Coefficients give an important information for calculation

  5. Coefficients in Equation Al2O3 + C Al + CO2

  6. Coefficients in Equation Al2O3 + C Al + CO2 2 3 4 3

  7. Coefficients in Equation Al2O3 + C Al + CO2 2 3 4 3 2 formula units 4 atoms 3 molecules 3 atoms

  8. Coefficients in Equation Al2O3 + C Al + CO2 2 3 4 3 2 moles 4 moles 3 moles 3 moles

  9. What is stoichiometry? • Stoichiometry is based on Lavoisier’s Law • Uses a balanced equation • Involves mole conversions

  10. What is stoichiometry? • Stoichiometry is based on Lavoisier’s Law • Uses a balanced equation • Involves mole conversions • grams moles

  11. What is stoichiometry? • Stoichiometry is based on Lavoisier’s Law • Uses a balanced equation • Involves mole conversions • grams moles • particles moles

  12. What is stoichiometry? • Stoichiometry is based on Lavoisier’s Law • Uses a balanced equation • Involves mole conversions • grams moles • particles moles • liters moles

  13. Mole to Mole ratio

  14. Mole to Mole ratio • Comes from equation

  15. Coefficients in Equation H2 + O2 H2O

  16. Coefficients in Equation H2 + O2 H2O 2 1 2 2 moles 1 mole 2 moles

  17. Coefficients in Equation H2 + O2 H2O 2 1 2 2 moles 1 mole 2 moles some mole ratios from this equation: 2 mol H2 2 mol H2 1 mol O2 1 mol O2 2 mol H2O 2 mol H2O

  18. Mole to Mole ratio • Comes from equation • Calculations

  19. Self Check – Ex. 1 2C + O2 2CO How many moles of oxygen are required to react with 4.2 moles of carbon?

  20. Self Check – Ex. 2 2C + O2 2CO How many moles of carbon monoxide can be formed when 3 moles of oxygen react?

  21. Stoichiometry Calculations

  22. Stoichiometry Calculations • Gram to grams

  23. Self Check – Ex. 3 2C + O2 2CO How many grams of carbon monoxide can be formed when 96 grams of oxygen react?

  24. Stoichiometry Calculations • Gram to grams • Grams to molecules

  25. Self Check – Ex. 4 CaCl2 + 2 AgNO3 Ca(NO3)2 + 2AgCl How many formula units of silver chloride are formed when 111 g of calcium chloride react?

  26. Stoichiometry Calculations • Gram to grams • Grams to molecules • Grams to liters

  27. Self Check – Ex. 5 Zn + HNO3 H2 + Zn(NO3)2 How many liters of hydrogen gas at STP could be formed when 6.00 g of zinc reacts with nitric acid?

  28. Limiting Reactants How do you ‘turn off’ a chemical reaction?

  29. Limiting Reactants • Terms

  30. Limiting Reactants • Terms • Limiting reactant Substance that runs out first in a chemical reaction, thus limits the amount of product.

  31. Limiting Reactants • Terms • Limiting reactant • Excess reactant Reactant that is present in excess, thus is left over when a reaction stops.

  32. Limiting Reactants • Terms • An analogy

  33. The following parts are used to make trikes: Wheels Frame Pedals Symbol: W Requirement: 3 Symbol: F Requirement: 1 Symbol: P Requirement: 2

  34. What is the ‘chemical formula’ for this trike?

  35. What is the ‘chemical formula’ for this trike? W3FP2

  36. Write the ‘balanced equation’ for trike-making.

  37. Write the ‘balanced equation’ for trike-making. 3 W + 1 F + 2 P W3FP2 + +

  38. How much product (trikes) could you make with: Supplies 24 wheels 10 frames 14 pedals

  39. Limiting Reactants • Terms • An analogy • A chemical example

  40. How many grams of product can you make with: Supplies 28 g N2 18 g H2 N2 + 3H2 2 NH3

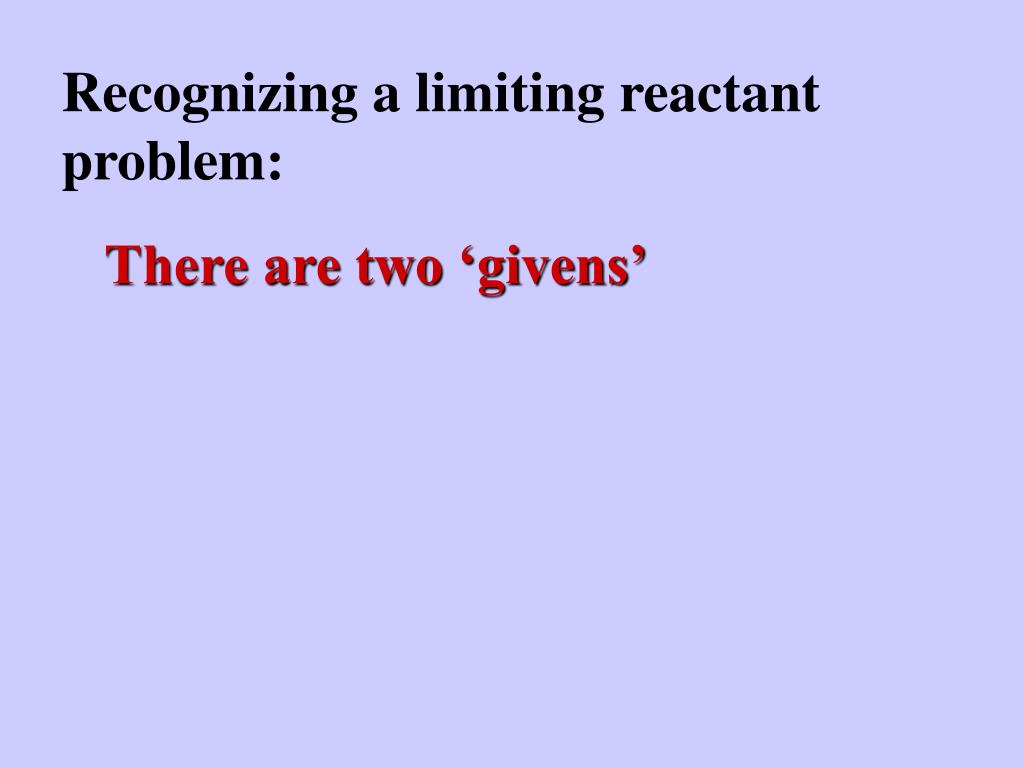

  41. Recognizing a limiting reactant problem:

  42. Recognizing a limiting reactant problem: There are two ‘givens’

  43. Solving a limiting reactant problem:

  44. Solving a limiting reactant problem: Do two calculations, and pick the reactant that makes the smaller amount of product.

  45. Self Check – Ex. 6 2Na + 1H2O 2NaOH + 2H2 If 23.0 g of sodium reacts with 9.0 g of water, what mass of hydrogen gas is formed?

  46. Self Check – Ex. 7 1Fe2O3 + 3H22Fe + 3H2O If 85.5 g of iron (III) oxide reacts with 15.7 g of hydrogen, what mass of iron is formed? What is the limiting reactant?

  47. Percent Yield A value that tells how ‘successful’ a reaction is at making product.

  48. Percent Yield • Theoretical yield The mass of product that can be formed in a reaction (calculated value)

  49. Percent Yield • Theoretical yield • Actual yield The mass of product that is produced in a reaction (measured by experiment)

  50. Percent Yield • Theoretical yield • Actual yield • Percent Yield Actual yield x 100 Percent yield = Theoretical yield
