  1. Data Modeling Chapters 2 and 3

  2. Agenda • Conceptual Data Modeling Overview • Components of an ERD • Drawing an ERD • Exercises

  3. Conceptual Data Model • Describes the business in terms of "things" it deals with • "Logical" (i.e. business) model • Foundation for: • Promoting cross-functional "business understanding" • Organizing data that supports a business process • Defining scope of database

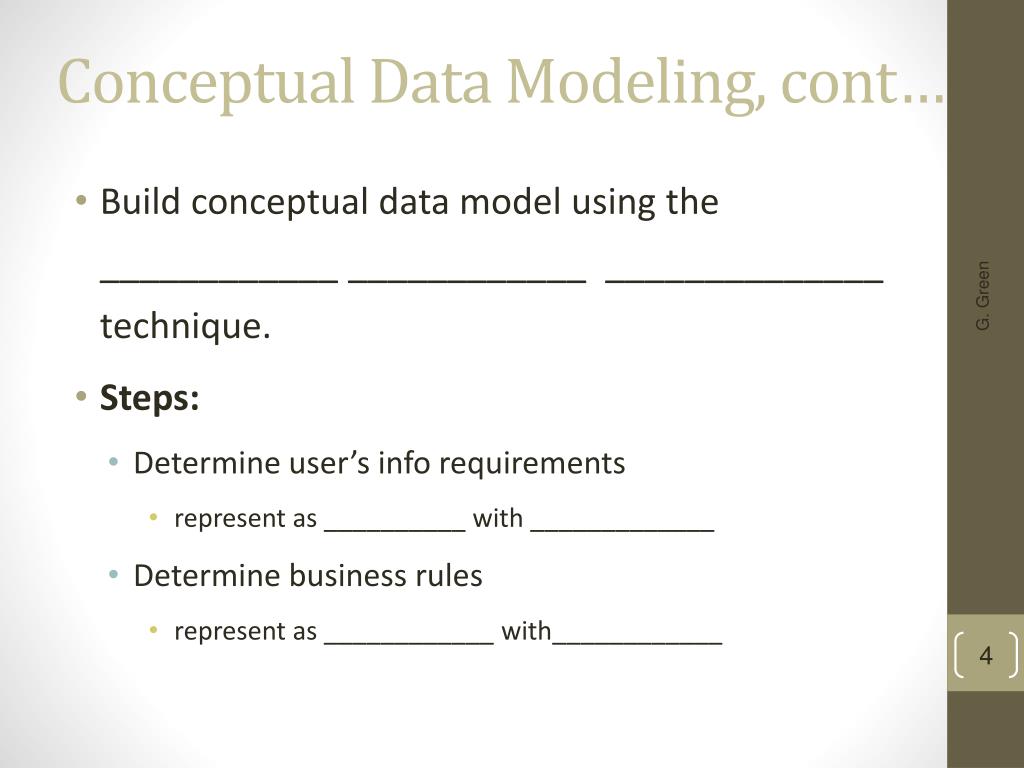

  4. Conceptual Data Modeling, cont… • Build conceptual data model using the ____________ ____________ ______________ technique. • Steps: • Determine user’s info requirements • represent as __________ with _____________ • Determine business rules • represent as ____________ with____________

  5. Entity-Relationship Diagram(ERD) • Entities (types and instances) • Attributes • Primary Key • Multivalued attributes* • Relationships (unary/binary/ternary) • Cardinality (min and max) • Associative Entities • Generalization Hierarchy * will not be left on our ERDs

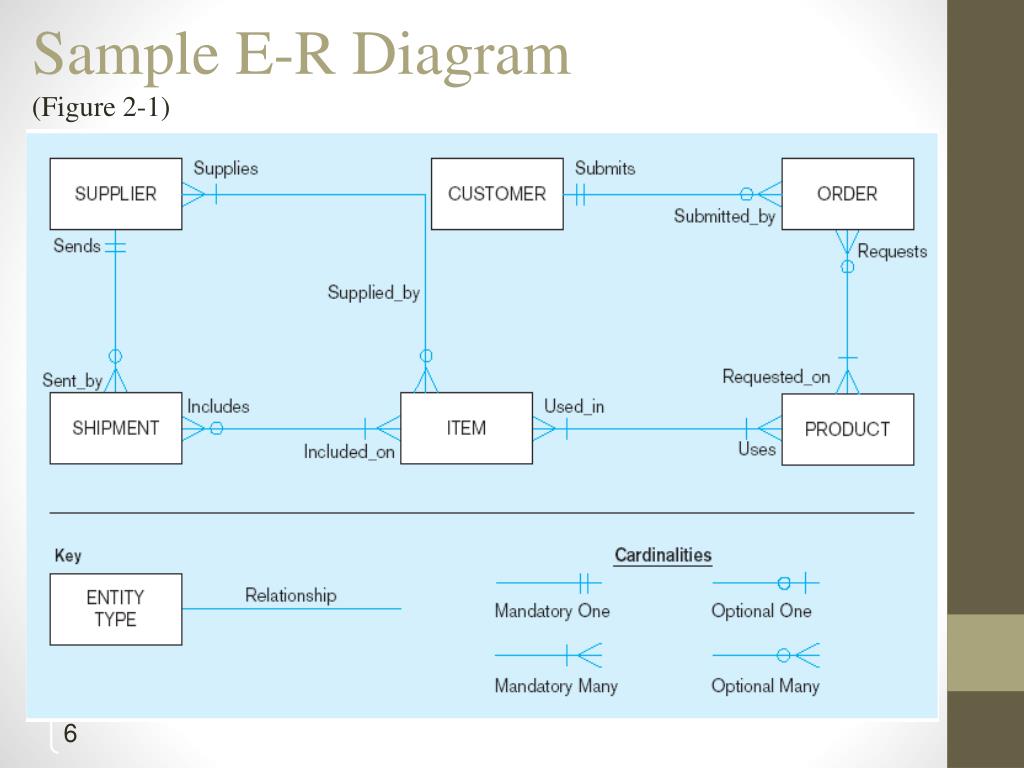

  6. Sample E-R Diagram (Figure 2-1)

  7. Entities • People, events, objects, assets, things • Entity Type • collection or class of entities • examples • Entity Instance • single occurrence of entity • examples • Entity Representation • rectangular box • name is singular noun, in CAPS

  8. Attributes • Characteristics that describe entities • common to each instance of entity • Primary Key attribute (identifier): • Uniquely identifies an instance of an entity • CandidateKey • Atomic vs. Concatenated (or composite) Key • Avoid MVAs (for this class) • Minimize derived attributes • Attribute Representation • listed underneath entity name • mixed case • primary key typically underlined

  9. Primary Keys • Guidelines (not requirements) • Helpful if easy to write, read, hear, remember • Break long codes into chunks • Record time on 24-hour clock • Avoid using data that changes • Avoid letters • Surrogate vs. Natural Key

  10. Relationships • Business association or event linking one or more entities • Degrees • Unary (degree=1) • Binary (degree=2) • Ternary (degree=3) • Relationship Representation: • line connecting related entities • name of relationship on line • name must be verb [phrase]

  11. Relationships, con’t... • Maximum Cardinality • Given oneinstance of an entity, what is the maximum number of instances of the other entity that it can be related to? • 1:1 • 1:M • M:M • Minimum Cardinality • … minimum number of instances… • mandatory (min = 1) • optional (min = 0) |

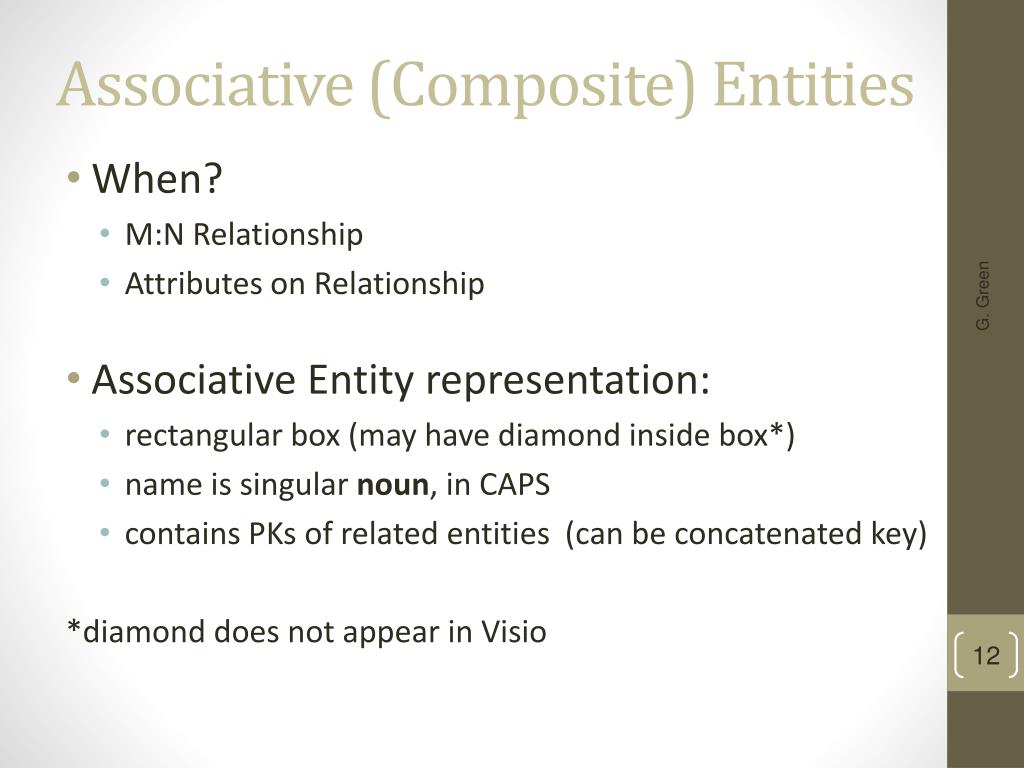

  12. Associative (Composite) Entities • When? • M:N Relationship • Attributes on Relationship • Associative Entity representation: • rectangular box (may have diamond inside box*) • name is singular noun, in CAPS • contains PKs of related entities (can be concatenated key) *diamond does not appear in Visio

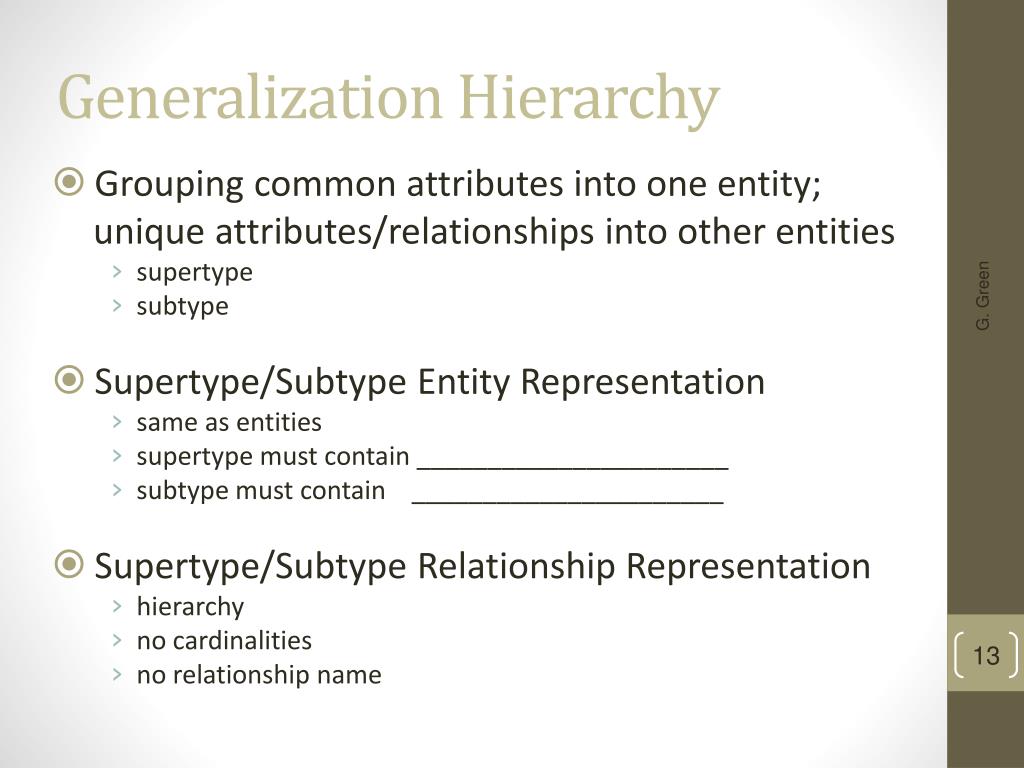

  13. Generalization Hierarchy • Grouping common attributes into one entity; unique attributes/relationships into other entities • supertype • subtype • Supertype/Subtype Entity Representation • same as entities • supertype must contain ______________________ • subtype must contain ______________________ • Supertype/Subtype Relationship Representation • hierarchy • no cardinalities • no relationship name

  14. Drawing an ERD • Strong entities • People, places, things, events important to the process • Weak entities • Depends on strong entity for existence • Often have composite PKs • Attributes • Important characteristics/properties of entities • Include primary key • Relationships between entities • Events, activities, or transactions that involve handling data related to several entities • Remove M:M relationships • i.e., associative entities • Generalization hierarchies, if any • Supertypes with discriminator • Subtypes with parent PK

  15. How do you start? • Common Business Entities

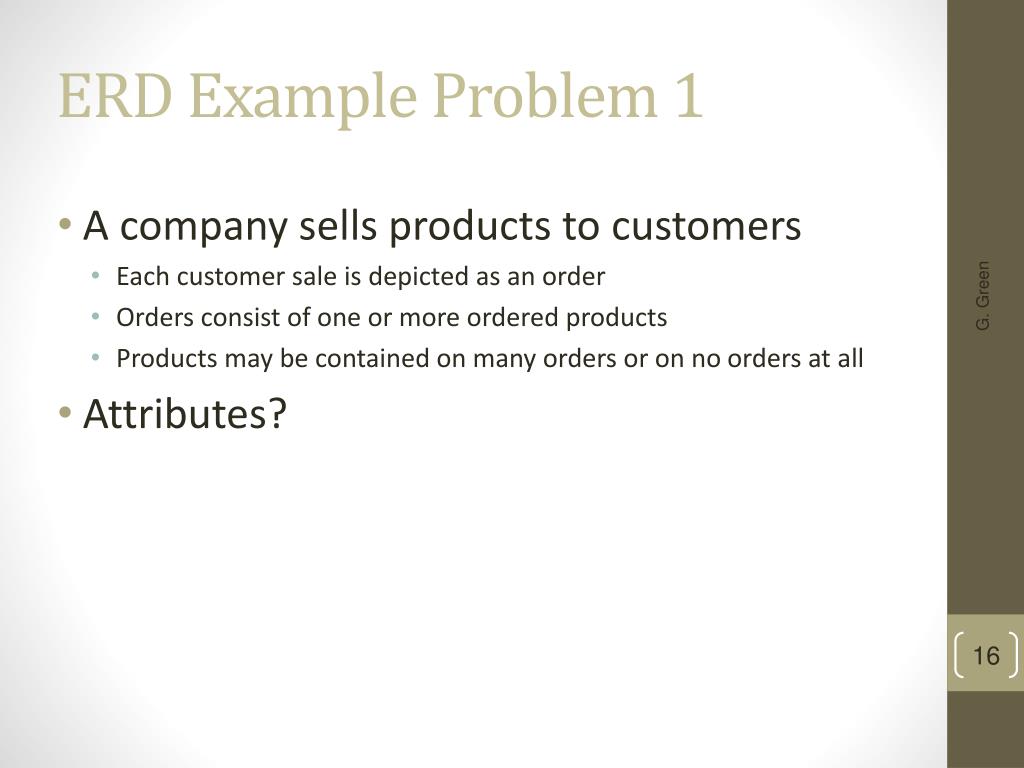

  16. ERD Example Problem 1 • A company sells products to customers • Each customer sale is depicted as an order • Orders consist of one or more ordered products • Products may be contained on many orders or on no orders at all • Attributes?

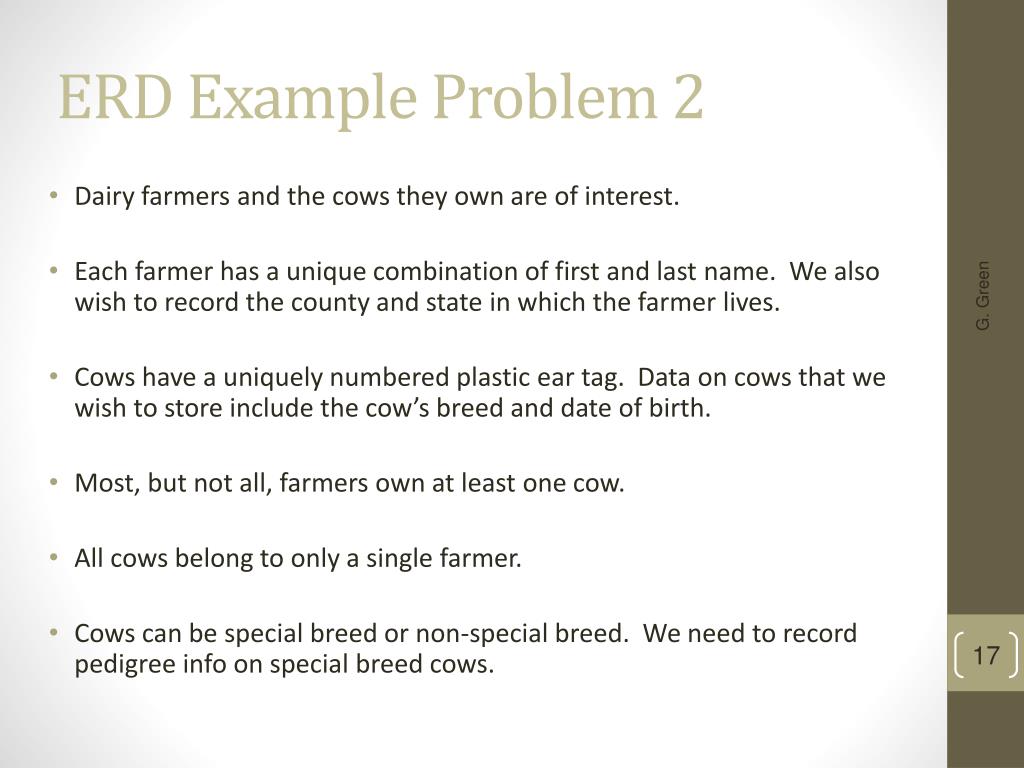

  17. ERD Example Problem 2 • Dairy farmers and the cows they own are of interest. • Each farmer has a unique combination of first and last name. We also wish to record the county and state in which the farmer lives. • Cows have a uniquely numbered plastic ear tag. Data on cows that we wish to store include the cow’s breed and date of birth. • Most, but not all, farmers own at least one cow. • All cows belong to only a single farmer. • Cows can be special breed or non-special breed. We need to record pedigree info on special breed cows.

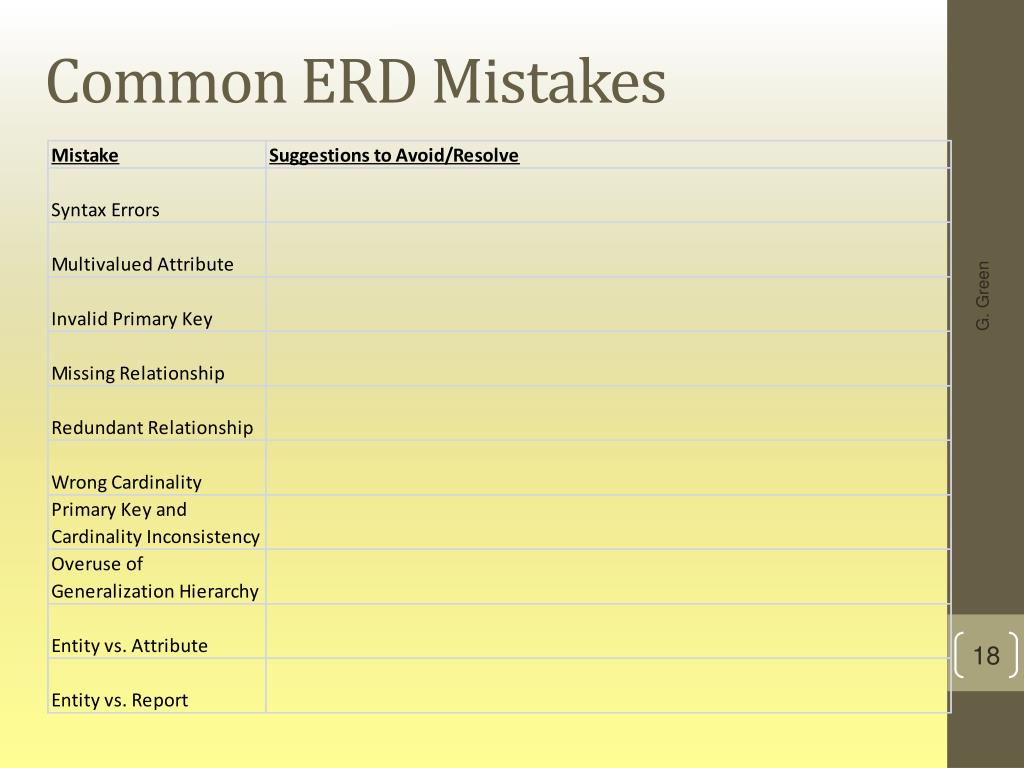

  18. Common ERD Mistakes

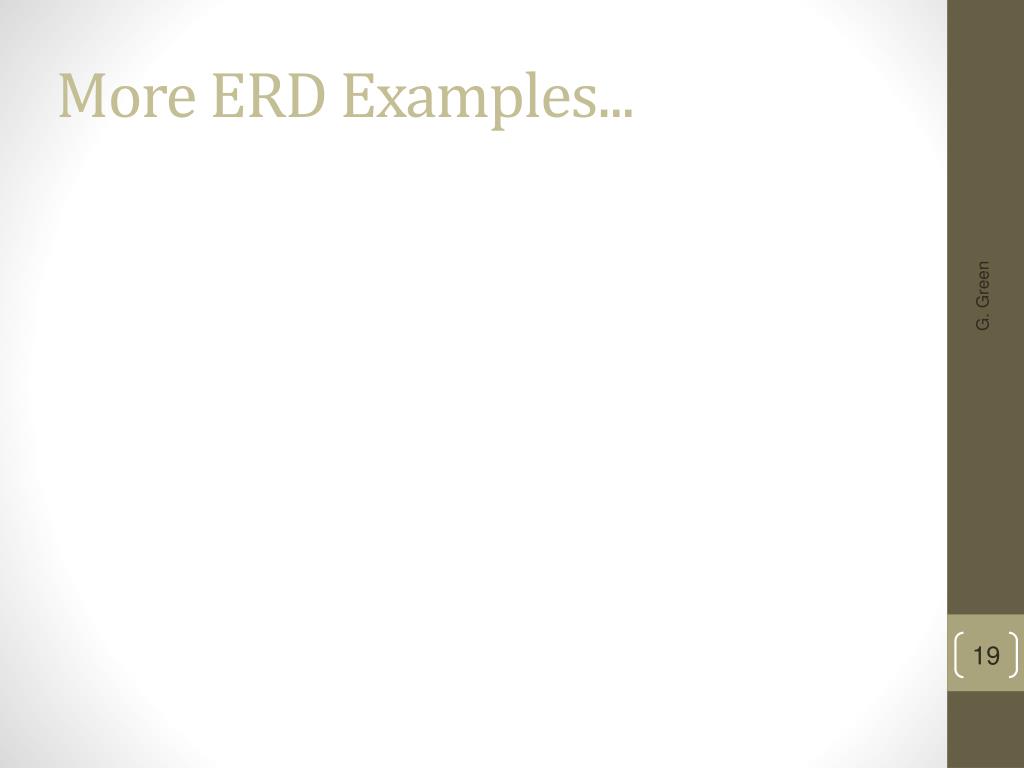

  19. More ERD Examples...

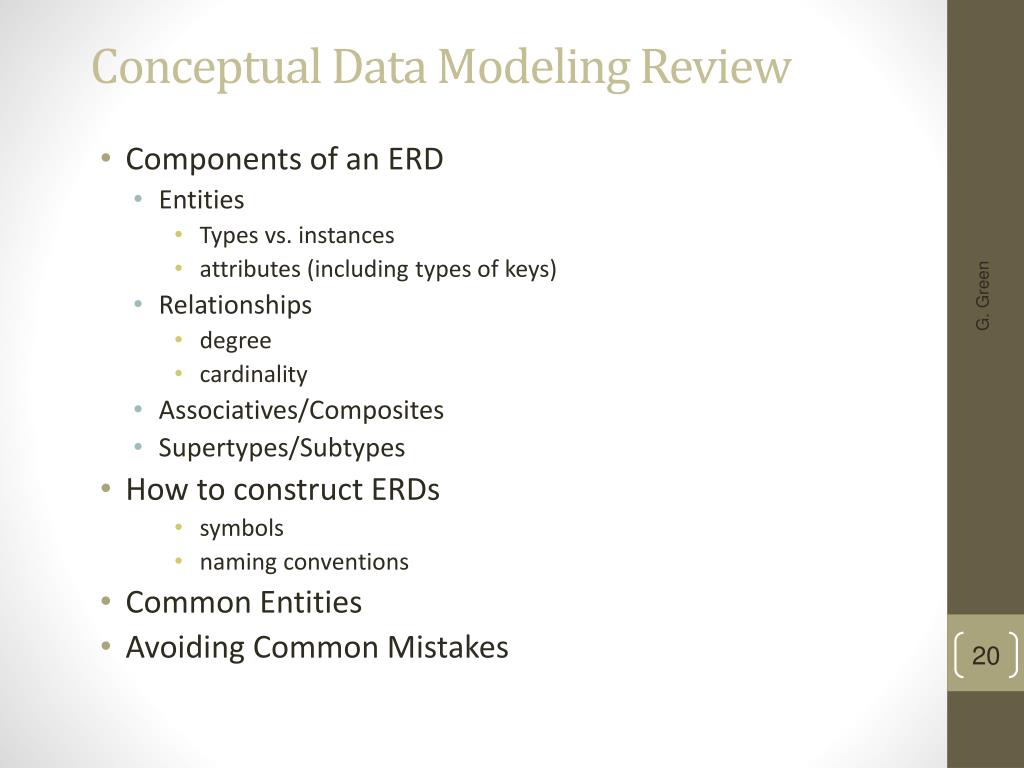

  20. Conceptual Data Modeling Review • Components of an ERD • Entities • Types vs. instances • attributes (including types of keys) • Relationships • degree • cardinality • Associatives/Composites • Supertypes/Subtypes • How to construct ERDs • symbols • naming conventions • Common Entities • Avoiding Common Mistakes

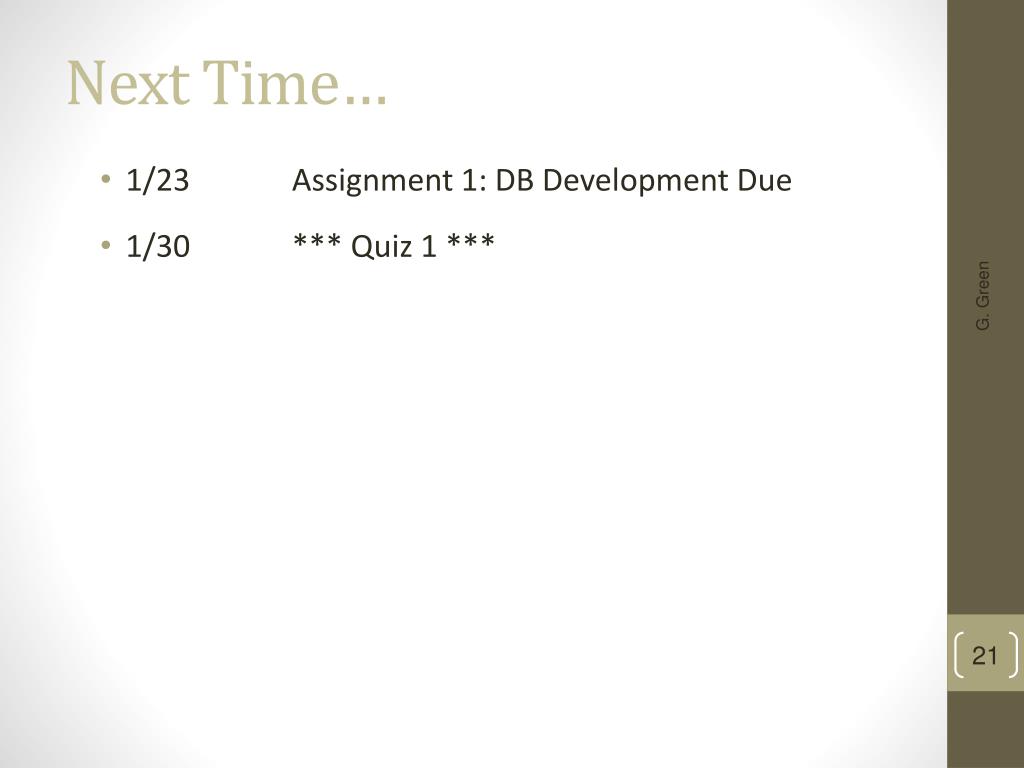

  21. Next Time… • 1/23Assignment 1: DB Development Due • 1/30 *** Quiz 1 ***
