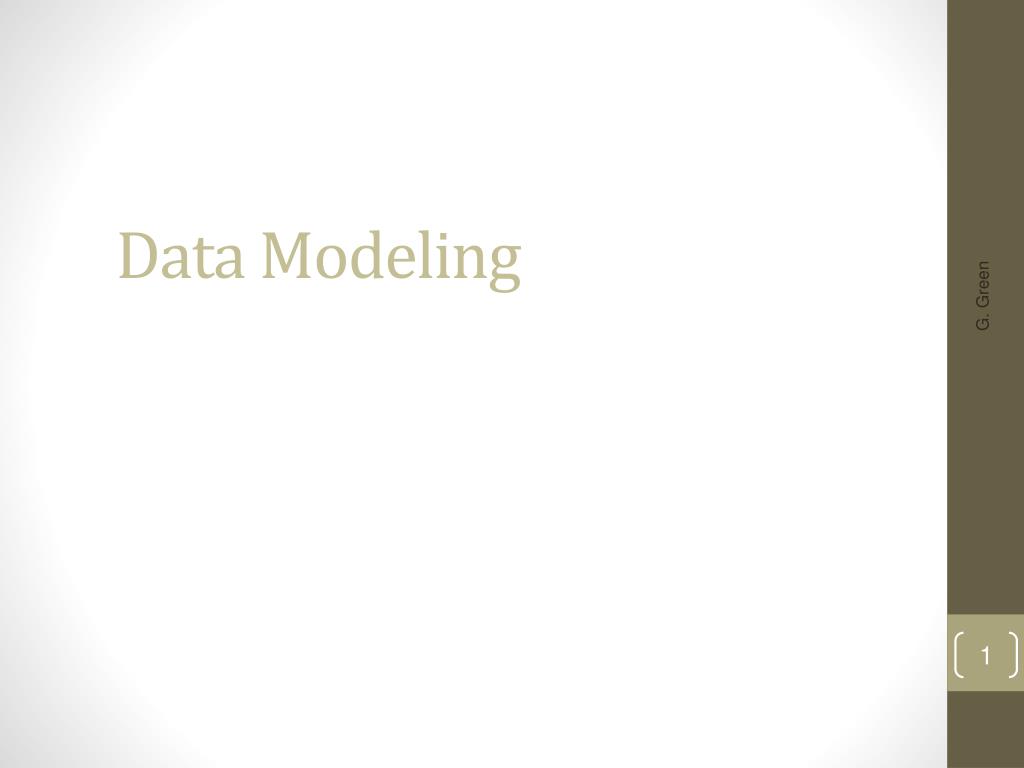

  1. Data Modeling

  2. Agenda • Conceptual Data Modeling Overview • Components of an ERD • Drawing an ERD • Exercises

  3. Data Requirements Discovery • Interviews • Identify who to interview • Executives? • Managers? • Staff Employees? • Conduct Interviews • What do you do? • Business challenges • Definition of success • Information to be more effective in job… • Other discovery methods • Existing systems • Existing documents (e.g., applications, reservations, timesheets, contracts, catalogs, etc.) • Document & Prioritize Requirements

  4. Conceptual Data Model • Describes the business in terms of "things" it deals with • A "Logical" (i.e. business) model • Foundation for: • Promoting cross-functional "business understanding" • Organizing data that supports a business process • Defining scope of database

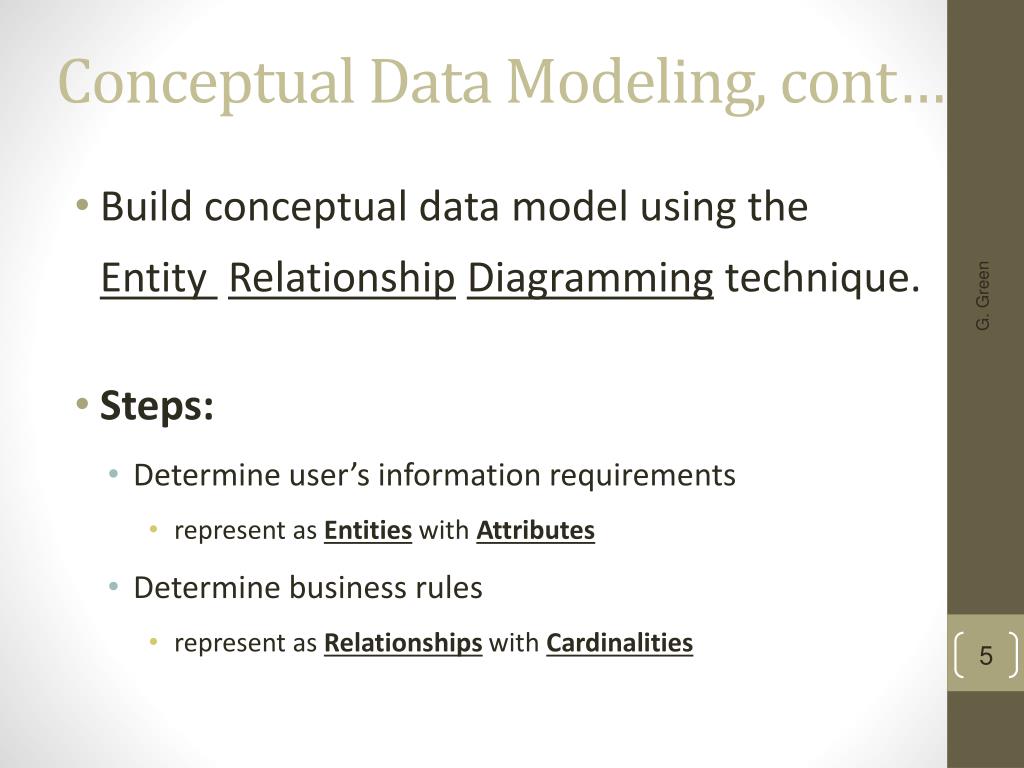

  5. Conceptual Data Modeling, cont… • Build conceptual data model using the Entity RelationshipDiagramming technique. • Steps: • Determine user’s information requirements • represent as Entities with Attributes • Determine business rules • represent as Relationships with Cardinalities

  6. Entity-Relationship Diagram(ERD) • Entities (types & instances) • Attributes • Primary Key • Multivalued attributes* • Relationships (unary, binary, ternary) • Cardinality (minimum & maximum) • Associative Entities • Generalization Hierarchy (supertypes & subtypes) * will not be left on our ERDs

  7. Sample E-R Diagram

  8. Entities • People, events, objects, assets, things • Entity Type • Collection or class of entities • Examples • Entity Instance • Single occurrence of entity • Examples • Entity Representation • Rectangular box • Name is singular noun, in CAPS Employee1, Gina Green,… Employee2, John Smith, … …

  9. Attributes • Characteristics that describe entities • Common to each instance of entity • Primary Key attribute (identifier): • Uniquely identifies an instance of an entity • CandidateKey • Atomic vs. Concatenated (or composite) Key • Avoid MVAs • Minimize derived attributes • Attribute Representation • Listed underneath entity name • Mixed case • Primary key typically underlined

  10. Primary Keys • Guidelines (not requirements) • Helpful if easy to write, read, hear, remember • Record time on 24-hour clock • Avoid using data that changes • Avoid letters • Surrogate vs. Natural Key

  11. Relationships • Business association or event linking one or more entities • Degrees • Unary (degree=1) • Binary (degree=2) • Ternary (degree=3) • Relationship Representation: • Line connecting related entities • Name of relationship on line • Name must be verb [phrase]

  12. Relationships, con’t... • Maximum Cardinality • Given oneinstance of an entity, what is the maximum number of instances of the other entity that it can be related to? • 1:1 • 1:M • M:M • Minimum Cardinality • … minimum number of instances… • mandatory (min = 1) • optional (min = 0) |

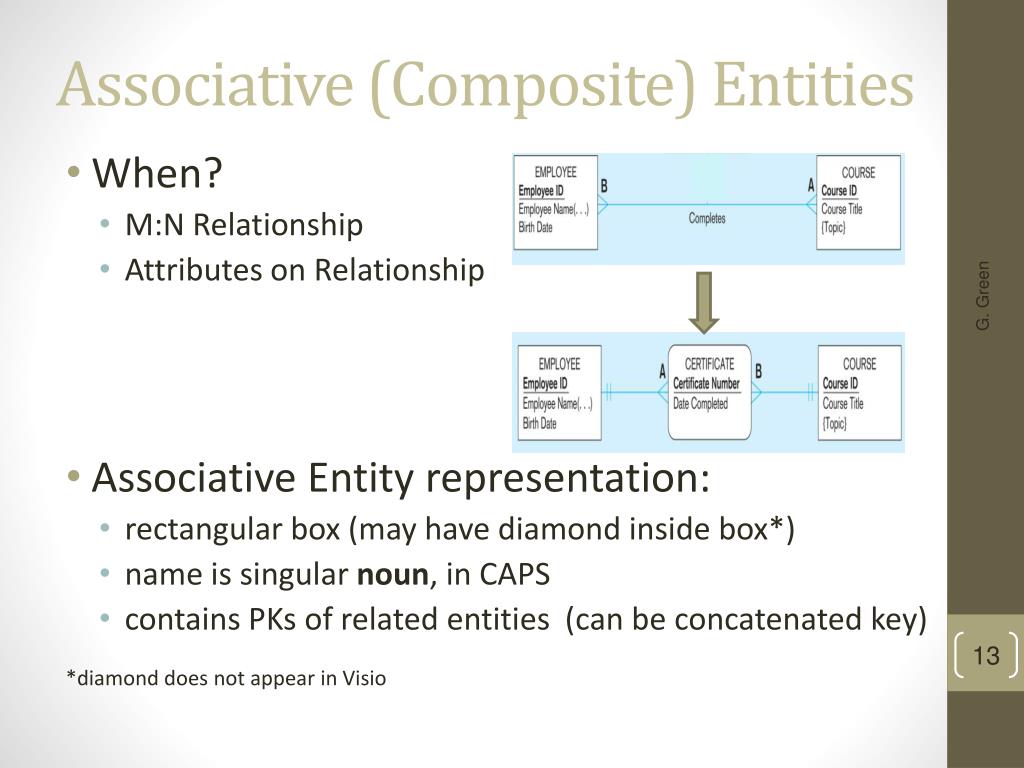

  13. Associative (Composite) Entities • When? • M:N Relationship • Attributes on Relationship • Associative Entity representation: • rectangular box (may have diamond inside box*) • name is singular noun, in CAPS • contains PKs of related entities (can be concatenated key) *diamond does not appear in Visio

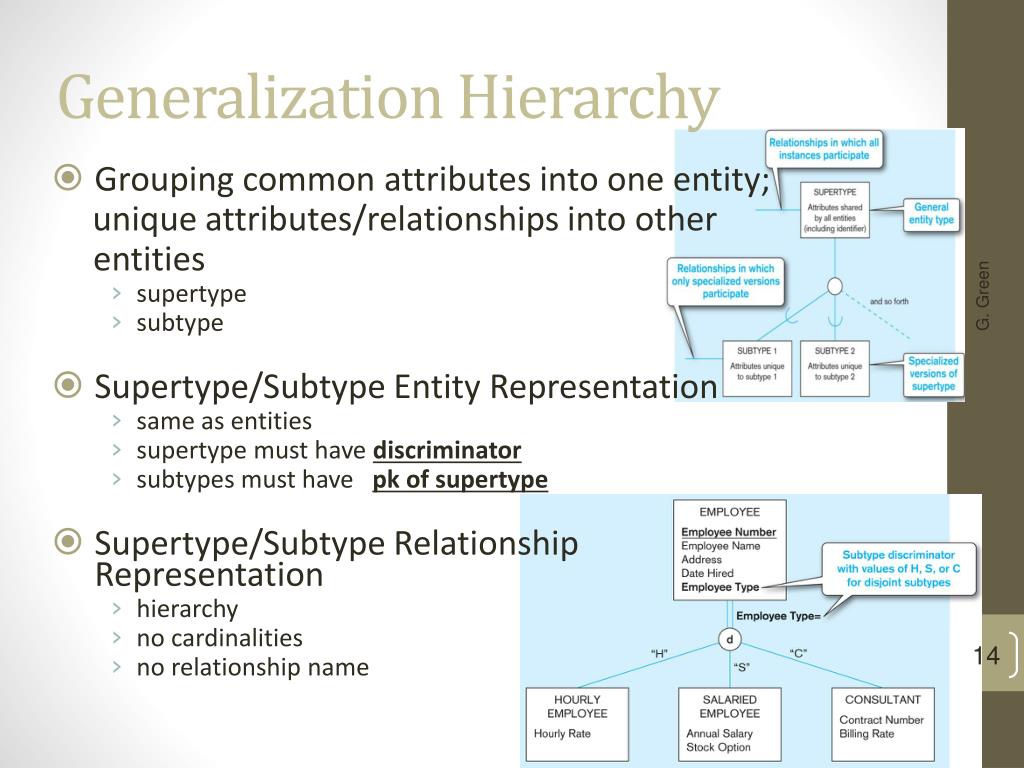

  14. Generalization Hierarchy • Grouping common attributes into one entity; unique attributes/relationships into other entities • supertype • subtype • Supertype/Subtype Entity Representation • same as entities • supertype must have discriminator • subtypes must have pk of supertype • Supertype/Subtype Relationship Representation • hierarchy • no cardinalities • no relationship name

  15. Drawing an ERD • Strong entities • People, places, things, events important to the process • Weak entities • Depends on strong entity for existence • Often have composite PKs • Attributes • Important characteristics/properties of entities • Include primary key • Relationships between entities • Events, activities, or transactions that involve handling data related to several entities • Remove M:M relationships • i.e., associative entities • Generalization hierarchies, if any • Supertypes with discriminator • Subtypes with parent PK

  16. How do you start? • Common Business Entities • Customer • Product • Transaction • Employee • Supplier/Vendor • Physical Assets/Facilities • Money

  17. ERD Example Problem 1 • A company sells products to customers • Each customer sale is depicted as an order • Orders consist of one or more ordered products • Products may be contained on many orders or on no orders at all • Attributes?

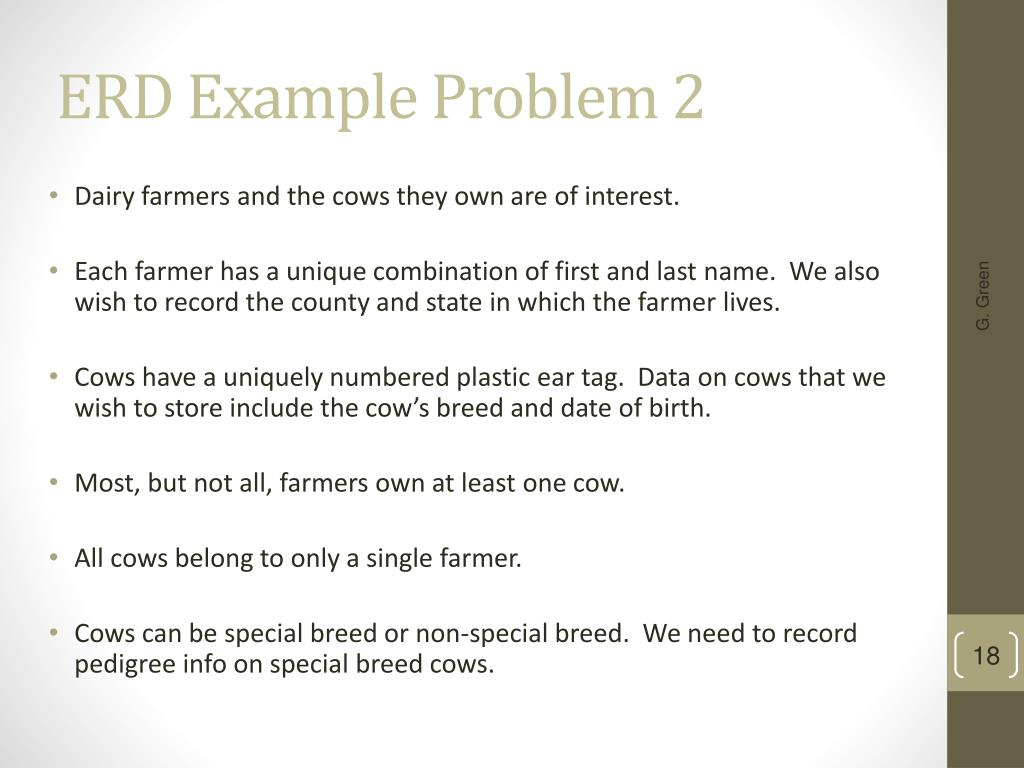

  18. ERD Example Problem 2 • Dairy farmers and the cows they own are of interest. • Each farmer has a unique combination of first and last name. We also wish to record the county and state in which the farmer lives. • Cows have a uniquely numbered plastic ear tag. Data on cows that we wish to store include the cow’s breed and date of birth. • Most, but not all, farmers own at least one cow. • All cows belong to only a single farmer. • Cows can be special breed or non-special breed. We need to record pedigree info on special breed cows.

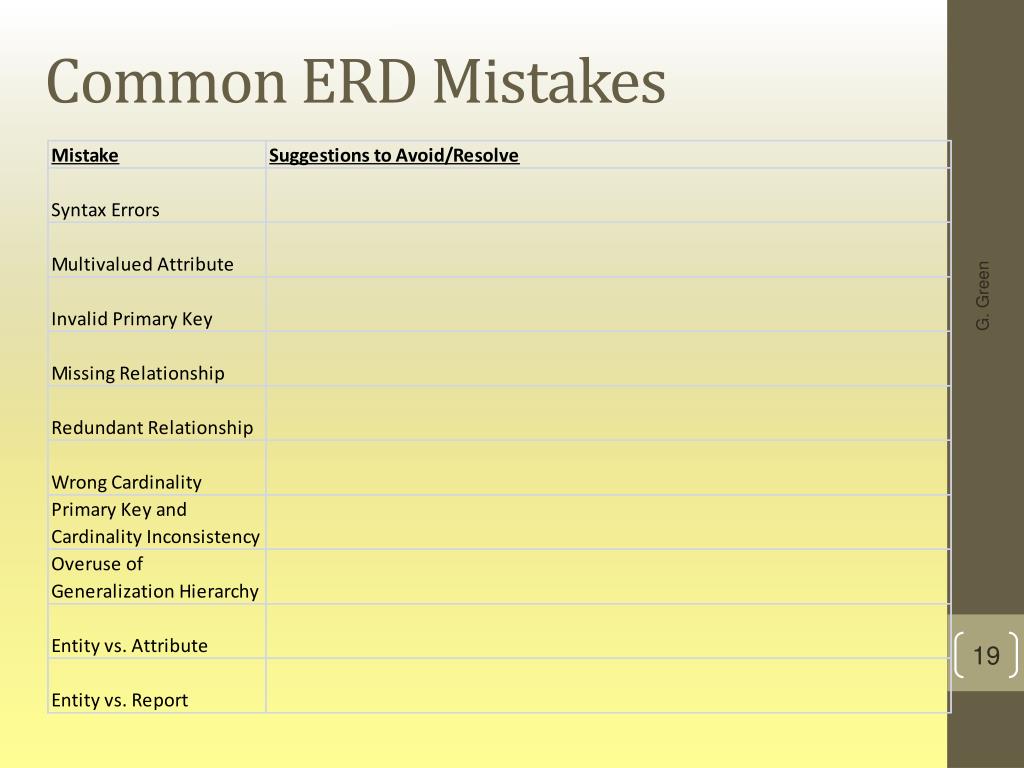

  19. Common ERD Mistakes

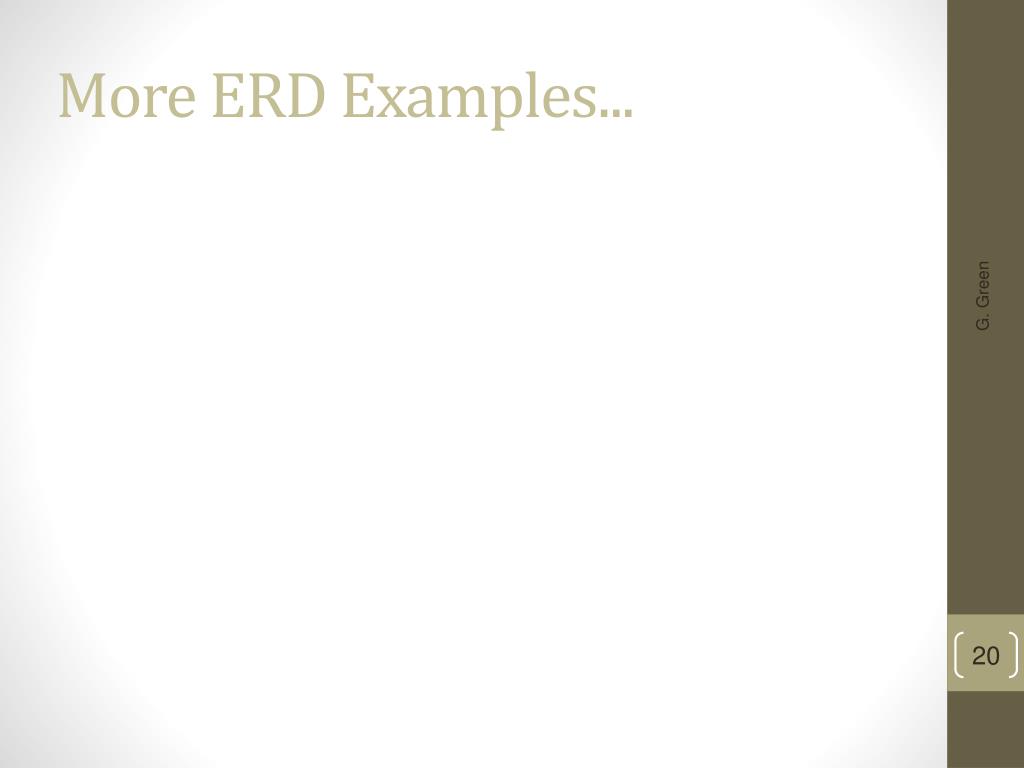

  20. More ERD Examples...

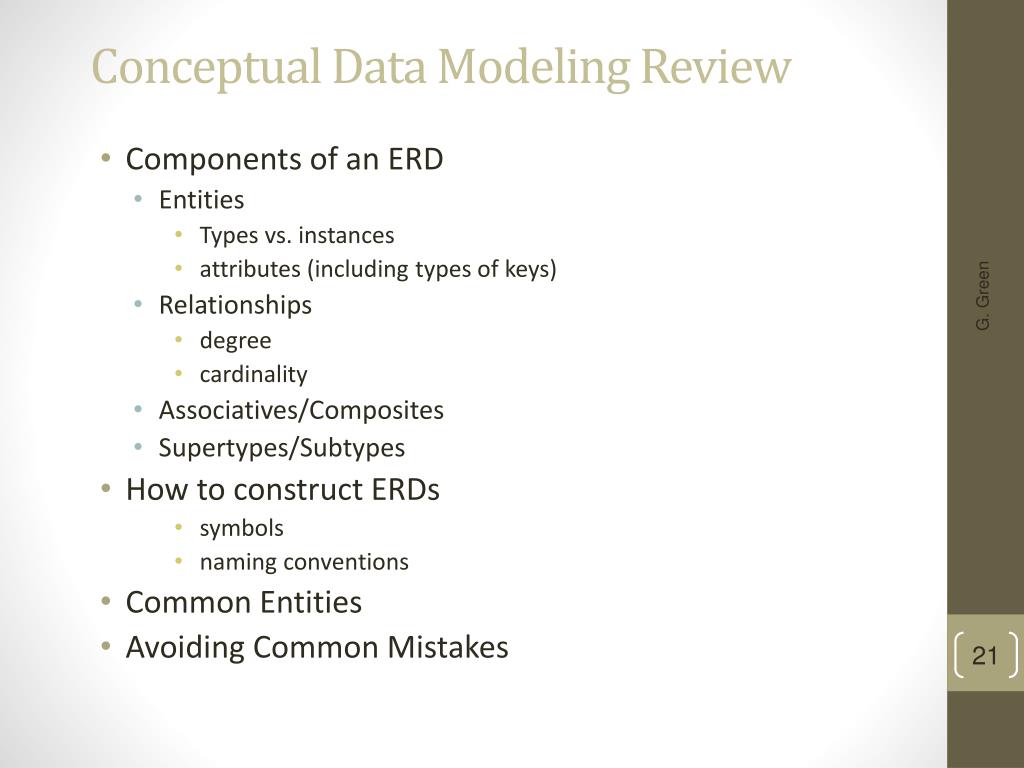

  21. Conceptual Data Modeling Review • Components of an ERD • Entities • Types vs. instances • attributes (including types of keys) • Relationships • degree • cardinality • Associatives/Composites • Supertypes/Subtypes • How to construct ERDs • symbols • naming conventions • Common Entities • Avoiding Common Mistakes
