Liquid Proof-Mass Accelerometer Equilibrium Analysis and Feasibility Study

This progress report explores the equilibrium analysis of a liquid proof-mass accelerometer, leveraging classical ideal gas law principles alongside comparisons with a spring-mass system. The design features dimensions of 10mm by 10mm by 2mm and utilizes air as the damping medium and deionized water as the moving liquid. Future work entails proving feasibility by calculating maximum liquid displacement and estimating flow rates, compared to the CNT flow sensor project.

bliss
Télécharger la présentation

Liquid Proof-Mass Accelerometer Equilibrium Analysis and Feasibility Study

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

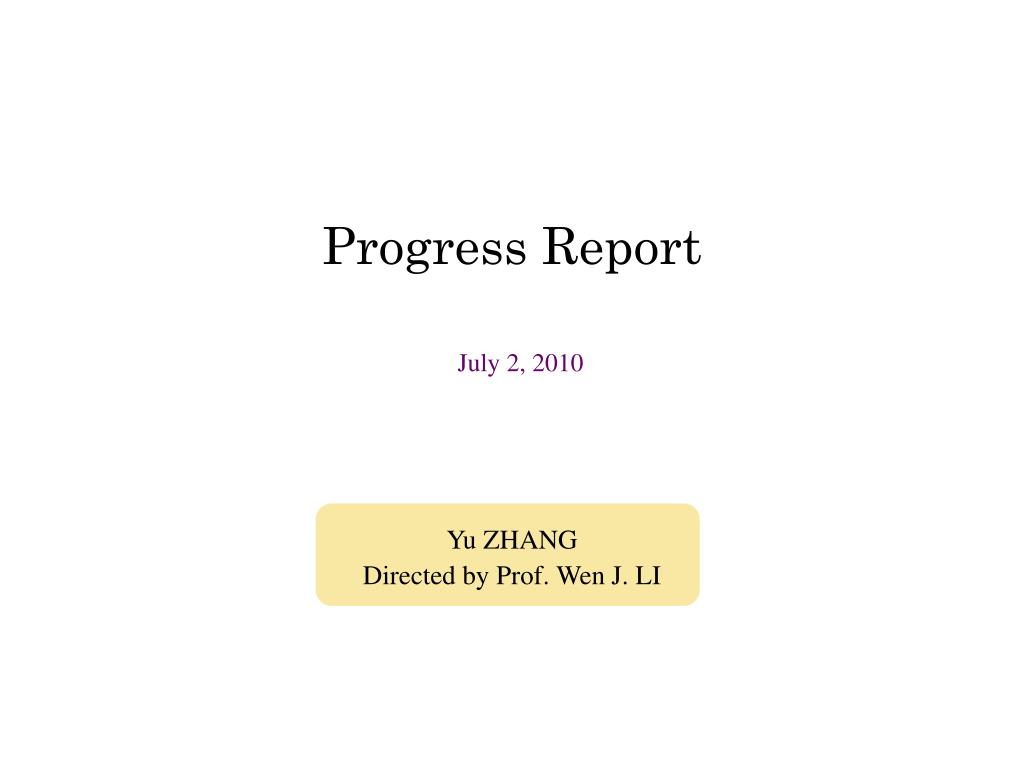

  1. Progress Report July 2, 2010 Yu ZHANG Directed by Prof. Wen J. LI

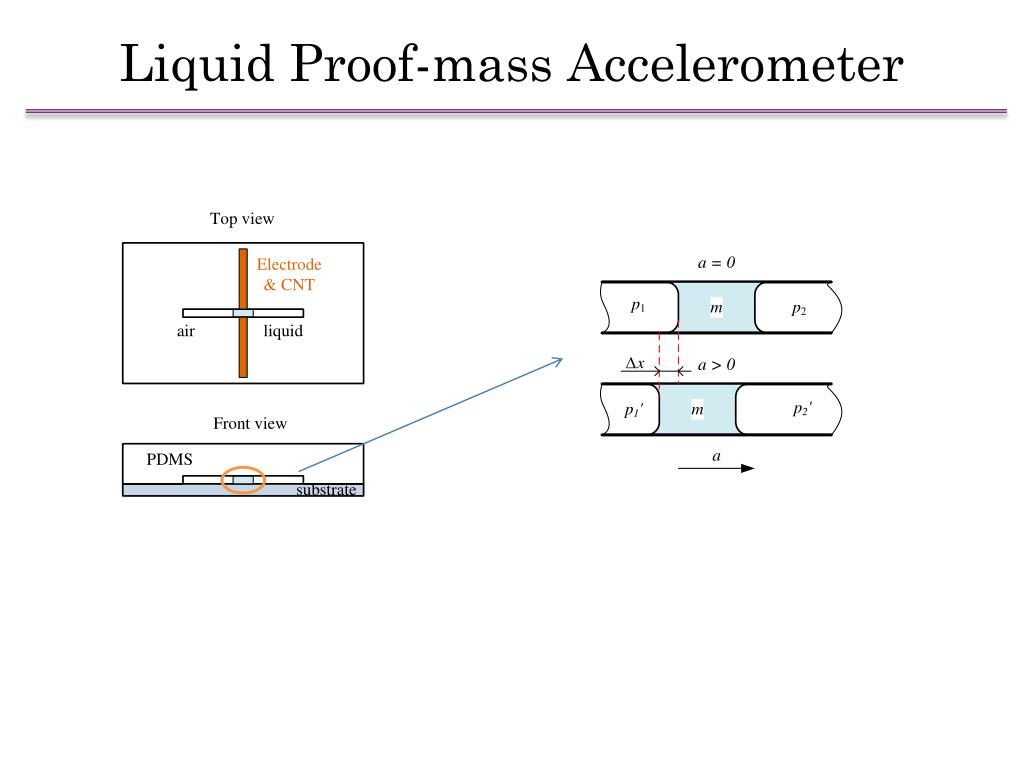

  2. Liquid Proof-mass Accelerometer

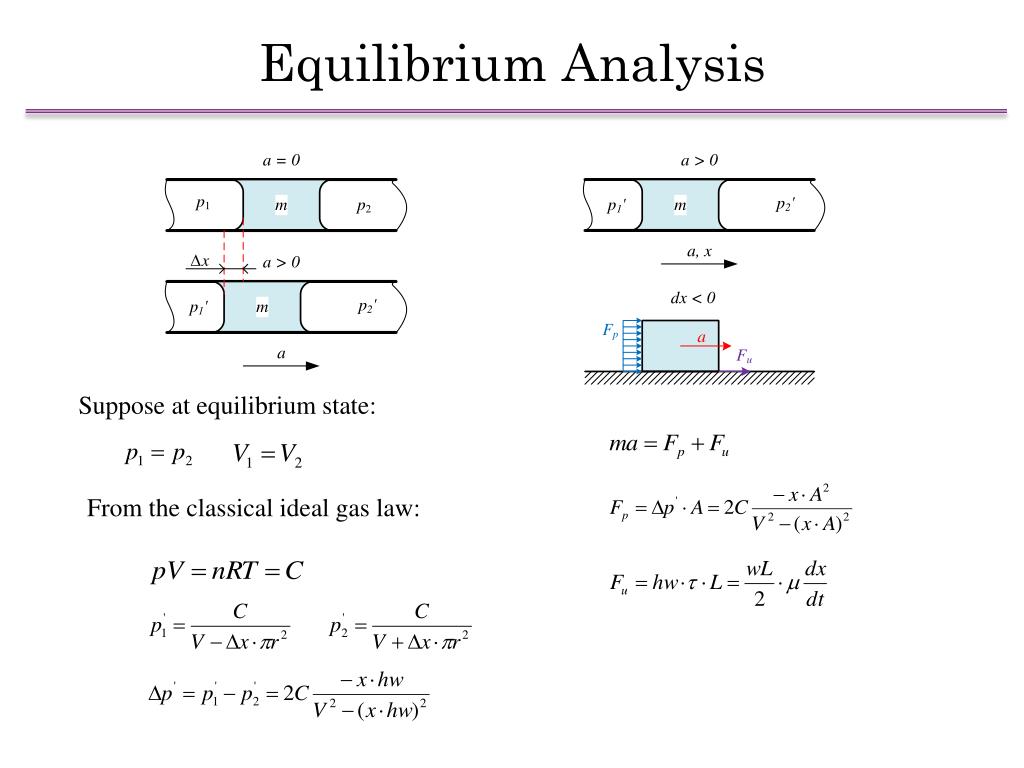

  3. Equilibrium Analysis Suppose at equilibrium state: From the classical ideal gas law:

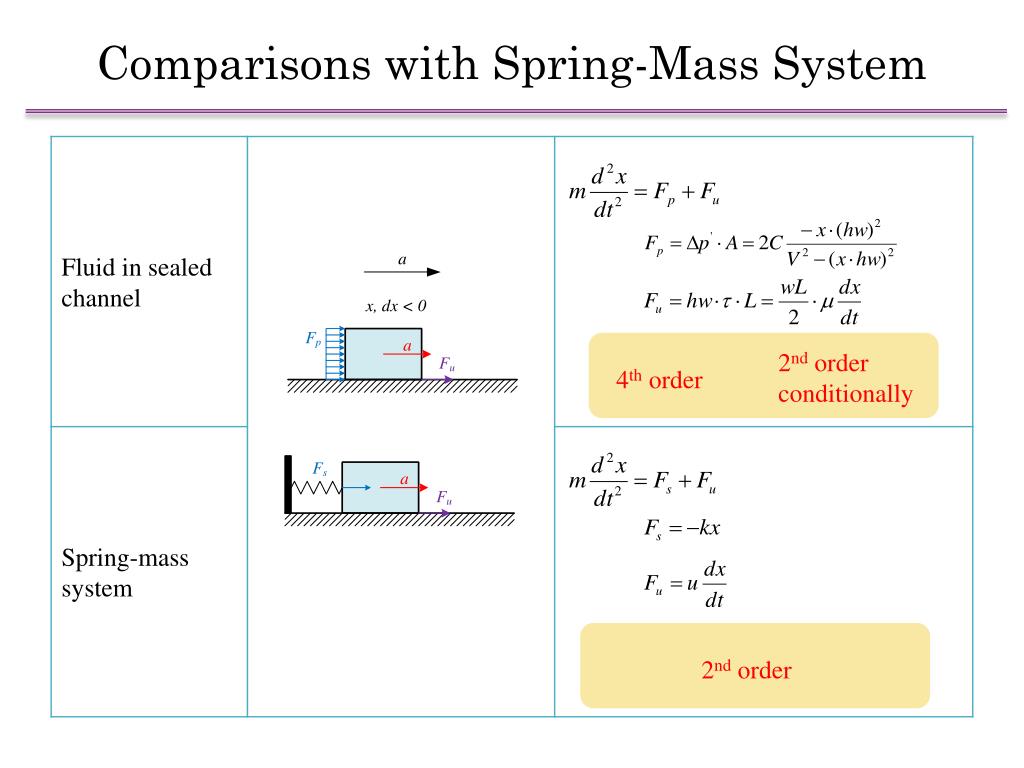

  4. Comparisons with Spring-Mass System 2nd order conditionally 4th order 2nd order

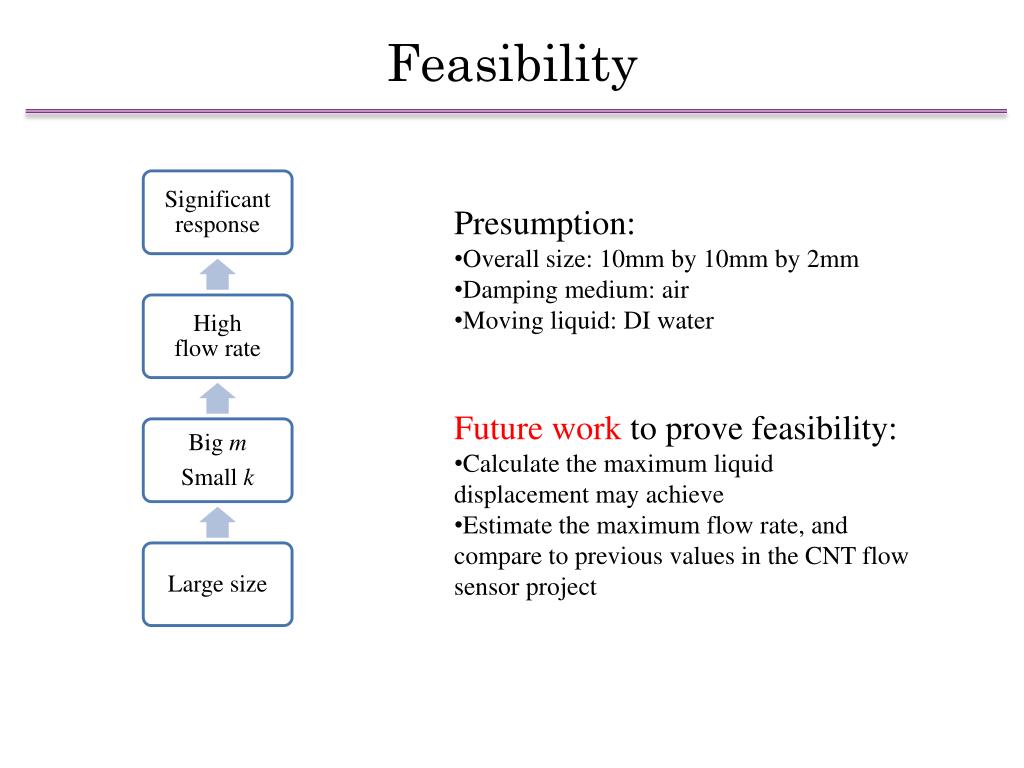

  5. Feasibility • Presumption: • Overall size: 10mm by 10mm by 2mm • Damping medium: air • Moving liquid: DI water • Future work to prove feasibility: • Calculate the maximum liquid displacement may achieve • Estimate the maximum flow rate, and compare to previous values in the CNT flow sensor project

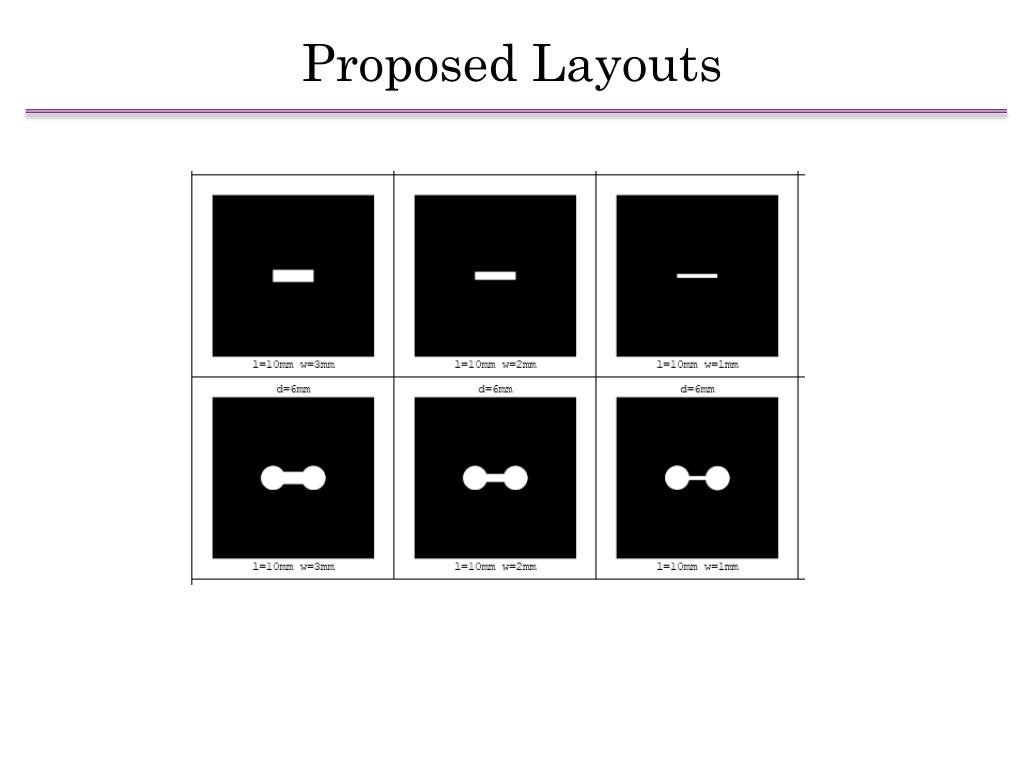

  6. Proposed Layouts
