  1. Circuit BreakersandBusbars

  2. Altech’s Circuit Breaker Line UL1077 (R-Series) UL508 (V-EA Series) UL489 (L-Series, AB-Series) Circuit Breakers

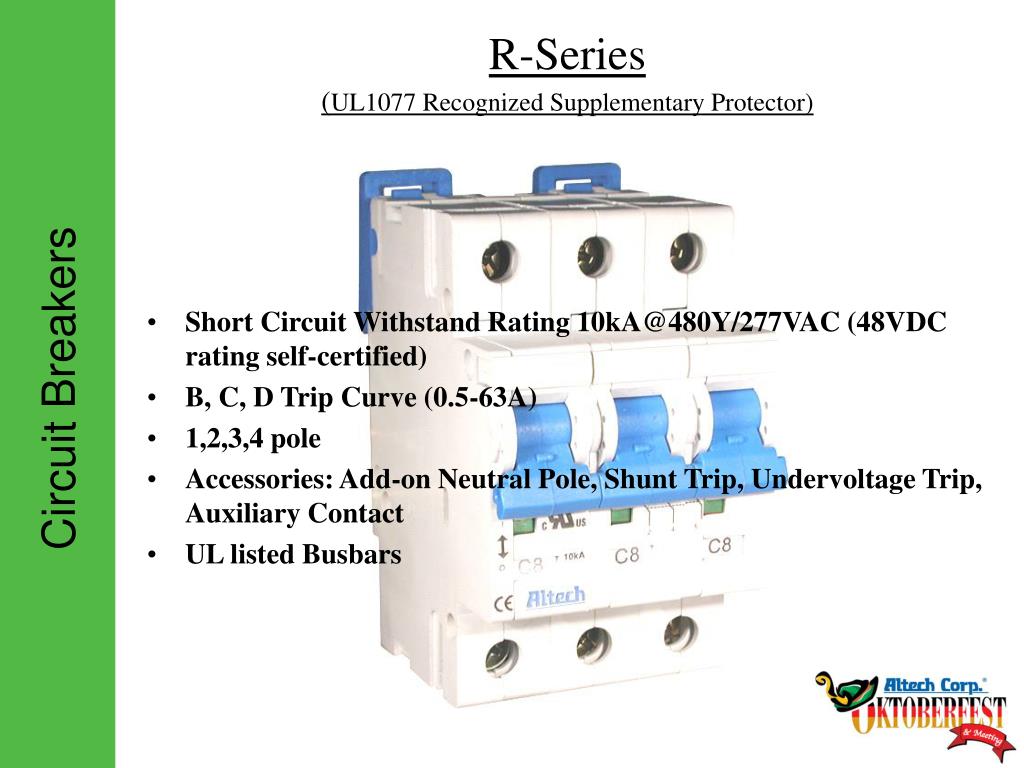

  3. R-Series (UL1077 Recognized Supplementary Protector) Circuit Breakers • Short Circuit Withstand Rating 10kA@480Y/277VAC (48VDC rating self-certified) • B, C, D Trip Curve (0.5-63A) • 1,2,3,4 pole • Accessories: Add-on Neutral Pole, Shunt Trip, Undervoltage Trip, Auxiliary Contact • UL listed Busbars

  4. V-EA Series (UL508 listed Manual Motor Controller) Circuit Breakers • Short Circuit Withstand Rating 10kA@480Y/277VAC, 50/60Hz • B (1-63A), C (0.3-63A), D (0.3-63A)), E (0.3-63A), G (0.3-63A), Z (0.3-50A) Trip Curve • 1,2,3,4 pole • 1 pole plus Neutral • Accessories: Add-on Shunt Trip, Undervoltage Trip, Auxiliary Contact • UL listed Busbars

  5. L-Series (UL489 listed Miniature Molded Case Circuit Breaker) Circuit Breakers • Voltage Rating 240VAC (0.2-63A), 480Y/277VAC (0.2-32A), 125VDC (1 pole)/ 250VDC (2 pole) (0.2-63A) • 10kA Short Circuit Interrupt Capacity • AC and DC • C, D Trip Curve • 1,2,3,4 pole • Accessories: Add-on Neutral Pole, Shunt Trip, Undervoltage Trip, Auxiliary Contact • UL listed Busbars

  6. AB-Series (UL489 listed Molded Case Circuit Breaker) Circuit Breakers • Interrupting Capacity up to 100kA (240VAC) • Thermal Magnetic • Door Interlock Handle • 3 pole • Accessories: Auxiliary Switch, Alarm Switch, Shunt/ Undervoltage Trip

  7. UL Standards and its Functions Circuit Breakers Standard Function

  8. UL Standards and its Functions Circuit Breakers Standard Function UL1077 Supplementary Protector Overload Protection

  9. UL Standards and its Functions Circuit Breakers Standard Function UL1077 Supplementary Protector UL508 Manual Motor Controller Overload Protection Overload Protection Switching Function Disconnect Function* *when suitable for disconnect means

  10. UL Standards and its Functions Circuit Breakers Standard Function UL1077 Supplementary Protector UL508 Manual Motor Controller UL489 (Miniature) Molded Case Circuit Breaker Overload Protection Overload Protection Switching Function Disconnect Function* *when suitable for disconnect means Overload Protection Switching Function Disconnect Function Short Circuit Protection Application Example 

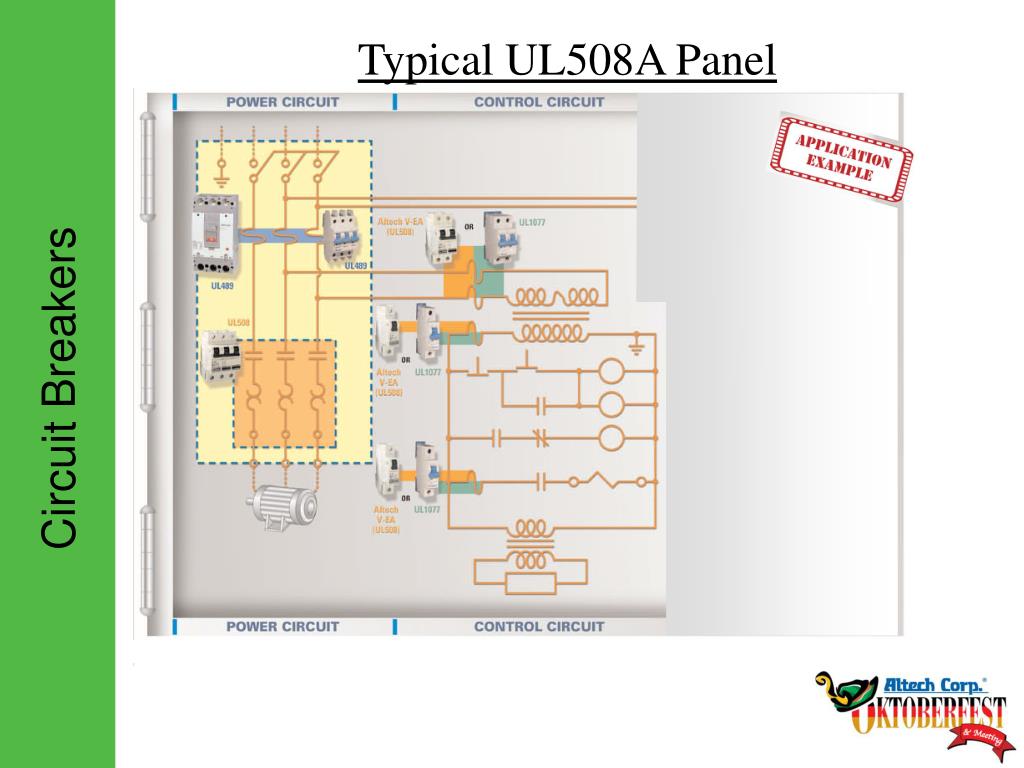

  11. Typical UL508A Panel Circuit Breakers

  12. Typical UL508A Panel Circuit Breakers

  13. Typical UL508A Panel Circuit Breakers

  14. Typical UL508A Panel Circuit Breakers

  15. Altech’s Busbar Line • UL508 listed Busbars • UL489 listed Busbars Busbars

  16. Distribution Block  Busbar Busbars e.g. #38049 (80A, 1xInput, 6xOutput)

  17. Input Phase 1 80A Input Phase 2 80A Input Phase 3 80A 80AOutputs Phase 1 80AOutputs Phase 1 80AOutputs Phase 1 Distribution Block  Busbar Busbars e.g. #38049 (80A, 1xInput, 6xOutput)

  18. Input Phase 1 80A Input Phase 2 80A Input Phase 3 80A 80AOutputs Phase 1 80AOutputs Phase 1 80AOutputs Phase 1 Distribution Block  Busbar Busbars e.g. #38049 (80A, 1xInput, 6xOutput) e.g. #P50UT + #3P18U318

  19. Input Phase 1 80A Input Phase 2 80A Input Phase 3 80A 1 2 3 1 1 1 2 2 2 3 3 3 1 1 1 2 2 2 3 3 3 Outputs 80A per Phase 80AOutputs Phase 1 80AOutputs Phase 1 80AOutputs Phase 1 Distribution Block  Busbar Busbars e.g. #38049 (80A, 1xInput, 6xOutput) e.g. #P50UT + #3P18U318 80A Inputs 80A per Phase 80A

  20. Input Phase 1 80A Input Phase 2 80A Input Phase 3 80A 1 2 3 1 1 1 2 2 2 3 3 3 1 1 1 2 2 2 3 3 3 Outputs 80A per Phase 80AOutputs Phase 1 80AOutputs Phase 1 80AOutputs Phase 1 Distribution Block  Busbar Busbars e.g. #38049 (80A, 1xInput, 6xOutput) e.g. #P50UT + #3P18U318 80A Inputs 80A per Phase 80A 80A

  21. Input Phase 1 80A Input Phase 2 80A Input Phase 3 80A 80A 80A 80A 1 2 3 1 1 1 2 2 2 3 3 3 1 1 1 2 2 2 3 3 3 Outputs 80A per Phase 80AOutputs Phase 1 80AOutputs Phase 1 80AOutputs Phase 1 Distribution Block  Busbar Busbars e.g. #38049 (80A, 1xInput, 6xOutput) e.g. #P50UT + #3P18U318 Inputs 80A per Phase 80A 80A 80A

  22. Input Phase 1 80A Input Phase 2 80A Input Phase 3 80A 80A 80A 80A 1 2 3 1 1 1 2 2 2 3 3 3 1 1 1 2 2 2 3 3 3 Outputs 80A per Phase 80AOutputs Phase 1 80AOutputs Phase 1 80AOutputs Phase 1 Distribution Block  Busbar Busbars e.g. #38049 (80A, 1xInput, 6xOutput) e.g. #P50UT + #3P18U318 Inputs 80A per Phase 80A 80A 80A • Busbar: • no wiring between distribution and control device • Installation-time saving

  23. 80A 80A 80A 1 2 3 1 1 1 2 2 2 3 3 3 1 1 1 2 2 2 3 3 3 80A 80A 80A Power Feed (Power Input) Methods (1) Busbars 1)Start/End Feed-Method (e.g. with Power Feed Lug P50UT and 18mm² Busbar) 3P18U3/18

  24. 1 2 3 Power Feed (Power Input) Methods (2) Busbars 2)Center/Middle Feed-Method (e.g. with Power Feed Lug P50UT and 18mm² Busbar) 115A 3P18U3/18 1 1 1 1 1 1 35A 80A

  25. 1 2 3 1 1 1 2 2 2 1 1 1 2 2 2 Power Feed (Power Input) Methods (3) Busbars 2)Center/Middle Feed-Method (e.g. with Power Feed Lug P50UT and 18mm² Busbar) 115A 115A 3P18U3/18 35A 80A 35A 80A

  26. 1 2 3 1 1 1 2 2 2 3 3 3 1 1 1 2 2 2 3 3 3 Power Feed (Power Input) Methods (4) Busbars 2)Center/Middle Feed-Method (e.g. with Power Feed Lug P50UT and 18mm² Busbar) 115A 115A 115A 3P18U3/18 35A 80A 35A 80A 35A 80A

  27. 1 2 3 1 1 1 2 2 2 3 3 3 1 1 1 2 2 2 3 3 3 Power Feed (Power Input) Methods (5) Busbars 2)Center/Middle Feed-Method (e.g. with Power Feed Lug P50UT and 18mm² Busbar) 115A 115A 115A 3P18U3/18 35A 80A 35A 80A 35A 80A 35A + 80A = 115A

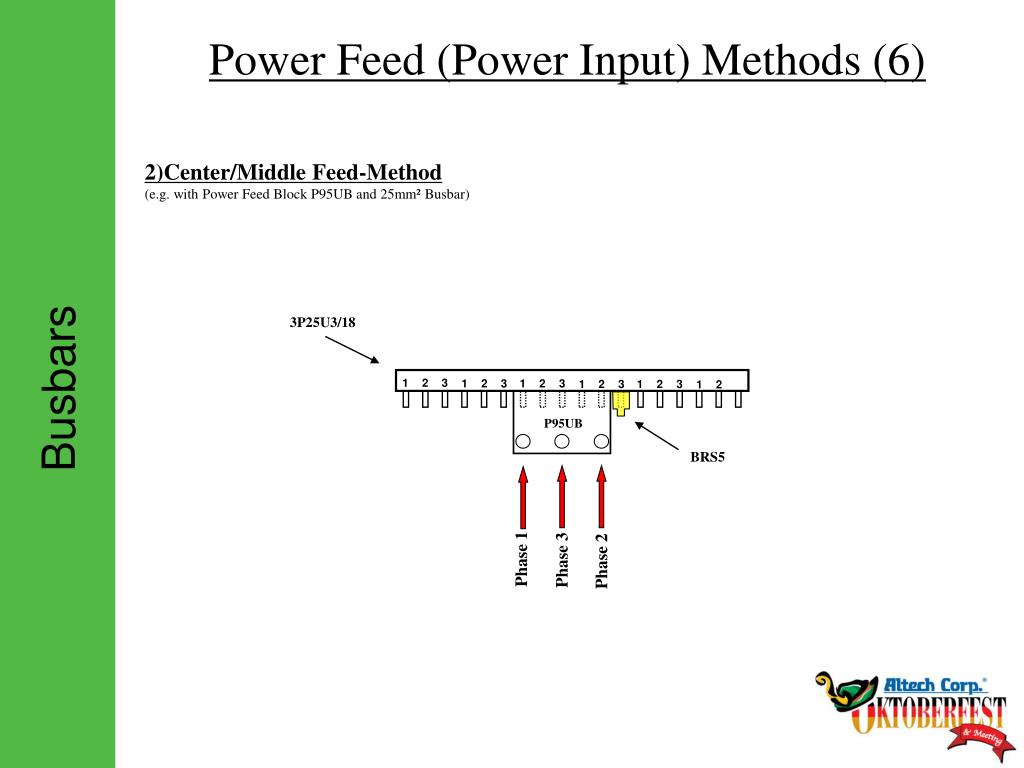

  28. 1 1 1 2 2 2 3 3 3 1 1 1 2 2 2 3 3 Power Feed (Power Input) Methods (6) Busbars 2)Center/Middle Feed-Method (e.g. with Power Feed Block P95UB and 25mm² Busbar) 3P25U3/18 P95UB BRS5 Phase 1 Phase 3 Phase 2

  29. Power Feed (Power Input) Methods (6) Busbars 2)Center/Middle Feed-Method (e.g. with Power Feed Block P95UB and 25mm² Busbar) 3P25U3/18 P95UB 1 1 1 1 100A 100A 200A Input Phase 1

  30. Power Feed (Power Input) Methods (6) Busbars 2)Center/Middle Feed-Method (e.g. with Power Feed Block P95UB and 25mm² Busbar) 3P25U3/18 P95UB 1 2 1 2 1 2 1 2 100A 100A 100A 100A 200A Input Phase 1 200A Input Phase 2

  31. 1 1 2 2 3 3 1 1 2 2 3 3 Power Feed (Power Input) Methods (7) Busbars 2)Center/Middle Feed-Method (e.g. with Power Feed Block P95UB and 25mm² Busbar) 3P25U3/18 P95UB 100A 100A 100A 100A 100A 100A 200A Input Phase 1 200A Input Phase 3 200A Input Phase 2

  32. UL1077/508 Busbar System (1) Busbars • Electrical Rating: 80A@480VAC (18mm² Pins), 100A@480VAC (25mm² Pins) • 1,2,3 Phase • Any possible Pin configuration (1-57Pins) • ½ pole spacing (auxiliary switch) available • Power feeding: Power Feed Lugs (115A), Direct Power Feed (80A), Power Feed Block (200A) • UL508 listed

  33. UL1077/508 Busbar System (2) Busbars • Busbars can be cut to customers needs without loosing UL-approval • UL recognized and listed for Altech’s R-Series, V-EA Series and MA Series of Manual Motor Controllers and Supplementary Protectors • UL recognized and listed for use with most competitor’s UL1077 supplementary protectors and UL508 Manual Motor Controllers

  34. UL489 Busbar System (1) Busbars • Electrical Rating: 80A@480VAC (16mm² Pins) • 1,2,3 Phase • 6, 12, 18 Pin configuration • Power feeding: Power Feed Lugs (115A), Direct Power Feed (80A) • UL489 listed

  35. UL489 Busbar System (2) Busbars • Every Pin configuration possible by combination of existing 6, 12 and 18 Pin Busbars • UL listed for Altech’s L-Series of Miniature Molded Case Circuit Breaker • UL listed for use with most competitor’s UL489 Miniature Molded Case Circuit Breaker

  36. Configuration of UL489 Busbars (1) Busbars • UL489 Busbars are available in 3 different Pin Configurations per Phase (6, 12 and 18 Pins) • They can’t be cut, since the creapage and clearance distance requirements from UL are too stringent. • Therefore to obtain the desired No. of Pins, Busbars can and must be overlapped

  37. Configuration of UL489 Busbars (2) 1 Phase Busbars 3 Phase Busbars Busbars • Busbars are overlapped backwards to each other Configuration Examples:

  38. Configuration of UL489 Busbars (3) 1 Phase Busbars 3 Phase Busbars Busbars • Busbars are overlapped backwards to each other • The Number of overlapping Pins of 2 Busbar must be a multiplier of the Number of Phases to keep existing Phase sequence. (Can be overlapped by more than the number of phases) Configuration Examples:

  39. Configuration of UL489 Busbars (4) 1 Phase Busbars 3 Phase Busbars Busbars • Busbars are overlapped backwards to each other • The Number of overlapping Pins of 2 Busbar must be a multiplier of the Number of Phases to keep existing Phase sequence. (Can be overlapped by more than the number of phases) • Any available combination of the 3 different Pin configurations is possible Configuration Examples:

  40. Thank You!!
