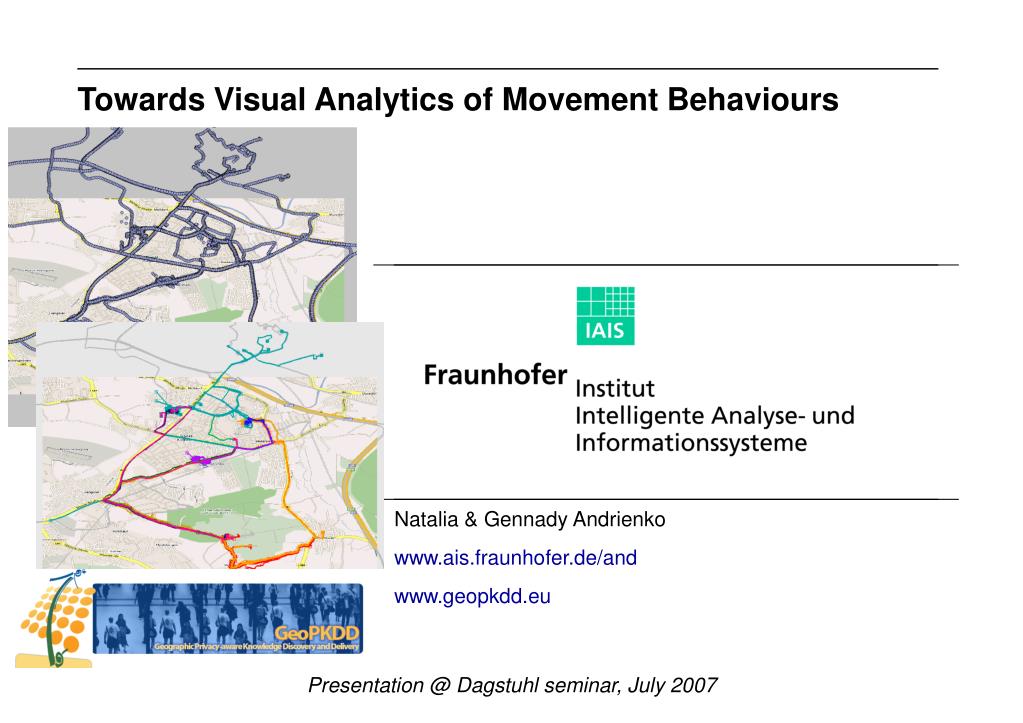

Towards Visual Analytics of Movement Behaviours. Natalia & Gennady Andrienko www.ais.fraunhofer.de/and www.geopkdd.eu. Presentation @ Dagstuhl seminar, July 2007. Context. EU-funded GeoPKDD project: Geographic Privacy Aware Knowledge Discovery and Delivery

bluma
Télécharger la présentation

Towards Visual Analytics of Movement Behaviours

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Towards Visual Analytics of Movement Behaviours Natalia & Gennady Andrienko www.ais.fraunhofer.de/and www.geopkdd.eu Presentation @ Dagstuhl seminar, July 2007

  2. Context • EU-funded GeoPKDD project: Geographic Privacy Aware Knowledge Discovery and Delivery • Goal: develop methods for analysis of movements of discrete objects { (object_id, time, position_in_space) } • Consortium composition (disciplines): data mining + DB/DW + (geo)visualisation Data miners’ vision: Our vision (Visual Analytics): Data Mining DB/DW Visualisation Visualisation DB/DW Data Mining

  3. Data • Problem: real data are hard to get!  Let’s collect our own data… N;Time;Lat;Long;Height;Course;Speed;PDOP;State;NSat … 8;22/03/07 08:51:52;50.777132;7.205580; 67.6;345.4;21.817;3.8;1808;4 9;22/03/07 08:51:56;50.777352;7.205435; 68.4;35.6;14.223;3.8;1808;4 10;22/03/07 08:51:59;50.777415;7.205543; 68.3;112.7;25.298;3.8;1808;4 11;22/03/07 08:52:03;50.777317;7.205877; 68.8;119.8;32.447;3.8;1808;4 12;22/03/07 08:52:06;50.777185;7.206202; 68.1;124.1;30.058;3.8;1808;4 13;22/03/07 08:52:09;50.777057;7.206522; 67.9;117.7;34.003;3.8;1808;4 14;22/03/07 08:52:12;50.776925;7.206858; 66.9;117.5;37.151;3.8;1808;4 15;22/03/07 08:52:15;50.776813;7.207263; 67.0;99.2;39.188;3.8;1808;4 16;22/03/07 08:52:18;50.776780;7.207745; 68.8;90.6;41.170;3.8;1808;4 17;22/03/07 08:52:21;50.776803;7.208262; 71.1;82.0;35.058;3.8;1808;4 18;22/03/07 08:52:24;50.776832;7.208682; 68.6;117.1;11.371;3.8;1808;4 … About 75,000 in total

  4. A systematic approach • Postulate: to develop methods for exploring and analysing data, we first need to determine what results these methods must produce (purpose!) • In other words, what an analyst is likely to seek in the data • Axiom: the purpose of (exploratory) analysis is to produce a parsimonious description (or other sort of representation) of all data  enumeration of all data items! • Can we call it “model”? (descriptive but not (yet) predictive) • Corollary: an analyst is likely to seek invariants, i.e. something common for multiple data items • Parsimony: a single invariant is described instead of multiple data items • Invariant  pattern? • Reservation: it may not always be possible to find invariants covering the whole dataset  the analyst will have to describe deviations • But invariants need to be discovered first!

  5. A systematic approach (continued) • Implication: develop methods for data analysis  develop methods that enable the discovery of invariants (+ possibly methods to deal with deviations) • Implication: to develop methods, we need to define the possible types of invariants • Hypothesis: the types of invariants can be predicted by considering • data structure (what components are there and how they are related) • properties of the components • Let’s take movement data • Components: population (set of objects); time (set of moments); space (set of positions) • Relation: [object]  [time] → [position] (space is dependent component!); single moving object: [time] → [position] • Population: discrete; no (natural) order; no distances • Time: continuous; linearly and, possibly, cyclically ordered; has distances • Space: continuous; partly ordered; has distances

  6. Types of invariants in movement data • Let’s take a single moving object: [time] → [position] where time is continuous linearly ordered set with distances (+ possibly cyclically ordered) • First-order invariants (AKA “movement episodes”): constancy on adjacent time moments (throughout an interval) (reservation: “constancy” is not absolute but involves certain tolerance) • Constant position (= stop, no movement) • Constant change ( trend?): constant shift of position (direction, speed); constant acceleration (increasing/decreasing speed); constant change of direction (arc) • Relaxed constancy: object keeps moving (opposite to stop) • Movement can be described as sequence: episode – {change} – episode – …(time is ordered). However, little parsimony is achieved! • Second-order invariants: repeated episodes; repeated sequences of episodes • Yet more parsimony (constancy in repetition → third-order invariants?): • periodic repetition (constant distance in time between repetitions) (time has distances) • repetition on same positions in temporal cycles

  7. Further design considerations • The data may be very large (possibly, not fitting in computer memory)  develop methods that can work out of memory  use database technology • Visual Analytics Mantra (D.Keim): Analyze First – Show the Important – Zoom, Filter and Analyze Further – Details on Demand • Integration model: • What we have achieved by now: • Use DB to extract episodes (1st-order invariants) • Use DM to detect repetitions (2nd-order invariants) • Use visualisation to see if the repetitions are regular (3rd-order invariants) Visualisation Database Data Mining

  8. Data preprocessing (one-time operation in DB) • Original data: • <t, x, y> • Results of preprocessing: • Points are connected into sequences (NEXTTIME field) • dX, dY, dT, distance • Derived speed, course, acceleration and turn in each point • Additional temporal components are easy to extract from the database: day of week, day of year, decade of month… We separated time-consuming data pre-processing (needs to be performed only once!) from rapid analysis and aggregation procedures (that take just few seconds)

  9. A new galaxy? (points are plotted according to DX & DY) An artefact of the straight line filtering (threshold = 20 meters) by the data collection software

  10. Extraction of stops (DB operation + GUI + Visualisation)  1 hour  5 minutes  30 seconds Differ in meaning!

  11. Seeking repetitions and regularity of the stops Spatial clustering: find repeated stops Visualisation: look for regularityw.r.t. time cycles

  12. Extraction of moves (DB operation + GUI + Visualisation)

  13. Seeking repetitions of moves: progressive clustering Joint work with S.Rinzivillo, Univ. Pisa: • generic clustering algorithm OPTICS (Ankerst, Breunig, Kriegel, and Sander 1999) • the algorithm has been implemented so that cluster building is separated from distance and neighbourhood computation • several variants of distance measures designed specially for trajectories • various ways of handling the times in the data

  14. Result 1: clusters of moves with common starts and ends

  15. Seeking regularity of repetitions w.r.t. time cycles hours days months

  16. Progressive clustering: dig into selected clusters

  17. Result 2: refinement of the two selected clusters Hours; Days; Months

  18. What’s next? • Enhance visualisation! • Extraction of episodes on the basis of speeds, directions, accelerations, and turns • Spatial aggregation • Temporal aggregation • Spatio-temporal aggregation • Attribute-based aggregation • We are seeking for a killer application • Data are available… despite the privacy concerns
