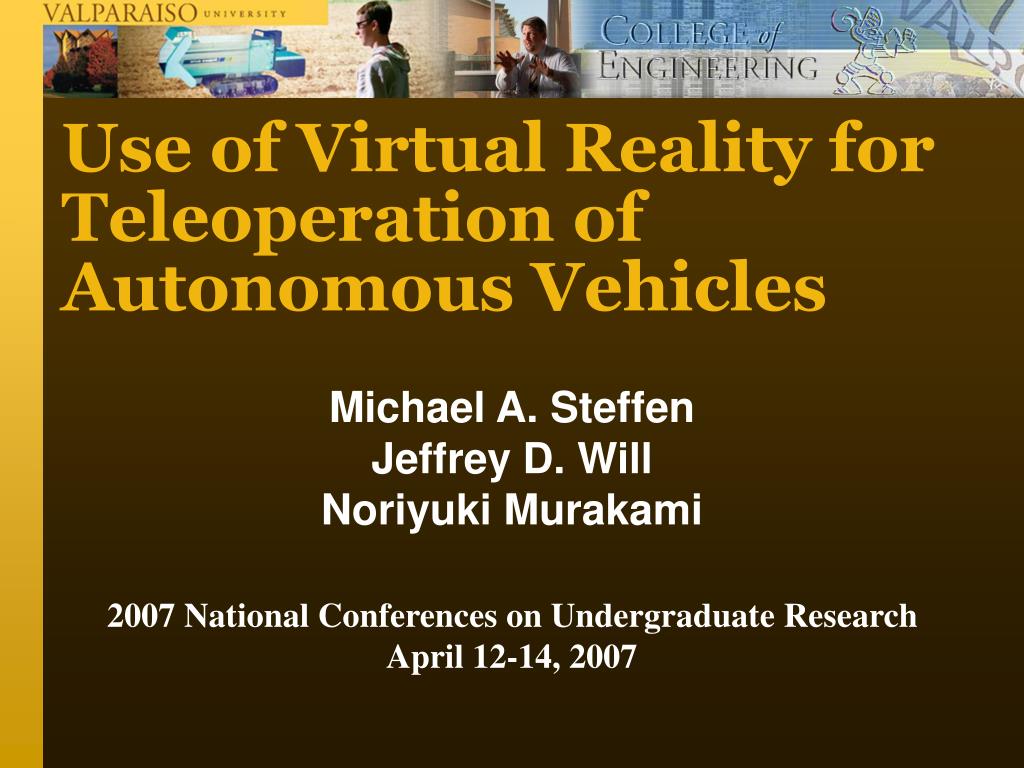

  1. Use of Virtual Reality for Teleoperation of Autonomous Vehicles Michael A. Steffen Jeffrey D. Will Noriyuki Murakami 2007 National Conferences on Undergraduate Research April 12-14, 2007

  2. About the Authors • Michael A. Steffen • BSME from Valparaiso University, May 2007 • BSEE from Valparaiso University, May 2007 • Dr. Jeffrey D. Will • Assistant Professor of Electrical and Computer Engineering • Dr. Noriyuki Murakami • Japans National Agriculture Research Center

  3. Location of Tests 10,000 Km

  4. The Vehicle • Global Position Sensor (GPS) • Hydrostatic transmission • Fiber optic gyro sensor • Wireless Network • On board Computer • Camera

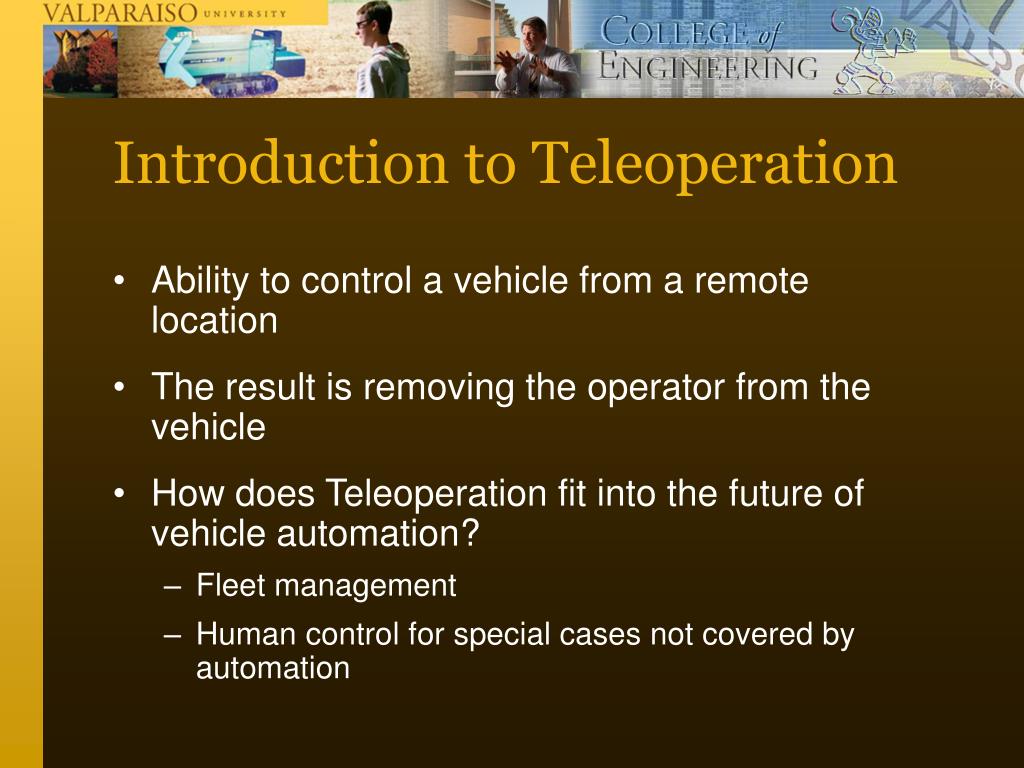

  5. Introduction to Teleoperation • Ability to control a vehicle from a remote location • The result is removing the operator from the vehicle • How does Teleoperation fit into the future of vehicle automation? • Fleet management • Human control for special cases not covered by automation

  6. Current System (2D) • Provides location of vehicle • Birds eye view • Uses satellite images • Provides control of vehicle implements and movement

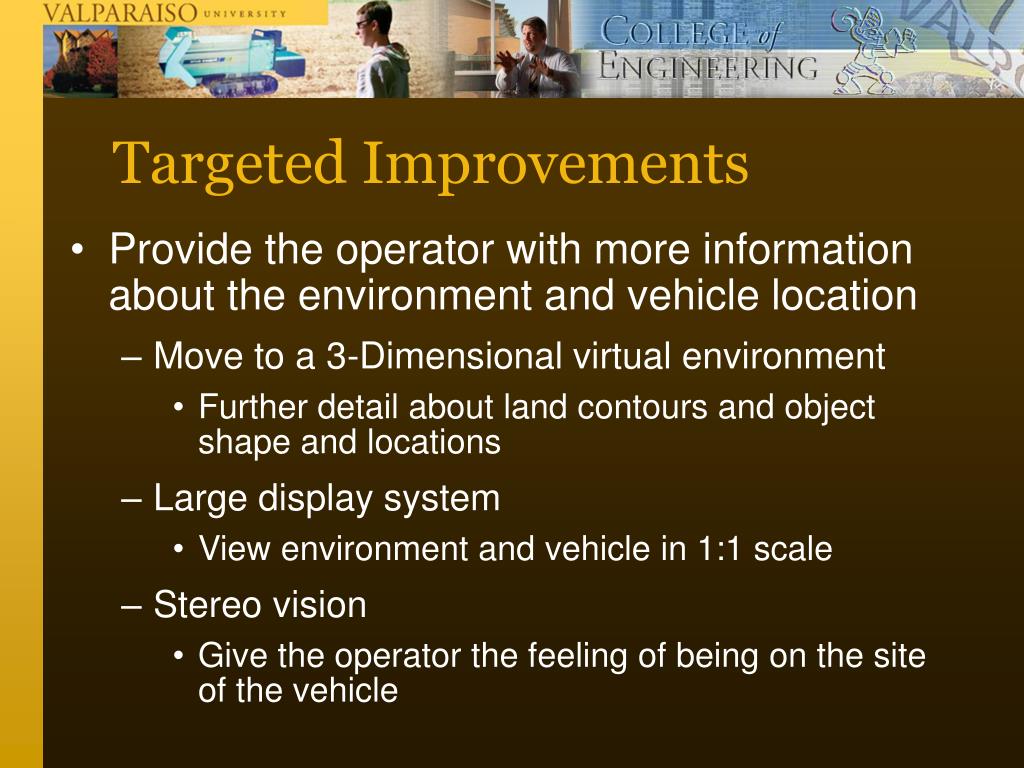

  7. Targeted Improvements • Provide the operator with more information about the environment and vehicle location • Move to a 3-Dimensional virtual environment • Further detail about land contours and object shape and locations • Large display system • View environment and vehicle in 1:1 scale • Stereo vision • Give the operator the feeling of being on the site of the vehicle

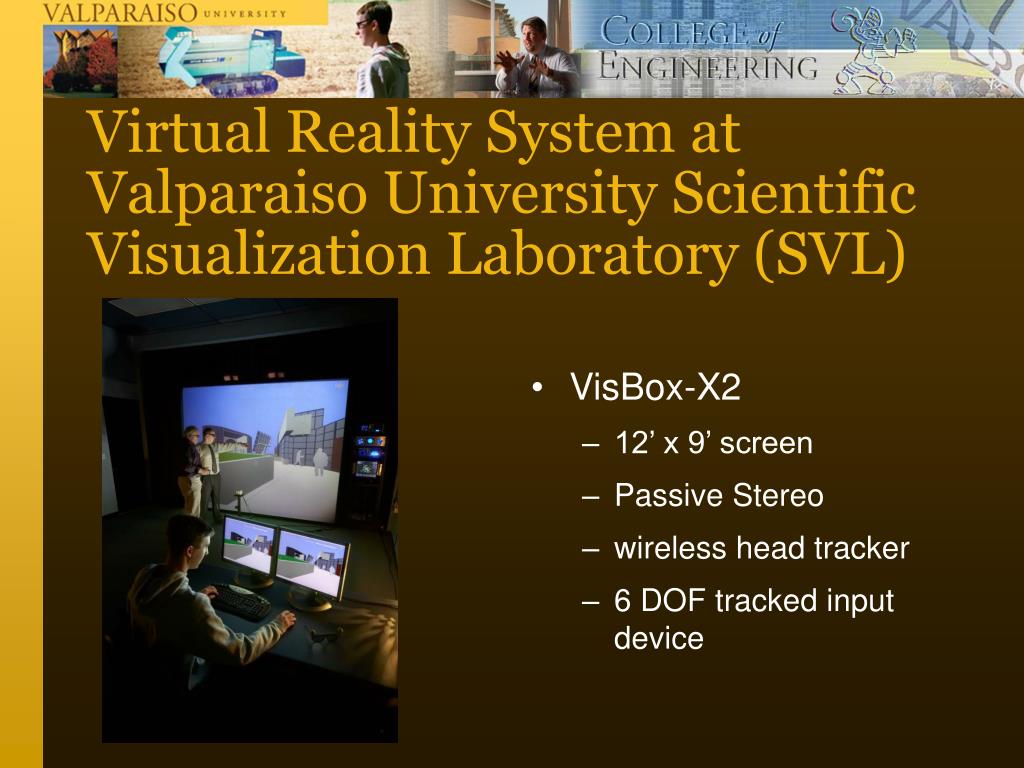

  8. Virtual Reality System at Valparaiso University Scientific Visualization Laboratory (SVL) • VisBox-X2 • 12’ x 9’ screen • Passive Stereo • wireless head tracker • 6 DOF tracked input device

  9. Method Used • Need computer models for visualization • Environment model • Vehicle model • Vehicle Model • Contains details of the vehicle

  10. Environment Model • Contains details of Japans National Agriculture Research Center • Texture Map applied to the virtual ground floor was created from Google Maps • Building and landscaping objects were placed in the model using Google Maps for location (2048 X 2048)

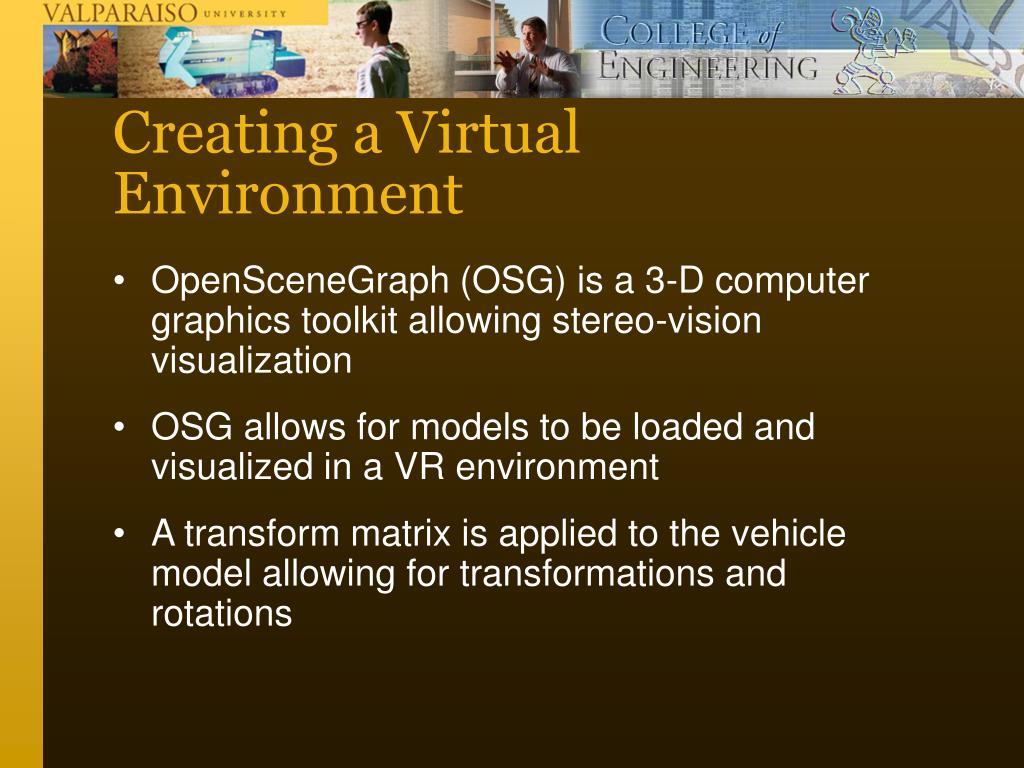

  11. Creating a Virtual Environment • OpenSceneGraph (OSG) is a 3-D computer graphics toolkit allowing stereo-vision visualization • OSG allows for models to be loaded and visualized in a VR environment • A transform matrix is applied to the vehicle model allowing for transformations and rotations

  12. Heading Calculations • Using previous and current position • Problems when vehicle turned about its center • Using fiber optic gyro sensor on vehicle and include in communication protocol

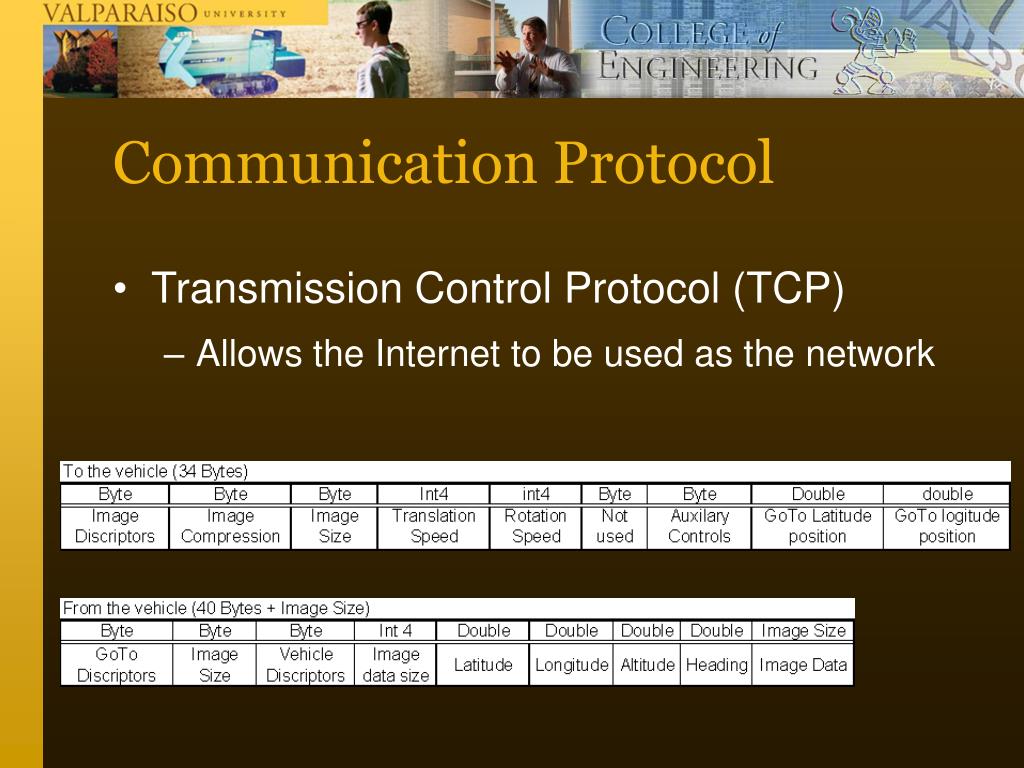

  13. Communication Protocol • Transmission Control Protocol (TCP) • Allows the Internet to be used as the network

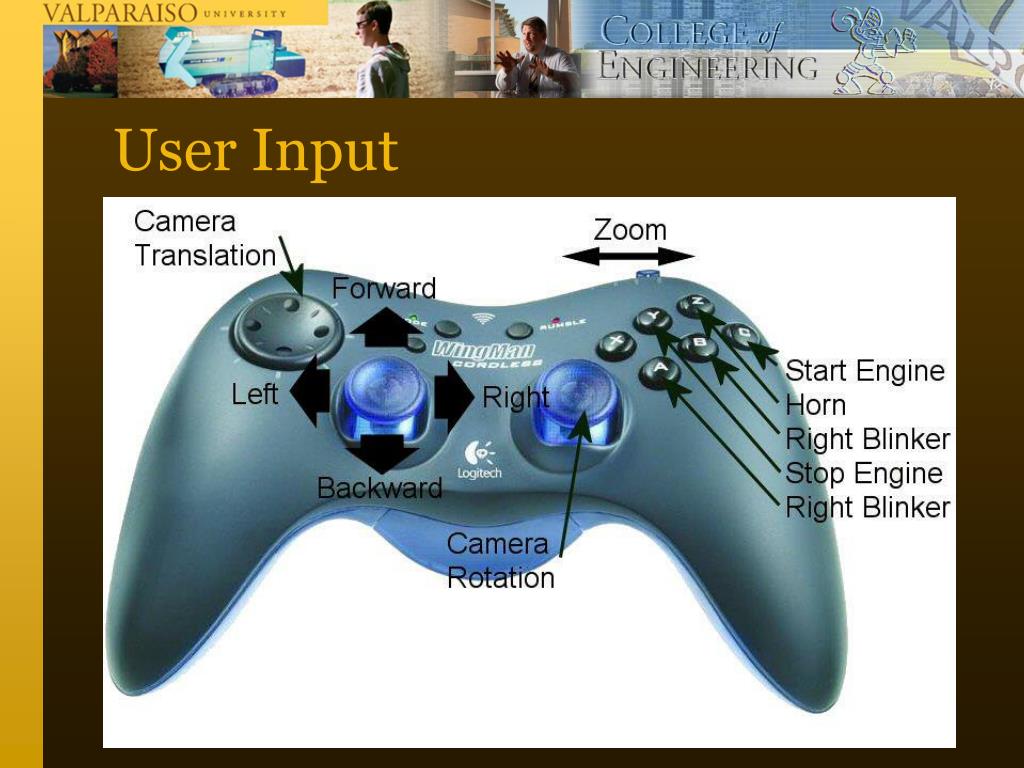

  14. User Input

  15. Tests and Results • Tests were set up to test specific functions along the design • Visualization • Implement Control • Drive • High Level Functions • Field Test

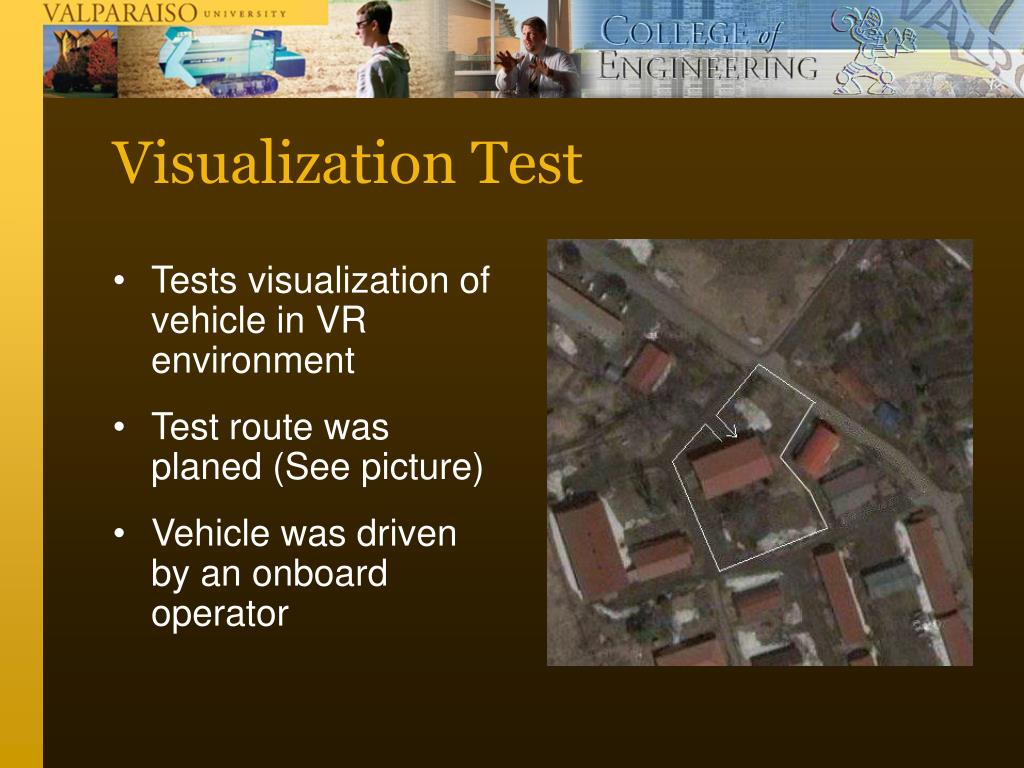

  16. Visualization Test • Tests visualization of vehicle in VR environment • Test route was planed (See picture) • Vehicle was driven by an onboard operator

  17. Results from test • Communication protocol is working • Location of the vehicle is visually correct • Stereo-vision model is working

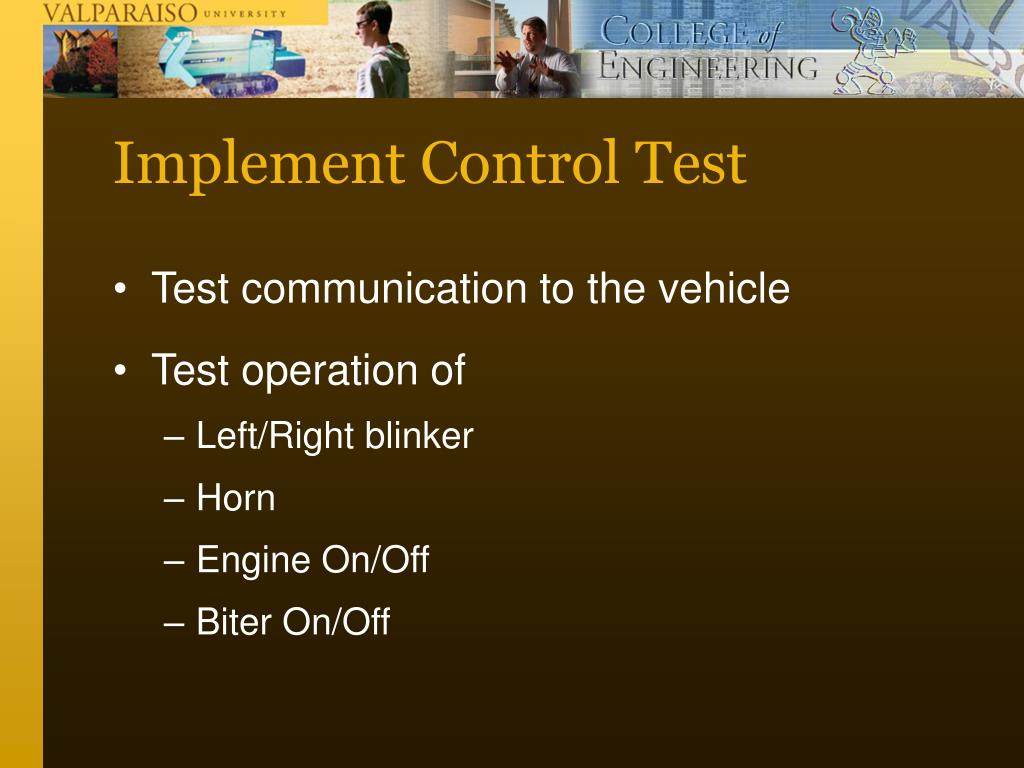

  18. Implement Control Test • Test communication to the vehicle • Test operation of • Left/Right blinker • Horn • Engine On/Off • Biter On/Off

  19. High Level Function Test • GoTo Function • Specify X,Y location from base point • Vehicle automatically travels to location

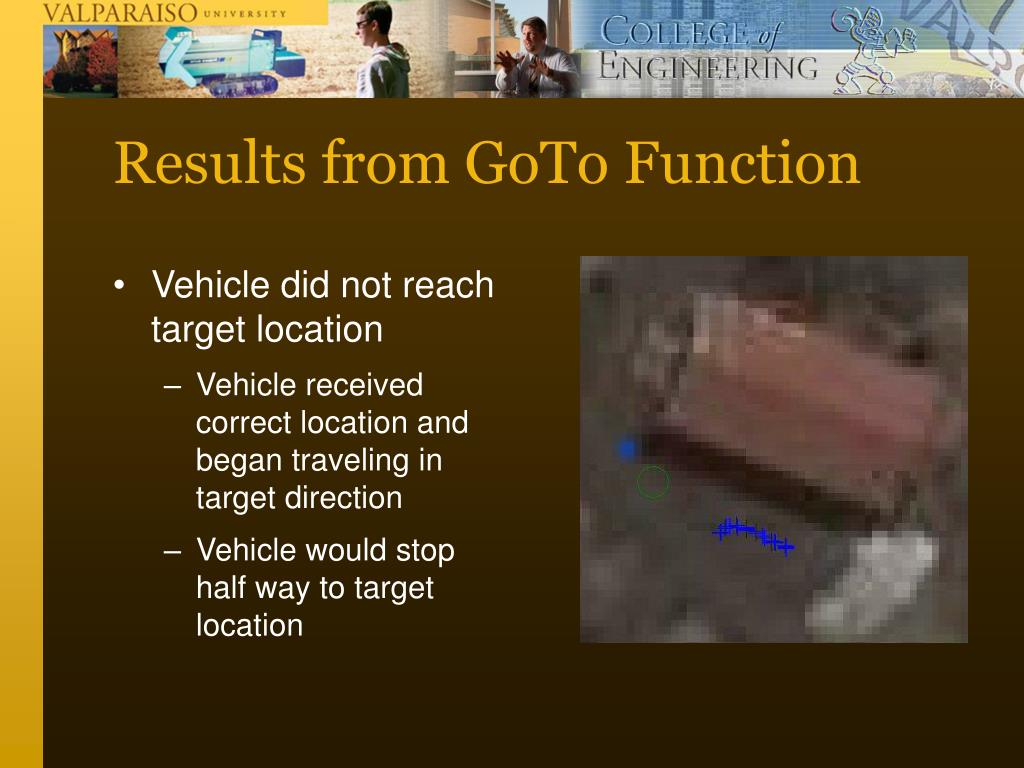

  20. Results from GoTo Function • Vehicle did not reach target location • Vehicle received correct location and began traveling in target direction • Vehicle would stop half way to target location

  21. Driving Test • Tests control of vehicle from SVL • Test determined that heading is not reliable when calculated from position

  22. Field Test • Drive to a specified point and back • Field tests • Unable to perform due to snow condition in fields

  23. Conclusion • This research has demonstrated the feasibility of real-time teleoperation of a semi-autonomous vehicle • Immersive environment allows for • Increased sense of realization • More accurate control

  24. Thank You For Your Time Questions?
