Presentation Transcript

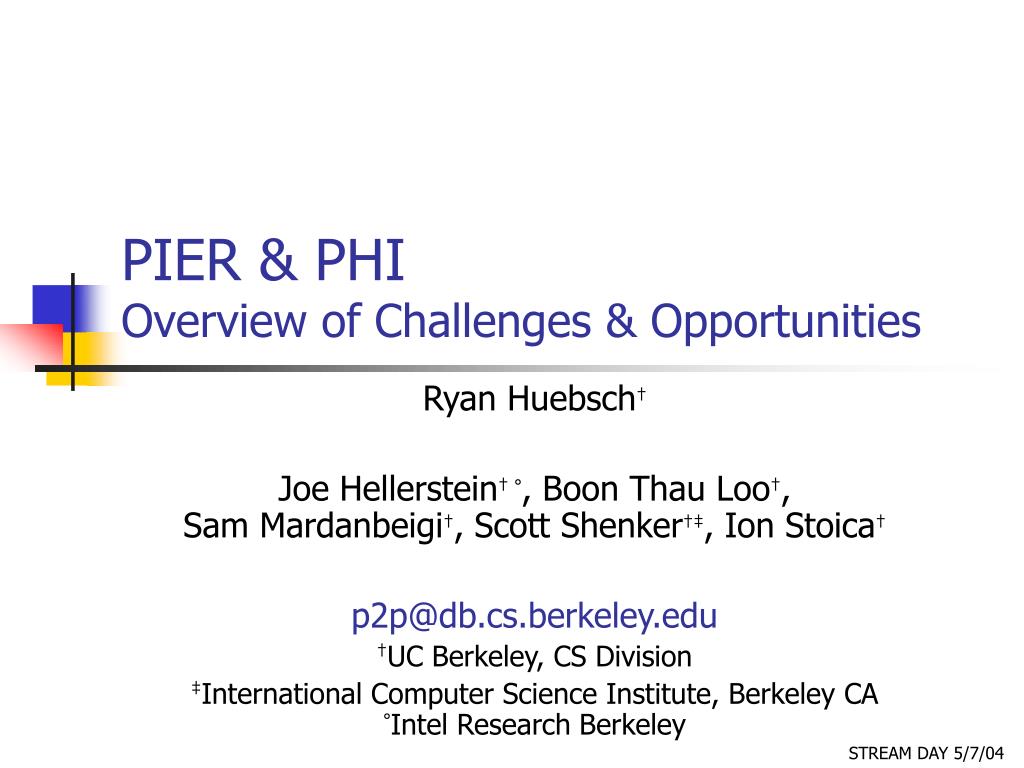

  1. PIER & PHIOverview of Challenges & Opportunities Ryan Huebsch† Joe Hellerstein† °, Boon Thau Loo†,Sam Mardanbeigi†, Scott Shenker†‡, Ion Stoica† p2p@db.cs.berkeley.edu †UC Berkeley, CS Division ‡International Computer Science Institute, Berkeley CA°Intel Research Berkeley STREAM DAY 5/7/04

  2. PIER • P2P Information Exchange & Retrieval • A wide-area distributed dataflow engine • Outfitted with relational operators • Designed to scale to thousands or millions of nodes • Motivation: • It’s an interesting challenge  • Lowers the barrier of entry for large-scale applications • No massive infrastructure for server farms • Cost is distributed among participants • Provide a viable solution where other options are not socially acceptable • We are NOT trying be better than other (centralized) solutions, we are trying to be different.

  3. Declarative Queries Security Privacy Quality of Service GeneralChallenges Query Plan Overlay Network Query Optimization Multi-Query Optimization Catalogs Persistent Storage Recursion Physical Network Query Dissemination Replication Soft-State Quality of Service Resilience Route Flapping Efficiency Challenges

  4. Applications & Requirements • File sharing • Flooding works for popular items • Need something better for rare items • May want ‘triggers’ when a new item matches an old search • Network Monitoring • Aggregation & grouping very common • Continuous queries with well defined semantics • PHI is one use of PIER…

  5. PHI • Public Health for the Internet • Community-based monitoring • The metaphor: • Old way – Treat computers with medicine • Virus protection • New way – Monitor the community • Like the Center for Disease Control • Global CDC has social implications • Central repository, privacy, who controls it, who pays for it… • PHI wants to create the Center for Disease Control without the Center (of control) • Motivation is to inform users about the dangers of the Internet

  6. PHI Example • PIER is currently deployed on 150-300 PlanetLab nodes. • ~100 sites • Some nodes on DSL,1Mbps, 10 Mbps, etc. • Very unreliable • SNORT is the primary data source • ~2400 rules • 10’s - 1000’s of tuples per day per node • Schema: time, rule, source socket, destination socket • Quick Demo: • Shows the top ten sources of events across all of PlanetLab (live), i.e. who are the bad guys?

  7. What’s next… • PIER • Lots of problems, including the meta-problem of what problem to work on • No streaming semantics, no language to describe windows, etc… • Additional challenges: Interaction with soft-state, no synchronized clocks, unknown (changing) network latencies • PHI • Create a complete application • Gets intrusion data from a variety of sources (including the built-in Windows Firewall • Develop a snazzy visualization • Release to the world, first using PlanetLab as the query processor, eventually the world • Scale to at least 10,000’s nodes and explore the design space
