Presentation Transcript

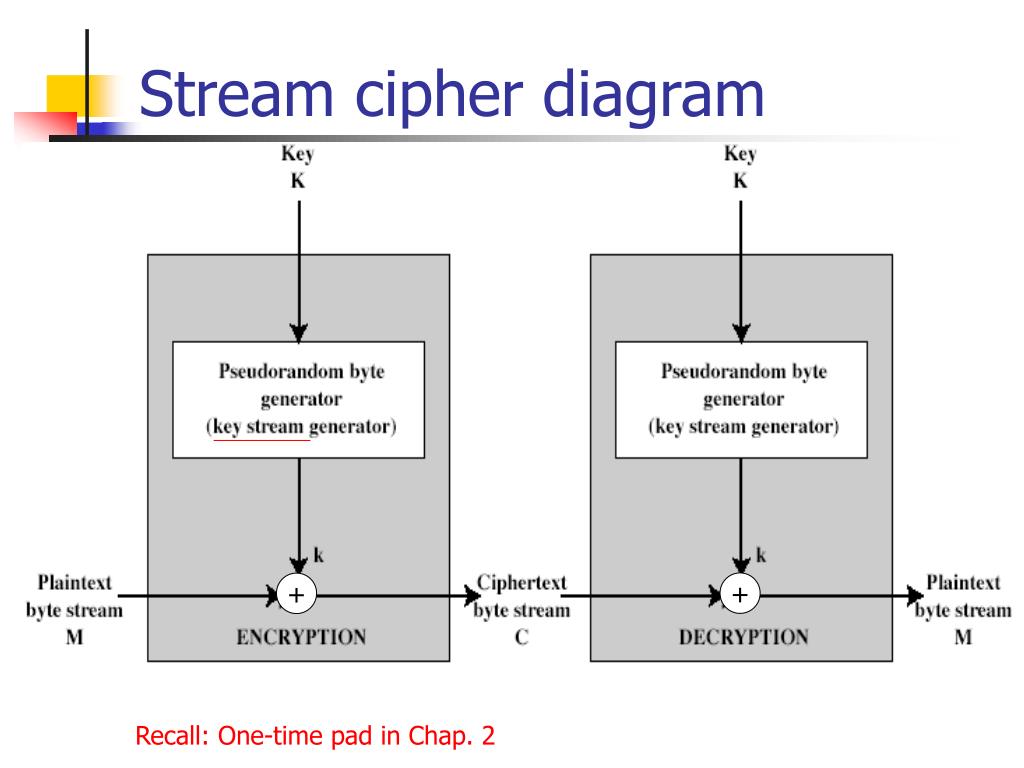

  1. Stream cipher diagram + + Recall: One-time pad in Chap. 2

  2. Advantage of stream cipher • With proper design of PRNG, stream cipher is as secure as block cipher of comparable key length (?) • Stream cipher is faster than block cipher

  3. Disadvantage of stream cipher • never reuse the same key • c.f. you can reuse keys in block cipher Ciphertext 1 = plaintext 1  keystream Ciphertext 2 = plaintext 2  keystream Ciphertext 1  Ciphertext 2 = (plaintext 1  keystream)  (plaintext 2  keystream) = plaintext 1  plaintext 2 If plaintexts are text string, credit card no., or other streams with known properties, then cryptanalysis may be successful. ?[DAWS96]

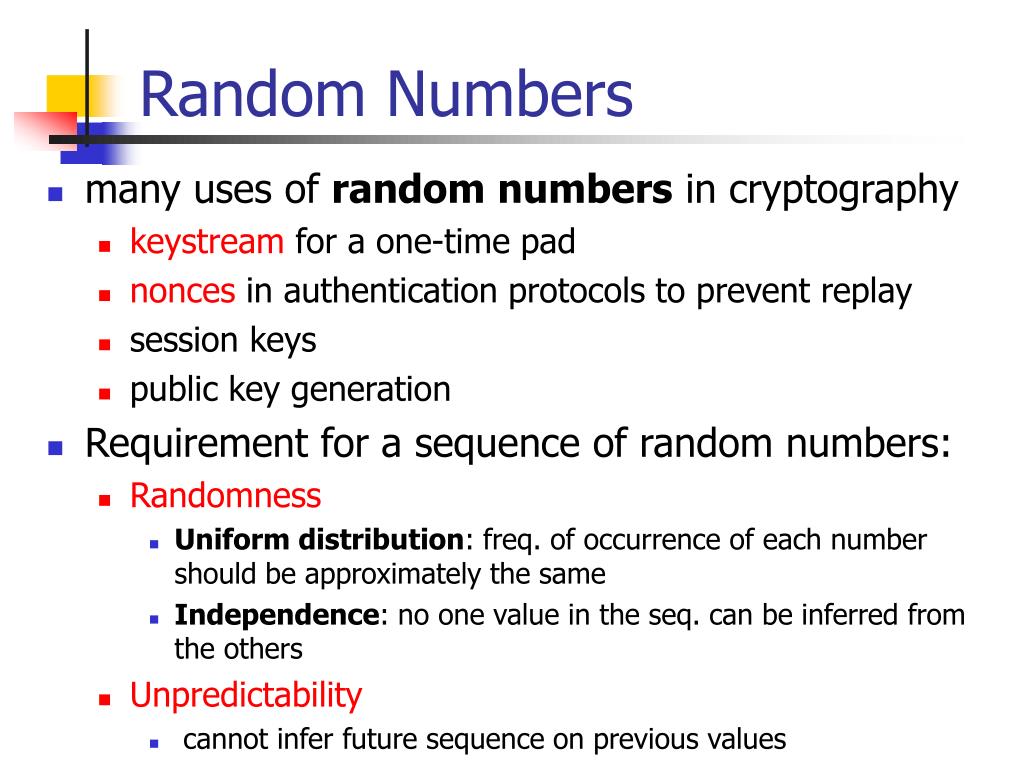

  4. Random Numbers • many uses of random numbers in cryptography • keystream for a one-time pad • nonces in authentication protocols to prevent replay • session keys • public key generation • Requirement for a sequence of random numbers: • Randomness • Uniform distribution: freq. of occurrence of each number should be approximately the same • Independence: no one value in the seq. can be inferred from the others • Unpredictability • cannot infer future sequence on previous values

  5. Application: randomization • Goal: determine if a given number N is prime • Brute-force search: divide N by odd integers less than => tests • N=10150 => • Randomization: test using a (sufficiently long) sequence of randomly chosen integers

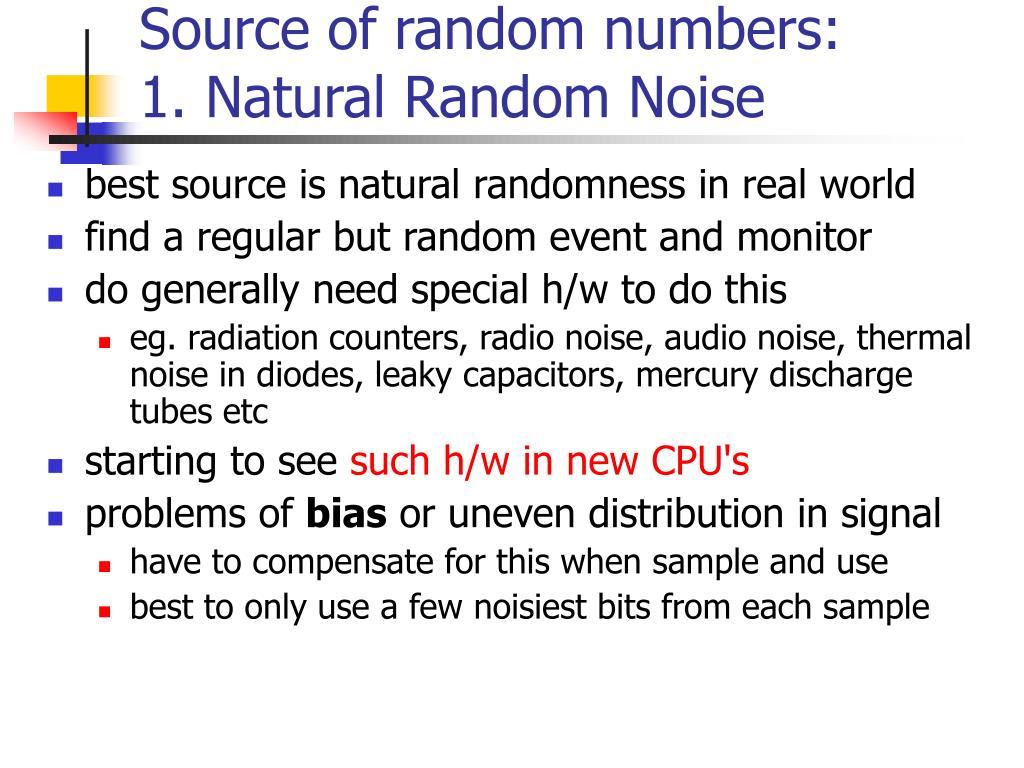

  6. Source of random numbers:1. Natural Random Noise • best source is natural randomness in real world • find a regular but random event and monitor • do generally need special h/w to do this • eg. radiation counters, radio noise, audio noise, thermal noise in diodes, leaky capacitors, mercury discharge tubes etc • starting to see such h/w in new CPU's • problems of bias or uneven distribution in signal • have to compensate for this when sample and use • best to only use a few noisiest bits from each sample

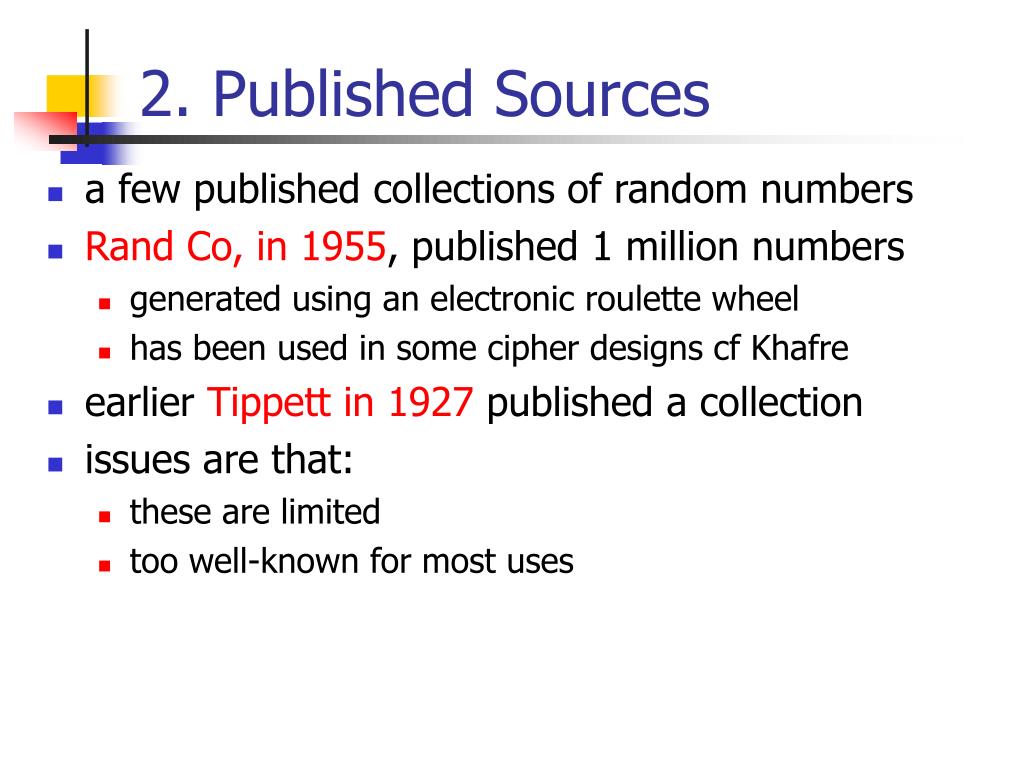

  7. 2. Published Sources • a few published collections of random numbers • Rand Co, in 1955, published 1 million numbers • generated using an electronic roulette wheel • has been used in some cipher designs cf Khafre • earlier Tippett in 1927 published a collection • issues are that: • these are limited • too well-known for most uses

  8. 3. Pseudorandom Number Generators (PRNGs) • algorithmic technique to create “random numbers” • deterministic algorithm • although not truly random • can pass many tests of “randomness”

  9. Linear CongruentialGenerator • common iterative technique using: Xn+1 = (aXn + c) mod m • How to choose suitable values of parameters ? • a=1, c=1 • a=7, c=0, m=32, X0=1 X0: initial seed {1, 7, 17, 23, 1, …}

  10. Congruence: Integers Modulo 7 Example ... -21 -20 -19 -18 -17 -16 -15 -14 -13 -12 -11 -10 -9 -8 -7 -6 -5 -4 -3 -2 -1 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 ... Z7: residue class modulo n congruence 一致(from Gauss) Integers a and b are congruence modulo n : a ≡ b mod n

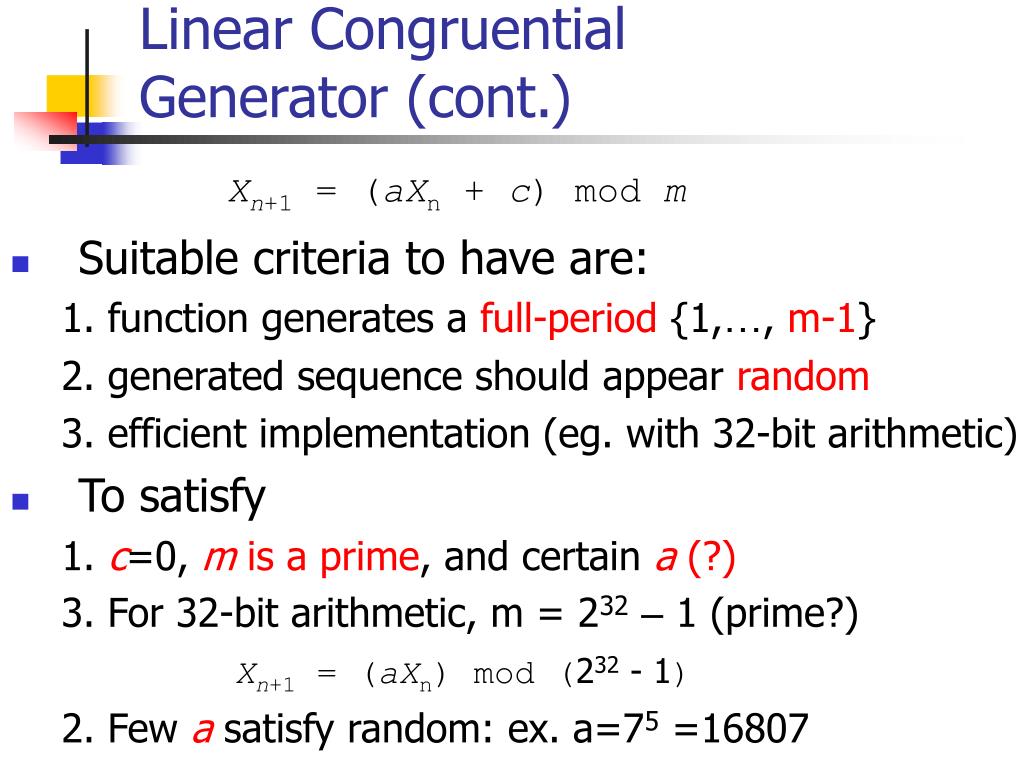

  11. Linear CongruentialGenerator (cont.) • Suitable criteria to have are: 1. function generates a full-period {1,…, m-1} 2. generated sequence should appear random 3. efficient implementation (eg. with 32-bit arithmetic) • To satisfy 1.c=0, m is a prime, and certain a (?) 3. For 32-bit arithmetic, m = 232– 1 (prime?) 2. Few a satisfy random: ex. a=75 =16807 Xn+1 = (aXn + c) mod m Xn+1 = (aXn) mod (232 - 1)

  12. Primitive root

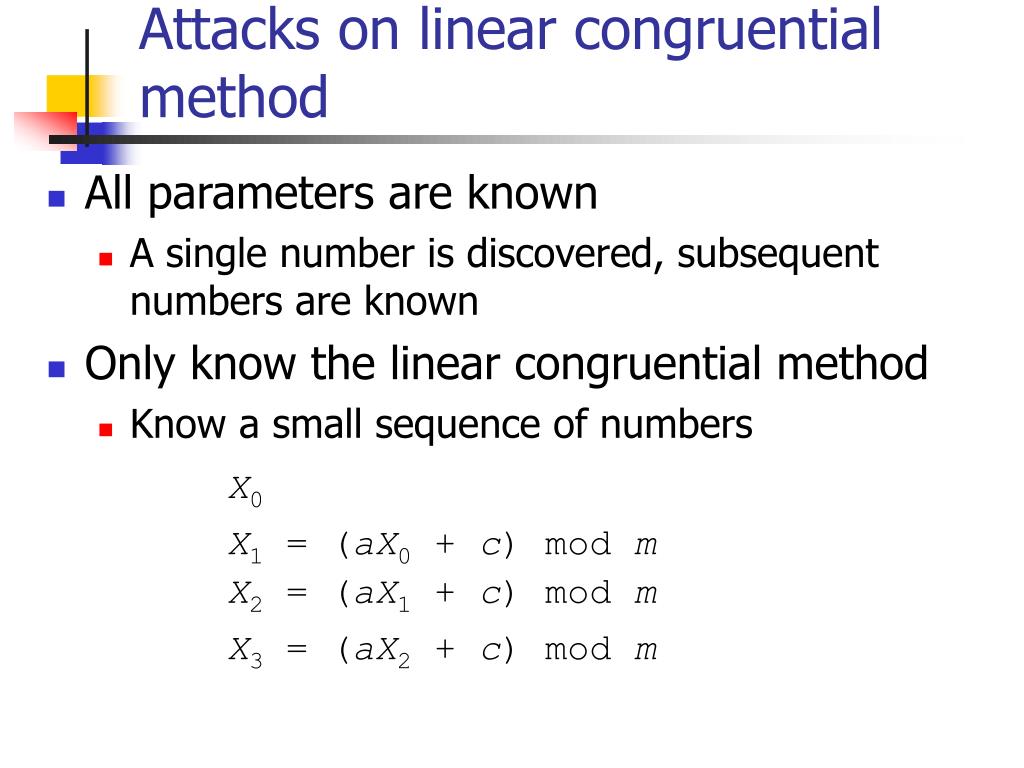

  13. Attacks on linear congruential method • All parameters are known • A single number is discovered, subsequent numbers are known • Only know the linear congruential method • Know a small sequence of numbers X0 X1 = (aX0 + c) mod m X2 = (aX1 + c) mod m X3 = (aX2 + c) mod m

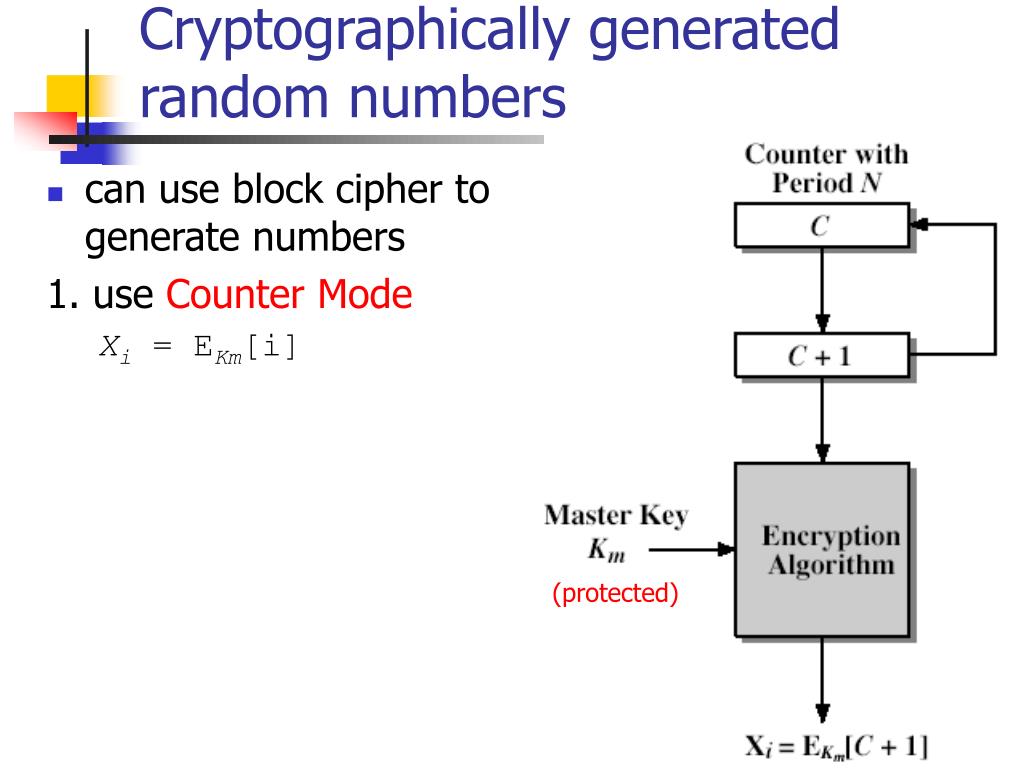

  14. Cryptographically generated random numbers • can use block cipher to generate numbers 1. use Counter Mode Xi = EKm[i] (protected)

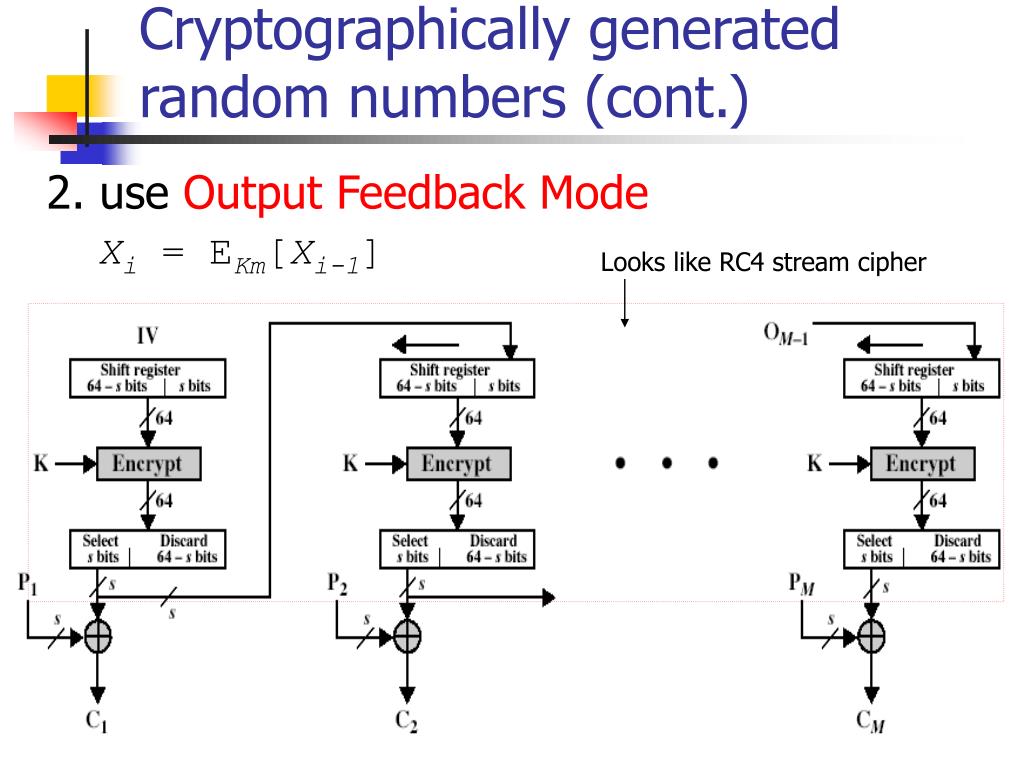

  15. Cryptographically generated random numbers (cont.) 2. use Output Feedback Mode Xi = EKm[Xi-1] Looks like RC4 stream cipher

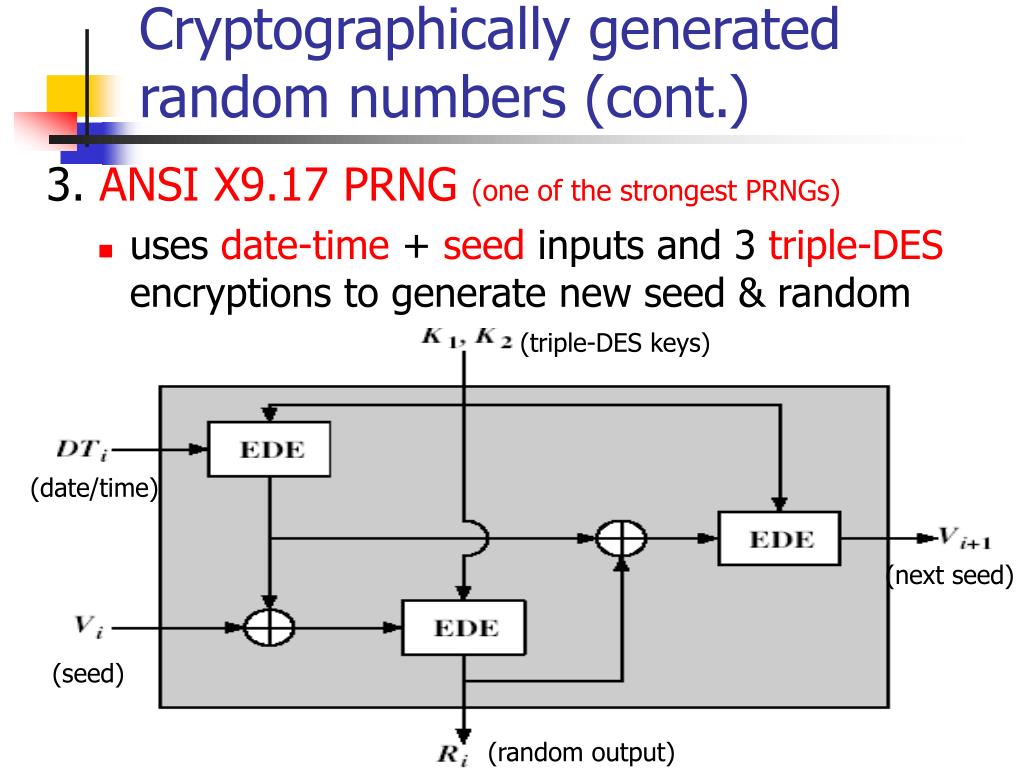

  16. Cryptographically generated random numbers (cont.) 3. ANSI X9.17 PRNG(one of the strongest PRNGs) • uses date-time + seed inputs and 3 triple-DES encryptions to generate new seed & random (triple-DES keys) (date/time) (next seed) (seed) (random output)

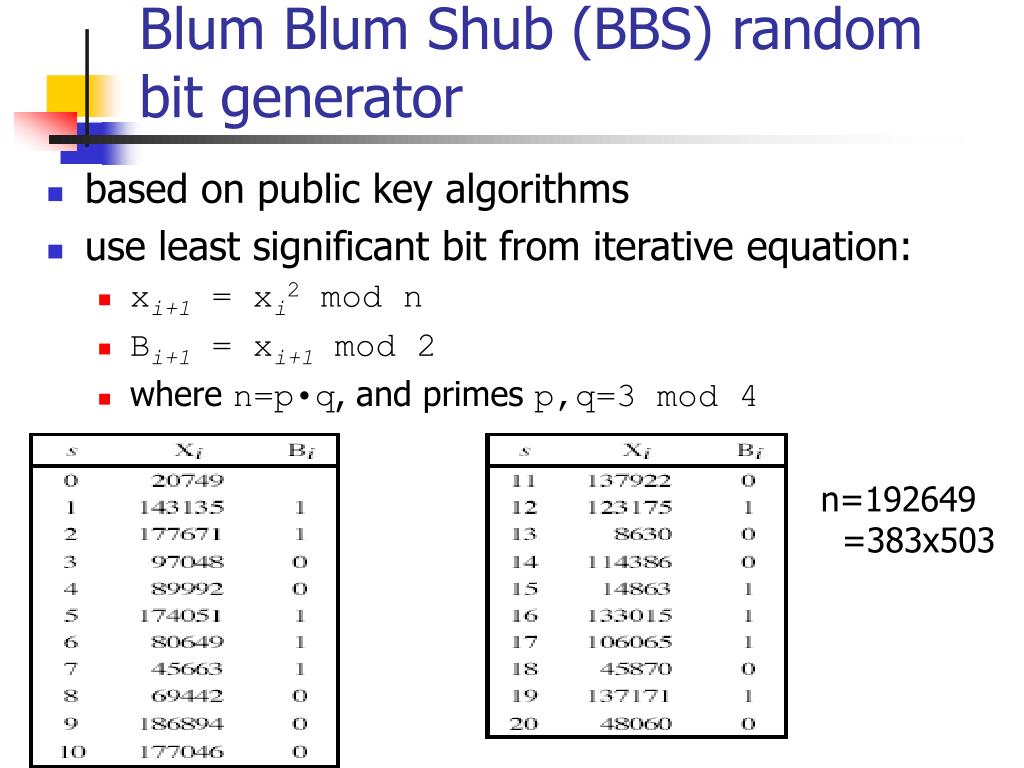

  17. Blum Blum Shub (BBS) random bit generator • based on public key algorithms • use least significant bit from iterative equation: • xi+1 = xi2 mod n • Bi+1 = xi+1 mod 2 • where n=p•q, and primes p,q=3 mod 4 n=192649 =383x503

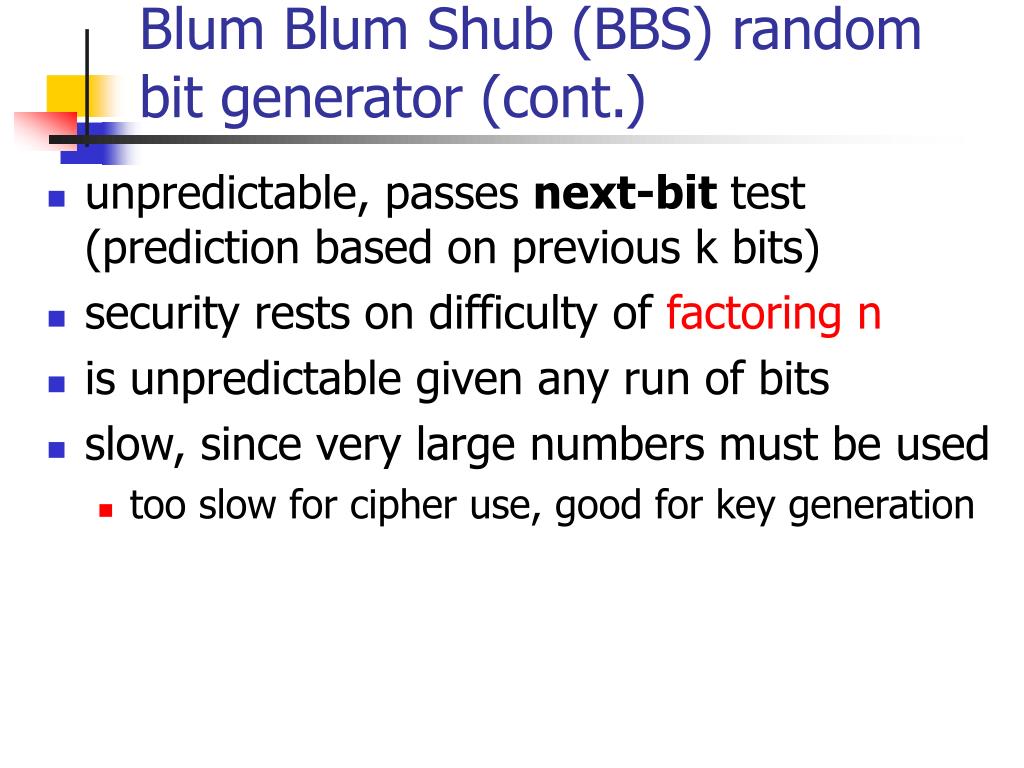

  18. Blum Blum Shub (BBS) random bit generator (cont.) • unpredictable, passes next-bit test (prediction based on previous k bits) • security rests on difficulty of factoring n • is unpredictable given any run of bits • slow, since very large numbers must be used • too slow for cipher use, good for key generation
