B3LYP OPT

B3LYP OPT. CCSD(T)/aptz//B3LYP/6-31+G(d,p) unit: kcal/mol. TS 2. 40.5 [44.4]. TS 1. 28.6 [28.8]. 0. -4.4 [-6.3]. CH 2 O+NH 3. -12 .6 [-13.8]. CH 2 NH+H 2 O. Int 1. 40.5. TS 2. TS 2. 28.6. 25.2. 28.6. TS 1. TS 1. 22.5. 14.1. 21.1. 11.8. 11.7. 8.7. 3.8. 0.

bono
Télécharger la présentation

B3LYP OPT

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. B3LYP OPT

  2. CCSD(T)/aptz//B3LYP/6-31+G(d,p) unit: kcal/mol TS 2 40.5 [44.4] TS 1 28.6 [28.8] 0 -4.4 [-6.3] CH2O+NH3 -12.6 [-13.8] CH2NH+H2O Int 1

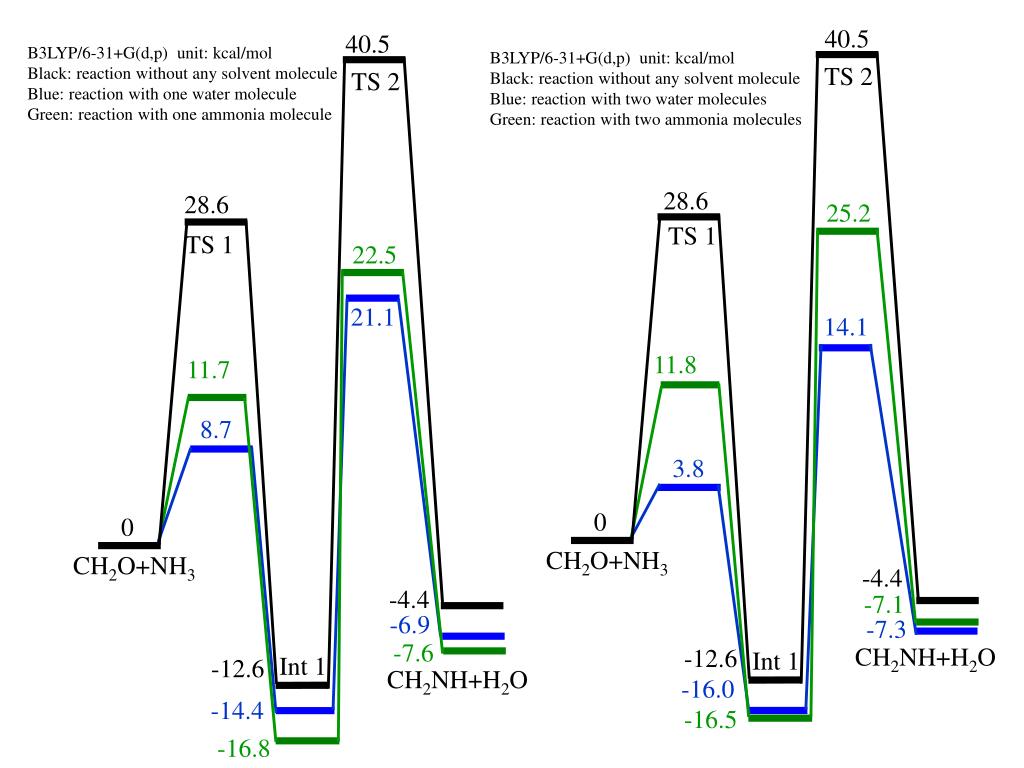

  3. 40.5 TS 2 TS 2 28.6 25.2 28.6 TS 1 TS 1 22.5 14.1 21.1 11.8 11.7 8.7 3.8 0 0 CH2O+NH3 CH2O+NH3 -4.4 -7.1 -4.4 -7.3 -6.9 CH2NH+H2O -12.6 Int 1 -7.6 Int 1 -12.6 -16.0 CH2NH+H2O -16.5 -14.4 -16.8 40.5 B3LYP/6-31+G(d,p) unit: kcal/mol Black: reaction without any solvent molecule Blue: reaction with one water molecule Green: reaction with one ammonia molecule B3LYP/6-31+G(d,p) unit: kcal/mol Black: reaction without any solvent molecule Blue: reaction with two water molecules Green: reaction with two ammonia molecules

  4. 14.1 TS 2 13.6 10.2 3.8 TS 1 0 -1.0 CH2O+NH3 -5.6 -5.6 -7.1 -7.5 CH2NH+H2O -14.7 -16.0 Int 1 -17.7 B3LYP/6-31+G(d,p) unit: kcal/mol Black: reaction with two water molecules in gas phase Purple: reaction with two water molecule in PCM Red: reaction with two water molecule in SMD

  5. 40.4 [40.6] TS_D1 28.8 [31.3] TS_D2 -2.4 [-1.2] 0 Int 2 Int_D -19.7 [-20.2] Direct pathway CCSD(T)/aptz//B3LYP/6-31+G(d,p) unit: kcal/mol CH2NH2CN

  6. 39.1 [39.7] 32.5 [31.9] TS_In2 TS_In1 9.3 [10.8] 0 Int_In Int 2 -19.7 [-20.2] Indirect pathway CCSD(T)/aptz//B3LYP/6-31+G(d,p) unit: kcal/mol CH2NH2CN

  7. Direct pathway TS_D1 TS_D1 40.4 40.4 TS_D2 TS_D2 26.2 28.8 28.8 24.8 23.7 24.8 22.6 19.4 22.5 19.0 0.9 0 0 -0.2 -2.3 -2.4 Int 2 Int 2 -2.4 -2.7 Int_D Int_D -17.0 -18.3 -19.7 -19.7 -19.9 -20.5 CH2NH2CN CH2NH2CN B3LYP/6-31+G(d,p) unit: kcal/mol Black: reaction without any solvent molecule Blue: reaction with one water molecule Green: reaction with one ammonia molecule B3LYP/6-31+G(d,p) unit: kcal/mol Black: reaction without any solvent molecule Blue: reaction with two water molecules Green: reaction with two ammonia molecules

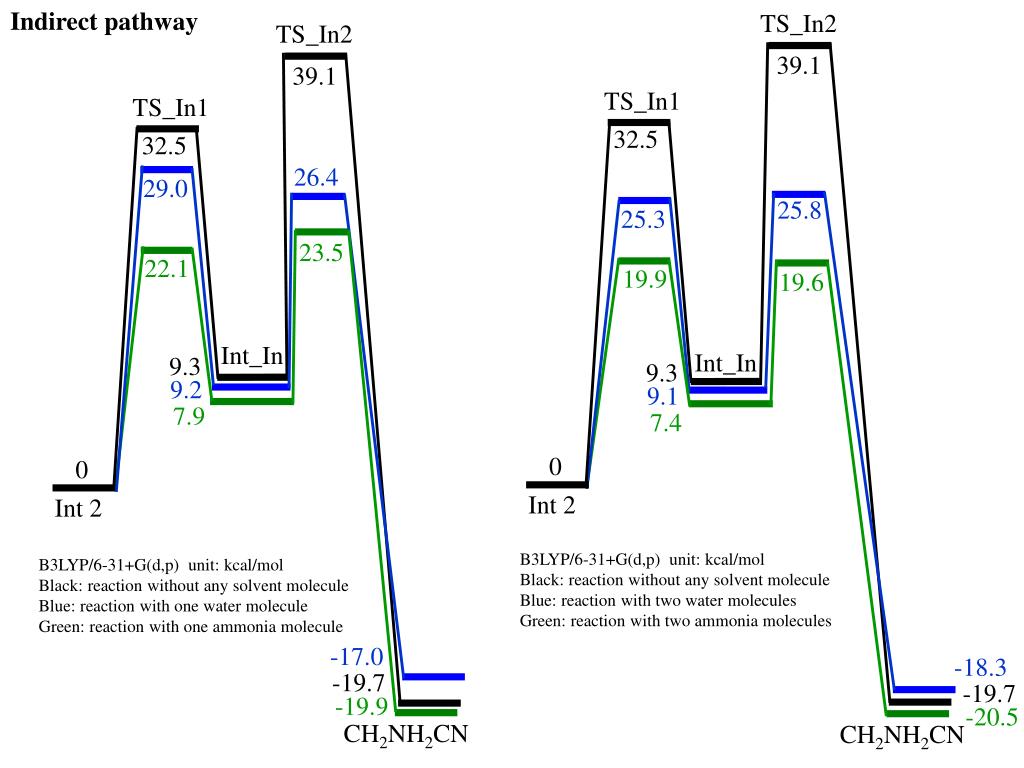

  8. TS_In2 Indirect pathway TS_In2 39.1 39.1 TS_In1 TS_In1 32.5 32.5 26.4 29.0 25.8 25.3 23.5 19.9 19.6 22.1 Int_In Int_In 9.3 9.3 9.1 9.2 7.4 7.9 0 0 Int 2 Int 2 -18.3 -17.0 -19.7 -19.7 -20.5 -19.9 CH2NH2CN CH2NH2CN B3LYP/6-31+G(d,p) unit: kcal/mol Black: reaction without any solvent molecule Blue: reaction with two water molecules Green: reaction with two ammonia molecules B3LYP/6-31+G(d,p) unit: kcal/mol Black: reaction without any solvent molecule Blue: reaction with one water molecule Green: reaction with one ammonia molecule

  9. Direct pathway TS_D1 TS_D1 40.4 40.4 TS_D2 TS_D2 28.8 28.8 18.4 15.8 11.9 10.8 8.9 7.9 6.8 4.6 0.6 0 0 -2.4 -2.4 Int 2 Int 2 -2.5 -4.2 Int_D -6.9 Int_D -18.2 -19.7 -19.7 -21.0 -24.2 -26.7 CH2NH2CN CH2NH2CN B3LYP/6-31+G(d,p) unit: kcal/mol Black: reaction with two water molecules in gas phase Purple: reaction with two water molecule in PCM Red: reaction with two water molecule in SMD B3LYP/6-31+G(d,p) unit: kcal/mol Black: reaction with two ammonia molecules in gas phase Purple: reaction with two ammonia molecule in PCM Red: reaction with two ammonia molecule in SMD

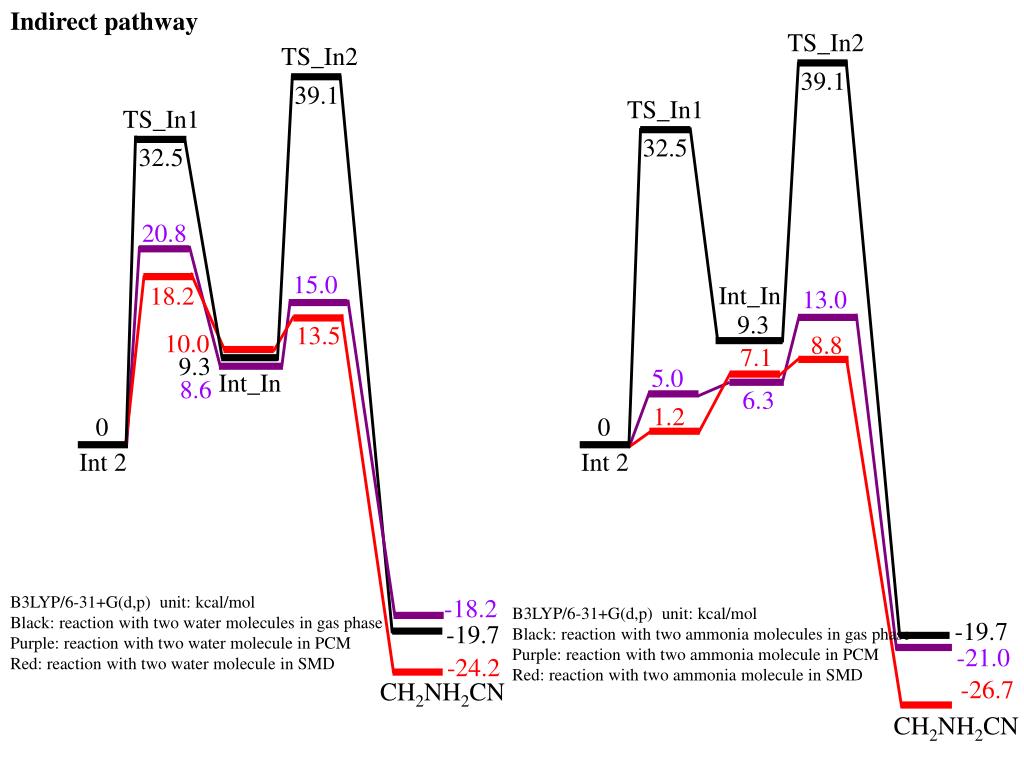

  10. Indirect pathway TS_In2 TS_In2 39.1 39.1 TS_In1 TS_In1 32.5 32.5 20.8 15.0 18.2 Int_In 13.0 13.5 10.0 9.3 8.8 9.3 7.1 Int_In 8.6 5.0 6.3 0 1.2 0 Int 2 Int 2 -18.2 -19.7 -19.7 -24.2 -21.0 CH2NH2CN -26.7 CH2NH2CN B3LYP/6-31+G(d,p) unit: kcal/mol Black: reaction with two water molecules in gas phase Purple: reaction with two water molecule in PCM Red: reaction with two water molecule in SMD B3LYP/6-31+G(d,p) unit: kcal/mol Black: reaction with two ammonia molecules in gas phase Purple: reaction with two ammonia molecule in PCM Red: reaction with two ammonia molecule in SMD

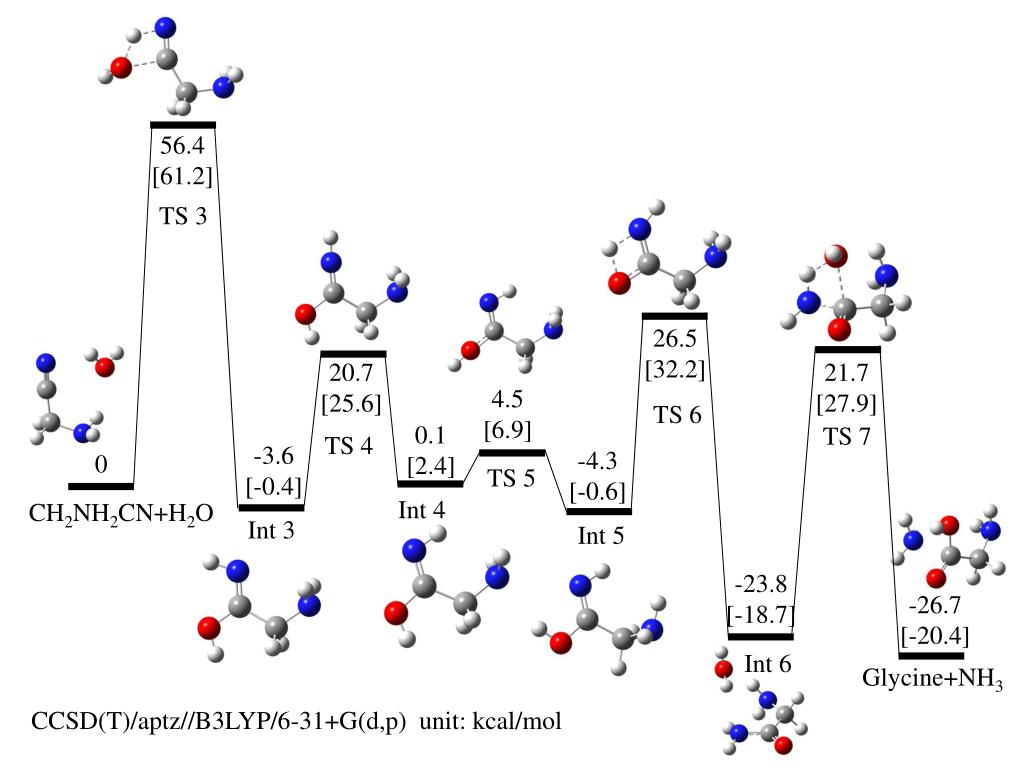

  11. 56.4 [61.2] TS 3 26.5 [32.2] 20.7 [25.6] 21.7 [27.9] 4.5 [6.9] TS 6 0.1 [2.4] TS 7 TS 4 -3.6 [-0.4] -4.3 [-0.6] 0 TS 5 Int 4 CH2NH2CN+H2O Int 3 Int 5 -23.8 [-18.7] -26.7 [-20.4] Int 6 Glycine+NH3 CCSD(T)/aptz//B3LYP/6-31+G(d,p) unit: kcal/mol

  12. TS 3 56.4 39.2 38.9 TS 4 26.6 TS 6 TS 7 22.4 23.0 26.5 21.7 20.7 17.5 TS 5 10.5 Int 4 7.9 3.8 3.3 3.8 5.7 1.3 0 -2.9 Int 5 2.0 0.1 CH2NH2CN+H2O -4.3 -3.6 -7.0 -7.8 Int 3 -19.3 Int 6 -20.9 -21.8 -22.8 -26.6 B3LYP/6-31+G(d,p) unit: kcal/mol Black: reaction without any solvent molecule Blue: reaction with one water molecule Green: reaction with one ammonia molecule -23.8 Glycine+NH3

  13. TS 3 56.4 39.3 TS 6 TS 4 29.7 36.0 25.3 TS 7 23.9 21.7 26.5 20.2 TS 5 20.7 20.6 Int 4 8.1 6.3 5.7 Int 5 5.3 0 0.1 -0.7 3.3 5.0 -4.3 CH2NH2CN+H2O -0.3 -3.6 -8.6 Int 6 Int 3 -8.7 -18.4 B3LYP/6-31+G(d,p) unit: kcal/mol Black: reaction without any solvent molecule Blue: reaction with two water molecules Green: reaction with two ammonia molecules -20.6 -23.8 -26.6 -27.6 Glycine+NH3 -29.4

  14. TS 3 39.3 38.7 37.9 TS 4 25.3 TS 7 22.5 24.7 22.2 22.3 20.2 Int 3 TS 5 8.1 Int 4 5.3 7.2 6.3 2.1 4.2 TS 6 -0.7 0 -0.7 -1.3 -0.9 CH2NH2CN+H2O -1.4 -4.7 Int 5 -8.7 -9.0 -11.7 -9.5 -15.6 B3LYP/6-31+G(d,p) unit: kcal/mol Black: reaction with two water molecules in gas phase Purple: reaction with two water molecule in PCM Red: reaction with two water molecule in SMD Int 6 -19.2 -20.6 -20.3 Glycine+NH3 -21.3

  15. MP2 OPT

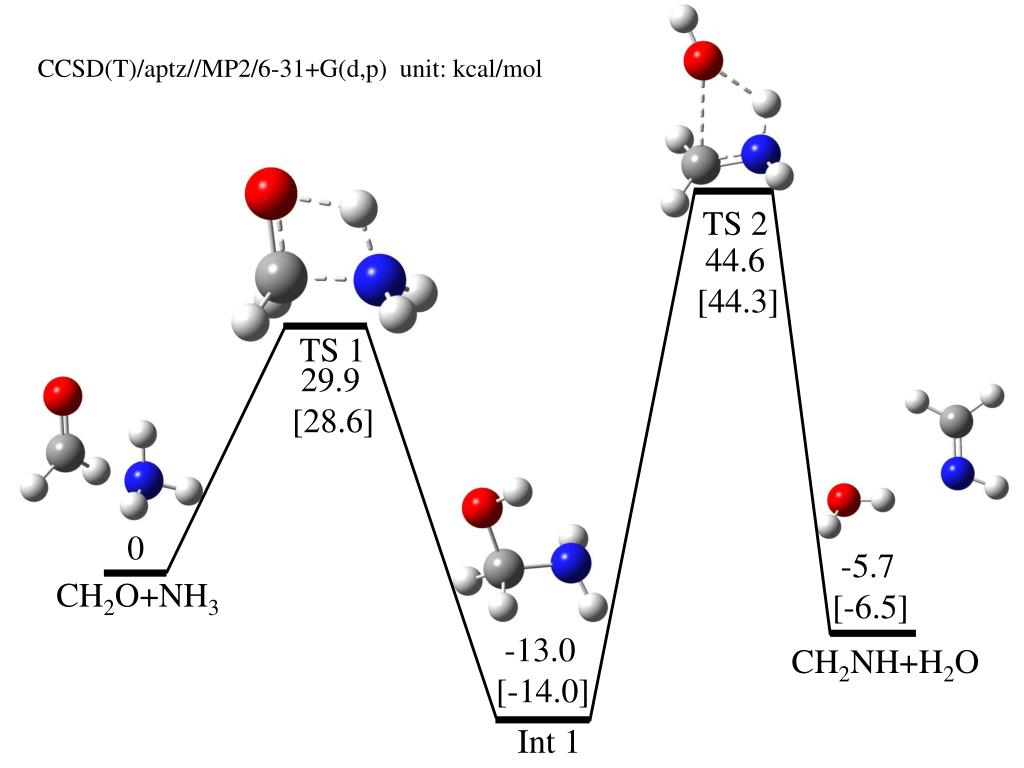

  16. CCSD(T)/aptz//MP2/6-31+G(d,p) unit: kcal/mol TS 2 44.6 [44.3] TS 1 29.9 [28.6] 0 -5.7 [-6.5] CH2O+NH3 -13.0 [-14.0] CH2NH+H2O Int 1

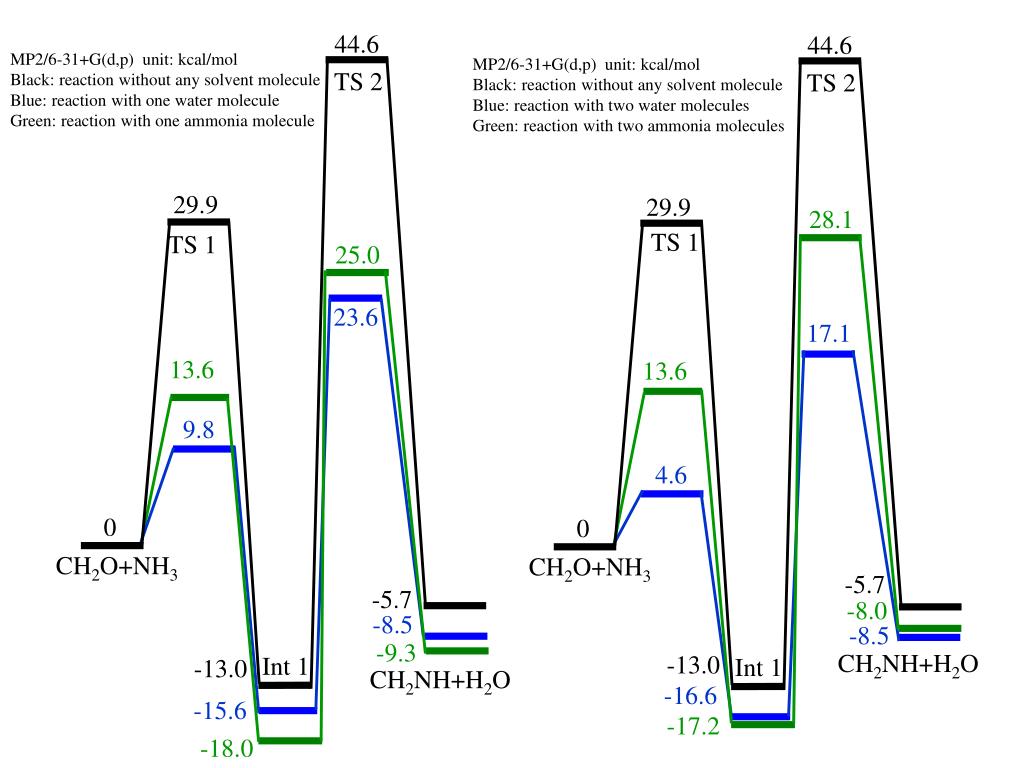

  17. 44.6 44.6 TS 2 TS 2 29.9 28.1 29.9 TS 1 TS 1 25.0 17.1 23.6 13.6 13.6 9.8 4.6 0 0 CH2O+NH3 CH2O+NH3 -5.7 -8.0 -5.7 -8.5 -8.5 CH2NH+H2O -13.0 Int 1 -9.3 Int 1 -13.0 -16.6 CH2NH+H2O -17.2 -15.6 -18.0 MP2/6-31+G(d,p) unit: kcal/mol Black: reaction without any solvent molecule Blue: reaction with one water molecule Green: reaction with one ammonia molecule MP2/6-31+G(d,p) unit: kcal/mol Black: reaction without any solvent molecule Blue: reaction with two water molecules Green: reaction with two ammonia molecules

  18. 17.7 TS 2 15.6 11.4 4.6 TS 1 0 -1.5 CH2O ＋ NH3 ＋2H2O -7.0 -7.0 -8.5 -9.2 CH2NH+3H2O -15.7 -16.6 Int 1 -19.0 MP2/6-31+G(d,p) unit: kcal/mol Black: reaction with two water molecules in gas phase Purple: reaction with two water molecules in PCM Red: reaction with two water molecules in SMD

  19. 43.4 [40.7] TS_D1 34.2 [31.0] TS_D2 0.9 [-1.4] 0 Int 2 Int_D -18.2 [-18.5] Direct pathway CCSD(T)/aptz//MP2/6-31+G(d,p) unit: kcal/mol CH2NH2CN

  20. 42.7 [40.0] 34.3 [31.8] TS_In2 TS_In1 13.5 [10.5] 0 Int_In Int 2 -18.2 [-18.5] Indirect pathway CCSD(T)/aptz//MP2/6-31+G(d,p) unit: kcal/mol CH2NH2CN

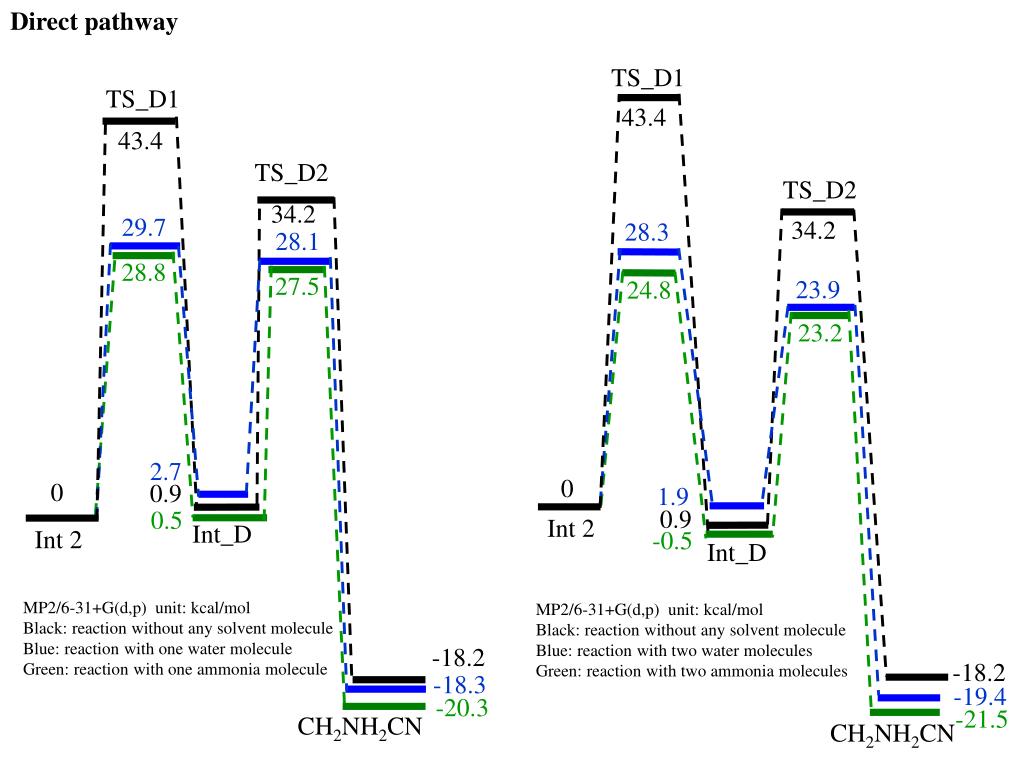

  21. Direct pathway TS_D1 43.4 TS_D1 43.4 TS_D2 TS_D2 34.2 28.3 34.2 29.7 28.1 23.9 24.8 28.8 27.5 23.2 0 1.9 2.7 0.9 0 0.9 Int 2 -0.5 0.5 Int_D Int_D Int 2 -18.2 -18.2 -19.4 -18.3 -21.5 CH2NH2CN -20.3 CH2NH2CN MP2/6-31+G(d,p) unit: kcal/mol Black: reaction without any solvent molecule Blue: reaction with one water molecule Green: reaction with one ammonia molecule MP2/6-31+G(d,p) unit: kcal/mol Black: reaction without any solvent molecule Blue: reaction with two water molecules Green: reaction with two ammonia molecules

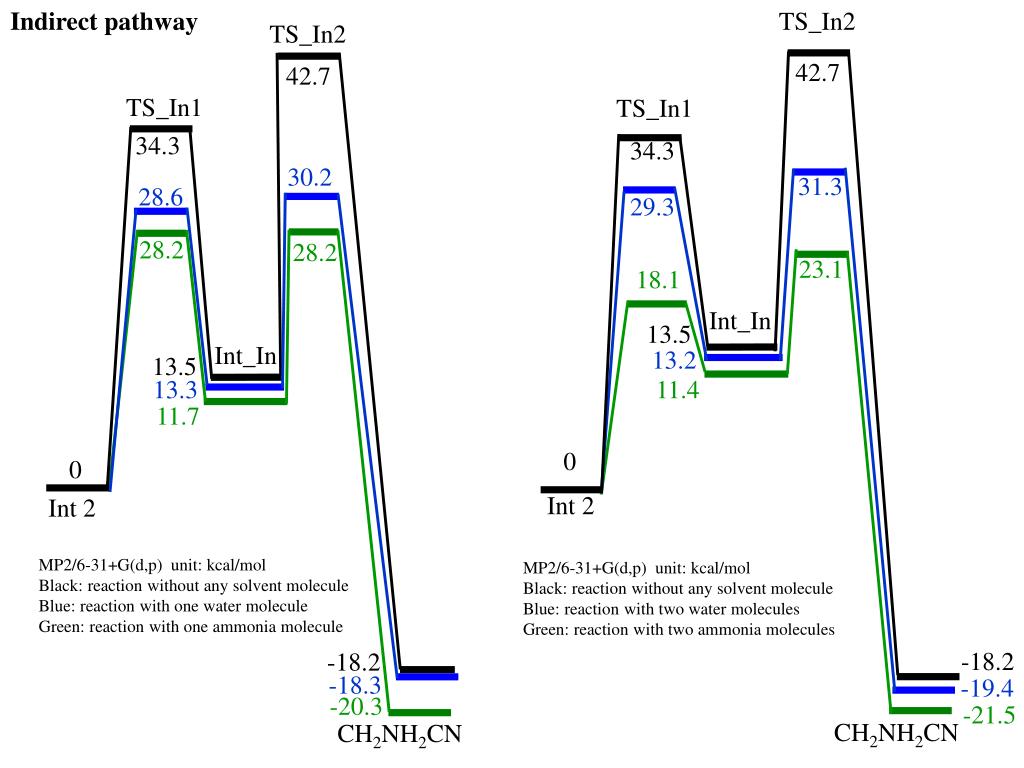

  22. Indirect pathway TS_In2 42.7 TS_In2 TS_In1 42.7 34.3 TS_In1 30.2 34.3 28.6 31.3 29.3 28.2 28.2 23.1 18.1 Int_In 13.5 Int_In 13.5 13.2 13.3 11.4 11.7 0 0 Int 2 Int 2 -18.2 -19.4 -21.5 -18.2 CH2NH2CN -18.3 -20.3 CH2NH2CN MP2/6-31+G(d,p) unit: kcal/mol Black: reaction without any solvent molecule Blue: reaction with one water molecule Green: reaction with one ammonia molecule MP2/6-31+G(d,p) unit: kcal/mol Black: reaction without any solvent molecule Blue: reaction with two water molecules Green: reaction with two ammonia molecules

  23. Direct pathway Indirect pathway TS_D1 TS_D2 TS_In2 24.8 23.2 23.1 TS_In1 16.2 18.1 Int_In 13.2 12.6 12.0 11.4 10.8 8.4 8.1 10.0 6.5 3.3 0 -0.5 0 Int 2 Int 2 -1.0 -5.6 Int_D -21.5 -21.5 -22.3 -22.3 -28.2 -28.2 CH2NH2CN CH2NH2CN MP2/6-31+G(d,p) unit: kcal/mol Black: reaction with two ammonia molecules in gas phase Purple: reaction with two ammonia molecules in PCM Red: reaction with two ammonia molecules in SMD

  24. 63.9 [60.7] TS 3 22.0 [31.8] 31.1 [25.2] 28.7 [27.4] 12.6 [6.4] TS 6 8.4 [2.0] TS 7 TS 4 4.3 [-0.8] 1.0 [-4.0] 0 TS 5 Int 4 CH2NH2CN+H2O Int 3 Int 5 -17.2 [-19.1] -19.2 [-22.0] Int 6 Glycine+NH3 CCSD(T)/aptz//MP2/6-31+G(d,p) unit: kcal/mol

  25. TS 3 63.9 46.7 TS 4 44.6 36.1 TS 7 32.8 28.7 31.1 28.6 TS 6 24.2 TS 5 17.3 22.0 11.7 14.5 12.7 10.2 12.5 9.0 12.5 4.4 8.4 0 1.0 4.3 Int 4 0.7 Int 3 Int 5 CH2NH2CN+H2O 0.3 -12.6 Int 6 -14.8 -14.8 -16.4 -19.2 -17.2 Glycine+NH3 MP2/6-31+G(d,p) unit: kcal/mol Black: reaction without any solvent molecule Blue: reaction with one water molecule Green: reaction with one ammonia molecule

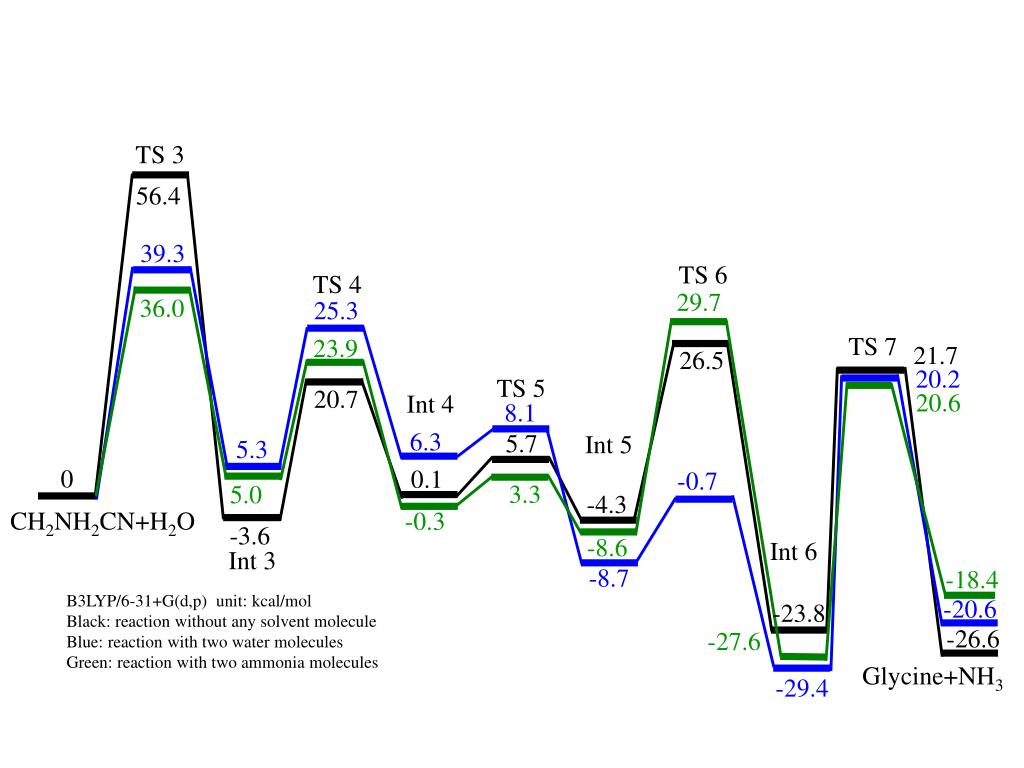

  26. TS 3 63.9 47.1 TS 4 33.9 38.9 TS 7 32.2 28.7 TS 6 31.1 22.0 25.0 TS 5 20.5 14.5 13.1 11.7 12.5 Int 4 8.4 10.7 11.1 8.1 9.3 0 6.2 1.0 4.3 -0.5 Int 3 CH2NH2CN+H2O Int 5 -1.2 -12.6 -14.6 -17.2 MP2/6-31+G(d,p) unit: kcal/mol Black: reaction without any solvent molecule Blue: reaction with two water molecules Green: reaction with two ammonia molecules -19.2 -20.0 Glycine+NH3 -21.4 Int 6

  27. TS 3 47.1 45.8 44.6 TS 4 33.9 33.0 30.4 23.3 TS 7 22.1 20.5 Int 3 11.7 TS 6 10.7 9.3 TS 5 Int 4 8.1 9.9 8.1 7.7 7.2 9.2 5.3 4.6 0 4.5 -0.5 -1.3 -5.9 CH2NH2CN+H2O Int 5 -2.2 -9.7 -14.6 Int 6 -17.5 Glycine+NH3 -18.9 -21.4 MP2/6-31+G(d,p) unit: kcal/mol Black: reaction with two water molecules in gas phase Purple: reaction with two water molecules in PCM Red: reaction with two water molecules in SMD

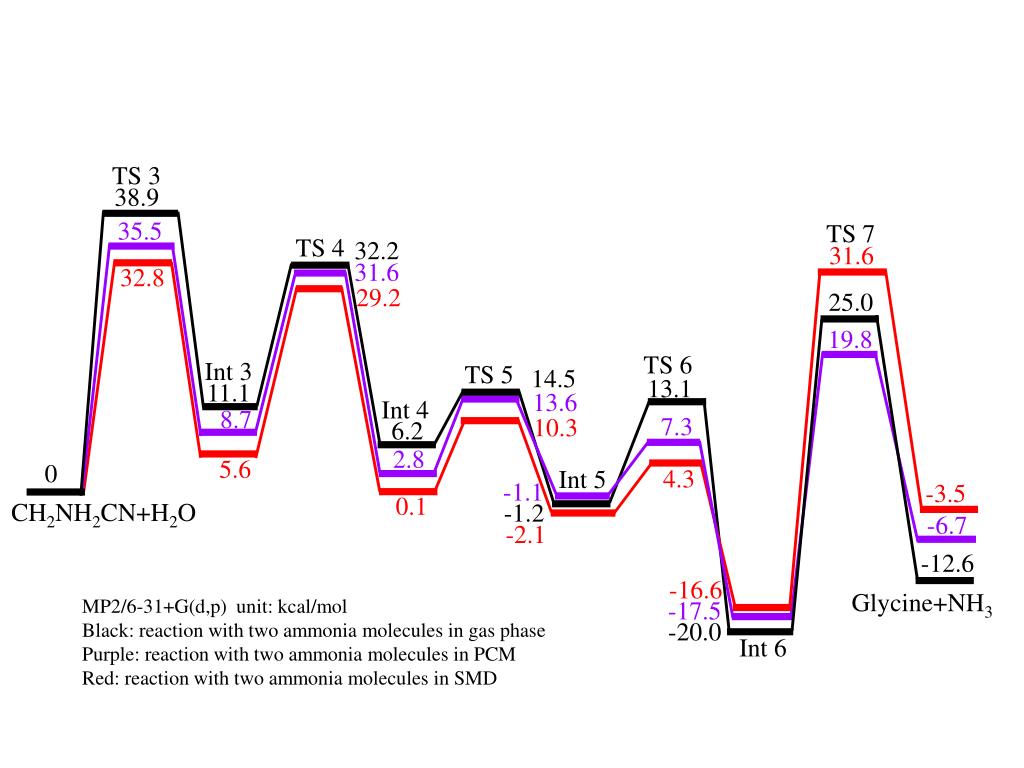

  28. TS 3 38.9 35.5 TS 7 TS 4 32.2 31.6 31.6 32.8 29.2 25.0 19.8 TS 6 Int 3 TS 5 14.5 13.1 11.1 13.6 Int 4 8.7 7.3 10.3 6.2 2.8 5.6 0 4.3 Int 5 -1.1 -3.5 0.1 CH2NH2CN+H2O -1.2 -6.7 -2.1 -12.6 -16.6 Glycine+NH3 -17.5 -20.0 Int 6 MP2/6-31+G(d,p) unit: kcal/mol Black: reaction with two ammonia molecules in gas phase Purple: reaction with two ammonia molecules in PCM Red: reaction with two ammonia molecules in SMD

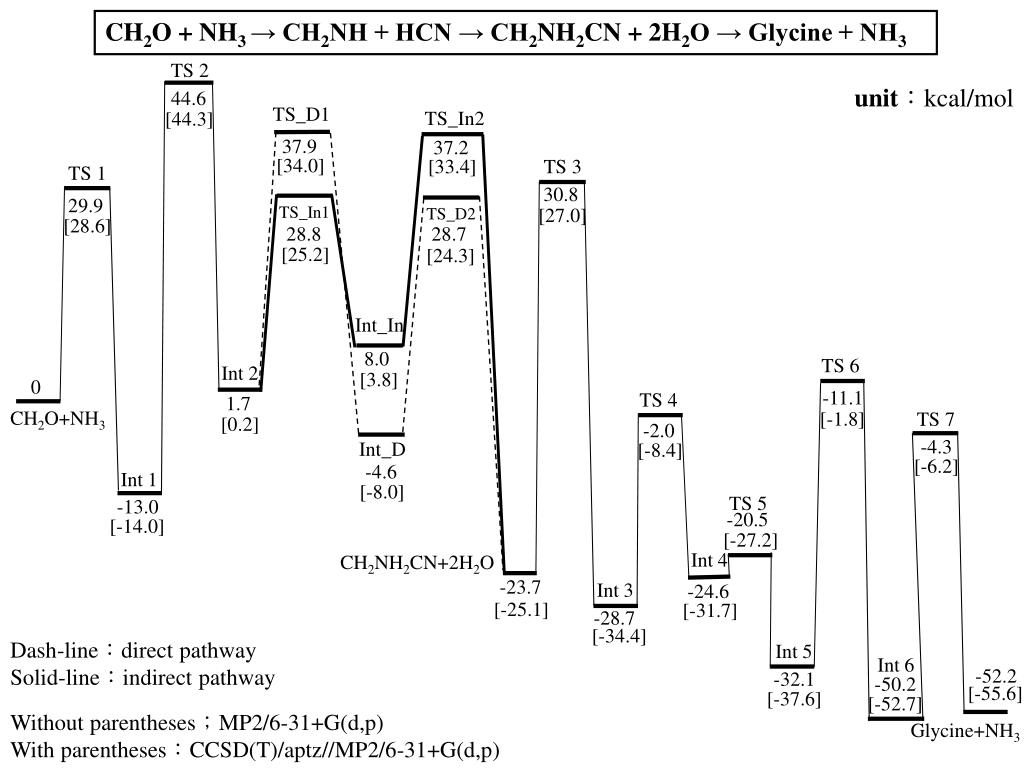

  29. CH2O + NH3 → CH2NH + HCN → CH2NH2CN + 2H2O → Glycine + NH3 TS 2 unit：kcal/mol 44.6 TS_D1 TS_In2 [44.3] 37.9 37.2 [34.0] [33.4] TS 3 TS 1 30.8 29.9 TS_In1 TS_D2 [27.0] [28.6] 28.8 28.7 [25.2] [24.3] Int_In 8.0 TS 6 Int 2 [3.8] 0 -11.1 TS 4 1.7 CH2O+NH3 [-1.8] TS 7 [0.2] -2.0 -4.3 Int_D [-8.4] [-6.2] -4.6 Int 1 [-8.0] TS 5 -13.0 -20.5 [-14.0] [-27.2] Int 4 CH2NH2CN+2H2O -23.7 Int 3 -24.6 [-25.1] [-31.7] -28.7 [-34.4] Dash-line：direct pathway Solid-line：indirect pathway Int 5 Int 6 -52.2 -32.1 -50.2 [-55.6] [-37.6] [-52.7] Without parentheses；MP2/6-31+G(d,p) With parentheses：CCSD(T)/aptz//MP2/6-31+G(d,p) Glycine+NH3

  30. Comparison in Gas Phase and in Solvation Model (PCM,SMD) TS 2 44.6 TS_D1 TS_In2 [40.3] (32.8) 37.9 37.2 [19.3] [19.3] TS 3 TS 1 (9.5) (9.6) 30.8 29.9 TS_In1 TS_D2 [34.3] [22.7] 28.8 28.7 (24.4) (14.9) [12.5] [24.8] (5.5) (17.0) Int_In 8.0 TS 5 Int 2 [7.5] 0 2.2 TS 4 (5.7) 1.7 TS 6 [7.5] [-0.2] CH2O+NH3 -2.0 (-1.7) (-5.4) -4.3 Int_D [1.5] [0.1] -4.6 (-8.4) Int 1 (-7.3) [-2.3] -13.0 (-9.5) [-10.8] (-16.1) Int 4 CH2NH2CN+2H2O -23.7 Int 3 -24.6 [-24.6] [-24.5] -28.7 MP2/6-31+G(d,p) unit: kcal/mol Black: gas phase Blue: PCM Green: SMD (-33.5) (-35.6) [-24.9] -43.7 (-35.2) [-42.8] -44.9 [-41.9] (-45.3) (-50.8) Int 5 Glycine+NH3

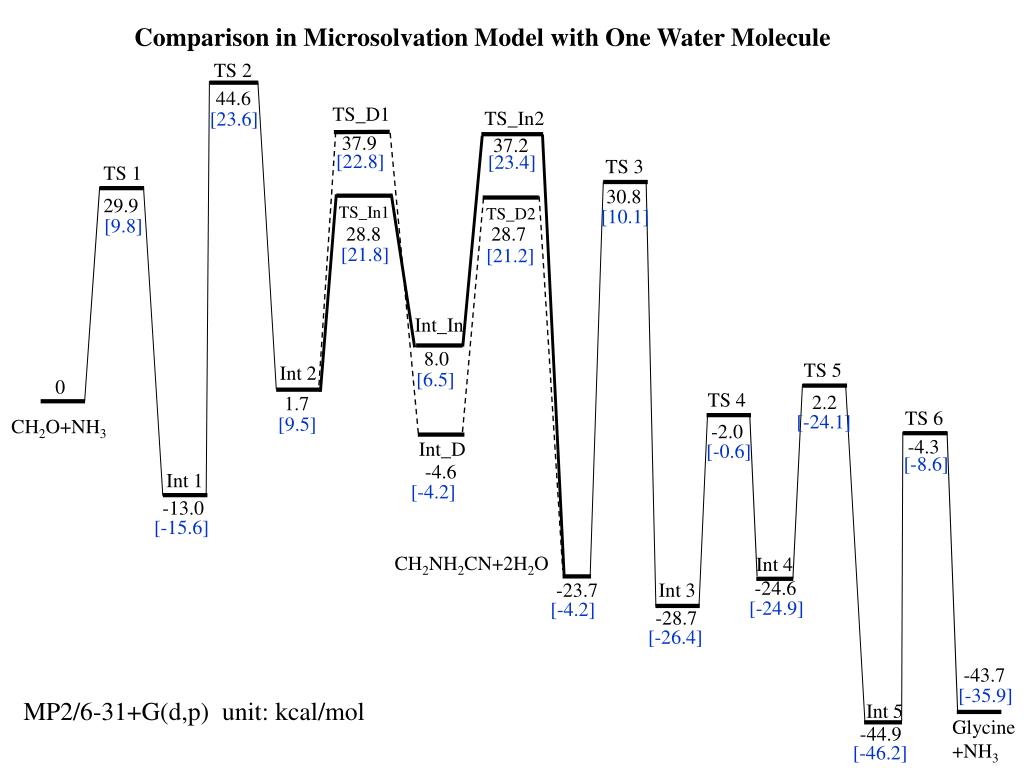

  31. Comparison in Microsolvation Model with One Water Molecule TS 2 44.6 TS_D1 TS_In2 [23.6] 37.9 37.2 [22.8] [23.4] TS 3 TS 1 30.8 29.9 TS_In1 TS_D2 [10.1] [9.8] 28.8 28.7 [21.8] [21.2] Int_In 8.0 TS 5 Int 2 [6.5] 0 TS 4 2.2 1.7 TS 6 [-24.1] [9.5] CH2O+NH3 -2.0 -4.3 Int_D [-0.6] [-8.6] -4.6 Int 1 [-4.2] -13.0 [-15.6] CH2NH2CN+2H2O Int 4 -24.6 -23.7 Int 3 [-24.9] [-4.2] -28.7 [-26.4] -43.7 [-35.9] MP2/6-31+G(d,p) unit: kcal/mol Int 5 Glycine +NH3 -44.9 [-46.2]

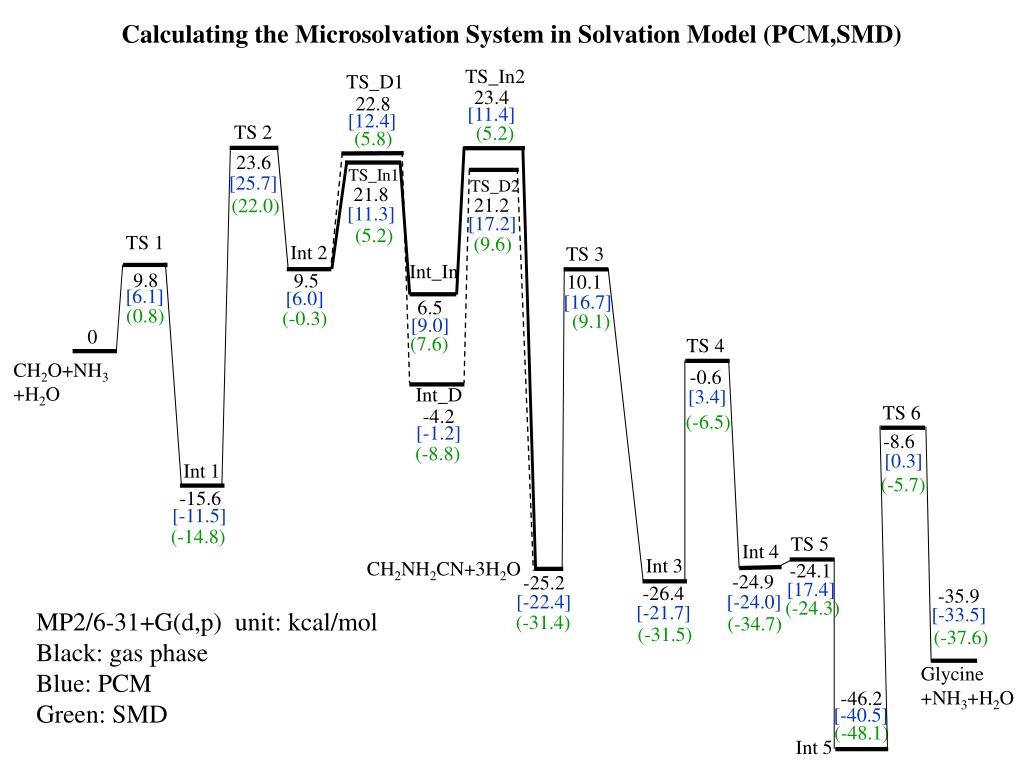

  32. Calculating the Microsolvation System in Solvation Model (PCM,SMD) TS_In2 TS_D1 23.4 22.8 [11.4] [12.4] TS 2 (5.2) (5.8) 23.6 TS_In1 [25.7] TS_D2 21.8 21.2 (22.0) [11.3] [17.2] (5.2) TS 1 (9.6) Int 2 TS 3 Int_In 9.8 9.5 10.1 [6.1] [6.0] [16.7] 6.5 (0.8) (-0.3) (9.1) [9.0] 0 (7.6) TS 4 CH2O+NH3 +H2O -0.6 Int_D [3.4] TS 6 -4.2 (-6.5) [-1.2] -8.6 (-8.8) [0.3] Int 1 (-5.7) -15.6 [-11.5] (-14.8) TS 5 Int 4 Int 3 CH2NH2CN+3H2O -24.1 -24.9 -25.2 [17.4] -26.4 -35.9 [-22.4] [-24.0] (-24.3) [-21.7] [-33.5] MP2/6-31+G(d,p) unit: kcal/mol Black: gas phase Blue: PCM Green: SMD (-31.4) (-34.7) (-31.5) (-37.6) Glycine +NH3+H2O -46.2 [-40.5] (-48.1) Int 5
