Expression for load

Expression for load. We have seen that under Sommerfeld’s condition W = W y In non-dimensional terms, W* = W y * = This is a function solely of the eccentricity ratio e . Putting back the dimensional quantities we get. Sommerfeld number. Which gives Where W = total load L = axial length

booth
Télécharger la présentation

Expression for load

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

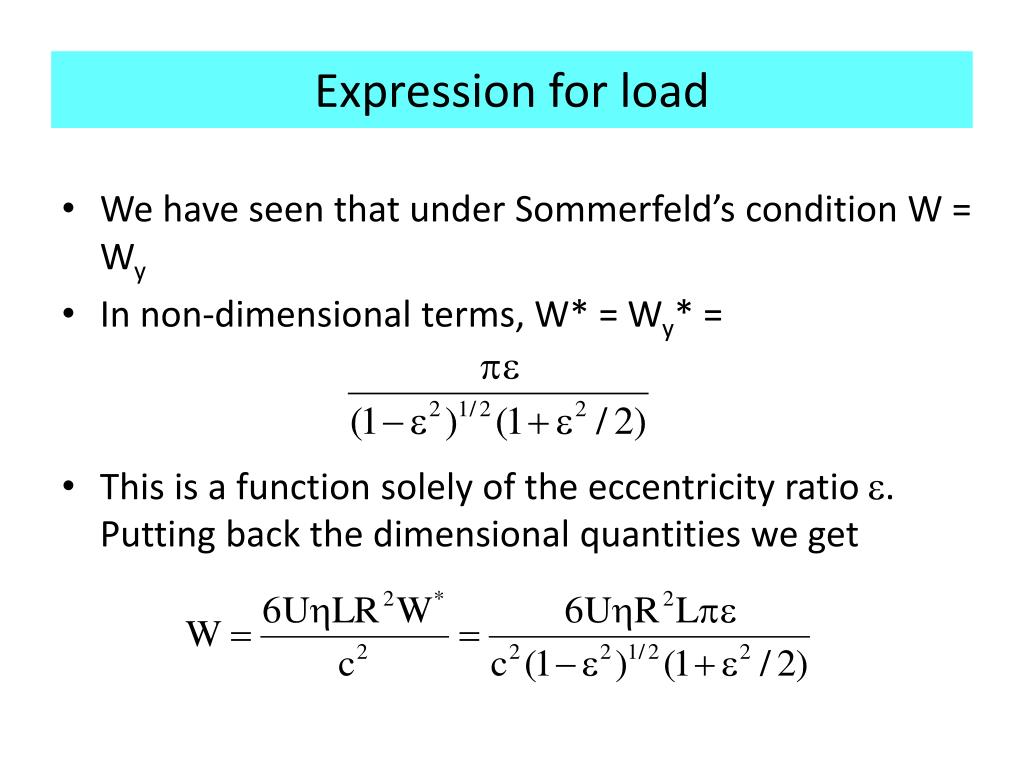

  1. Expression for load • We have seen that under Sommerfeld’s condition W = Wy • In non-dimensional terms, W* = Wy* = • This is a function solely of the eccentricity ratio e. Putting back the dimensional quantities we get

  2. Sommerfeld number • Which gives Where • W = total load • L = axial length • U = surface speed • h = viscosity • C = radial clearance • R = bearing radius The variable on the left hand side is known as the Sommerfeld number and is often designated by S or D. It is more usual to work with the reciprocal

  3. Sommerfeld’s number is used as abcissafor a number of design curves. • The ordinate can be selected to allow the friction value, film thickness, oil leakage, temperature rise etc to be determined. • Design curves have been produced of various variables against the Sommerfeldnumber using computer techniques by A.A Raimondi and J.Boyd of Westinghouse Research Labs(ASLE Transactions Vol 1 No 1 April 1958). • These graphs include compensation for end leakage and eccentricity.

  4. Friction coefficient Sommerfeld number Ref: http://www.roymech.co.uk/Useful_Tables/Tribology/Liquid_Lubrication.htm

  5. Reynold’s condition • p = 0, dp/dq = 0, at some value of q > p • The start of the curve is assumed at the point of maximum oil thickness q = 0 • The pressure equation obtained earlier is • If the pressure starts at q =0 (g = 0), then C = 0 • If p*= 0 at any other value of q, C will not be zero

  6. We know that h = c(1 + ecosq) and therefore ho = c(1 + ecosqo) where ho is the film thickness when dp/dq = 0 at q = qo • This equation is symmetrical about q = 180o, hence qocan have 2 values, one when pressure p is maximum and the other when p is minimum • Therefore we can write • On the gscale we can write • Where b on the gscale corresponds to a on the q scale • p* = 0 at g = p + b, sin(p+b) = -sinb and cos(p + b) = -cosb

  7. Reynold’s condition, p = 0, dp/dq = 0, at some value of q > p • = 0 Start of pressure curve Bearing Rdq q Wy Wx • = p+a (min. pressure = 0) W Y Shaft Pressure curve • = p-a (max. pressure)

  8. e in terms of b • Substituting the above in the pressure equation we get p* = 0 • Expanding and multiplying out we find that • Or • This equation can be used to determine b

  9. Values of b for different e (obtained by Cameron and Wood) • e = e/c = 1 when e = c(eccentricity = radial clearance) • = 0 when eccentricity = 0, i.e. the shaft and bearing are coaxial The values of b can be inserted into the pressure equation and integrated to give the loads Wxand Wy

  10. Now The first term is zero as p = 0 at q = 0 and (p+a). Using Sommerfeld substitution the required integral in terms of g comes out to be

  11. P = 0 at q = 0 and p + a, therefore the 1st. Term disappears. Using Sommerfeld’s substitution we get

  12. Therefore Once y has been found we can find W from Wsinyor Wcosy

  13. As e 1, The eccentricity  radial clearance, therefore the infinite journal bearing approaches the value for 2 discs with internal contact. • The expression is • Where • Now R1 - R2 = c, the radial clearance, so 1/Rred = c/R2, where R is taken as the radius of the shaft

  14. The minimum film thickness ho = c(1-e) • Hence the expression for load carried can be written as • Where D is the Sommerfeld number

  15. Dielectric strength • A measure of the electrical insulating strength • Measured as the maximum voltage it can withstand without conducting (expressed as volts/thickness) • Less moisture- better insulators • Dehydrating techniques are used to improve the dielectric strength

  16. Carbon residue • Carbon residue is formed by evaporation and oxidation of lubricant • The test of the tendency of a lubricant to form carbon residue is called the “Conradson” test • The test sample is heated until it is completely evaporated (cannot ignite) • The residue is cooled and weighed • Result interpreted as weight ratio of residue to oil sample

  17. Lubricant additives

  18. Lubricant additives or agents • Added to preserve, improve and/or provide additional useful properties to a lubricant • Protect the surface forming a film • Keep surfaces and lubricant passageways clean • Inhibitors prevent the formation of harmful products • Some are consumed (sacrificial), others are not (non-sacrificial)

  19. Lubricant additives- classification • Oxidation inhibitors • Viscosity index improvers • Boundary and extreme pressure additives • Rust inhibitors • Detergents • Dispersants • Pour point depressants • Anti-foaming agents • Friction modifiers

  20. Oxidation products • Sludge: Black tar-like substance consisting of water, carbon, engine oil, organic residue and dirt • Engine gum: Acts as a binder causing residue to stick to machinery components • Varnish: Petroleum gum exposed to high temperature and ironed out on surfaces • Laquer: Thin layer of reacted varnish • Carbon deposits: Combination of soot from fuel burning and oxidation of lubricating oil

  21. Oxidation prevention additives Oxygen reacts preferentially with additive molecules Oxygen • Preferential oxidation: Additive is more susceptable to oxidation than oil • Oil particles are therefore prevented from oxidising Oil Oil Additive

  22. Oxidation prevention additives Additive reacts with metal particles Metal catalyst Metal deactivators- • Metal particles in the oil act as catalysts for the oxidation reactions • The additives either react with the metal particles or form a coating over them Oil Oil Additives Additive covers metal particles by forming a coating

  23. Oxidation prevention additives- peroxide decomposers Hydrocarbon + oxygen Hydroxyperoxides Materials susceptible to oxidation by decomposed peroxides Hydroxyperoxides Decompose Additives + Hydroxyperoxides Non-oxidizing product

  24. Rust Inhibitors- effect of water • Below boiling point, water is present in a lubricating system. • Water contaminant can lead to formation of rust • Water enters by condensation and/or leakage from coolers or steam heating coils • Some oils are hygroscopic and therefore physically absorb moisture

  25. Rust prevention additives • Rust inhibitors neutralize acids formed by oxidation • Polar additives form a protective layer on the metal surface due to attraction by the surface • Chemically react with the metal surfaces to form a protective film • E.g. metal sulphonates, fatty acids, phosphates Rust prevention additive Acids formed by oxidation Harmless products Shield from air/water Polar additive layer or chemically reacted layer Metal
