  1. HVDC System Operation & Maintenance V.Diwakar Dy.Manager HVDC Kolar

  2. Existing HVDC in INDIA BIPOLE SYSTEMS: RIHAND- DADRI (DELHI) 1500 MW BIPOLE (1991) TALCHER - KOLAR 2500 MW BIPOLE (2001) BALIA - BHIWADI 2500 MW BIPOLE (2010 ) NER –AGRA 6000MW AT +/- 800KV DC ( Proposed) BACK-TO-BACK SYSTEMS: VINDHYACHAL 2 X 250 MW BACK TO BACK(1989)CHANDRAPUR 2 X 500 MW BACK TO BACK(1997)VIZAG 2 X 500 MW BACK TO BACK(1999) SASARAM 1 X 500 MW BACK TO BACK(2002)

  3. Advantages of HVDC • Why HVDC rather than HVAC? • Long distances make HVDC cheaper • Improved link stability • Fault isolation • Asynchronous link • Cable Transmission • Low Right of Way (RoW)

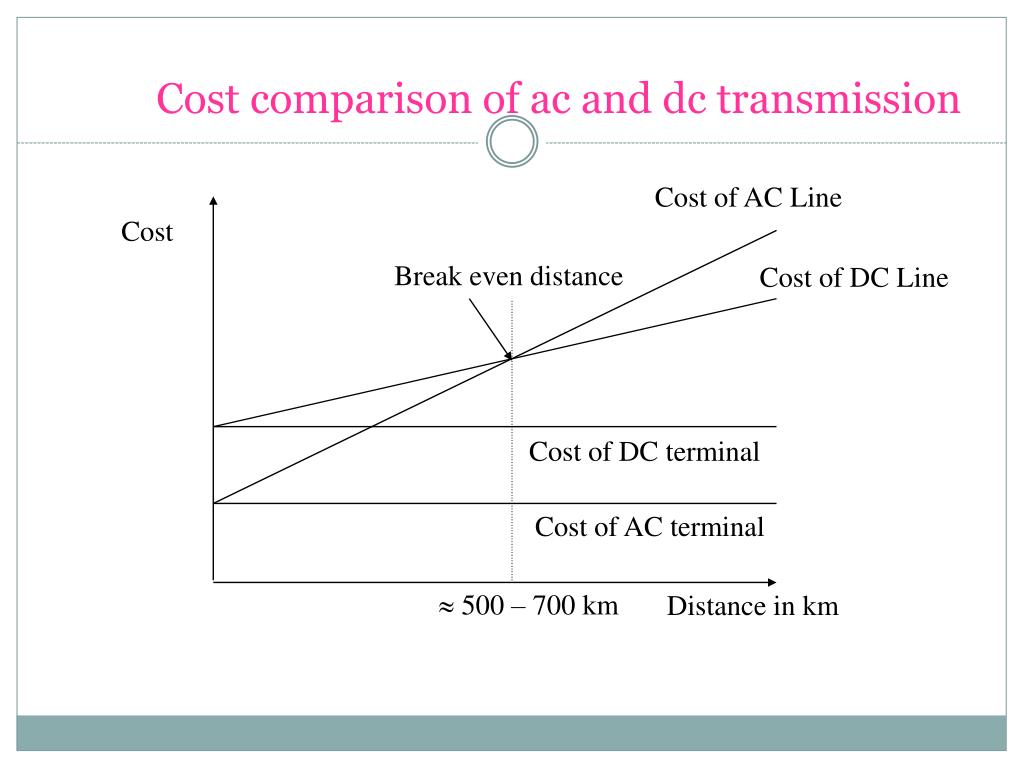

  4. Cost comparison of ac and dc transmission Cost of AC Line Cost Break even distance Cost of DC Line Cost of DC terminal Cost of AC terminal  500 – 700 km Distance in km

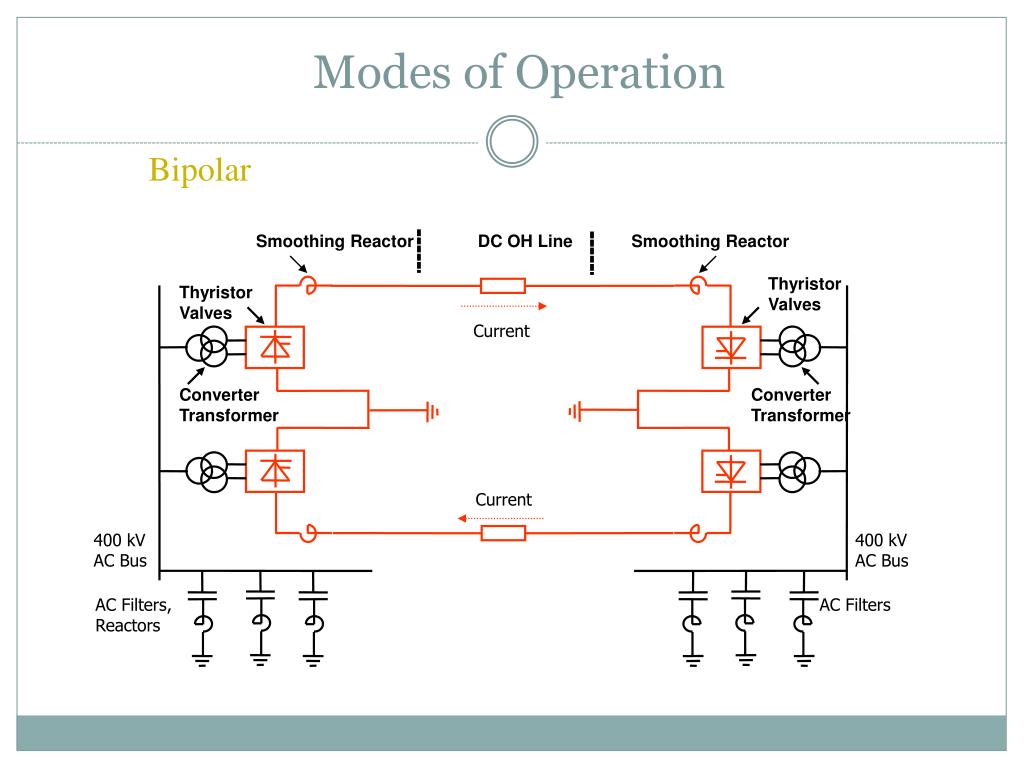

  5. Current Current Modes of Operation Bipolar Smoothing Reactor DC OH Line Smoothing Reactor Thyristor Valves Thyristor Valves Converter Transformer Converter Transformer 400 kV AC Bus 400 kV AC Bus AC Filters, Reactors AC Filters

  6. Current Modes of Operation Monopolar Ground Return Smoothing Reactor DC OH Line Smoothing Reactor Thyristor Valves Thyristor Valves Converter Transformer Converter Transformer 400 kV AC Bus 400 kV AC Bus AC Filters, Reactors AC Filters

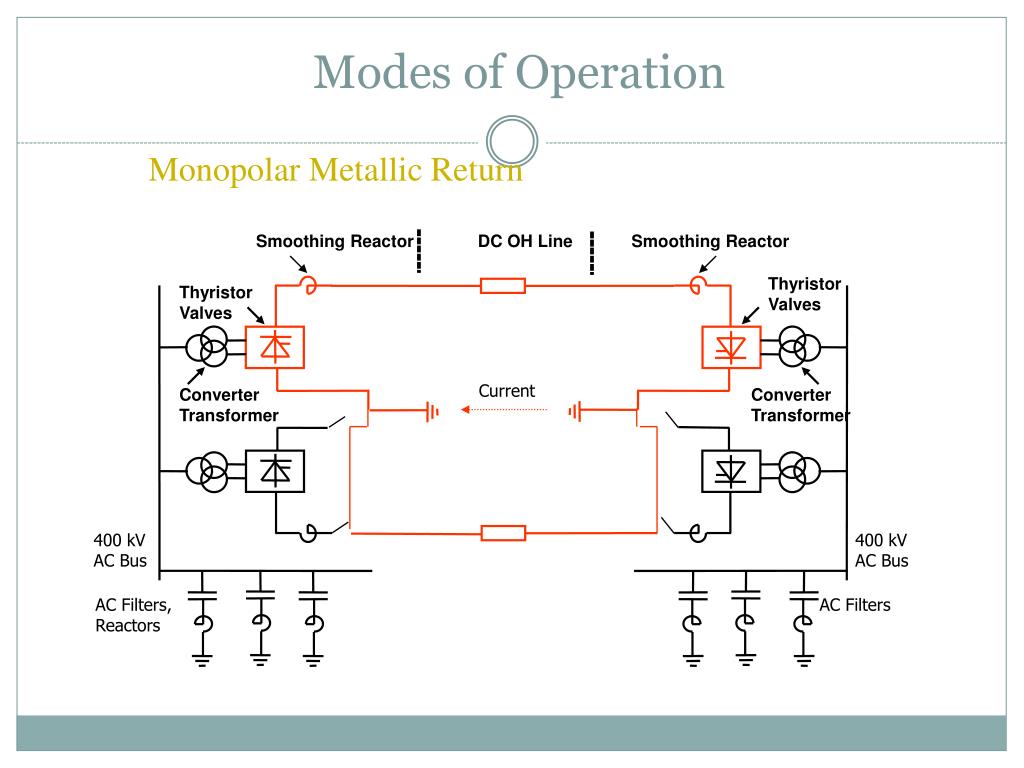

  7. Current Modes of Operation Monopolar Metallic Return Smoothing Reactor DC OH Line Smoothing Reactor Thyristor Valves Thyristor Valves Converter Transformer Converter Transformer 400 kV AC Bus 400 kV AC Bus AC Filters, Reactors AC Filters

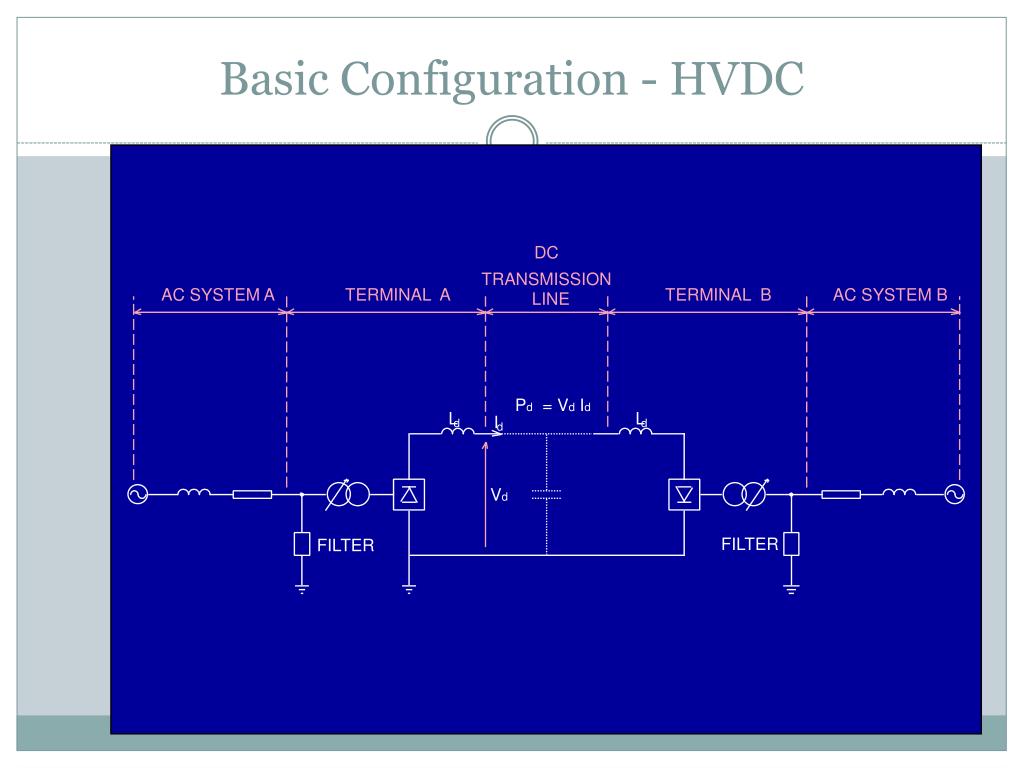

  8. Basic Configuration - HVDC DC TRANSMISSION AC SYSTEM A TERMINAL A TERMINAL B AC SYSTEM B LINE Pd = Vd Id L L I d d d Vd FILTER FILTER

  9. 12-Pulse Convertor Bridge Y 

  10. Ideal No-Load Condition 1 3 C A V d B 2

  11. Effect of Control Angle 1 3 u u u C A V d B 2

  12. RECTIFICATION 120 º 180 º 240 º 300 º 60 º 120 º 180 º 0 E . 2 LL E . 2 0.866 LL DC Terminal Voltage

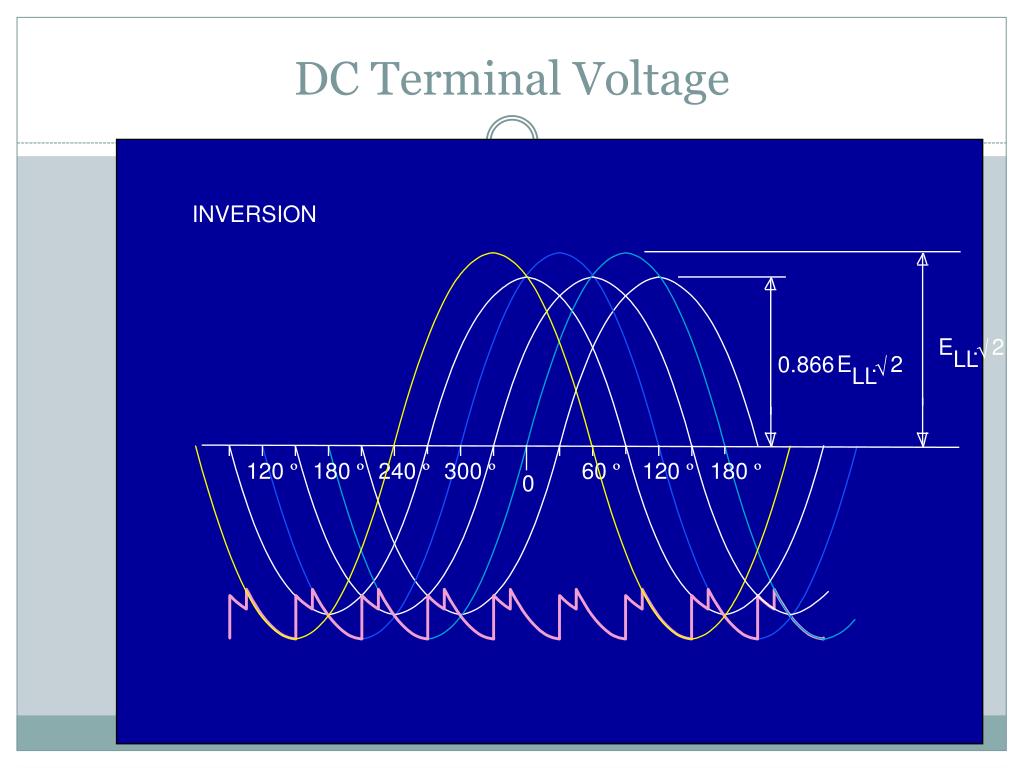

  13. INVERSION E . 2 LL E . 2 0.866 LL 120 º 180 º 240 º 300 º 60 º 120 º 180 º 0 DC Terminal Voltage

  14. HVDC Control

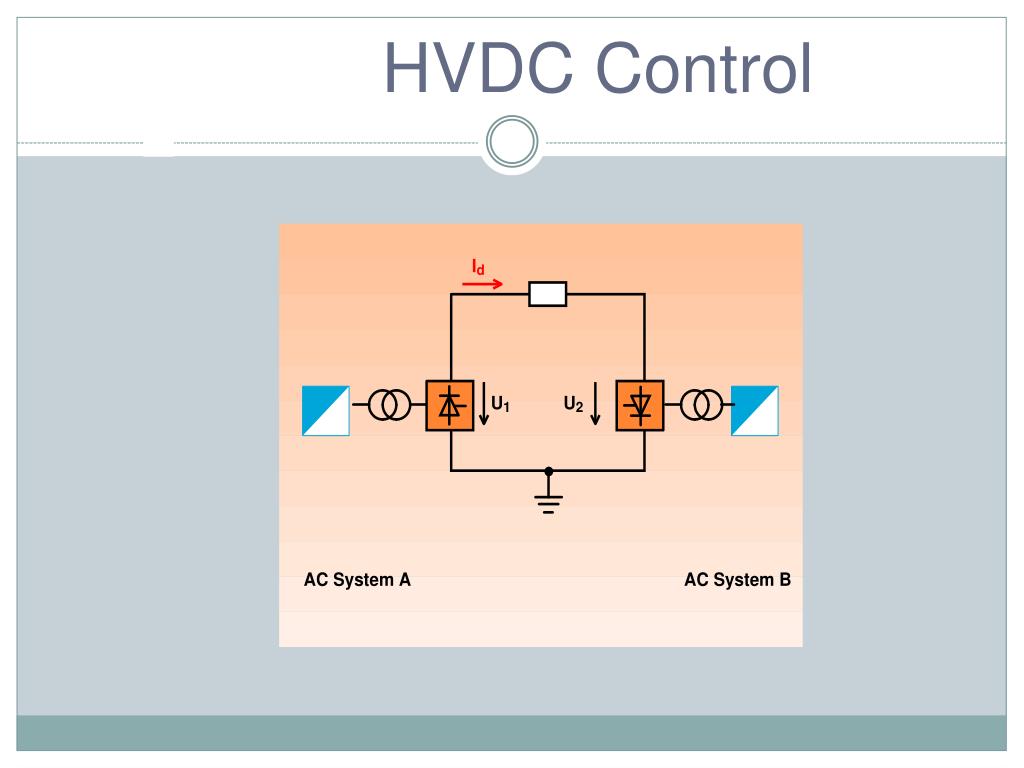

  15. HVDC Control

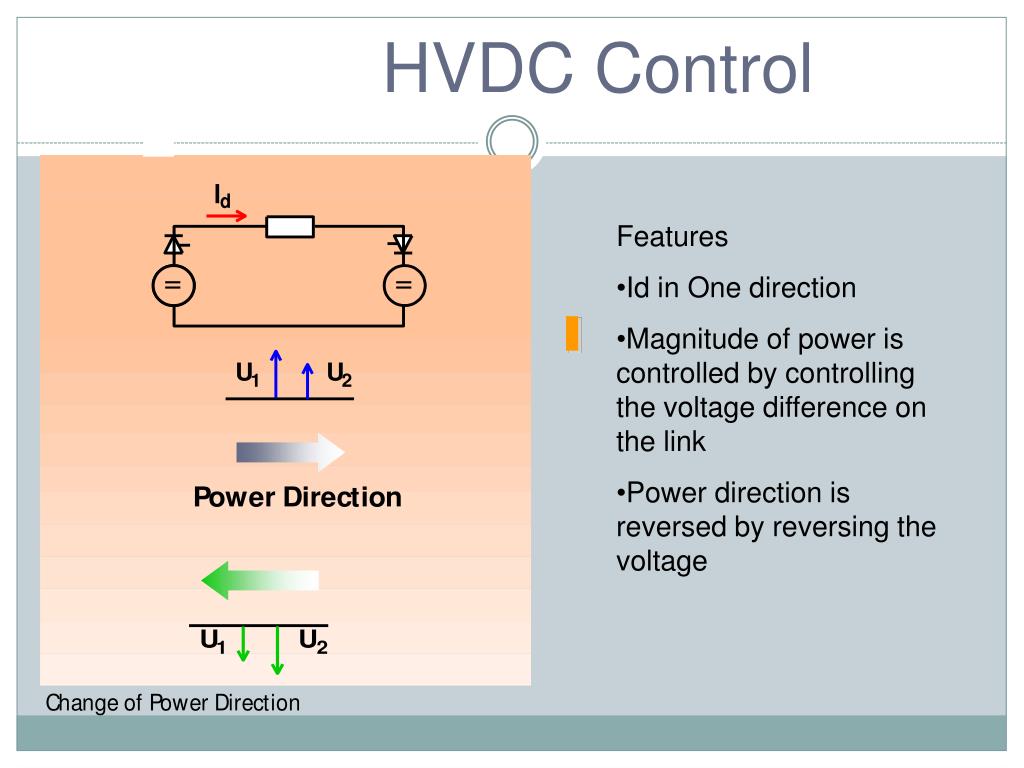

  16. HVDC Control • Features • Id in One direction • Magnitude of power is controlled by controlling the voltage difference on the link • Power direction is reversed by reversing the voltage

  17. HVDC EQUIPMENTS What are the Special Components of HVDC?

  18. MAIN COMPONENTS OF HVDC • Converter Transformer • Valve Hall • AC Harmonic Filters • Shunt Capacitors • DC Harmonic Filters • Smoothing Reactors • DC Current / Voltage measuring devices • Valve Cooling / Ventilation System

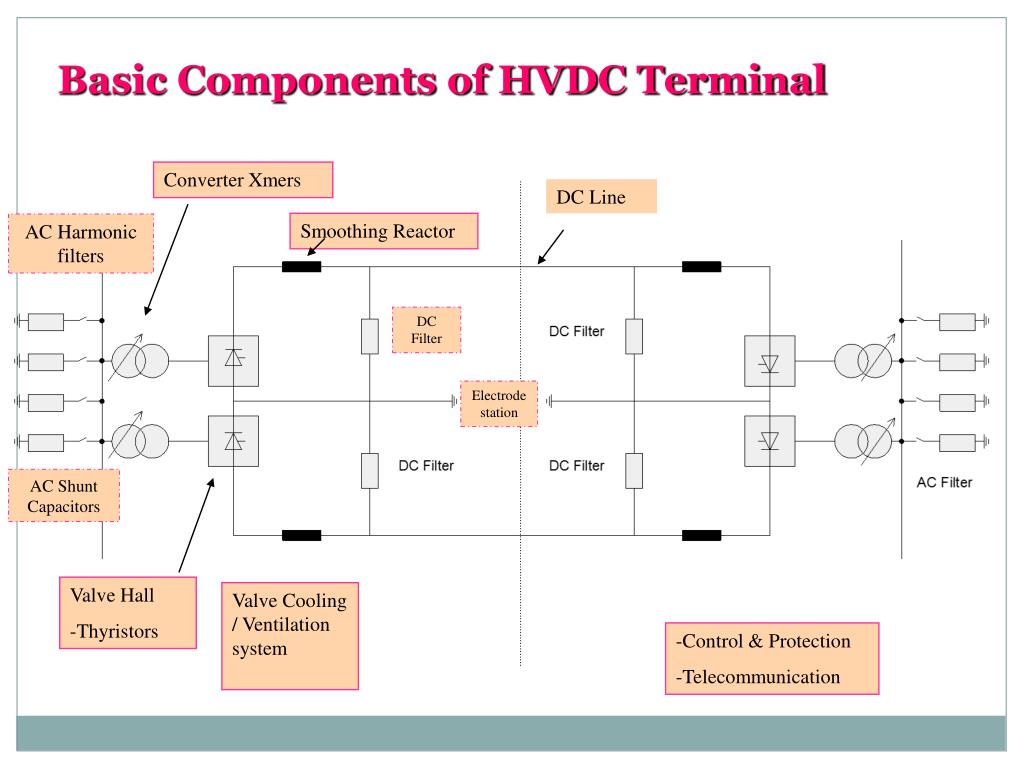

  19. Basic Components of HVDC Terminal Converter Xmers DC Line Smoothing Reactor AC Harmonic filters 400 kV DC Filter Electrode station AC Shunt Capacitors Valve Hall -Thyristors Valve Cooling / Ventilation system -Control & Protection -Telecommunication

  20. CONVERTER TRANSFORMER

  21. CONVERTER TRANSFORMER 400KV SIDE BUSHING STAR BUSHINGS DELTA BUSHING

  22. CONVERTER TRANSFORMERS • Three Singe Phase Transformers for each Pole • Each Transformer is of Three Windings • Winding -1 connected to 400KV side in Star • Winding -2 connected to one six pulse bridge in Star • Winding -3 connected to second six pulse bridge in Delta • Easy transportation

  23. FEATURES OF CONVERTER TRANSFORMERS • Automatic onload tap changer control with appropriate make and break capacity • Extra insulation due to DC currents • Proper conductors and magnetic shunts to take care of the extra losses due to harmonic currents • Very rugged and reliable OLTC as tap-changing is a integral means of conversion process and control.

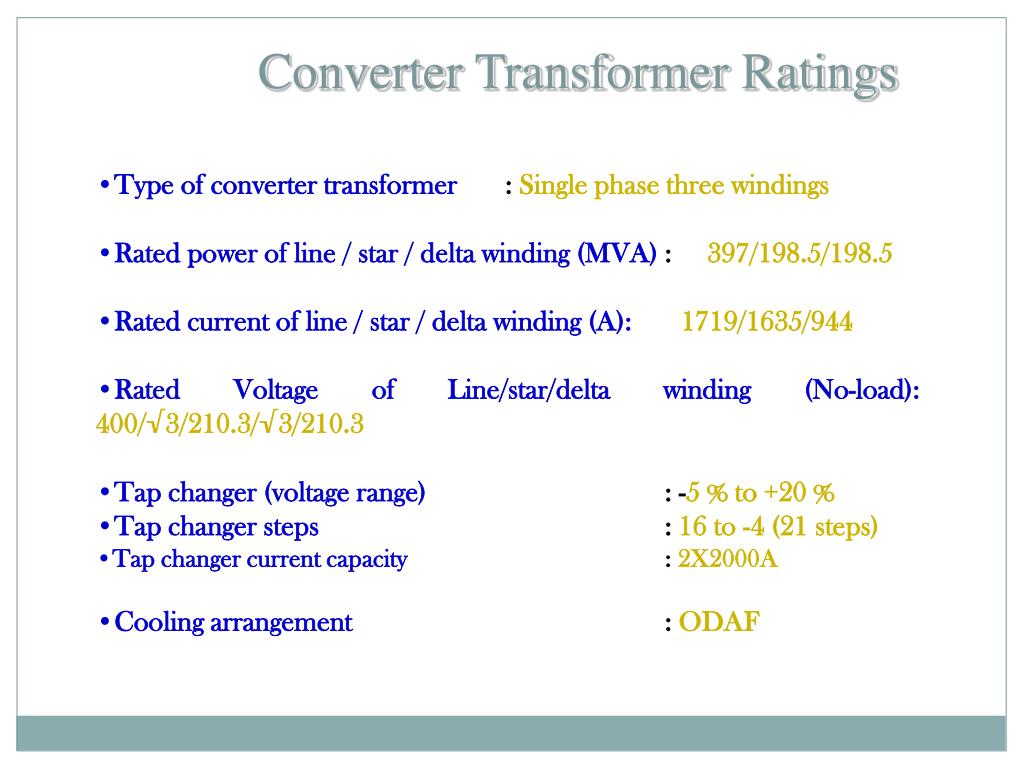

  24. Converter Transformer Ratings • Type of converter transformer : Single phase three windings • Rated power of line / star / delta winding (MVA) : 397/198.5/198.5 • Rated current of line / star / delta winding (A):1719/1635/944 • Rated Voltage of Line/star/delta winding (No-load):400/√3/210.3/√3/210.3 • Tap changer (voltage range) : -5 % to +20 % • Tap changer steps : 16 to -4 (21 steps) • Tap changer current capacity: 2X2000A • Cooling arrangement : ODAF

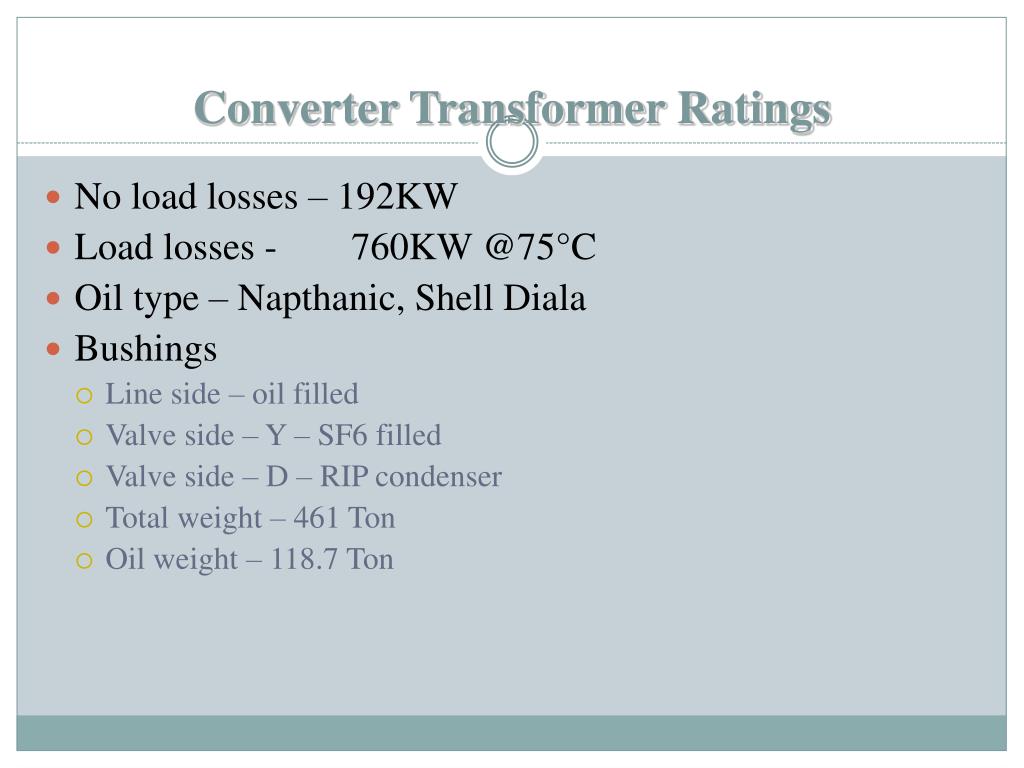

  25. Converter Transformer Ratings • No load losses – 192KW • Load losses - 760KW @75°C • Oil type – Napthanic, Shell Diala • Bushings • Line side – oil filled • Valve side – Y – SF6 filled • Valve side – D – RIP condenser • Total weight – 461 Ton • Oil weight – 118.7 Ton

  26. Converter Transformer Connection Valve Hall 1-ph 3 winding Converter Transformer D R Y D Y Y D B Y Outdoor

  27. Converter Transformer Cooling control • Automatic daily changeover of cooling pumps and fans • 5 groups of fans and pumps • Each group – One oil circulating pump & 3 cooling fans • 4 groups will be in service with 2 fans each • One redundant group – changeovers every day • Extra fans will switch ON when winding temperature > 75ºC • Redundant group will switch ON when winding temperature >85ºC • WTI Alarm - 115ºC • WTI Trip - 130ºC • OTI Alarm - 85ºC • OTI Trip - 95ºC

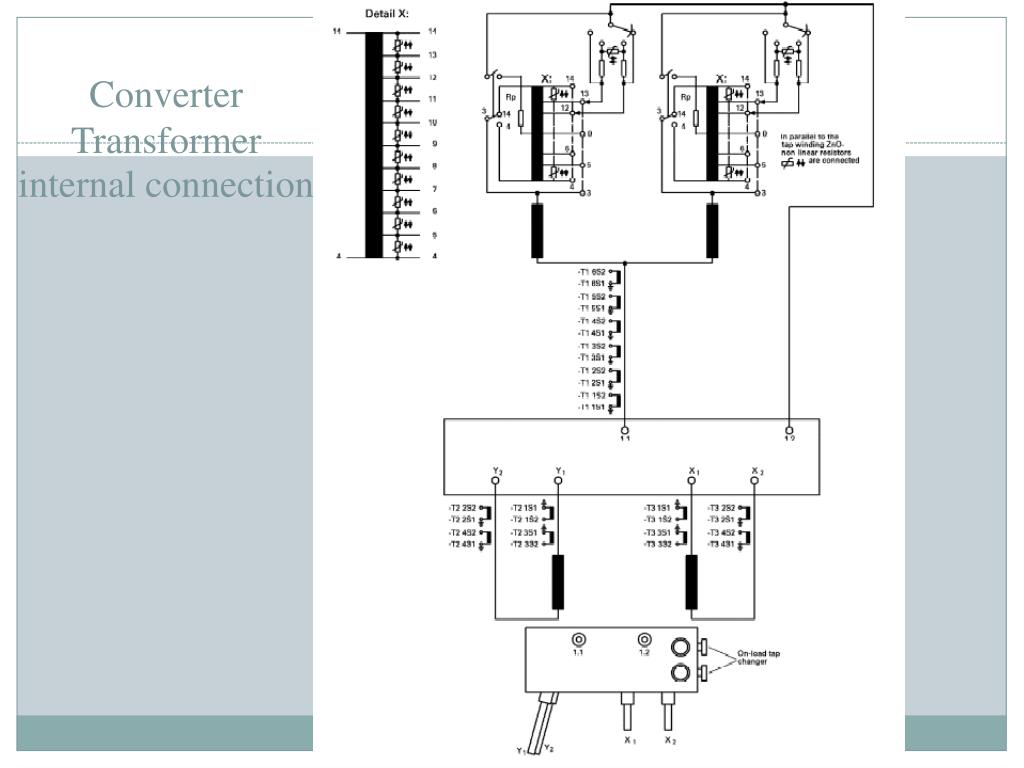

  28. Converter Transformer internal connection

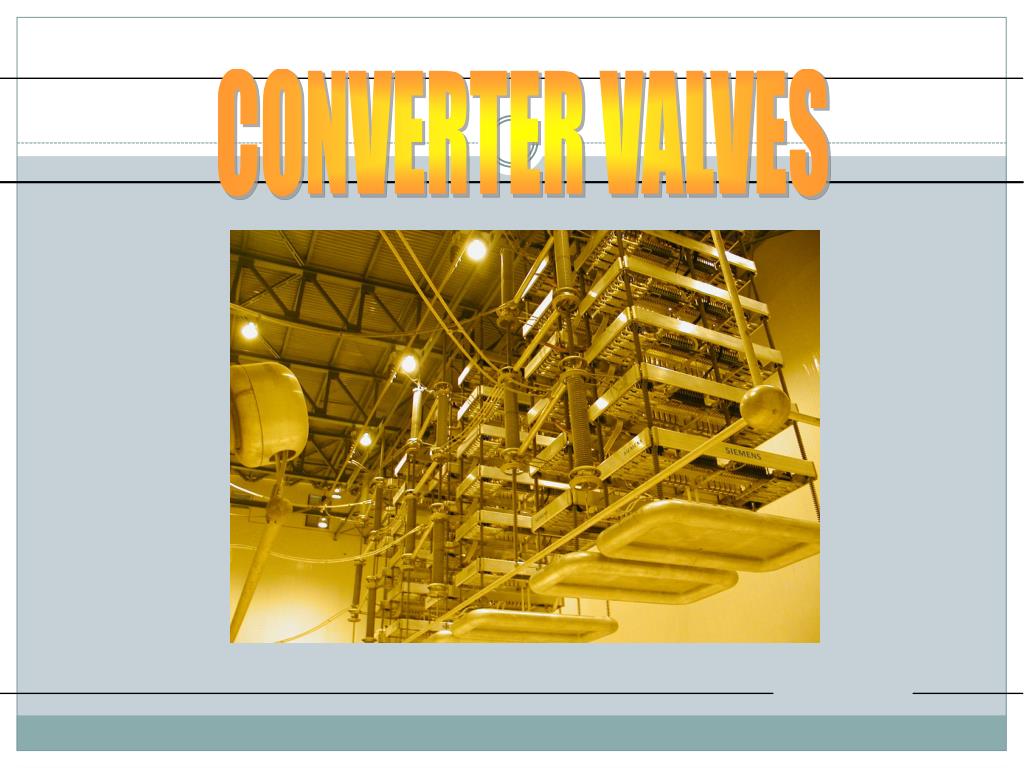

  29. CONVERTER VALVES

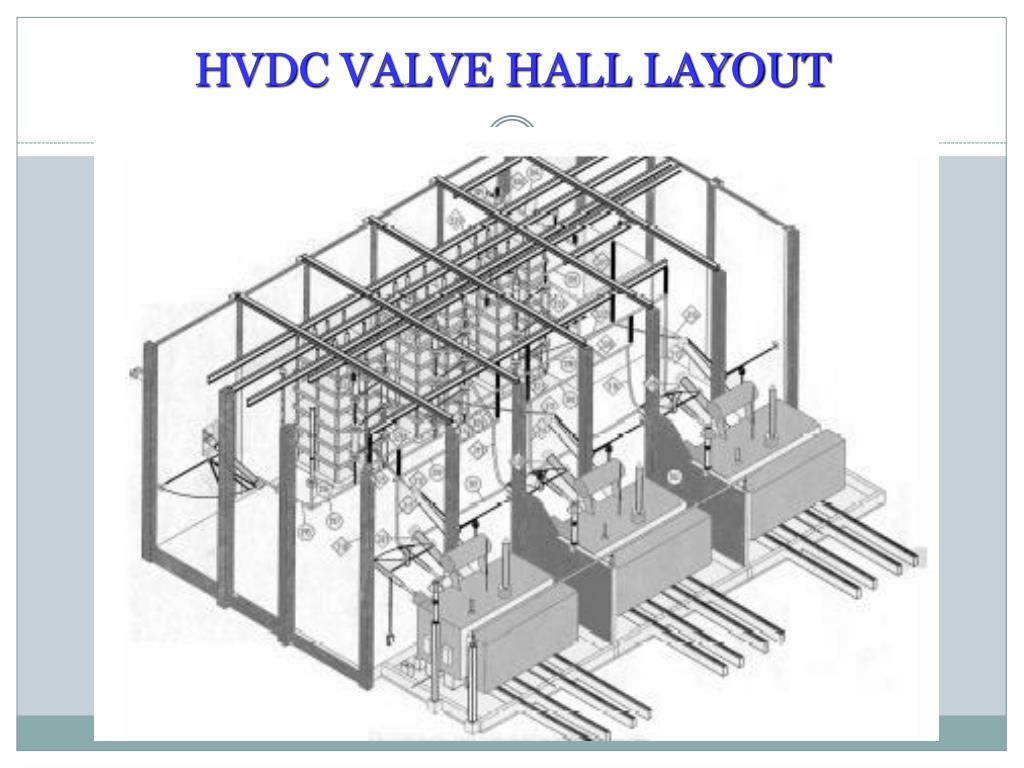

  30. HVDC VALVE HALL LAYOUT

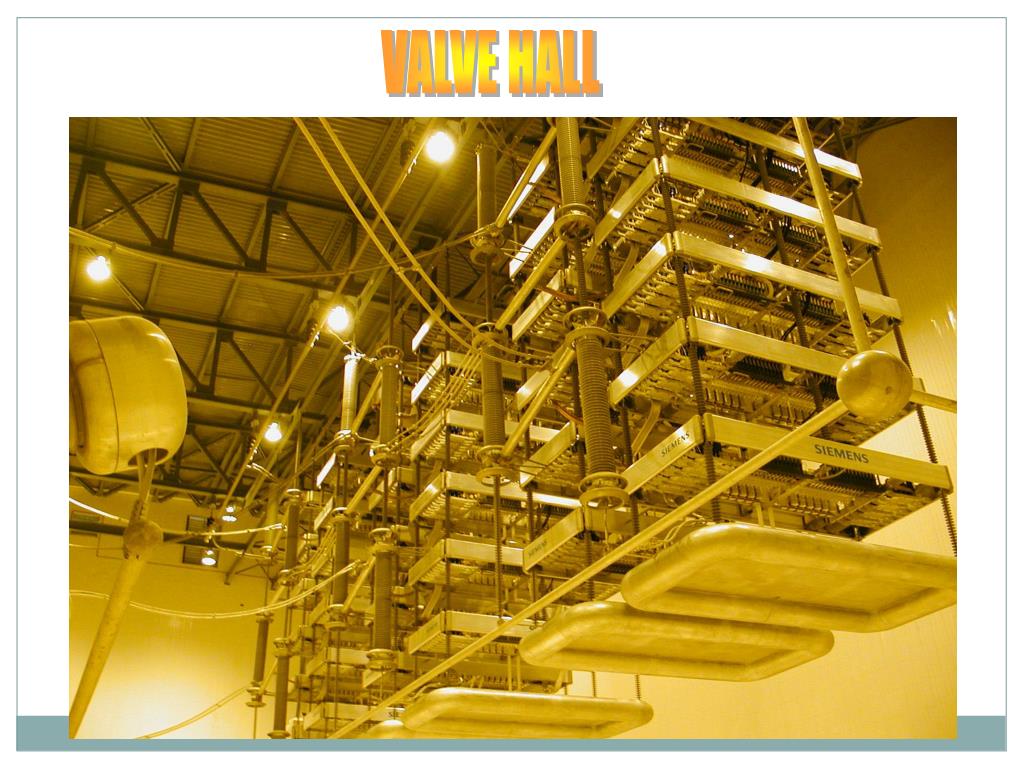

  31. VALVE HALL

  32. MULTIPLE VALVE UNIT Multiple Valve Unit D Y Y

  33. Circuit Diagram of the Converters for Pole 1

  34. 1. AC Terminal 2. DC Terminal 3. Cooling Water Inlet 4. Cooling Water Outlet 5. Fiber Optic Cables Tubes 6. Thyristor Module 7. Insulator 8. Arrester 9. Screen Valve Tower side view • Max. length of fibre optic cables in quadruple valve Lmax = 17.5m • Weight of quadruple valve without arresters: approx. 19300 kg • All dimensions in mm

  35. Valve Structure Valve Section / tier Single Valve Quadra Valve

  36. Hierarchy of valve structure • Each Thyristor level consists • Thyristor • Snubber circuit – to prevent high dv/dt • Snubber Capacitor • Snubber Resistor • Valve Reactor – to prevent high di/dt • Grading Resistor – to equilize the potential across all the levels in a valve – static equalizing • Grading capacitor – dynamic equalizing

  37. Components in one valve

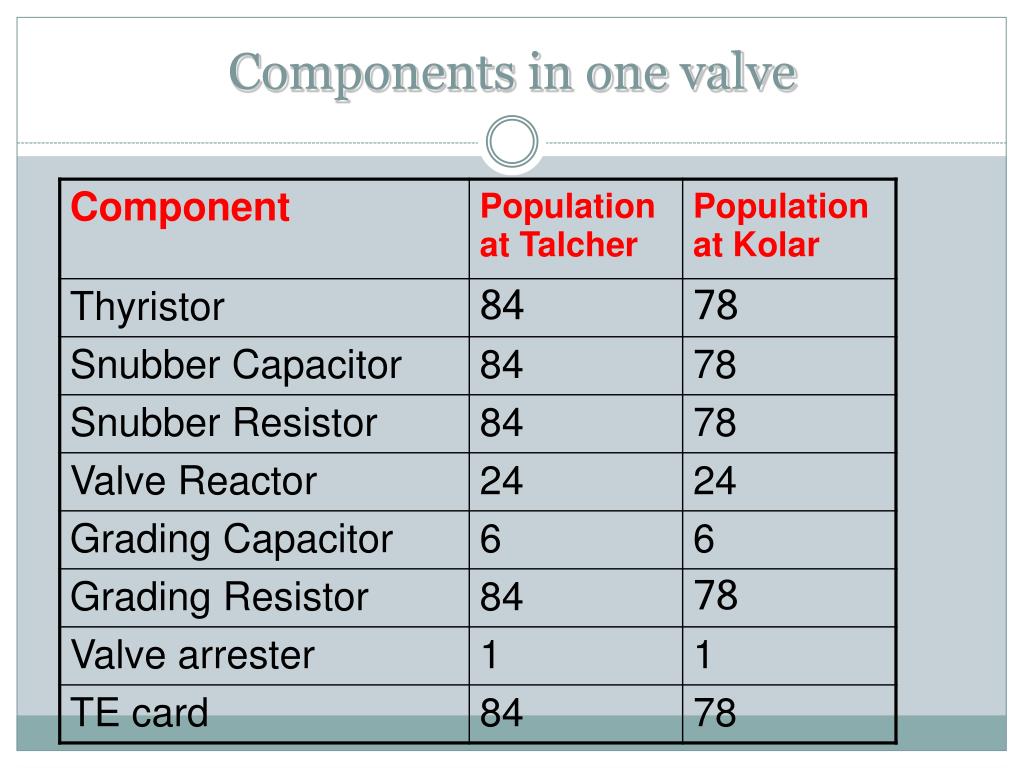

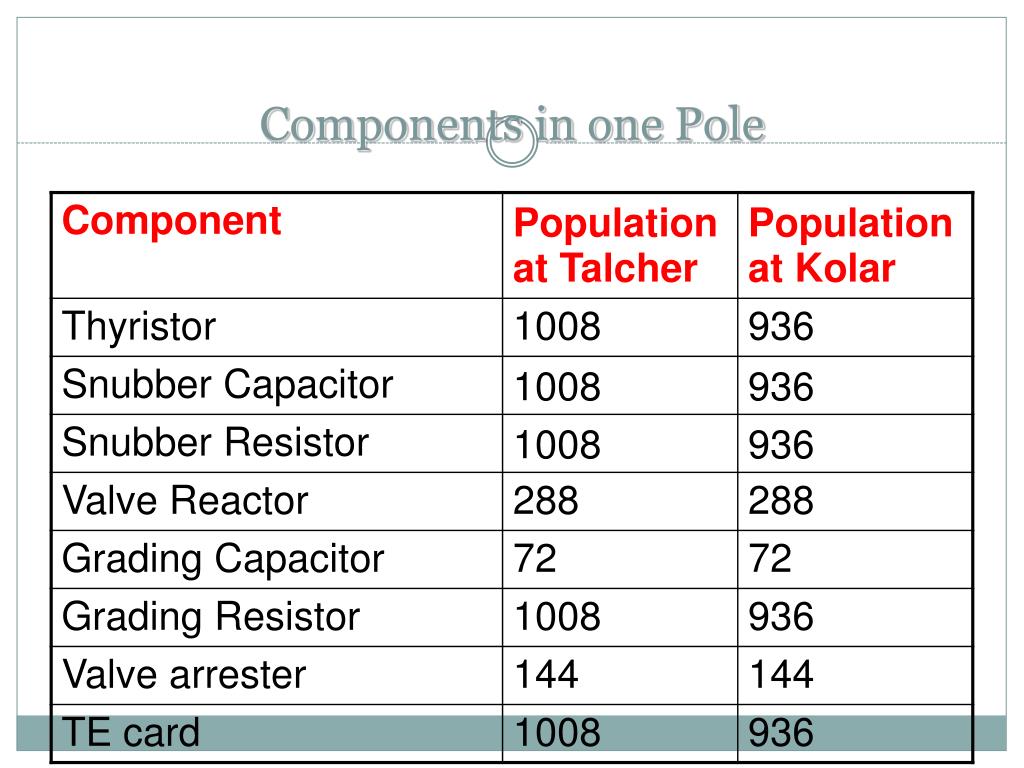

  38. Components in one Pole

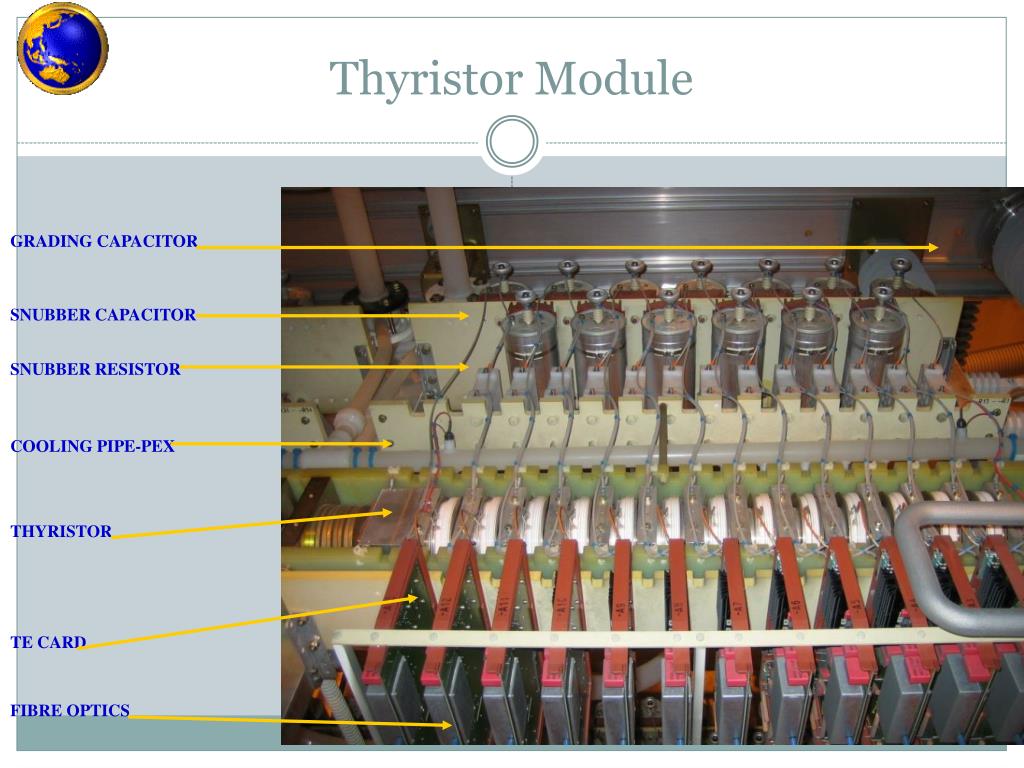

  39. Thyristor Module GRADING CAPACITOR SNUBBER CAPACITOR SNUBBER RESISTOR COOLING PIPE-PEX THYRISTOR TE CARD FIBRE OPTICS

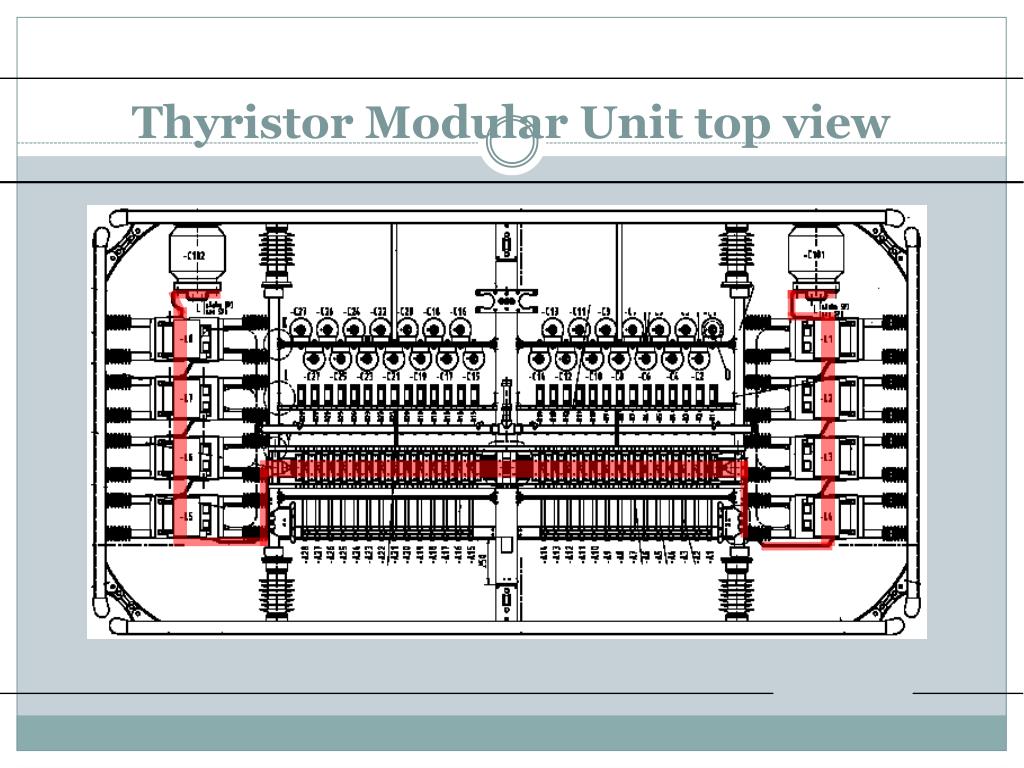

  40. Thyristor Modular Unit top view

  41. 1 Light Receiver 2 Light Transmitter 3 Thyristor Voltage Detection 4 Logic 5 Gate Pusle Amplifier 6 Back Up Trigger Circuit (BTC) 7 Energy Supply Block Diagram of Thyristor Electronic

  42. Thyristor T1501 N75 T - S34 (1) • Features: • High-power thyristor for phase control • Ceramic insulation • Contacts copper, nickel plated • Anode, Cathode and gate pressure contacted • Inter digitised amplifying gate • Applications: • HVDC-Transmissions • Synchro- drivers • Reactive-power compensation • Controlled Rectifiers

  43. Internal Structure of Thyristor

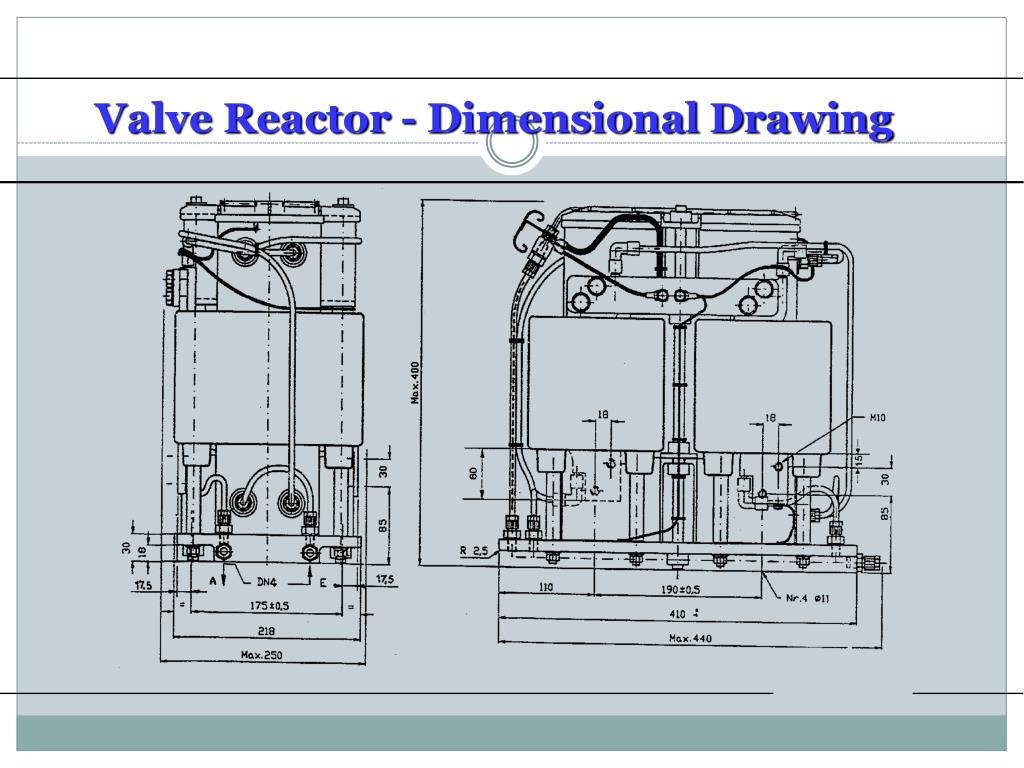

  44. Valve Reactor - Dimensional Drawing

  45. Valve Reactor - Electrical and Mechanical Ratings • Voltage-time area  = 80mVs ±10% • Saturated part of main inductance LH = 0.55 mH ±10% • Reactor current ID max = 1270 A Current and Voltage Characteristic of the Valve Reactor

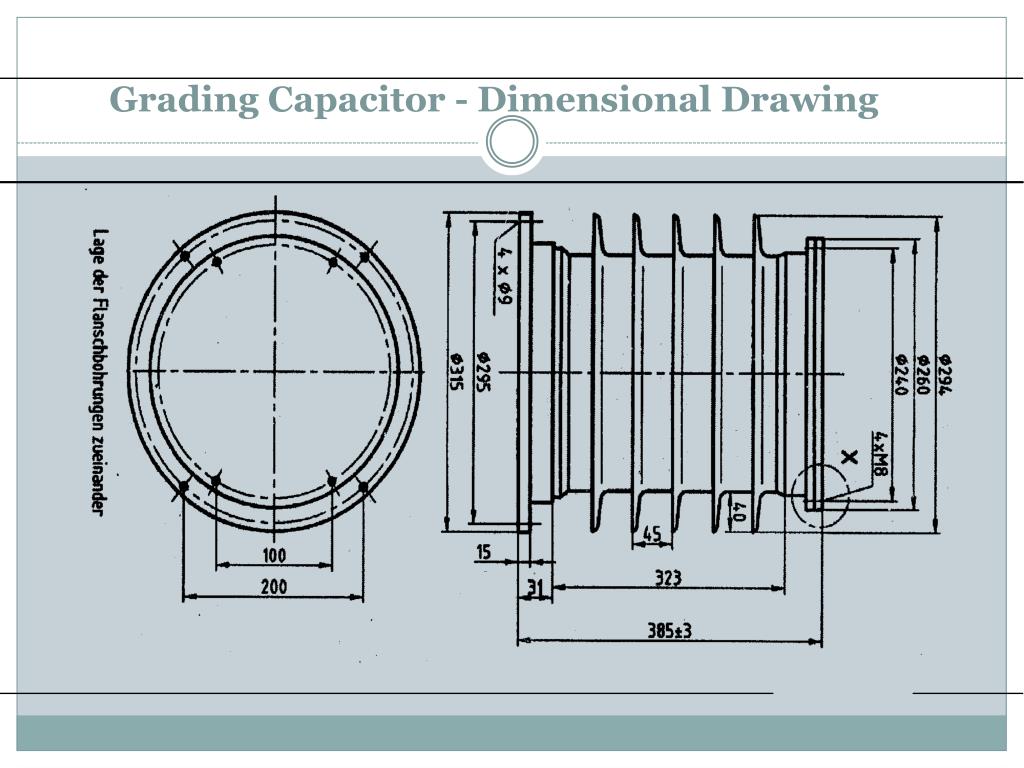

  46. Grading Capacitor - Dimensional Drawing

  47. Grading Capacitor - Electrical and Mechanical Ratings • Capacity C = 2.4 µF ±3% • Nominal voltage UN = 58 kV • Periodical max. voltage Umax = 88 kV • Short time max. impulse voltage Us = 8700 V • Nominal effective current IN = 1 A • Periodical max. current Imax = 100 A • Operating frequency f = 50/60 Hz • Cooling type self-cooling • Weight approx. 25 kg • Impregnation SF6 gas

  48. Snubber Circuit Resistor Resistance R 45  Tolerance ± 3% Cooling Water

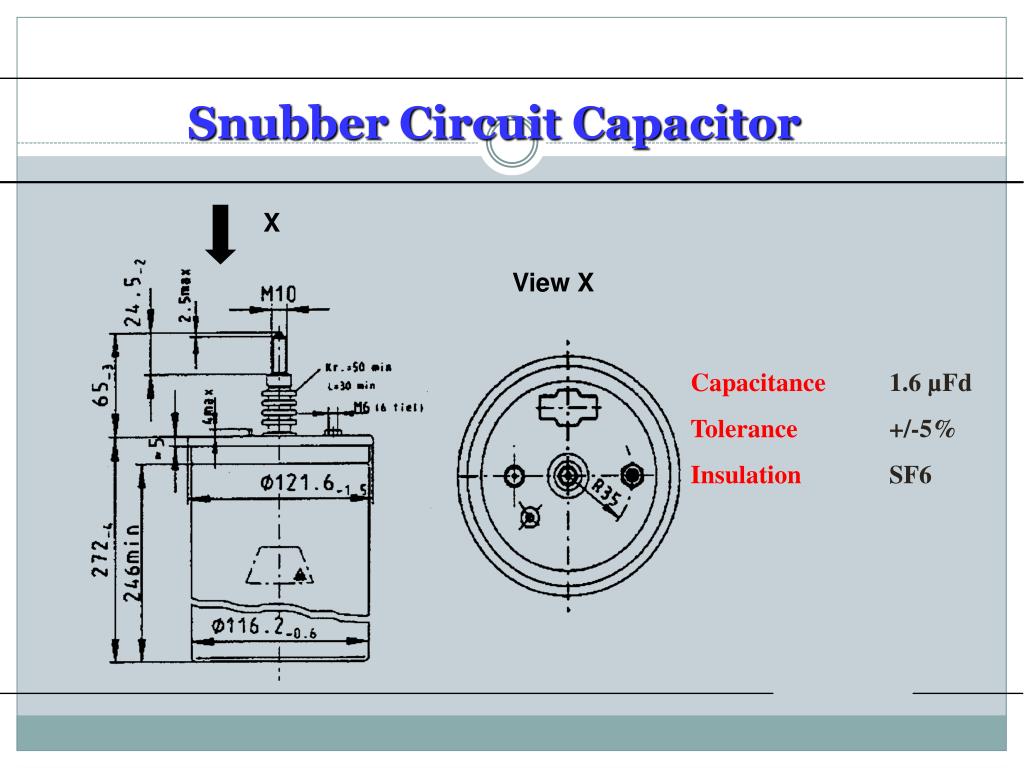

  49. Snubber Circuit Capacitor X View X Capacitance 1.6 µFd Tolerance +/-5% Insulation SF6

  50. DC Smoothing Reactors
