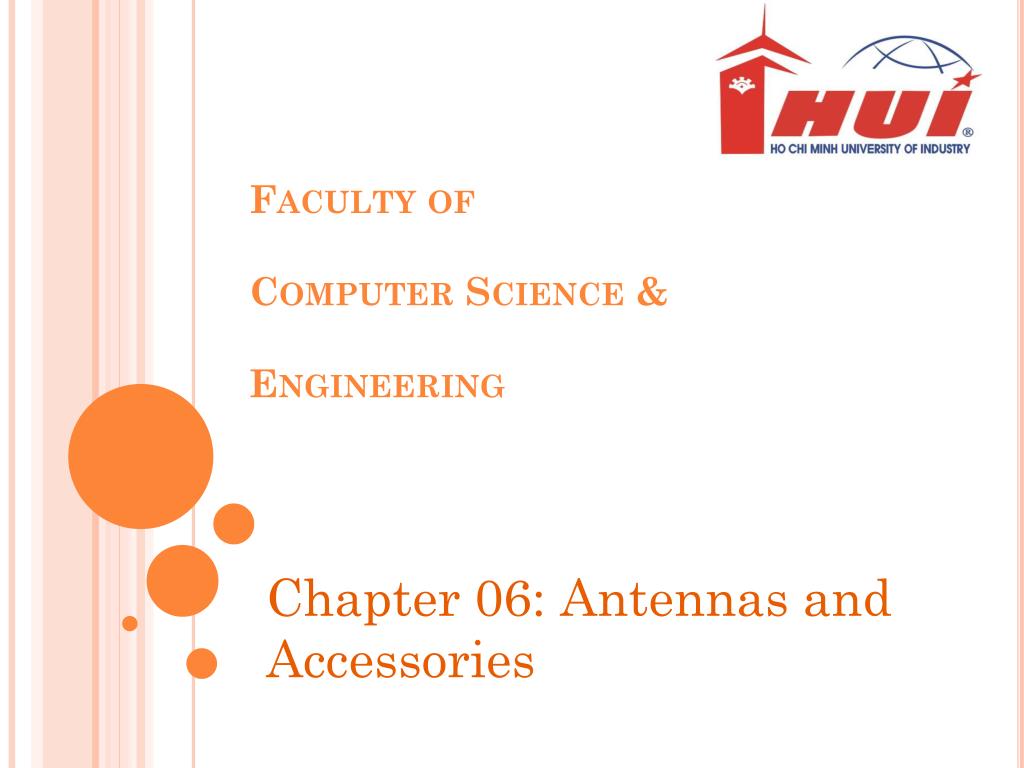

  1. Faculty ofComputer Science & Engineering Chapter 06: Antennas and Accessories

  2. Question 1 • 1. When purchasing RF connectors, which of the following should be considered when making your decision? Choose all that apply. • A. Impedance • B. Insertion loss • C. Gain • D. Maximum frequency allowed

  3. Question 2 • 2. You have been hired as a consultant to install a wireless LAN that will connect only two buildings that are 1.5 miles apart at 11 Mbps. Which one of the following antennas would you use? • A. Omni-directional • B. High-gain Dipole • C. High-gain Yagi • D. Parabolic dish

  4. Question 3 • 3. You have been hired as a consultant to install a wireless LAN that will connect two buildings that are 10 miles apart. In this particular area, wind gusts are a problem. Which one of the following antennas would you use? • A. High-gain Grid • B. High-gain Dipole • C. High-gain Yagi • D. Parabolic dish

  5. Question 4 • 4. The RF signal amplitude loss that occurs because of the natural broadening of the RF wave front is referred to as which one of the following? • A. Fresnel zone loss • B. Coverage area loss • C. Radiation pattern loss • D. Free space path loss

  6. Question 5 • 5. Which of the following are true about PoE devices from different manufacturers? Choose all that apply. • A. They always use the same unused pairs for sending current • B. They are guaranteed to interoperate with devices from other vendors • C. They use the same output voltage • D. They may cause damage to devices from other vendors

  7. Question 6 • 6. An antenna’s beamwidth refers to which one of the following? • A. The width of the RF signal beam that the antenna transmits • B. The width of the antenna main element • C. The width of the mounting beam on which the antenna is mounted • D. The width of the beam of the RF signal relative to the Earth's surface

  8. Question 7 • 7. Which of the following are names of semi-directional antenna types? Choose all that apply. • A. Yagi • B. Omni • C. Patch • D. Panel • E. Point-to-point

  9. Question 8 • 8. The coverage area of a Yagi antenna is ONLY in the direction that the antenna is pointing. This statement is: • A. Always true • B. Always false • C. Sometimes true, depending on the antenna manufacturer • D. Depends on how the antenna itself is installed

  10. Question 9 • 9. What is the unit of measurement for gain as related to an RF antenna? • A. Decibels • B. Watts • C. dBi • D. dBm • E. dB

  11. Question 10 • 10. Polarization is defined as which one of the following? • A. The direction of the RF antenna in relation to the north and south poles • B. The magnetic force behind the antenna element • C. The power sources of an antenna that cause the antenna to transmit signal in more than one direction • D. The physical orientation of the antenna in a horizontal or vertical position
