Presentation Transcript

  1. Course Topics

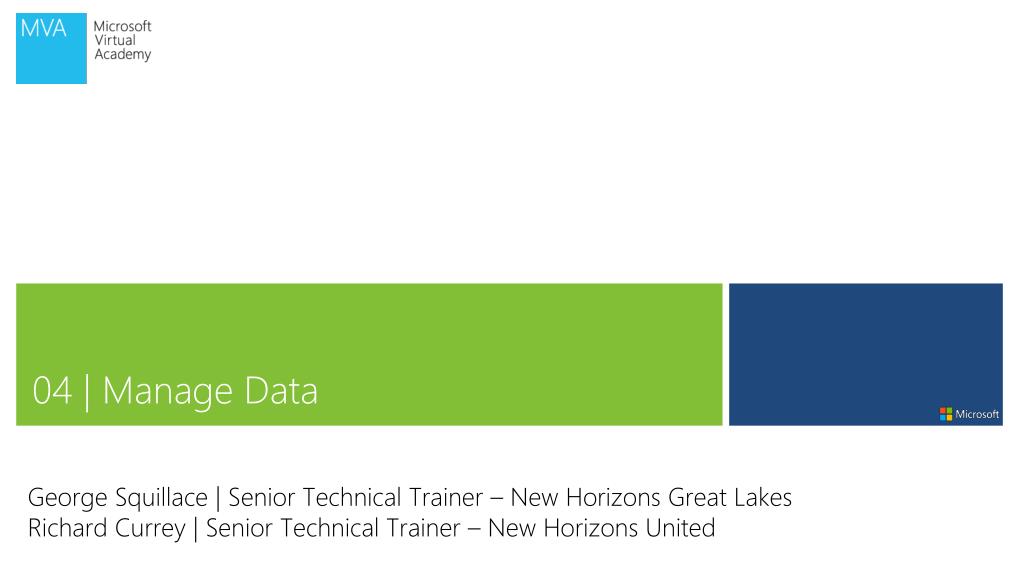

  2. 04 | Manage Data George Squillace | Senior Technical Trainer – New Horizons Great Lakes Richard Currey | Senior Technical Trainer – New Horizons United

  3. Module 4 Overview • Backups and Backup Strategies • Restores and Recovery • Move Databases and Database Files • Ensure Database Integrity • Indexes, Statistics, and Maintenance

  4. Topic: Backups and Backup Strategies

  5. Topic: Backups and Backup Strategies • User Database Recovery Models • Backup Statements and Typical Options • Backup Integrity Testing • System Database Backups

  6. User Database Recovery Models

  7. Backup Statements and Typical Options

  8. Backup Integrity Testing • RESTORE VERIFYONLY FROM device • RESTORE HEADERONLY FROM device • RESTORE FILELISTONLY FROM device • RESTORE LABELONLY FROM device

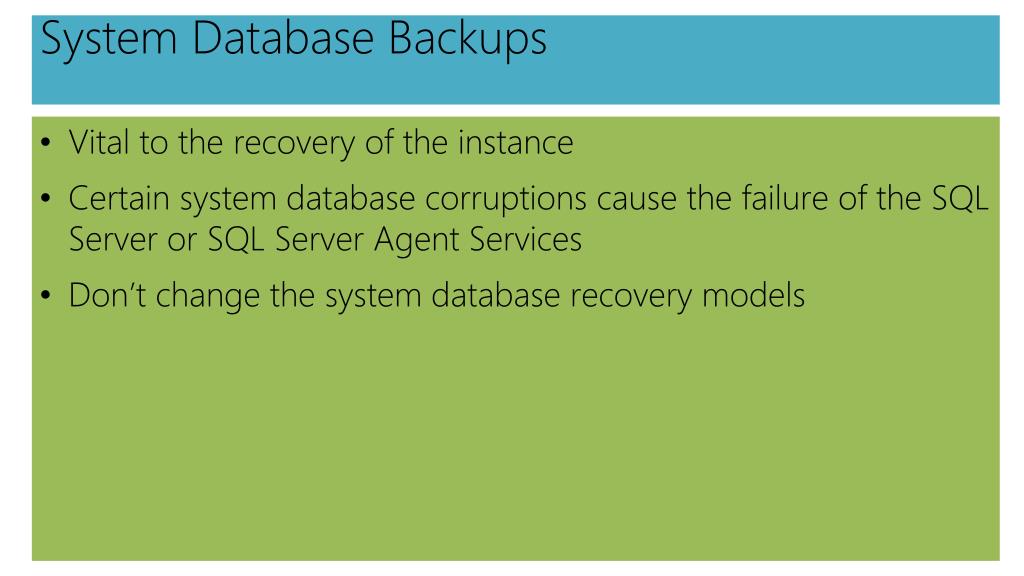

  9. System Database Backups • Vital to the recovery of the instance • Certain system database corruptions cause the failure of the SQL Server or SQL Server Agent Services • Don’t change the system database recovery models

  10. Executing BACKUP Statements and Testing Backup Integrity

  11. Topic: Restores and Recovery

  12. Topic: Restores and Recovery • Recovery Process and Phases • Types of Restores • Restore Statements and Typical Options • System Database Restores–Special Considerations

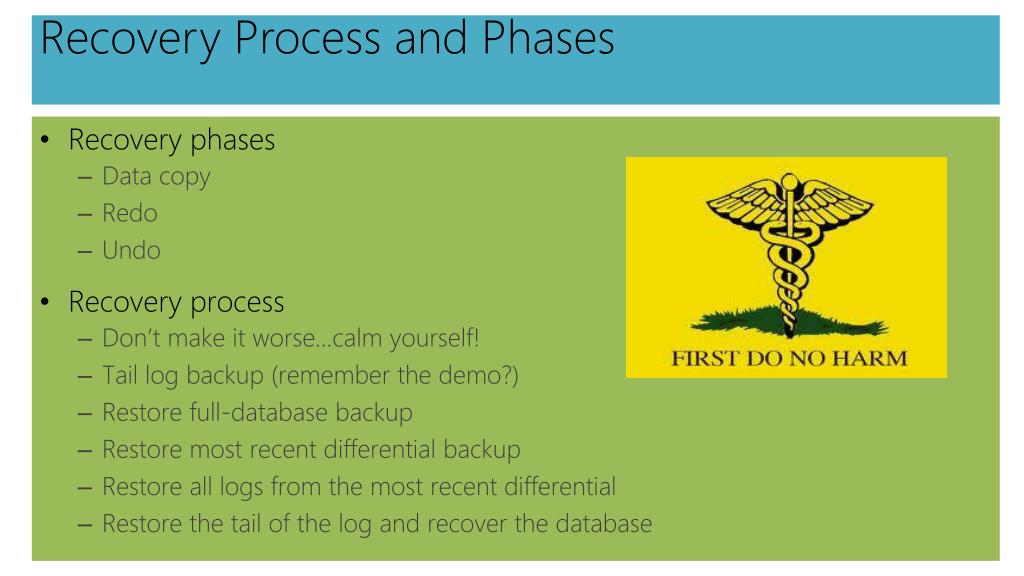

  13. Recovery Process and Phases • Recovery phases • Data copy • Redo • Undo • Recovery process • Don’t make it worse…calm yourself! • Tail log backup (remember the demo?) • Restore full-database backup • Restore most recent differential backup • Restore all logs from the most recent differential • Restore the tail of the log and recover the database

  14. Types of Restores • Complete database restore in simple recovery • Complete database restore in full recovery • System database restore • File restore • Online restore • Piecemeal restore • Page restore

  15. Restore Statements and Typical Options

  16. System Database Restores–Special Considerations • Recovering master when not corrupt • Recovering master when corrupt • Recovering model when corrupt • Recovering MSDB when corrupt • Recovering resource when corrupt • “Recovering” TempDB when corrupt

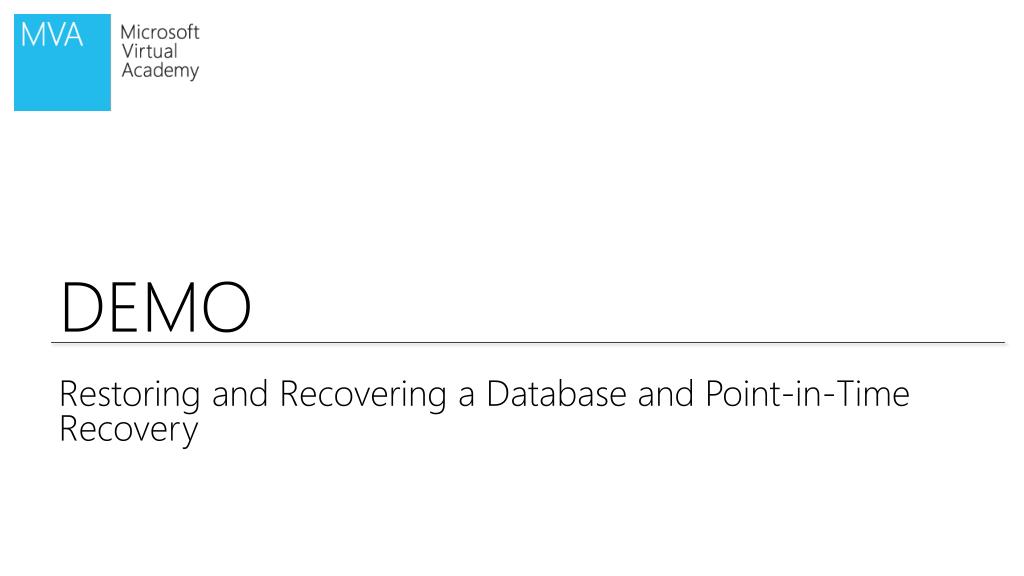

  17. Restoring and Recovering a Database and Point-in-Time Recovery

  18. Topic: Move Databases and Database Files

  19. Topic: Move Databases and Database Files • Moving and Copying Entire Databases to Other Instances • Relocate Database Files Within an Instance • System Databases Require Special Treatment

  20. Moving and Copying Databases to Other Instances • SSMS / sp_detach_db / SSIS • CREATE Database … FOR ATTACH (which now supercedes sp_attach_db) • Requires the use of logical filenames(use sys.database_files)

  21. Relocate Database Files Within an Instance • ALTER DATABASE • Requires the Use of Logical Filenames(use sys.database_files)

  22. System Databases Require Special Treatment • Moving master requires setting startup options in SQL Server Configuration Manager • Other system databases require the use of ALTER DATABASE and a SQL Server Service restart

  23. Moving a User Database

  24. Topic: Ensure Database Integrity

  25. Topic: Ensure Database Integrity • Overview of DBCC Statements • DBCC CHECKDB Execution Options • DBCC CHECKDB Repair Options

  26. Overview of DBCC Statements • Corruption is rare but possible • There are Many DBCC commands • Informational statements • DBCC OPENTRAN • Validation statements • DBCC CHECKDB • Maintenance statements • DBCC FREEPROCCACHE • Miscellaneous statements • DBCC TRACEON/TRACEOFF

  27. DBCC CHECKDB Execution Options • Purpose of DBCC CheckDB is to validate database integrity • When DBCC CheckDB executes, it also spawns: • DBCC CHECKALLOC • DBCC CHECKTABLE • DBCC CHECKCATALOG • PHYSICAL_ONLY • NOINDEX • EXTENDED_LOGICAL_CHECKS • TABLOCK • ALL_ERRORMSGS • NO_INFOMSGS • ESTIMATEONLY

  28. DBCC CHECKDB Repair Options • Back up the database before performing any DBCC repair • But if you have to repair… • The database must be in single user mode (ALTER DATABASE) • REPAIR_REBUILD • Causes no loss of data integrity within the database • Rebuilds indexes and deallocates corrupt pages • Does not involve data loss • Only works in certain circumstances • REPAIR_ALLOW_DATA_LOSS • Repair should absolutely be the last resort • Database damage is likely • If the database is in Emergency Repair mode (ALTER DATABASE) special repairs are attempted with this option • Make sure that the original cause of the corruption is resolved

  29. Using DBCC CheckDB

  30. Topic: Indexes, Statistics, and Maintenance

  31. Topic: Indexes, Statistics, and Maintenance • Table Structures • What Is An Index? • What Are Statistics? • Index Fragmentation • Indexand Statistics Maintenance

  32. Table Structures • Heap • Default table structure • No order of table pages (logically or physically) • No order of rows within a page • Clustered Table • Imposed when a clustered index is created • Potential result of creating a primary key constraint, a unique constraint or (unlikely) the CREATE CLUSTERED INDEX statement • Logical ordering of table pages • Physical ordering of rows within a page • Only one clustered index per table

  33. What Is an Index? • List of sorted values • May or may not impose uniqueness of values • Stored in pages outside of the table • Reading index pages on well-designed indexes is often more efficient in locating rows than reading the whole table (scan) • Clustered index vs. a non-clustered index • Created by using constraint creation or CREATE INDEX

  34. What Are Statistics? • Cardinality–number of members in a set • (Distribution) statistics objects sample data to help obtain cardinality estimates for tables and indexed views • Help determine an optimal execution plan • May aid in index selection and query processing • Join type (nested loop, hash) • Join order (table 1, table 2, or table 2, table 1) • Statistics are auto or manually created • May include a sampling of values or all values • Statistics become outdated as data changes

  35. Index Fragmentation • Fragmentation is internal and/or external • Internal • The inefficient use of space within database pages • External • Pages spread (non-contiguously) within a data file • Some amount of internal fragmentation may be desirable • Internal fragmentation can be controlled with the FILLFACTOR and PAD_INDEX options of the Create Index and Create Table statements • External fragmentation is never desirable • Fragmentation is determined by: • GUI • sys.dm_db_index_physical_stats (DMF) • Checks fragmentation database-wide, table-wide, for a specific index or a specific partition

  36. Index and Statistics Maintenance • Index maintenance • ALTER INDEX … REORGANIZE • ALTER INDEX … REBUILD • Enterprise Edition Index Maintenance features • ALTER INDEX … ALL • Statistics maintenance • Auto create and update options • AUTO_UPDATE_STATISTICS_ASYNC • Forceful update with sp_UpdateStats • Tools • Maintenance plans in SSIS • T-SQL agent jobs

  37. Determining Fragmentation and Performing Index Maintenance
