  1. Testing Applications on Windows VistaTM Edited By Michael Shaw

  2. Guidance for Application TestersBefore Testing • Ensure all tests pass on Windows XP • This helps to ensure only regression bugs are found • Test on XP as a non-Admin user • This will eliminate complexity if the application has issues with non-Admin accounts Bonus: Certified for Windows Vista Guidelines

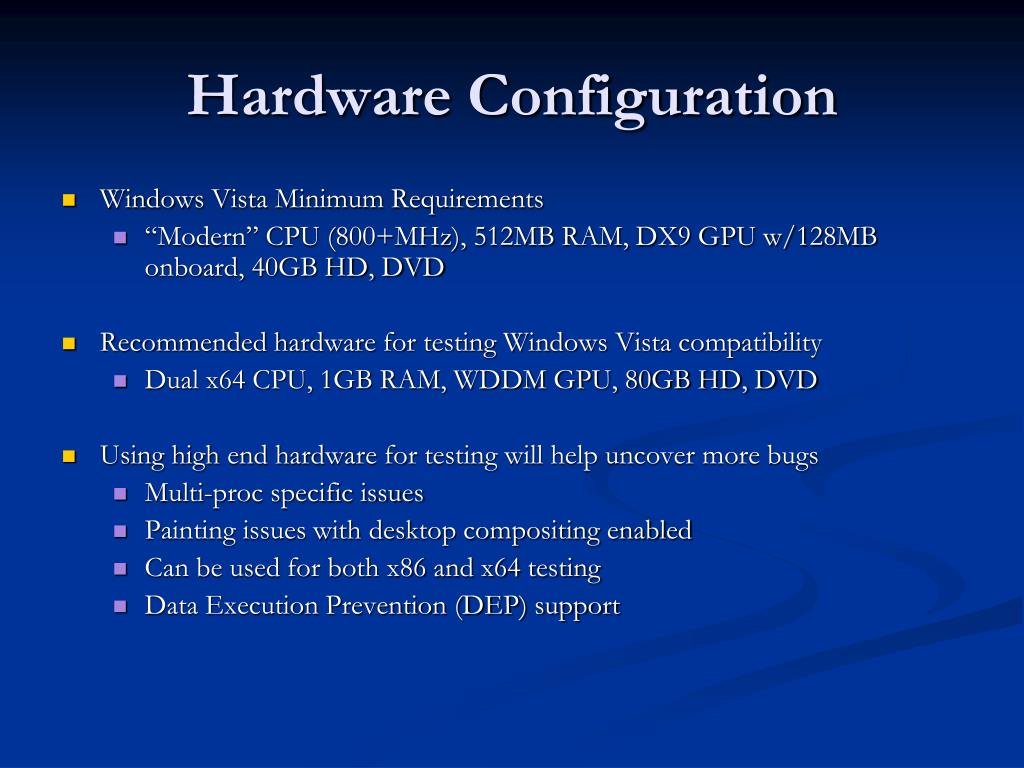

  3. Hardware Configuration • Windows Vista Minimum Requirements • “Modern” CPU (800+MHz), 512MB RAM, DX9 GPU w/128MB onboard, 40GB HD, DVD • Recommended hardware for testing Windows Vista compatibility • Dual x64 CPU, 1GB RAM, WDDM GPU, 80GB HD, DVD • Using high end hardware for testing will help uncover more bugs • Multi-proc specific issues • Painting issues with desktop compositing enabled • Can be used for both x86 and x64 testing • Data Execution Prevention (DEP) support

  4. OS Configuration • Leave all functions enabled • Search Indexer, UAC, System Restore, Sidebar, etc. • Create multiple users • 1x Administrator, 1x Non-Admin • Do not rely on built-in “Administrator” • Ensure WDDM video w/Glass is being used • Test both x86 and x64 - clean install • Test x86 upgrade from XP to Windows Vista • Install XP -> Install App -> Upgrade to Windows Vista -> Test App Bonus: Enable NX protection. Enable AppVerifier. Enable 120 DPI.

  5. Test Cases • Non-Admin Install/Update • Should prompt for administrative credentials • Shortcuts should appear for all users • Explorer thumbnail previews • Content previews in explorer windows • Rich preview handlers • Search indexing • Extend the indexer to include the contents of your data files • Property Handlers • Default Programs / File Extensions • Per user defaults

  6. Guidance for Application Testers • Test how your installation and update is done • Use MSI 3.1 for Install and Update • Alternate to MSI3.1 – call Update.exe marked as admin to do the update • Self Updating Code – DON’T DO IT • This is the LARGEST Application Compatibility problem with home consumer user applications • Use MSI 3.1 updating procedures for this functionality • Examples of what not to do: • Do not assume the user is an administrator • Run Custom Actions in right context

  7. Guidance for Application Testers (cont.) • Test where the application data is stored • The apps per user setup is performed at first run • Place per-user data into %LOCALAPPDATA% • Roaming into %APPDATA% • Place Per-Machine (Shared) data into %ALLUSERPROFILE% • Examples of what not to do: • Do not perform admin configuration at first run. • Do your admin operations during setup • Do not perform explicit Admin checks for Standard User applications

  8. User Account Controls (UAC) Guidance for Application Testers • Split-Token • By default, all users are running with a standard token • Admin accounts will fail when performing privileged operations even though they worked in the past • Credential/Consent UI • This UI is not automatable from a standard user process. There must be an elevated process or service to help drive the elevation UI.

  9. UAC Guidance for Application Testers • Process Isolation • Integrity level is assigned to each process • Lower integrity processes are blocked from writing to & reading from higher integrity processes • Lower integrity processes are blocked from sending Windows messages to higher integrity processes • See the app compat cookbook UAC is the default configuration for Windows Vista (and beyond)

  10. UAC Test Impact (cont.) • File and Registry Virtualization/Data Redirection • A list of protected system files, directories, registry locations when written to by a standard user will be virtualized to a per-user location. • Each standard user will have a virtualized view of the FS and Registry • Processes running elevated will not see virtualized FS & Registry • Changing system setting from standard user process may succeed due to virtualization, but it doesn’t affect the system

  11. UAC Test Guidance • Test under the default OS environment • Don’t turn UAC off • Move away from testing as the built-in administrator • Test application for UAC • Test component or application as standard user • Make sure all application functionalities are working • Pay attention to update and anything that is disabled due to admin check.

  12. UAC Testing Support (cont.) • UAC User Level Library • Identify the level of the user token • Allow easy query of well-known groups and privileges • Allow easy query and set of UAC policy • Allow easy test case selection & pass/failure determination • Available in native and managed code

  13. Common Issues • Dependencies on deprecated binaries/API’s • Kernel mode printer drivers, HLP files • Assuming administrative rights • Windows Resource Protection • Do not attempt to modify system binaries • Registry protection for system keys • Rendering / Painting / DPI scaling issues • Black areas when not painting the entire hwnd • Glass self-disable when a process attempts to paint outside it’s client area • Clipped Text

  14. Common Issues Cont. • Per user vs. per machine settings • Do not configure system settings on first launch • IE7+ Compatibility – Low Rights IE • Doing work in DLLMain • User Interface Privilege Isolation (UIPI) • Lower privilege processes cannot send messages to higher privileged processes • SendMessage will still return success • OS version checks

  15. x64 Specific Issues • No 16-Bit binary support • No 32-Bit kernel mode driver support • 64-Bit kernel mode drives must be signed • Side by side application install conflicts • Hardware architecture checks

  16. UAC FAQ • If I mark my app as “admin”, can I skip the elevation consent dialog? – No • Can you modify the privilege of a running application? - No • Will LUA elevate whenever a privileged API is used? – No, the entire process is either elevated or not • How long does the elevated process last? Can it time out? – Life of the process • Can I enable which users will use UAC? – Currently this is a per machine setting • Does UAC apply to all processes and services? – Interactive processes only • What areas of the Registry and File system get redirected? – HKLM\Software, %SystemRoot%, %ProgramFiles% • Won’t Redirection de-motivate developers to fix their code? – Yes, it is a short term mitigation, not in 64bit • What happens when installer detection fails? – The app runs as non-admin • Will UAC be going down-level? - No

  17. Standard User Analyzer (SUA) • Intended to predict whether an application would work correctly as a standard user. • Identifies API calls that would fail if attempted by a user • Identifies all access requiring elevated privileges • Example of Standard User Analyzer test pass: • Use SUA to launch your application as elevated • Test application • Analyze the log for API calls that will fail for standard user • http://www.microsoft.com/downloads/details.aspx?FamilyID=df59b474-c0b7-4422-8c70-b0d9d3d2f575&DisplayLang=en
