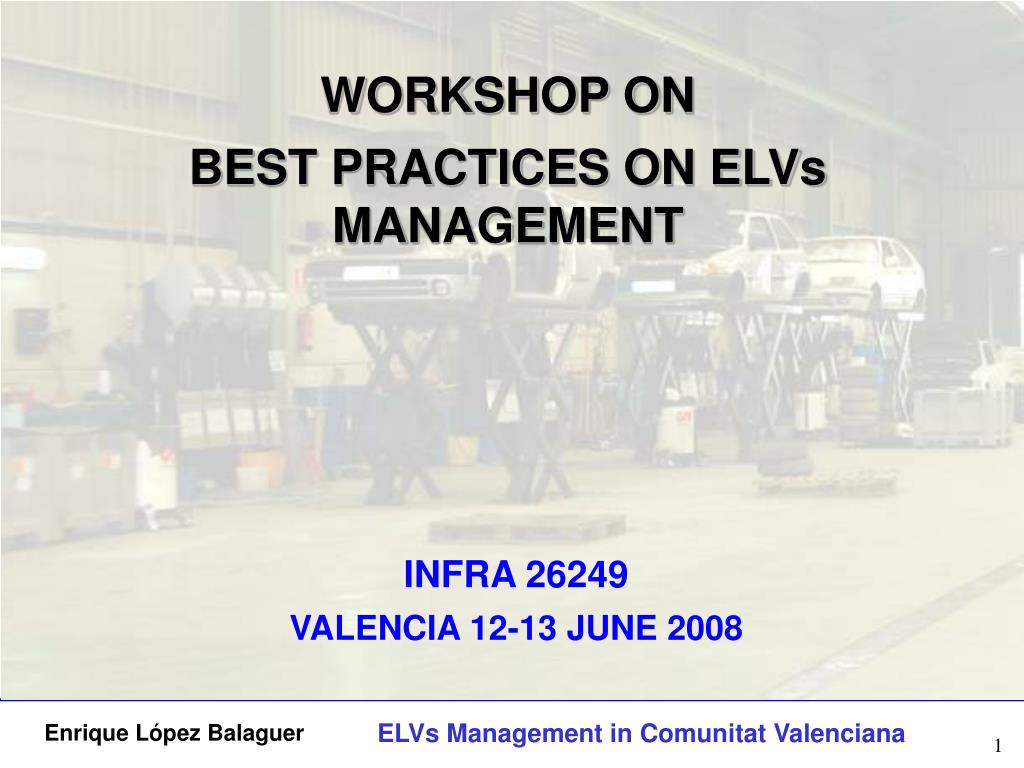

WORKSHOP ON BEST PRACTICES ON ELVs MANAGEMENT INFRA 26249 VALENCIA 12-13 JUNE 2008
End of Life Vehicles (ELVs) Management in Comunitat Valenciana • Introduction • Spanish Transposition of Directive 2000/53/EC • ELVs Management in Valencia Region
23.255 km2 (4,6% Spain) 4.885.029 inh(10,81% Spain)210,1 hab./km² 542 Municipalities
DG Zoning DG Housing and Urban Projects Environmental Inspectorate DG Landscape DG Water DG Natural Environment Management DG Climate Change REGIONAL MINISTRY OF ENVIRONMENT, WATER, URBANISM AND HOUSING Secretary General Environment, Water, Urbanism and Housing Undersecretary General (Administrative functions) Waste Area (IW & MW) Clean Technologies Center Environmental Quality Area
ROYAL DECREE 2002/1383, 20 DECEMBER, ON ELVS MANAGEMENT Transposition of Directive 2000/53/EC to ensure: ELVs are transfered to Authorised Treatment Facilities (ATFs) Suitable enviromnental management of vehicles and components Fulfilment of reuse and recovery targets IMPROVEMENT IN THE ENVIRONMENTAL PERFORMANCE OF ALL OF ECONOMIC OPERATORS Special relevance adquires CERTIFICATE OF DESTRUCTION
END-OF-LIFE VEHICLE Vehicle whichis waste acording to Directive 75/442/ECC In any case, vehicles are considered as waste from the moment they are transfered to ATF, which fills in CD, to be treated VEHICLE Any defined in Annex IIA of Directive 70/156/EEC Category M1 <= 8 seats + the driver's seat (carriage of passengers) Category N1max. mass < 3,5 ton (carriage of goods) and 3 wheel motor vehicles as def. in Directive 92/61/EEC but excluding motor tricycles
COLLECTION Economic operators set up systems for collection of all ELVs Adequate availability of collection facilities and ensure that all ELVs are transferred to authorised installations Producers assume costs of the implementation Delivery of the vehicle to an ATF without any cost for the last holder and/or owner as a result of the vehicle's having no or a negative market value not fully free of charge if does not contain the essential components
ATF < 30 days ELV Vehicle DEPOLLUTE Certificate of Destruction CERTIFICATE OF DESTRUCTION Accredits the end of life and its consideration as hazardous waste Minimum requirements set out in Commission Decision 2002/151/EC shall be issued to holder and/or owner when an ELV is transferred to ATF Its presentation is a condition for de-registration of vehicle
Aplication for de-registration Personal identity documents Vehicle’s specific documents Holder and/or owner Certificate of destruction Certify true copy of de-registration Same date as de-registration ATF ORDER INT/249/2004, 5 FEBRUARY, ON DE-REGISTRATION OF DEPOLLUTED ELVs Model of certificate of destruction and certificate ofrecepcion Modified by ORDER INT/624/2008, 26 FEBRUARY, ON ELECTRONIC DE-REGISTRATION OF DEPOLLUTED ELVS
Spanish Vehicles Treatment Installations Association Spanish Vehicles Importers Association Spanish Vehicles Manufacturers Association Spanish Recovery Federation ECONOMIC OPERATORS shall ensure the system for the collection with provisions set out: • Directly • Agreement competent authorities - economic sectors In Spain producers have guaranteed these provisions directlyby means of SIGRAUTO
COMUNITAT VALENCIANA • Collection of all (more than 97%) ELVs and transferred to ATFs • Suitable treatment of ELVs • Improvement of professionalism of sector • Erradication of non-authorised facilities
Authorized Treatment Facilities (ATF) Hazardous waste managment permits (16 01 04* end-of-life vehicles) Reception, temporarily storage, depolluting and stripping of ELVs Authorized Shredder Facilities Non hazardous waste managment permits (16 01 06 end-of-life vehicles, containing neither liquids nor other hazardous components) Shredder depolluted ELVs PERMITS D.G. For Climate Change is the one to entitle to authorize ELVs management activities
ATF AUTHORISATION REQUIREMENTS Sites for storage (also temporarily) Technical Requirements Impermeable surfaces for appropriate areas Spillage collection facilities Decanters and cleanser-degreasers Equipment for the treatment of water (inc. rainwater)
Sites for Storage Technical Requirements Concretebase José Jareño, S.A. Spillage & Rain Water Collector Reception Area
Sites for Storage Technical Requirements Desguace Europa 2000, S.L. Decanter and cleanser-degreaser
Dismantled spare parts Batteries, filters and PCB/PCT ELV fluids Used tyres Sites for Treatment Technical Requirements Roof and Impermeable surfaces for appropriate areas Spillage collection facilities that ensure tightness Appropriate storage for
Sites for Treatment Technical Requirements Roof José Jareño, S.A. Concretebase Spillage Collector Treatment Area
Treatment Requirements for Depollution Removal of Batteries and liquified gas tanks Potential explosive components Fuel, motor, transmission, gearbox and hydraulic oil, cooling liquids, antifreeze, brake fluids, air-conditioning system fluids and any other, unless they are necessary for re-use Components identified as containing mercury
Treatment Requirements to Promote Recycling Removal of Catalysts Glass Metal components containing Cu, Al, Mg Tyres and large plastic components (bumpers, dashboard, fluid containers...) if not segregated in shredding process Ensure Fulfilment of Reuse and Recovery Targets
ADMINISTRATIVE REQUIREMENTS General Documents Acceptance documents from ATC for the hazardous waste streams Manager with a university degree Environmental insurance of 600.000 € Financial Guarantee
(€) RZS: ELVs reception zone surface (m2) Calculation of Financial Guarantee Total (€) = A + B A = 6 x TC + 6.000 (€) TC: Treatment capacity (ELVs/year) (9.000 to 60.000 €)
Content of ATF authorisation Treatment Capacity (ELVs/year) max. 1 ELV/year per each m2 Validity of the authorisation 5 years + 2 extensions of 5 years Used Tyres Storage According D. 2003/2 and RD. 2005/619 Treatment operations Ensure appropiate degree of depollution and Targets Documentary Register and Yearly Report nº and type of vehicle and % reuse, recycled and recovery
AUTHORISED TREATMENT FACILITIES IN CV Enough capacityto ensure the treatment for the estimated ELVs generation even forvehicles excludedof the Directive (industrial vehicles, buses, motorbikes...)
Vehicle’s data Holder’s and/or Owner’s data Reception installation’s data ATF’s data CERTIFICATE OF DESTRUCTION
Thank you very much for your kind attention. lopez_enrbal@gva.es A. Pardo. Hoces del Cabriel Natural Park
