FESA: A Framework for Enterprise Steganalysis and Detection Mechanisms

1. FESA(Framework for Enterprise StegAnalysis) Charles D. George, Jr. Masters Project Fall Semester 2012

2. Background • Steganography – art of hiding messages such that only the sender and recipient are aware • Steganalysis – art of detecting messages hidden with steganography • The relationship between steganography and steganalysis is similar to that of cryptography and cryptanalysis.

3. Steganography • Digital steganography (1985) • Media files images, audio, video, ect • Images are the most popular • JPEG • TIFF • PNG • GIF • BMP • Thousands of tools exist

4. Steganalysis • Statistical analysis • Spectrum • Inconsistencies with compression • Signatures • Specific bit patterns • Identifiable header information, ect • Most tools are one-off and try to detect specific algorithms • Cat and mouse game as new steg algorithms emerge

5. FESA • Utilize existing research on steganography detection • Modular, extensible, robust • Plugin framework for steganography detection algorithms • Suitable for an Enterprise • Scalable

6. Enterprise Technologies • Enterprise JavaBeans (EJBs) • JavaServer Faces (JSF) • Java DB (Derby) • RESTful WS (JAX-RS) • CDI (Web Beans) • Java Persistence (JPA) • Java Web Start (JavaWS)

7. Design

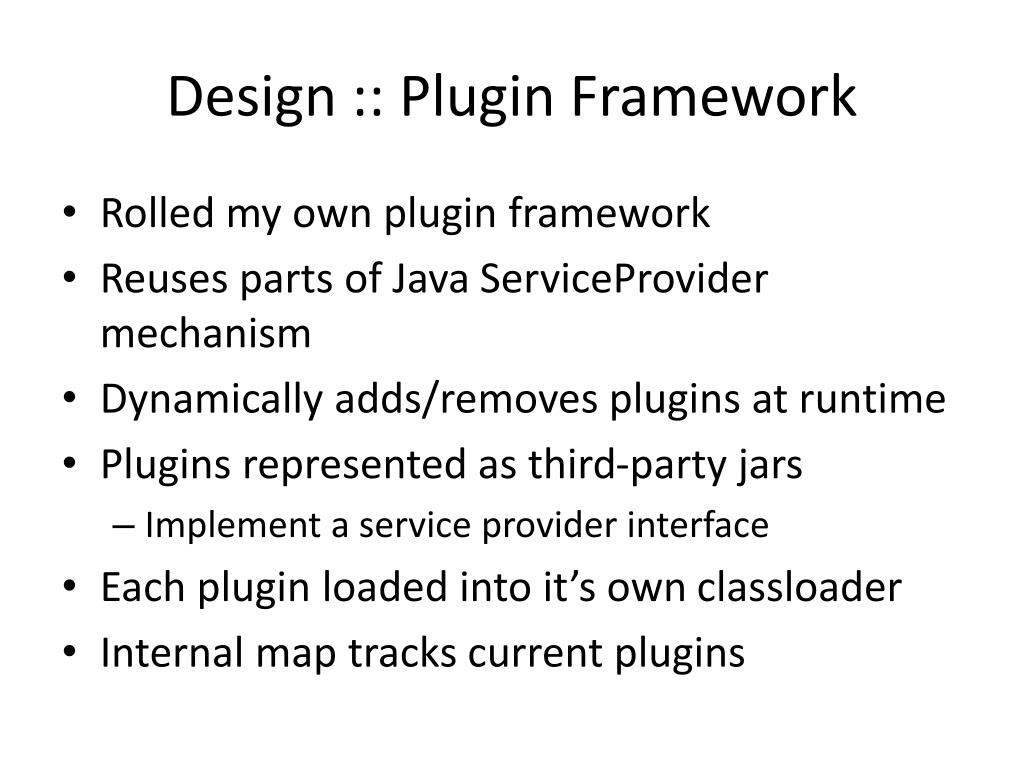

8. Design :: Plugin Framework • Rolled my own plugin framework • Reuses parts of Java ServiceProvider mechanism • Dynamically adds/removes plugins at runtime • Plugins represented as third-party jars • Implement a service provider interface • Each plugin loaded into it’s own classloader • Internal map tracks current plugins

9. Design :: Business Logic • Encapsulates all the functionality of the system • Plugin management • Invoking plugins for steganography detection • Database communication • Security

10. Design :: PluginsBean • Singleton JavaBean (One instance) • There should only be one view of the plugins • Loads plugins from plugins directory • Listens on that directory for files being created/deleted • Manages adding, removing, and querying plugins • Processes a PluginRequest and responds with a PluginResponse. • Has defined roles “PluginAdmin” • Only users of this group can modify plugins

11. PluginBean :: PluginRequest

12. PluginBean :: PluginResponse

13. PluginBean :: Security • PluginBean is annotated with @DeclaredRoles and @RolesAllowed • Security enforced by GlassFish • Users are created and placed in groups • Groups are mapped to roles • Only users in group “PluginAdmin” have access to modify plugins

14. Design :: DetectionBean • Stateless bean • New instance per request (detection request) • Automatically thread for performance ect • Computes mime type and hash • Database interaction for previous results • Invokes all plugins that match the file’s mime type • Processes DetectionRequest and responds with a DetectionResponse

15. DetectionBean :: DetectionRequest

16. DetectionBean :: DetectionResponse

17. Design :: REST Web Services • Two web service methods are available • Handle plugin and detection requests • Produce/Consume XML • Use contexts and dependency inject to call a bean to process the request (Plugin/Detection) • @EJB annotation is used for CDI • XML requests/responses are automaticalled converted into objects with JAXB • Java classes (POJOs) are annotated with JAXB annotations • These objects are passed to the beans

18. Design :: Database • Used to store results of files that have been processed • Efficient since duplicate files don’t need to be reprocessed • Dirty flag is enabled when plugins change which will require reprocessing • DetectionResponse class is annotated as an Entity that maps to the database schema • Allows for injection of persistence context and easily persist/retrieve results

19. Database :: Detection Response

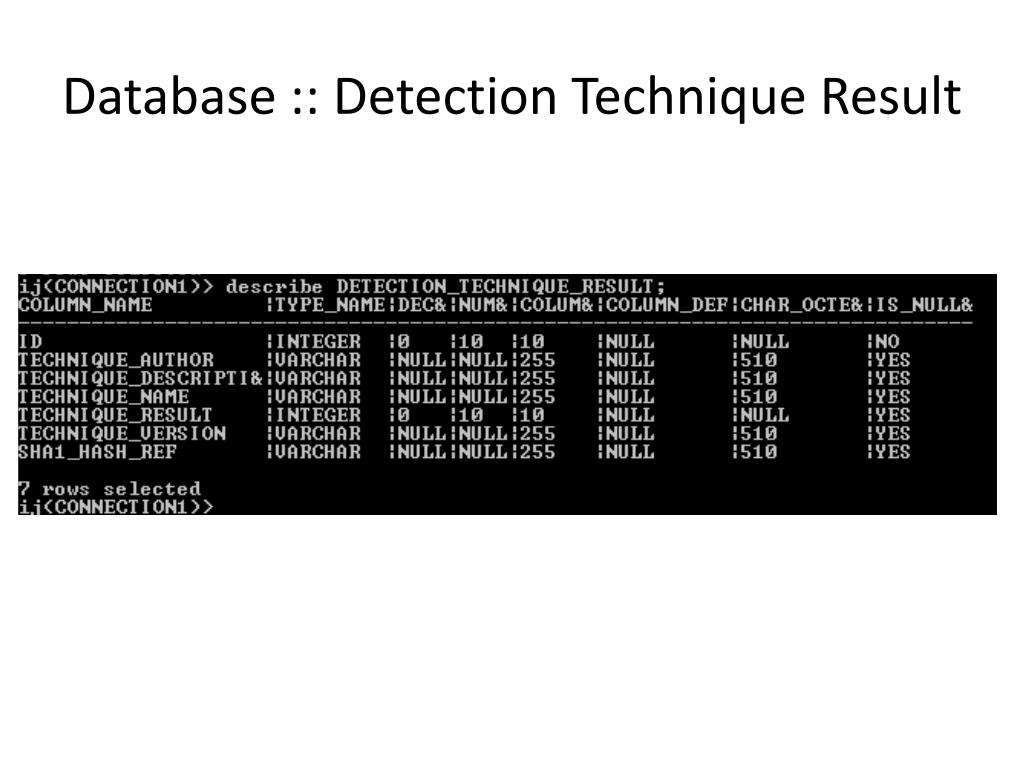

20. Database :: Detection Technique Result

21. Code Walk Through

22. Demonstration

23. Questions?
