Multiple 3D layers in one Photoshop document

Multiple 3D layers in one Photoshop document. Photoshop document with one 3D layer. A Photoshop document with one 3D layer. Duplicating the original 3D layer. Duplicating the original 3D layer. Duplicating the original 3D layer. Let's accept the name suggested for the new layer.

bree-gilbert
Télécharger la présentation

Multiple 3D layers in one Photoshop document

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Multiple 3D layers in one Photoshop document

  2. Photoshop document with one 3D layer • A Photoshop document with one 3D layer

  3. Duplicating the original 3D layer • Duplicating the original 3D layer

  4. Duplicating the original 3D layer • Let's accept the name suggested for the new layer

  5. A document with two 3D layers • Now the layers panel shows we have two layers • although we can see only one cone in the document • this is because both layers are identical

  6. Some key parts of a 3D layer • Each 3D layer has many different parts • For now, however, it is important to note that every 3D layer has its own • 3D object • or, as we will see later, a set of 3D objects • camera • ground plane

  7. A document with two 3D layers • Turn on the 3D panel

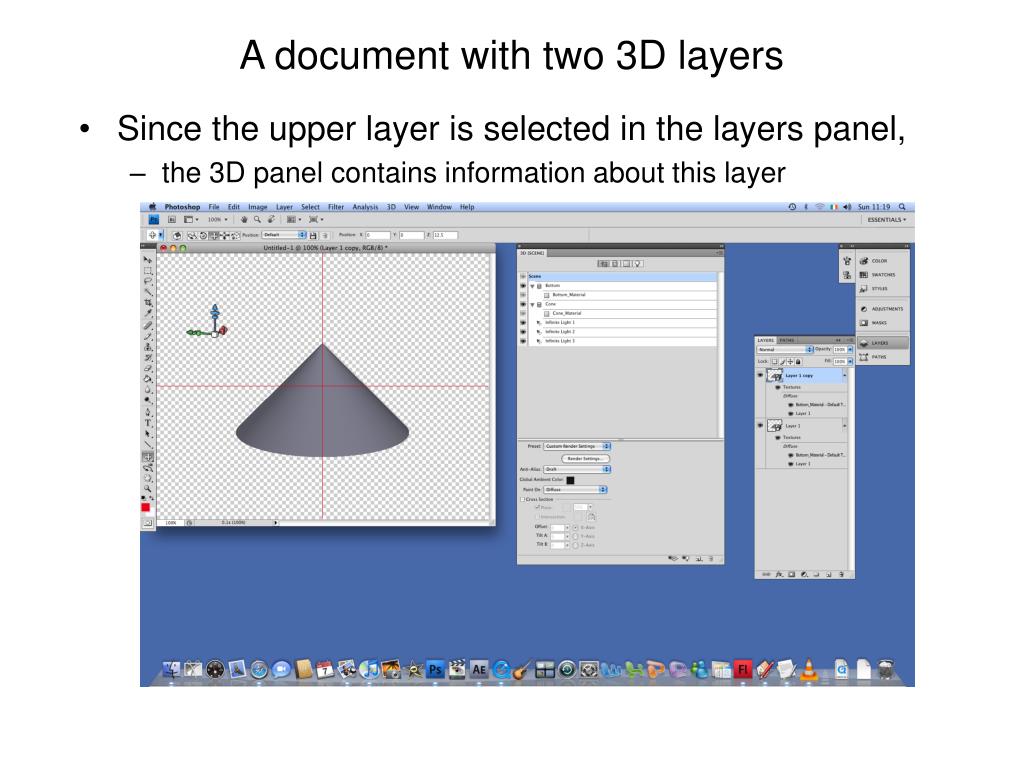

  8. A document with two 3D layers • Since the upper layer is selected in the layers panel, • the 3D panel contains information about this layer

  9. A document with two 3D layers • Click on the ground plane toggle in the 3D panel to ...

  10. A document with two 3D layers • ... to turn on the ground plane for the upper layer

  11. A document with two 3D layers • In the layers panel, select the lower layer • In the 3D panel, toggle the ground plane switch for the lower layer to ...

  12. A document with two 3D layers • ... turn on the ground plane for the lower layer • Both ground planes are now turned on • But we can see only one ground plane in the Photoshop document because the two layers are identical

  13. Let's see what happens when ... • Let's see what happens when • in a document with more than one 3D layer • we move the camera for one layer

  14. Moving one camera in a document with two 3D layers • Select the camera tool set • Since the lower layer is selected, the camera tools will manipulate the camera for the lower layer

  15. Moving one camera in a document with two 3D layers • When we alter the camera for the lower layer • we see both ground planes

  16. Moving one camera in a document with two 3D layers • The Photoshop document shows the images seen in both cameras • Each camera is looking at its own cone and its own ground plane • Both ground planes are in the same place in XYZ space • Both cones are still in the same place in XYZ space • because we have not moved either 3D object • But two cameras see different images • because we have moved one camera and not the other

  17. Moving one camera in a document with two 3D layers • If we turned off both ground planes, • the contents of the Photoshop document would make it appear that one cone has moved • But neither cone has moved

  18. Moving one camera in a document with two 3D layers • The situation is exactly the same as if, • instead of having two cones • we had just one cone • and photographed it with two cameras • from two different angles • and then superimposed both photographs

  19. Exercise • Tackle Exercise 20
